appreciate the info.
Sponsored



paval3

Well-Known Member
First Name
Val
Joined
Apr 30, 2021
Threads
31
Messages
625
Reaction score
1,314
Location
Pennsylvania
Vehicle(s)
2021 Ranger XLT Crewcab & 2003 Mountaineer Premier

AdamHarris

Well-Known Member
First Name
Adam
Joined
Feb 26, 2021
Threads
32
Messages
1,740
Reaction score
4,900
Location
Blue Oval City, TN
Vehicle(s)
2020 Ford Ranger XLT FX4 Black Supercrew
Occupation
Collision Repair Instructor
Vehicle Showcase
1
They list the ELM327 as one that works, but it didn't read all the modules on my 2021 XLT 4x4. Sending it back. Now ordered:
OBDLink EX FORScan OBD Adapter
Your must have received one of the "bad clone" ELM327s they refer to.

"Important note 2" discusses ELM327 and says its only partially functional.


paval3

Well-Known Member
First Name
Val
Joined
Apr 30, 2021
Threads
31
Messages
625
Reaction score
1,314
Location
Pennsylvania
Vehicle(s)
2021 Ranger XLT Crewcab & 2003 Mountaineer Premier
Your must have received one of the "bad clone" ELM327s they refer to.

"Important note 2" discusses ELM327 and says its only partially functional.
Yea, ELM327 worked, but only partially.


Dgc333

Well-Known Member
First Name
Dave
Joined
Aug 24, 2021
Threads
13
Messages
1,560
Reaction score
3,507
Location
Massachusetts
Vehicle(s)
21 Ranger Lariat
Occupation
Engineer
Anyone notice a difference in the Hex code for disabling the IPC Welcome Screen affecting anything when using either a 4 or 6 in the hex code?

Forscan now has the ability to change this with Enable/Disable option menu, however instead of xxxX xxxx 4 (Disabled) it has a 6 (Disabled) in its place when you view the Hex line 720-03-02 after Disable.

Does the 4 disable the "Blue Sky Background" and the the block animation on start up and shut down?

I can confirm that with the Enable/Disable menu the "Blue Sky" and block animation are removed on start up and shut down.


From RCMUSTANG Disable IPC Welcome Screen

": 720-03-02 (2013+ MY) xxxX xxxx 4 (Disabled)
Note: No Blue Sky Background on IPC when getting into vehicle"


Menu option in FORSCAN: uses 6 as a value in the hex code

Blue cloud.jpg
I see in the screen shot above an option to enable/disable the turbo boost gauge. Does that work with the Lariat dash?



Gizmokid2005

Well-Known Member
Joined
Dec 1, 2019
Threads
12
Messages
1,240
Reaction score
1,748
Location
GA
Website
gizmokid2005.com
Vehicle(s)
2019 Ford Ranger XLT 4X4 SCrew
Occupation
SQL Developer
Vehicle Showcase
1
I see in the screen shot above an option to enable/disable the turbo boost gauge. Does that work with the Lariat dash?
It doesn't work on the Ranger at all.


ScrappyLaptop

Well-Known Member
First Name
Scrappy
Joined
Aug 2, 2020
Threads
7
Messages
242
Reaction score
545
Location
SF Bay Area
Vehicle(s)
2020 Ranger XLT SuperCrew 2x4
Occupation
IT
Yea, ELM327 worked, but only partially.
The sad thing is real ELM327's are good; the bad clones are terrible. And since it can be difficult to tell which is which, the real one shares the bad reputation. Something similar happened with RS232 to TLL chips some years back and the reputation of the name brand once-standard was trashed.


Silverback

Active Member
First Name
Jake
Joined
Apr 4, 2021
Threads
5
Messages
38
Reaction score
117
Location
Los Angles
Vehicle(s)
Ford Ranger XLT
Vehicle Showcase
1
I have done exactly that on my XLT. I certainly get the 4 terrain modes after buying the TM button assembly and coding it with forscan.
I’ll probably be doing this soon then, I just hope i don’t run into any problems pairing it to the FFP tune.


HarryManback

Well-Known Member
Joined
Jul 24, 2021
Threads
0
Messages
160
Reaction score
404
Location
New England
Vehicle(s)
2021 Ranger XLT Tremor
Occupation
Electrical Engineer
I really appreciate this community. I was able to borrow a computer today and do round 2 of forscan mods (first round was eliminating the enhanced engine sound). I enabled bambi mode, customized my DRLs so that my grill lights are always on and swapped the low beams for the fog lights, changed the power outlet timeout to the max, bled my ABS (side note: wow!), and changed my splash screen.

I'm mildly obsessed with customizing my vehicles to make them more functional, and I feel like this community has really enabled me to unlock the potential of my FFR.


Jamesb

Well-Known Member
First Name
James
Joined
Sep 3, 2020
Threads
1
Messages
126
Reaction score
292
Location
Vancouver, Canada
Vehicle(s)
2020 Ford Ranger Lariat, 501A, Build Date 12/19
Occupation
Engineering
Suspect the European vs US signs is a module firmware thing between MY2019 and MY2020. You made the same changes I did in Forscan.
I enabled Traffic Recognition this w/e and have NA signs. Mines a 2020... (Canada) Sign Flashes when you go over the "overage set point"

I haven't tried with Google Maps attached running Android Auto yet tho...



kieefer

Well-Known Member
First Name
keith
Joined
Dec 26, 2017
Threads
18
Messages
992
Reaction score
1,858
Location
Tennessee
Vehicle(s)
2019 2WD SuperCab - 97 BMW M3
Occupation
Retired
Just ordered my ELM 327 adapter and getting ready to dive into FORScan.

I believe I read somewhere in this forum that adaptive cruise was possible through FORScan, a quick search only found one post in this thread.

Is this possible??

Also, there's plenty of YouTube vids out there to help noobs like me.


halligan1201

Well-Known Member
First Name
John
Joined
Jan 23, 2021
Threads
37
Messages
1,567
Reaction score
3,557
Location
Byron, IL
Vehicle(s)
2020 Ranger
Occupation
Emergency Management
Vehicle Showcase
1
Just ordered my ELM 327 adapter and getting ready to dive into FORScan.

I believe I read somewhere in this forum that adaptive cruise was possible through FORScan, a quick search only found one post in this thread.

Is this possible??

Also, there's plenty of YouTube vids out there to help noobs like me.
You'll still need the actual sensor for it to work.


micl9

Well-Known Member
First Name
Mike
Joined
Dec 21, 2019
Threads
30
Messages
1,332
Reaction score
1,847
Location
Apex, NC
Vehicle(s)
2019 Ranger XLT Fx4 302A
Vehicle Showcase
1

kieefer

Well-Known Member
First Name
keith
Joined
Dec 26, 2017
Threads
18
Messages
992
Reaction score
1,858
Location
Tennessee
Vehicle(s)
2019 2WD SuperCab - 97 BMW M3
Occupation
Retired

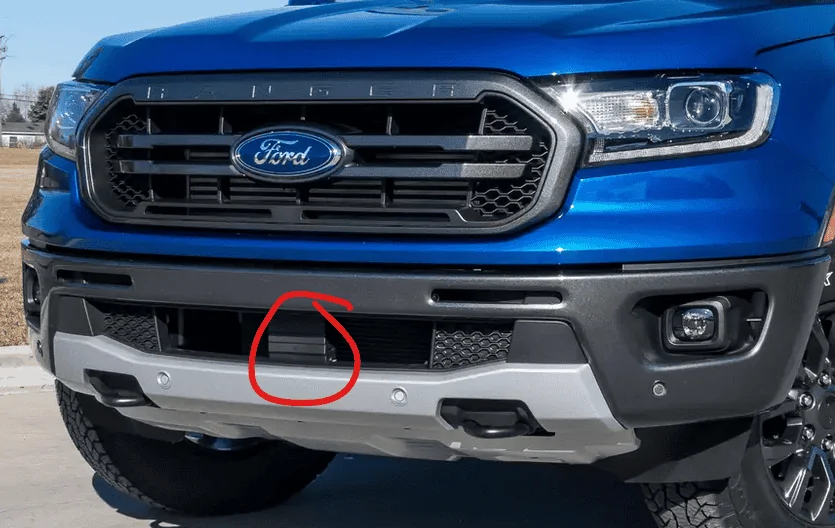

On the Lariat I’ve got the lane sensing camera but not a sensor in the middle below the grill like your picture.
I suppose that could be added and the wiring is around there somewhere.
Correct
THIS - if you have you already have it!


micl9

Well-Known Member
First Name
Mike
Joined
Dec 21, 2019
Threads
30
Messages
1,332
Reaction score
1,847
Location
Apex, NC
Vehicle(s)
2019 Ranger XLT Fx4 302A
Vehicle Showcase
1
On the Lariat I’ve got the lane sensing camera but not a sensor in the middle below the grill like in your picture.
I suppose that could be added and the wiring is around there somewhere.
I have same, no adaptive cruise. Its been discussed on here, not sure if its possible to add. Seems I recall the answer was no, but maybe someone has taken another look.
