Anybody planning to lower their 2019 Ranger?

[MyLittleRanger19]

got the same reply as last time:

"To our trusted partners and valued customers,

Thank you for reaching out to KW automotive. These are unusual times, and we hope that everyone you hold near and dear is healthy and that they stay that way.

As we react to the current public safety realities with the COVID-19 virus, we are making decisions to keep our employees, their families, and our community safe.

We are currently remaining open and operational in our Clovis, CA facility to process your orders and are working according to health organization recommendations.

Our customer care and technical support teams will be working split shifts or remotely, so there is limited availability during normal business hours. We ask for you patience during the unprecedented times. Please know that we are responding to every request we receive in this inbox, but the response times will be delayed.

We thank you for your patience while we adapt to shifting circumstances.

take care, and stay safe.

Team KW automotive"

hope to get a real reply this time...

Sponsored



[Doc]

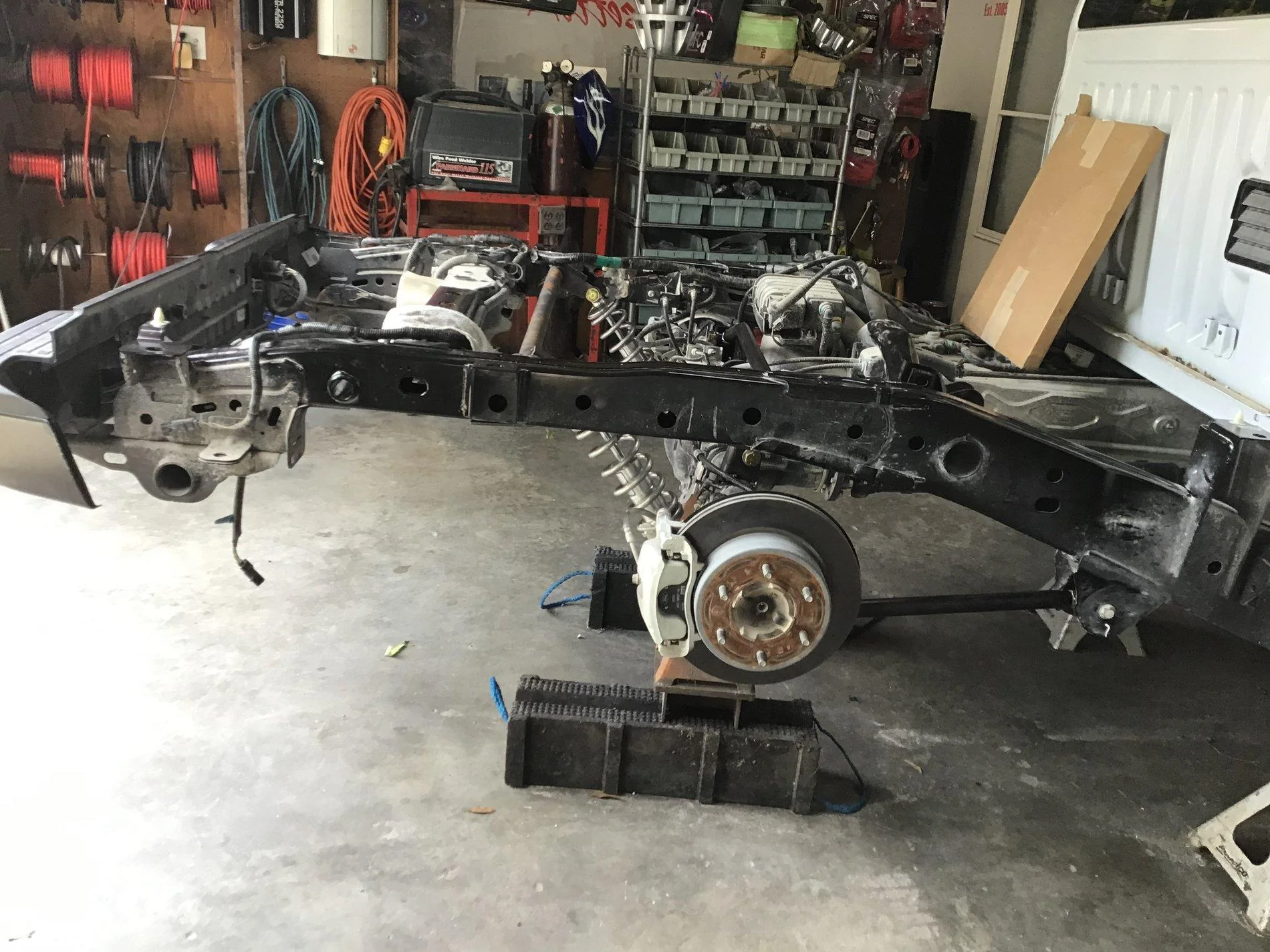

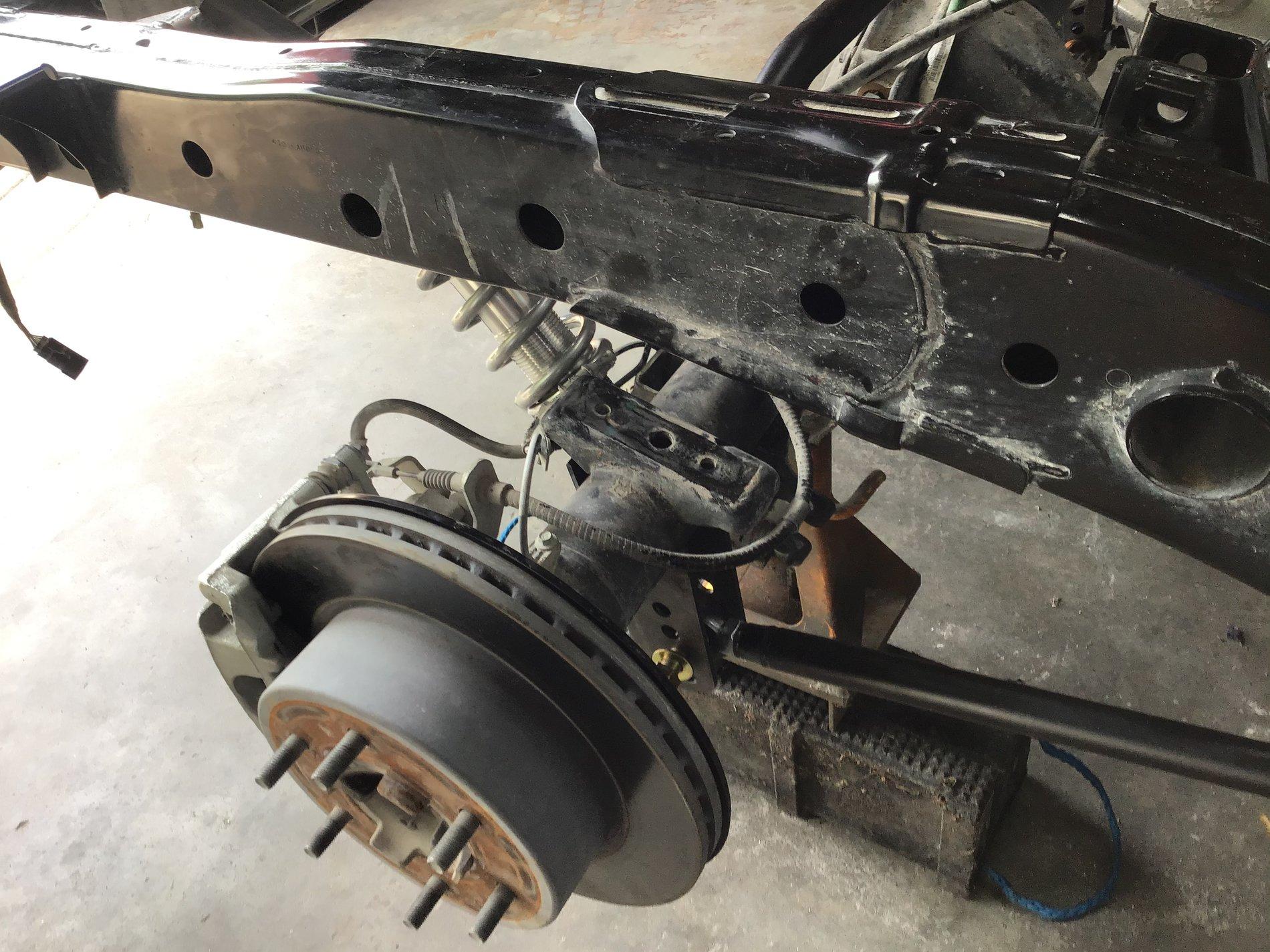

Progress ...



[Kevin Franklin]

Progress ...

Thanks for sharing!



[Cape Cruiser]

Looks Great Doc !



[Duke]

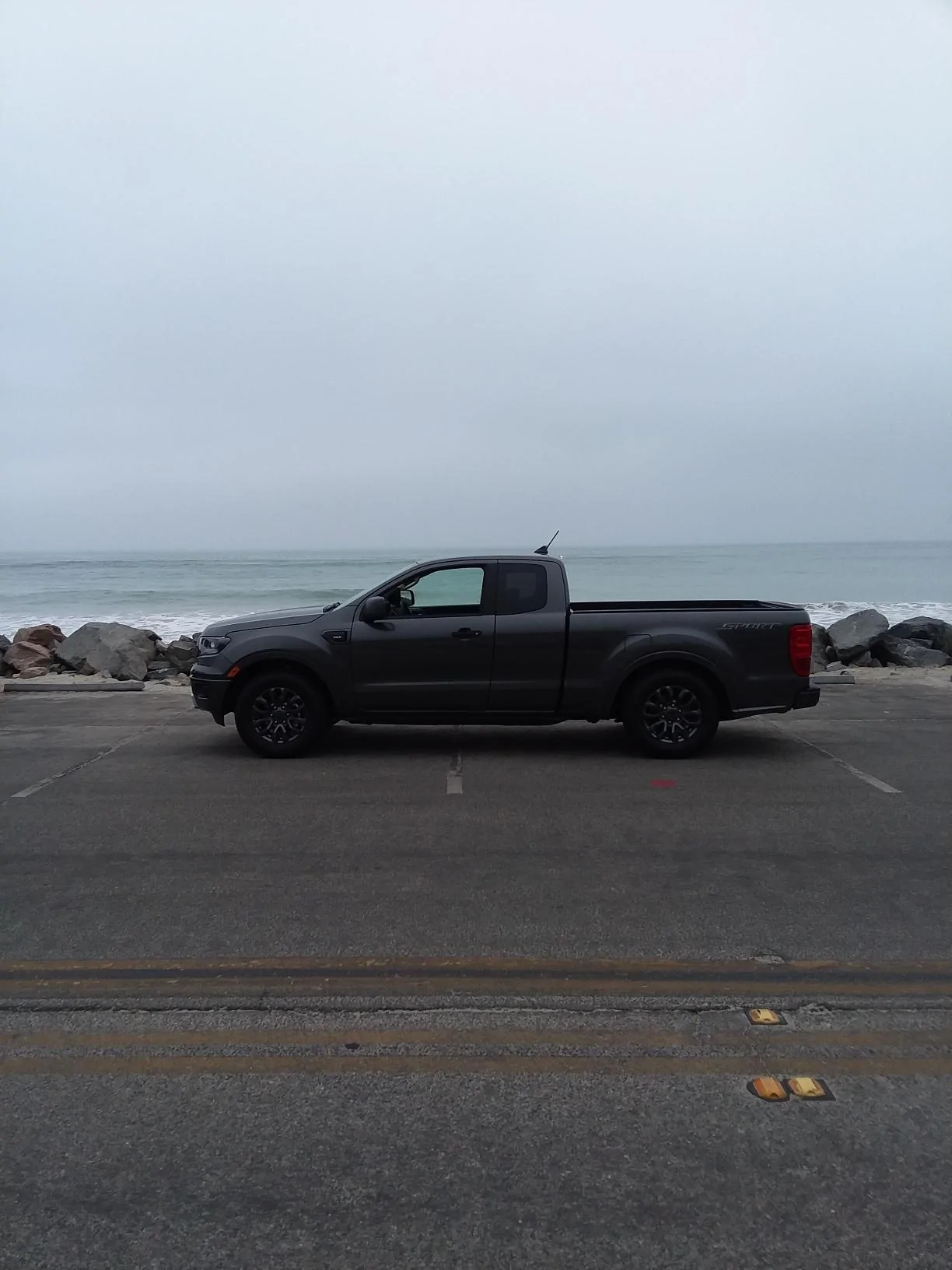

Ok, Just a quick update. I lowered the front a little more, and re drilled my flip brackets to restore the 126.8" wheelbase. Done for now



[SOHK_Alumni]

Ok, Just a quick update. I lowered the front a little more, and re drilled my flip brackets to restore the 126.8" wheelbase. Done for now

Fantastic!!



[Doc]

Ok, Just a quick update. I lowered the front a little more, and re drilled my flip brackets to restore the 126.8" wheelbase. Done for now

Good Job !



[Cape Cruiser]

I like it!!!!!!!!



[AlanBowers86]

Agree with the above, looks great!! I’m not a good fabricator but am hopeful that kits will emerge in due time and give us normals a chance to have a similar appearing rig.



[RangerDangerStranger]

Newbie to suspension work question here, I was told that the rear leafs couldn't be de-arched because they are a single leaf. Is that not true, i just want to drop the rear 2 to 2 1/2" to be closer to the front. Can they just be de-arched?- then they won't fit, right, be too long?



[JaysOnTheEDGE]

The Ranger looks real good lowered, good job gentlemen.



[SOHK_Alumni]

Newbie to suspension work question here, I was told that the rear leafs couldn't be de-arched because they are a single leaf. Is that not true, i just want to drop the rear 2 to 2 1/2" to be closer to the front. Can they just be de-arched?- then they won't fit, right, be too long?

The stock springs already have very little arch so removing arch would severely limit compressed travel.

So for a gentle drop, options are very limited. I chose to add arch and flip the axle over the springs to get the 3" drop I was looking for and ended up with more of a 4" drop.

Cold re-arching springs is always a poor solution, and one I will likely re-work.

A path I might reconsider is to return to my stock springs, but with new rear shackle mounts and shackles. I don't want to do any welding and bolting on shackle hangers is, like cold re-arching a less than ideal solution.

Still any way to do a 3" lift then flip the axle will create the 2-3" drop .



[MyLittleRanger19]

latest reply from Belltech

Hello,

Please continue to stand by as our production team are working hard to get this kit done asap.


Respectfully,

KW Automotive North America, Inc.



[Doc]

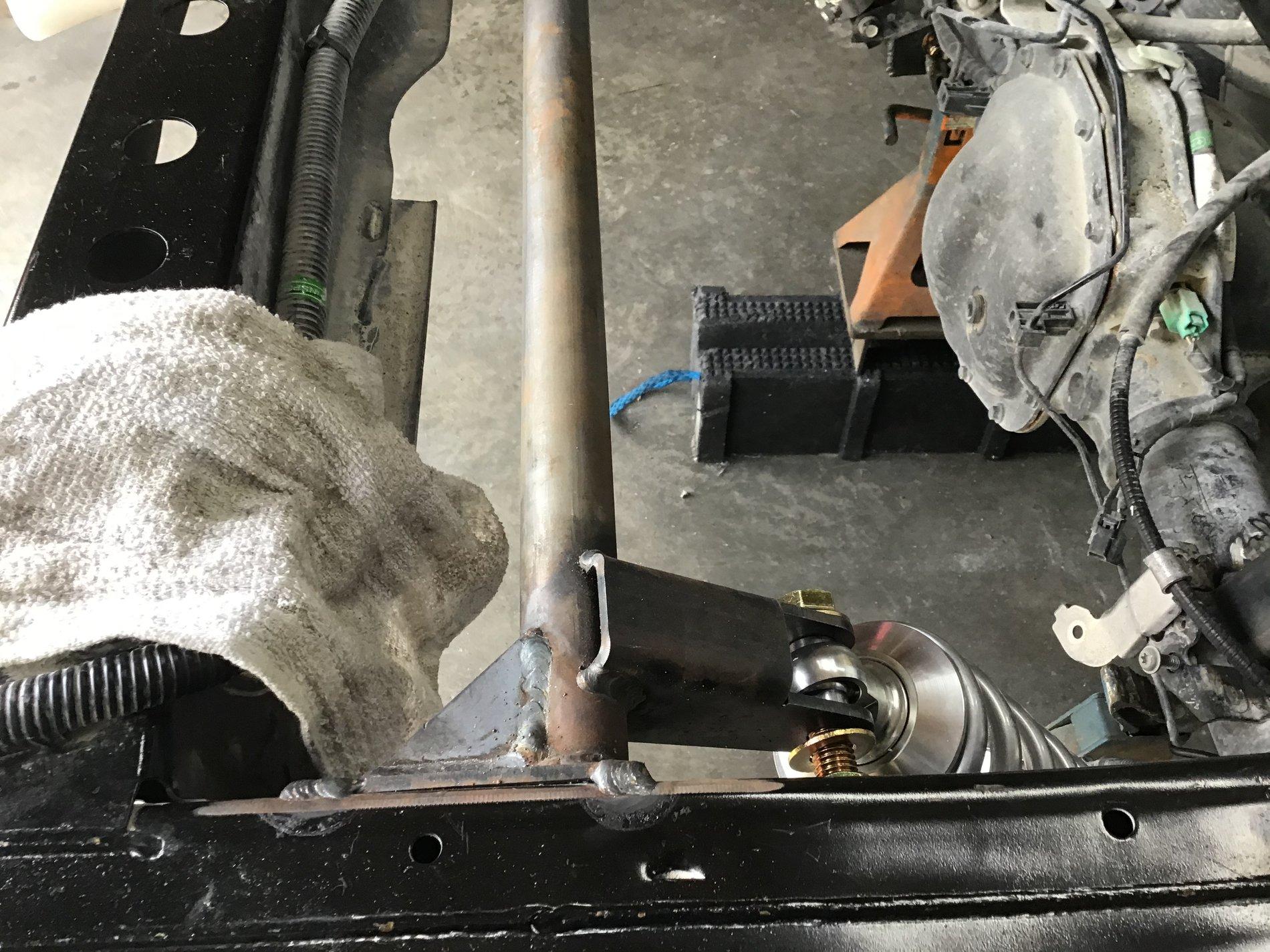

prelimIinary ...



[SOHK_Alumni]

prelimIinary ...

Definitely looking good! How far did you drop it?
