2019 Ranger Technical Shop Manuals

[AmericanTinman]

Great to see your work on the service manual. I have trouble unzipping them and being able to read them. What do you recommend to use with my WIN10 PC?

Sponsored



[harringtondav]

Great to see your work on the service manual. I have trouble unzipping them and being able to read them. What do you recommend to use with my WIN10 PC?

I don't remember the process being too clunky. I loaded the manual on a previous laptop and realized that I needed to set Internet Explorer (Now Edge) set as my default browser.
Earlier this month I loaded the CD on a newer laptop with Edge as my default. I don't recall any unzipping needed. Both laptops were Windows 10.



[gremlin]

Can anyone provide a diagram of the fuel tank and it's vent and filler hose? I have a custom service body on my ranger and something isn't right with those pieces as it's impossible to fill the tank right at anything more than a trickle. The lines are not kinked and they've got it vented up to the filler, but from the one diagram I can find in the body builder manual it looks like that might not be correct.



[TopoRanger]

If you are referring to wiring schematics, I have the electrical wiring manual for the 2020 Ranger. What are you looking for??

Hey JimH I’ve got a question about the tail light schematics you posted. There’s a two turn signal wires per tail light. There’s a TURN and a TURN OUTAGE. Any clue what the Turn Outage one is? Is that the temporary blinker for lane change kind of thing?



[JimH]

I don't have a clue... Maybe it's got something to do with a signal if the bulb is burned out???



[9zero1790]

Here are Shop Manuals for 2019 Ranger. What I have so far (attached ZIP file with many PDF's for each category). Will be adding more so check back...

100 - General

• 100 - General Info (Diagnostic Trouble Code Charts, Wire Terminal Inspection, ID codes, Jacking and Lifting, Noise Vibration and Harshness)

200 - Chassis

• 204-00 Chassis General Info (Ride Height, Suspension Diagnosis, Camber & Caster, Tow Adjust, General Suspension Info)
• 204-01A Front Suspension - RWD
• 204-01B Front Suspension - 4WD
• 204-02 Rear Suspension
• 204-04A Wheels and Tires
• 204-04B Tire Pressure Monitoring System (TPMS)
• 205-01 Driveshaft
• 205-02 Rear Drive Axle and Differential
• 205-03 Front Drive Axle and Differential
• 205-04 Front Drive Halfshafts
• 206-00 Brake System General Information
• 206-03 Front Disc Brake
• 206-04 Rear Disc Brake
• 206-05 Parking Brake and Actuation
• 206-06 Hydraulic Brake Actuation
• 206-07 Power Brake Actuation
• 206-09 ABS and Stability Control
• 211-00 Steering System
• 211-02 Power Steering
• 211-04 Steering Column
• 211-05 Steering Wheel and Column Electrical Components

300 - Powertrain

• 303-00 Engine System General Info
• 303-01 2.3L EcoBoost
• 303-03 Engine Cooling 2.3L EcoBoost
• 303-04A Fuel Charging and Controls
• 303-04B Fuel Charging and Controls - Turbocharger
• 303-05 Accessory Drive
• 303-06 Starting System
• 303-07 Engine Ignition
• 303-08 Engine Emmision Control
• 303-12 Intake Air Distribution and Filtering
• 303-13 Evaporative Emissions
• 303-14 Electronic Engine Controls
• 307-01 Automatic Transmission 10 Speed
• 307-02 Transmission Cooling 10 Speed
• 307-05 Automatic Transmission External Controls
• 308-07A Four-Wheel Drive Systems
• 308-07B Transfer Case
• 309-00 Exhaust System
• 310-00 Fuel System General Info
• 310-01 Fuel Tank and Lines 2.3l EcoBoost
• 310-02 Acceleration Control

400 - Electrical

• 413-00 Instrument Panel and Interior Switches Illumination
• 413-01 Instrumentation Messages Chimes
• 413-06 Horn
• 413-09 Warning Chimes
• 413-13A Parking Aid
• 413-13B Parking Aid Vehicles with Parking Camera
• 414-00 Charging System General Info
• 414-01 Battery, Mounting and Cables
• 414-02 Generator and Regulator
• 414-05 Voltage Converter-Inverter
• 415-00A Information and Entertainment System - AM-FM
• 415-00B Information and Entertainment System - Sync 3
• 417-01 Exterior Lighting
• 417-02 Interior Lighting
• 417-04 Daytime Running Lamps (DRL)
• 418-00 Electrical Distribution
• 418-01 Module Configuration
• 419-01A Perimeter Anti-Theft Alarm
• 419-01B Passive Anti-Theft System (PATS)
• 419-01C Passive Anti-Theft System (PATS) Keyless Entry

500 - Interior/Exterior Body Panels

• 501-00 Body System General Info
• 501-02 Front End Body Panels
• 501-03 Body Closers
• 501-04 Pickup Bed and Platform Body
• 501-05 Interior Trim and Ornamentation
• 501-08 Exterior Trim and Ornamentation
• 501-12 Instrument Panel and Console
• 501-14 Handles Locks Latches Entry
• 501-16 Wipers and Washers
• 501-19 Bumpers

thank you !!!



[Racket]

I know this is for the first year US 5G, but with the Tremor and it's multileaf rear is there a different manual?
I'm specifically asking because I suspect the U bolts will need a different torque setting.



[airline tech]

I know this is for the first year US 5G, but with the Tremor and it's multileaf rear is there a different manual?
I'm specifically asking because I suspect the U bolts will need a different torque setting.

I checked for a 21 Tremor, U-Bolt Nuts 98 Ft Lbs , so no difference.



[Highlander]

I checked for a 21 Tremor, U-Bolt Nuts 98 Ft Lbs , so no difference.

Where did you check this? Do you have '21 manuals?



[airline tech]

I have access to them, but unable to post them as they are from company account where I can access all vehicle makes and years.
My account I pay for and is separate, but in order to get the full manual you have to back up to 2020, as anything newer than that is not a full complete set, even with mine being a 2022, You can set up an all-data account for $59.00 yr but it is a single vehicle, single year account. I think they offer a single 30-day account for like $20.00 as well.
You can use Ford Service Manuals for 72 hours use fairly cheap as well, I tried it just to see any difference between the Ford and All-Data, basically zero difference.



[RangerPhx]

I have access to them, but unable to post them as they are from company account where I can access all vehicle makes and years.
My account I pay for and is separate, but in order to get the full manual you have to back up to 2020, as anything newer than that is not a full complete set, even with mine being a 2022, You can set up an all-data account for $59.00 yr but it is a single vehicle, single year account. I think they offer a single 30-day account for like $20.00 as well.
You can use Ford Service Manuals for 72 hours use fairly cheap as well, I tried it just to see any difference between the Ford and All-Data, basically zero difference.

Greetings!

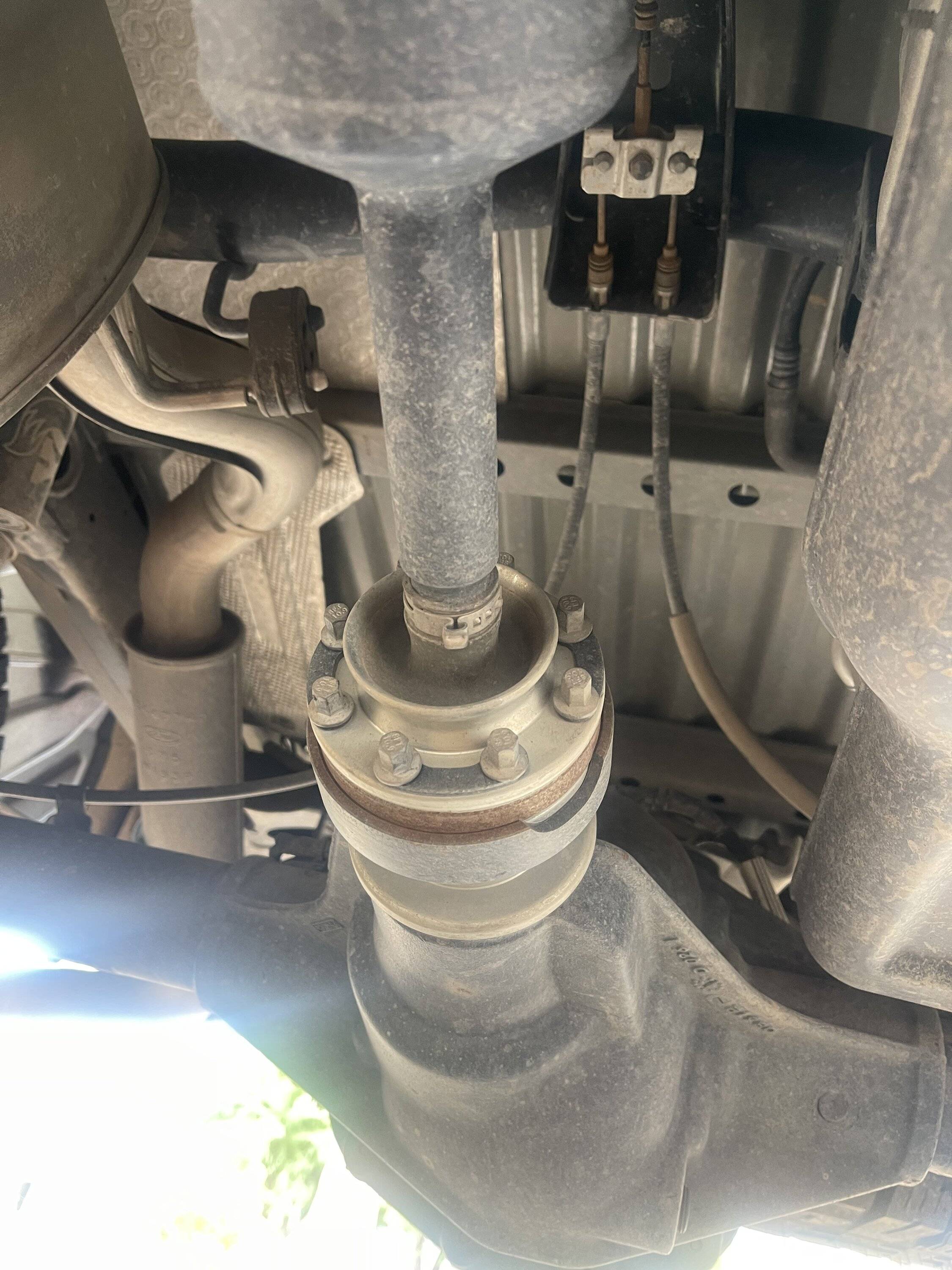

If you by chance have access to torque specs for these driveline/cv joint bolts on the 21 Tremor I would be grateful! I have searched and come up empty so far.



[airline tech]

Greetings!
If you by chance have access to torque specs for these driveline/cv joint bolts on the 21 Tremor I would be grateful! I have searched and come up empty so far.

Rear Axle end:
Crisscross - Loosen
Crisscross - Tighten - 35 Ft Lbs

Front (Transmission) end
Crisscross - Loosen
Tighten - 81 Ft Ls

FYI: Manual states discard and replace - Bolts & Straps, so similar to head bolts. Torque to Yeild bolts



[RangerPhx]

Rear Axle end:
Crisscross - Loosen
Crisscross - Tighten - 35 Ft Lbs

Front (Transmission) end
Crisscross - Loosen
Tighten - 81 Ft Ls

FYI: Manual states discard and replace - Bolts & Straps, so similar to head bolts. Torque to Yeild bolts

Thank you so much for providing this information! I’ve been searching the web for an online service manual to buy and haven’t been successful.
You made the day my friend, thanks again for your time and support!



[Starforce2]

A small chunk of them are corrupt, or at least the files sizes indicate they didn't copy over correctly. These manuals are great, is it wrong that I have already studied so much of a vehicle I don't have?

• 307-02 Transmission Cooling 10 Speed
• 307-05 Automatic Transmission External Controls
• 308-07A Four-Wheel Drive Systems
• 308-07B Transfer Case
• 309-00 Exhaust System
• 310-00 Fuel System General Info
• 310-01 Fuel Tank and Lines 2.3l EcoBoost
• 310-02 Acceleration Control

you got anything for removing and replacing the fuel door assembly? 2019 ranger crew cab



[ctechbob]

Rear Axle end:
Crisscross - Loosen
Crisscross - Tighten - 35 Ft Lbs

Front (Transmission) end
Crisscross - Loosen
Tighten - 81 Ft Ls

FYI: Manual states discard and replace - Bolts & Straps, so similar to head bolts. Torque to Yeild bolts

FWIW most of the bolts they specify as use and discard aren't because they are TTY, they are because the new ones come with pre-installed thread locker on them. You can simply clean them and use your preferred threadlock compound on them.
