quirkybar8
Well-Known Member
Thanks Jim, but it's the actual test, which is linked on page 26 of the Diagnosis and Testing that I'm looking for. PINPOINT TEST K : THE NON-TOUCHSCREEN DISPLAY IS INOPERATIVE OR DOES NOT OPERATE CORRECTLY
Sponsored
JimH
Well-Known Member
- First Name
- Jim
- Joined
- Jan 15, 2020
- Threads
- 16
- Messages
- 275
- Reaction score
- 424
- Location
- Palm Coast, FL
- Vehicle(s)
- 2020 Ford Ranger XLT SuperCrew
- Occupation
- Retired
The first file is the only one that says anything about testing. The rest are about removing and reinstallation of various components.. Each section has it's own page numbers, so I can't find a page 26.. sorry. If you want the entire 415 section, pm me your email and I'll send them all to you. I found the link you want, but the links in the pdf file don't work..
quirkybar8
Well-Known Member
I appreciate it, but after a couple of weeks, the screen and buttons started working again. I did a master reset, and was able to update via USB to 3.4.20282. Gonna see how it goes.
JimH
Well-Known Member
- First Name
- Jim
- Joined
- Jan 15, 2020
- Threads
- 16
- Messages
- 275
- Reaction score
- 424
- Location
- Palm Coast, FL
- Vehicle(s)
- 2020 Ford Ranger XLT SuperCrew
- Occupation
- Retired
Sounds good. If you decide you want the pdf files, let me know...
FoD
Well-Known Member
Try this from the manual:I replaced the factory fuel tank straps, with straps with studs, so that I can attach the fuel tank skids plate.
Does anyone know the bolt torque? The Fuel Tank section had invalid (0 byte) PDFs. Thanks
Richard Conley
Well-Known Member
- First Name
- Rich
- Joined
- Jan 24, 2019
- Threads
- 10
- Messages
- 336
- Reaction score
- 304
- Location
- Geneseo, IL
- Vehicle(s)
- 2019 Ranger Lariat, 2016 Honda Accord Touring

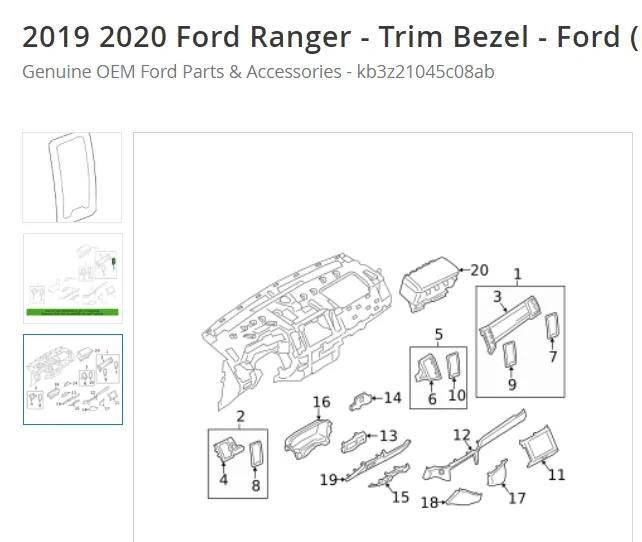

Phil- Coming to you because I feel you probably have the best chance of helping me. having seen some many of your helpful posts. Anyway I am trying to remove the bezel portion of the trim bezel which I see from a video pops out fairly easily as a complete piece - parts 6 and 10 still as one piece. I can't find anything on removing 10 from 6 or 9and 7 out of 3, etc. Sounds stupid maybe but my old eyes really have serious issues with the bright reflection off part 10 in any daytime westerly drives. Figured could get them wrapped or something with a flat finish. Thanks!
P. A. Schilke
Well-Known Member
- First Name
- Phil
- Joined
- Apr 3, 2019
- Threads
- 142
- Messages
- 7,016
- Reaction score
- 36,205
- Location
- GV Arizona
- Vehicle(s)
- 2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
- Occupation
- Engineer Retired
- Vehicle Showcase
- 1
Hi Rich,Phil- Coming to you because I feel you probably have the best chance of helping me. having seen some many of your helpful posts. Anyway I am trying to remove the bezel portion of the trim bezel which I see from a video pops out fairly easily as a complete piece - parts 6 and 10 still as one piece. I can't find anything on removing 10 from 6 or 9and 7 out of 3, etc. Sounds stupid maybe but my old eyes really have serious issues with the bright reflection off part 10 in any daytime westerly drives. Figured could get them wrapped or something with a flat finish. Thanks!
I have personally not removed much of the trim in my Ranger so most of this is from watching videos and still pix. First is to invest in some trim removal tools. These are very cheap on Amazon and help with much of the trim removal without marring the trim surfaces. My understanding is that the vents either side of the center bezel pop out with minimal effort and should be removed first...probably not 7 as you are after the center bezel. Then using a trim tool start at the bottom of the center bezel and work both right and left and up to the top of the dash...Center bezel should pop off, which I think is the piece you wish to degloss.
What I would do if I needed to stop the shine is use blue tape on the center screen and take out the vents and use a commercial deglosser and see if that would be satisfactory to you. Trim attachment has undergone much change over the years and I have found that the less you have to remove, the better...JMO.
Okay a back story... Lee Iacocca was a tyrant. He had his opinions and everyone below him will have the same opinion or else. One of his analaties was interior trim. He hated exposed trim screws. In fact he had a underling whose job it was to identify exposed screw and publish a weekly report called the Exposed Screw Report. You did not want to be on this report as there was hell to pay and your life would become miserable We all shivered if we got wind of our parts being on the Exposed Screw Report as we knew we were screwed... This is why trim on Fords in the early 70s had little trim plugs and caps...no exposed screws. When HFII fired Lee in 1978, there was a collective sigh of relief as the Exposed Screw Report was toast....
Best,
Phil Schilke
Ranger Vehicle Engineering
Ford Motor Co. Retired
FloggingBishop
Well-Known Member
Legend
Richard Conley
Well-Known Member
- First Name
- Rich
- Joined
- Jan 24, 2019
- Threads
- 10
- Messages
- 336
- Reaction score
- 304
- Location
- Geneseo, IL
- Vehicle(s)
- 2019 Ranger Lariat, 2016 Honda Accord Touring
Think
Richard Conley
Well-Known Member
- First Name
- Rich
- Joined
- Jan 24, 2019
- Threads
- 10
- Messages
- 336
- Reaction score
- 304
- Location
- Geneseo, IL
- Vehicle(s)
- 2019 Ranger Lariat, 2016 Honda Accord Touring
Thinking of going with a tint instead even though I had an offer to trade the chrome ones for flat? black ones from a XL. Going to the shop and see if the tint will block the sun sufficiently. Live in a small town in IL and always going west it seems and the sun hits hit right on the trim piece - my old, pre-macular eyes are super sensitive and this is a little thing but really annoying. Thank you for taking the time to answer.
AmericanTinman
Member
New member ('19 Ranger Lariat 4X4) Can't read section 310-00 & 310-01. I had to drop my fuel tank to do some repairs and I don't think I installed the vent lines correctly. Anyway to see if these files can be made readable?
YaBoiNewton
Well-Known Member
Just printed the Front Camber and Caster Adjustment procedure to share with the service manager that told me it's impossible to adjust camber on these Rangers.
Thanks!
Thanks!
TopoRanger
Well-Known Member
- First Name
- Brad
- Joined
- Nov 22, 2020
- Threads
- 8
- Messages
- 367
- Reaction score
- 1,214
- Location
- Missoula, Montana
- Vehicle(s)
- 2020 Ranger XLT FX4
- Occupation
- Mechanic
Is there any schematics for the Rangers?
JimH
Well-Known Member
- First Name
- Jim
- Joined
- Jan 15, 2020
- Threads
- 16
- Messages
- 275
- Reaction score
- 424
- Location
- Palm Coast, FL
- Vehicle(s)
- 2020 Ford Ranger XLT SuperCrew
- Occupation
- Retired
If you are referring to wiring schematics, I have the electrical wiring manual for the 2020 Ranger. What are you looking for??
