Dealer said it can’t be done?

[GreyAreaRanger]

This is why I wanted to highlight the TRM as the OP mentioned in the first post about getting it.
And no one stated he did not need it.
So yes - OP they are 2 separate modules, and it appears you should have this already installed.
This will simplify things and all you need is the Harness already mentioned.

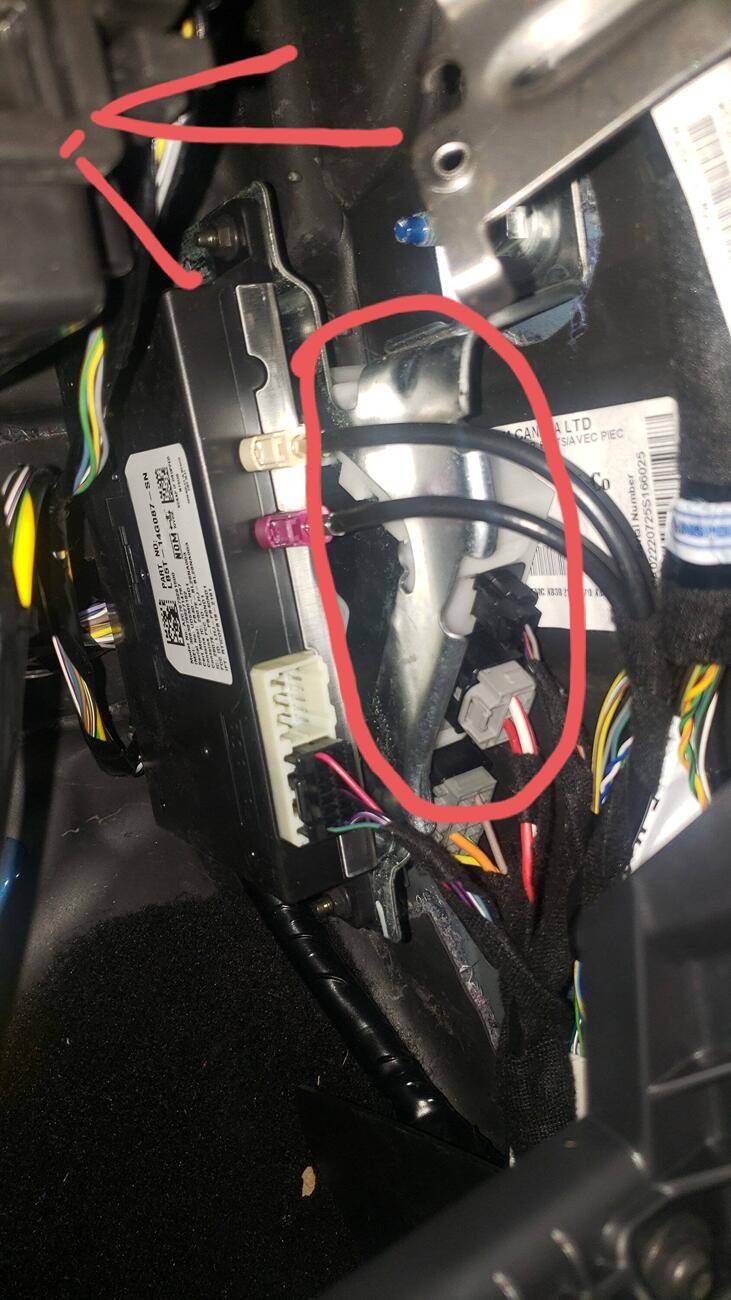

For Ref: The TRM (if installed) is mounted under the Glove Box (Circled)
It is mounted under the TCU - Telematics Control Unit

As pointed out - This module is only for Lighting, Trailer Bat Charging and Trailer Connected Message in the IPC

If this is installed, then the wiring is present from here to C405 - which is where the Options Change happens and from what I can tell - the part numbers from C405 to the bumper are as follows.

These all include the License Plate Lights
KB3Z-15K868-A: 4 pin harness w/o sensors
KB3Z-15K868-B: 4 pin harness w/sensors
KB3Z-15K868-C: 4/7 pin harness w/o sensors
KB3Z-15K868-D: 4/7 pin harness w/sensors

There is another P/N for the Harness, but this is for a Flat Bed (No Bumper) Config it appears

That P/Number is KB3Z-13A576-A - Through (-F) it appears it is only the trailer wiring, no plate lights or sensors - Not very CLEAR, but if you have a bumper then this is not it.

I see the module on my truck on the other side of the bracket that the telematics module is on so I presume I have this part. I am uncertain as to what the arrow you drew is pointing at or for, but am I right in assuming that I just need the wiring harness for the bumper sensors and the seven pin connector or will I need more parts?

Sponsored



[airline tech]

I see the module on my truck on the other side of the bracket that the telematics module is on so I presume I have this part. I am uncertain as to what the arrow you drew is pointing at or for, but am I right in assuming that I just need the wiring harness for the bumper sensors and the seven pin connector or will I need more parts?

The circled part is the TRM, so to get it working - as far as I can tell - just the harness and the plug.
Then do a normal install as others have for the (TBC) Trailer Brake Controller to add the trailer brake function (if desired)

No one has mentioned having to do any Forscan changes and I do not see any lines that stand out for the BCM or TRM that differ between the harness differences.



[GreyAreaRanger]

The circled part is the TRM, so to get it working - as far as I can tell - just the harness and the plug.
Then do a normal install as others have for the (TBC) Trailer Brake Controller to add the trailer brake function (if desired)

No one has mentioned having to do any Forscan changes and I do not see any lines that stand out for the BCM or TRM that differ between the harness differences.

Thanks for clearing that up! I do have the TRM so the harness and connector are all I need for the outside of the truck. I was wanting the factory TBC but that $330 price tag is a little steep so I may look into other options for that.



[airline tech]

I guess to be clear, you do have the option to use aftermarket 7- Pins that adapt to that same Connector C405- but you lose the factory look.

If it were me needing to do this, I would swap the factory harness.

Example:

Install: Curt T-Connector Vehicle Wiring Harness with 7-Way Trailer Connector on a 2019 Ford Ranger Video | etrailer.com



[2021Ranger]

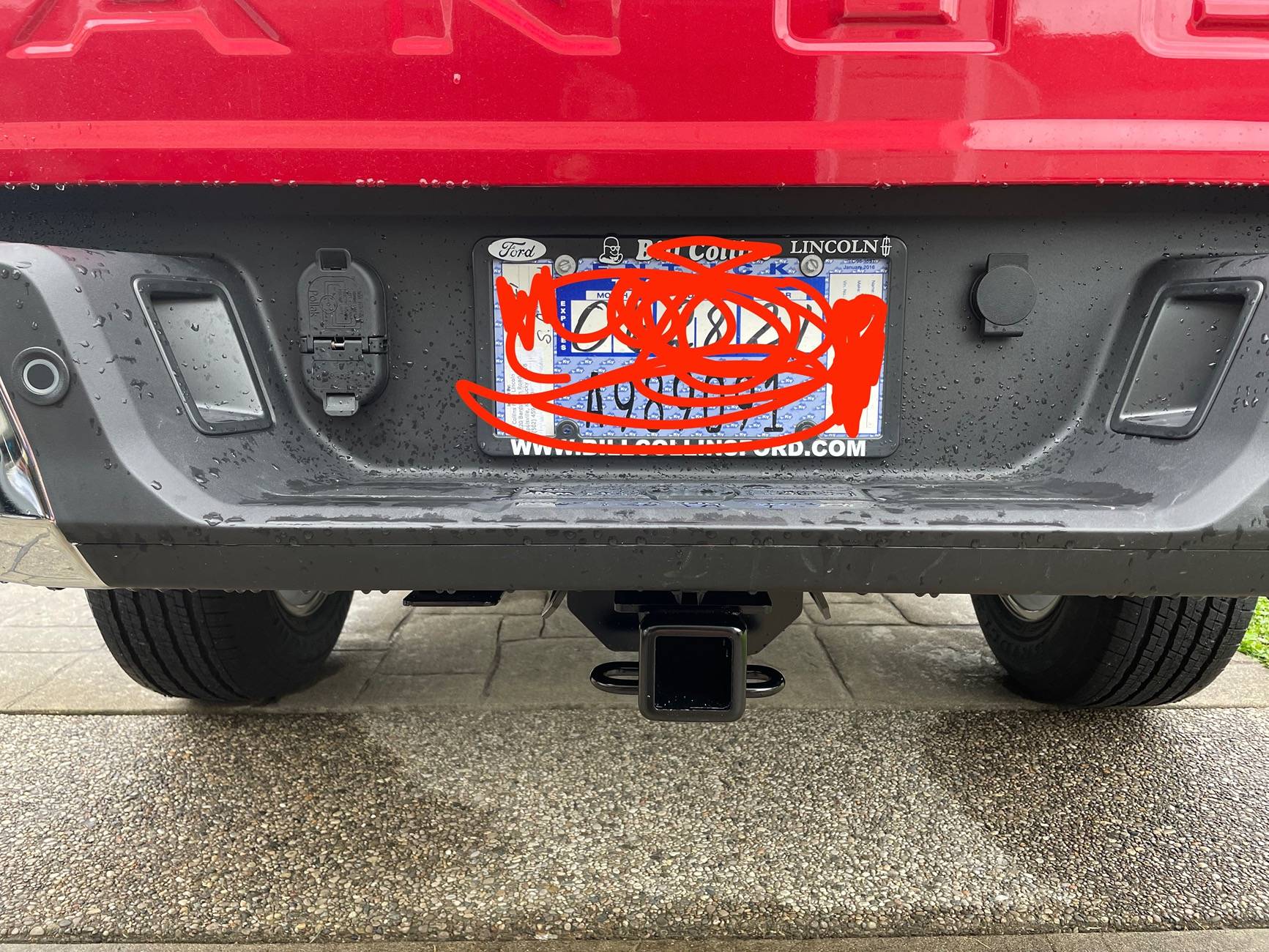

So if understand this correctly and since I already have the tow package with 4 pin connector with sensors in the bumper I need..

fu5z14489a 4pin/7pin connector
kb3z15k868d harness with sensors and

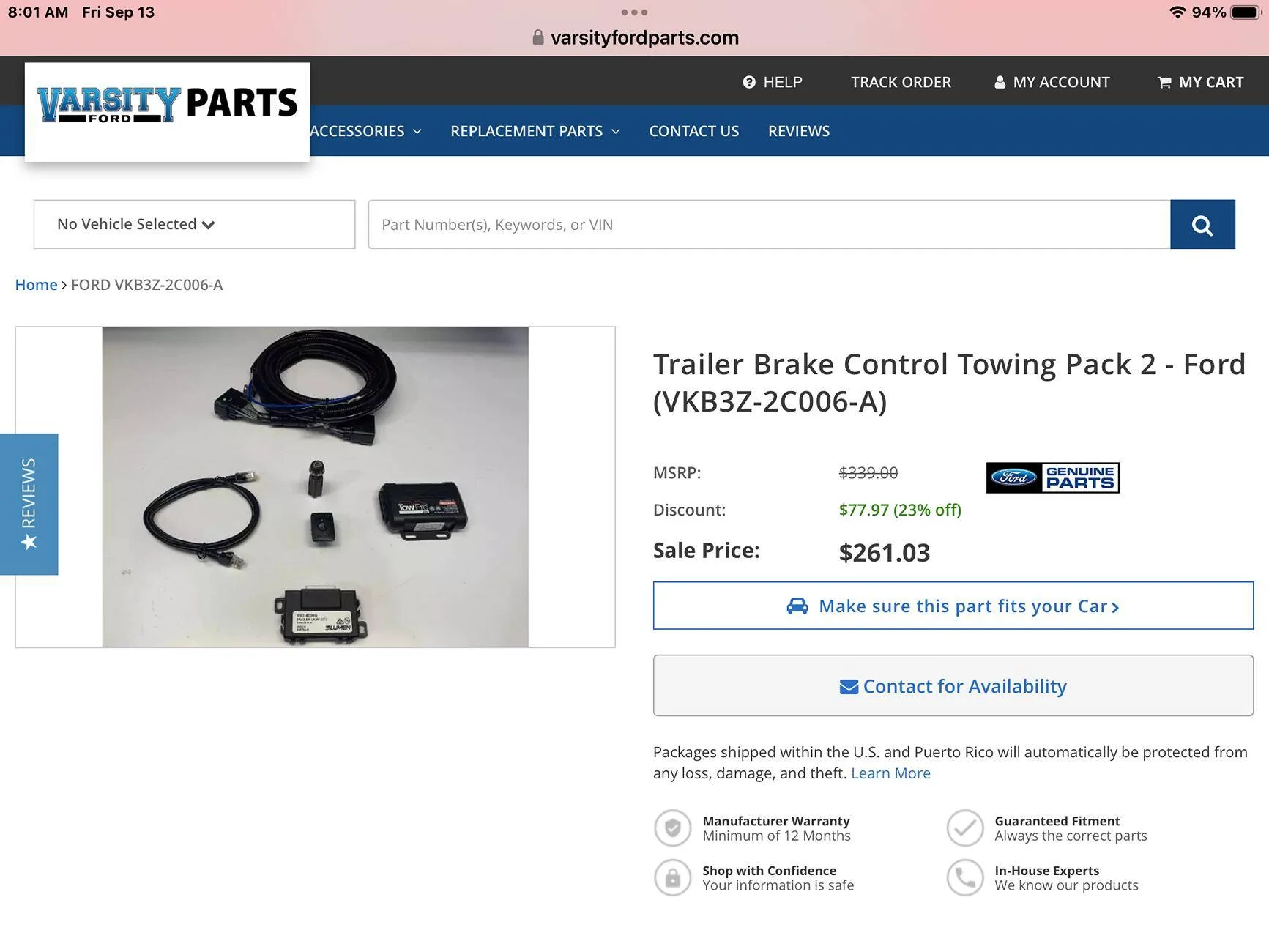

Ranger 2019-2023 Trailer Brake Control Towing Pack 2 | Accessories.Ford.com
