Tire Size Fitment Master Thread

TORQUERULES

Well-Known Member
Joined
May 4, 2020
Threads
30
Messages
750
Reaction score
1,116
Location
US
Vehicle(s)
Ranger
I am currently shopping tires and I like the looks of the General grabber A/TX in th2 285/60/18 size. It is 31.5" which would preserve some gear ration and will fit my stock wheels. I have Bilsteins front and rear with a 2" raise in the front. Anyone have any idea how much of a spacer I would need and if the crash bars will be an issue? I have splash guards too...
I can also get this size in Nitto and Cooper. I would go for the lightest weight.
Sponsored



Elopez86

Member
First Name
Erick
Joined
Mar 21, 2021
Threads
0
Messages
7
Reaction score
2
Location
Fort worth tx
Vehicle(s)
2019 ford ranger and 2015 ford explorer
Occupation
Service technician
So I just installed the RC 2.5" leveling kit and new updated sway bar links. Anyone know what's the biggest tire we can go on that set up while still using the stock rims?


RangerD

New Member
First Name
Douglas
Joined
Jan 24, 2021
Threads
1
Messages
4
Reaction score
5
Location
32428
Vehicle(s)
2020 Ford Ranger xlt sport 4x4
Occupation
Elevator Tech
I have 265/70/17’s right now but I keep seeing tacos and 4runners with 285’s hah. I want 285’s but not if it’s going to leave me stranded the first time I head out in the mountains. Ripping the wheel liner and attached brake lines off when the truck flexes would suck... a lot.
I went with 265/70/17






AzScorpion

Moderator
First Name
Dave
Joined
Jul 25, 2019
Threads
280
Messages
21,289
Reaction score
101,269
Location
Arizona
Vehicle(s)
2023 Ford Ranger Tremor
Occupation
CEO of DeeZee
So I just installed the RC 2.5" leveling kit and new updated sway bar links. Anyone know what's the biggest tire we can go on that set up while still using the stock rims?

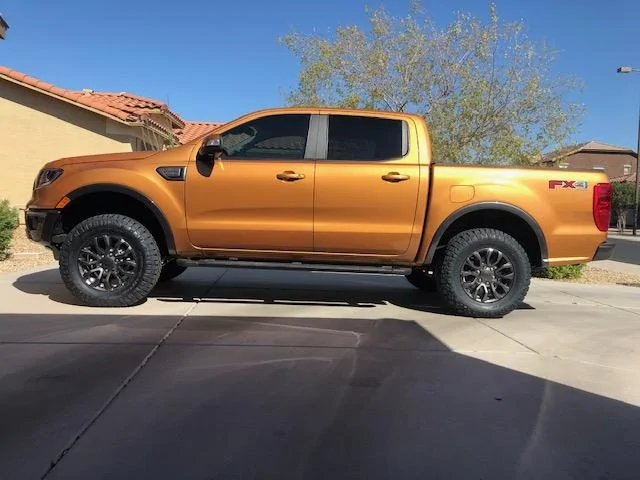

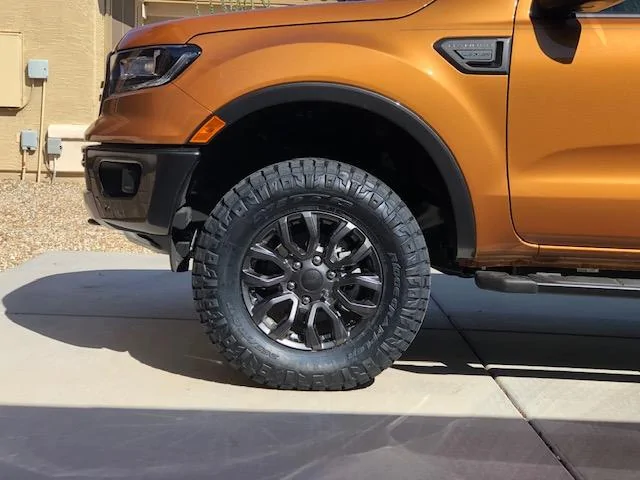

I have the RC 2.5" level with Nitto Ridge Grapplers 265/70/17 and stock wheels and there's no rubbing. Anything larger and you'll have to adjust/remove the crash bars.







ISUACE

Well-Known Member
First Name
Cody
Joined
Jun 13, 2019
Threads
22
Messages
287
Reaction score
474
Location
Texas
Vehicle(s)
2019 Ford Ranger Lariat
Vehicle Showcase
1
I've had a few questions since I posted in the off-road pic thread so here's my setup.

I'm running BFG K02 275/70/18s (~33") on stock rims with the Bilstein 5100s on the highest setting. They are suuuuuper tight but so far no rubbing even after some mild off roading in Moab.

Here is how far I am from the knuckle:


I can just about get my fingers in-between the knuckle and the tire at it's closest.


The stance is near perfect in my opinion.


Here's my crash bar tolerance. This is driver's side, full right lock at the front crash bar.


Here is the rear crash bar, still on the driver's side, but full left lock.

I'm sure if I got to full compression, I'd have some rubbing but I'm fairly convinced this is the absolute biggest you can go on stock rims with a level.


I'm debating on going up a size from the BFG KO2 265/70/R17s I have. Now that I have a 2.5" Rough Country lift... would 270/75/R17s fit?



ISUACE

Well-Known Member
First Name
Cody
Joined
Jun 13, 2019
Threads
22
Messages
287
Reaction score
474
Location
Texas
Vehicle(s)
2019 Ford Ranger Lariat
Vehicle Showcase
1
I have the RC 2.5" level with Nitto Ridge Grapplers 265/70/17 and stock wheels and there's no rubbing. Anything larger and you'll have to adjust/remove the crash bars.





That's the rim/tire size and lift I'm running. I still wonder if a 75 side wall would fit.


AzScorpion

Moderator
First Name
Dave
Joined
Jul 25, 2019
Threads
280
Messages
21,289
Reaction score
101,269
Location
Arizona
Vehicle(s)
2023 Ford Ranger Tremor
Occupation
CEO of DeeZee
That's the rim/tire size and lift I'm running. I still wonder if a 75 side wall would fit.
I'm not sure if not will. ?‍♂ I read every post before buying these and knew that the 70's would fit without rubbing or removing/cutting the crash bars.


NvrFinished

Well-Known Member
First Name
Shea
Joined
Apr 27, 2020
Threads
16
Messages
607
Reaction score
1,150
Location
SoCal
Vehicle(s)
2020 XLT 4x4 Rapid Red
I'm not sure if not will. ?‍♂ I read every post before buying these and knew that the 70's would fit without rubbing or removing/cutting the crash bars.
Everything I've read here indicates that a 275/70R17 will fit with a 2" lift or greater on stock wheels.


Elopez86

Member
First Name
Erick
Joined
Mar 21, 2021
Threads
0
Messages
7
Reaction score
2
Location
Fort worth tx
Vehicle(s)
2019 ford ranger and 2015 ford explorer
Occupation
Service technician
I have the RC 2.5" level with Nitto Ridge Grapplers 265/70/17 and stock wheels and there's no rubbing. Anything larger and you'll have to adjust/remove the crash bars.





Thanks man, truck looks great.


TORQUERULES

Well-Known Member
Joined
May 4, 2020
Threads
30
Messages
750
Reaction score
1,116
Location
US
Vehicle(s)
Ranger
275/65R18 Falken Wildpeak AT3s with Eibach struts in front set at 2.25 inches using factory springs.
Any spacers used? Rubbing? I have splash guards, do you think I would have to worry about those? Thanks!


brad_4200

Member
First Name
Brad
Joined
Mar 18, 2021
Threads
0
Messages
6
Reaction score
10
Location
Texas
Vehicle(s)
2021 Ford Ranger Lariat FX4
Occupation
Engineering Manager
Another confirmed fit! 2021 Lariat FX4 with 265/70/18 Nitto Ridge Grapplers. Nice smooth ride and no rubbing. 2" Ford Performance / Fox Racing level kit.

Note, Ford Performance was not able to confirm that the current leveling kit works with 2021 Ranger. I checked with Fox and took my chances. No surprise, it fits.











Elopez86

Member
First Name
Erick
Joined
Mar 21, 2021
Threads
0
Messages
7
Reaction score
2
Location
Fort worth tx
Vehicle(s)
2019 ford ranger and 2015 ford explorer
Occupation
Service technician
Another confirmed fit! 2021 Lariat FX4 with 265/70/18 Nitto Ridge Grapplers. Nice smooth ride and no rubbing. 2" Ford Performance / Fox Racing level kit.

Note, Ford Performance was not able to confirm that the current leveling kit works with 2021 Ranger. I checked with Fox and took my chances. No surprise, it fits.









Great looking truck man, I just added the 2.5" leveling kit and was wondering what tires I could fit with the factory rim.


Venom_z89

Well-Known Member
First Name
Edson
Joined
Apr 16, 2021
Threads
3
Messages
510
Reaction score
1,811
Location
So Cal
Vehicle(s)
2019 Ford Ranger fx4
Occupation
Forklift technician
New on this forum but I'd like to share my fitment. I got eibach pro leveling kit running on the 2.5 mark up front. I'm running 1.5 hub centric wheel spacers all four corners. Tire size are 34s. 285/75r17 toyo at3 . Crash bars cut no rubbing anywhere speedo at 73mph actually doing 80. Also spare 285/75r17 clears











BC_Express

Member
First Name
Brian
Joined
Jul 29, 2020
Threads
5
Messages
17
Reaction score
4
Location
15102
Vehicle(s)
Ford Ranger
So Ive read the entire thread and still dont know what will work and what won't.
I have a 2019 Ranger Supercrew FX-4 (4x4) with a the ford performance (FOX 2.0 LEVELING KIT)

I know I can run 265/70/17's without rubbing or removing/replacing the crashbars but can I go with a 275/70/17 or a 255/75/17 and not have any rubbing issues and / or have to mess with the crashbars at all.

Really jus looking for whats the largest tire i can go with for the FORD PERFORMANCE
(FOX 2.0 LEVELING KIT) without issues.

Thanks


NvrFinished

Well-Known Member
First Name
Shea
Joined
Apr 27, 2020
Threads
16
Messages
607
Reaction score
1,150
Location
SoCal
Vehicle(s)
2020 XLT 4x4 Rapid Red
With the Fox kit and stock wheels, you can run LT265/70R17 and LT255/70R17 without issue. It's already been confirmed that LT275/70R17 BFG K02's work as well.
