PSA For you folks that are removing / modifying the crash bars to install bigger tires.....

Jtholz

Well-Known Member
First Name
Jim
Joined
Jun 20, 2020
Threads
2
Messages
87
Reaction score
375
Location
Las Vegas
Vehicle(s)
2020 Ford Ranger Lariat, FX4, Blackout, 501A, Tow Package
Vehicle Showcase
1
I agree that this is a important topic, BUT isn’t something better than nothing for those who want to do this kind of thing?
Sponsored


OP
OP
HenryMac

HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
I agree that this is a important topic, BUT isn’t something better than nothing for those who want to do this kind of thing?
Depends on what the something is.

If I had the parts, in less than an hour I could model the stock crash bars and run FEA (Finite Element Analysis) then model the aftermarket crash bars and compare the analyses.

Seems a prudent thing for the aftermarket company to do, don't you think?


Shomare

Well-Known Member
First Name
Bill
Joined
May 1, 2020
Threads
6
Messages
117
Reaction score
220
Location
Fayetteville NY
Vehicle(s)
2019 XLT
Occupation
Union President
Those crash bars are no joke, if its anything like Fords usual crash structures its going to be a very high strength boron steel. That stuff will destroy sawzall blades and drill bits all day long.
Tried to mount a rally light to my Focus RS utilizing the crash bar. Had to use cobalt bits and several of them to get it done!


bobafetske

Well-Known Member
First Name
Keith
Joined
Jan 22, 2020
Threads
9
Messages
46
Reaction score
32
Location
Philadelphia, PA
Vehicle(s)
2019 Ford Ranger XLT FX4
Vehicle Showcase
1
Crash bars stock are bolted on there and when you do remove them they don’t feel like the sturdiest “crash bar” , the aftermarket ones feel beefy and sturdy, as long as it pinches the tire I’m good with that, As long as there is some sort of protection I’m good with that. Better than nothing like my 2015 Supercab F150, no crash bars lol. Is any other truck besides Ford running crash bars? Currently my crash bars are removed, just waiting on time off to install my fabtech crash bars.
How are the FabTech crash bars? I plan on ordering them. They look much better than the BDS set.


DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,305
Reaction score
29,640
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1

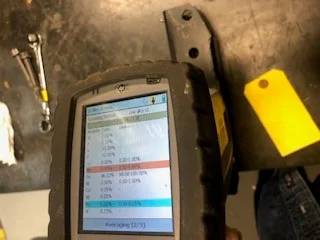

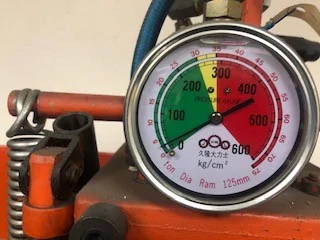

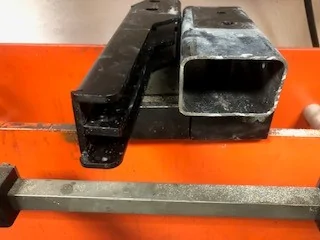

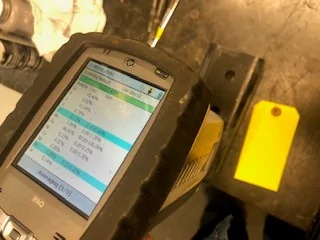

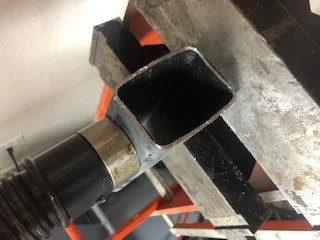

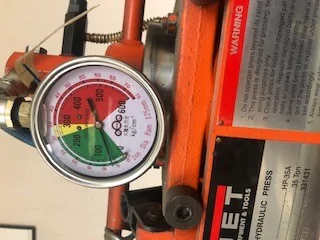

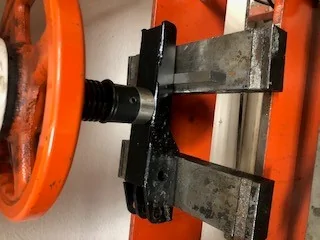

Since you brought it up, lol. I'm no specialist but I do have some nifty tools at my disposal. Here goes.. Why I chose the Ready lift crash bars. I have a PMI tester ($60,000 metal material identifier) and a press. I ran a few tests, doesn't answer all the questions, but put me at ease. I'll show the pics of my results here. The Ford material is C-4120 and the Ready lift bars are C-0.5 Mo. The C-4120 is basically twice as strong (Brinnell hardness), but the Ready lift have nearly three times the material thickness. And the breakaway rolls into the convex portion of the curvature. I then put them in the press to see some deformation results. 3 tons for the Ford bar to squish (so to speak), The ready lift bar made it to nearly 9 tons, then I stopped as to avoid actually damage. Good enough for me..
Thanks for doing this - when it gets warm out, I’ll be installing these...




Leftcoast

Banned
Banned
Joined
Dec 11, 2019
Threads
1
Messages
517
Reaction score
1,011
Location
California
Vehicle(s)
2019 Ford Ranger Crewcab
Since you brought it up, lol. I'm no specialist but I do have some nifty tools at my disposal. Here goes.. Why I chose the Ready lift crash bars. I have a PMI tester ($60,000 metal material identifier) and a press. I ran a few tests, doesn't answer all the questions, but put me at ease. I'll show the pics of my results here. The Ford material is C-4120 and the Ready lift bars are C-0.5 Mo. The C-4120 is basically twice as strong (Brinnell hardness), but the Ready lift have nearly three times the material thickness. And the breakaway rolls into the convex portion of the curvature. I then put them in the press to see some deformation results. 3 tons for the Ford bar to squish (so to speak), The ready lift bar made it to nearly 9 tons, then I stopped as to avoid actually damage. Good enough for me..
crash bar 4.jpg
crash bars 9.jpg
crash bar 2.jpg
crash bar 3.jpg
crash bar 5.jpg
crash bar 7.jpg
crash bar 8.jpg
Have you done any tests on the attachment points where these units mount to the truck? I would think the stock thinner crash bars would deform more before they transferred energy to their attachment point. The thicker aftermarket item would transfer higher energy levels to the attachment point.
No doubt Ford has done extensive destructive testing on these vehicles to meet safety standards. I'd be curious to see photos detailing what actually happens in a full frontal or glancing frontal impact.


Trigganometry

Well-Known Member
First Name
Rick
Joined
Dec 4, 2020
Threads
150
Messages
5,824
Reaction score
25,228
Location
Massachusetts
Vehicle(s)
20 XLT scab 301A/tow 4X4 magnetic w/sport blackout
Occupation
Engineering
Depends on what the something is.

If I had the parts, in less than an hour I could model the stock crash bars and run FEA (Finite Element Analysis) then model the aftermarket crash bars and compare the analyses.

Seems a prudent thing for the aftermarket company to do, don't you think?
John,
The beauty of some of today’s modeling software is if you plug in the right info it allows you to stress test the design(s) to see how it stands up. Where I work now we also have a handheld material scanner. It tells you the chemical makeup of the material and then will tell you the closest standard of what it is you have. Say for instance 1040 steel. Then a hardness tester gives you the rest of the picture. Plug that into software and you get a visual and the data points spit out.

My guess is that’s exactly what these are made of. It is hardening as it is getting cut. Designing something new that would be stronger but give added clearance shouldn’t be all that difficult as long as you have the tools to do so. If you don’t, then you point is well taken!


DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,305
Reaction score
29,640
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
OP
OP
HenryMac

HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
John,
The beauty of some of today’s modeling software is if you plug in the right info it allows you to stress test the design(s) to see how it stands up. Where I work now we also have a handheld material scanner. It tells you the chemical makeup of the material and then will tell you the closest standard of what it is you have. Say for instance 1040 steel. Then a hardness tester gives you the rest of the picture. Plug that into software and you get a visual and the data points spit out.

My guess is that’s exactly what these are made of. It is hardening as it is getting cut. Designing something new that would be stronger but give added clearance shouldn’t be all that difficult as long as you have the tools to do so. If you don’t, then you point is well taken!
Rick I've got FEA right here at home on my computer. That would be a good start, but the aftermarket designs need verified by actual destructive testing.

Not sure why you are writing "hardening as it is getting cut"? The aftermarket crash bars are weldments, made from mild steel, not tempered steel. If they were tempered steel they would break upon impact. You don't want tempered steel.. you want mild steel.

Truth is I haven't found anybody making crash bars that have done any testing at all and that's the point of this thread.

Manufacturers make claims that aren't backed up. IMO that's criminal. Making comments like "Beefy" is ludicrous marketing hype to get folks to buy their products... and it works.

OP
OP
HenryMac

HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired

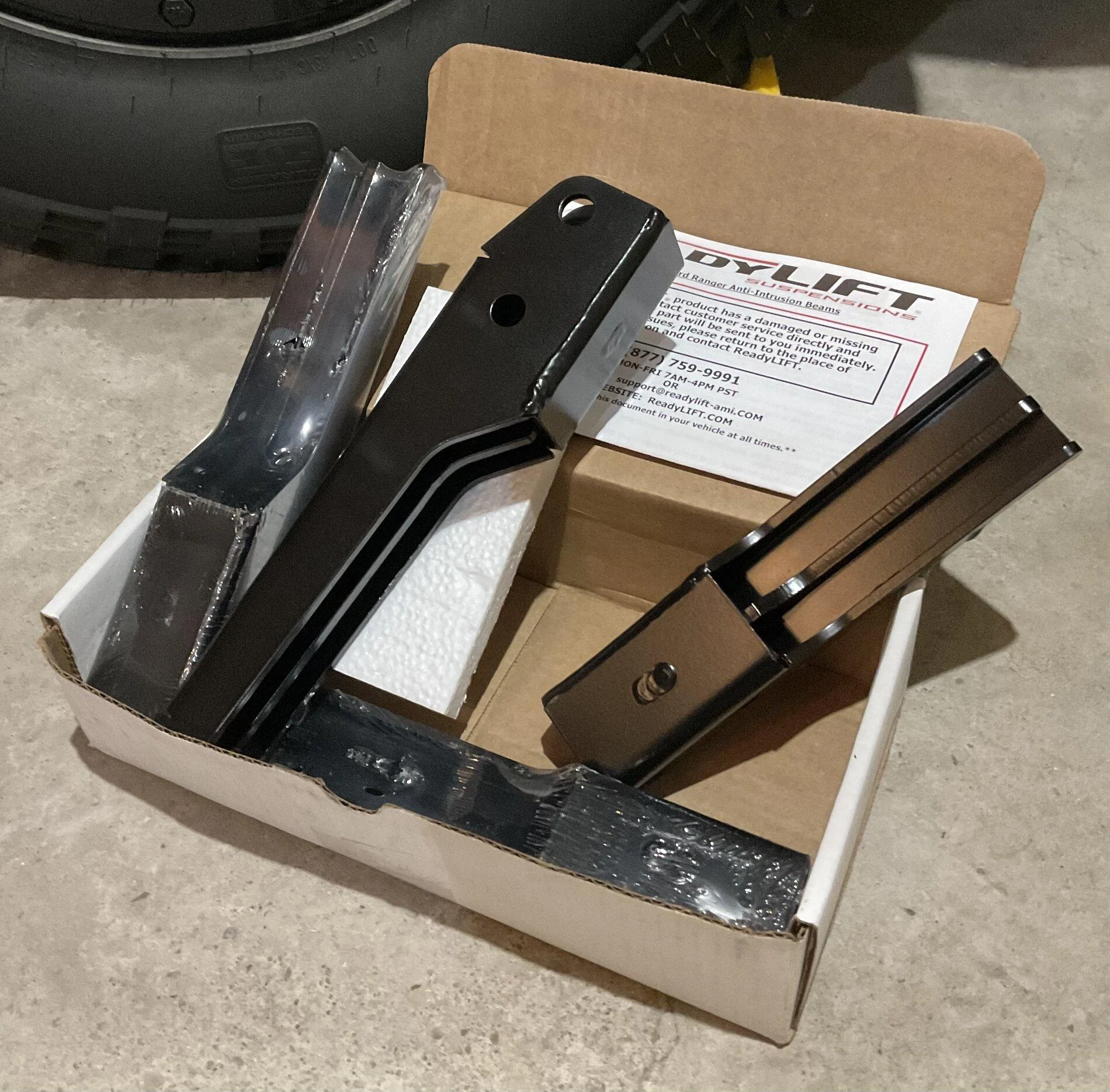

Yes, these are the ReadyLIFT Anti-Intrusion Beams - super beefy.
