Important Note: DROP-IN BEDLINER INSTALL WITH TAILGATE COVER

I don’t have issues with water getting in the back of my Ranger or much dust (I get it dirtier inside), but the light coming through the side gaps of my tailgate irritated me so I ordered a tailgate seal kit.

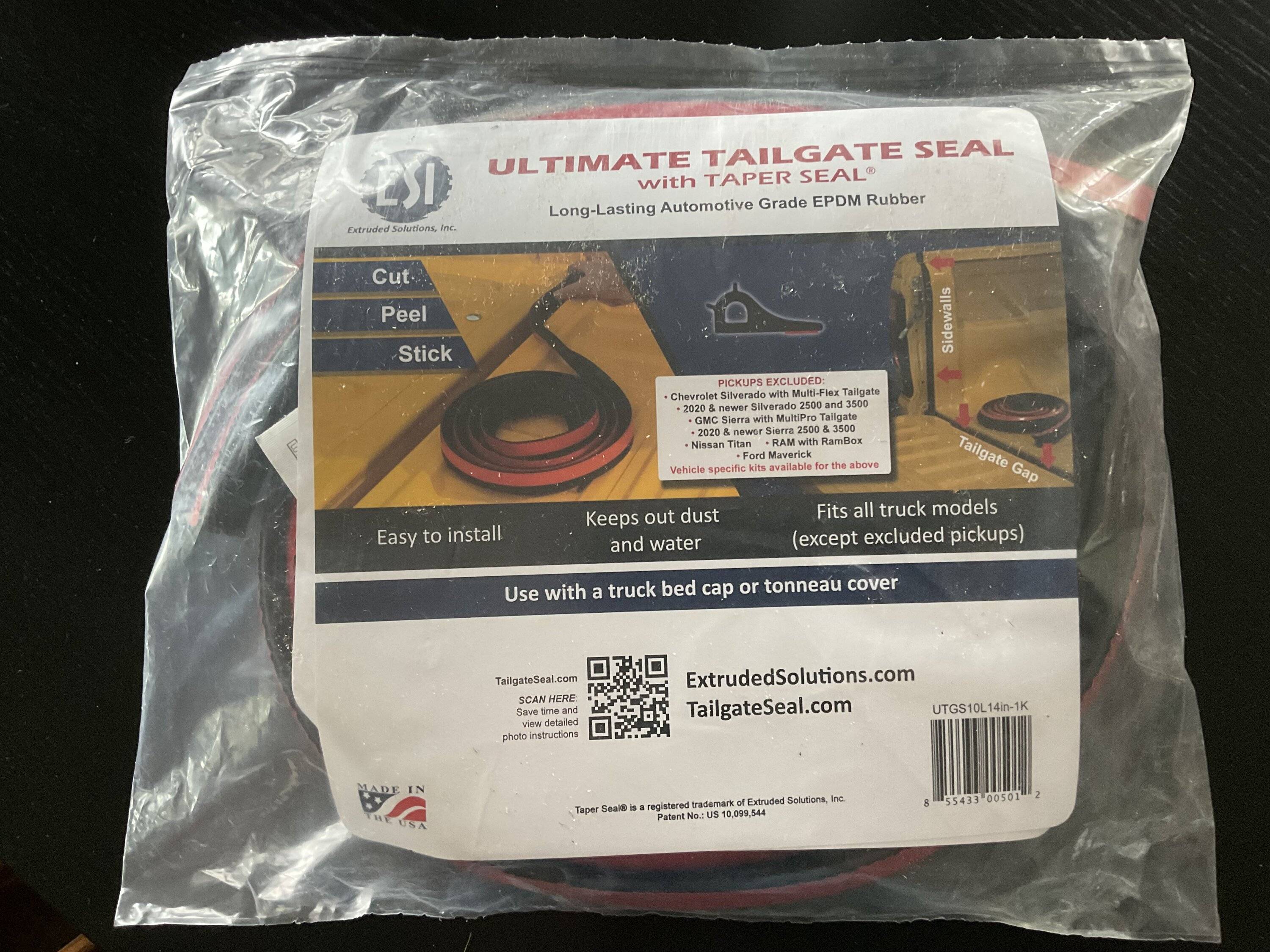

https://www.amazon.com/gp/product/B07YF5BL8M/ref=ppx_yo_dt_b_asin_title_o00_s01?ie=UTF8&psc=1

https://extrudedsolutions.com/

https://tailgateseal.com




I didn’t like the instructions on: https://tailgateseal.com/FordRanger2019.html and a bit of dry-fitting led me to a different/better solution. I could install the adhesive flap under the protective tailgate cover, following the lines of the cover, and get a good seal on the sides and bottom. It also seemed like I could do it without using the two thicker pieces from the kit. So, that was my approach.

First Step: With a T20 Torx screwdriver, remove the cover to clean the surface of the tailgate. Isopropyl alcohol wipes come with the kit. I cleaned it with hydrogen peroxide wipes first (love those things!), then the supplied wipes.

My cover has been on for four years so it was easy to see the scuffed up outline it created - bonus - because if I couldn’t see the outline, I’d have to put the cover back on (loosely) so I could tuck the sticky part under.

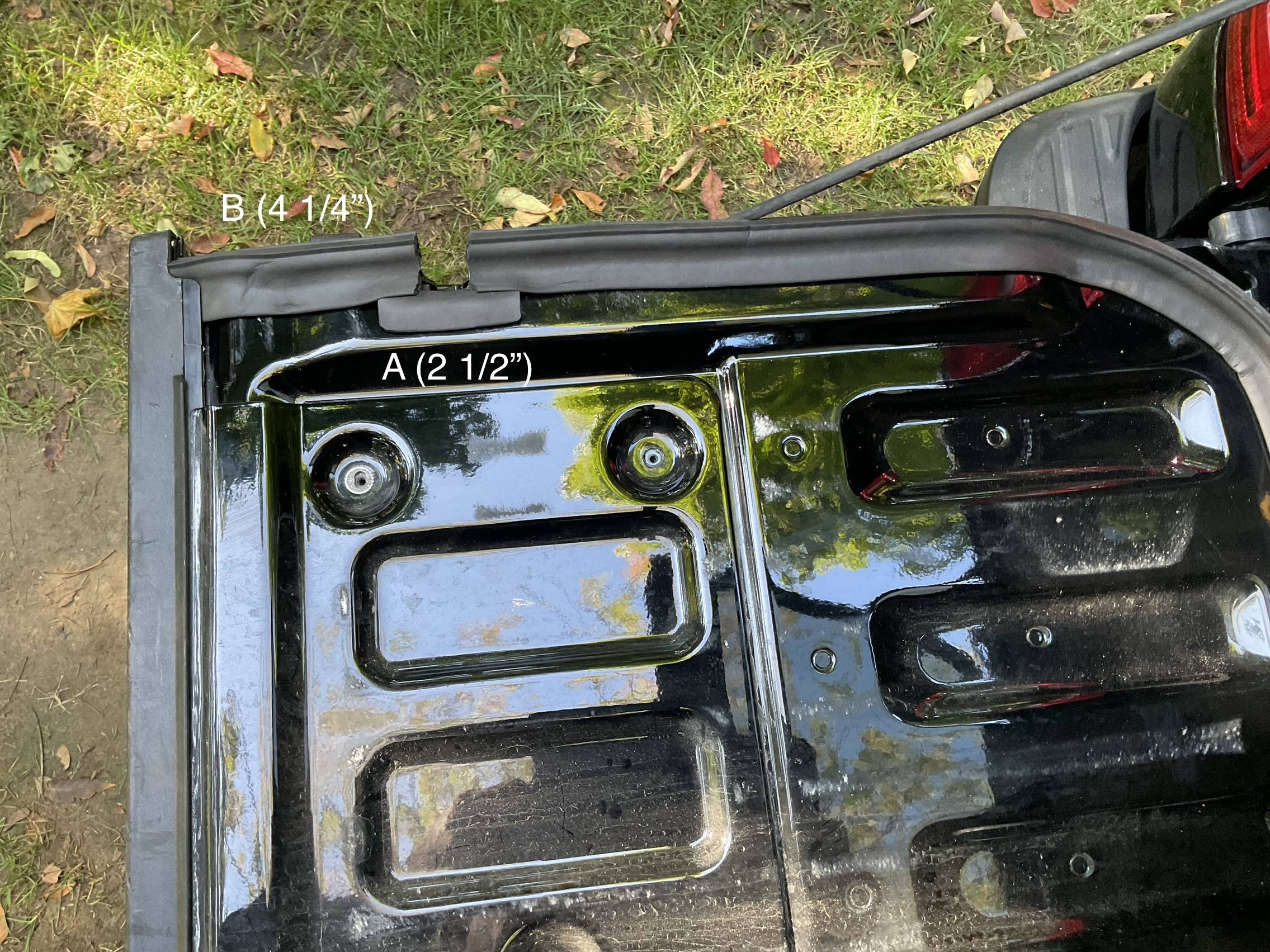

Second Step: Cut a piece of the thinner seal 2-1/2” (A) and another piece 4-1/4” (B). Cut the “bubble” section off the 2-1/2” piece - only the adhesive strip and a little bit of foam will be left. Expose the adhesive on the 2-1/2” piece place it on inside edge of the tailgate latch opening. It will be overlapped by other pieces of seal. It is really just meant as a trim piece to provide a finished look. Expose the adhesive on the 4-1/2” piece and, using a plastic trim tool, gently pry the plastic tailgate cap up and insert the adhesive flap under the cap - the start of the bubble should be flush to the side of the tailgate and it should terminate at the latch opening, slightly overlapping the 2-1/2” trim piece. Expose a generous amount of adhesive from your roll of seal and start laying it down on the opposite side of the latch opening, also slightly overlapping the small trim piece. Continue around the curve of the tailgate to the centre of the tailgate bottom and cut the seal.
See below…

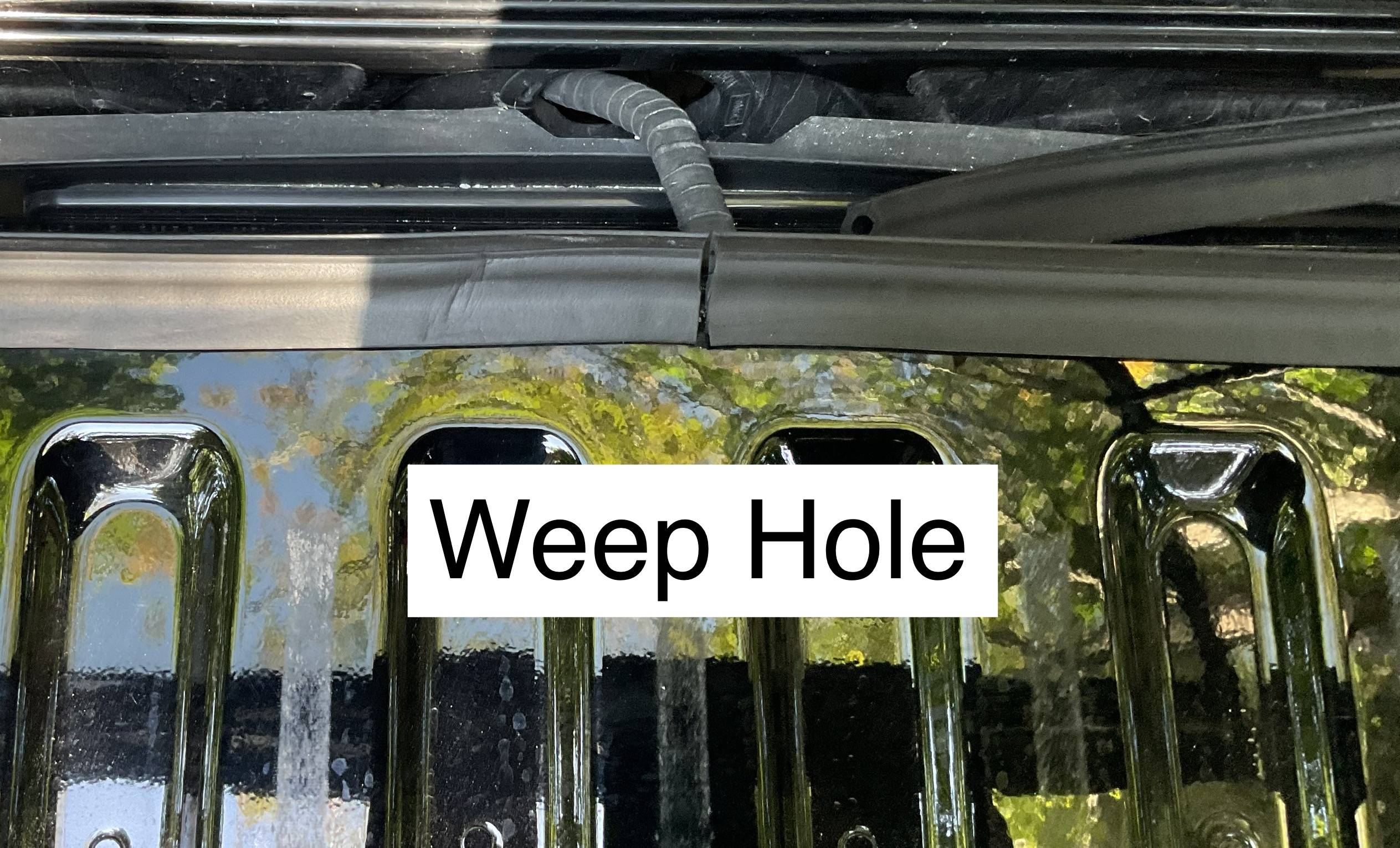

Third Step: Repeat second step for the opposite side, leaving a small, 1/8” gap as a weep hole.

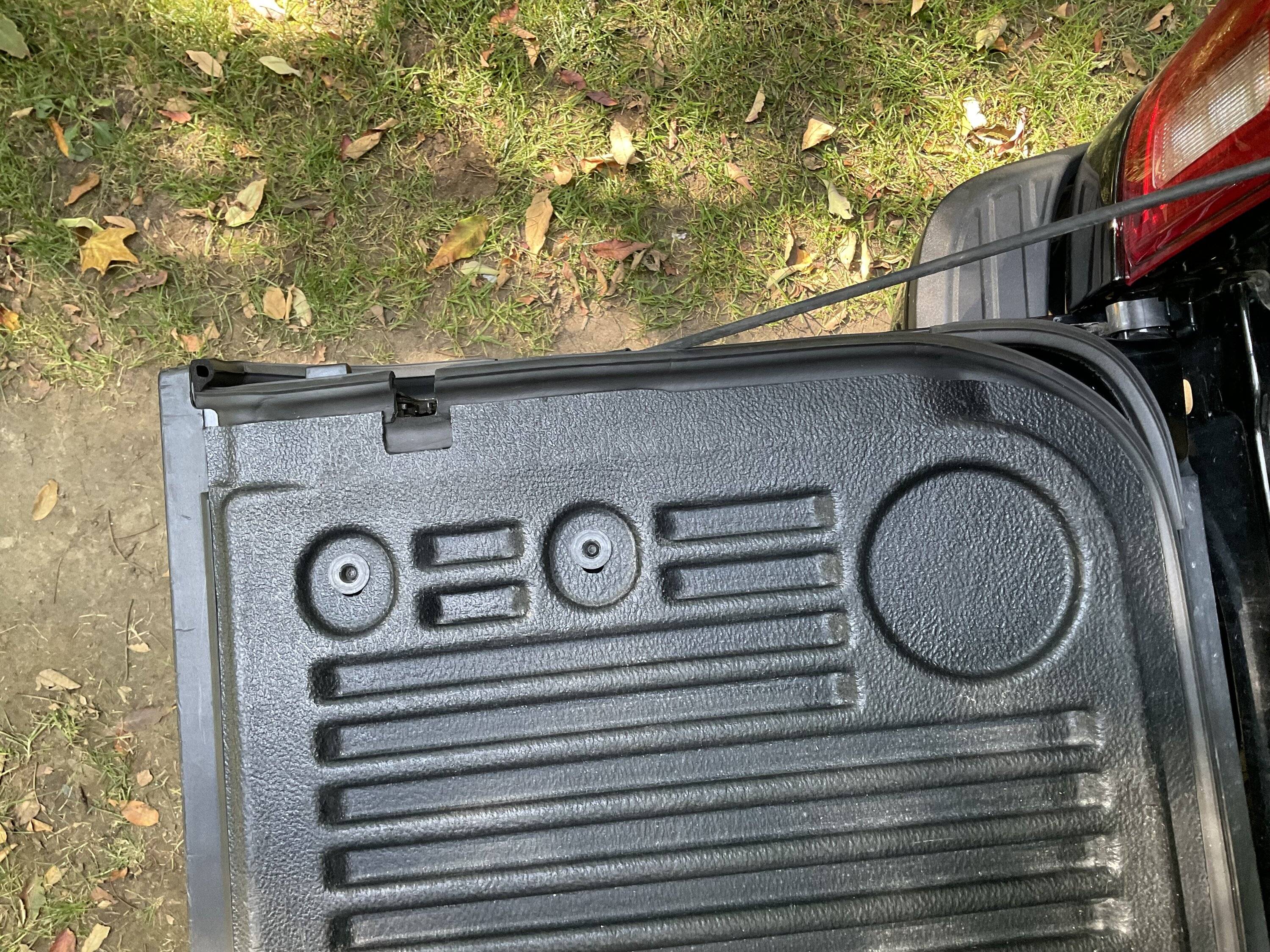

Fourth Step: Replace the tailgate cover and admire your work so far.



Fifth Step: Close the tailgate and feel how the seal works. Now, look at the top portion of the tailgate above the tail lights - there is a gap that you can see through - it runs from the top of the tailgate support cable to the top of the tailgate.

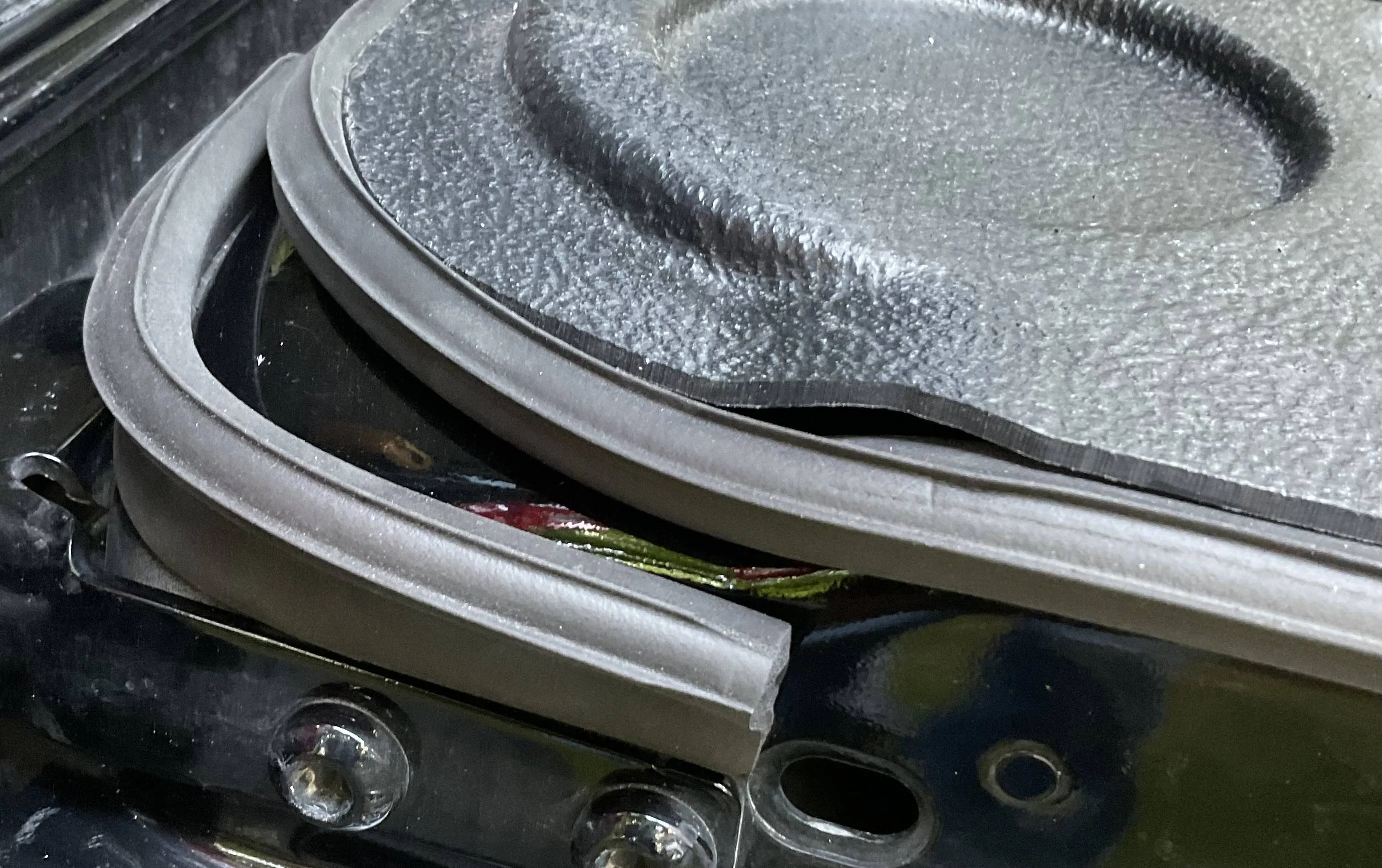

Using only as much of the smaller seal as needed (you’re getting low at this point and have another area to address), run that seal as shown below.…



The adhesive flap should be tight to the side of the tailgate - too far out and it bulges through the gap when you close the tailgate. Too far in and the gap doesn’t seal. Repeat for the other side.

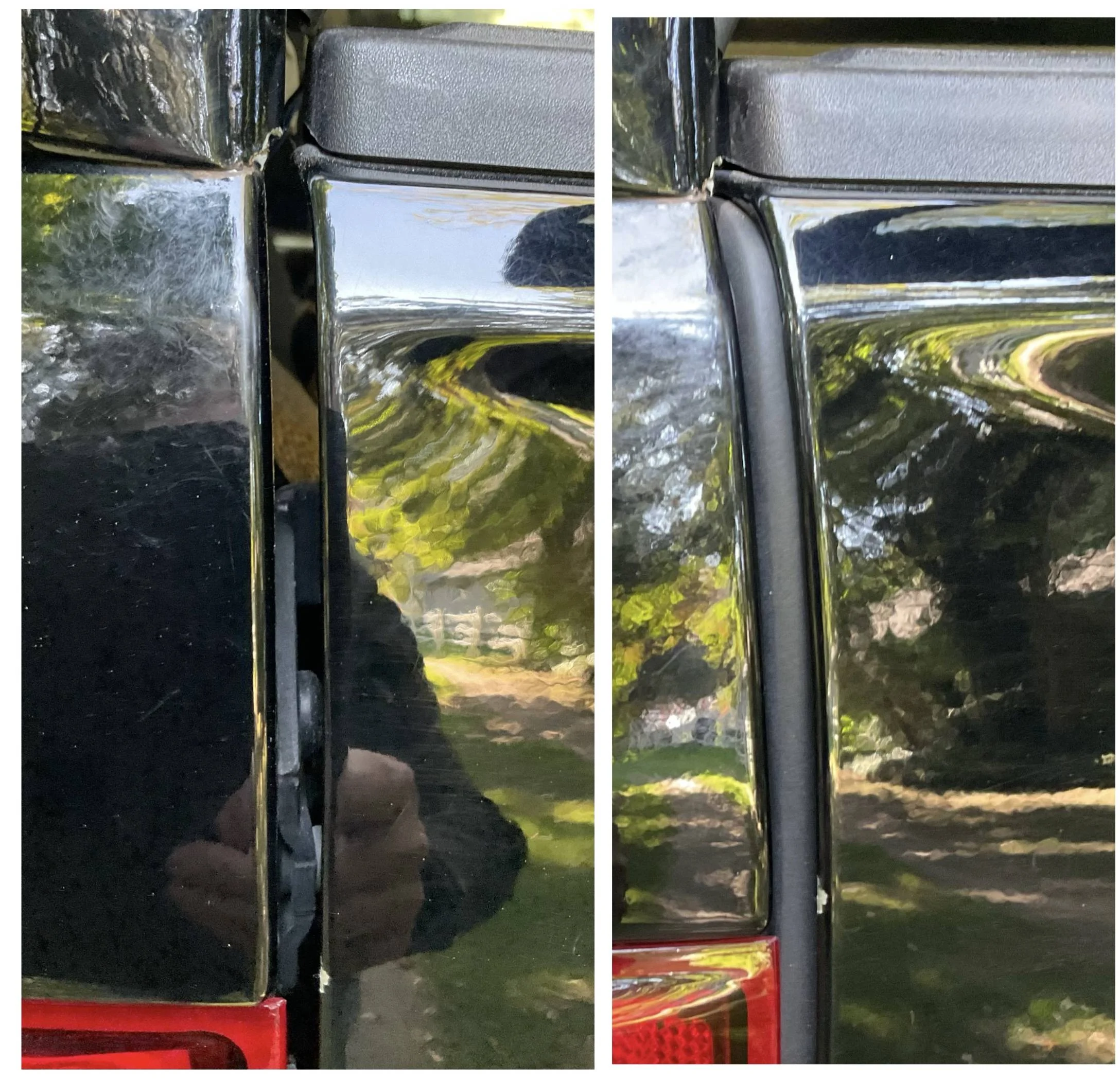

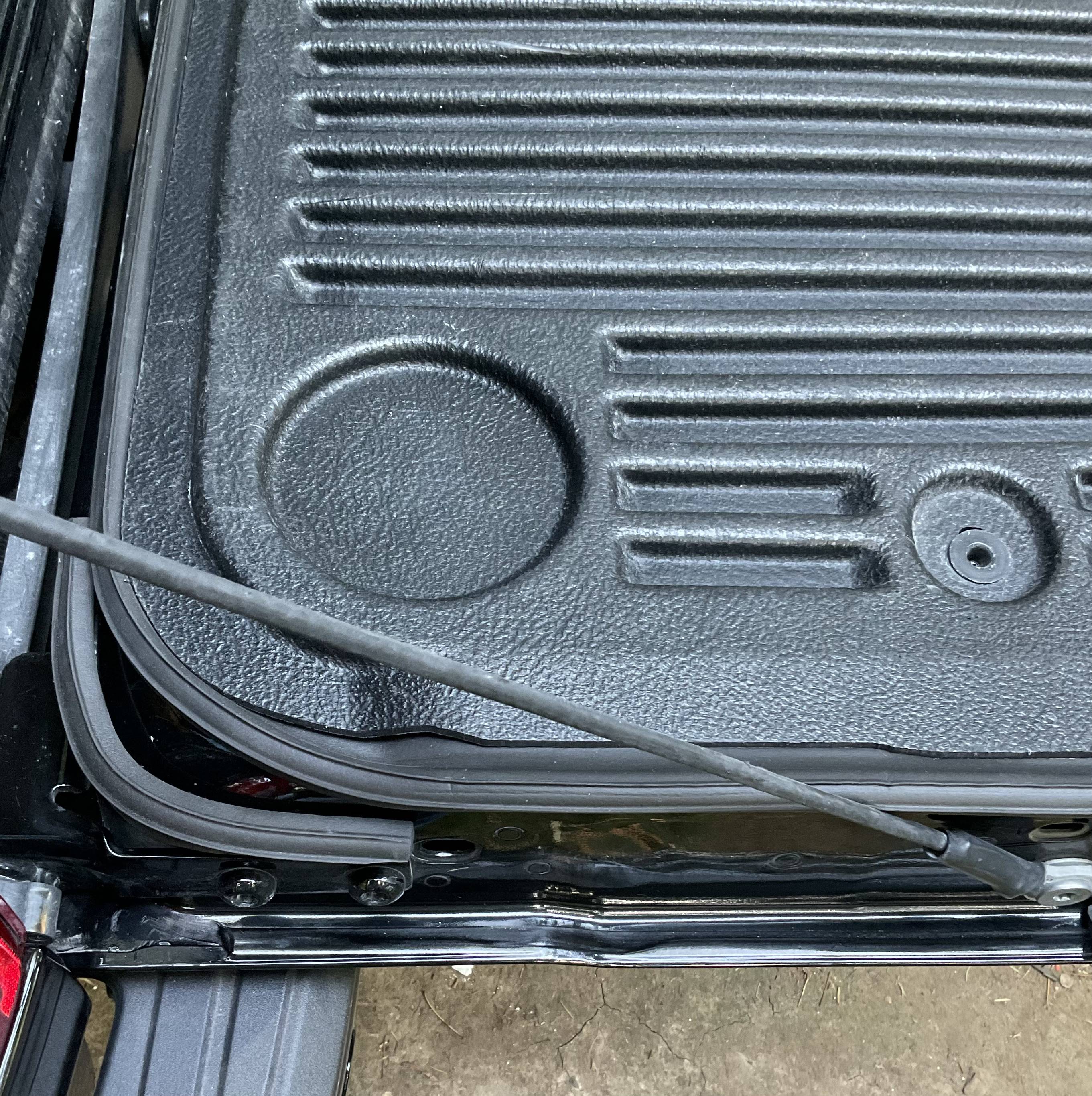

This is what you’re hoping to achieve….

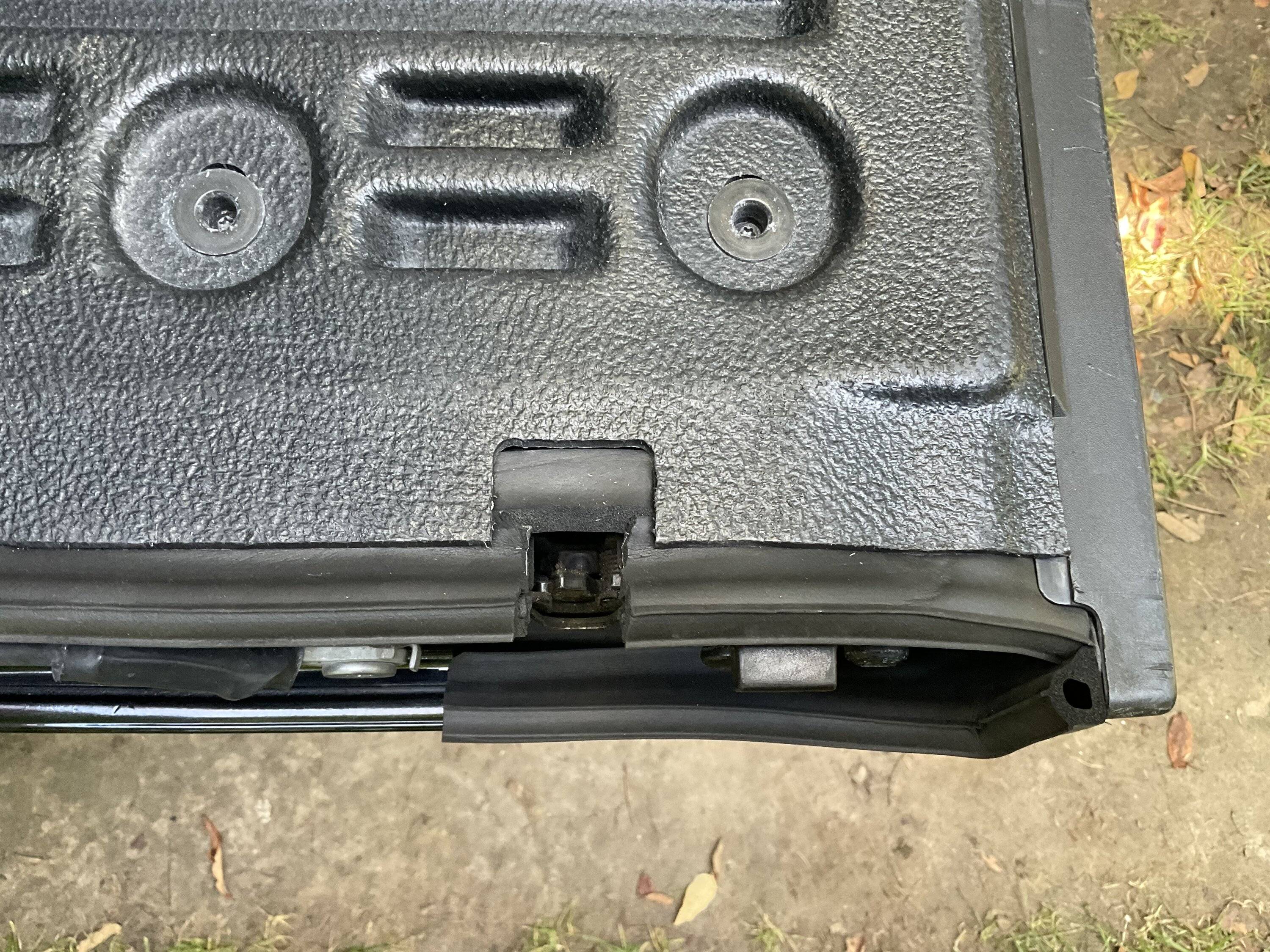

Sixth Step: With the tailgate closed, reach down into the bottom corner of the tailgate and you’ll feel a gap. You should have just enough seal left to close it up. Open up the tailgate and cut the last of your roll of small seal in half - should be about 5” or 6” each. Attach these on the bottom rounded coner of each side of the tailgate, bubble side up, along the hinge bracket as shown…




Close your tailgate and reach down to feel the seal.

You’re done.

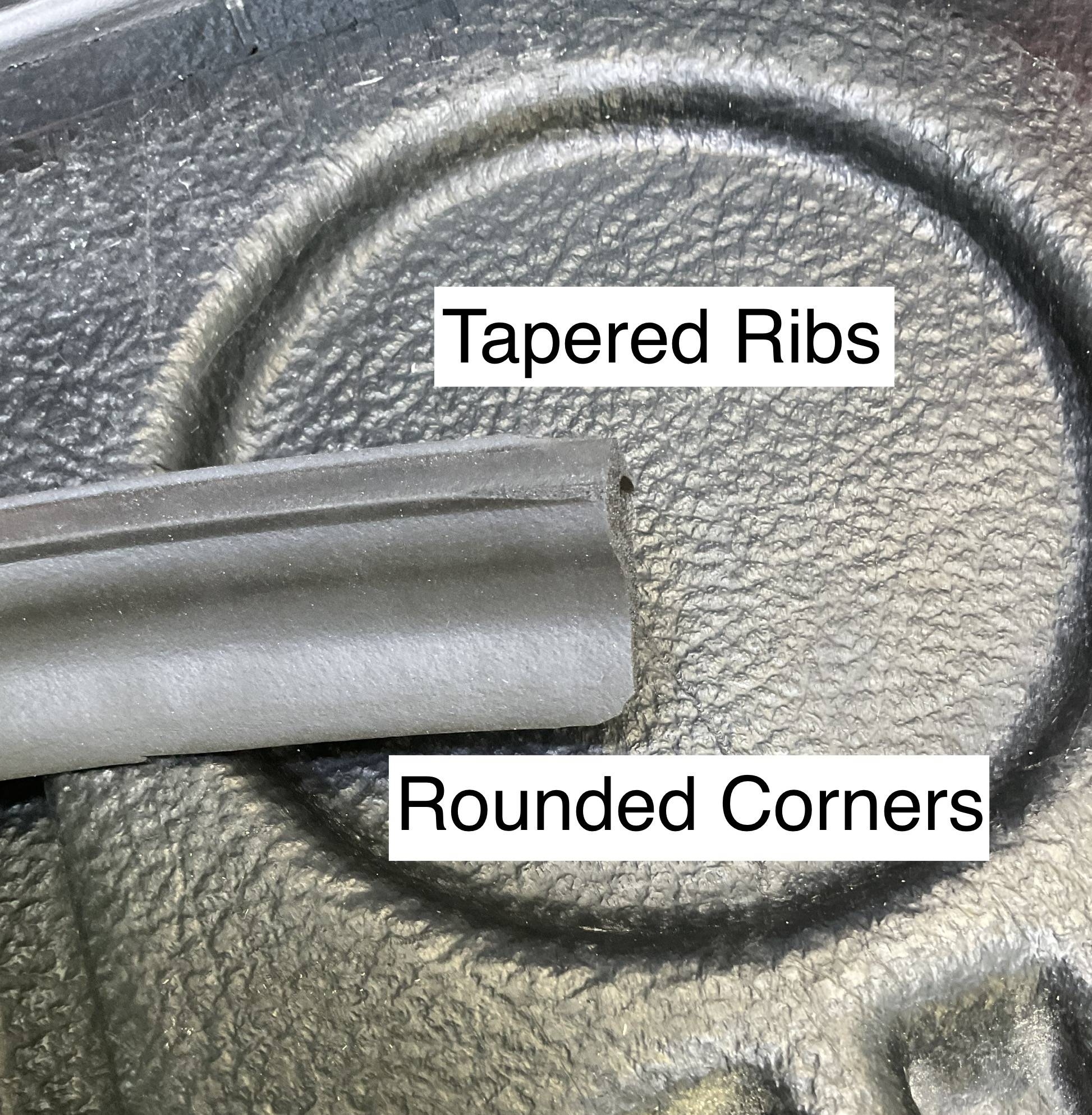

If you want to get all fancy, you can round the edges of the pieces you cut and taper the ribs - yes, I did that…I’m retired…I can do this stuff all day…I am also a bit anal retentive about such things…



Now, whenever I look out the rear window, I’m no longer fussed by the gap. Will the bottom edge get chewed up by tool cases, building materials, etc? Maybe, but the sides will still be fine and that was my goal.

Sponsored


Last edited:

got3fords

Well-Known Member
First Name
James
Joined
Apr 12, 2021
Threads
77
Messages
2,726
Reaction score
6,336
Location
22973
Vehicle(s)
2021 XLT Sport
Are you going to fill the bed with ice and beer? Kidding of course. I never really noticed a lot of water getting in with gate up and tonneau cover down.

OP
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,480
Reaction score
30,249
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
Are you going to fill the bed with ice and beer? Kidding of course. I never really noticed a lot of water getting in with gate up and tonneau cover down.
It’s not a bad idea James. Some folks report water and dust issues but I haven’t had any. If I was driving a lot of gravel or dirt roads, I could see how that might happen.


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
61
Messages
7,748
Reaction score
22,622
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
Automotive, Industrial Designer
Vehicle Showcase
1
Important Note: DROP-IN BEDLINER INSTALL WITH TAILGATE COVER

I don’t have issues with water getting in the back of my Ranger or much dust (I get it dirtier inside), but the light coming through the side gaps of my tailgate irritated me so I ordered a tailgate seal kit.




I didn’t like the instructions on: https://tailgateseal.com/FordRanger2019.html and a bit of dry-fitting led me to a different/better solution. I could install the adhesive flap under the protective tailgate cover, following the lines of the cover, and get a good seal on the sides and bottom. It also seemed like I could do it without using the two thicker pieces from the kit. So, that was my approach.

First Step: With a T20 Torx screwdriver, remove the cover to clean the surface of the tailgate. Isopropyl alcohol wipes come with the kit. I cleaned it with hydrogen peroxide wipes first (love those things!), then the supplied wipes.

My cover has been on for four years so it was easy to see the scuffed up outline it created - bonus - because if I couldn’t see the outline, I’d have to put the cover back on (loosely) so I could tuck the sticky part under.

Second Step: Cut a piece of the thinner seal 2-1/2” (A) and another piece 4-1/4” (B). Cut the “bubble” section off the 2-1/2” piece - only the adhesive strip and a little bit of foam will be left. Expose the adhesive on the 2-1/2” piece place it on inside edge of the tailgate latch opening. It will be overlapped by other pieces of seal. It is really just meant as a trim piece to provide a finished look. Expose the adhesive on the 4-1/2” piece and, using a plastic trim tool, gently pry the plastic tailgate cap up and insert the adhesive flap under the cap - the start of the bubble should be flush to the side of the tailgate and it should terminate at the latch opening, slightly overlapping the 2-1/2” trim piece. Expose a generous amount of adhesive from your roll of seal and start laying it down on the opposite side of the latch opening, also slightly overlapping the small trim piece. Continue around the curve of the tailgate to the centre of the tailgate bottom and cut the seal.
See below…



Third Step: Repeat second step for the opposite side, leaving a small, 1/8” gap as a weep hole.



Fourth Step: Replace the tailgate cover and admire your work so far.



Fifth Step: Close the tailgate and feel how the seal works. Now, look at the top portion of the tailgate above the tail lights - there is a gap that you can see through - it runs from the top of the tailgate support cable to the top of the tailgate.

Using only as much of the smaller seal as needed (you’re getting low at this point and have another area to address), run that seal as shown below.…



The adhesive flap should be tight to the side of the tailgate - too far out and it bulges through the gap when you close the tailgate. Too far in and the gap doesn’t seal. Repeat for the other side.

This is what you’re hoping to achieve….



Sixth Step: With the tailgate closed, reach down into the bottom corner of the tailgate and you’ll feel a gap. You should have just enough seal left to close it up. Open up the tailgate and cut the last of your roll of small seal in half - should be about 5” or 6” each. Attach these on the bottom rounded coner of each side of the tailgate, bubble side up, along the hinge bracket as shown…




Close your tailgate and reach down to feel the seal.

You’re done.

If you want to get all fancy, you can round the edges of the pieces you cut and taper the ribs - yes, I did that…I’m retired…I can do this stuff all day…I am also a bit anal retentive about such things…



Now, whenever I look out the rear window, I’m no longer fussed by the gap. Will the bottom edge get chewed up by tool cases, building materials, etc? Maybe, but the sides will still be fine and that was my goal.

Thanks for your detailed install...going to look into this for mine...



OP
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,480
Reaction score
30,249
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
OP
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,480
Reaction score
30,249
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
Thanks for your detailed install...going to look into this for mine...
I have yet to crawl inside to close the tailgate and topper window to really check for gaps (mostly because Mrs. DukeCanBuildit might lock me in) but it seems okay.


Tom_C

Well-Known Member
First Name
Tom
Joined
Apr 17, 2021
Threads
24
Messages
1,587
Reaction score
3,211
Location
Virginia, USA
Vehicle(s)
2020 Ranger Lariat SuperCab FX4
Occupation
System Admin
I tried that one and it doesn't work that great. Unfortunately this tailgate is a bear to seal up. I tried for a while and then got distracted... also haven't have my bed cover on for a while so it's not critical.

Some people have used pool noodles and stuff like that will reported success, but I think anything will just be 'better', not perfect.


got3fords

Well-Known Member
First Name
James
Joined
Apr 12, 2021
Threads
77
Messages
2,726
Reaction score
6,336
Location
22973
Vehicle(s)
2021 XLT Sport
It’s not a bad idea James. Some folks report water and dust issues but I haven’t had any. If I was driving a lot of gravel or dirt roads, I could see how that might happen.
Ok, then I guess I don't just understand the need. Why are you doing this? What makes you need to try seal the tailgate?

OP
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,480
Reaction score
30,249
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
Ok, then I guess I don't just understand the need. Why are you doing this? What makes you need to try seal the tailgate?
Oh, there’s no “need” for my use case - for others, yes. Me, I’m just closing up an annoying gap - purely a “want”, driven by boredom and a too much time on my hands.


got3fords

Well-Known Member
First Name
James
Joined
Apr 12, 2021
Threads
77
Messages
2,726
Reaction score
6,336
Location
22973
Vehicle(s)
2021 XLT Sport
Oh, there’s no “need” for my use case - for others, yes. Me, I’m just closing up an annoying gap - purely a “want”, driven by boredom and a too much time on my hands.
Well there's pure honesty for ya! And I appreciate it. Do you have a tonneau cover? Not sure how you are noticing such an annoying gap.


Fx4ranger2019Larait

Well-Known Member
First Name
Ricky
Joined
Jun 12, 2021
Threads
0
Messages
186
Reaction score
637
Location
SoCal
Vehicle(s)
2019 Ranger FX4 Larait
Occupation
Sprinkler Fitter
Thanks for the install instructions. I bought this too just waiting to do spray in bed liner before install.

OP
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,480
Reaction score
30,249
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
Well there's pure honesty for ya! And I appreciate it. Do you have a tonneau cover? Not sure how you are noticing such an annoying gap.
I have a topper/canopy - the gaps run each side of the tailgate from the hinge to the bed rail cap.


Fawnbuster

Well-Known Member
First Name
Mike
Joined
Jul 14, 2019
Threads
52
Messages
1,945
Reaction score
6,902
Location
Indiana
Vehicle(s)
2019 Ranger
Occupation
Retired 34 years as LEO
Vehicle Showcase
1
Important Note: DROP-IN BEDLINER INSTALL WITH TAILGATE COVER

I don’t have issues with water getting in the back of my Ranger or much dust (I get it dirtier inside), but the light coming through the side gaps of my tailgate irritated me so I ordered a tailgate seal kit.




I didn’t like the instructions on: https://tailgateseal.com/FordRanger2019.html and a bit of dry-fitting led me to a different/better solution. I could install the adhesive flap under the protective tailgate cover, following the lines of the cover, and get a good seal on the sides and bottom. It also seemed like I could do it without using the two thicker pieces from the kit. So, that was my approach.

First Step: With a T20 Torx screwdriver, remove the cover to clean the surface of the tailgate. Isopropyl alcohol wipes come with the kit. I cleaned it with hydrogen peroxide wipes first (love those things!), then the supplied wipes.

My cover has been on for four years so it was easy to see the scuffed up outline it created - bonus - because if I couldn’t see the outline, I’d have to put the cover back on (loosely) so I could tuck the sticky part under.

Second Step: Cut a piece of the thinner seal 2-1/2” (A) and another piece 4-1/4” (B). Cut the “bubble” section off the 2-1/2” piece - only the adhesive strip and a little bit of foam will be left. Expose the adhesive on the 2-1/2” piece place it on inside edge of the tailgate latch opening. It will be overlapped by other pieces of seal. It is really just meant as a trim piece to provide a finished look. Expose the adhesive on the 4-1/2” piece and, using a plastic trim tool, gently pry the plastic tailgate cap up and insert the adhesive flap under the cap - the start of the bubble should be flush to the side of the tailgate and it should terminate at the latch opening, slightly overlapping the 2-1/2” trim piece. Expose a generous amount of adhesive from your roll of seal and start laying it down on the opposite side of the latch opening, also slightly overlapping the small trim piece. Continue around the curve of the tailgate to the centre of the tailgate bottom and cut the seal.
See below…



Third Step: Repeat second step for the opposite side, leaving a small, 1/8” gap as a weep hole.



Fourth Step: Replace the tailgate cover and admire your work so far.



Fifth Step: Close the tailgate and feel how the seal works. Now, look at the top portion of the tailgate above the tail lights - there is a gap that you can see through - it runs from the top of the tailgate support cable to the top of the tailgate.

Using only as much of the smaller seal as needed (you’re getting low at this point and have another area to address), run that seal as shown below.…



The adhesive flap should be tight to the side of the tailgate - too far out and it bulges through the gap when you close the tailgate. Too far in and the gap doesn’t seal. Repeat for the other side.

This is what you’re hoping to achieve….



Sixth Step: With the tailgate closed, reach down into the bottom corner of the tailgate and you’ll feel a gap. You should have just enough seal left to close it up. Open up the tailgate and cut the last of your roll of small seal in half - should be about 5” or 6” each. Attach these on the bottom rounded coner of each side of the tailgate, bubble side up, along the hinge bracket as shown…




Close your tailgate and reach down to feel the seal.

You’re done.

If you want to get all fancy, you can round the edges of the pieces you cut and taper the ribs - yes, I did that…I’m retired…I can do this stuff all day…I am also a bit anal retentive about such things…



Now, whenever I look out the rear window, I’m no longer fussed by the gap. Will the bottom edge get chewed up by tool cases, building materials, etc? Maybe, but the sides will still be fine and that was my goal.

Great job and write up Duke! I installed a similar seal on my F150 plus had added the cover that shields between the bed and tailgate when you open it up. I still have that part, it had to be removed when I replaced the tailgate (crash) so I need to get around to cutting it down to fit the Ranger and install it.

OP
OP
DukeCanBuildit

DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,480
Reaction score
30,249
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
Thanks Mike. Man, take a break, will ya! :wink:
