Plywood Topper?

IL8APEX

Well-Known Member
First Name
Tom
Joined
Dec 30, 2019
Threads
9
Messages
80
Reaction score
161
Location
Michigan
Vehicle(s)
2019 Ranger XLT FX4
Wow! That's awesome!

Looking at the photos you can tell it has some heft to it. The nose down rake in the truck is gone!

Super job. This is definitely overbuilt, but just a fantastically well thought out execution. You should be proud.

-Tom
Sponsored



BcP28

Well-Known Member
First Name
Bennett
Joined
Jun 28, 2019
Threads
7
Messages
188
Reaction score
720
Location
Michigan
Vehicle(s)
2021 Ford F150, 2015 Ford Edge Sport
Occupation
Engineer
Looks way better than I was expecting a plywood topper to look! :thumbsup: If you're looking for help on the 3rd brake light, here's a write up I did for installing one on my softopper where I tapped into the taillight harness. Was the easiest way for me to get a true brake light signal without buying an adapter for the trailer harness.

Recently added a Softopper to my Ranger. Love the top so far, but am concerned about the lack of third brake light. I realize this probably isn't that big of an issue, but I'd hate to be a victim of someone texting and not able to recognize my brake lights, or a LEO having a bad day, so figured this was an easy solution.

I ordered an inexpensive red LED light strip from Amazon that comes with 3M adhesive tape attached. These lights seem to be good quality, weather resistant, are bright, and have low power consumption (I measured 34mA at 12.8V).

https://www.amazon.com/gp/product/B01GRO844G/ref=ppx_yo_dt_b_asin_title_o02_s00?ie=UTF8&psc=1

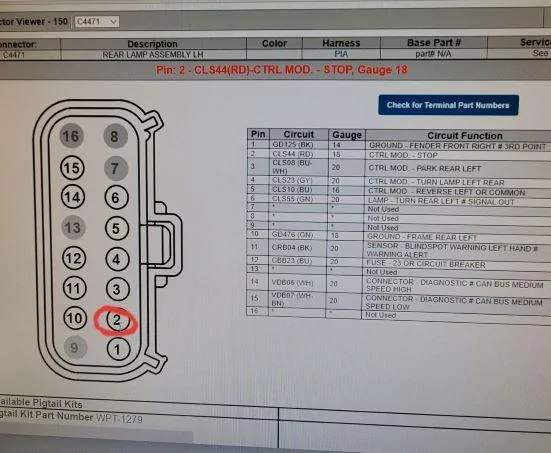

Next I had to figure out where to tap into for a clean brake light signal. The Ford Body Builder guide shows a tap in the fuse/relay panel in the driver's side footwell, but I didn't see a clean and easy wire path there, so I started looking into the tail light harnesses to see if there was a good tap. The LED tailights on my XLT have individual signals for the brakes, tails, and turns, so that looked like a good source. Pin 2 is a dedicated brake signal that is 12V, so that should work! This is the driver's side tail light.

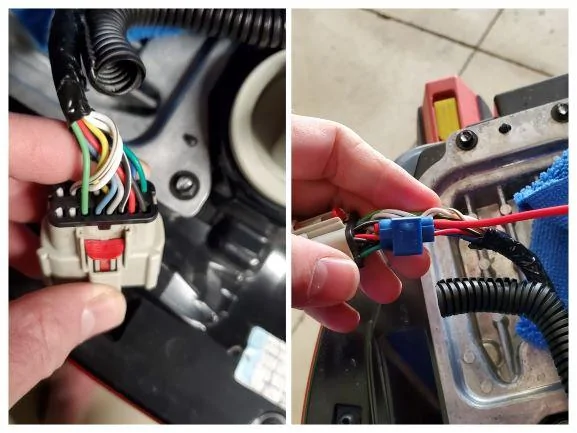

Here's the harness disconnected from the taillight. The wire you want is the red one, at least on my truck. I used a simple wire tap. I'm not a huge fan of these, but it was easier than disassembling the harness to get a cleaner splice, so we'll see how it holds up.

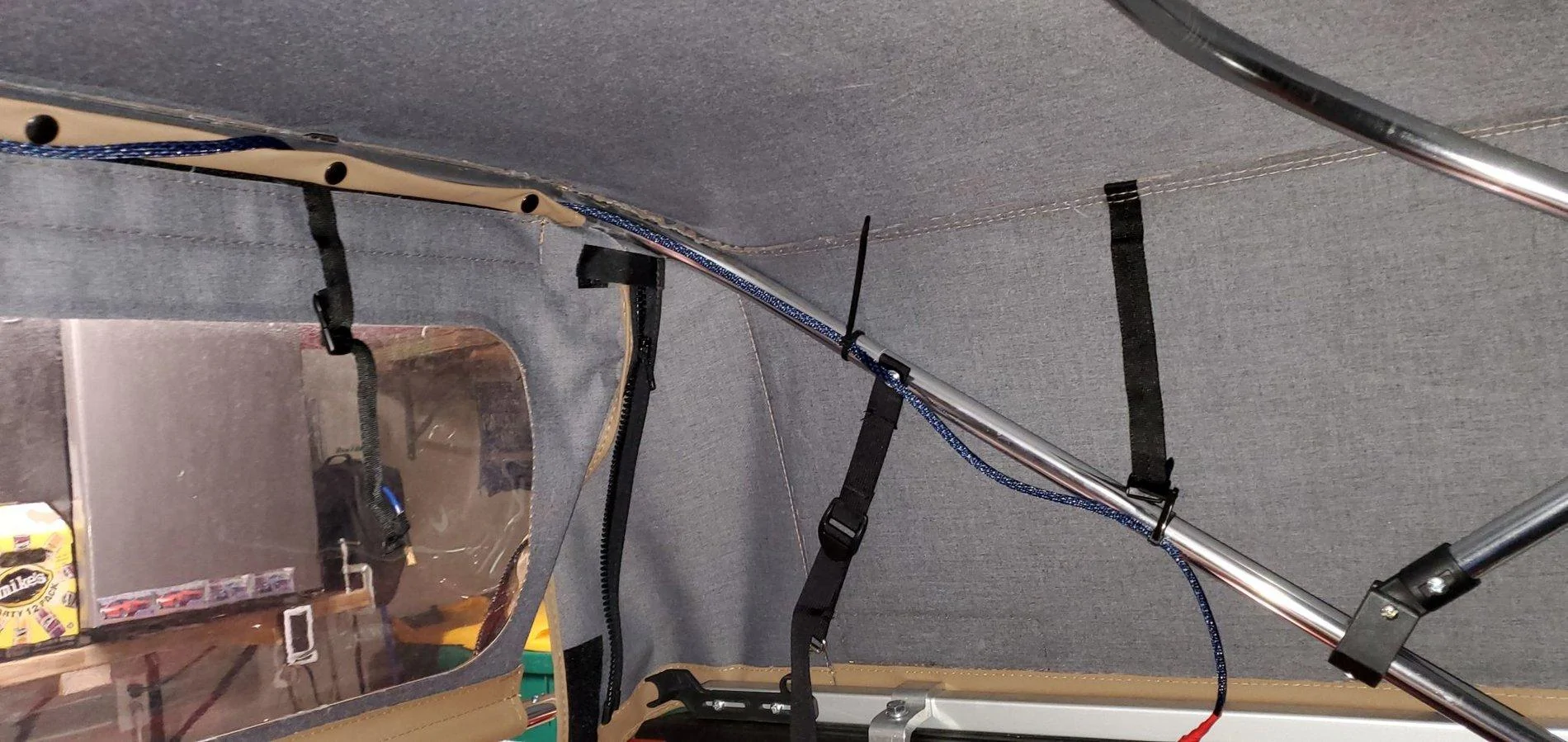

I placed the light itself in the center on the rear flap. It seems to stick pretty good to the canvas. I ran the wire along the rail and over to near the tail light area. There is a hole in the bed under the rail that is good access to behind the tail light, so that worked perfectly.

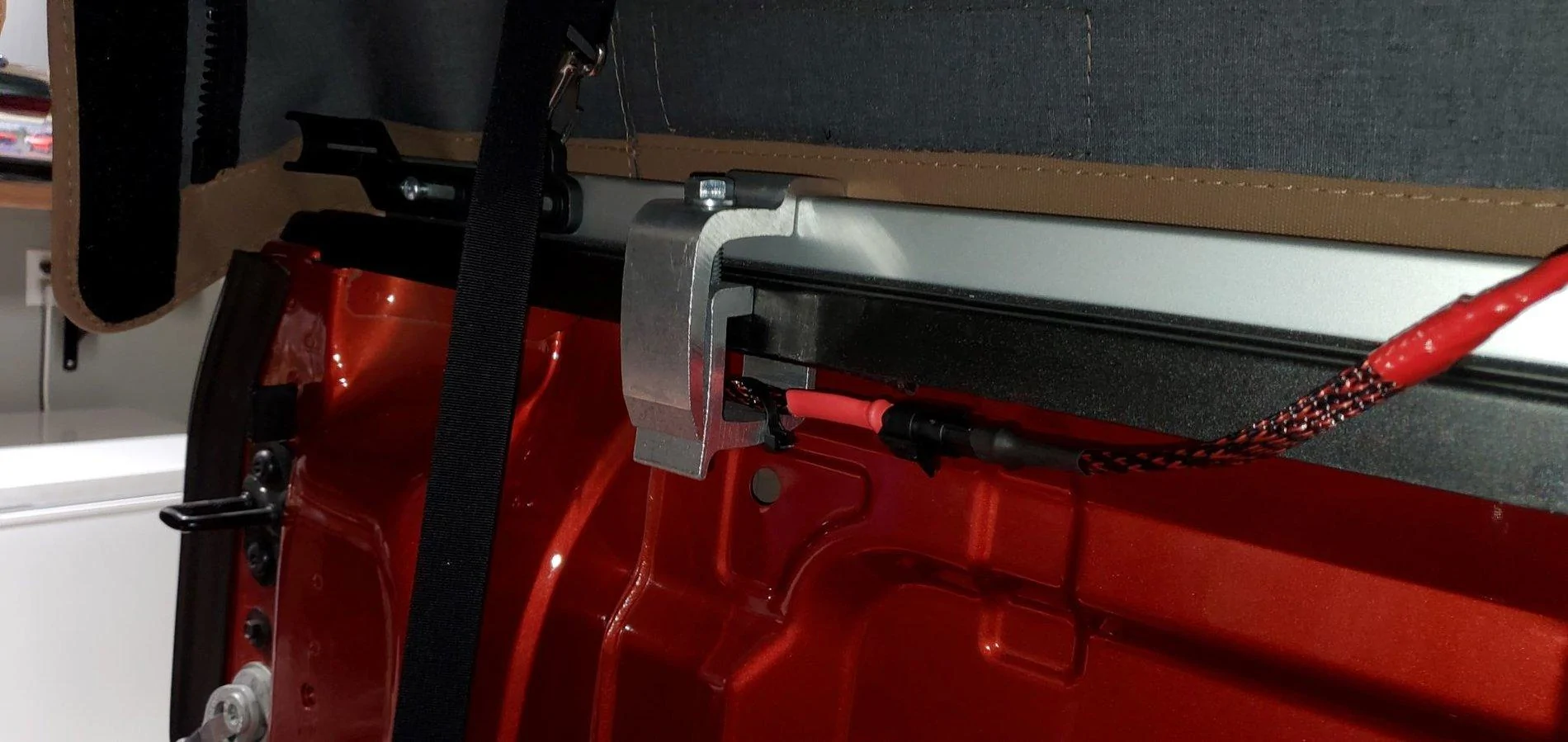

I used a waterproof connector here so that I can quickly disconnect if I ever want to remove or fold the topper.

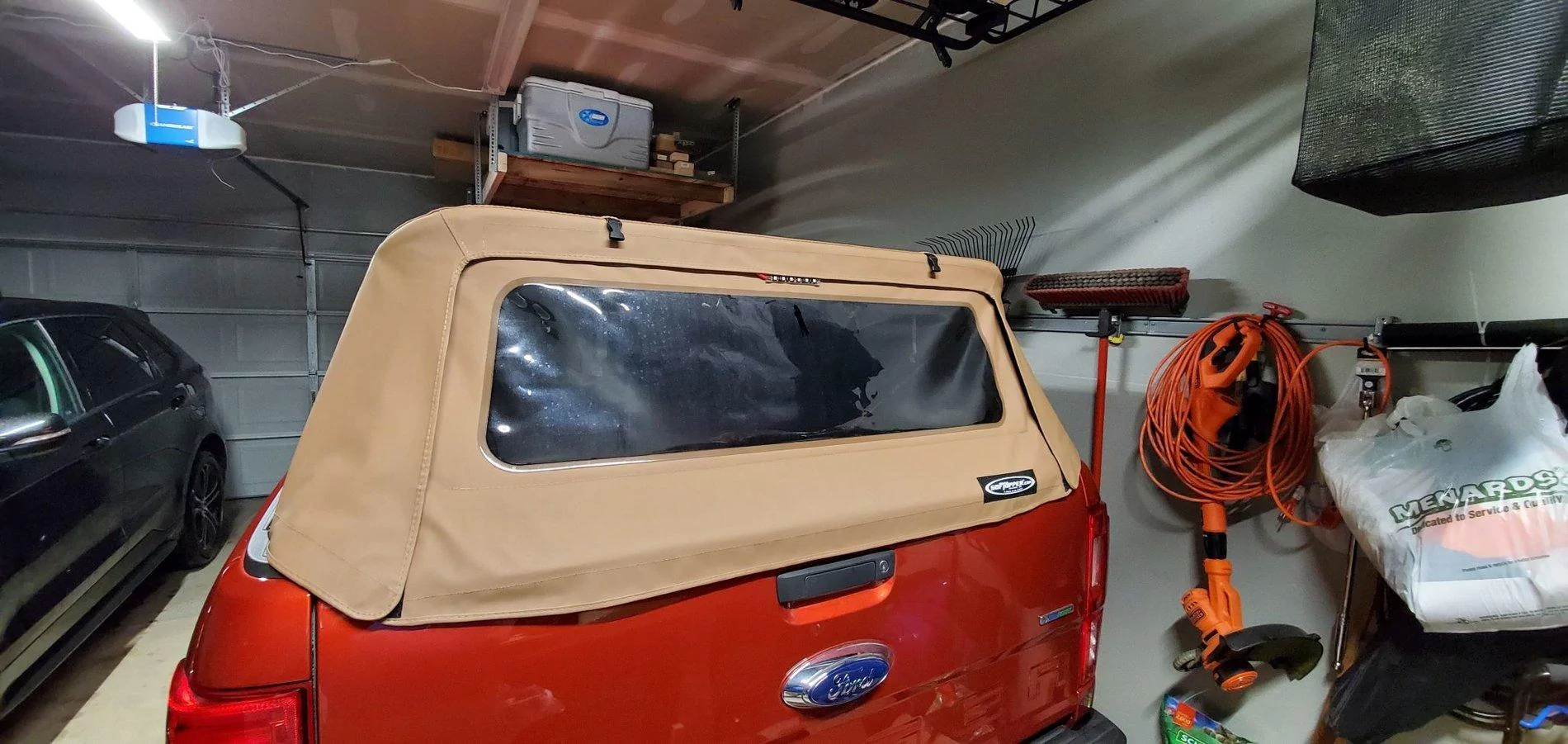

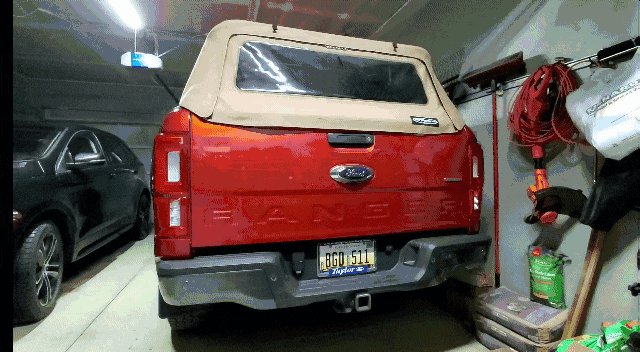

And here's the finished product. No rapid flashing lights, or flashing with turn signals. Seems to work well.



r1ch999999

Well-Known Member
First Name
Rich
Joined
Jan 4, 2020
Threads
28
Messages
1,153
Reaction score
1,924
Location
Nashua, NH
Vehicle(s)
2019 Ranger Lariat Crew Cab 4x4
Occupation
Software Engineer
I really like this. I’m curious if a 6’+ one could be done on a supercab with the tailgate down. I’d rather have something like that for the times I need a topper.


HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Threads
65
Messages
2,757
Reaction score
5,266
Location
Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
Keep a close eye on those hinges. Unless they are stainless and have stainless pins they will leave rust / oxidation streaks on the paint of your truck.

Some hidden hinges would have been more up to par with the awesome job you did on the rest of the fabrication work.


jeffe

Well-Known Member
First Name
Jeff
Joined
Apr 16, 2019
Threads
5
Messages
115
Reaction score
273
Location
Texas
Vehicle(s)
'98 Lincoln MK VIII, '19 Ranger XLT, Magnetic, 2WD CC, Sport pkg, towing pkg, rear locker.
Occupation
CPO, USN Retired, Retired AT&T Field Tech


OP
OP
Tinkerer

Tinkerer

Member
Joined
Mar 11, 2020
Threads
1
Messages
23
Reaction score
109
Location
Canada
Vehicle(s)
Ranger XL SuperCab
Looks way better than I was expecting a plywood topper to look! :thumbsup: If you're looking for help on the 3rd brake light, here's a write up I did for installing one on my softopper where I tapped into the taillight harness. Was the easiest way for me to get a true brake light signal without buying an adapter for the trailer harness.
Thanks for the info. That's really helpful!

OP
OP
Tinkerer

Tinkerer

Member
Joined
Mar 11, 2020
Threads
1
Messages
23
Reaction score
109
Location
Canada
Vehicle(s)
Ranger XL SuperCab
Keep a close eye on those hinges. Unless they are stainless and have stainless pins they will leave rust / oxidation streaks on the paint of your truck.

Some hidden hinges would have been more up to par with the awesome job you did on the rest of the fabrication work.
Yes I agree, hidden hinges would have been better. Thanks for the good advice about the hinges.


Tiny

Well-Known Member
Joined
Jun 21, 2020
Threads
2
Messages
117
Reaction score
305
Location
VA Beach
Vehicle(s)
2020 Ranger FX4 Lariat, color Saber, all the bells and whistles
Occupation
Retired
What an unbelievable job, WELL DONE!!!


Blue Streak

Well-Known Member
First Name
Larry
Joined
Jul 11, 2019
Threads
30
Messages
1,021
Reaction score
3,579
Location
Moscow Mills, Missouri
Vehicle(s)
2019 Ranger XL STX FX 2021 Honda CR V
Occupation
Retired
Vehicle Showcase
1
I just went through this thread. Fantastic job. Once a prototype is built you can always find ways to improve or make modifications that do not come to mind during a build. So I give this build a :thumbsup: :thumbsup: up. Hope you get years of enjoyment out of it. Start planing now for your replacement build taking notes of the what if's & should have's.:clap:


RedlandRanger

Moderator
First Name
Rob
Joined
Nov 14, 2018
Threads
35
Messages
4,592
Reaction score
8,826
Location
Oregon
Vehicle(s)
2019 Ford Ranger Lariat FX4, 1973 Mercury Capri
Vehicle Showcase
1
I would love to see an update on this project. Did you finish all the final things (brake light, etc)? How is it working out in practice now?

And I assume you had access to a CNC machine to cut the plywood? That is probably what would put this out of range for most people I think.


DukeCanBuildit

Well-Known Member
First Name
Duke
Joined
Jul 27, 2020
Threads
48
Messages
6,305
Reaction score
29,640
Location
Toronto, Ontario
Vehicle(s)
2019 XLT SuperCab
Occupation
Husband-Caregiver
Vehicle Showcase
1
Simply amazing - when I saw the name of this thread, all I could think was “Nooooooo!”

You’ve rewritten the rules of that game completely. Nicely done!

FYI for the U.S. members - his cost of $500 CAD is about $12.89 USD. ?


r1ch999999

Well-Known Member
First Name
Rich
Joined
Jan 4, 2020
Threads
28
Messages
1,153
Reaction score
1,924
Location
Nashua, NH
Vehicle(s)
2019 Ranger Lariat Crew Cab 4x4
Occupation
Software Engineer
I’d love to see one that extended to the end of a folded down tailgate.
