FX4 Off Road Angles Display

[amick1995]

Late to the game, and haven’t received my truck yet, but can some one clarify the graphic to the right of the “Angle” display. I saw in one follow up pic, it looks like it displays the crawl control speed, but what we the FasyForward/Reverse symbols indicating?

The middle read out on the screen is the steering angles, how far left or right you have your wheels turned.

Sponsored



[Canuckian]

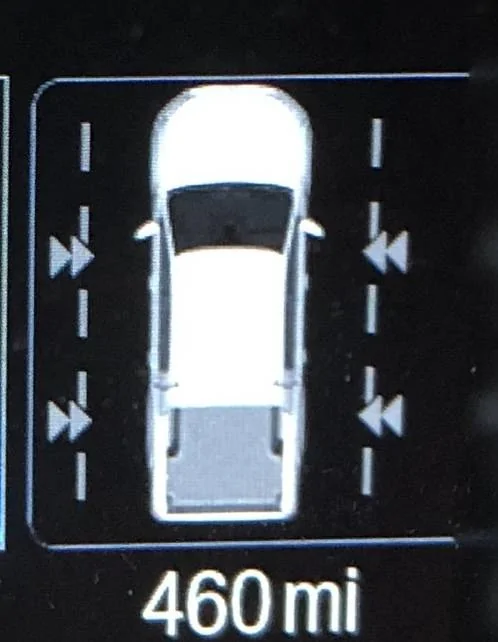

Meant this portion….



[SteamiestOyster]

Meant this portion….

That's the lane keeping assist.



[VegasRanger]

You can enable this in non-FX4 Rangers with Forscan!

FORScan Crowdsourced Wiki

FX4 Off-Road Screen (Non-FX4 Models) - Cred WhiteLightning19

I'm assuming this wont work for XL rangers with the basic poverty screen?



[JesseS]

I always forget to pull this screen up when I'm doing, what I perceive to be, crazy off camber maneuvers. And when I finally remember to pull it up to see just how crazy it was, I'm already past all the crazy stuff. haha

Ditto, spent 2 weeks in AZ off roading, and never once remembered to use it, maybe they need a dedicated button to enable it instead of it being berried in a menu.



[Canuckian]

That's the lane keeping assist.

Right. Makes sense. Thanks!



[Stefano187]

Good evening, I'm thinking about something related to the x/y angles, but do you have adjustable shock absorbers with the tm?



[Stefano187]

Good morning, continuing my hypotheses, by chance you who have activated the offroad display, do you also have the automatic adjustment of the headlight trim?



[pull string get cookies]

Good evening, I'm thinking about something related to the x/y angles, but do you have adjustable shock absorbers with the tm?

Hi Stefano, the shock absorbers are not electronically controlled and TM provides no adjustment to them.



[pull string get cookies]

Good morning, continuing my hypotheses, by chance you who have activated the offroad display, do you also have the automatic adjustment of the headlight trim?

No, auto headlamp level is not a feature on this truck.



[Ranger_Rocks]

No, auto headlamp level is not a feature on this truck.

Too bad. This is a very useful feature. Used it on vehicles in the UK. When the backend is loaded and the low beams are too high, just aim them down a bit.



[Stefano187]

Hello dear, thank you very much for the help, if you do not have neither the electronic shock absorbers nor the automatic headlight adjustment then I am back to the starting point! How the heck can I activate this feature? what changes between my European and your American? Possible that there is no way to solve this little problem!



[Papa Smurf]

Hi is there any way to make this work with my 2018 Ranger Wildtrak? I'm from the Philippines and we were able to activate the display but pitch and roll don't work. Only the steering angle works.



[AzScorpion]

Hi is there any way to make this work with my 2018 Ranger Wildtrak? I'm from the Philippines and we were able to activate the display but pitch and roll don't work. Only the steering angle works.

Maybe Richard @Synfulz can help you as he's in the Philippines too.



[Synfulz]

Maybe Richard @Synfulz can help you as he's in the Philippines too.

Unknown to me.
