I would say you have a few inclines in your area to give it a test.
This information is put on the screen by the Yaw rate sensor I would imagine.


FULLSCALE

Well-Known Member
First Name
Adam
Joined
Jan 7, 2019
Threads
39
Messages
2,047
Reaction score
2,165
Location
Ontario, Canada
Vehicle(s)
2019 Ford Ranger Lariat FX4 Supercrew, 2011 Mazda 3 Sport GT-E, 1968 Ford Mustang
I didn't realise it showed the steering angle too. I like it!


Jimiv123

Well-Known Member
First Name
Jim
Joined
Jan 13, 2019
Threads
1
Messages
79
Reaction score
84
Location
Dallas, TX
Vehicle(s)
2019 Ford Ranger Lariat, 501A, FX4, Sport Package, Magnetic
Occupation
IT Grunt

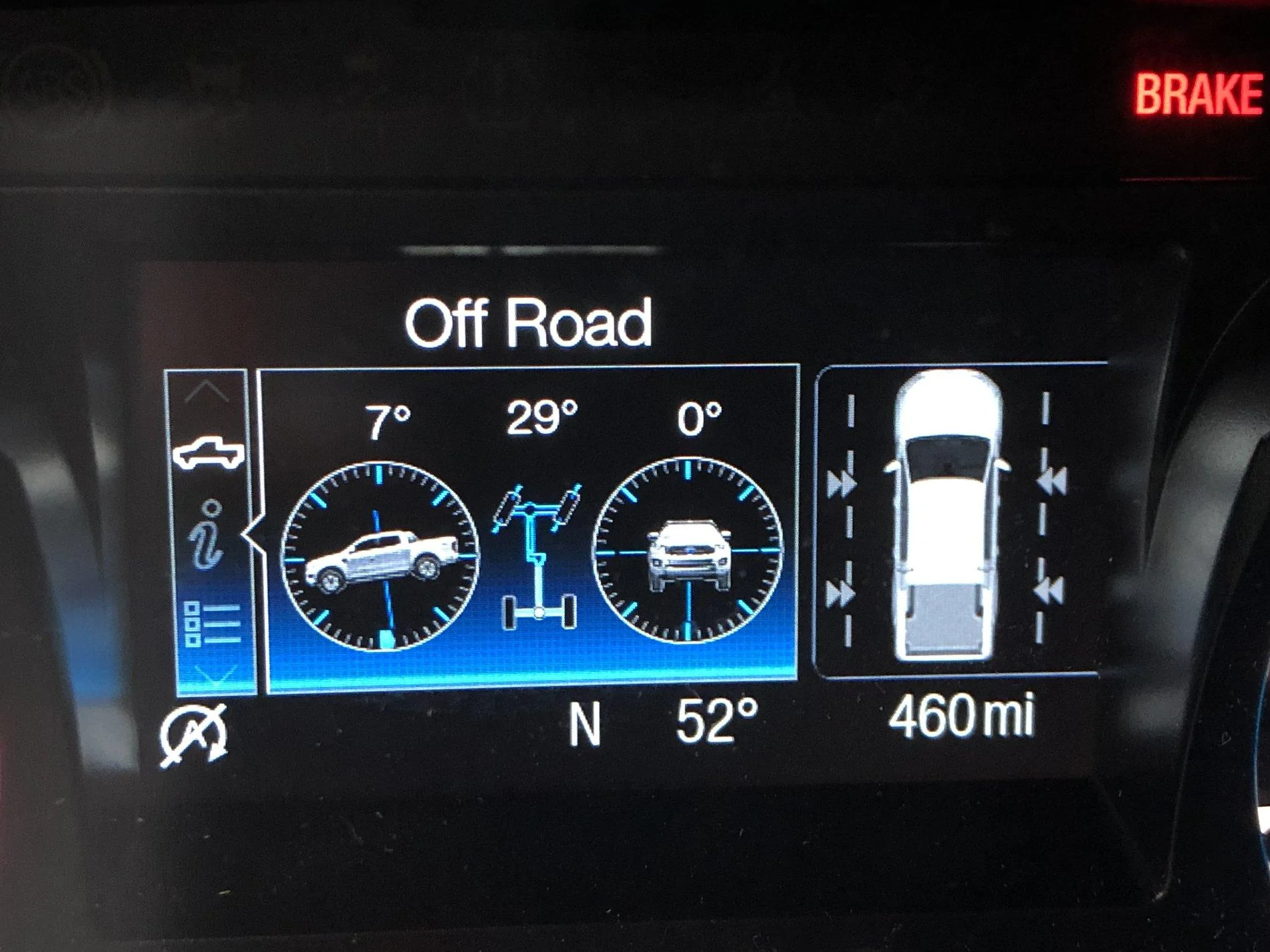

So from left to right it's Pitch, "Yaw" and Roll?

OP
OP
rangerdanger

rangerdanger

Well-Known Member
Joined
Oct 9, 2018
Threads
194
Messages
3,489
Reaction score
2,635
Location
SF Bay Area
Vehicle(s)
2019 Ford Ranger SuperCrew XLT FX4
Vehicle Showcase
1


Hirnlego

Well-Known Member
First Name
Jason
Joined
Jan 24, 2020
Threads
1
Messages
82
Reaction score
50
Location
SC
Vehicle(s)
2019 Ford Ranger XLT 302A
I was researching what this code actually does.
In a non FX4 models it displays the PITCH, STEERING ANGLE, and YAW/ROLL? Are these all accurate readings without FX4 or 4X4? No electronic sensors needed?

This FORScan code is separate from the Trail Control (cruise control for off road) on Trail Management (Button in 4X4 control near the gear shifter)


Deleted member 1634

I always forget to pull this screen up when I'm doing, what I perceive to be, crazy off camber maneuvers. And when I finally remember to pull it up to see just how crazy it was, I'm already past all the crazy stuff. haha


Rviator

Well-Known Member
First Name
Doug
Joined
Apr 30, 2019
Threads
20
Messages
447
Reaction score
868
Location
FLA
Vehicle(s)
A 2019 Ford Ranger of course, and a 2015 Yamaha YZF-R3
Occupation
retired aerospace engineer
Vehicle Showcase
1
So from left to right it's Pitch, "Yaw" and Roll?
The OP's picture is displaying pitch, steering angle, and roll in that order. Yaw is not displayed as it's irrelevant.


t4thfavor

Well-Known Member
First Name
Chance
Joined
Feb 5, 2019
Threads
32
Messages
2,593
Reaction score
2,328
Location
Michigan
Vehicle(s)
2019 Ranger XLT FX4 Fox 2.0, 2011 Ford Edge Sport
I was researching what this code actually does.
In a non FX4 models it displays the PITCH, STEERING ANGLE, and YAW/ROLL? Are these all accurate readings without FX4 or 4X4? No electronic sensors needed?

This FORScan code is separate from the Trail Control (cruise control for off road) on Trail Management (Button in 4X4 control near the gear shifter)

Yes, it needs all those signals for the other safety features to work properly, so there is no new hardware in the FX4 or 4x4 for those data points.


Jon Olivier

Well-Known Member
First Name
Jon
Joined
Dec 7, 2019
Threads
1
Messages
213
Reaction score
896
Location
Bishop, CA
Vehicle(s)
2019 XLT 4x4 - Hot Pepper Red, 302A, Sport Appearance, FX4, Tow Package,
Occupation
IT Specialist - CA Dept of Transportation
It's under "Truck Information" (or some name like that) on the dash main menu screen. Just keep paging down past Trip 1 and Trip 2 and all that.
The center image (steering angle) also shows when the front diff is engaged. You'll see the front drivetrain graphic lit up.


Deleted member 1634

The center image (steering angle) also shows when the front diff is engaged. You'll see the front drivetrain graphic lit up.
Interesting. I'll have to try and remember to check this menu page out more often. Now to just escape winter intact so I can get back to some off-roading and actually have a reason to use this menu page. haha


CO2Ranger

Well-Known Member
Joined
Apr 27, 2020
Threads
34
Messages
1,094
Reaction score
2,090
Location
Colorado
Vehicle(s)
2021 JLURD / Former: 2021 Ranger Lariat FX4
Shows a lock symbol on rear diff when locked too IIRC ?
