Pics of 285/70/17 tires

McLeadslinger

Well-Known Member
First Name
Trevor
Joined
Sep 18, 2021
Threads
24
Messages
764
Reaction score
1,881
Location
Pikeville NC
Vehicle(s)
2019 Ford Ranger XLT FX4 Sport.
Occupation
Aircraft Electrician

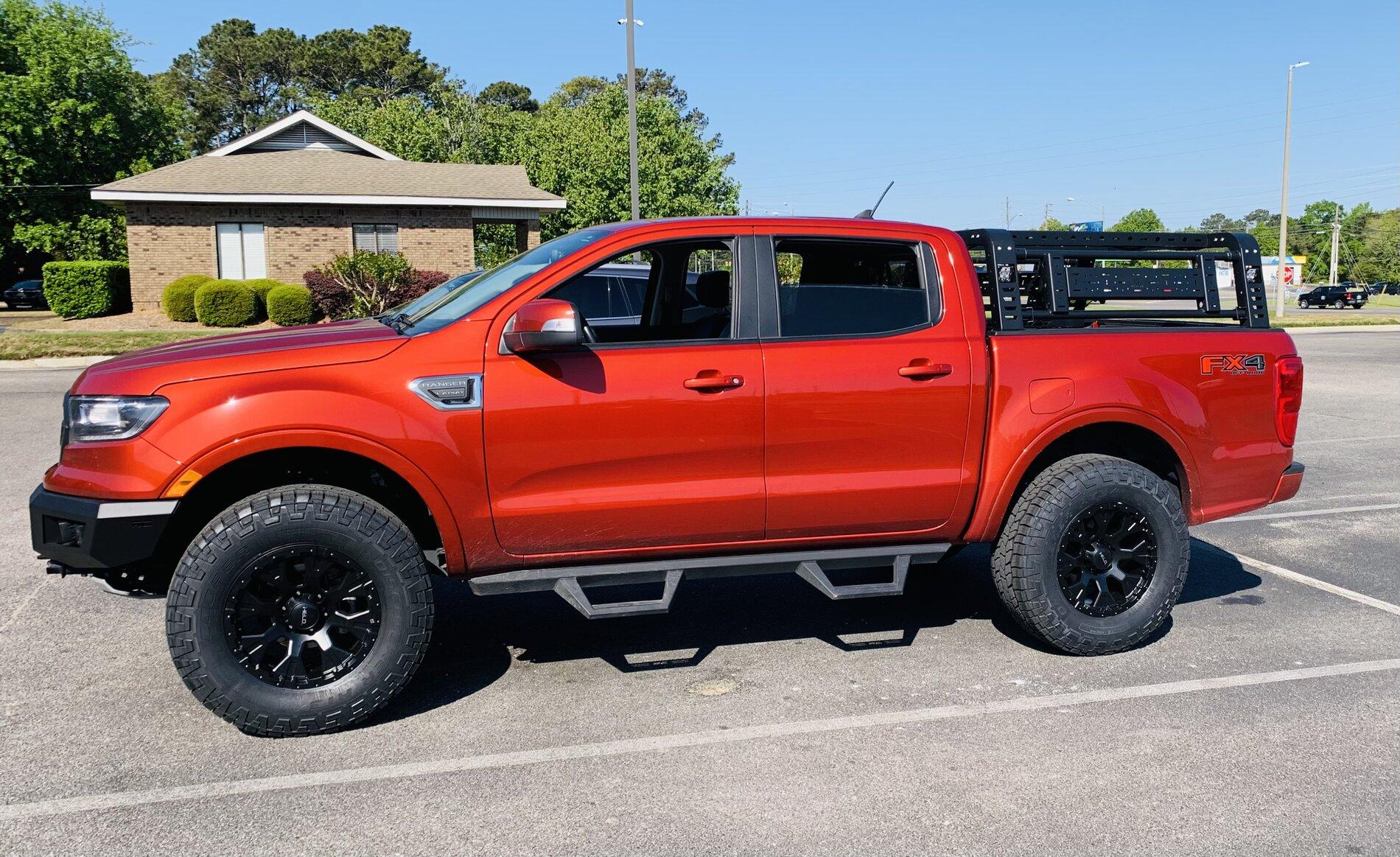

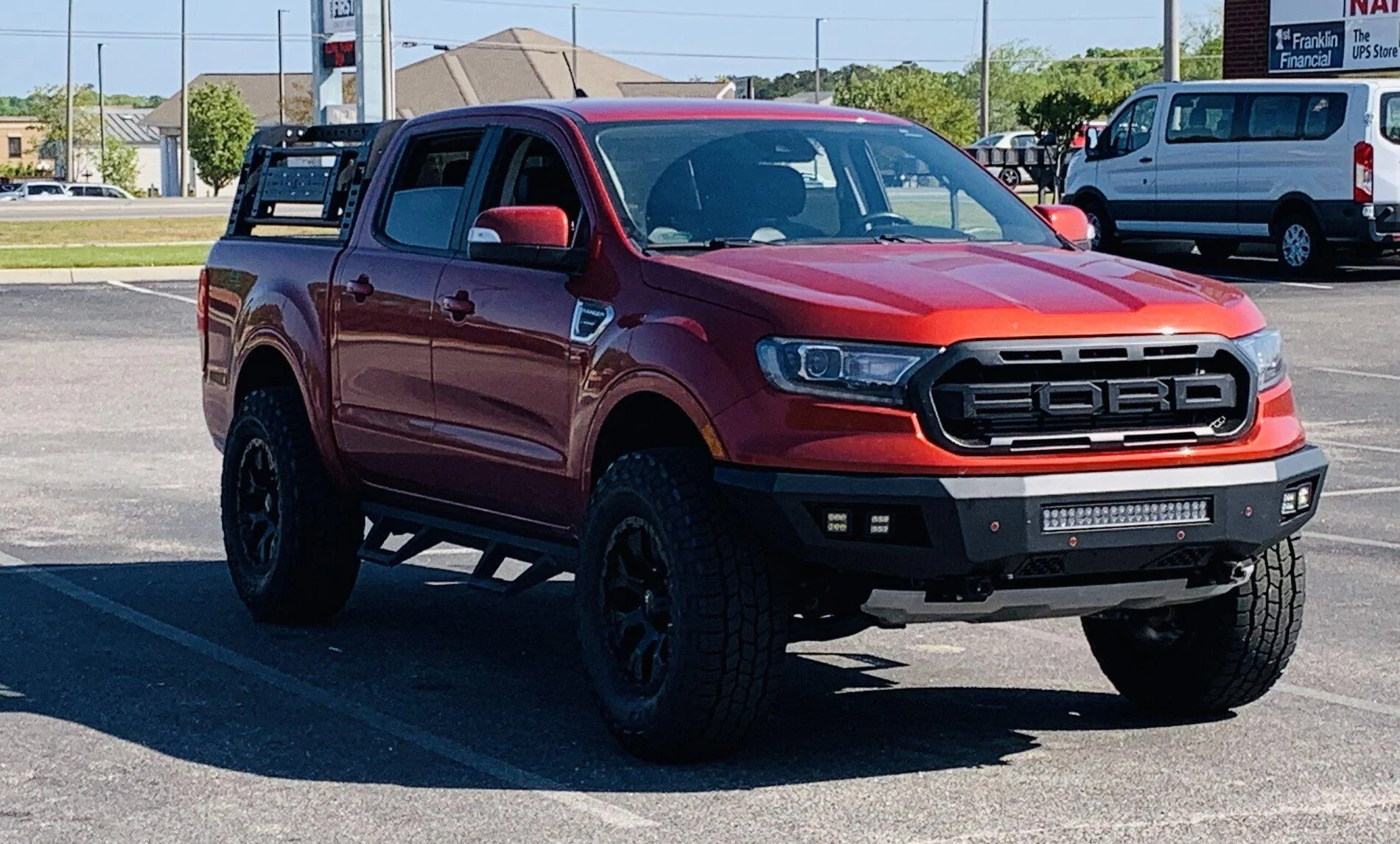

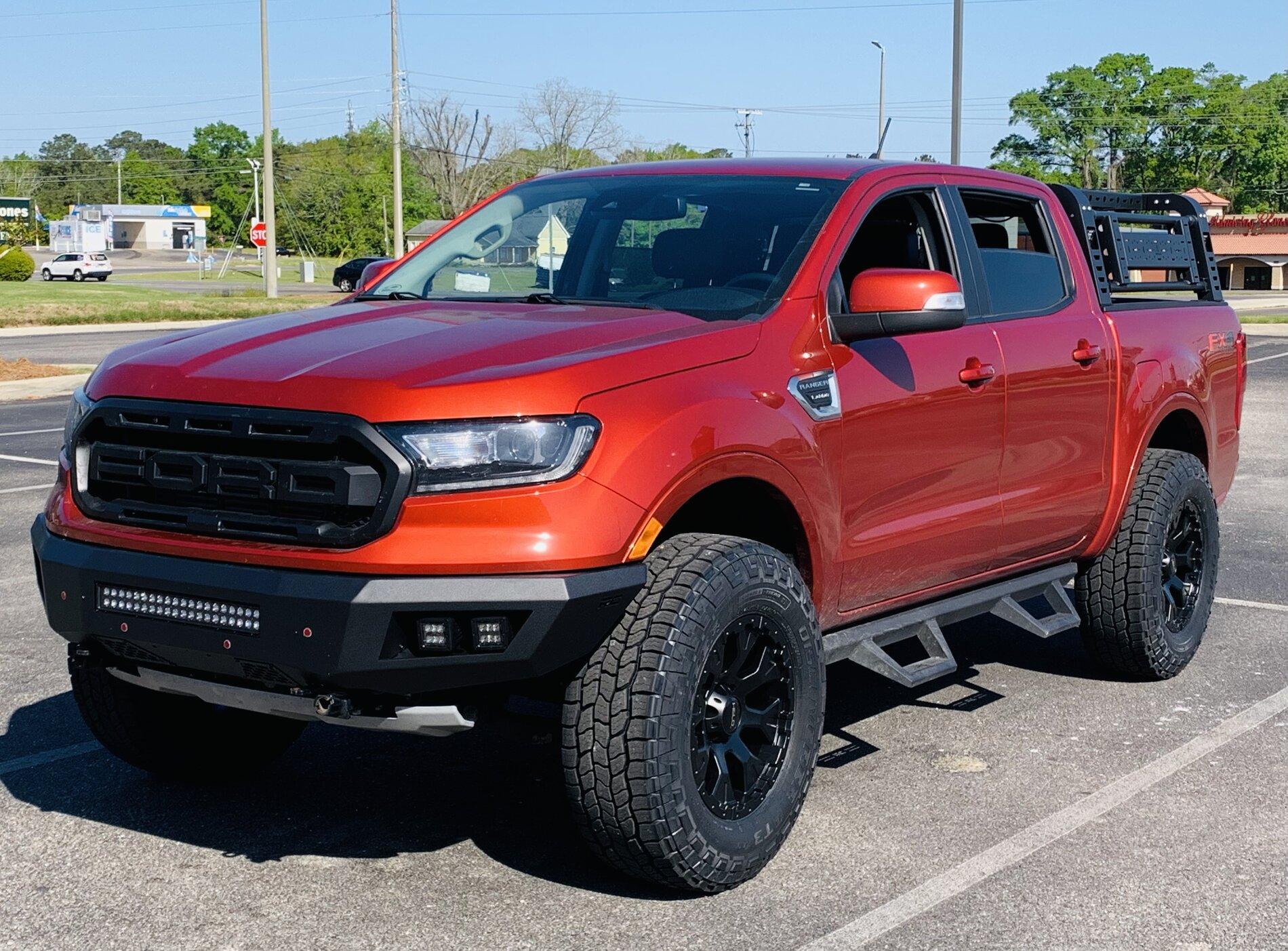

I didn’t t do the diff drop. After doing research it’s honestly not needed with 3.5 inches of lift.
Thanks for the pics I have Fox coil over in the front, with superlift suspension 3.5 inch and Eibach in the rear. I'm going to thesame as you have in the near future in the front setup. I think it is better without the spacer. Did you do a diff drop?
Sponsored



BladeRanger

Well-Known Member
First Name
Bladimir
Joined
May 16, 2020
Threads
4
Messages
907
Reaction score
2,267
Location
Escondido Ca
Vehicle(s)
Ranger 2020 XLT FX4
Occupation
Electronic Engineer
Vehicle Showcase
1
I didn’t t do the diff drop. After doing research it’s honestly not needed with 3.5 inches of lift.
Did the Eibach front came in at 3.5 inch adjusted from factory or you have to adjust it?


McLeadslinger

Well-Known Member
First Name
Trevor
Joined
Sep 18, 2021
Threads
24
Messages
764
Reaction score
1,881
Location
Pikeville NC
Vehicle(s)
2019 Ford Ranger XLT FX4 Sport.
Occupation
Aircraft Electrician
It was set at 2.5 inches. I had to adjust it. The good thing about Eibach coilovers is that you can adjust them on the truck.
Did the Eibach front came in at 3.5 inch adjusted from factory or you have to adjust it?


jmurph

Well-Known Member
First Name
jake
Joined
Apr 18, 2021
Threads
21
Messages
248
Reaction score
315
Location
Alaska
Vehicle(s)
2021 XLT Ranger
Occupation
Gov

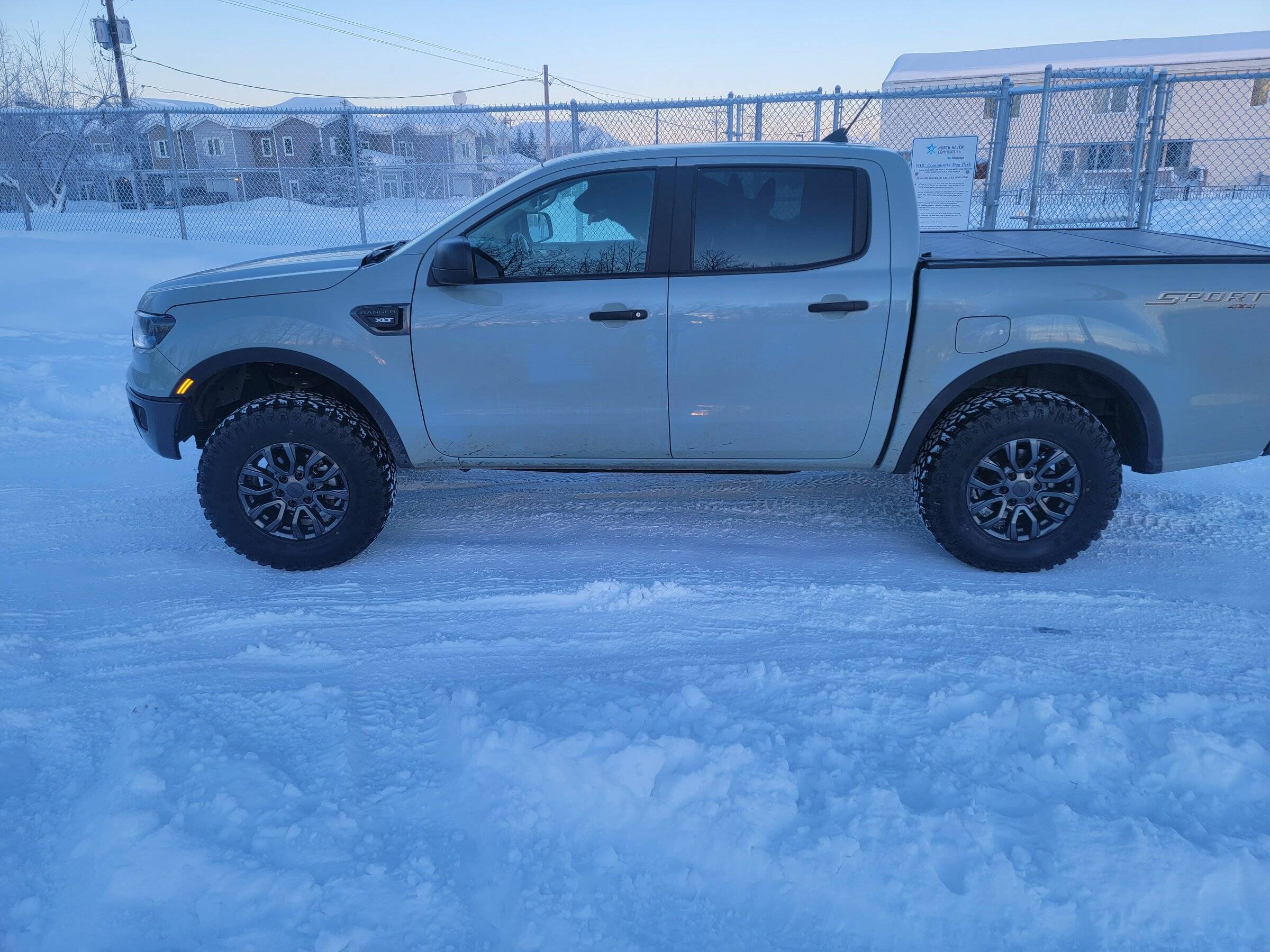

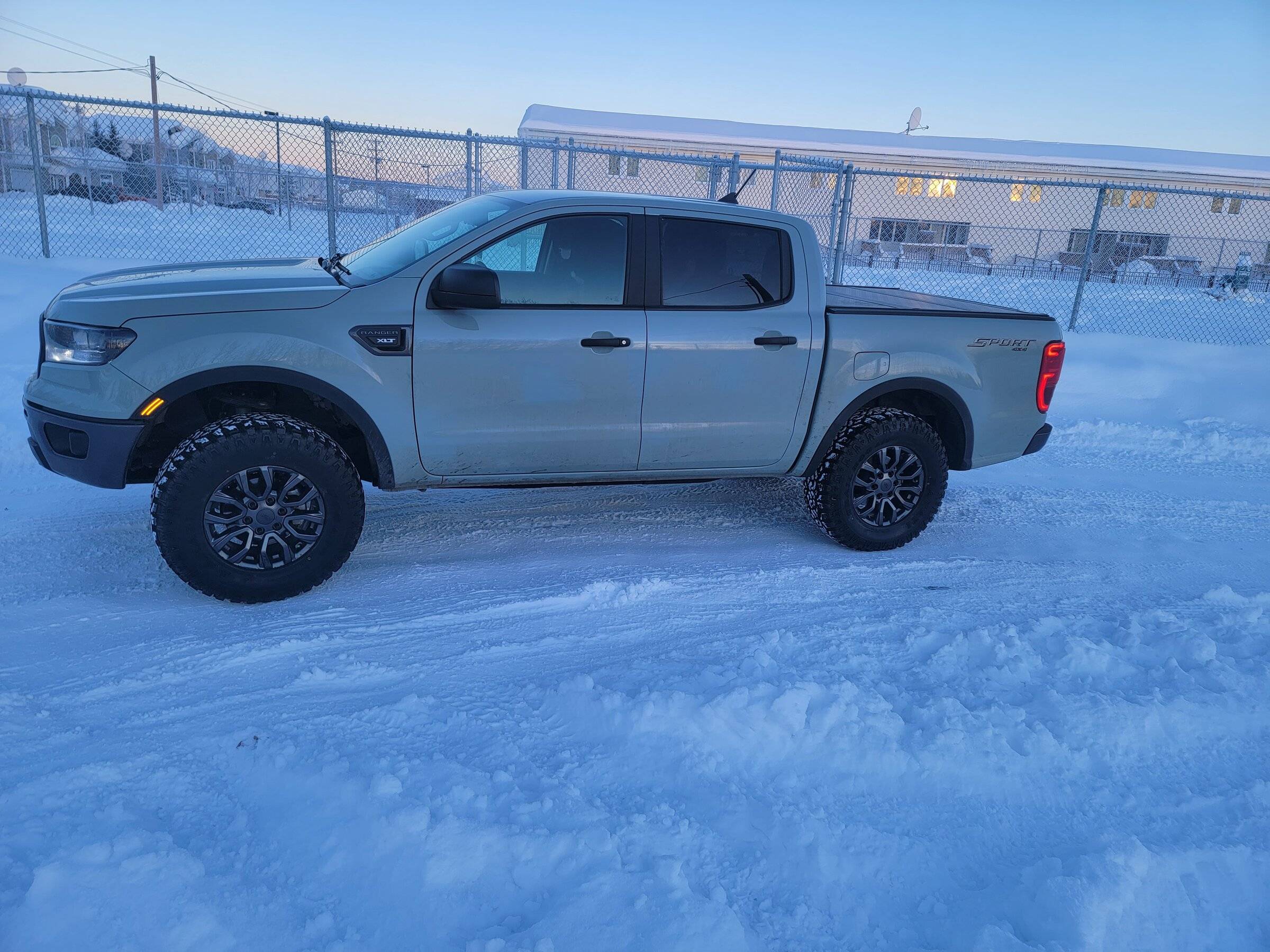

285/70/17 kanati trail hogs waiting on some spacers because they are close to the spindle and uca but they do fit just will rub if you air down and hit hard bumps.





Frenchy

Well-Known Member
First Name
Chris
Joined
Mar 15, 2020
Threads
164
Messages
7,539
Reaction score
10,750
Location
Elizabeth, Colorado
Vehicle(s)
2012 Nissan Frontier, 1994 F150 XL, 2022 Ford Transit
Occupation
Field Service Technician
285/70/17 kanati trail hogs waiting on some spacers because they are close to the spindle and uca but they do fit just will rub if you air down and hit hard bumps.



How are you liking the Kanati tires? Still curious since I havent heard of them until you brought them up



jmurph

Well-Known Member
First Name
jake
Joined
Apr 18, 2021
Threads
21
Messages
248
Reaction score
315
Location
Alaska
Vehicle(s)
2021 XLT Ranger
Occupation
Gov
How are you liking the Kanati tires? Still curious since I haven't heard of them until you brought them up
only have a few hundred miles on them and its Alaskan roads so 95% ice and 5% actually be able to touch pavement, so far, they are miles better than the stock tires in ice and I didn't even stud them. They eat snow for days and will never get stuck. I assume they are basically equivalent to the duratracs as they look identical. Can't say much on road noise as ice roads make noise no matter what your tires are. From my research the center sipping might be a little shallow, but I can't see that yet with how new they are. Definitely would recommend them for what they cost down in the lower 48. Think they are a softer compound so hot weather might also make them wear faster than they do up here.


BladeRanger

Well-Known Member
First Name
Bladimir
Joined
May 16, 2020
Threads
4
Messages
907
Reaction score
2,267
Location
Escondido Ca
Vehicle(s)
Ranger 2020 XLT FX4
Occupation
Electronic Engineer
Vehicle Showcase
1
I went with the 295 70 18, leveling kit up front and crash bars removed. 4.5" backspace on the wheels.





I know this is an old post, what UCA are you using?


Jerry361

Member
First Name
Jerry
Joined
Jun 14, 2021
Threads
1
Messages
22
Reaction score
8
Location
Corpus Christi Texas
Vehicle(s)
2021 ford ranger XLT FX4
Occupation
Truck Driver
Factory offset is +55

25 offset would basically be a factory wheel with a 1.25” (?) spacer.

1” = 25mm

I ran factory wheels with 2” spacer which made them effectively 5+ offset.
Isn't 1/4in =6mm so a +25 mm offset on factory wheels would be .75in or 3/4in or 20mm spacers ???


Frenchy

Well-Known Member
First Name
Chris
Joined
Mar 15, 2020
Threads
164
Messages
7,539
Reaction score
10,750
Location
Elizabeth, Colorado
Vehicle(s)
2012 Nissan Frontier, 1994 F150 XL, 2022 Ford Transit
Occupation
Field Service Technician
Isn't 1/4in =6mm so a +25 mm offset on factory wheels would be .75in or 3/4in or 20mm spacers ???
Incorrect. @OFC Ranger has it right. A +25 offset is 30MM different from a +55. Divide 30 by 6. You get 5. Multiply 1/4 by 5 and you get 1.25


Jerry361

Member
First Name
Jerry
Joined
Jun 14, 2021
Threads
1
Messages
22
Reaction score
8
Location
Corpus Christi Texas
Vehicle(s)
2021 ford ranger XLT FX4
Occupation
Truck Driver
Incorrect. @OFC Ranger has it right. A +25 offset is 30MM different from a +55. Divide 30 by 6. You get 5. Multiply 1/4 by 5 and you get 1.25
Oh ok I was on the right path just missed a whole 10mm lmao ? ok I thought 6mm was 1/4 planing on 285/70r17 with 6mm spacers ??


Frenchy

Well-Known Member
First Name
Chris
Joined
Mar 15, 2020
Threads
164
Messages
7,539
Reaction score
10,750
Location
Elizabeth, Colorado
Vehicle(s)
2012 Nissan Frontier, 1994 F150 XL, 2022 Ford Transit
Occupation
Field Service Technician
Oh ok I was on the right path just missed a whole 10mm lmao ? ok I thought 6mm was 1/4 planing on 285/70r17 with 6mm spacers ??

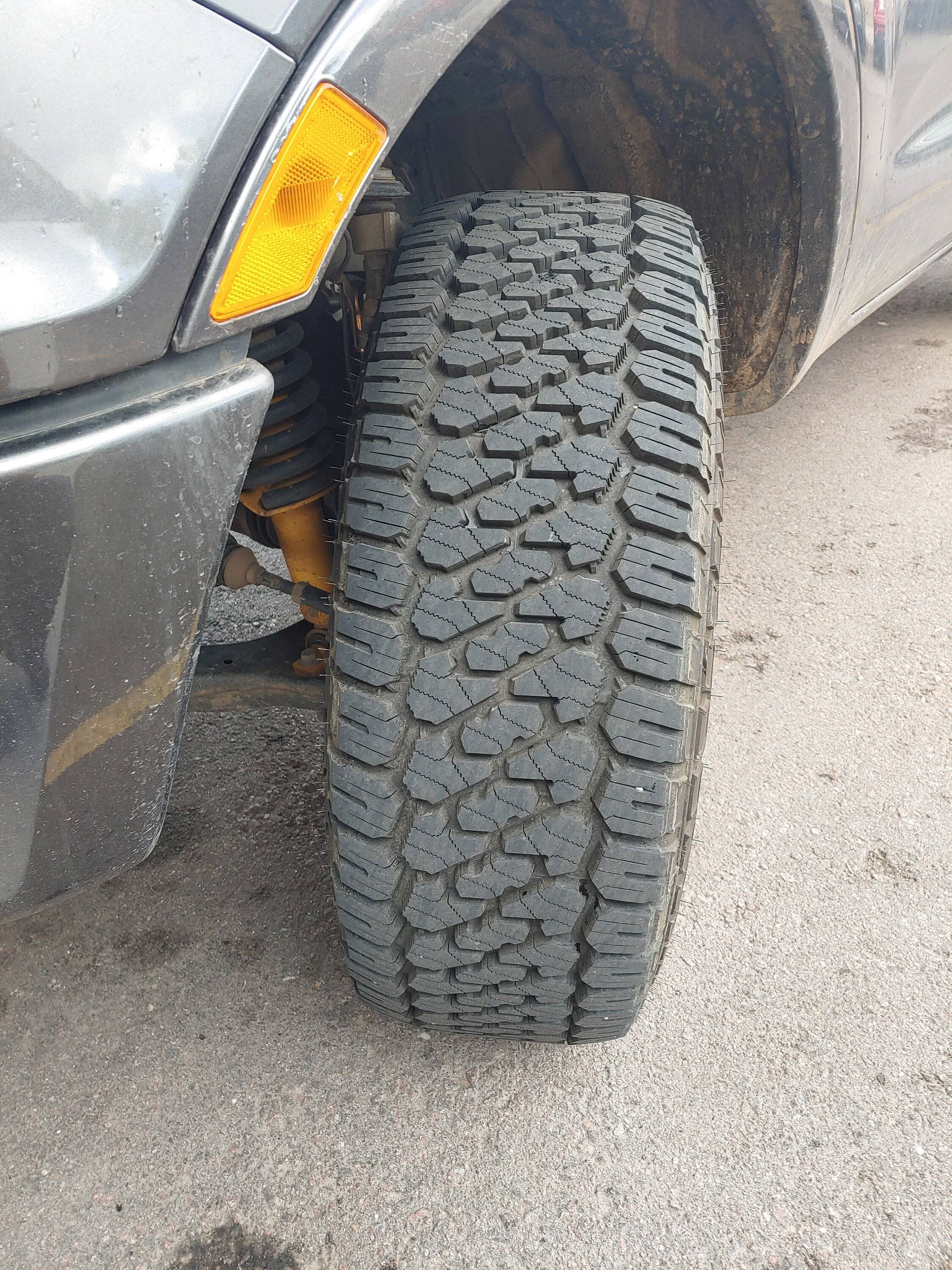

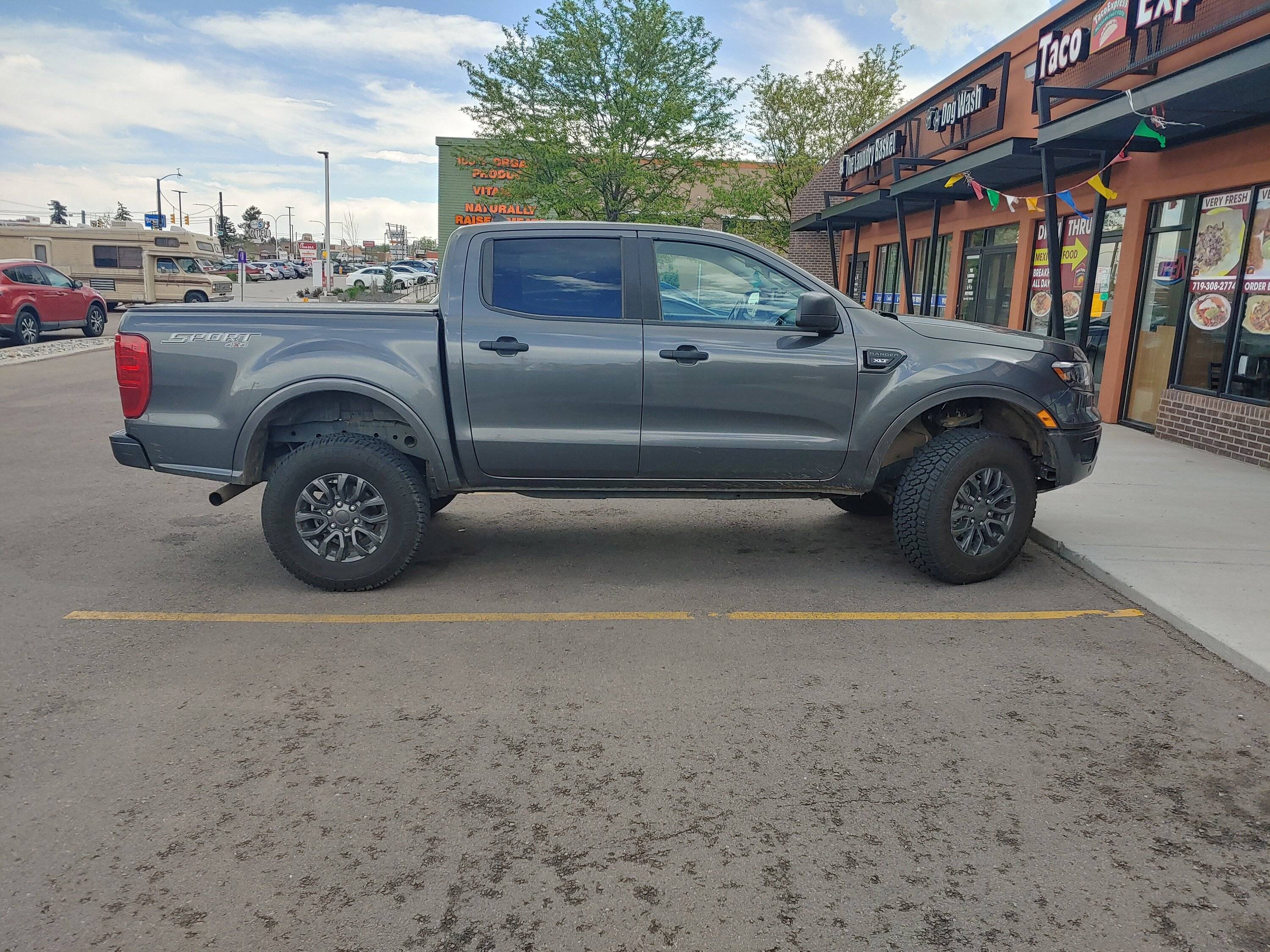

Personally dont recommend spacers. With that said I ran 285/70-17 Firestone Destination XT's on the Factory Sport wheels with no spacers. Only had rub at full lock. Still had factory crash bars. Of course this was with the Old Man EMU lift




  • Like
Reactions: EJH

JStewart801

New Member
First Name
Joshua
Joined
Feb 23, 2024
Threads
0
Messages
2
Reaction score
0
Location
Utah
Vehicle(s)
2021 Ford Ranger

-12 mm offset
I wanted to go with -12mm offset wheels. Other than the level kit was anything else needed so they didn't rub? other than removing the crash bars I assume


Russd

Well-Known Member
First Name
jeff
Joined
Jan 2, 2022
Threads
8
Messages
331
Reaction score
1,143
Location
Arizona
Vehicle(s)
Vw bus 4runner
Occupation
Retired
Vehicle Showcase
1

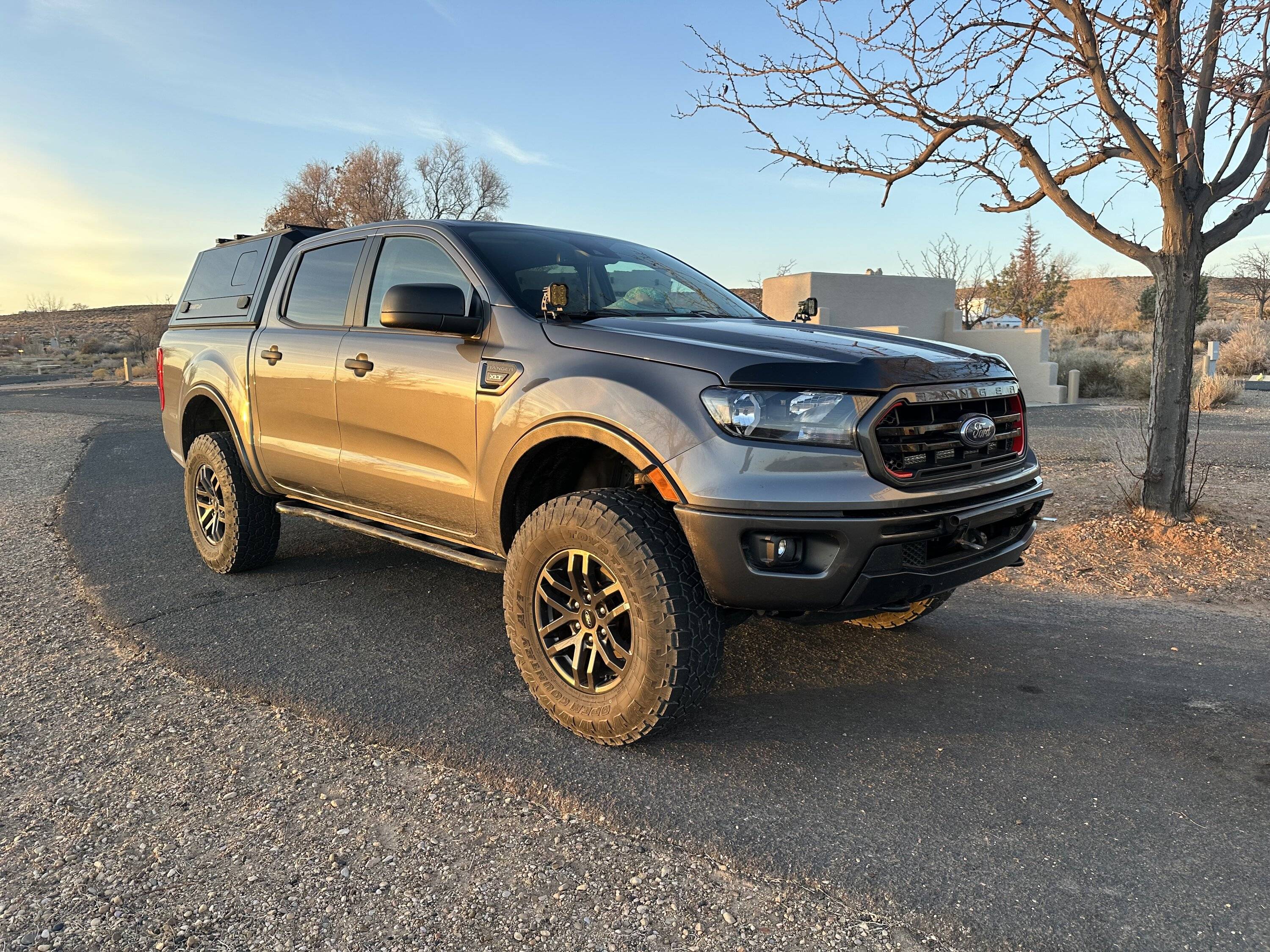

Toyo at-3
