Compliance Recall 19S15 - Certain 2019 MY Rangers, Shift Cable Bracket Fasteners (Transmission)

Discussion in 'Issues, Repairs, Warranty, TSB, Recalls' started by TigerWoodsG5, May 14, 2019.

  1. TigerWoodsG5

    TigerWoodsG5 Member

    First Name:
    Jerry
    Vehicle(s):
    2019 XLT Ford Ranger
    Joined:
    Apr 24, 2019
    Location:
    San Antonio
    Posts:
    17
    Likes Received:
    30
    Garage Profiles:
    1

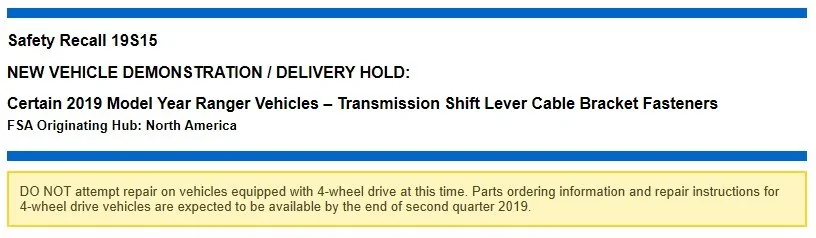

    NEW VEHICLE DEMONSTRATION / DELIVERY HOLD
    Compliance Recall 19S15

    Certain 2019 Model Year Ranger Vehicles
    Shift Cable Bracket Fasteners

    Affected Vehicles:

    Vehicle: Ranger
    Model Year: 2019
    Assembly Plant: Michigan
    Build Dates: March 05, 2010 through March 13, 2019

    Reasons for this Compliance Recall:

    Ford is issuing a safety recall for select 2019 Ranger vehicles. On some affected vehicles, the two fasteners that secure the transmission shift cable bracket to the transmission housing may not have been torqued to specification. Over time, an improperly torqued fastener could allow the transmission shift cable bracket to become loose and the transmission to be in a gear state different from the gearshift position selected by the driver.

    This condition could allow the driver to remove the ignition key (if equipped) with no instrument panel warning message or chime indicating that the transmission is not in park. This could allow unintended vehicle movement or roll away if the parking brake is not applied, increasing the risk of a crash or injury.

    Ford is not aware of any accidents or injuries related to this condition.

    Service Action:

    Dealers will properly torque the two fasteners and verify the proper operation of the transmission selector assembly according to established workshop manual procedure. Prior to the recall repair, the parking brake should be applied whenever the vehicle is parked.

    Credit to ice-capades


    Attached Files:

    Rinn69 likes this.
  2. Washashore

    Washashore Well-Known Member

    First Name:
    JM
    Vehicle(s):
    2019 SCab Lariat 4x4
    Joined:
    Apr 7, 2019
    Location:
    Cape Cod, MA
    Posts:
    48
    Likes Received:
    28
  3. TigerWoodsG5

    TigerWoodsG5 Member

    First Name:
    Jerry
    Vehicle(s):
    2019 XLT Ford Ranger
    Joined:
    Apr 24, 2019
    Location:
    San Antonio
    Posts:
    17
    Likes Received:
    30
    Garage Profiles:
    1
  4. Washashore

    Washashore Well-Known Member

    First Name:
    JM
    Vehicle(s):
    2019 SCab Lariat 4x4
    Joined:
    Apr 7, 2019
    Location:
    Cape Cod, MA
    Posts:
    48
    Likes Received:
    28
  5. TigerWoodsG5

    TigerWoodsG5 Member

    First Name:
    Jerry
    Vehicle(s):
    2019 XLT Ford Ranger
    Joined:
    Apr 24, 2019
    Location:
    San Antonio
    Posts:
    17
    Likes Received:
    30
    Garage Profiles:
    1
  6. Washashore

    Washashore Well-Known Member

    First Name:
    JM
    Vehicle(s):
    2019 SCab Lariat 4x4
    Joined:
    Apr 7, 2019
    Location:
    Cape Cod, MA
    Posts:
    48
    Likes Received:
    28

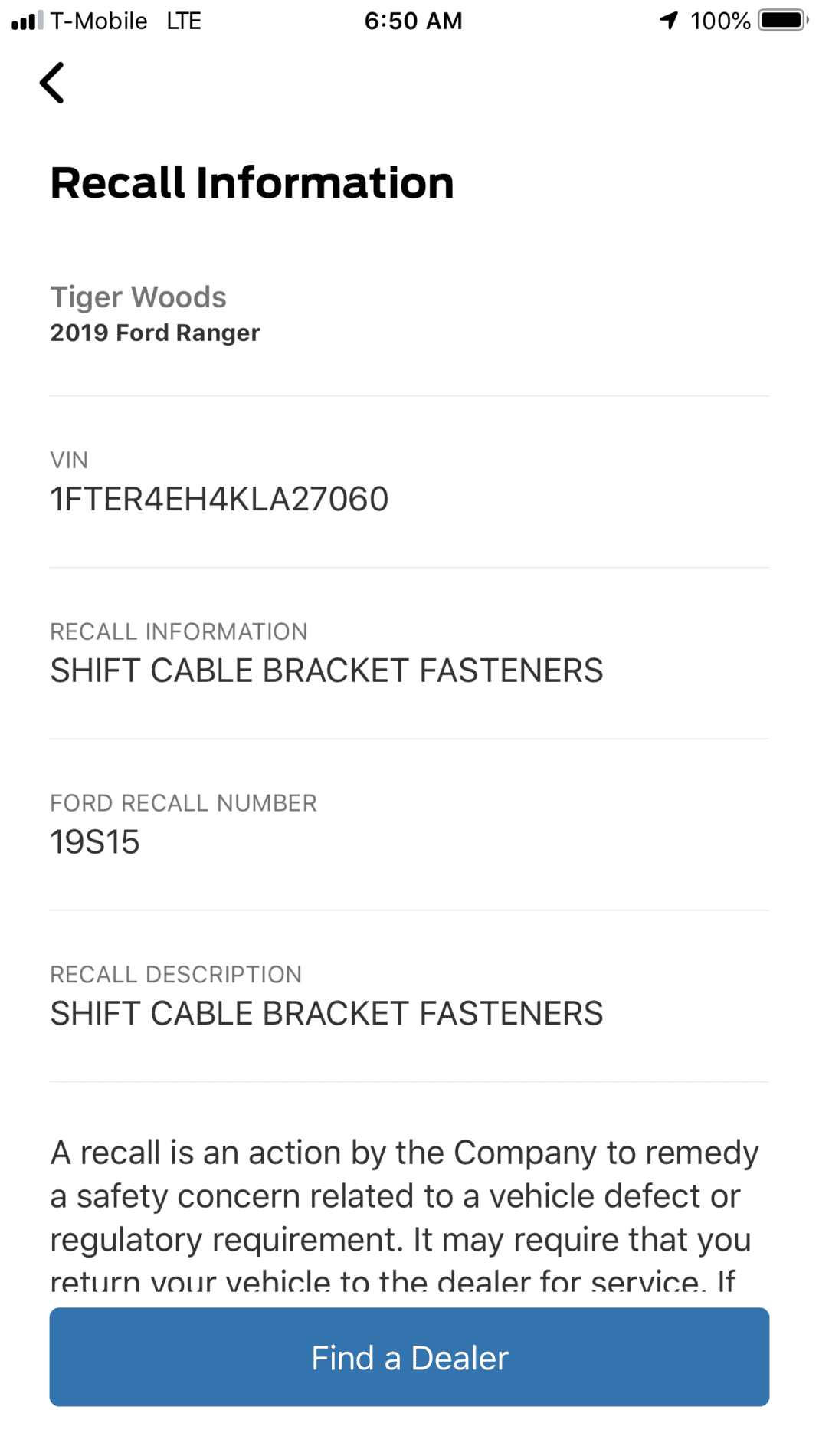

    Yes. I'm assuming you'll also get a letter in the mail from Ford with the details.. If the press release from Ford is correct, you can verify your build date on the FMVSS sticker on the driver's door pillar and if it falls between March 5 -13th it is under recall. You can also confirm with your dealer, although I wouldn't be surprised if they don't have the details yet. Since there don't appear to be any parts required, just torquing bolts and verification of shifter behavior, it should be a quick trip to the dealer.

  7. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    2,914
    Likes Received:
    1,689
    Garage Profiles:
    1
    Updated original post.

    Can someone with dealer access post the PDF for the this recall?

  8. Fjsteven

    Fjsteven Well-Known Member

    First Name:
    Steven
    Vehicle(s):
    2019 Ranger Lariat
    Joined:
    Apr 3, 2019
    Location:
    Arizona
    Posts:
    45
    Likes Received:
    30
    Hmm. I think mine was built on 3/5. No notice in Ford Pass.

  9. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    2,914
    Likes Received:
    1,689
    Garage Profiles:
    1
  10. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    2,914
    Likes Received:
    1,689
    Garage Profiles:
    1
    This little tidbit is alarming:

    Credit to ice-capades

  11. SRAces

    SRAces Well-Known Member

    First Name:
    Steve
    Vehicle(s):
    2019 Ford Ranger, 2015 Mercedes-Benz GLA, 2004 Mercedes-Benz SLK 230 Special Edition
    Joined:
    Oct 17, 2018
    Location:
    Lake Park, GA
    Posts:
    251
    Likes Received:
    280
    Garage Profiles:
    1
  12. Trtlnck

    Trtlnck New Member

    First Name:
    Kenny
    Vehicle(s):
    2019 Ranger Lariat FX4
    Joined:
    Mar 28, 2019
    Location:
    Houston, TX
    Posts:
    2
    Likes Received:
    5
    It may affect those vehicles with an ignition key (i.e., not push-button start); having a Lariat you probably have the push-button start. I'm in the same boat so monitoring for a recall.

  13. SubVet

    SubVet Well-Known Member

    First Name:
    Tom
    Vehicle(s):
    2019 Ranger Lariat - 2017 Honda CRV
    Joined:
    Feb 15, 2019
    Location:
    Myrtle Beach
    Posts:
    325
    Likes Received:
    432
    Occupation:
    Retired
    Garage Profiles:
    1
    Going in this week to resolve this,
    • Recall Date: MAY 13, 2019
    • Recall Title: SHIFT CABLE BRACKET FASTENERS
    • NHTSA Recall Number: 19V366
    • Ford Recall Number: 19S15
    • Recall Description: ON SOME AFFECTED VEHICLES, THE TWO FASTENERS THAT SECURE THE TRANSMISSION SHIFT CABLE BRACKET TO THE TRANSMISSION HOUSING MAY NOT HAVE BEEN TORQUED TO SPECIFICATION. OVER TIME, AN IMPROPERLY TORQUED FASTENER COULD ALLOW THE TRANSMISSION SHIFT CABLE BRACKET TO BECOME LOOSE AND MAY ALLOW THE TRANSMISSION TO BE IN A GEAR STATE DIFFERENT THAN THE GEAR SHIFT POSITION SELECTED BY THE DRIVER. THIS CONDITION COULD ALLOW THE DRIVER TO MOVE THE SHIFTER TO PARK AND REMOVE THE IGNITION KEY, WHILE THE TRANSMISSION GEAR MAY NOT BE IN PARK, WITH NO INSTRUMENT PANEL WARNING MESSAGE OR WARNING CHIME WHEN THE DRIVERS DOOR IS OPENED INDICATING THE VEHICLE IS NOT SECURED IN PARK. IF THE PARKING BRAKE IS NOT APPLIED, THIS COULD RESULT IN UNINTENDED VEHICLE MOVEMENT.
    • Risk to Safety: OVER TIME, AN IMPROPERLY ATTACHED TRANSMISSION SHIFT CABLE BRACKET COULD LOOSEN WHICH MAY ALLOW THE TRANSMISSION TO BE IN A GEAR STATE DIFFERENT THAN THE GEAR SHIFT POSITION SELECTED BY THE DRIVER. THIS COULD ALLOW THE THE DRIVER TO MOVE THE SHIFTER TO PARK AND REMOVE THE IGNITION KEY, WHILE THE TRANSMISSION GEAR MAY NOT BE IN PARK, WITH NO INSTRUMENT PANEL WARNING MESSAGE OR WARNING CHIME WHEN THE DRIVERS DOOR IS OPENED INDICATING THE VEHICLE IS NOT SECURED IN PARK. IF THE PARKING BRAKE IS NOT APPLIED, THIS COULD RESULT IN UNINTENDED VEHICLE MOVEMENT, INCREASING THE RISK OF INJURY OR CRASH.
    • Remedy Program:OWNERS WILL BE NOTIFIED BY MAIL AND INSTRUCTED TO TAKE THEIR VEHICLE TO A FORD OR LINCOLN DEALER T O HAVE THE TRANSMISSION SHIFT CABLE BRACKET FASTENERS INSPECTED, TORQUED IF NECESSARY, AND PROPER SHIFTER OPERATION WILL BE VERIFIED. THERE WILL BE NO CHARGE FOR THIS SERVICE. FORD IS EXCLUDING REIMBURSEMENT FOR COSTS BECAUSE THE ORIGINAL WARRANTY PROGRAM WOULD PROVIDE FOR A FREE REPAIR FOR THIS CONCERN. FORD WILL FORWARD A COPY OF THE NOTIFICATION LETTERS TO DEALERS TO THE AGENCY WHEN AVAILABLE.
    • Status: 12 - RECALL INCOMPLETE. REMEDY NOT YET AVAILABLE.
    • Manufacturer Notes: TO CHECK FOR NON-SAFETY-RELATED PROGRAMS APPLICABLE TO YOUR VEHICLE, SEE HTTP://WWW.FORD.COM/ OR CALL YOUR FORD DEALER.

  14. DHare

    DHare Well-Known Member

    First Name:
    Dennis
    Vehicle(s):
    2019 Ford Ranger Lariat - Saber; 2014 GMC Terrain
    Joined:
    Sep 28, 2018
    Location:
    Missouri
    Posts:
    345
    Likes Received:
    211
  15. Floyd

    Floyd Well-Known Member

    Vehicle(s):
    1980 pinto V8, 1995 Mustang GT conv, 2001 Ranger, 2016 Transit Connect
    Joined:
    Jan 6, 2019
    Location:
    illinois
    Posts:
    634
    Likes Received:
    426
    It has to do with build date, some of the earlier trucks were subject to this concern.
    Your fasteners are probably torqued right, but they may have found a few loose fasteners or found a defective torque wrench at some point, so they want to check the trucks built in that time period just to be sure.
