Terrain management upgrade?

pgilbert

Member
First Name
Paul
Joined
Apr 28, 2020
Threads
0
Messages
15
Reaction score
20
Location
Stoughton MA
Vehicle(s)
2019 Ranger
Occupation
Program Coordinator
did it this morning, installed knob, turned on offroad gauge, offroad screen and enabled selectable drive, 10 minutes start to finish. I want to thank everyone for the help and figuring this out. should come in handy with upstate NY winters. One question though, do i leave the selector in regular 2 high position when i turn on the terrain management and it will change as needed? thanks in adance.

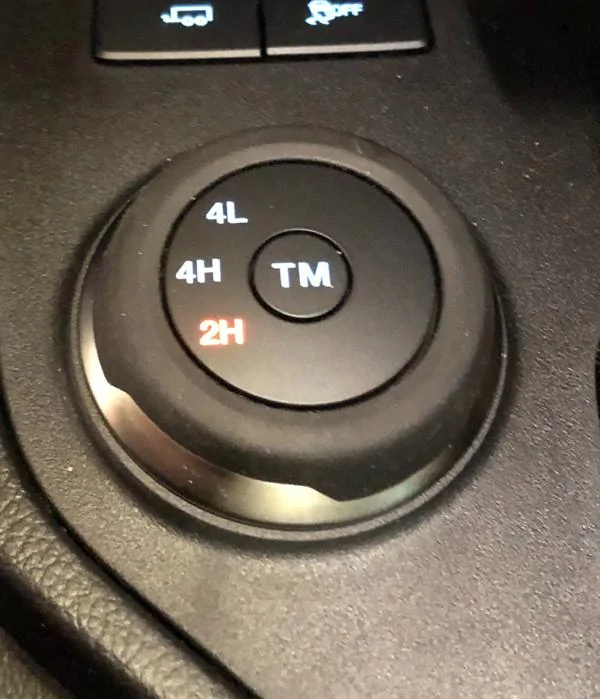

terrain knob.jpeg

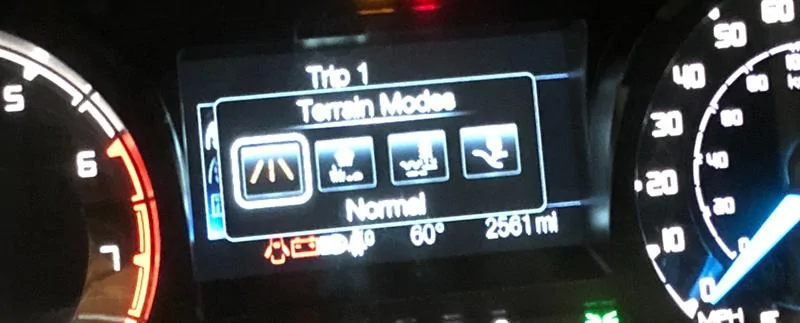

terrain screen.jpeg
Is the second picture the off-road screen that you enabled? I’m just wondering what the
difference is between the off-road screen and gauge.


T Bone

Well-Known Member
First Name
Tony
Joined
Apr 22, 2020
Threads
4
Messages
757
Reaction score
3,885
Location
Southern Adirondack Mountains of upstate NY
Vehicle(s)
2020 ford ranger xlt
Occupation
Retired!!!!
one allows the screen where you select which mode you want, the other enables the symbol to appear obove the middle screen after the selection so it shows while your driving, the selection screen goes away after you select, does that make sense? havent had coffee yet and that is my guess as to what those two selections do. lol

Last edited:

cfhgarza

Well-Known Member
Joined
Jul 30, 2020
Threads
11
Messages
510
Reaction score
990
Location
Ohio
Vehicle(s)
2020 Magnetic XLT 301A
Occupation
Press and weld set-up

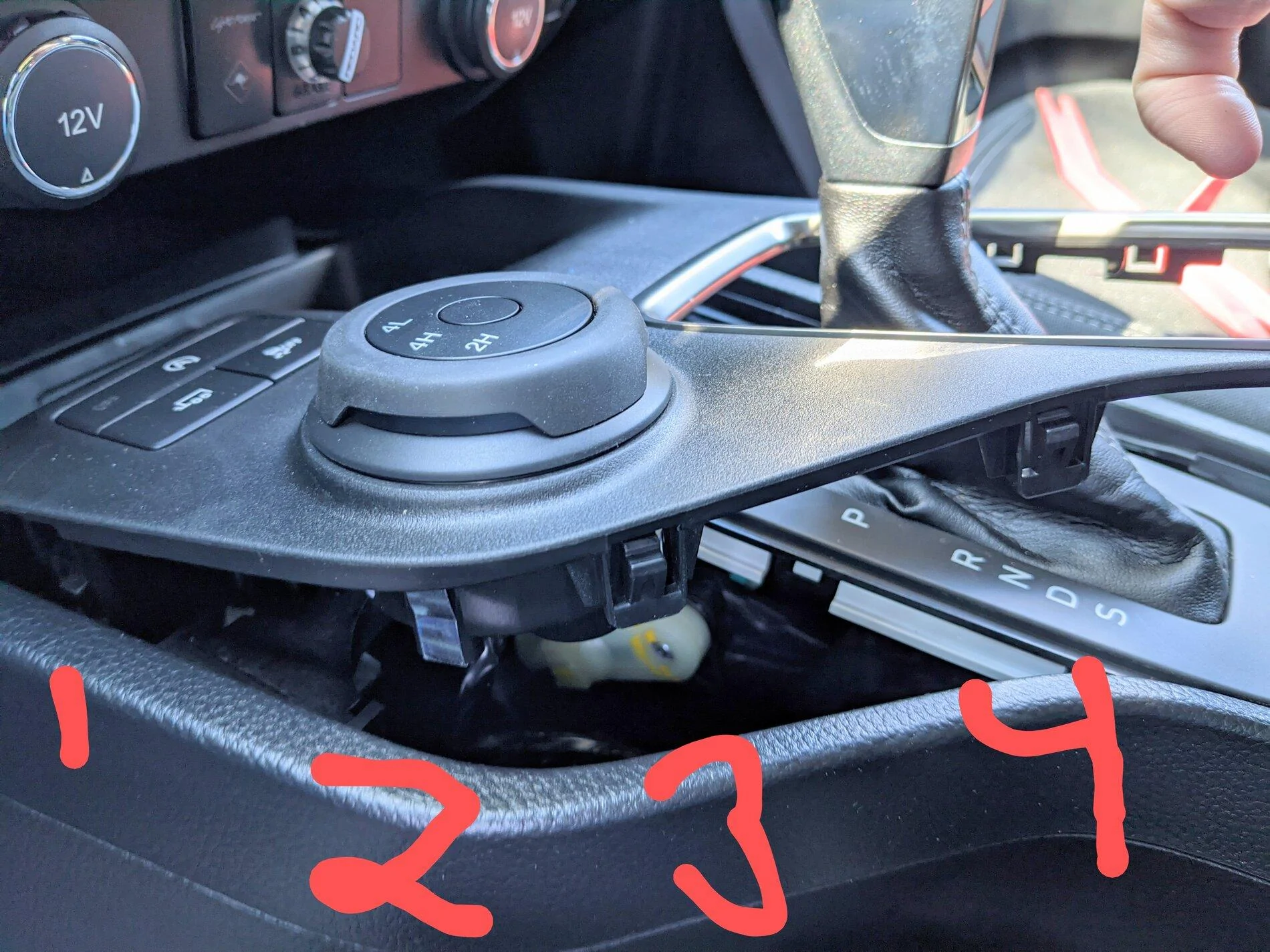

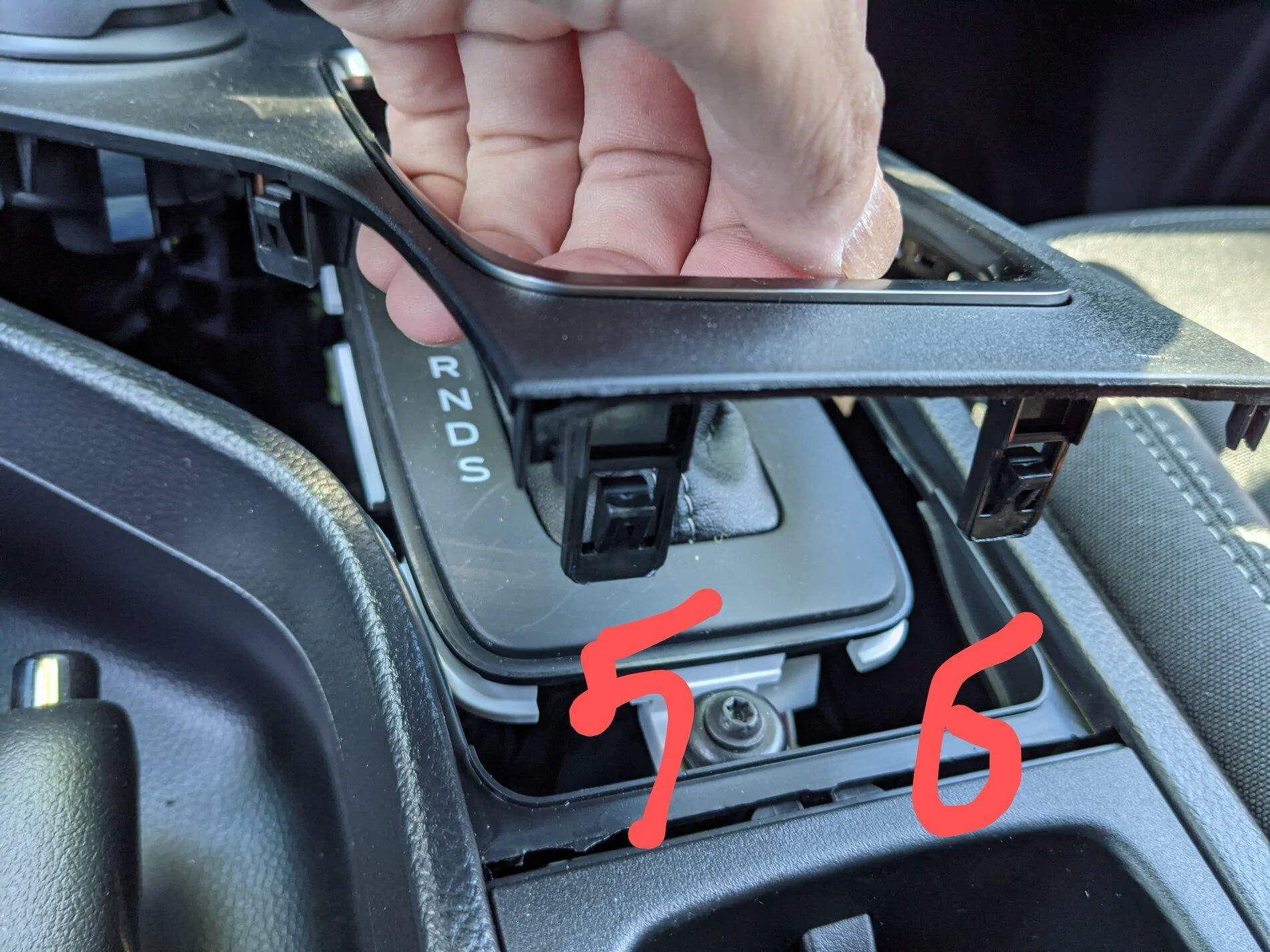

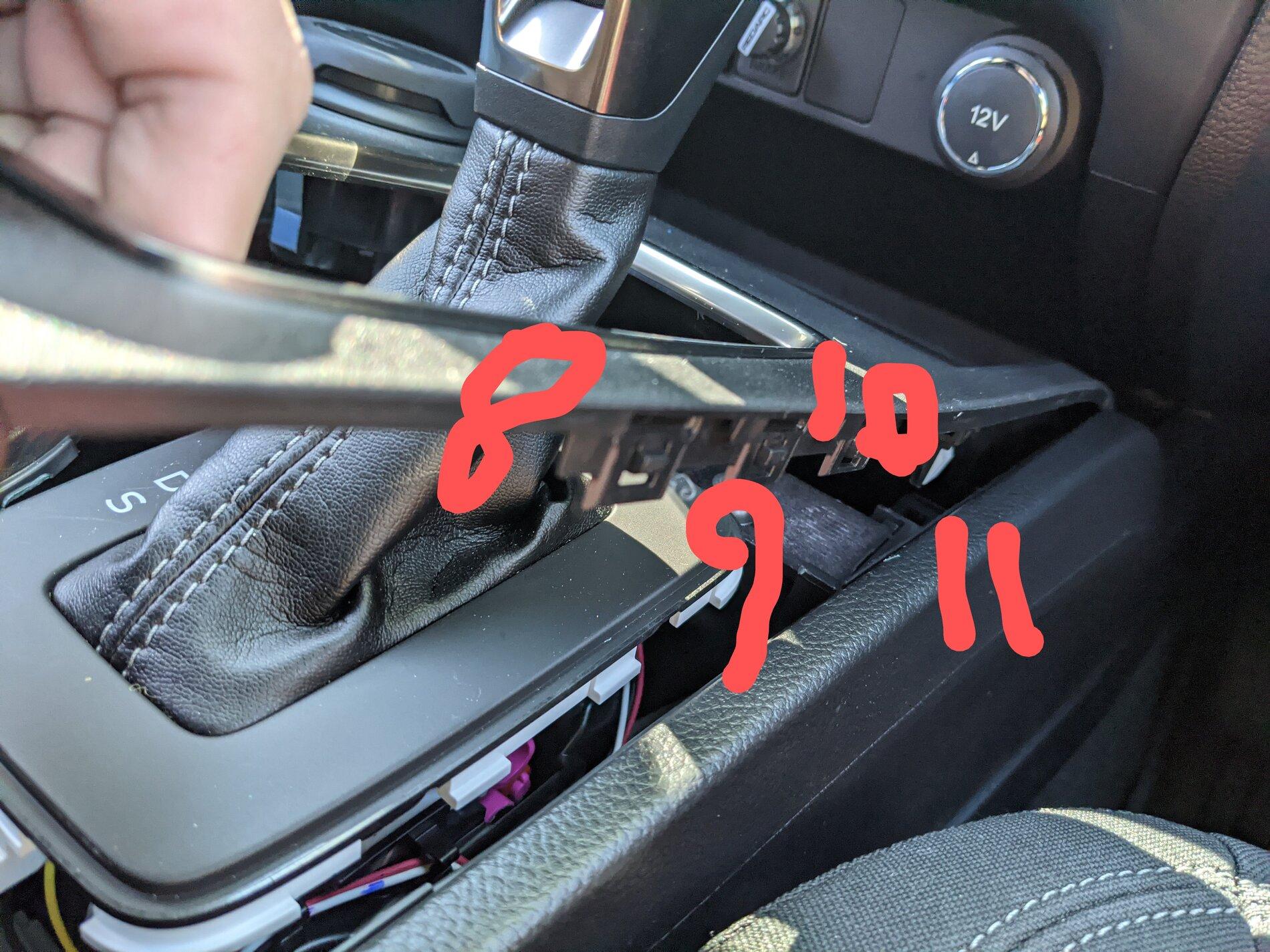

I did my TM upgrade today. Thanks everyone in this thread for the R&D. I took some pictures of the clip locations thinking it may help someone in the future. EDIT: I mislabeled the numbers. Last picture should be 7-10. Whoops lol






Last edited:


jss81258

Well-Known Member
First Name
James
Joined
Jul 5, 2020
Threads
1
Messages
169
Reaction score
253
Location
Texas
Vehicle(s)
2020 Ford Ranger Lariat 4x4, 2004 Chevrolet Corvette Z06
Occupation
Fixed equipment inspector
I did my TM upgrade today. Thanks everyone in this thread for the R&D. I took some pictures of the clip locations thinking it may help someone in the future.





What happened to #7?

:)


TechnicallyReal

Well-Known Member
First Name
Ryan
Joined
Aug 20, 2020
Threads
6
Messages
460
Reaction score
606
Location
Eh?
Vehicle(s)
'19 Ranger Lariat 4x4
Occupation
Software Engineer / IT Admin
I did my TM upgrade today. Thanks everyone in this thread for the R&D. I took some pictures of the clip locations thinking it may help someone in the future. EDIT: I mislabeled the numbers. Last picture should be 7-10. Whoops lol





Really nice to have them all pointed out like that. When opening it up you only really need to pop 5 and 6 with a trim tool or whatever equivalent. Then you can pull up on that end of the trim piece and others will pop themselves, or you can run your hand down the gap to pop them if they're stubborn.


Swishpapasweets

Well-Known Member
First Name
John
Joined
Dec 27, 2019
Threads
0
Messages
143
Reaction score
308
Location
IL
Vehicle(s)
2019 Ford Ranger XLT,1998 Ford Ranger XLT
Hmmm my next upgrade if its actually pretty easy but I'll have to play with the forscan before I go bananas with it


T Bone

Well-Known Member
First Name
Tony
Joined
Apr 22, 2020
Threads
4
Messages
757
Reaction score
3,885
Location
Southern Adirondack Mountains of upstate NY
Vehicle(s)
2020 ford ranger xlt
Occupation
Retired!!!!
Hmmm my next upgrade if its actually pretty easy but I'll have to play with the forscan before I go bananas with it
super easy, i spent all morning worrying about screwing up my truck, and in 10 minutes (or less) it was done.........still have a sh*t eating grin on my face for such a super upgrade for very little money


TechnicallyReal

Well-Known Member
First Name
Ryan
Joined
Aug 20, 2020
Threads
6
Messages
460
Reaction score
606
Location
Eh?
Vehicle(s)
'19 Ranger Lariat 4x4
Occupation
Software Engineer / IT Admin
I remembered to record something for once:



I haven't done the ForScan part yet and interestingly if I press the TM button twice it seems to go into 4H. So the feature works without ForScan, but you can't tell what mode you're in ?

Last edited:

armoredpig

Well-Known Member
First Name
Joseph
Joined
Mar 7, 2020
Threads
24
Messages
367
Reaction score
1,146
Location
VA
Vehicle(s)
2019 Ford Ranger STX
Occupation
Nurse
Do the tm modes not work in 4lo? Seemed to work great on 4hi for me, but shut off in low


TechnicallyReal

Well-Known Member
First Name
Ryan
Joined
Aug 20, 2020
Threads
6
Messages
460
Reaction score
606
Location
Eh?
Vehicle(s)
'19 Ranger Lariat 4x4
Occupation
Software Engineer / IT Admin
So a couple of thoughts about installing the drive select knob..
  • I think most people will instinctively pull the trim piece out completely, or at least most of the way, in order look under it and unplug the knob before popping it out. That isn't required as you can see in my video.
  • When reflecting on the above point, I realized that the trim might not need to pulled at all. The knob can likely just be pulled right up and out of the trim, turning a 60 second job into a 30 second job with no tools required o_O (EDIT: do not do this! see later posts about it)
I might give that a go just to see, next time I'm in the truck. I'm waiting on my ForScan-compatible OBDII reader to arrive. My wireless VeePeak works but doesn't list the IPC module, so I ordered the wired version with HS/MS switch for $20. Should be here today.

Last edited:

armoredpig

Well-Known Member
First Name
Joseph
Joined
Mar 7, 2020
Threads
24
Messages
367
Reaction score
1,146
Location
VA
Vehicle(s)
2019 Ford Ranger STX
Occupation
Nurse
The metal prongs will keep it from coming out if you don't unclip the panel and compress them first
