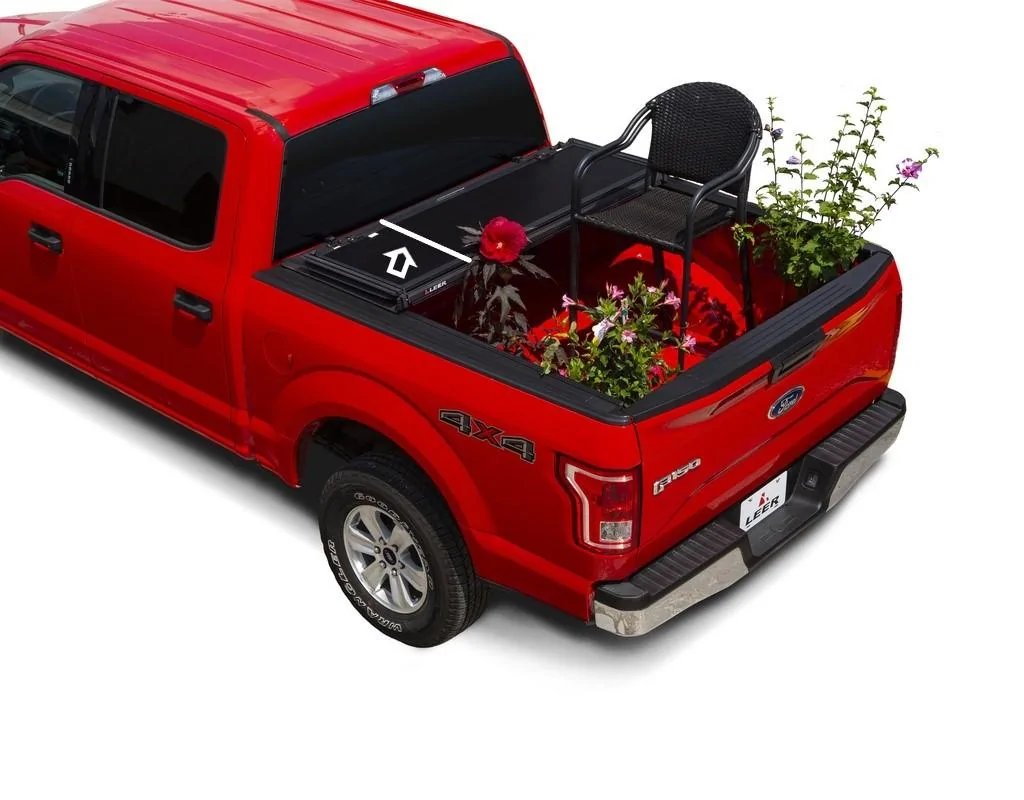

Can I get the measurement of the lid folded on itself from the bed rail at the cab to the end of the cover? The 2nd to last fold before it has to be locked vertical. See image white line to which i am referring.



JaysOnTheEDGE

Well-Known Member
First Name
Jay
Joined
Oct 17, 2019
Threads
9
Messages
763
Reaction score
1,383
Location
North Carolina
Vehicle(s)
2019 Ranger XLT Sport 4x4, 2021 Escape SEL AWD
I just installed this cover too i need to go back over it Saturday and do some more adjustments on the the latches and install the bulkhead seal will probably have to pull the cover back off. does anyone have a picture of the bulkhead seal with the cover off?


Texasota

Well-Known Member
First Name
Al
Joined
Jan 27, 2019
Threads
1
Messages
933
Reaction score
2,964
Location
Rochester, MN
Vehicle(s)
2020 Ranger XLT, 2023 Escape PHEV
I just installed this cover too i need to go back over it Saturday and do some more adjustments on the the latches and install the bulkhead seal will probably have to pull the cover back off. does anyone have a picture of the bulkhead seal with the cover off?
I've been wondering about that also - how does it look with the cover removed? Which then led me to wonder if the bulkhead seal could be applied to the cover itself instead of the bulkhead (which means it would be upside down). That way it would come off with the cover when you remove it from your Ranger. Would that work?


oubbascooba

Active Member
First Name
Jacob
Joined
Oct 21, 2019
Threads
4
Messages
36
Reaction score
44
Location
70810
Vehicle(s)
2019 Ford Ranger
Vehicle Showcase
1
Can I get the measurement of the lid folded on itself from the bed rail at the cab to the end of the cover? The 2nd to last fold before it has to be locked vertical. See image white line to which i am referring.

None of ya'll have a measuring tape? haha



JaysOnTheEDGE

Well-Known Member
First Name
Jay
Joined
Oct 17, 2019
Threads
9
Messages
763
Reaction score
1,383
Location
North Carolina
Vehicle(s)
2019 Ranger XLT Sport 4x4, 2021 Escape SEL AWD
Can I get the measurement of the lid folded on itself from the bed rail at the cab to the end of the cover? The 2nd to last fold before it has to be locked vertical. See image white line to which i am referring.

On my install from the outside of the bed frame to that hinge is about 23.5 inches


STEVE BUSSELL

Active Member
First Name
Steve
Joined
Oct 27, 2019
Threads
2
Messages
25
Reaction score
13
Location
03873
Vehicle(s)
2019 Ford Ranger Lariat SuperCrew
@SN 13, Thanks for the detailed review. Looks like the Leer is the tonneau for me. Checking with the "head of finance" and I will be ordering one shortly.


PNW_Ranger87

Well-Known Member
First Name
Erik
Joined
Oct 10, 2019
Threads
3
Messages
552
Reaction score
672
Location
Renton, WA
Vehicle(s)
2019 Ranger XLT 4X4
Occupation
Parts Specialist
This cover looks very similar to the Undercover Ultra Flex. You mentioned something about the cable actuated latches not being as secured. I haven't seen a detail of how this cover is latched.

Also curious which covers you found that specify they can't be driven in the propped up position?

OP
OP
SN13

SN13

Well-Known Member
Joined
Sep 14, 2019
Threads
8
Messages
220
Reaction score
393
Location
Florida
Vehicle(s)
2019 Ranger XL Oxford White
Vehicle Showcase
1
Can I get the measurement of the lid folded on itself from the bed rail at the cab to the end of the cover? The 2nd to last fold before it has to be locked vertical. See image white line to which i am referring.

Sorry man,

Didn't see your post.

From the back of the cab to the hingepoint shown, i measure 24.5".

OP
OP
SN13

SN13

Well-Known Member
Joined
Sep 14, 2019
Threads
8
Messages
220
Reaction score
393
Location
Florida
Vehicle(s)
2019 Ranger XL Oxford White
Vehicle Showcase
1
This cover looks very similar to the Undercover Ultra Flex. You mentioned something about the cable actuated latches not being as secured. I haven't seen a detail of how this cover is latched.

Also curious which covers you found that specify they can't be driven in the propped up position?

Good questions.

For the propped open question. I don't know if it was at one of the examples I played with at a Truck place, but I could swear I saw a picture someplace that basically warned not to operate vehicle on the road with the Tonneau propped vertical on the rods. I didn't specifically call out a make/model because I couldn't find it again to confirm. I did ALOT of reading/watching etc over the month between buying the truck and buying the Tonneau.

Next on the cable.

While the LEER uses a cable, it is recessed so you cannot grab it with a wire hanger to "break in".

Also, the cable is operated using a pinch instead of pulling the cable itself....

The pinch has built-in stops so you can limit travel and prevent over-pulling of the cable which can cause the cable to come out of the latches (What i saw on a sample product I tried at a truck shop)

I can get some photos of it later and post them up.

OP
OP
SN13

SN13

Well-Known Member
Joined
Sep 14, 2019
Threads
8
Messages
220
Reaction score
393
Location
Florida
Vehicle(s)
2019 Ranger XL Oxford White
Vehicle Showcase
1
I've been wondering about that also - how does it look with the cover removed? Which then led me to wonder if the bulkhead seal could be applied to the cover itself instead of the bulkhead (which means it would be upside down). That way it would come off with the cover when you remove it from your Ranger. Would that work?
It likely would. Had I thought of this, I would have done it that way myself.


PNW_Ranger87

Well-Known Member
First Name
Erik
Joined
Oct 10, 2019
Threads
3
Messages
552
Reaction score
672
Location
Renton, WA
Vehicle(s)
2019 Ranger XLT 4X4
Occupation
Parts Specialist
Good questions.

While the LEER uses a cable, it is recessed so you cannot grab it with a wire hanger to "break in".

Also, the cable is operated using a pinch instead of pulling the cable itself....

The pinch has built-in stops so you can limit travel and prevent over-pulling of the cable which can cause the cable to come out of the latches (What i saw on a sample product I tried at a truck shop)

I can get some photos of it later and post them up.
Oh wow, I hadn't thought about that aspect. I appreciate the indepth reply. That one key point has me thinking about going with the LEER over the Undercover. I know locks keep the honest people out but it wouldn't hurt to have that extra step of security.


JaysOnTheEDGE

Well-Known Member
First Name
Jay
Joined
Oct 17, 2019
Threads
9
Messages
763
Reaction score
1,383
Location
North Carolina
Vehicle(s)
2019 Ranger XLT Sport 4x4, 2021 Escape SEL AWD
I'm still fighting with the fitment of this stupid cover the instructions are terrible they don't have any measurements of how far to mount the rails and where the cover should be in relation to the bed. dont have any description of where to use the butyl tape, dont tell you how to apply the toyota foam seal; I've already broken one prop rod lock. the front of the rail has a slight lip upwards which is causing the cover to not sit flat, at the front. you can hear the seal flapping at 65-70 MPH and its very annoying, Anyone who's installed this thing and has gotten the front to sit flat and you take a picture of the rails at the tailgate and where you mounted the cover in relation to the bulkhead I either need to move my rails back or the cover forward or both. I am about ready to pitch this thing for a solid one piece.

Thanks,
Jay







Smitty908

Member
Joined
Jul 7, 2019
Threads
1
Messages
11
Reaction score
6
Location
Birmingham, AL
Vehicle(s)
2019 Ranger XLT

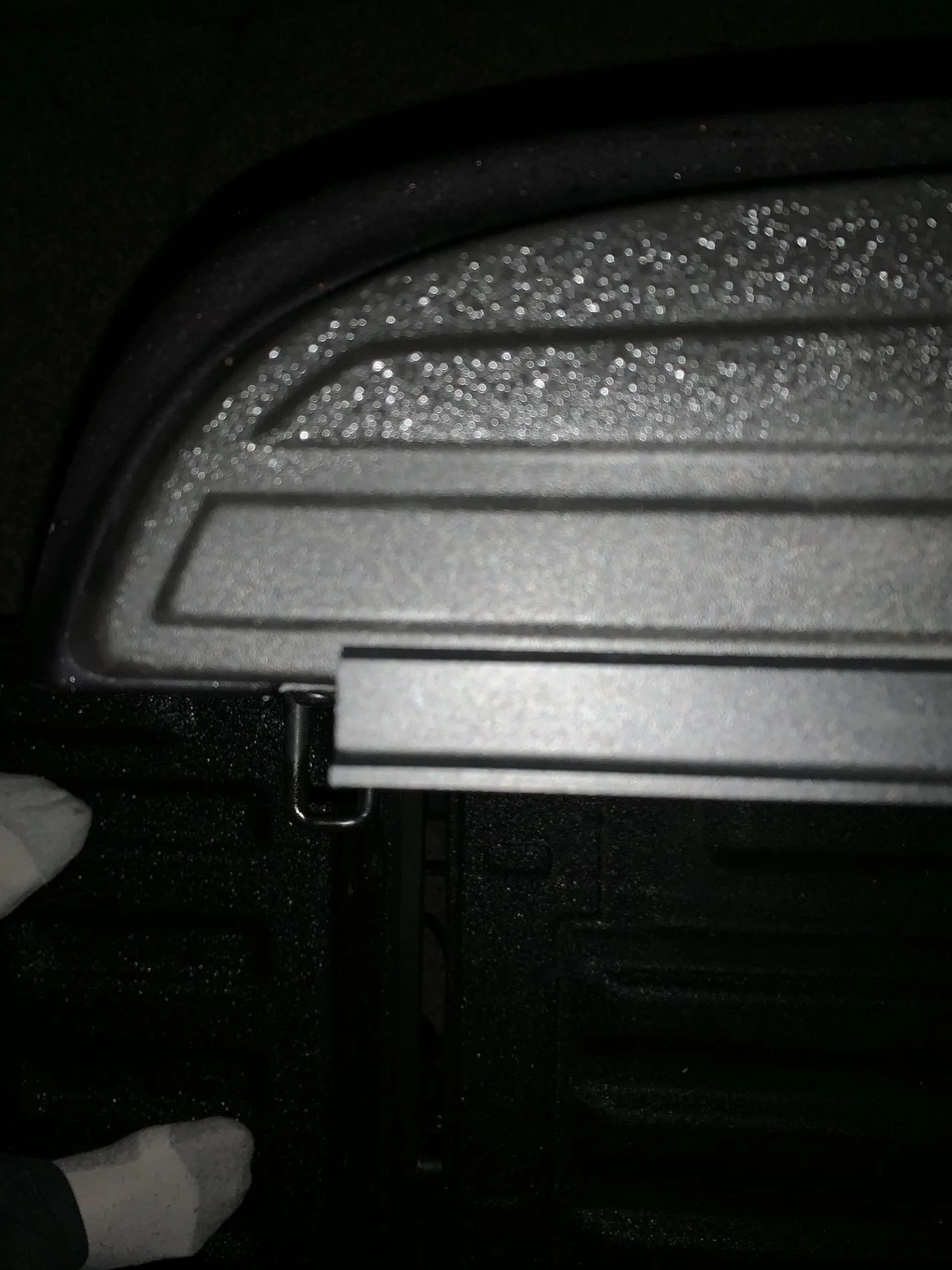

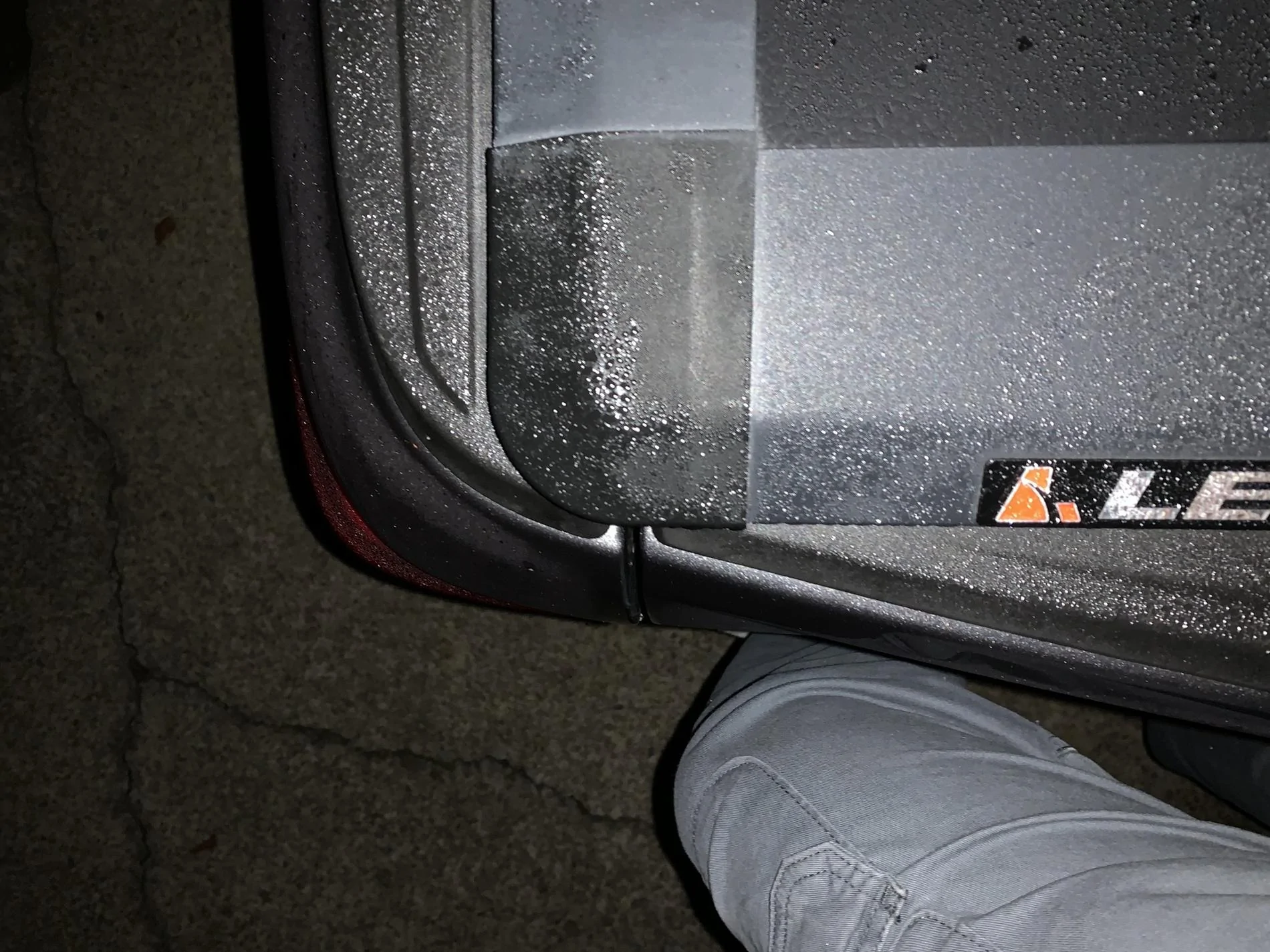

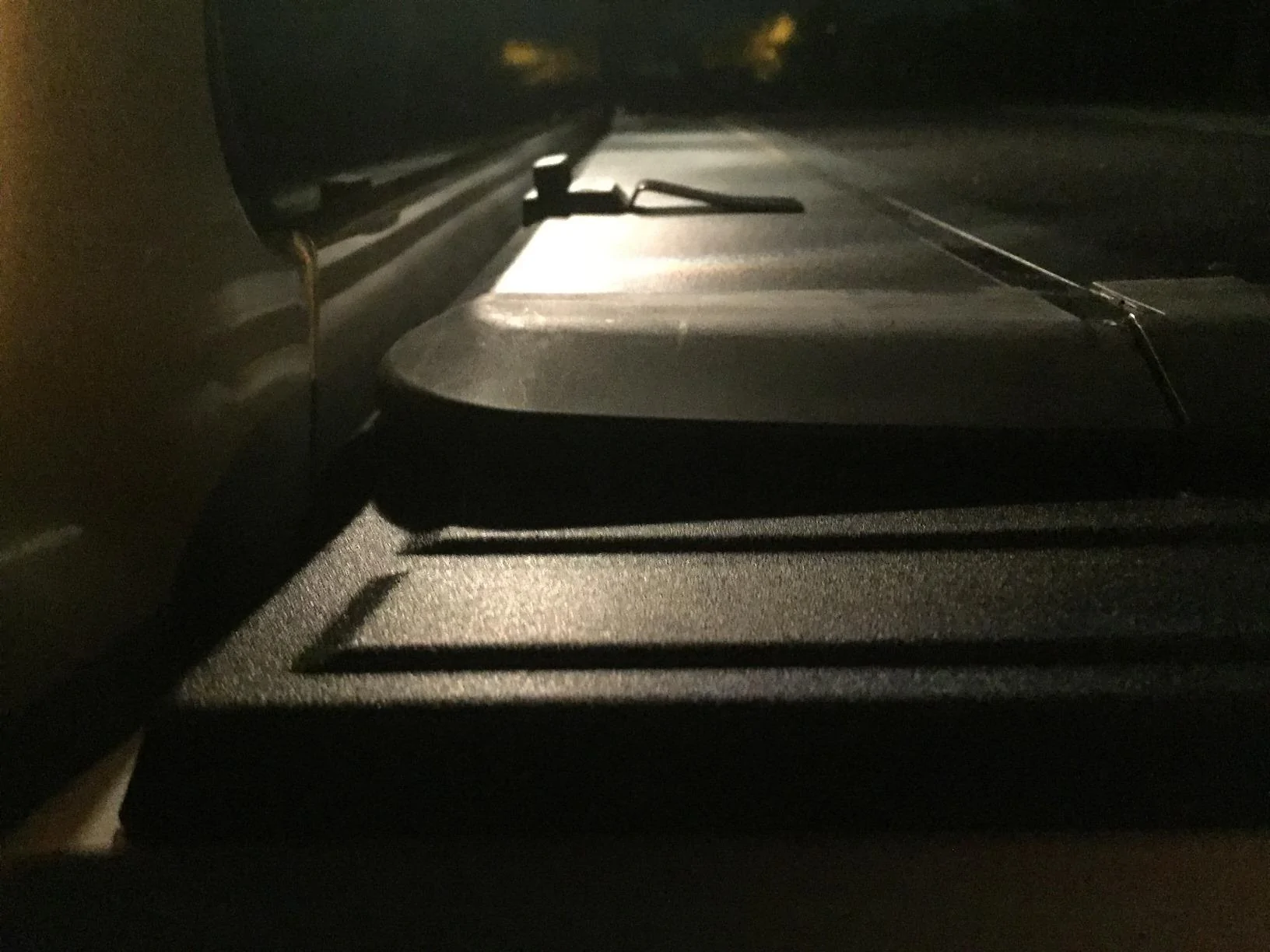

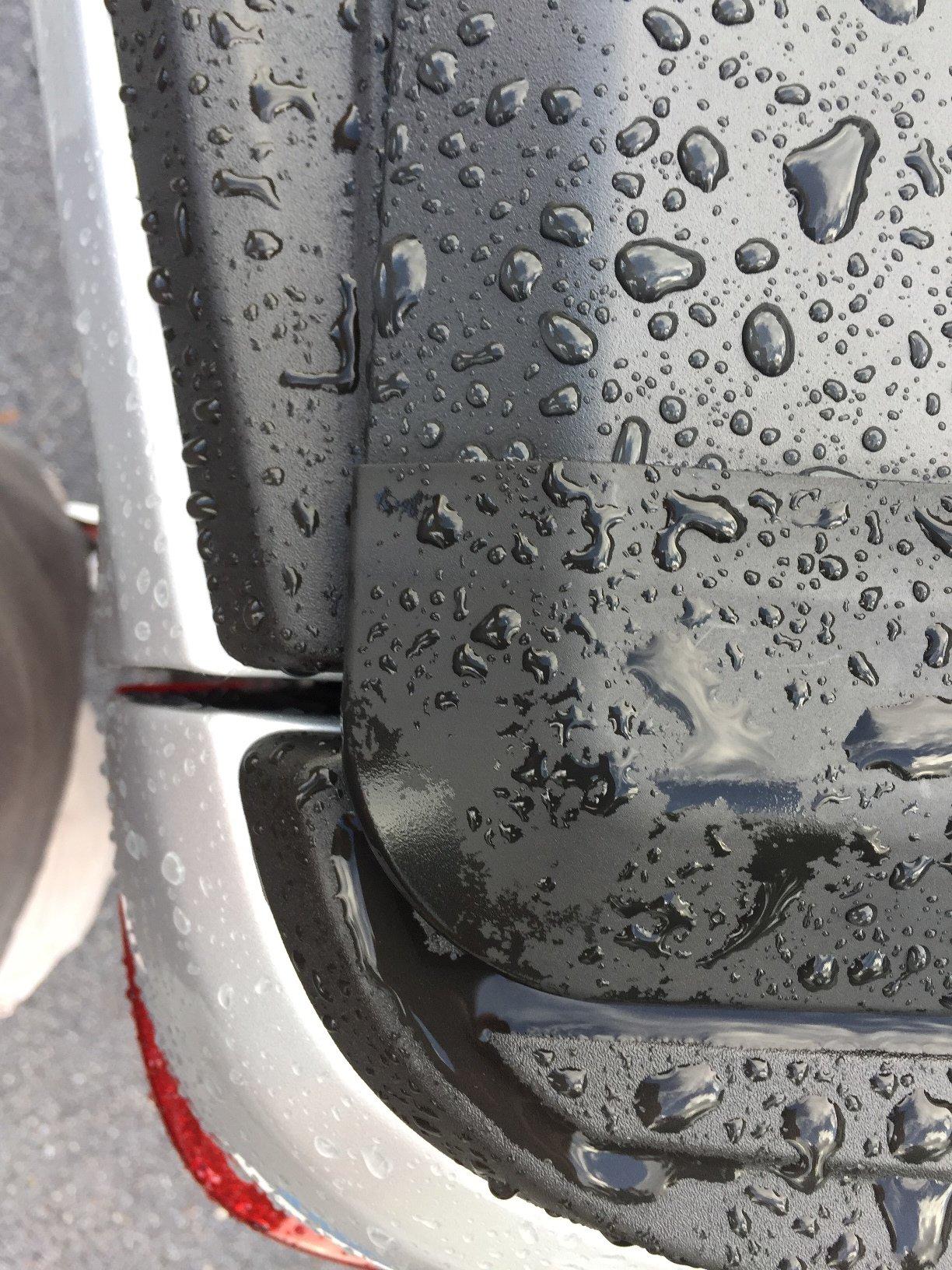

Jason, here are a couple of shots of mine. It’s dark outside so bear with me on the fuzziness. (I can take some more tomorrow if needed.)

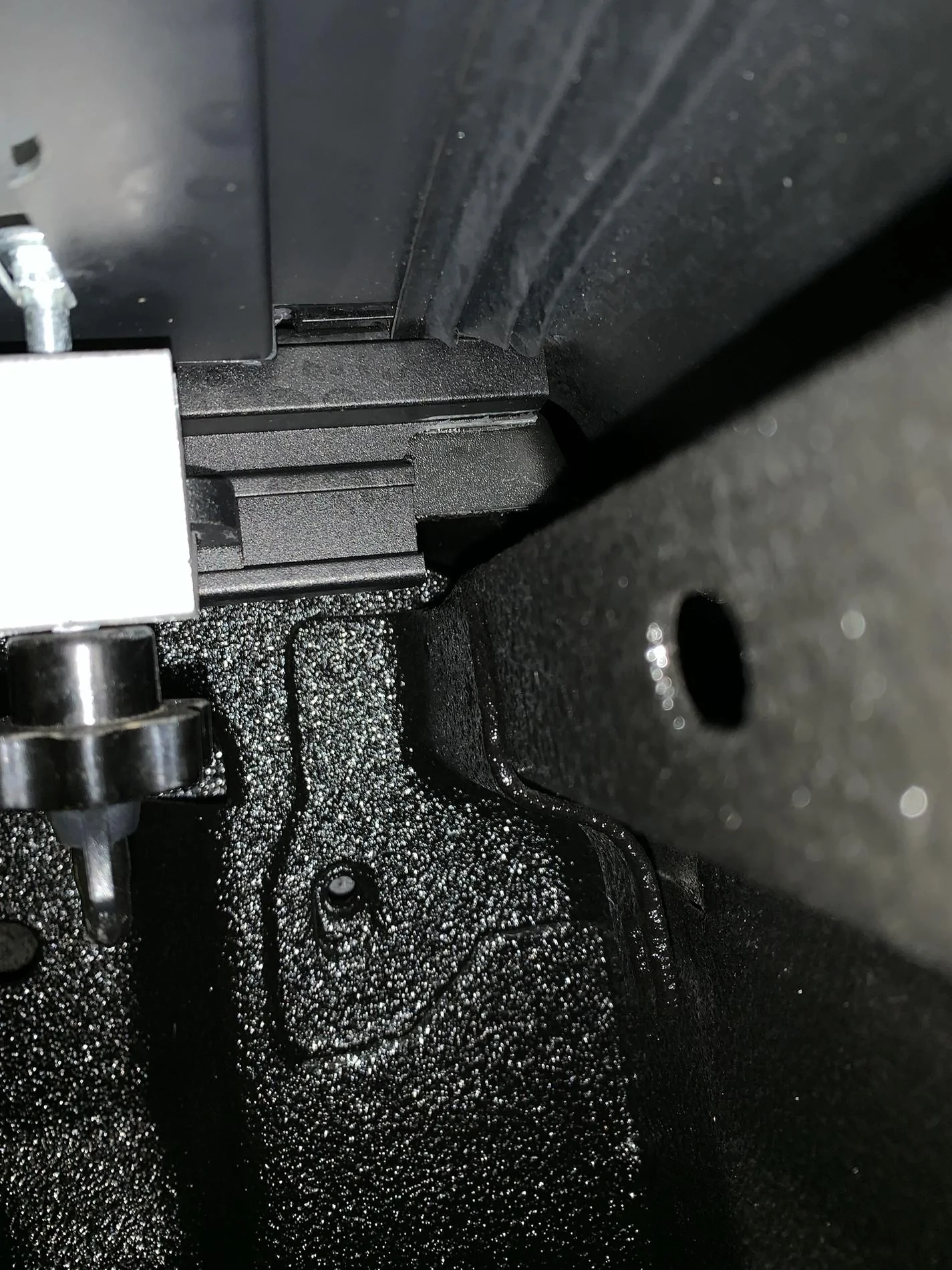

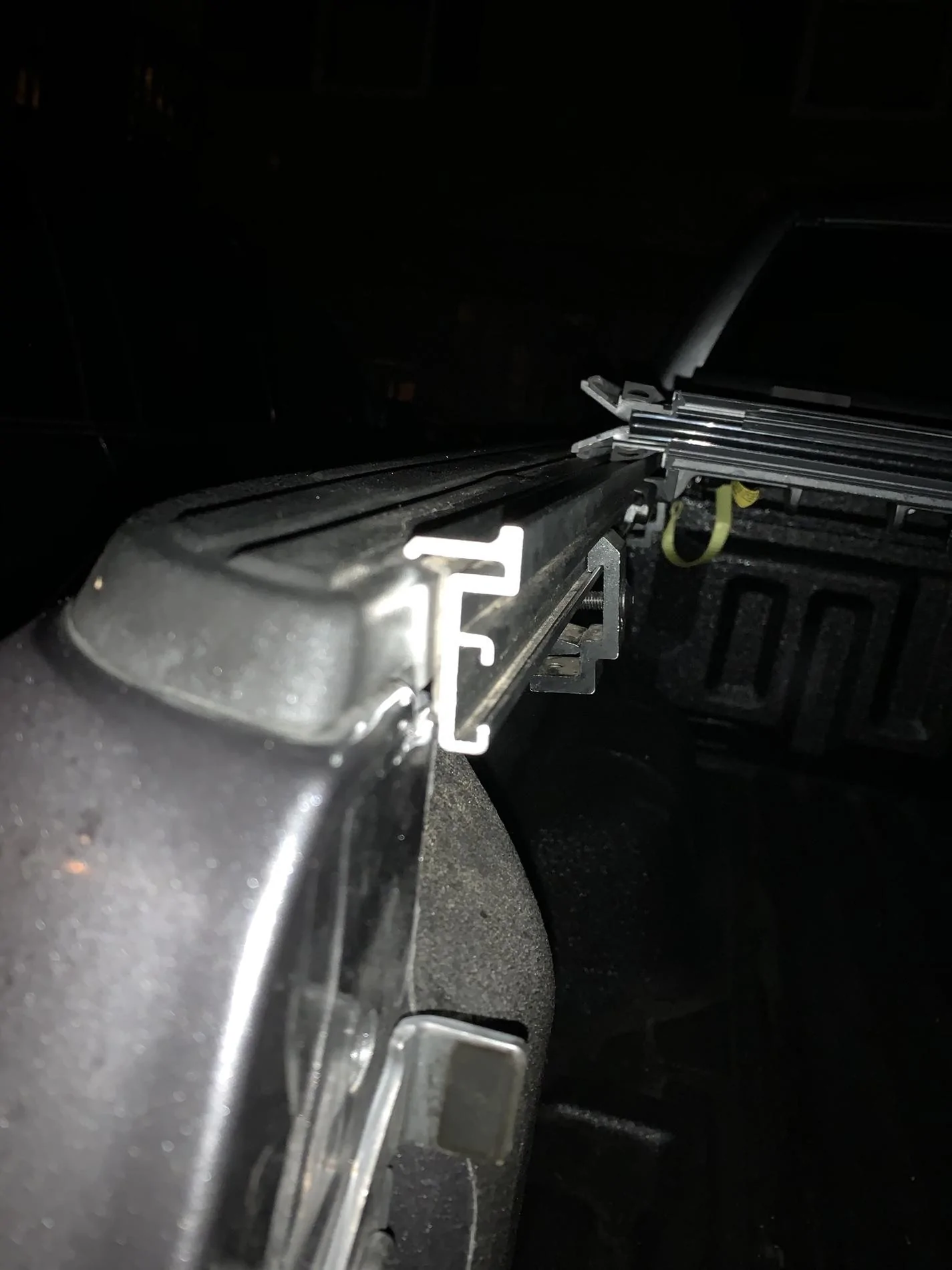

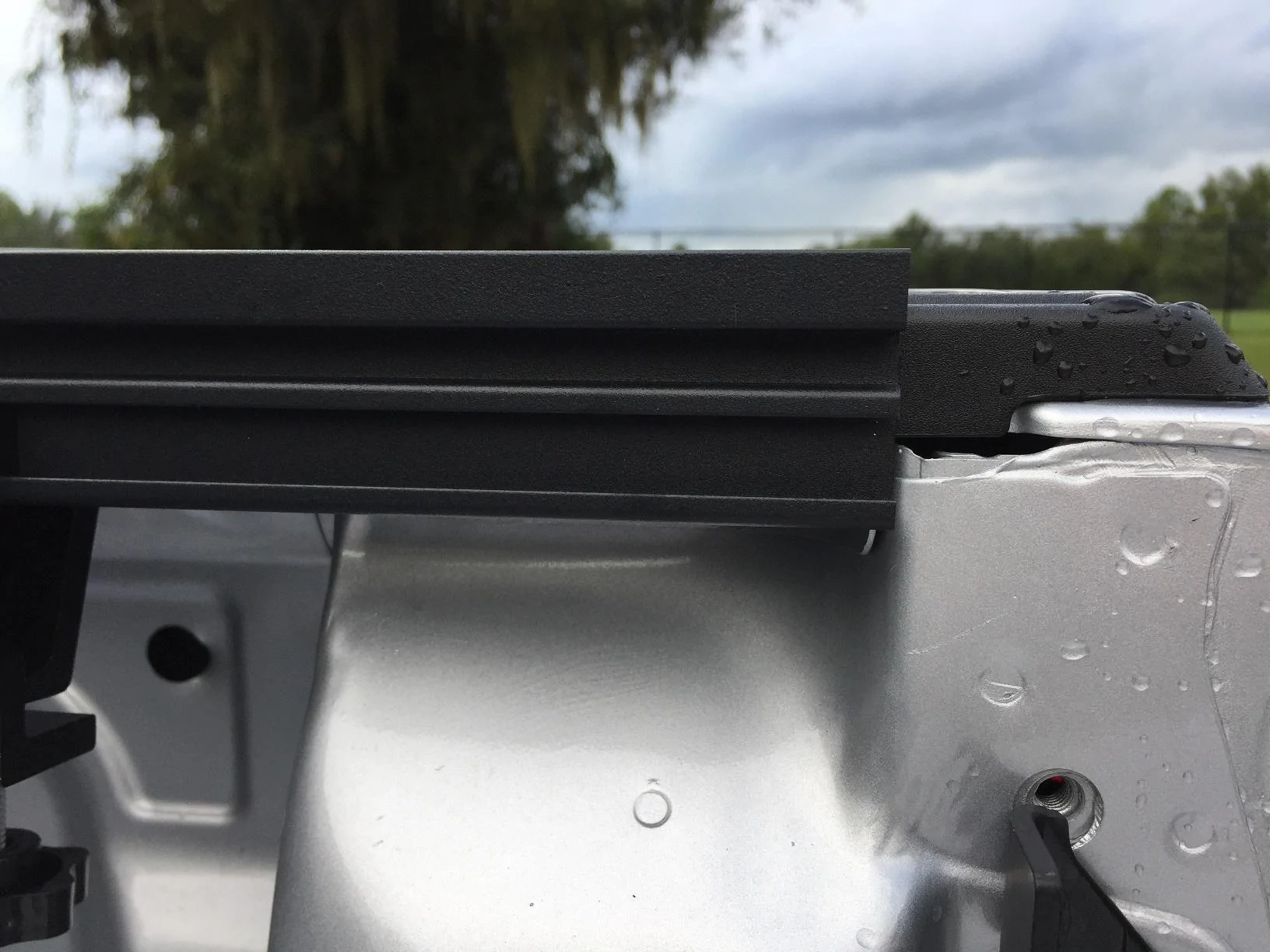

If you look at my last pic, the rail should have a section “notched out” to fit around the front of the bed. Mine is back just a little bit from it. Also, I didn’t see a need for any of the foam to be installed, and I had to use the butyl to stick down the front “flap” and that solved the flapping noise.









STEVE BUSSELL

Active Member
First Name
Steve
Joined
Oct 27, 2019
Threads
2
Messages
25
Reaction score
13
Location
03873
Vehicle(s)
2019 Ford Ranger Lariat SuperCrew
Placed my order on Tuesday, 10/29, and just got email that they are on back order until the "end of the month" I guess that's the end of November.
