DIY: Adding the 12V Power Outlet Option in the Bed

mark_anderson_us

Well-Known Member
First Name
Mark
Joined
Oct 23, 2020
Threads
30
Messages
265
Reaction score
204
Location
Chicago
Vehicle(s)
Ford Ranger Lariat FX4 2020
Occupation
Software Developer
As I posted in another thread. I have ordered (what I and a dealer parts guy) think is needed to add the outlet. Including hardware and the sub-harness. I will post pics of the install and part numbers to those interested. Waiting on parts from Detroit. Just a FYI drilling is required.

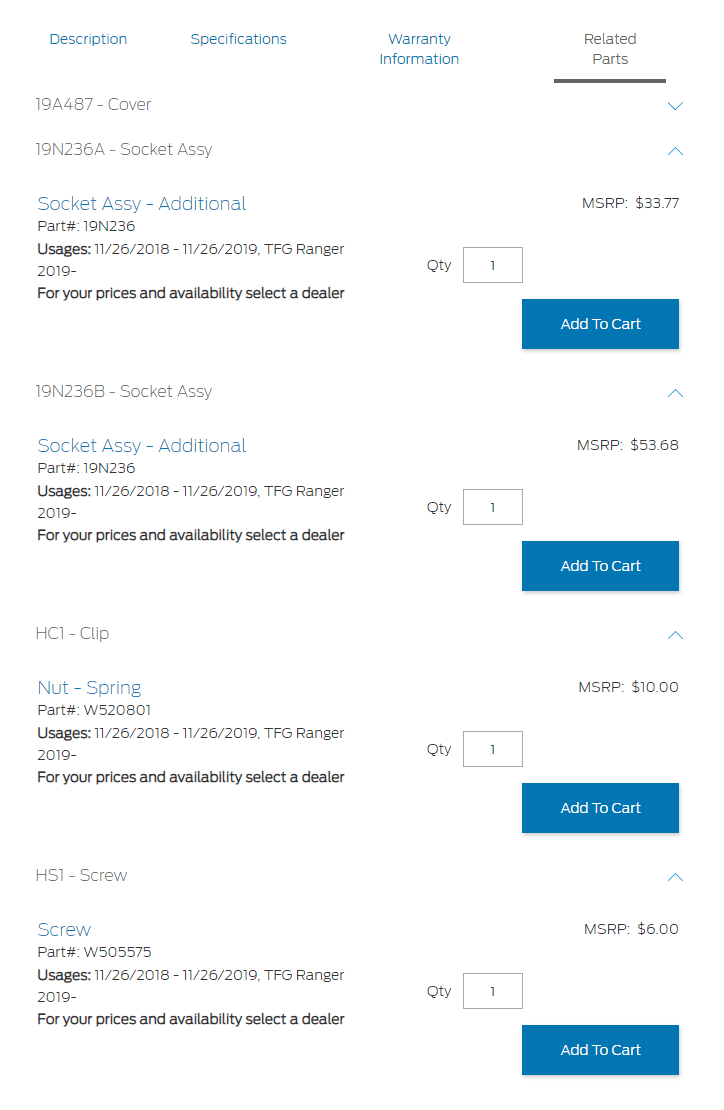

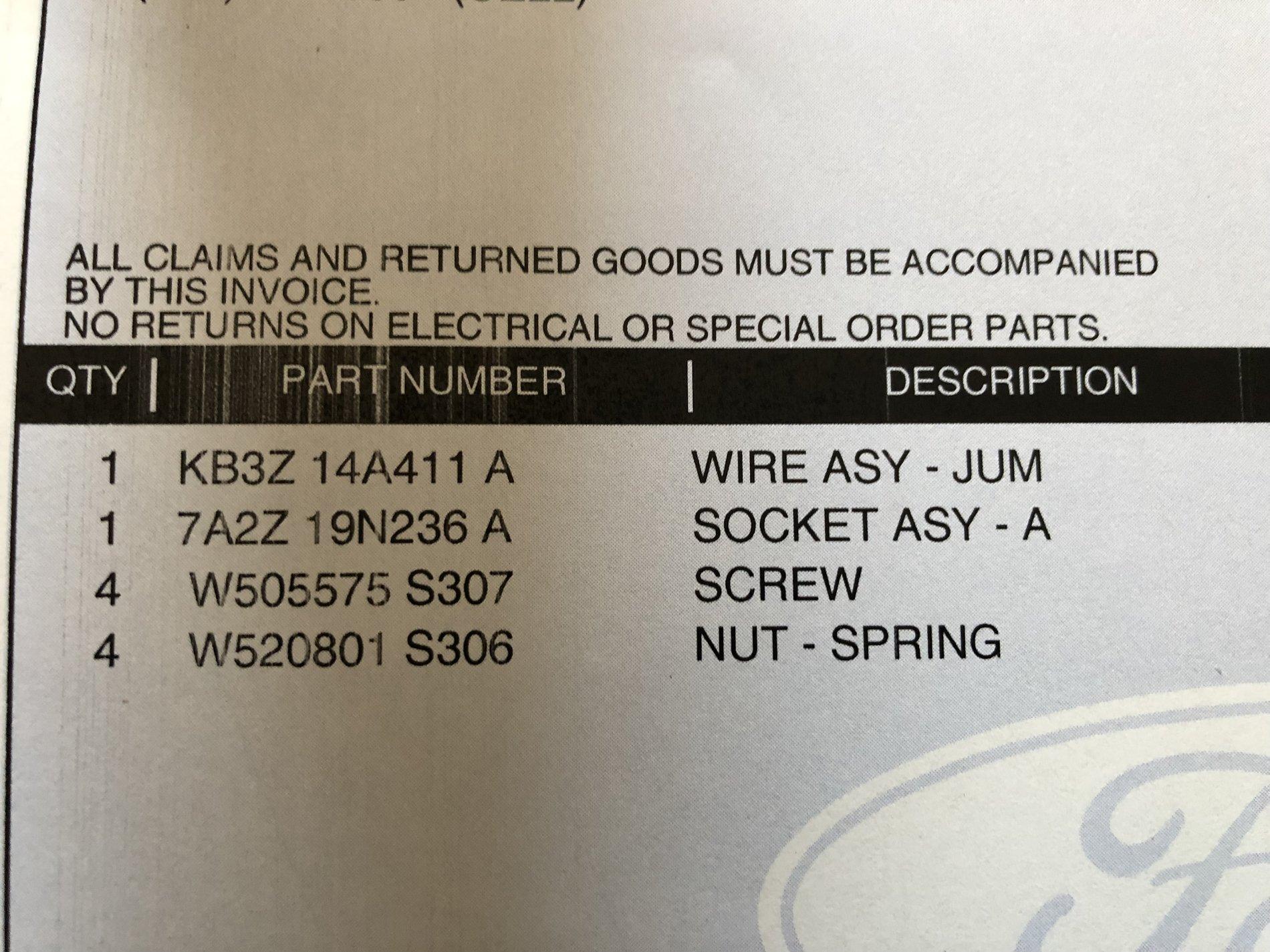

NOTE: 19N236B in the diagram below is not the correct part number. Should be 19N236A. See post #3 below for correct part numbers and quantities.

12v power.png

where did you order from?

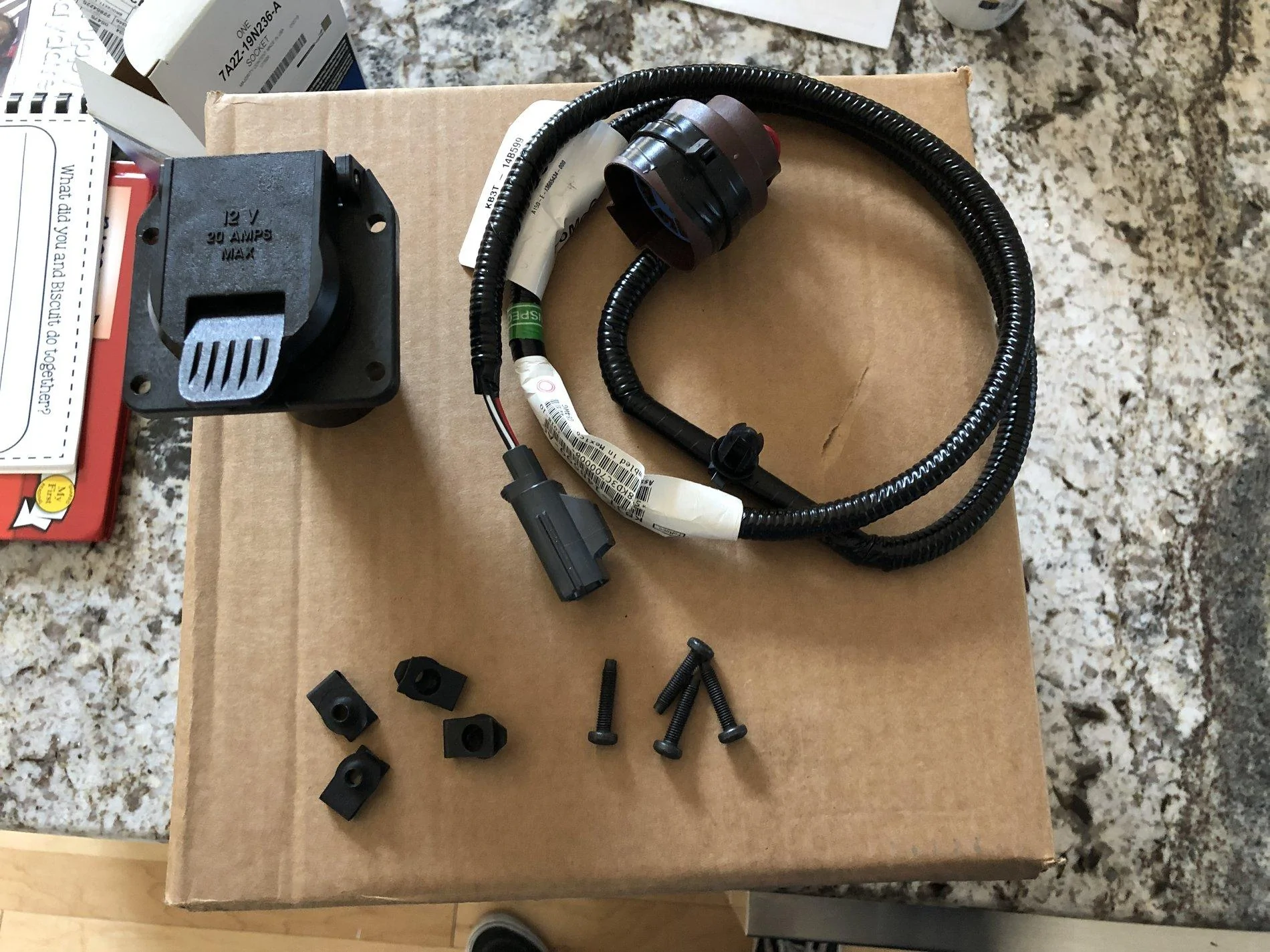

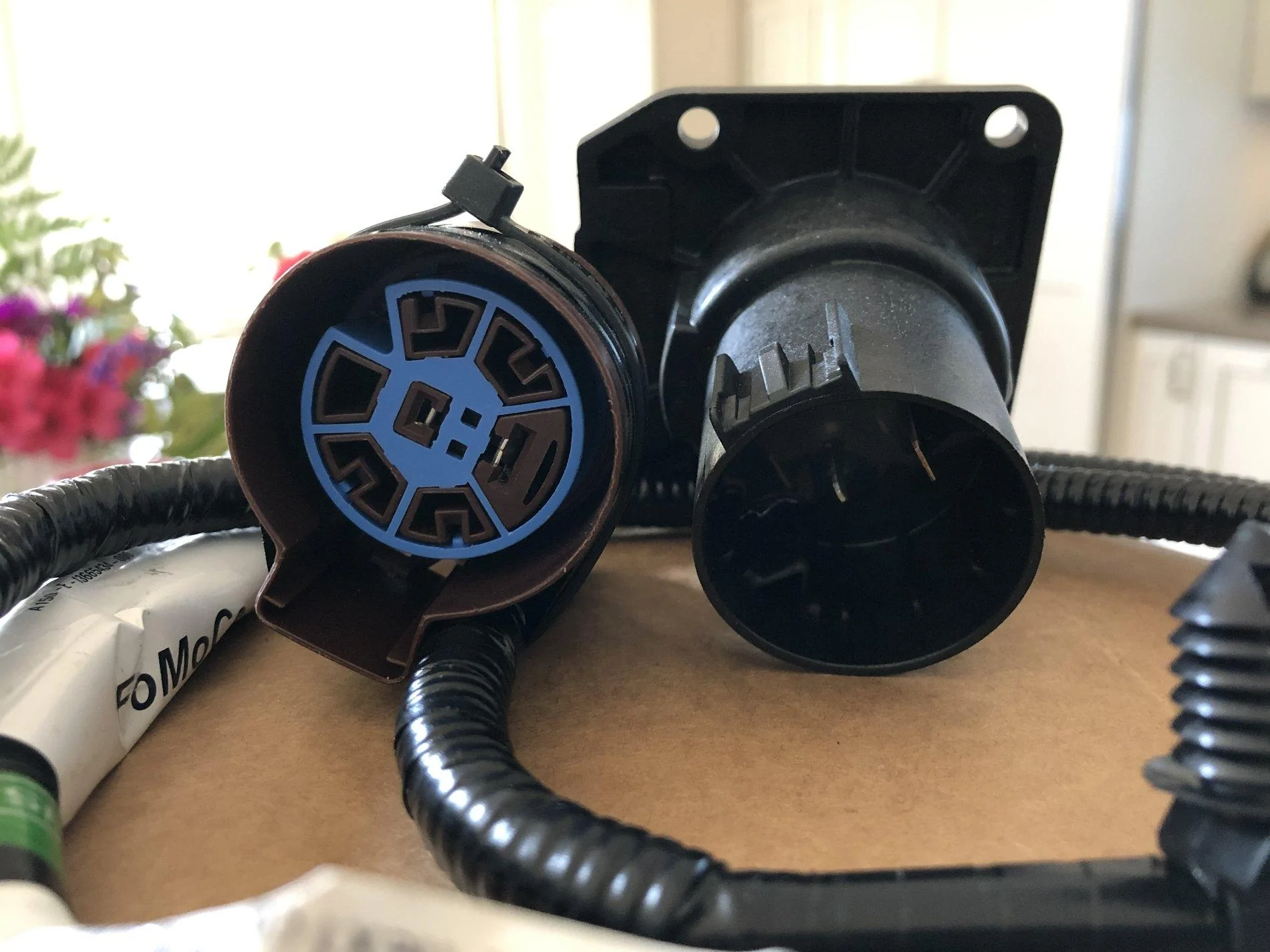

Got the parts in. Looks to be complete. Will post install pics shortly.





Schulz says it does not fit vehicle: https://parts.schultzford.net/oem-parts/ford-socket-7a2z19n236a
Sponsored



WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Threads
7
Messages
175
Reaction score
393
Location
Central Ohio
Website
whor.us
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Occupation
Systems engineer by day, maker and multimedia guru by night.
Vehicle Showcase
1

micl9

Well-Known Member
First Name
Mike
Joined
Dec 21, 2019
Threads
30
Messages
1,332
Reaction score
1,847
Location
Apex, NC
Vehicle(s)
2019 Ranger XLT Fx4 302A
Vehicle Showcase
1
Just finished installing one of Ethan's awesome Wolf Haus Aux Power Bed Harness. Went all out with both the Marine/Cigarette Lighter Socket and In Bed Connector (Pigtail), cause you never know...
My set up had an added twist as I wanted to tap off this harness to power bed lights. I asked Ethan if he could make a harness with a pigtail tap and he came thru!
Really impressed with the workmanship and just the innovation to come up with this design solution.

Does any know if we can use forescan to make this circuit active after an unlock? The bed light will be great when I arrive in the dark, but if I need to load in the dark it would be nice not to have to put the key in the ignition to enable the bed lights.

Last edited:

DanaBovender

Well-Known Member
First Name
Dana
Joined
Oct 16, 2020
Threads
4
Messages
221
Reaction score
465
Location
From the Florida Panhandle Residing in Germany
Vehicle(s)
2019 Ranger Lariat Supercrew 4x4
Occupation
Gov Employee
Just finished installing one of Ethan's awesome Wolf Haus Aux Power Bed Harness. Went all out with both the Marine/Cigarette Lighter Socket and In Bed Connector (Pigtail), cause you never know...
My set up had an added twist as I wanted to tap off this harness to power bed lights. I asked Ethan if he could make a harness with a pigtail tap and he came thru!
Really impressed with the workmanship and just the innovation to come up with this design solution.

Does any know if we can use forescan to make this circuit active after an unlock? The bed light will be great when I arrive in the dark, but if I need to load in the dark it would be nice not to have to put the key in the ignition to enable the bed lights.



micl9

Well-Known Member
First Name
Mike
Joined
Dec 21, 2019
Threads
30
Messages
1,332
Reaction score
1,847
Location
Apex, NC
Vehicle(s)
2019 Ranger XLT Fx4 302A
Vehicle Showcase
1
I have seen where others added a magnetic contact switch to the lights, if you open the tailgate they power on.
Yeah I considered doing that, but decided to keep it simple and minimize wires.
I also chopped the switch that came with my Nilights in place of one I could mount thru the hole in the back of the bed.

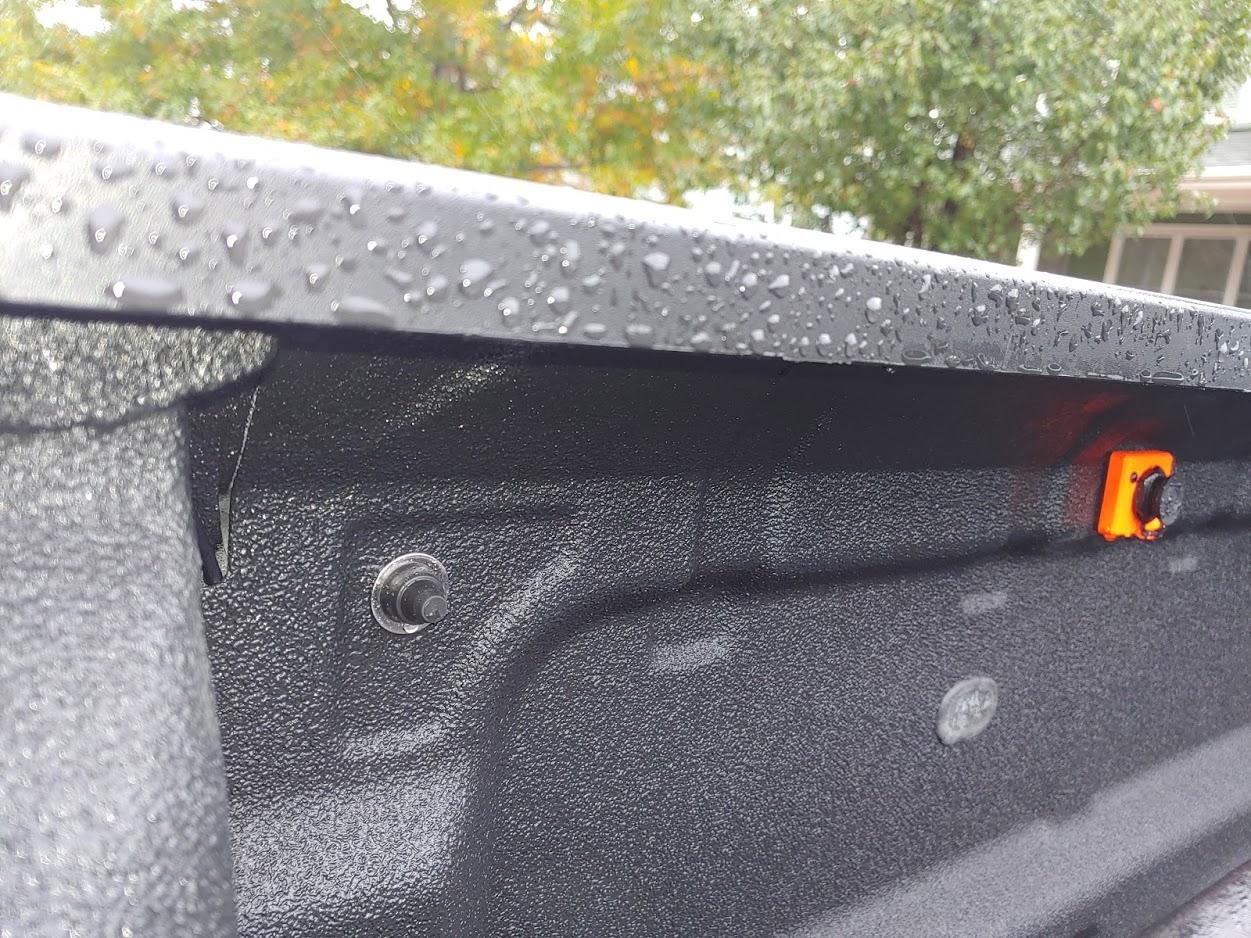

Finished job! Thanks again Ethan!

Last edited:

Racket

Well-Known Member
First Name
John
Joined
Jan 21, 2020
Threads
21
Messages
1,730
Reaction score
2,354
Location
Here and There
Vehicle(s)
2019 Lariat Supercrew 2WD
Occupation
Transient

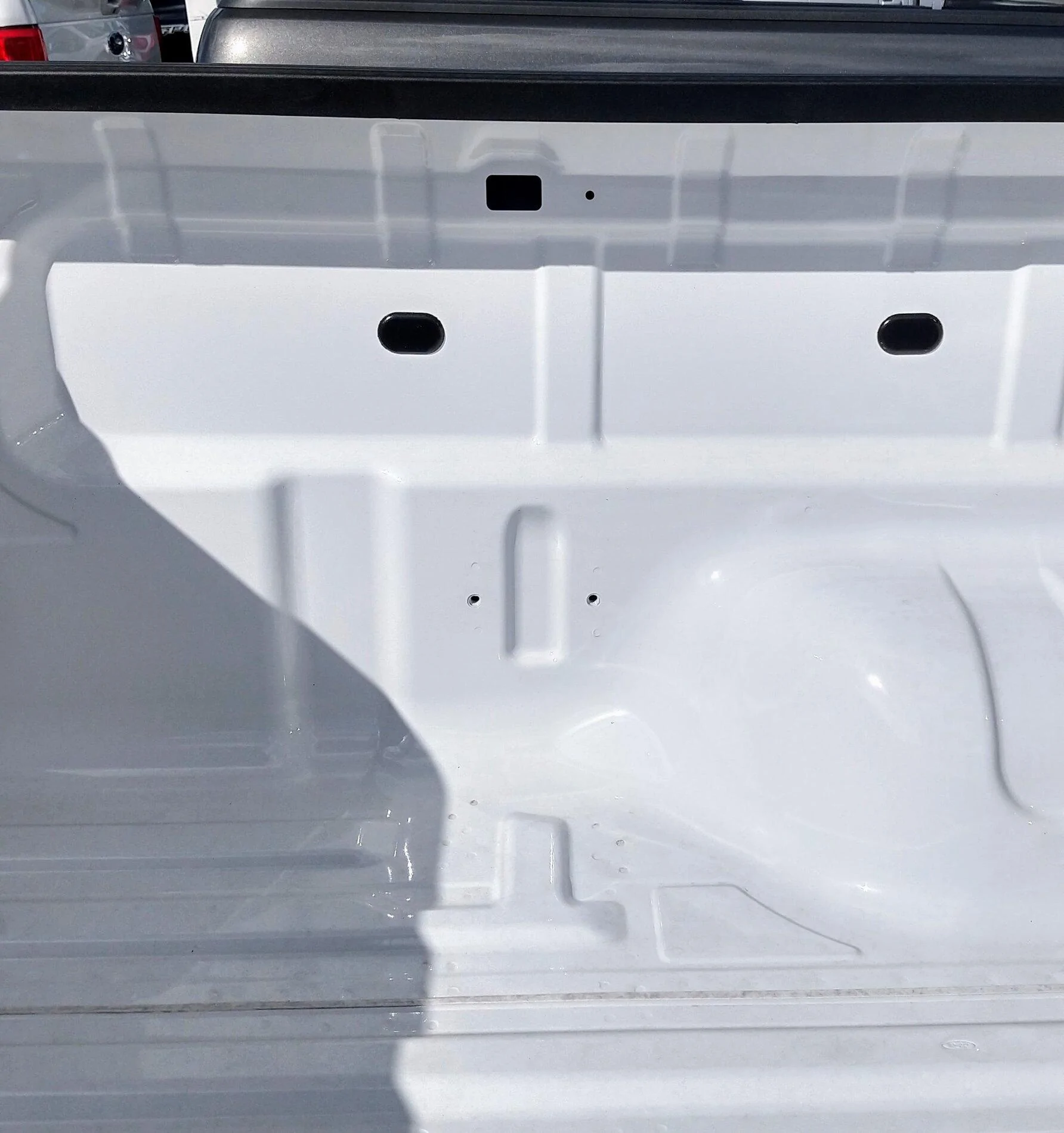

The naked bed for those of us with liners: (considering the Wolfhause kit)


WLFPIR8

Well-Known Member
First Name
Ethan
Joined
Jun 25, 2019
Threads
7
Messages
175
Reaction score
393
Location
Central Ohio
Website
whor.us
Vehicle(s)
2019 Ranger Lariat FX4/Sport in Saber Orange
Occupation
Systems engineer by day, maker and multimedia guru by night.
Vehicle Showcase
1
The naked bed for those of us with liners: (considering the Wolfhause kit)
Kits are all 10% off right now (until the end of November) with the code RANGER10 FYI

Last edited:

micl9

Well-Known Member
First Name
Mike
Joined
Dec 21, 2019
Threads
30
Messages
1,332
Reaction score
1,847
Location
Apex, NC
Vehicle(s)
2019 Ranger XLT Fx4 302A
Vehicle Showcase
1
Order the Wolfhause kit. You won't regret it. Simple install and works great!
Absolutely!
Very well made.
IMHO better than the stock bed power plug. No holes to cut. Better in bed power socket (lighter vs 2 prong). Option to have a pigtail tap to power something else (bed lights in my case).


Racket

Well-Known Member
First Name
John
Joined
Jan 21, 2020
Threads
21
Messages
1,730
Reaction score
2,354
Location
Here and There
Vehicle(s)
2019 Lariat Supercrew 2WD
Occupation
Transient
Kits are all 10% off right now (until the end of November) with the code RANGER10 FYI
Broke down and ordered. Everyone loves a
Black Friday Sale!


P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Threads
141
Messages
7,012
Reaction score
36,169
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2020 Lincoln Nautilus, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
Kits are all 10% off right now (until the end of November) with the code RANGER10 FYI
Hi Folks,

I paid full price...I still consider this a bargain! Worth every penny! Well done high quality!

Best,
Phi Schilke
Ranger Vehicle Engineering
Ford Motor Co. Retired


mark_anderson_us

Well-Known Member
First Name
Mark
Joined
Oct 23, 2020
Threads
30
Messages
265
Reaction score
204
Location
Chicago
Vehicle(s)
Ford Ranger Lariat FX4 2020
Occupation
Software Developer
Yeah I considered doing that, but decided to keep it simple and minimize wires.
I also chopped the switch that came with my Nilights in place of one I could mount thru the hole in the back of the bed.
Finished job! Thanks again Ethan!
Seems to be a long way forward in bed: maybe just focal length of lens?. how far is it from tailgate


mark_anderson_us

Well-Known Member
First Name
Mark
Joined
Oct 23, 2020
Threads
30
Messages
265
Reaction score
204
Location
Chicago
Vehicle(s)
Ford Ranger Lariat FX4 2020
Occupation
Software Developer
Just finished installing one of Ethan's awesome Wolf Haus Aux Power Bed Harness. Went all out with both the Marine/Cigarette Lighter Socket and In Bed Connector (Pigtail), cause you never know...
My set up had an added twist as I wanted to tap off this harness to power bed lights. I asked Ethan if he could make a harness with a pigtail tap and he came thru!
Really impressed with the workmanship and just the innovation to come up with this design solution.

Does any know if we can use forescan to make this circuit active after an unlock? The bed light will be great when I arrive in the dark, but if I need to load in the dark it would be nice not to have to put the key in the ignition to enable the bed lights.
I wanna pick one of these up, but can't decide on connection. Sounds like it's a straight 12v cigarette lighter socket or plug with this on a pigtail. What's the benefit of the latter?


micl9

Well-Known Member
First Name
Mike
Joined
Dec 21, 2019
Threads
30
Messages
1,332
Reaction score
1,847
Location
Apex, NC
Vehicle(s)
2019 Ranger XLT Fx4 302A
Vehicle Showcase
1
It's not that far fwd, behind the wheel. See Rackets post after mine. It goes in the rectangular hole above the 2 oval holes/plugs.

I got both. One is lighter socket and the other is just 2 tinned wires ready to hardwire whatever.
I figured having it on hand when I need it/find a use was worth it.
