Aftermarket wheel options

[Mini.lobo]

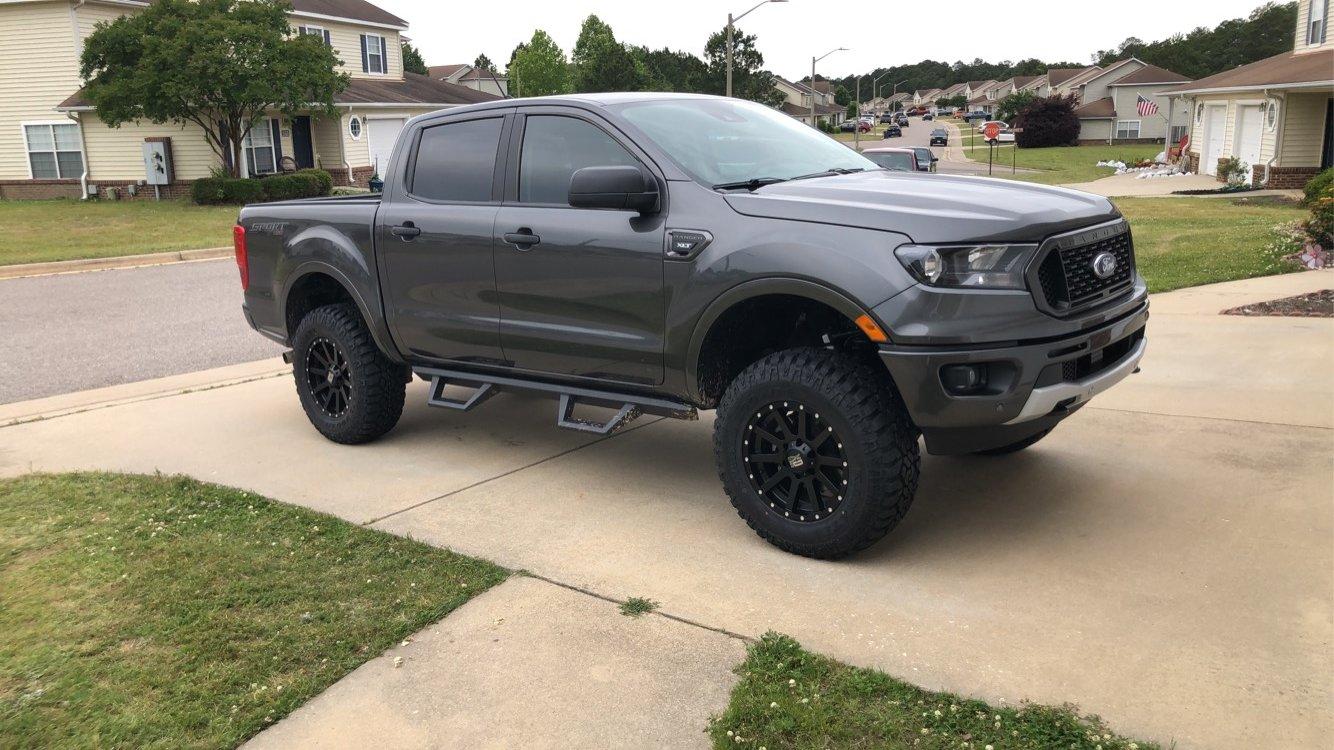

Here is my new install on wheels.

Centerline hammer 17x9 +25
Tires are centennial m/t 285/70/17

Minor rubbing on fordrangerlifts 3in leveling kit

Sponsored



[Gadawg67]

Xd heist 17inch 30 offset 285/70/17 no rubbing what so ever



[jeffb1076]

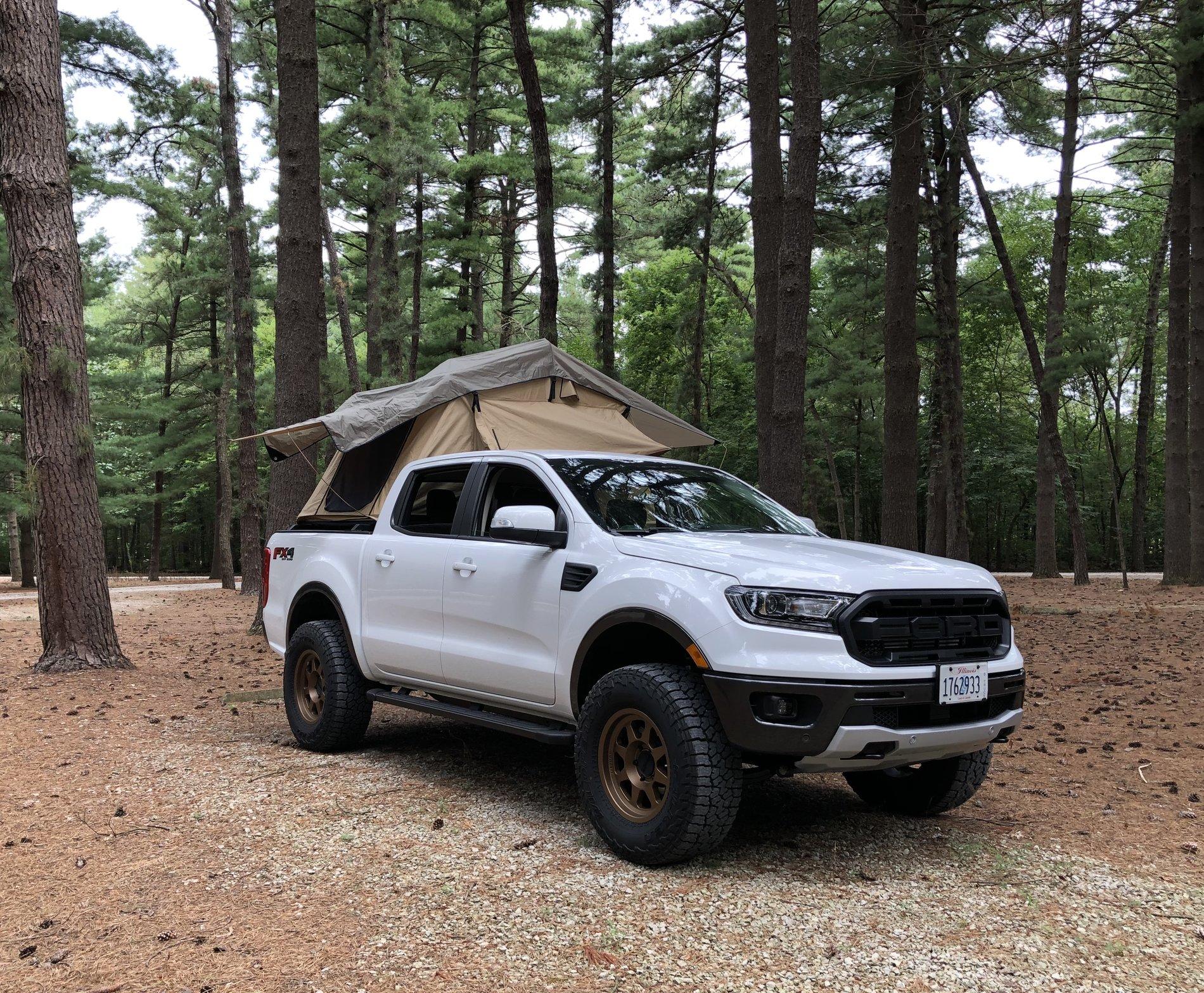

17x8.5 Method 701
285/70-17 Falken Wildpeak AT3



[Mini.lobo]

17x8.5 Method 701
285/70-17 Falken Wildpeak AT3

Good looking setup! ?



[commbubba19]

So what’s the common thought on offset? I see a lot of 0 and -12 but not as many +12 or so. Even with crash bar removal I’m not sure of a zero offset would clear with a 285/70/17 tire.



[NvrFinished]

Most of the Icon wheels have a +25 offset. This places the tires just outside the fender depending on the size you are running. +18, +12, 0, and -12 wheels just keep moving the tire further and further out which makes potential rubbing worse as you go.



[commbubba19]

Most of the Icon wheels have a +25 offset. This places the tires just outside the fender depending on the size you are running. +18, +12, 0, and -12 wheels just keep moving the tire further and further out which makes potential rubbing worse as you go.

my question was more about what are the go to vendors for ranger fitments



[NvrFinished]

my question was more about what are the go to vendors for ranger fitments

I'm sorry, I was just commenting on your post quoted below.

So what’s the common thought on offset? I see a lot of 0 and -12 but not as many +12 or so. Even with crash bar removal I’m not sure of a zero offset would clear with a 285/70/17 tire.

I found that this website here is a great way to do some research to find out what type of wheel you like. They don't show every brand, but it does a pretty good job of presenting everything in one spot. After that, just start searching for the lowest prices. Also, check the listed sponsors on Ranger5G and see what kind of discounts they are offering. Sometimes it depends on who is having a sale at a particular time.

Many people have been getting the best pricing from Discount Tire since they can get just about any wheel and guarantee the lowest prices.



[RangerRick19]

We are working on adding a lot of options to our site. We are dealers for Fuel Fifteen52 Rotiform and many more.

Few options are posted below.

When will you guys have the Rotiform SIX-OR in stock in bronze?



[wickedZ1]

Anyone replaced their rims and tires on stock suspension? If so what are the specs. -Thanks!
I have an FX4.



[NvrFinished]

Anyone replaced their rims and tires on stock suspension? If so what are the specs. -Thanks!
I have an FX4.

Just do some searches and you will find all kinds of info and examples on this forum. There is a tire size thread as well. Typical offsets if you don't want much wheel poke is +20 to +30 with 8.5"-9" wheels. Run less offset if you want poke. Most don't run less than 0 offset because it sticks out too far and you run into big fitment issues up front.



[wickedZ1]

Just do some searches and you will find all kinds of info and examples on this forum. There is a tire size thread as well. Typical offsets if you don't want much wheel poke is +20 to +30 with 8.5"-9" wheels. Run less offset if you want poke. Most don't run less than 0 offset because it sticks out too far and you run into big fitment issues up front.

I was reading thru the post about biggest tires without lift, 99.9% said they lifted theirs.



[Kawffin]

Xd heist 17inch 30 offset 285/70/17 no rubbing what so ever

Crash bars intact?



[NewYorkKev]

17x8.5 Method 701
285/70-17 Falken Wildpeak AT3

hey man nice set up, lift kit ? Leveling kit ? Any rubbing issues at all ?



[NewYorkKev]

Same wheel/tire setup I think...285/70-17, 17" Shok +20 offset.

any cutting of the crash bars ? Any issues with rubbing when turning ?
