8492 - 2019 Ranger - Trailer Brake Controller Availability

Discussion in 'Towing' started by Willcuts93, Jul 5, 2019.

  1. Rone28

    Rone28 Member

    First Name:
    Maurice
    Vehicle(s):
    Ford Ranger 2019
    Joined:
    Jun 9, 2019
    Location:
    Redmond
    Posts:
    20
    Likes Received:
    21
    I towed about 200 miles today and the truck + the P3 did great. I have a trailer that is about 3800 loaded.

  2. Douglrowl

    Douglrowl Member

    First Name:
    Doug
    Vehicle(s):
    2019 Ford Ranger LARIAT SuperCrew®, 5' Box, 4x4, 2.3L EcoBoost Engine
    Joined:
    Jun 7, 2019
    Location:
    Keystone, SD
    Posts:
    6
    Likes Received:
    1
    Occupation:
    Retired
    I'm looking at a Curt Echo Mobile Trailer Brake Controller - Wireless Bluetooth. It plugs into the 7 pin connector and the trailer wiring, then links to the smartphone.
    I would appreciate input from the forum about this option. It seems to be a "no installation" option.

  3. MT19RANGER

    MT19RANGER Well-Known Member

    First Name:
    JERRY
    Vehicle(s):
    2019 Ranger Lariat
    Joined:
    Nov 10, 2018
    Location:
    SIDNEY, MT
    Posts:
    575
    Likes Received:
    305
    Occupation:
    Oilfield Service Company Area Supervisor
    Garage Profiles:
    1
    I don't know of anyone that has tested it, but from what I heard is that it doesn't work unless a trailer is connected too. Needs to trigger the power draw and then it powers the connector. I was going to get one but decided to go w/ the REDARC and it works great.

  4. MT19RANGER

    MT19RANGER Well-Known Member

    First Name:
    JERRY
    Vehicle(s):
    2019 Ranger Lariat
    Joined:
    Nov 10, 2018
    Location:
    SIDNEY, MT
    Posts:
    575
    Likes Received:
    305
    Occupation:
    Oilfield Service Company Area Supervisor
    Garage Profiles:
    1
  5. VGKRanger29

    VGKRanger29 Active Member

    First Name:
    Drew
    Vehicle(s):
    2019 Ranger XLT Sport Magnetic
    Joined:
    May 30, 2019
    Location:
    Northern Nevada
    Posts:
    33
    Likes Received:
    97
    #35 Aug 14, 2019
    Last edited: Aug 14, 2019
    I was looking at it previously because I really liked the ability to remove it and not have to install anything on the dash. After doing research it was found that it does cause some interference with the towing features like the BLIS system and people reported if they turned their hazard lights on it caused the trailer brakes to pulse with the blinkers. The whole point of trading my previous Ranger in for this truck was the towing capacity and safety features so not being able to use those meant a no go for the Curt. I ended up going with the Redarc Tow Pro Elite and love the minimal impact to the dash. It works great and my wife couldn't even tell where it was installed because it looked like it belonged on the dash.

    MT19RANGER likes this.
  6. mrphixit

    mrphixit New Member

    First Name:
    John
    Vehicle(s):
    2016 Toyota Prius
    Joined:
    Jul 27, 2019
    Location:
    Sun City West AZ
    Posts:
    2
    Likes Received:
    0
    Occupation:
    Retired 1988
    Would love to see where you installed and wired the unit and control knob.

  7. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    3,196
    Likes Received:
    1,949
    Garage Profiles:
    1
    MT19RANGER and VGKRanger29 like this.
  8. Douglrowl

    Douglrowl Member

    First Name:
    Doug
    Vehicle(s):
    2019 Ford Ranger LARIAT SuperCrew®, 5' Box, 4x4, 2.3L EcoBoost Engine
    Joined:
    Jun 7, 2019
    Location:
    Keystone, SD
    Posts:
    6
    Likes Received:
    1
    Occupation:
    Retired
    Is there a plug and play port for the brake controller? I see a picture of one on Etrailer's web site but for the life of me I can't find one on my Ranger.

  9. rangerdanger

    Moderator

    Vehicle(s):
    2019 Ford Ranger SuperCrew XLT FX4
    Joined:
    Oct 9, 2018
    Location:
    SF Bay Area
    Posts:
    3,196
    Likes Received:
    1,949
    Garage Profiles:
    1
  10. treimche

    treimche Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2019 Ranger. 2005 S2000. 2009 R1
    Joined:
    Apr 8, 2019
    Location:
    Fargo, ND
    Posts:
    145
    Likes Received:
    121
    Occupation:
    Small Business Owner

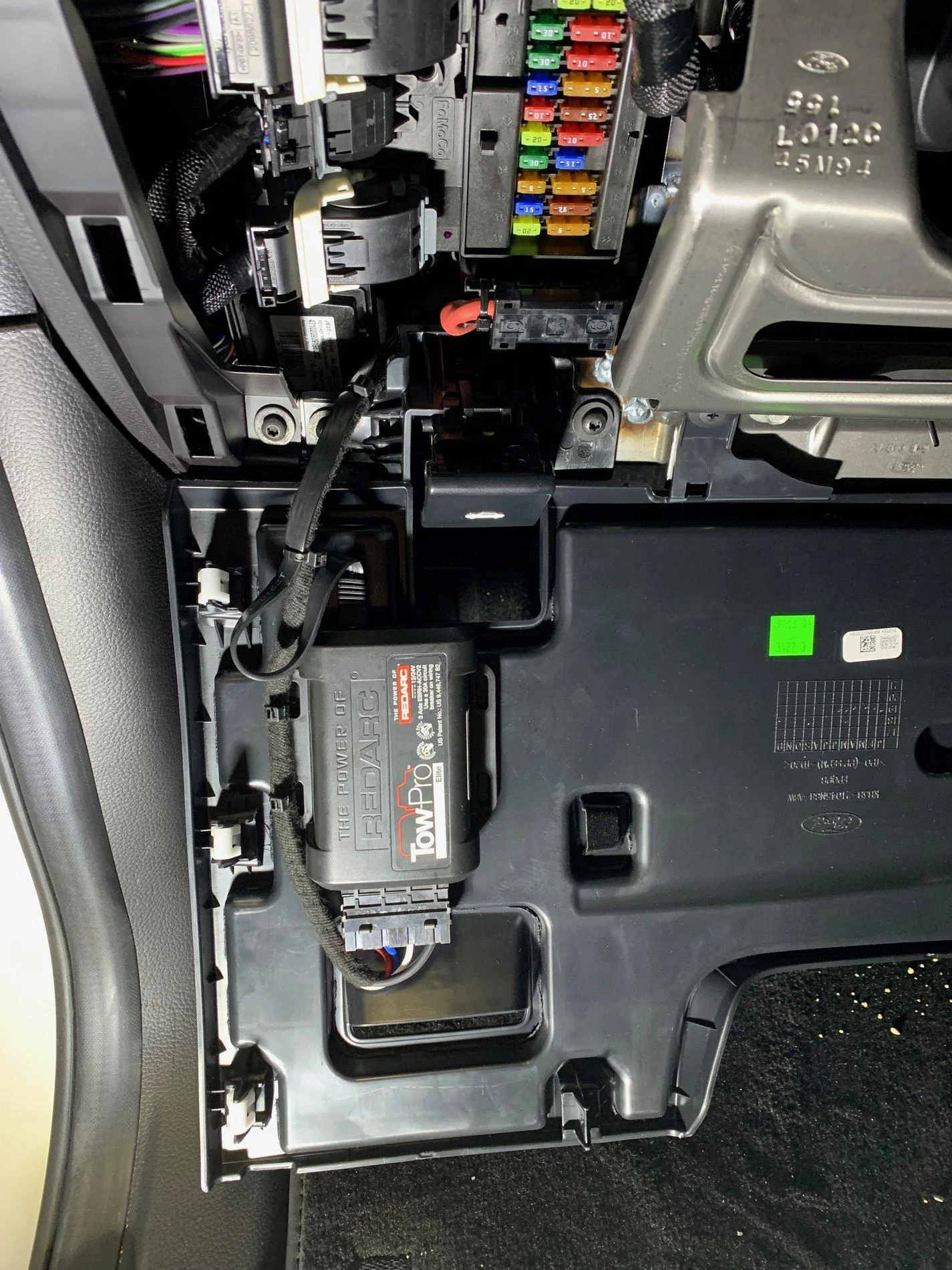

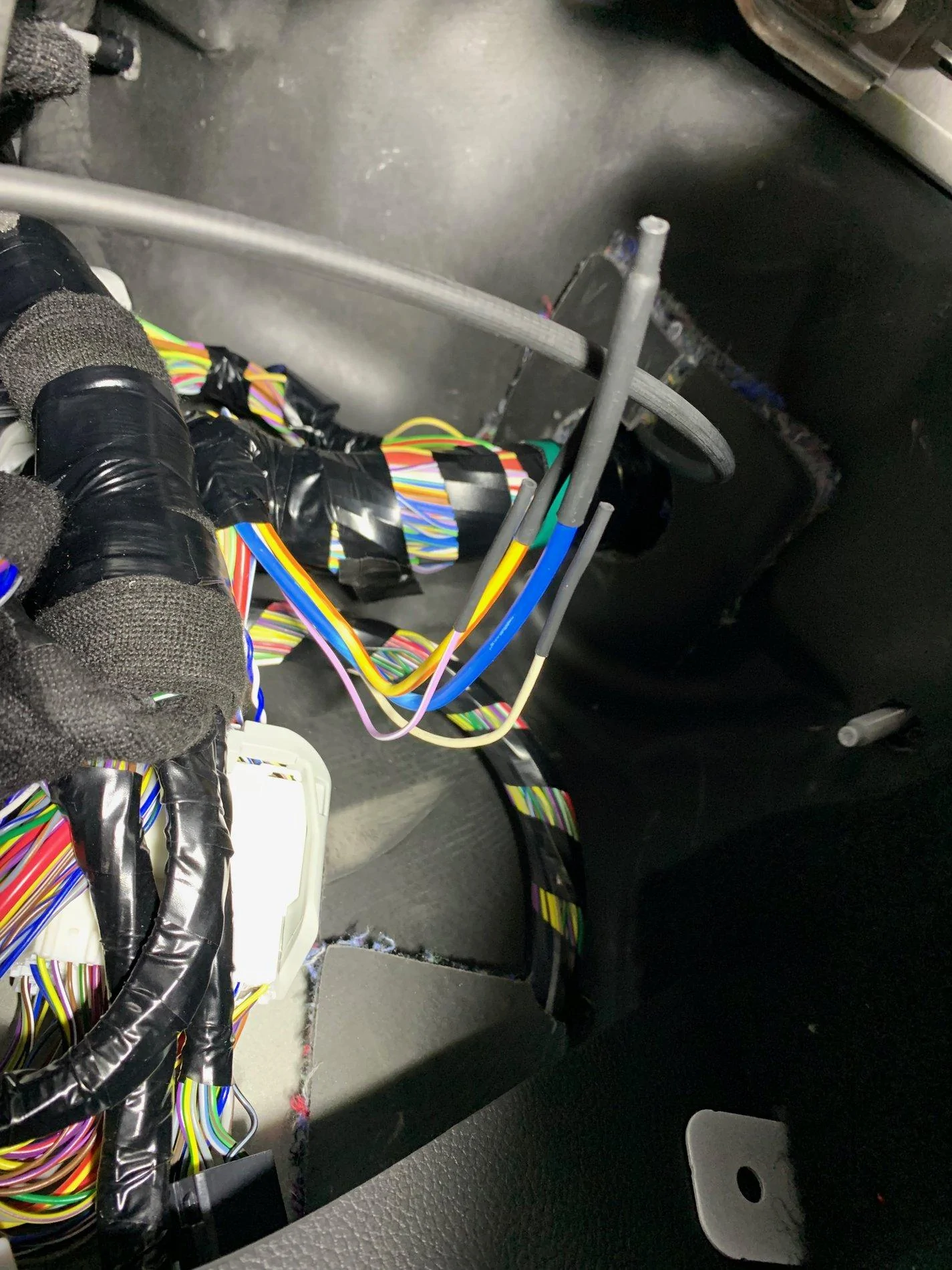

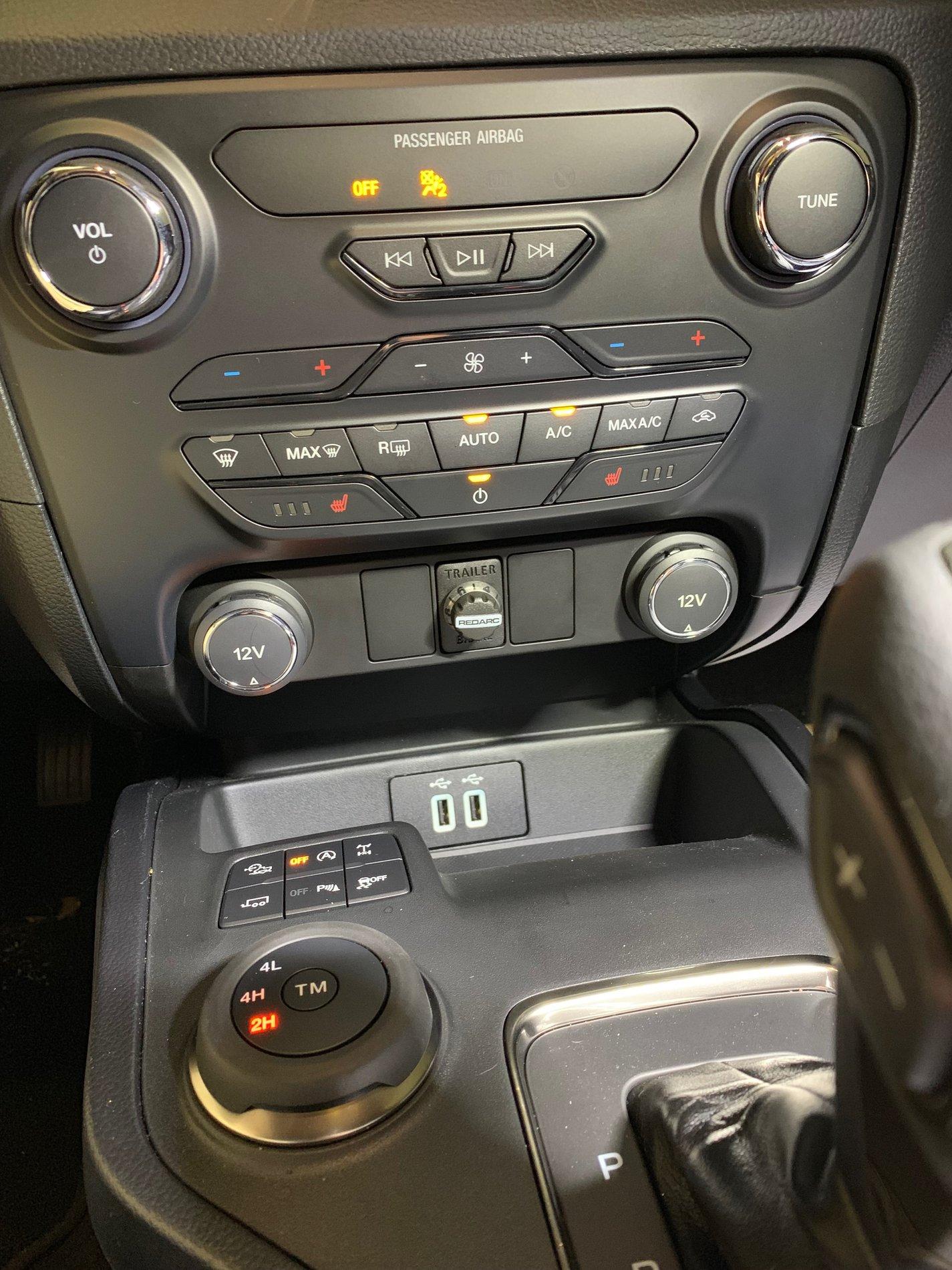

    I installed the Red Arc Tow Pro Elite with the Lightforce switch bezel. Took a pic of where the trailer brake wires were at too.




    Snorebaby and MT19RANGER like this.
  11. Jerry Caldwell

    Jerry Caldwell Well-Known Member

    First Name:
    Jerry
    Vehicle(s):
    Ranger Lariat
    Joined:
    May 18, 2019
    Location:
    Granbury, TX
    Posts:
    58
    Likes Received:
    58
    Occupation:
    Retired Architect

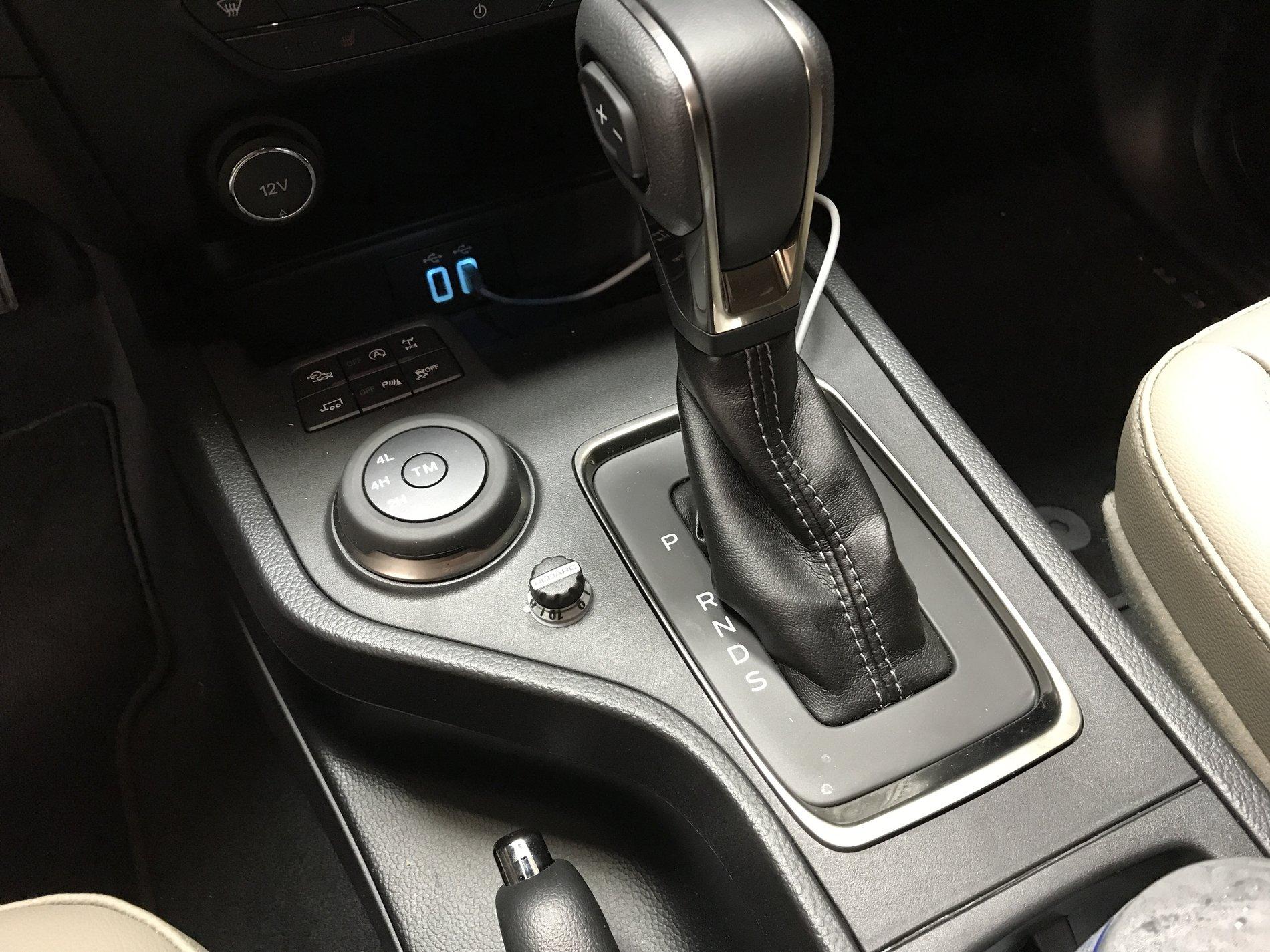

    My unit is strapped to the metal frame just under the steering column. Here is a pic of the control location. No need to buy extra trim.


    Stevie Gee, Snorebaby and MT19RANGER like this.
  12. treimche

    treimche Well-Known Member

    First Name:
    Troy
    Vehicle(s):
    2019 Ranger. 2005 S2000. 2009 R1
    Joined:
    Apr 8, 2019
    Location:
    Fargo, ND
    Posts:
    145
    Likes Received:
    121
    Occupation:
    Small Business Owner
    That is a nice location for the control knob. For me, I can't stand drilling unnecessary holes in interior panels, hence the Lightforce switch fascia.

    DrSafety likes this.
  13. Michael360wa

    Michael360wa New Member

    First Name:
    Michael
    Vehicle(s):
    2019 Ranger Lariat
    Joined:
    Jun 21, 2019
    Location:
    Mount Vernon,WA
    Posts:
    4
    Likes Received:
    4
    Occupation:
    AMT
    Garage Profiles:
    1
    How does the trim come apart for installing the control knob in this location?

  14. oggvorbis

    oggvorbis Well-Known Member

    First Name:
    Pablo
    Vehicle(s):
    2019 Ford Ranger Lariat FX4
    Joined:
    Feb 3, 2019
    Location:
    Rancho Cucamonga, CA
    Posts:
    73
    Likes Received:
    80
    Garage Profiles:
    1
    #44 Aug 20, 2019 at 4:14 PM
    Last edited: Aug 20, 2019 at 4:21 PM
    @Hambone437 Posted his install here on my Redarc Install thread...

    https://www.ranger5g.com/forum/threads/redarc-tow-pro-elite-install.1924/page-5#post-44865

    Looks like he followed the Redarc install thread up to where we removed the fascia that houses the cigarette lighters then popped off the console trim from there. From the pictures, it looks like it's only held in by clips.

  15. oggvorbis

    oggvorbis Well-Known Member

    First Name:
    Pablo
    Vehicle(s):
    2019 Ford Ranger Lariat FX4
    Joined:
    Feb 3, 2019
    Location:
    Rancho Cucamonga, CA
    Posts:
    73
    Likes Received:
    80
    Garage Profiles:
    1
    @Hambone437 posted this a few posts later on the thread...

    "To remove the top of the console off I had to first remove the lower dash panel piece that has the two 12 volt sockets. There are two screws holding that piece in place and to get to the screws, I had to remove the lower dash panel pieces on either side. Just pull those straight back and they come off. Once those three pieces were removed, I started prying up the top of the console around the gear shift lever. It’s all held in place by plastic clips, no screws. I also had to move the shifter out of park to lift it completely out. All in all it was pretty easy. I took my time and used plastic panel tools to pry the pieces so I didn’t scratch or damage anything."
