Wiring Diagram??

[Caluke]

I realize it's an old thread, but how about the steering wheel radlo/dash/cruise controls and clock spring???

Hey I can get them for you. Is there something specific you are looking for? I took a quick look and there are a ton of diagrams for the clock spring and steering wheel.

Sponsored



[RangerJeff]

Here you go, Let me know if you need any more info. I'm not sure if there are any other associated connectors.

Anyone know how to get the part number for the plug that connects to this? The 6 pin one



[RCMUSTANG]

Anyone know how to get the part number for the plug that connects to this? The 6 pin one

I've been looking for a connector and Ford no longer gives part numbers or wants to sell them for the newer vehicles. Unless you can match it a previously available connector good luck. My buddy works at the dealer and they'll stop selling the terminals and connectors in the future as there were too many come backs. They want the techs to just replace the whole harness now.



[Plinky]

I've been looking for a connector and Ford no longer gives part numbers or wants to sell them for the newer vehicles. Unless you can match it a previously available connector good luck. My buddy works at the dealer and they'll stop selling the terminals and connectors in the future as there were too many come backs. They want the techs to just replace the whole harness now.

That's the wave of the future. GM does the same thing. GM got rid of their 8-day electronics hands-on training course years ago, then realized years (& many dollars) later that newer techs had no idea how to repair wiring connectors, crimp & solder replacement terminals, & the like. Can usually find connectors with up to about 16 pins & terminated leads if the connector isn't damaged & is serviceable. Most of it is being phased out & requires a harness replacement. Waiting on a LF door harness for a '16 Buick LaCrosse at the moment (a month out due to the pandemic). If terminals or terminated leads were available I would've had it done weeks ago.



[Virtualdanno]

Caluke, any change we could get the pinout for the side mirror connector? Looking for the correct pins to swap lariat side mirrors with XLT mirrors.



[Caluke]

Caluke, any change we could get the pinout for the side mirror connector? Looking for the correct pins to swap lariat side mirrors with XLT mirrors.

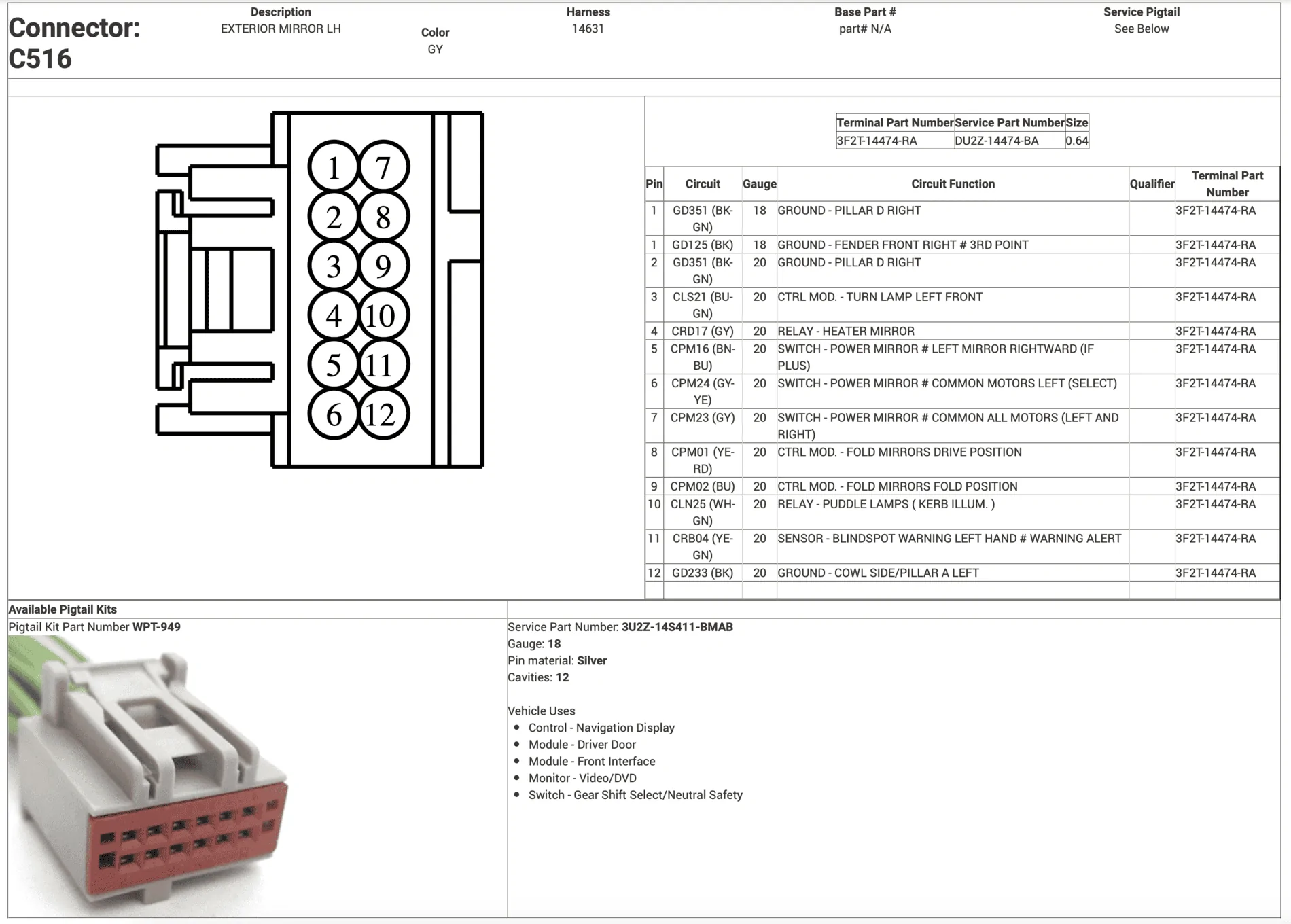

They only show one diagram for the mirror connector. Seems like the harness is the same across all of the trim levels. hope this helps



[Virtualdanno]

They only show one diagram for the mirror connector. Seems like the harness is the same across all of the trim levels. hope this helps

Buddy, I'd buy you a good beer if you were local, thank you for this. So according to the ford parts site, there are 4 different wiring harnesses (or maybe, hopefully, just the pigtails) that go into the doors for trucks with different mirror options.

https://parts.ford.com/shop/en/us/wire-assy-jumper-9343827-1#sectionId:95018846

We are just trying to figure out if it makes sense to just add the wires themselves to the existing harness or buy new harnesses (probably around $100 a pop) to get the lariat mirror functionality with the correct mirrors installed on an XLT.



[ABKsDad]

Buddy, I'd buy you a good beer if you were local, thank you for this. So according to the ford parts site, there are 4 different wiring harnesses (or maybe, hopefully, just the pigtails) that go into the doors for trucks with different mirror options.

https://parts.ford.com/shop/en/us/wire-assy-jumper-9343827-1#sectionId:95018846

We are just trying to figure out if it makes sense to just add the wires themselves to the existing harness or buy new harnesses (probably around $100 a pop) to get the lariat mirror functionality with the correct mirrors installed on an XLT.

What I am curious about is if the Lariat door harness with the extra leads would plug into the XLT main harness inside the cab such that we do not have to then splice into the turn signals, heat, puddle leads.



[Virtualdanno]

What I am curious about is if the Lariat door harness with the extra leads would plug into the XLT main harness inside the cab such that we do not have to then splice into the turn signals, heat, puddle leads.

I am curious as well, though paying $100 a pop for 2 harnesses isn't something I relish doing either...



[wickedZ1]

Here you go, Let me know if you need any more info. I'm not sure if there are any other associated connectors.

Caluke, do you have the diagram for the harness inside for the camera?



[wikolipr]

@ScubaSteve The wiring diagrams do not give specific information on every trim level this is what it shows for Sync equipped vehicles.

Anybody know if this information (Wiring Diagrams) are available online? I am used to BMW TIS and find it super useful for diagnosing or if you want to wire additional equipment such as lights.



[jubilum]

can i have them please?

Hey I can get them for you. Is there something specific you are looking for? I took a quick look and there are a ton of diagrams for the clock spring and steering wheel.



[ha_vutrong]

Here you go, Let me know if you need any more info. I'm not sure if there are any other associated connectors.

Do you have a wiring dra

Here you go, Let me know if you need any more info. I'm not sure if there are any other associated connectors.

Do you have a wiring diagram camera in dvd Sir?



[wickedZ1]

Do you have a wiring dra

Do you have a wiring diagram camera in dvd Sir?

You looking to get the cam hooked up to different head unit? Heres what I found in wiring in a new head unit, Pin 14 positive, 15 negative, 33 is the shield that needs grounded on the harness.



[ha_vutrong]

You looking to get the cam hooked up to different head unit? Heres what I found in wiring in a new head unit, Pin 14 positive, 15 negative, 33 is the shield that needs grounded on the harness.

You looking to get the cam hooked up to different head unit? Heres what I found in wiring in a new head unit, Pin 14 positive, 15 negative, 33 is the shield that needs grounded on the harness.
