So THIS happened today! Ford bed lighting kit

OP
OP

ulev1st

Well-Known Member
First Name
Don
Joined
Feb 15, 2019
Threads
15
Messages
112
Reaction score
232
Location
West Tn
Vehicle(s)
2019 Ranger CC FX4 ,2012 F250 Lariat FX4, 2017 Shelby GT350, 14 Ford Focus
Occupation
Retire Marine and Refinery Operator
Vehicle Showcase
1
Just got this from Lumen:
Sponsored



Attachments

SRAces

Well-Known Member
First Name
Steve
Joined
Oct 17, 2018
Threads
4
Messages
329
Reaction score
626
Location
Lake Park, GA
Vehicle(s)
2019 Ford Ranger, 2015 Mercedes-Benz GLA, 2004 Mercedes-Benz SLK 230 Special Edition
Occupation
USAF (retired)
Vehicle Showcase
1
I already contacted F150leds.com the kit you need for a 5 ft bed is the F150 2009 kit. Good luck.
I chatted with the F150LED folks today. While that kit might work, they don't have the wiring tie in figured out yet. They are going to research and get back to me. The operation of their light kits is what I was looking for.

OP
OP

ulev1st

Well-Known Member
First Name
Don
Joined
Feb 15, 2019
Threads
15
Messages
112
Reaction score
232
Location
West Tn
Vehicle(s)
2019 Ranger CC FX4 ,2012 F250 Lariat FX4, 2017 Shelby GT350, 14 Ford Focus
Occupation
Retire Marine and Refinery Operator
Vehicle Showcase
1
On MY install I took a couple short cuts that save time a frustration. First off I threw the RivNuts in the trash and used 3/16 ALUM 1/2 long pop rivets.. so I drilled 3/16 holes vice the 5/16 holes stated in the instructions. Also they give you these fancy ziptie mounts that you are supposed to clean and attach to the frame to run the zipties thru. I opted just to run it along the truck harness and ziptie to it.. a time saver and it's tucked up nicely out of the way and will never come loose.

OP
OP

ulev1st

Well-Known Member
First Name
Don
Joined
Feb 15, 2019
Threads
15
Messages
112
Reaction score
232
Location
West Tn
Vehicle(s)
2019 Ranger CC FX4 ,2012 F250 Lariat FX4, 2017 Shelby GT350, 14 Ford Focus
Occupation
Retire Marine and Refinery Operator
Vehicle Showcase
1
I chatted with the F150LED folks today. While that kit might work, they don't have the wiring tie in figured out yet. They are going to research and get back to me. The operation of their light kits is what I was looking for.
When you find out what color wire and where they tie in...let us know.. I might change mine. I'd still have to touch them to come on...but they would eventually time out.


PonyXpress

Well-Known Member
First Name
Steve
Joined
Feb 18, 2019
Threads
9
Messages
260
Reaction score
165
Location
Sacramento CA
Vehicle(s)
2019 Ford Ranger
I get my 2019 ranger this week and can't wait to see if my Lariat already has these lights.

I bet the 45 min install is not even close, but let us know. That install doesn't look all that easy to me. I would compare to what the Ford dealer will charge you for install (how many labor hours) If they try and charge you more than one hour, I would complain and point them to the manual that says 45 min LOL

Also, says in the instructions that No Drilling required, but it sure looks like you do need to drill some holes.



SRAces

Well-Known Member
First Name
Steve
Joined
Oct 17, 2018
Threads
4
Messages
329
Reaction score
626
Location
Lake Park, GA
Vehicle(s)
2019 Ford Ranger, 2015 Mercedes-Benz GLA, 2004 Mercedes-Benz SLK 230 Special Edition
Occupation
USAF (retired)
Vehicle Showcase
1
I have an F150LEDs kit being shipped to me. I told my dealer I didn't want the Touchlink kit as they changed how they advertised how it functions. Originally they said it worked with interior lights/keyfob. Then the real description indicated you touched the top of the light. $240 for that was not worth it for me. Installing the F150LEDs kit to work with interior lighting. Making detailed instructions and pictures for F150LEDs to show how to install their lights on the Ranger.

When I get the lights installed, then I will post some replies here and then make a "Garage" entry with lots of pictures. :wink:


jsiedle1

Well-Known Member
First Name
Jim
Joined
Nov 18, 2018
Threads
4
Messages
104
Reaction score
96
Location
NE Ohio
Vehicle(s)
2019 Ford Ranger Lariat SuperCrew
I have an F150LEDs kit being shipped to me. I told my dealer I didn't want the Touchlink kit as they changed how they advertised how it functions. Originally they said it worked with interior lights/keyfob. Then the real description indicated you touched the top of the light. $240 for that was not worth it for me. Installing the F150LEDs kit to work with interior lighting. Making detailed instructions and pictures for F150LEDs to show how to install their lights on the Ranger.

When I get the lights installed, then I will post some replies here and then make a "Garage" entry with lots of pictures. :wink:
Have you considered tying into the button that controls the bed lights, instead of having these go on and off with the dome lights?


SRAces

Well-Known Member
First Name
Steve
Joined
Oct 17, 2018
Threads
4
Messages
329
Reaction score
626
Location
Lake Park, GA
Vehicle(s)
2019 Ford Ranger, 2015 Mercedes-Benz GLA, 2004 Mercedes-Benz SLK 230 Special Edition
Occupation
USAF (retired)
Vehicle Showcase
1
Have you considered tying into the button that controls the bed lights, instead of having these go on and off with the dome lights?
It was a thought. If I tie them into the dome lights like the F-150 kits work on the F-150s, then the lights will come on when opening the doors or hitting the Unlock button on the key fob and go out when locking/closing the doors and have a slight delay when turning off. That was what I wanted to achieve. I am sure you could come up with several options on using the lights in the bed. Might re-think the cargo light option when I go to install the light kit. Will look at which way provides the best flexibility. :wink:

Last edited:

ToothRanger

Well-Known Member
First Name
Kyle
Joined
Feb 14, 2019
Threads
4
Messages
114
Reaction score
171
Location
South Texas
Vehicle(s)
2019 Ranger Lariat FX4
Occupation
D.D.S.
Vehicle Showcase
1
I get my 2019 ranger this week and can't wait to see if my Lariat already has these lights.

I bet the 45 min install is not even close, but let us know. That install doesn't look all that easy to me. I would compare to what the Ford dealer will charge you for install (how many labor hours) If they try and charge you more than one hour, I would complain and point them to the manual that says 45 min LOL

Also, says in the instructions that No Drilling required, but it sure looks like you do need to drill some holes.
Our Lariats do not have these fancy lights already installed. I wish!


chasvs

Well-Known Member
Joined
Feb 6, 2019
Threads
18
Messages
1,015
Reaction score
1,465
Location
Tampa
Vehicle(s)
2019 Ranger Lariat, 2017 MB GLE350, 2006 Porsche Cayman S
Vehicle Showcase
1
Whenever I come across one, I squirrel it away in the garage for situations exactly like this lol.
Car Stereo installers use 2 to 3 ft Zip ties that are available at HD and Lowes for running wires in tight areas!


RangerCat

Well-Known Member
First Name
Brian
Joined
Jan 18, 2019
Threads
3
Messages
185
Reaction score
164
Location
Kansas
Vehicle(s)
2019 Ranger Lariat

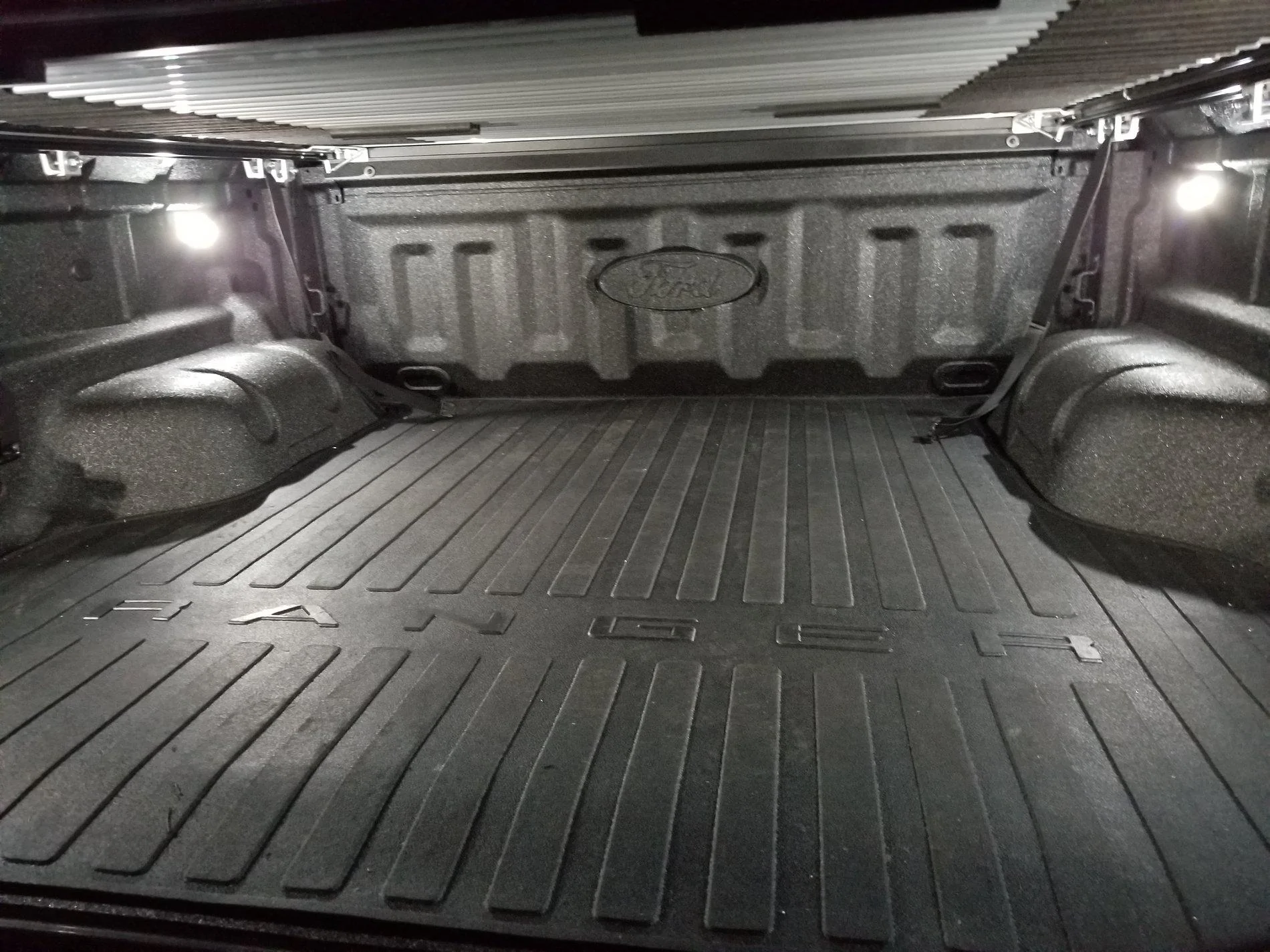

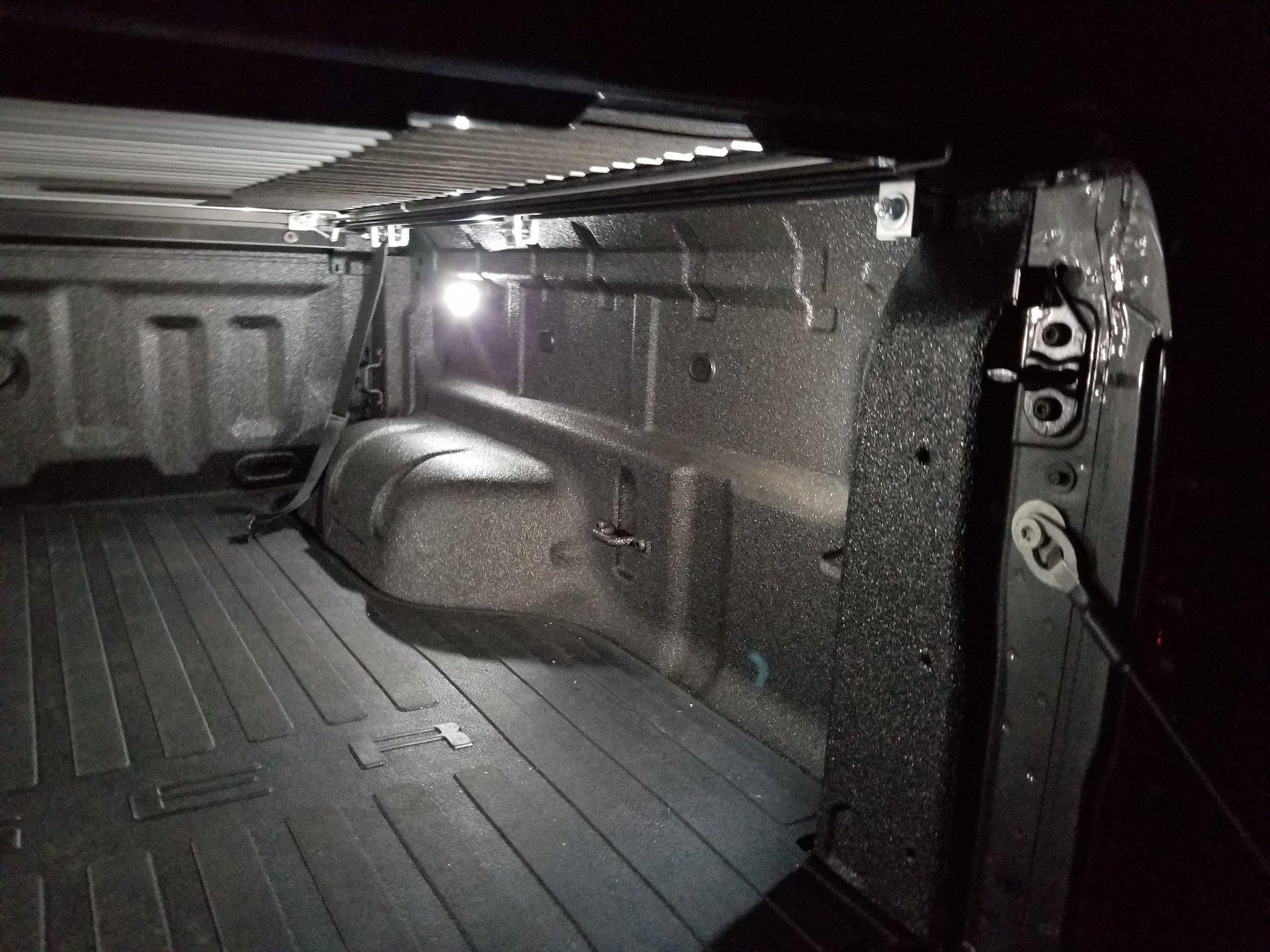

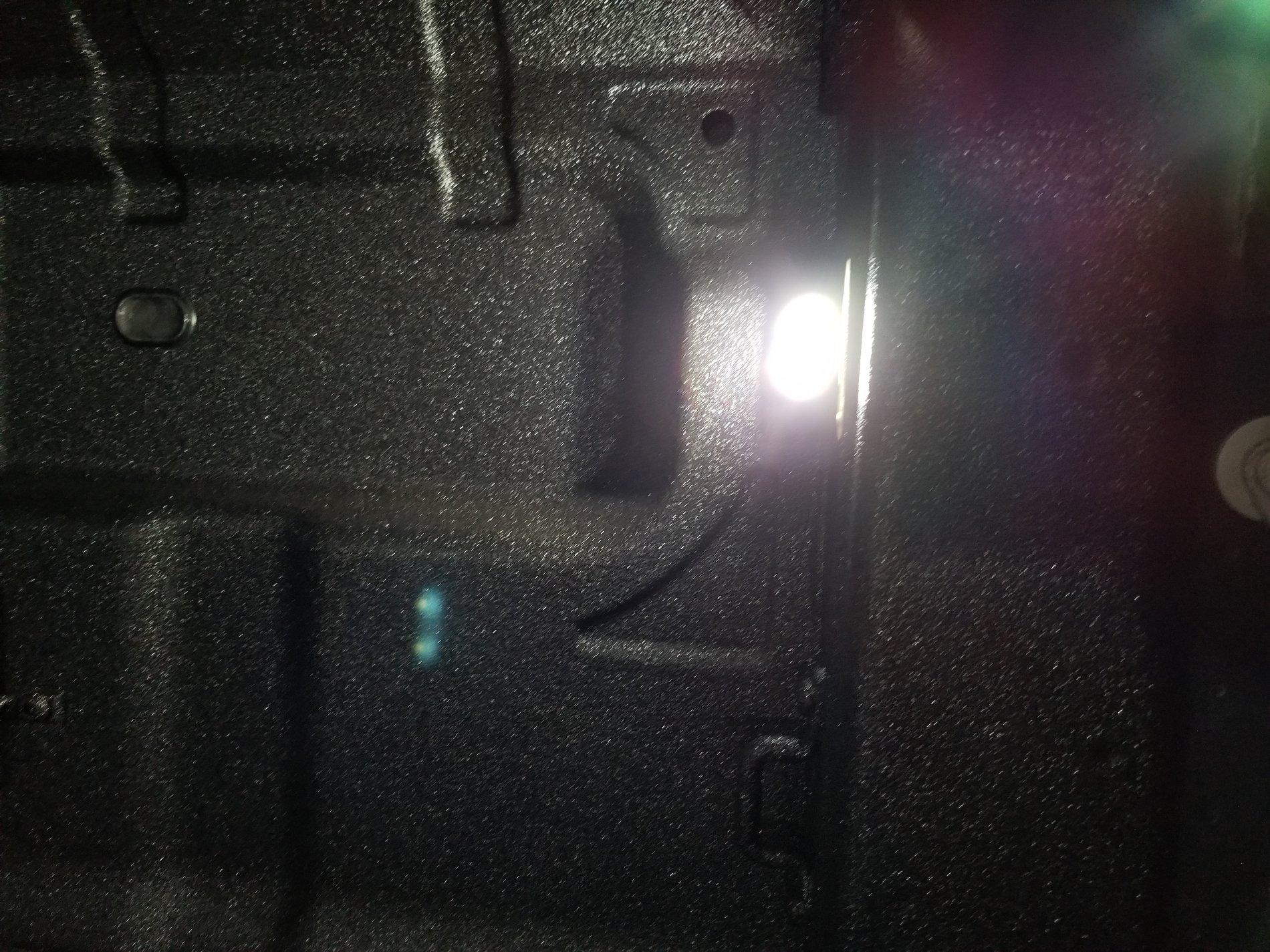

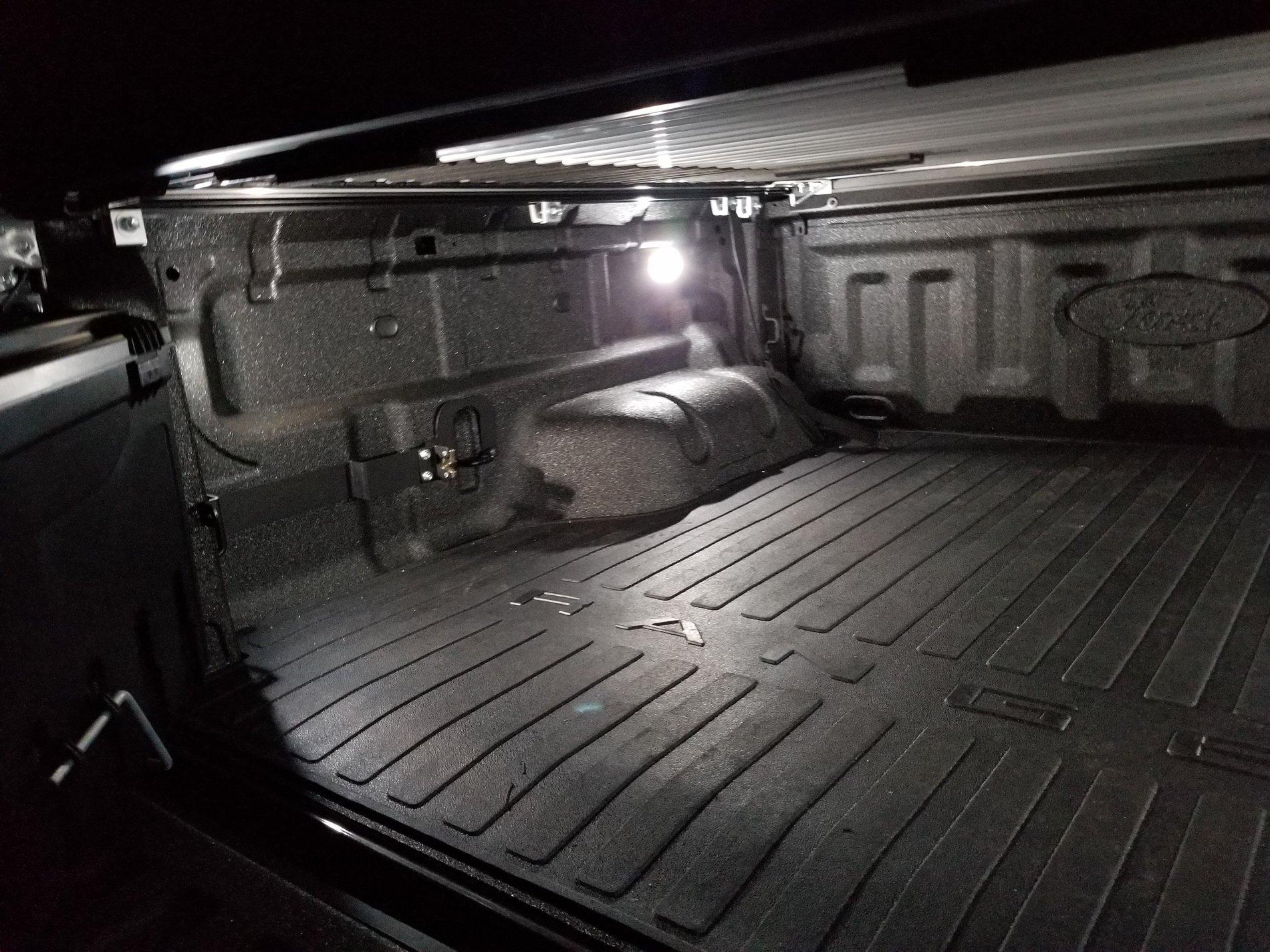

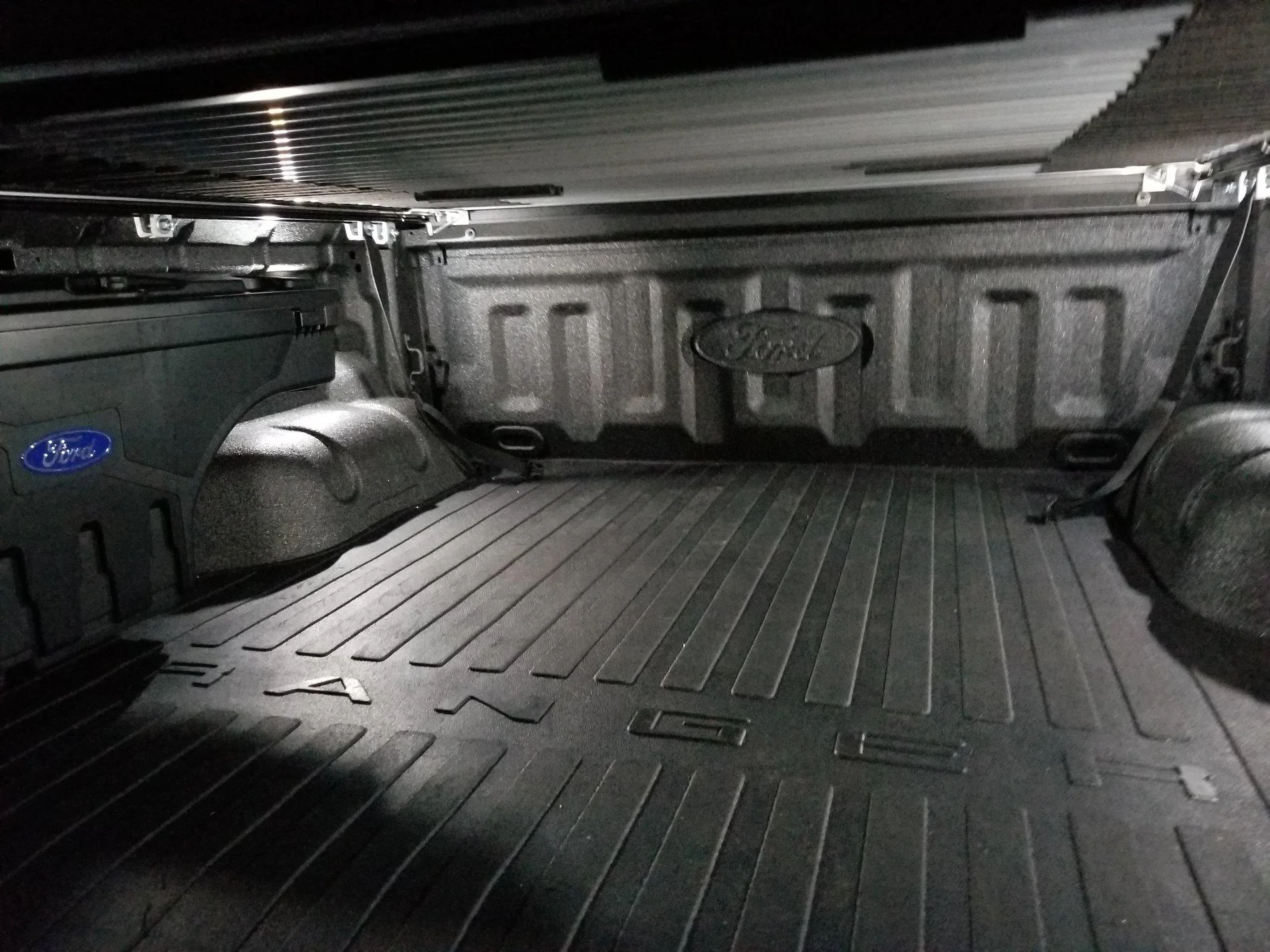

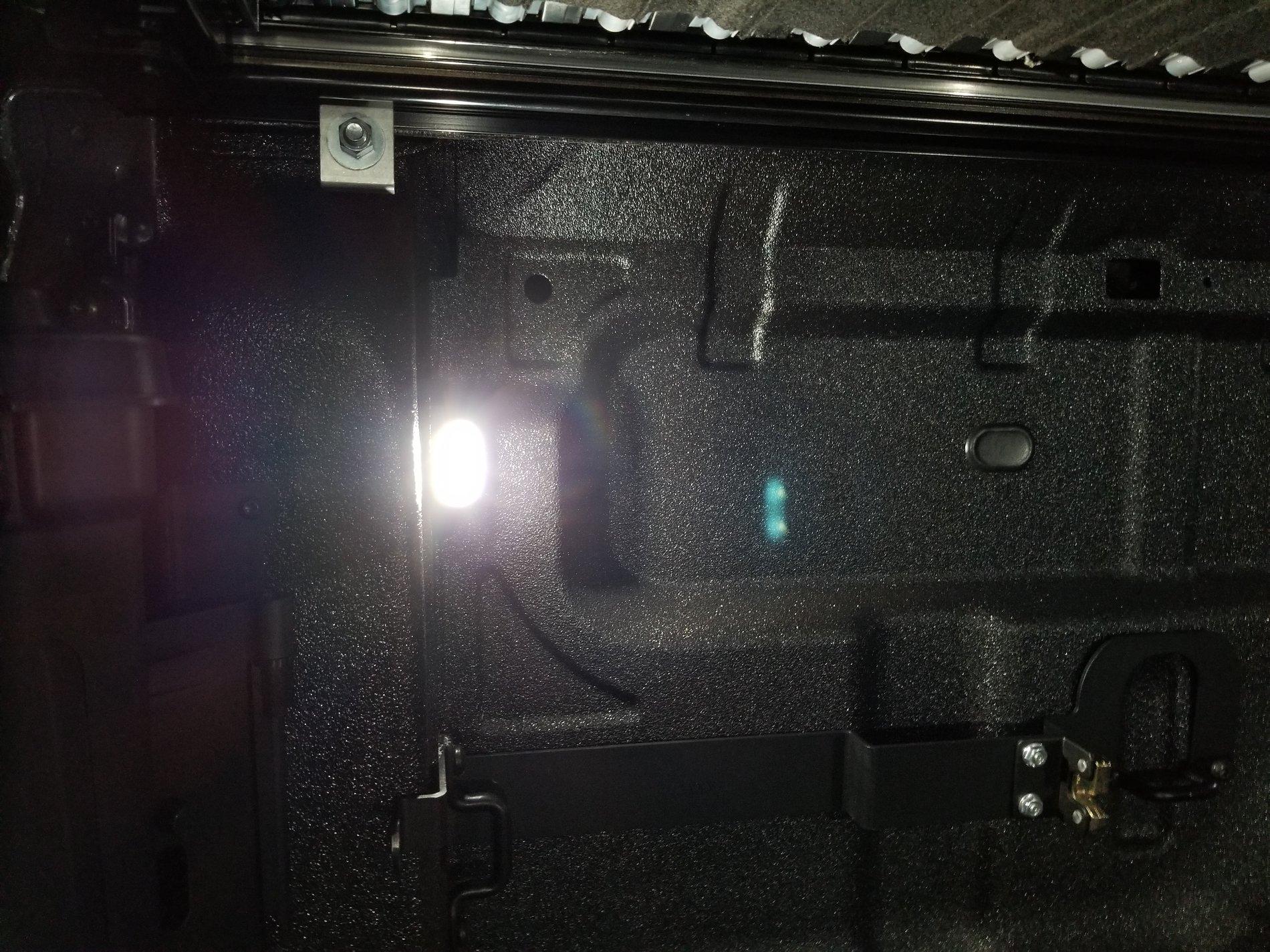

Here are the 'DARK" pics.. I'm PLEASED.. the side mount tool box blocks a little light but can be swung out and you can see great.











Don, I really like your setup. I have a couple of questions for you: (1) How difficult was it to remove the tie downs given you have a spray-in bedliner? (2) Are you planning to relocate the tie-downs that you remove to install the SwingCase? I am having a hard time with the idea of no tie-downs in that corner of the bed.


RangerCat

Well-Known Member
First Name
Brian
Joined
Jan 18, 2019
Threads
3
Messages
185
Reaction score
164
Location
Kansas
Vehicle(s)
2019 Ranger Lariat
Don, I really like your setup. I have a couple of questions for you: (1) How difficult was it to remove the tie downs given you have a spray-in bedliner? (2) Are you planning to relocate the tie-downs that you remove to install the SwingCase? I am having a hard time with the idea of no tie-downs in that corner of the bed.
OK, I can see in your photo that you installed the tie-down over the brackets. Yay!


dguffin

Well-Known Member
First Name
Dana
Joined
Nov 4, 2018
Threads
0
Messages
117
Reaction score
120
Location
Aberdeen, SD
Vehicle(s)
20 Corsair, 19 Ranger, 12 Boss, 08 Zuma
Occupation
Shop Foreman
Vehicle Showcase
1
Well this light kit is expensive and it took me 3 hours to install it. I followed instructions and took my time. I'm pretty particular and picky. I couldn't get harness to battery. It was to short the way i routed it. Connected to BJB. Now that it's installed ,I like it.


Johnpenn

Well-Known Member
First Name
John
Joined
Mar 31, 2019
Threads
1
Messages
248
Reaction score
126
Location
Rockwood TN
Vehicle(s)
2019 Ranger Lariat FX4, 2004 Corvette, 2005 Ranger Edge
Occupation
Retired Quality and EHS Manager
It was a thought. If I tie them into the dome lights like the F-150 kits work on the F-150s, then the lights will come on when opening the doors or hitting the Unlock button on the key fob and go out when locking/closing the doors and have a slight delay when turning off. That was what I wanted to achieve. I am sure you could come up with several options on using the lights in the bed. Might re-think the cargo light option when I go to install the light kit. Will look at which way provides the best flexibility. :wink:
I'm planning on ordering the F150led kit. How did your install go and are you happy with it?

Edit

I found your write-up on the installation. Are you still happy with it?

Last edited:

PonyXpress

Well-Known Member
First Name
Steve
Joined
Feb 18, 2019
Threads
9
Messages
260
Reaction score
165
Location
Sacramento CA
Vehicle(s)
2019 Ford Ranger
I installed mine a couple months ago and I like them. They are very helpful at night, especially with the bed cover closed.
