  • #316

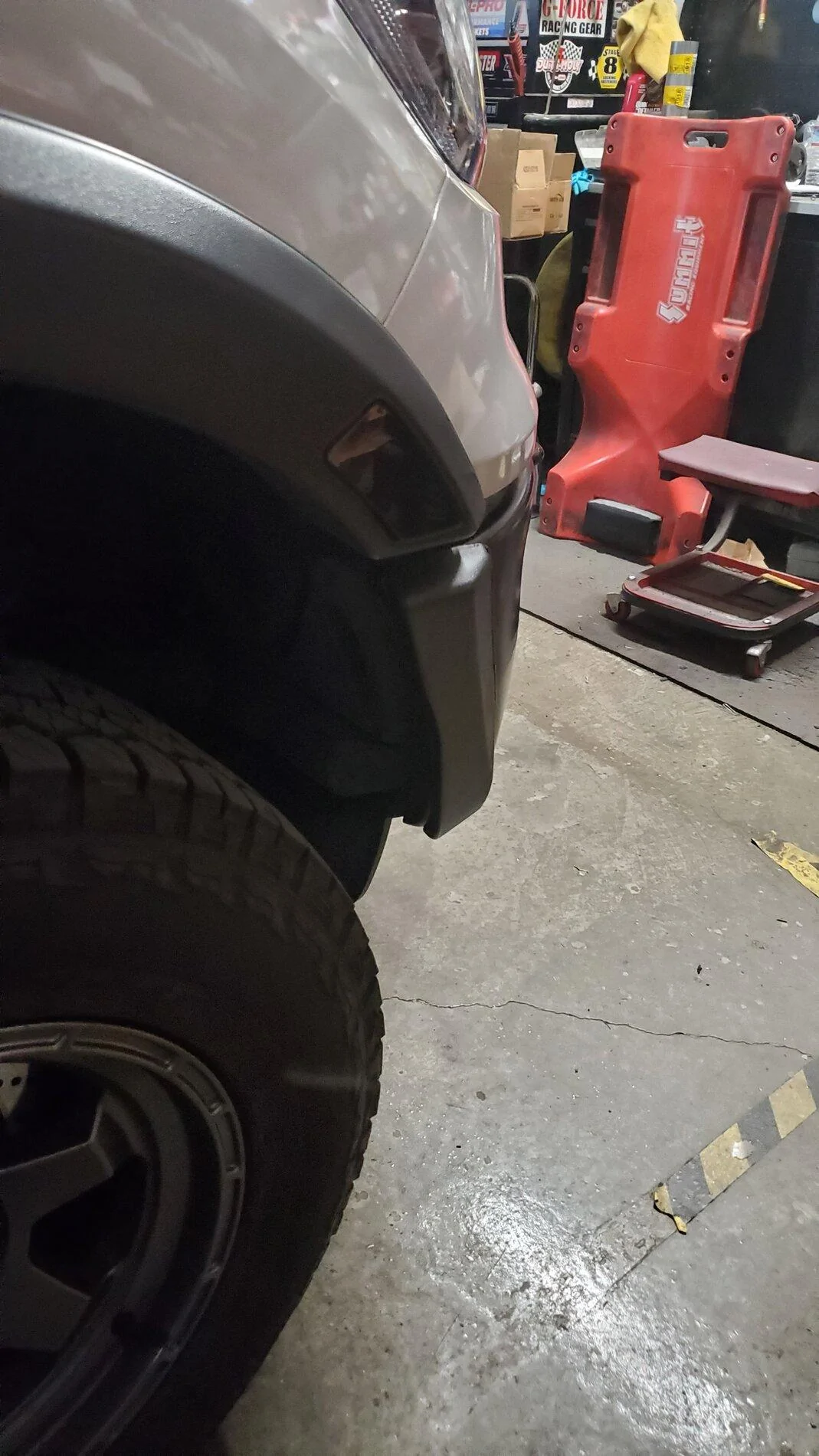

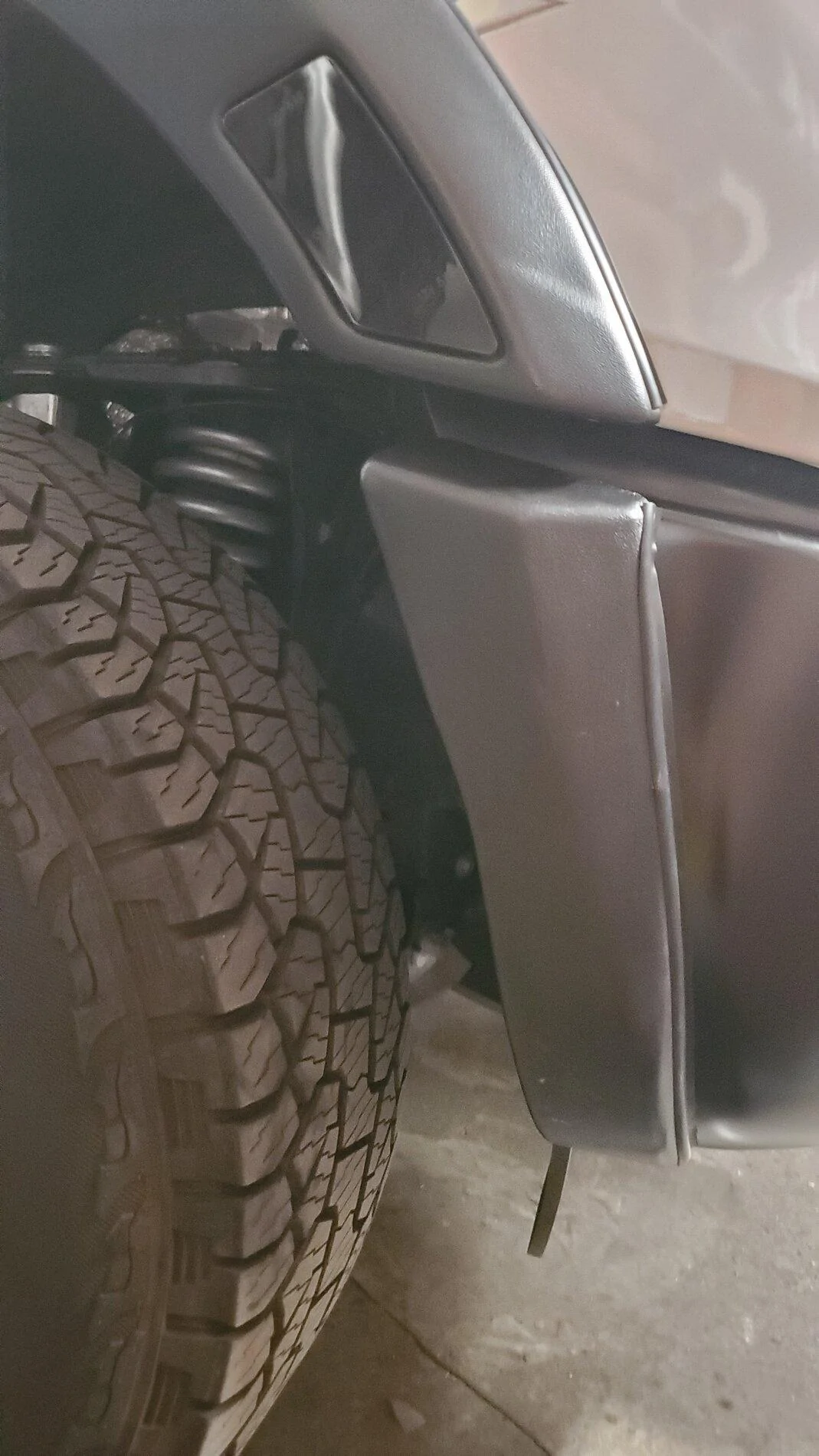

Thanks to a buddy of mine for modeling and printing these extensions I asked for. There's was some work involved to get them to sit nicely. With textured paints (wrinkle and then hammered) and multiple coats of paint (semi gloss, matte clear) I think it's pretty close to matching the fender flares. Used the leftover weatherstrip from the flares to help match it to the flares. Waiting for them to dry some more and attaching with 3M two sides tape.



Advertisement




OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #318

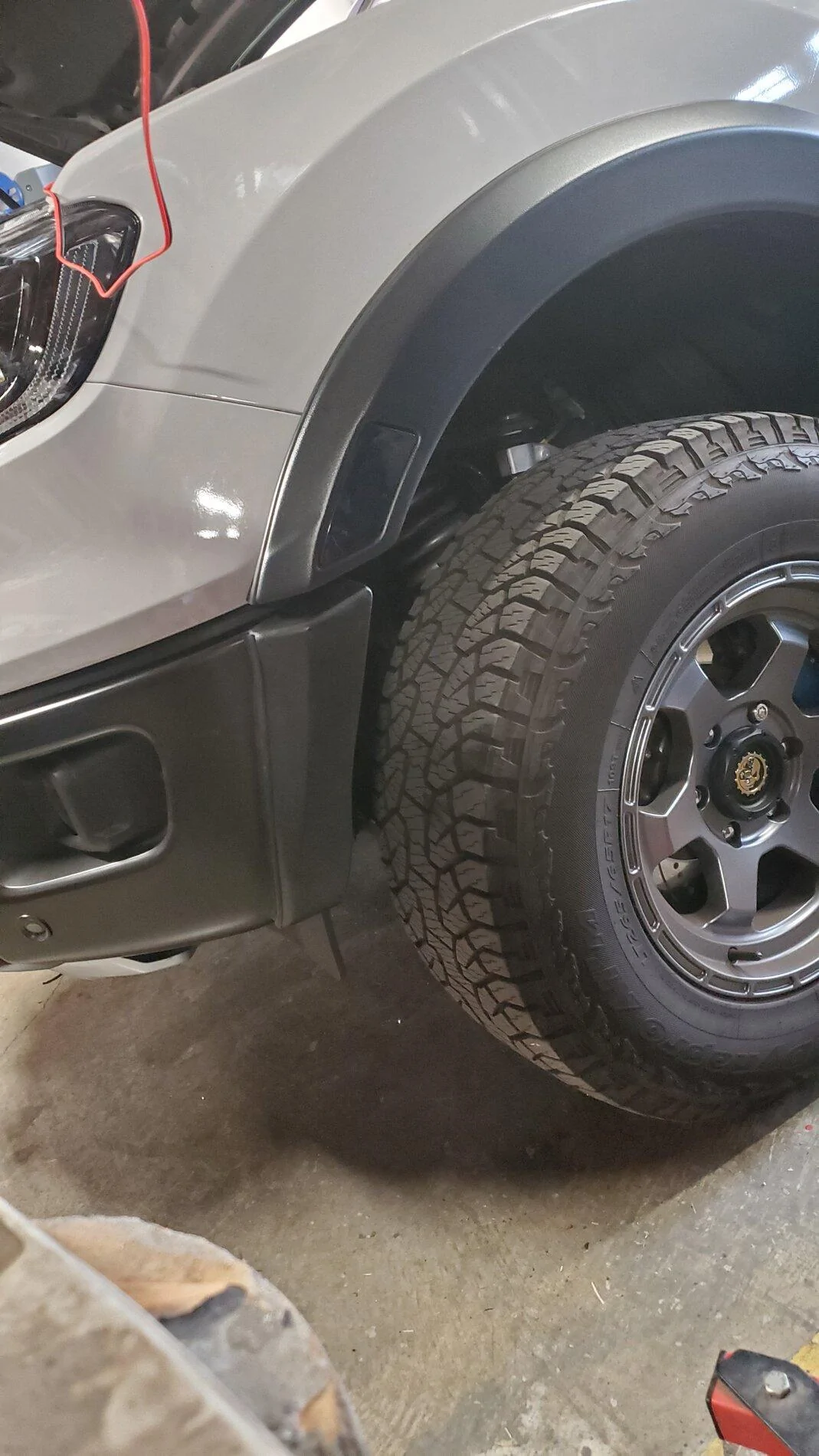

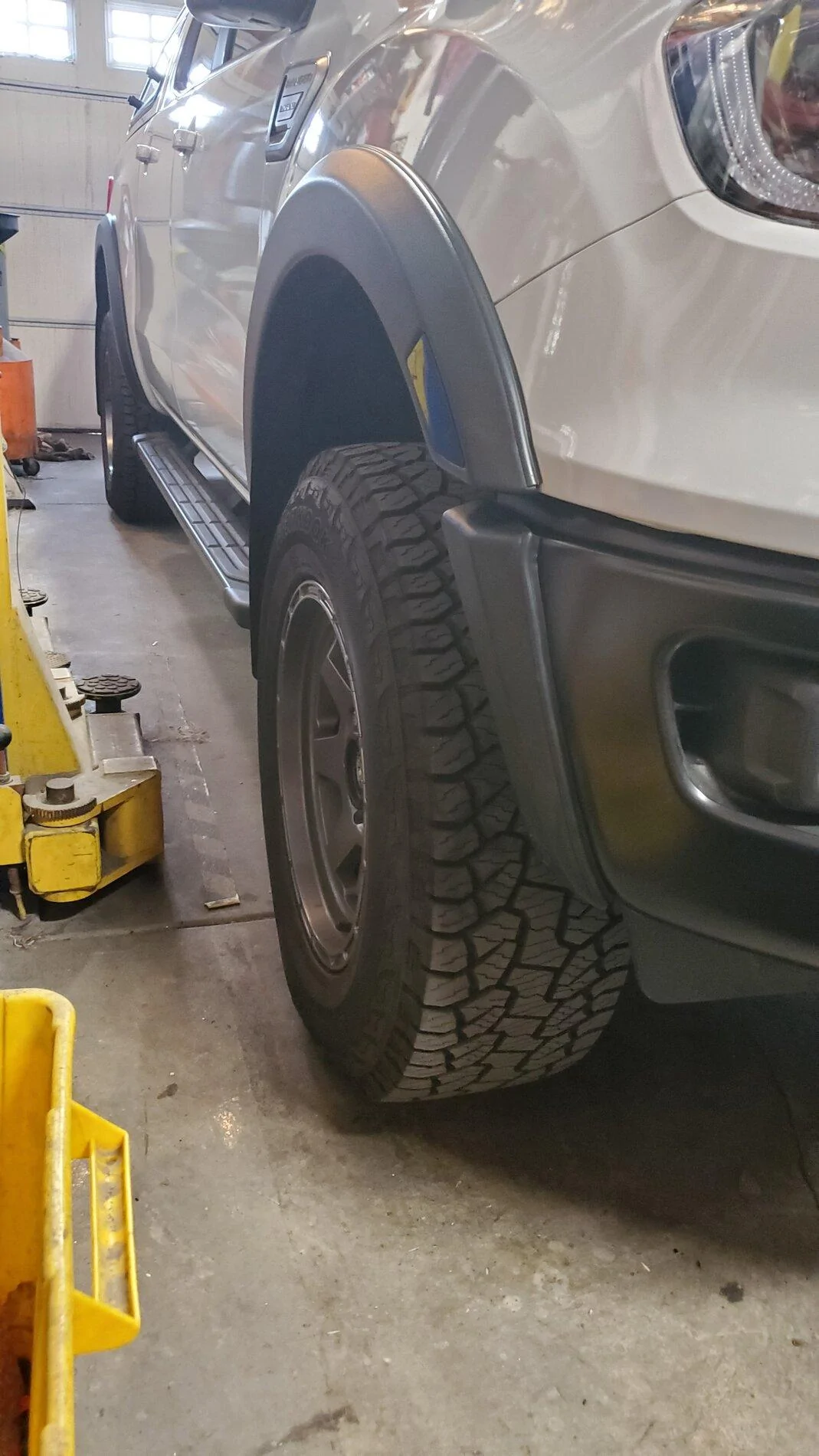

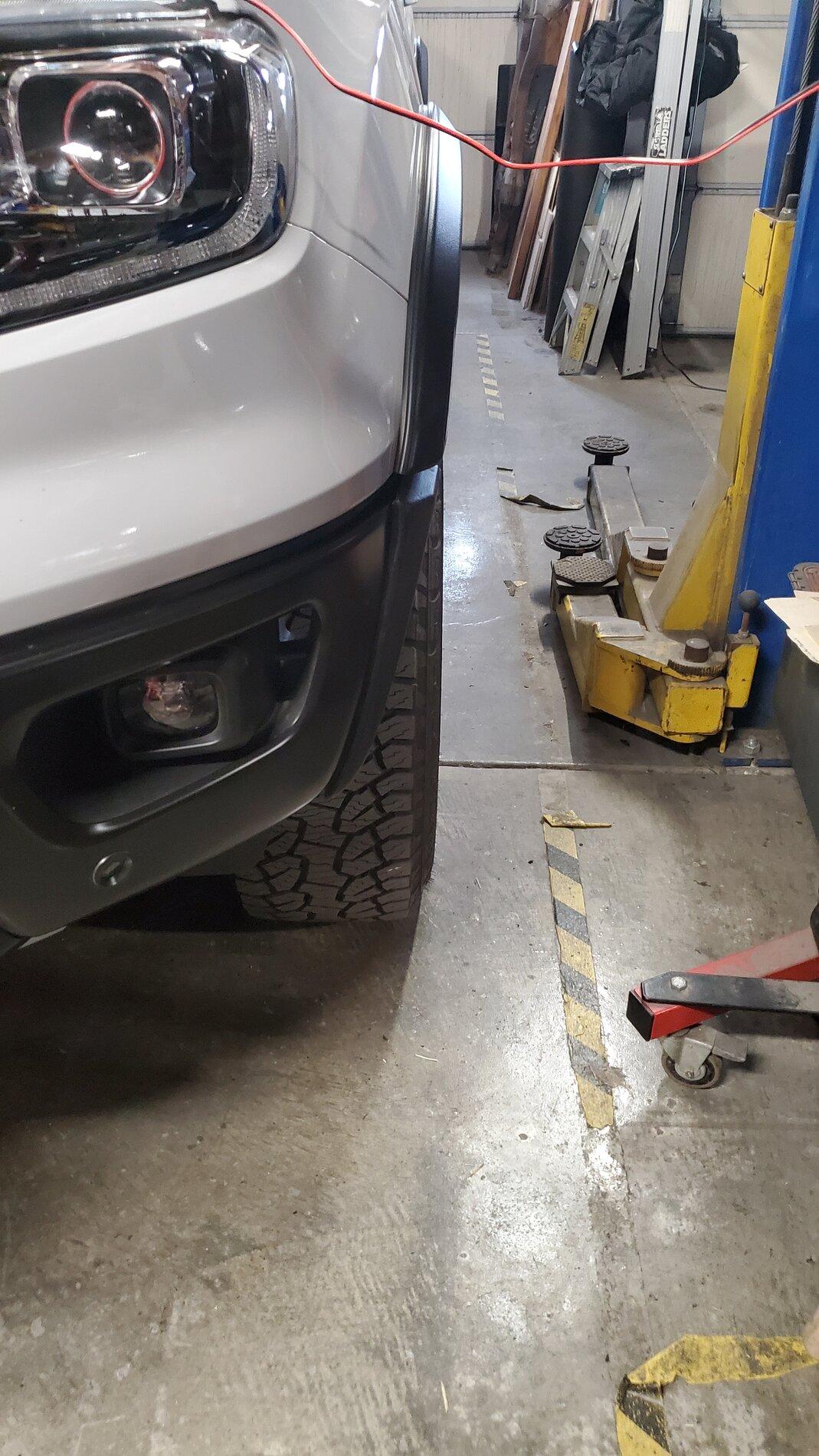

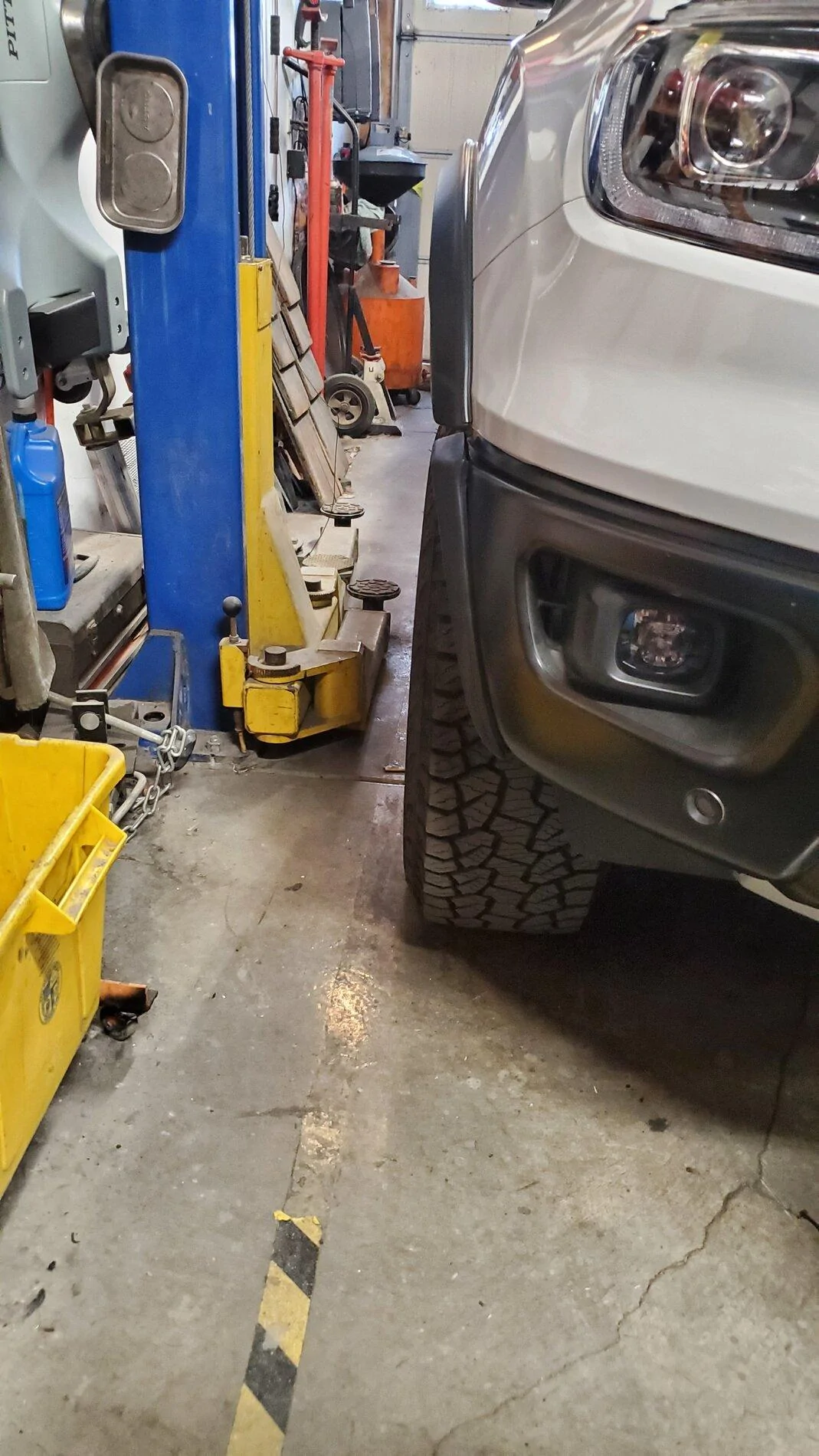

And they're attached.



Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,681
Reaction score
4,837
Location
North Carolina
Website
www.coroflot.com
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified (sold)
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
2
And they're attached.

Hope you take this as constructive input...but the lines are misaligned and crooked...here's what I'd suggest if you were to make another set...🙂

Last edited:
OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #320
Hope you take this as constructive input...but the lines are misaligned and crooked...here's what I'd suggest if you were to make another set...🙂
I wanted them tapered. So, not crooked to me.

OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #321

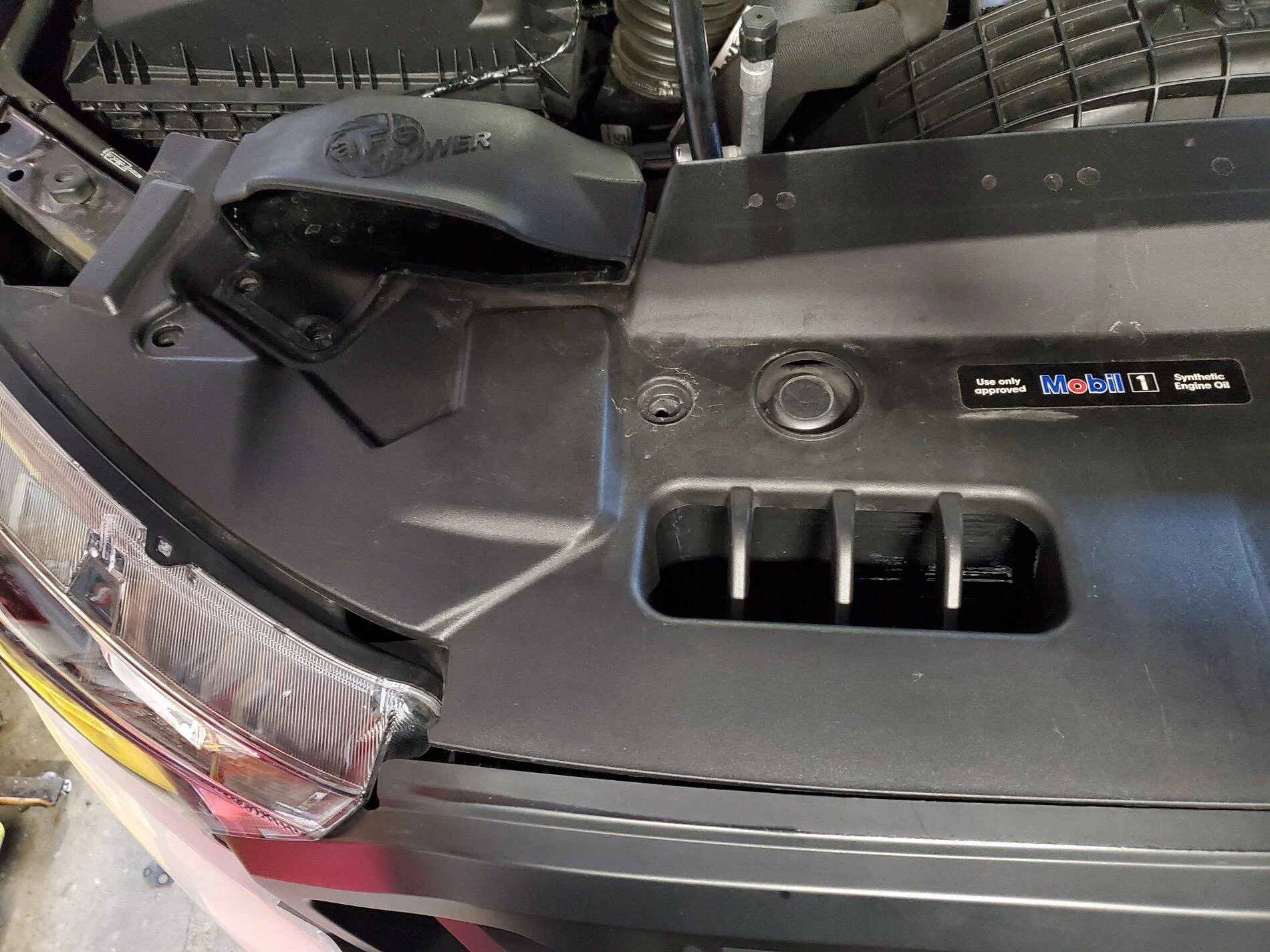

So, first drive with the AFE scoop in conjunction with the Velosatech intake scoop i noticed the air box temps reached ambient quicker and held longer than before the AFE. The Velosatech previously increased slightly better than the scoop I made. I also used a bit of foam weatherstripping to seal the bottom of the AFE scoop since it doesn't have anything and you can't transfer the stock gasket. I'll be doing another mod soon to see if that helps both th
ese even more.



OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #322

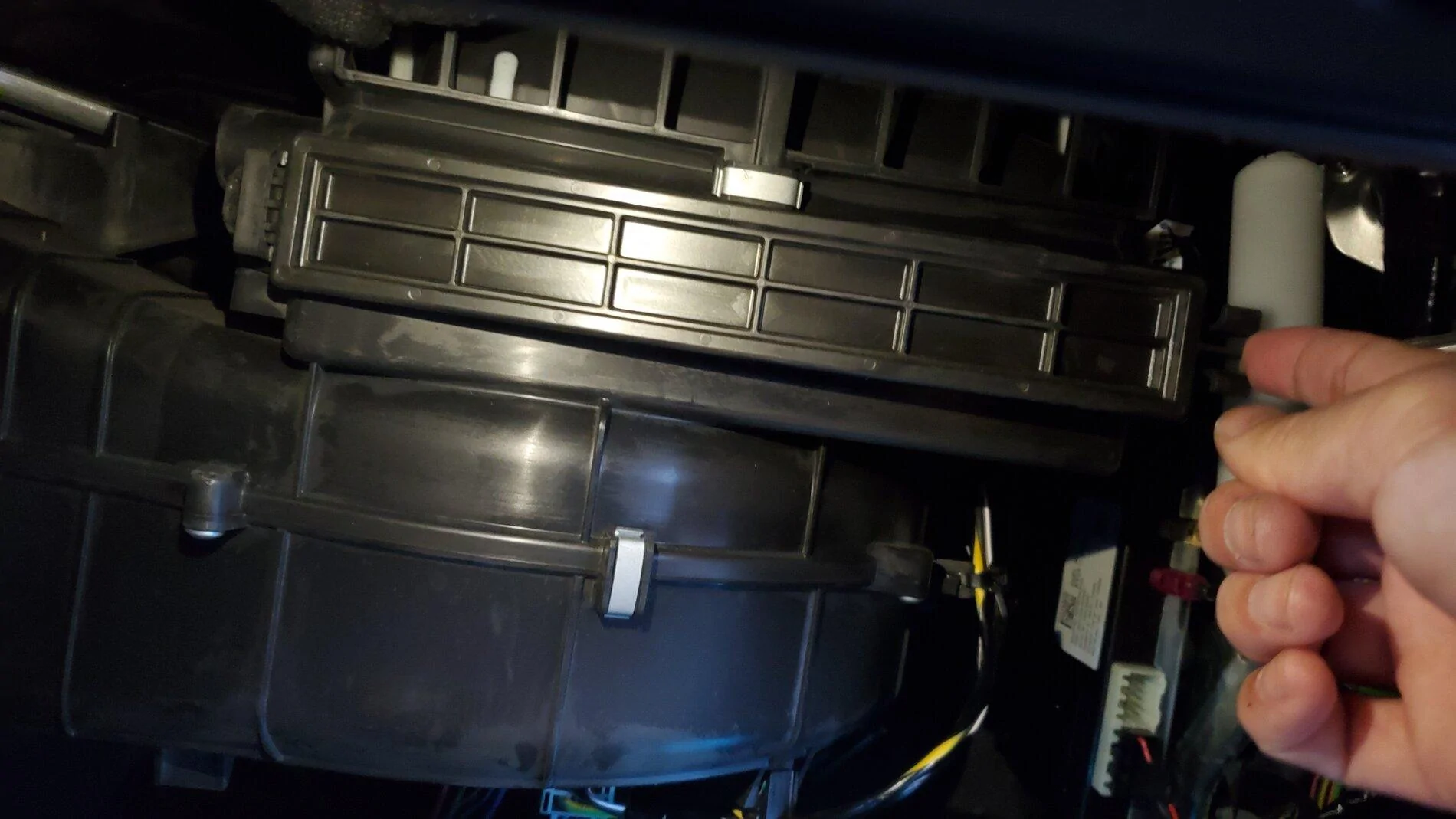

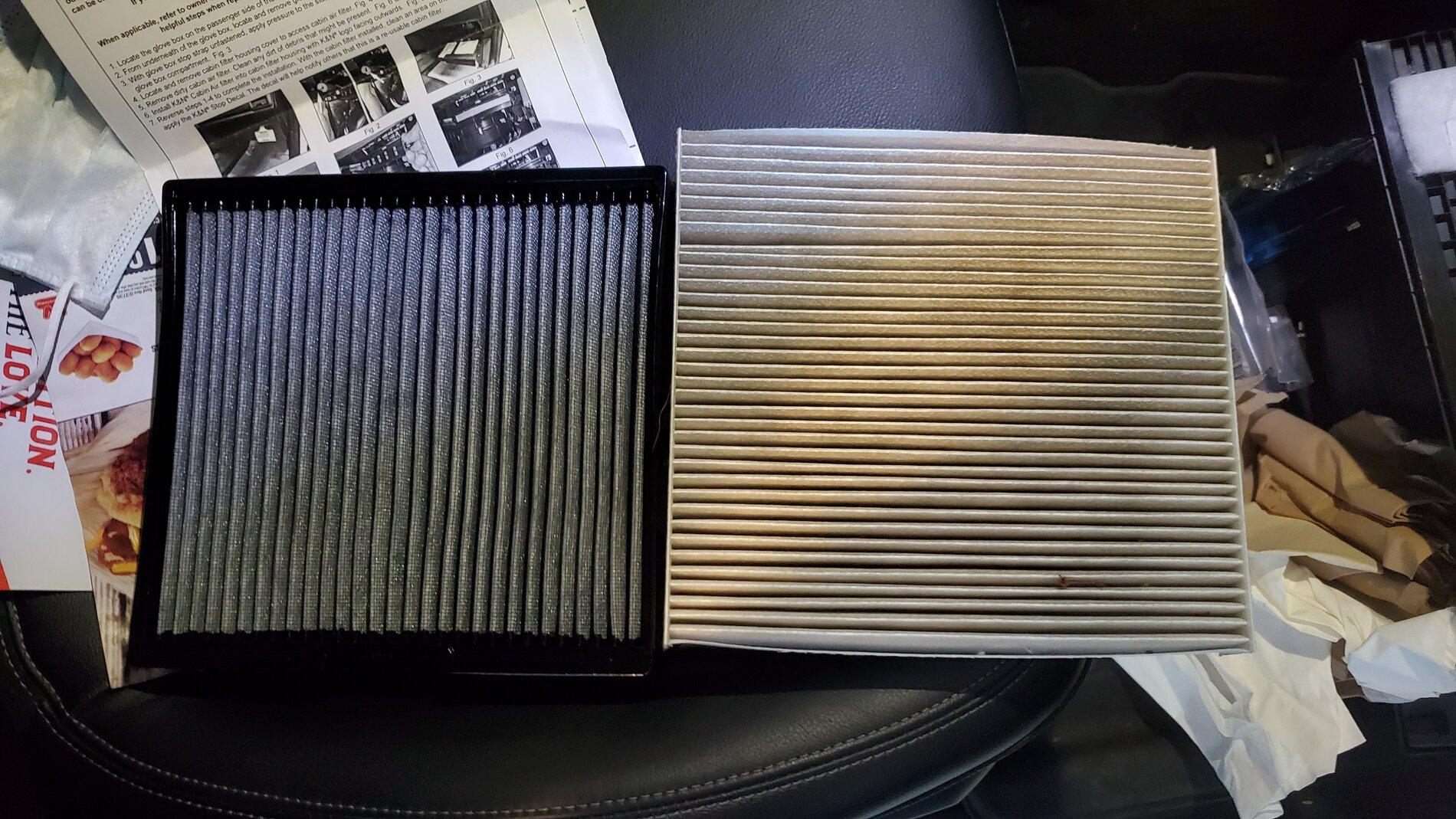

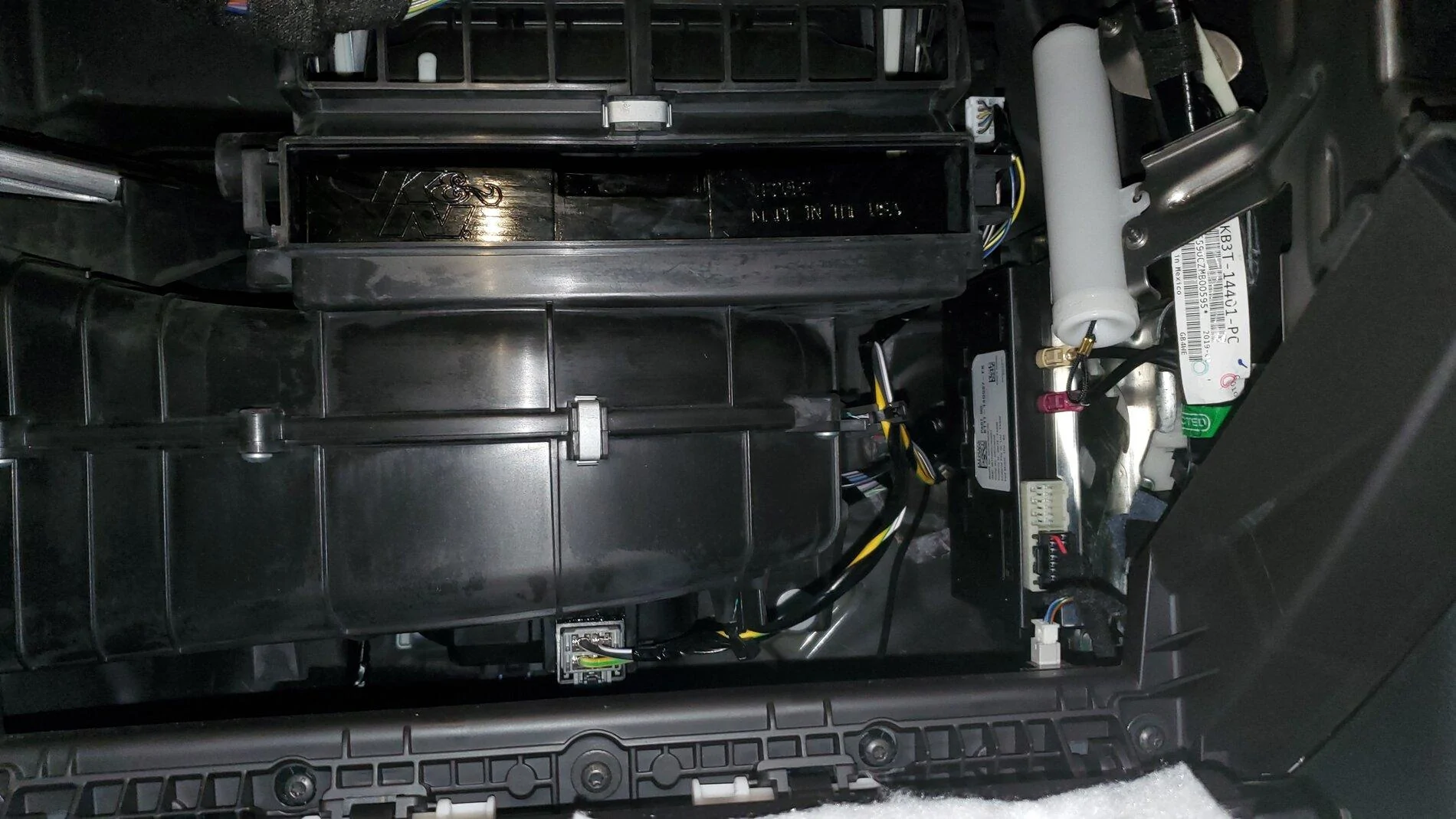

Easier than my Fusion. K&N Cabin filter.

OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #324
Curious... Have you seen any MPG gains?
Driving has been less consistent. More short cities driving so I can't really say. Either that or the intake scoop I made already had the same effect and won't see a difference. And I believe our winter garbage fuel has started..

OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #325

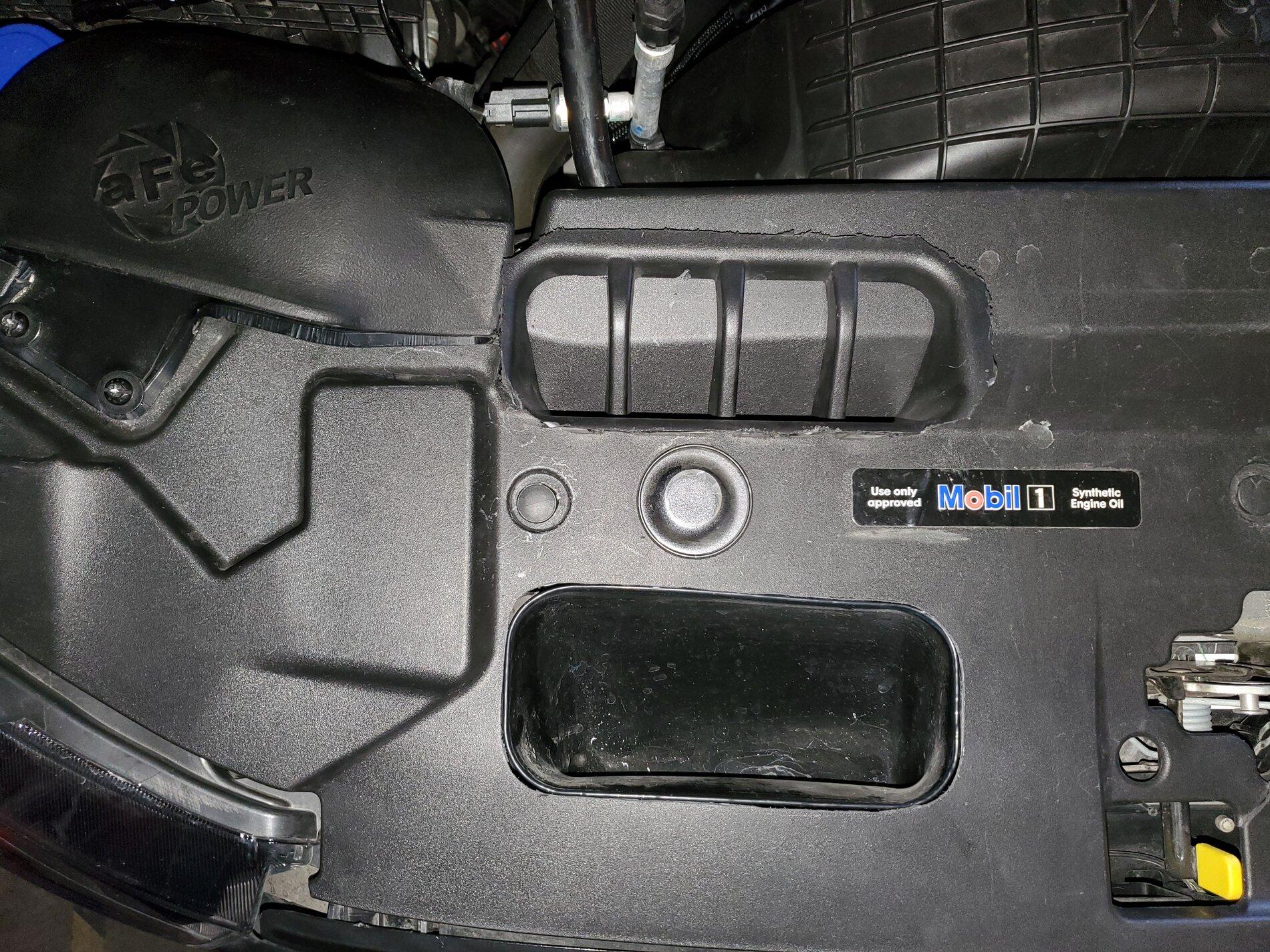

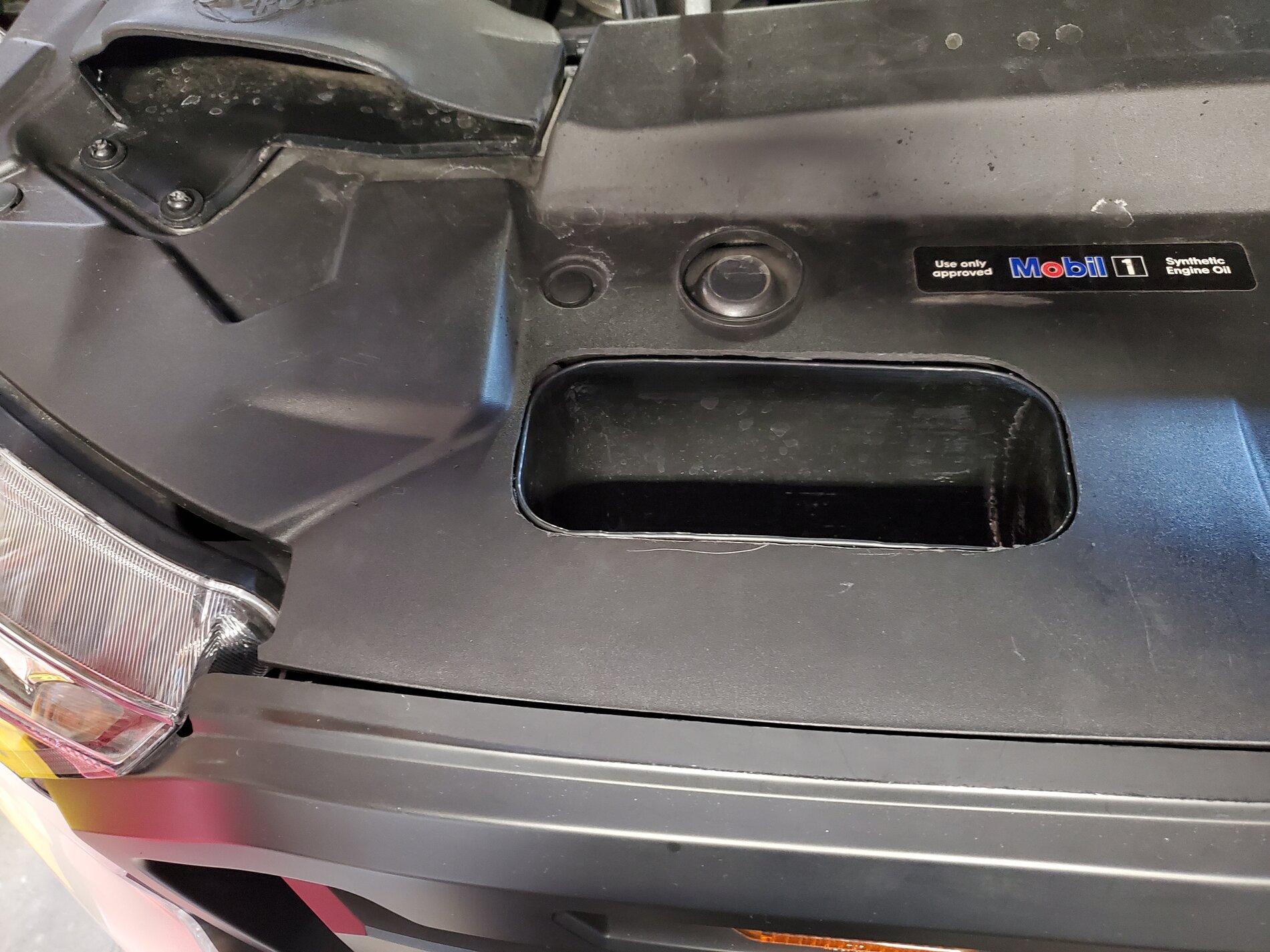

Might as well make this as efficient a possible. Trimmed the cover to maximize the air flow provided by the scoop. Giant obstruction removed.

Last edited:
OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #326

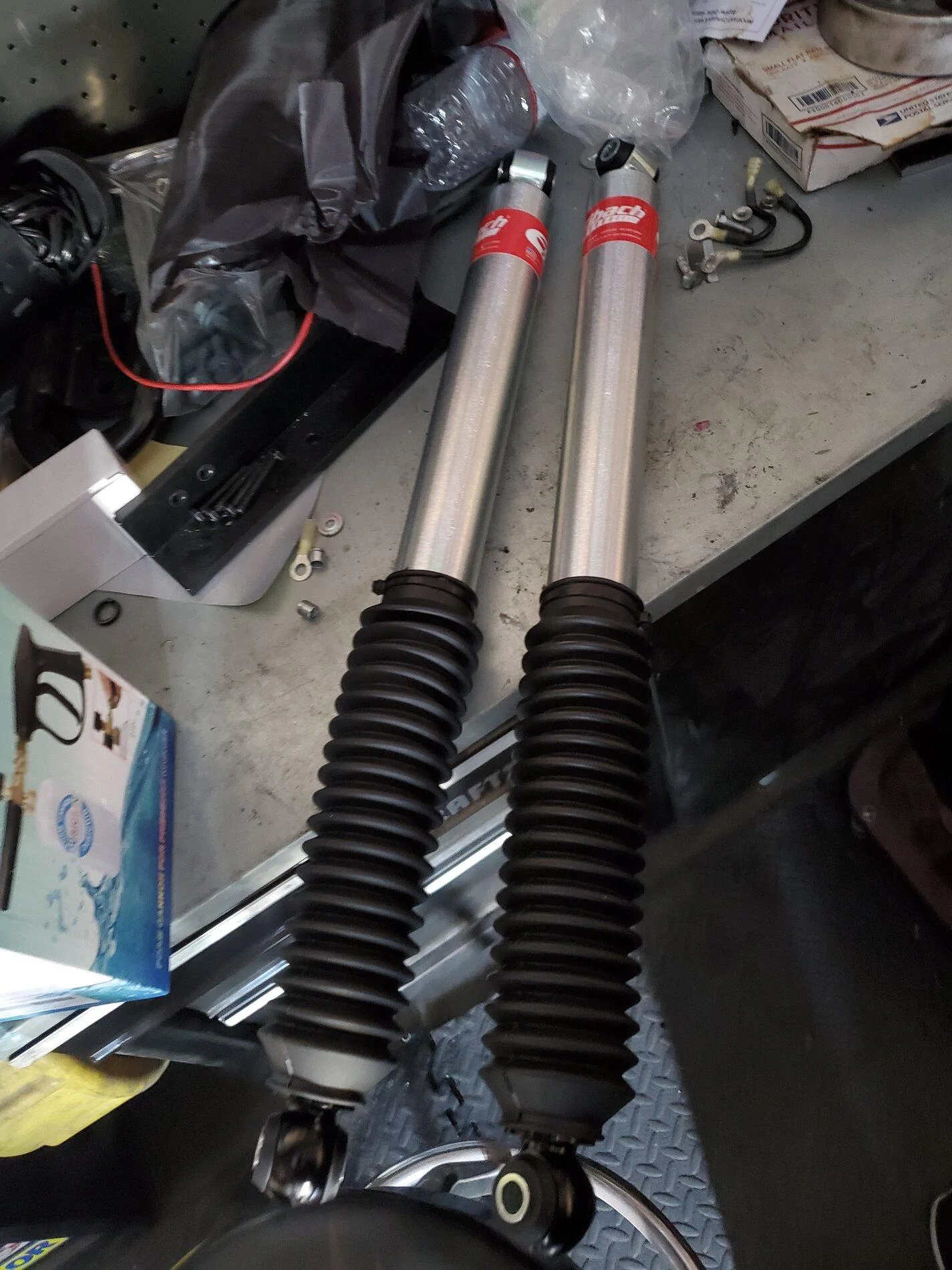

And finally got my black Friday sale Eibach rear shocks in and installed.


importfighter01

Well-Known Member
Joined
Sep 5, 2020
Messages
65
Reaction score
59
Location
Metro Atlanta
Vehicle(s)
2020 Ford Ranger XL SuperCab
So, first drive with the AFE scoop in conjunction with the Velosatech intake scoop i noticed the air box temps reached ambient quicker and held longer than before the AFE. The Velosatech previously increased slightly better than the scoop I made. I also used a bit of foam weatherstripping to seal the bottom of the AFE scoop since it doesn't have anything and you can't transfer the stock gasket. I'll be doing another mod soon to see if that helps both th
ese even more.


I was not purchasing the AFE scoop due to not having a seal like the factory scoop does. So glad you found a weatherstripping solution. Which kind did you use? Thanks!

OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #328
I was not purchasing the AFE scoop due to not having a seal like the factory scoop does. So glad you found a weatherstripping solution. Which kind did you use? Thanks!
Just the thick foam weatherstrip you can find at Home Depot. I forget the thickness but to should be able to measure the stock one over to the driver side.

OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #329
I was not purchasing the AFE scoop due to not having a seal like the factory scoop does. So glad you found a weatherstripping solution. Which kind did you use? Thanks!
Actually I thought you were referring to the other weatherstrip. For the scoop it was maybe 3/8-1/4" stuff.

OP
RCMUSTANG

RCMUSTANG

Well-Known Member
First Name
Ray
Joined
Jan 22, 2019
Messages
1,374
Reaction score
1,222
Location
Los Angeles
Vehicle(s)
2017 Fusion 1995 Ranger
  • Thread starter
  • Thread Starter
  • #330

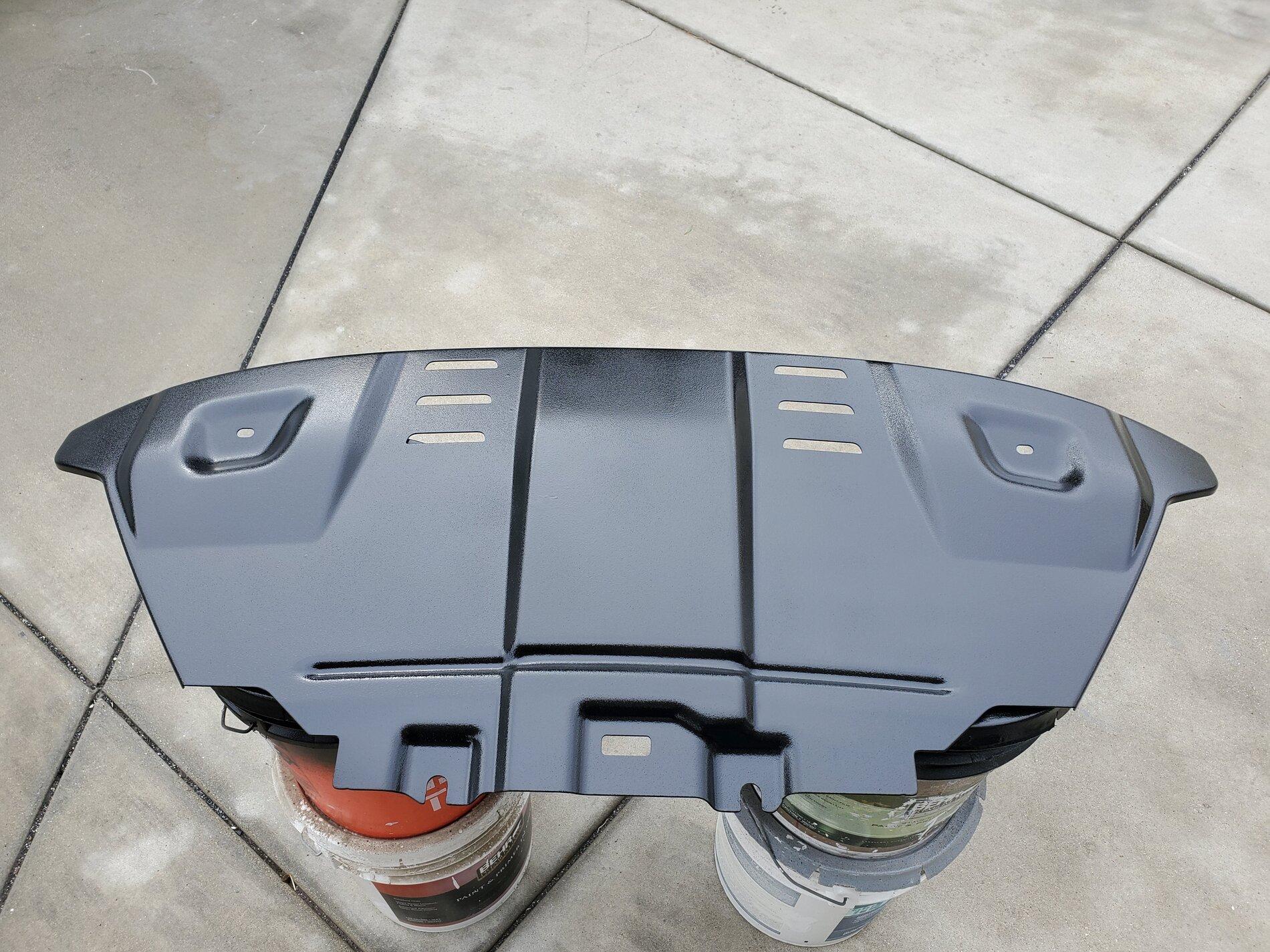

Stayed dry enough to sand and Plastkote bedliner spray coat the front skid plate.
