Overland Build - Lift, Tires, bed slide, bed panels, sleeping... On going

[QuickSilver]

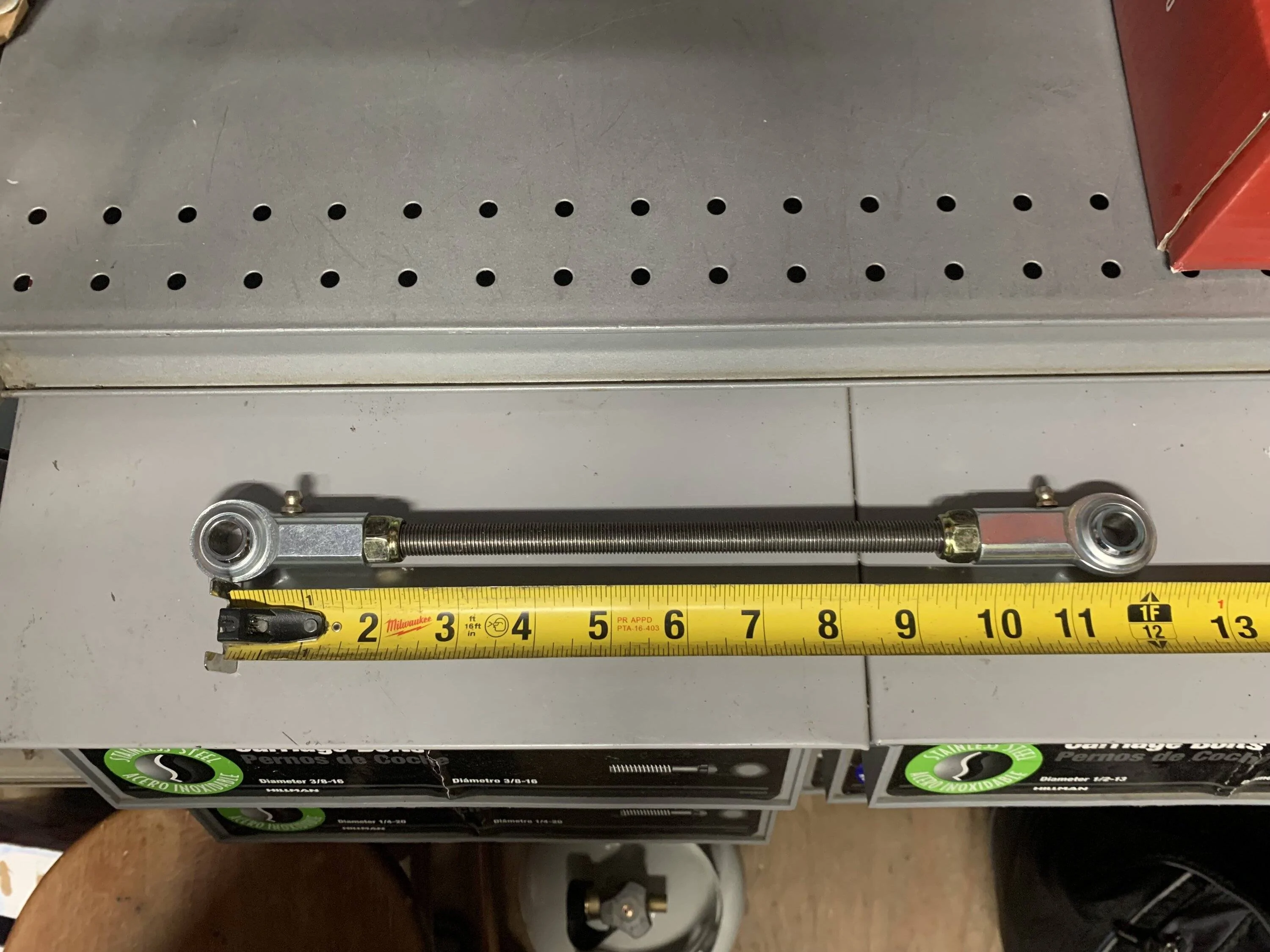

Looks like 1/2” plates all thread rod with a locking nut. It’s 11-5/8” center to center.

Thanks !

Sponsored



[QuickSilver]

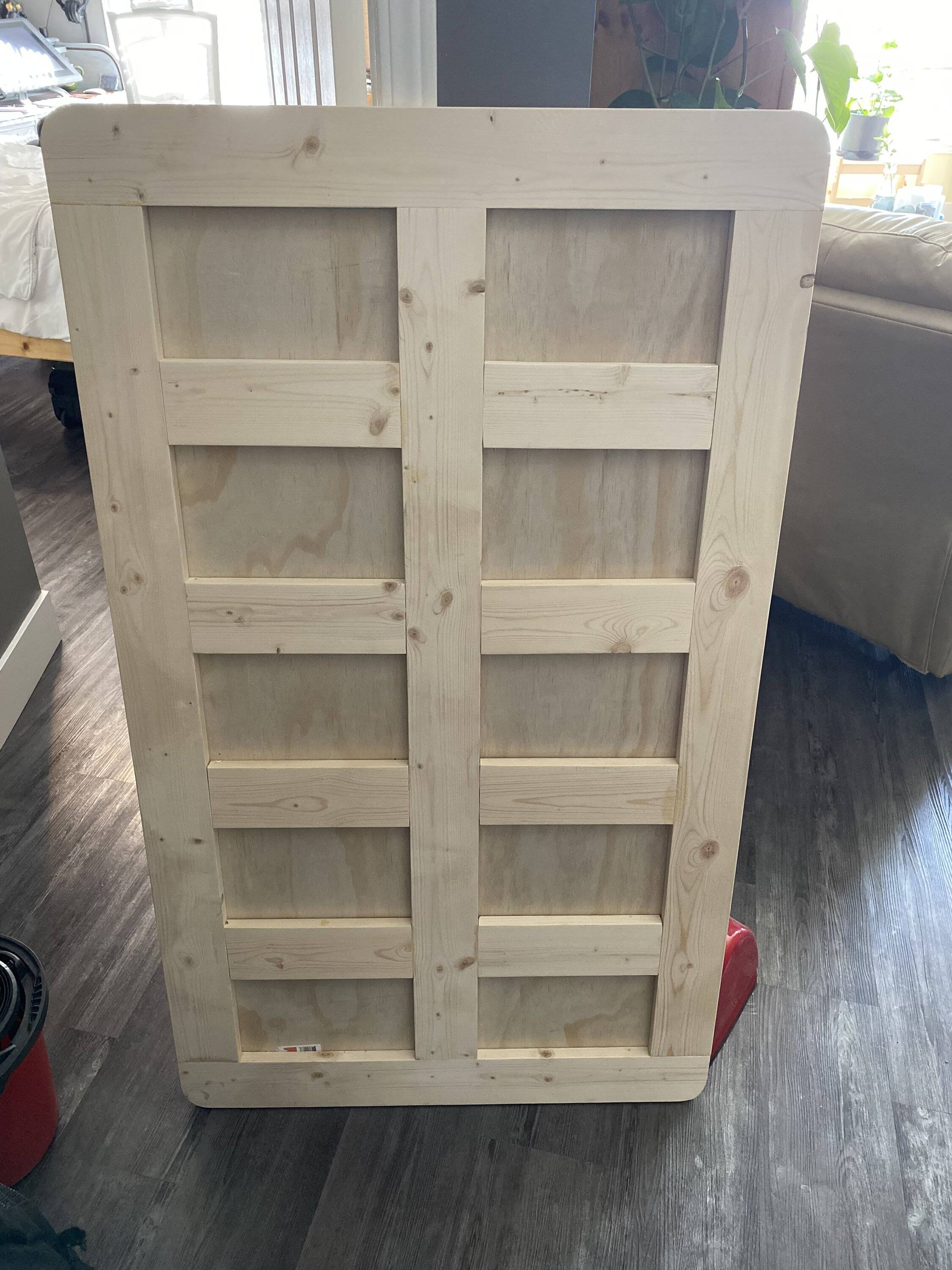

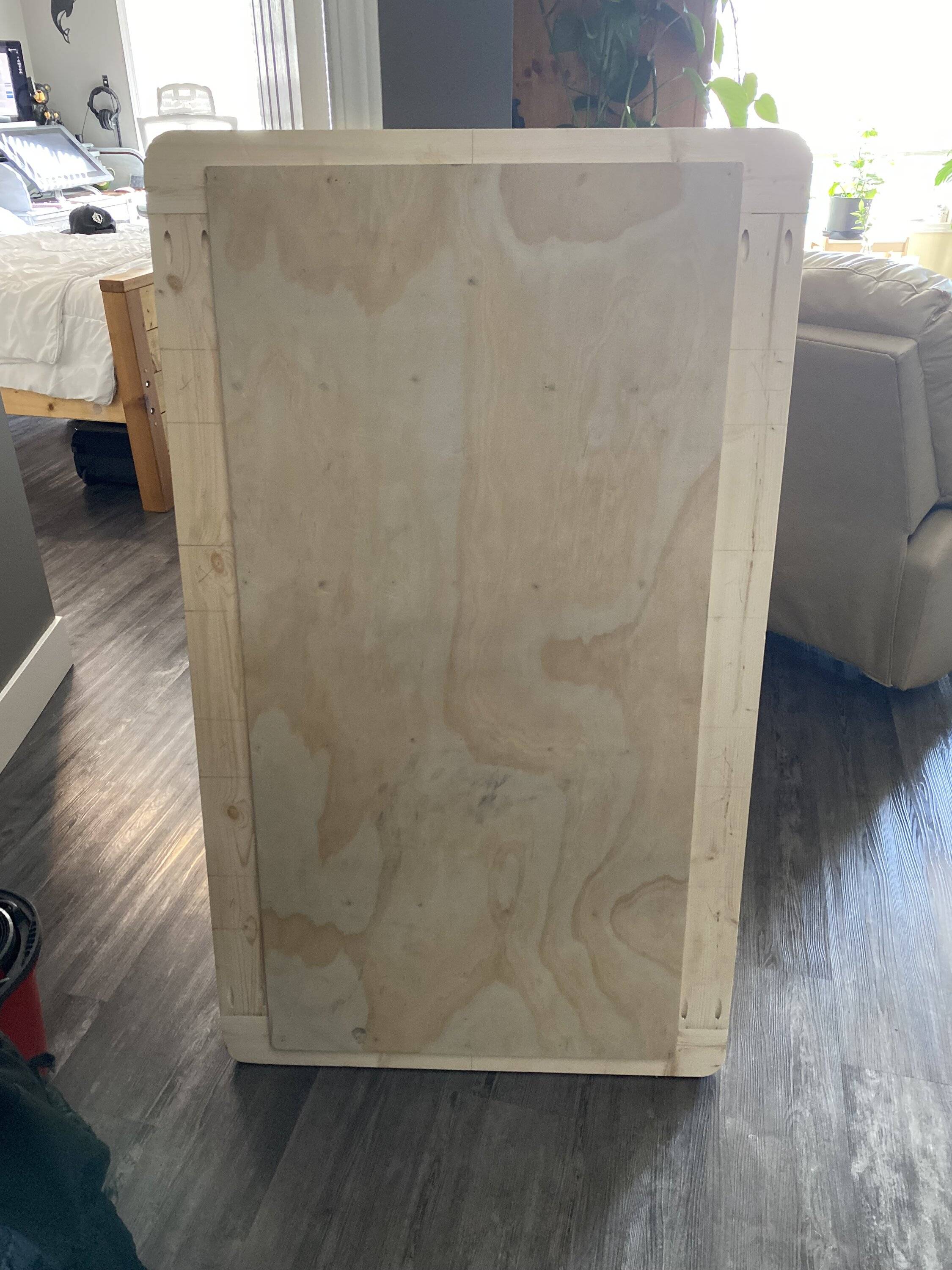

Built a bed platform for the back seat for the little guy. I just suspend it from all 4 headrests.



[Doak Steezy]

Build looks awesome, I like that kitchen setup. Did you ever make a sleeping platform for the bed? I have an iteration of a pretty clunky one currently, but as I want mine to be removable it limits my options quite a bit unfortunately



[QuickSilver]

Build looks awesome, I like that kitchen setup. Did you ever make a sleeping platform for the bed? I have an iteration of a pretty clunky one currently, but as I want mine to be removable it limits my options quite a bit unfortunately

Yes I have it all complete, I will go get picts later this week.



[QuickSilver]

Yes I have it all complete, I will go get picts later this week.

Actually may be another week I was evacuated due to wildfires here in BC

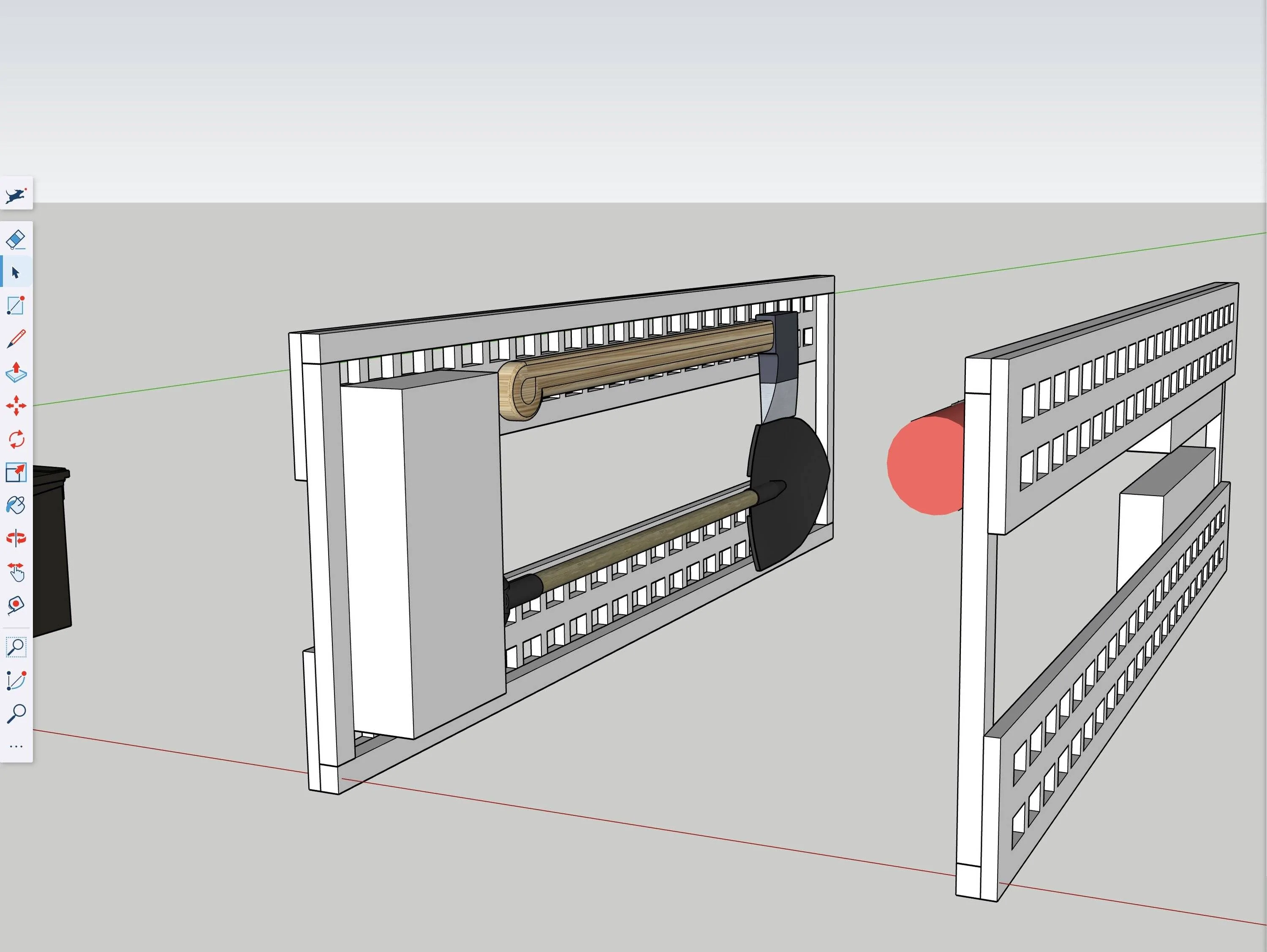

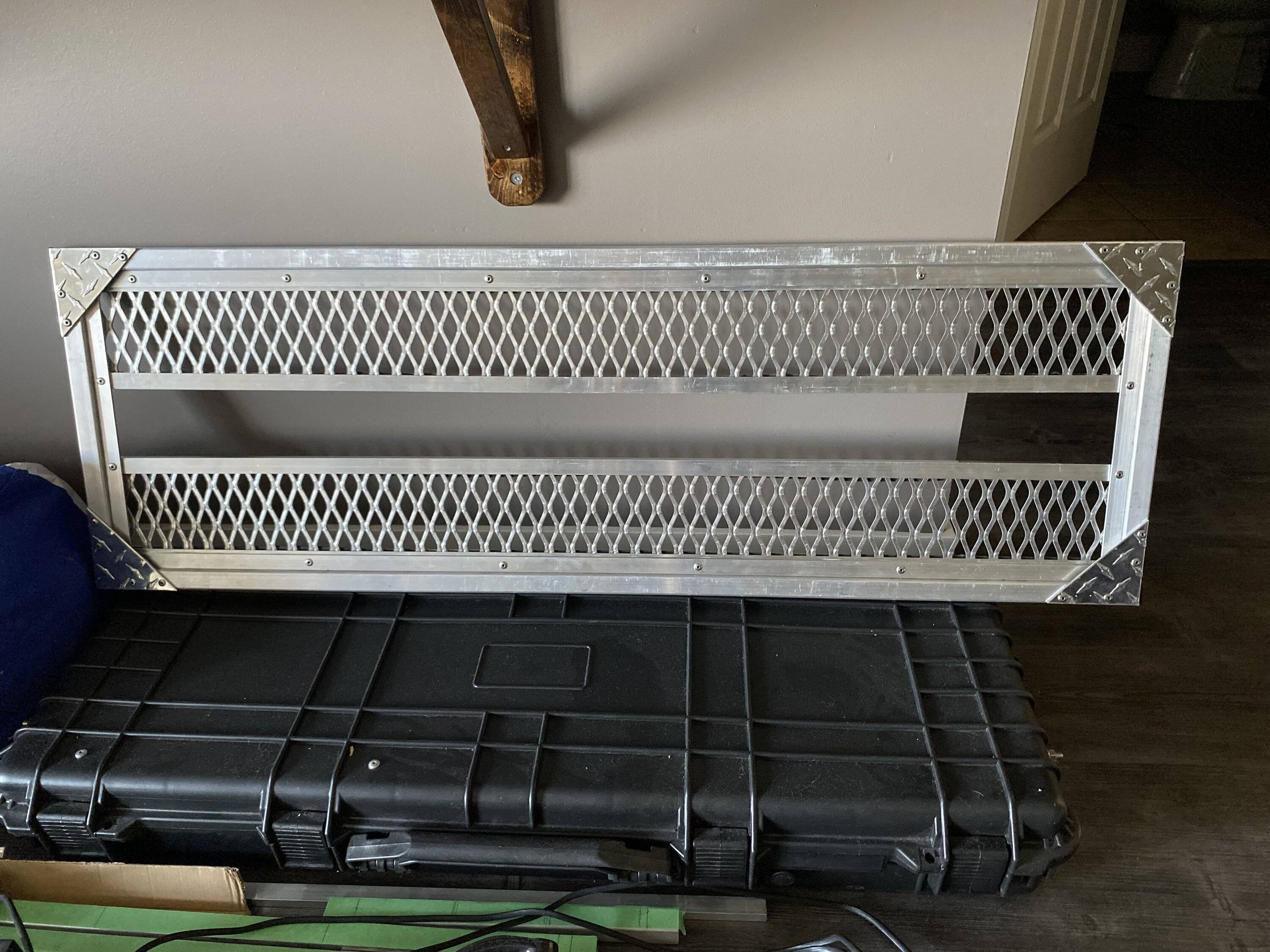

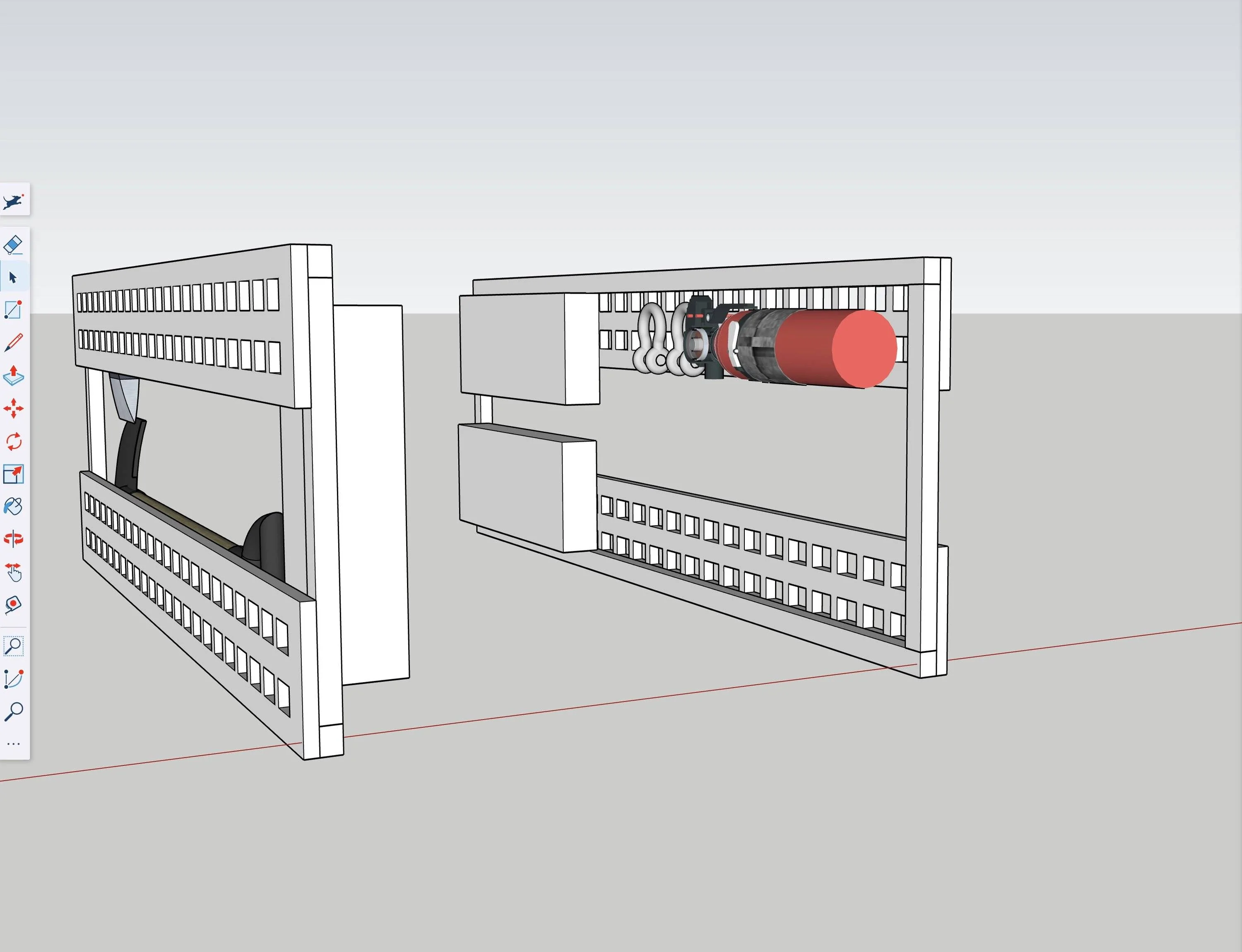

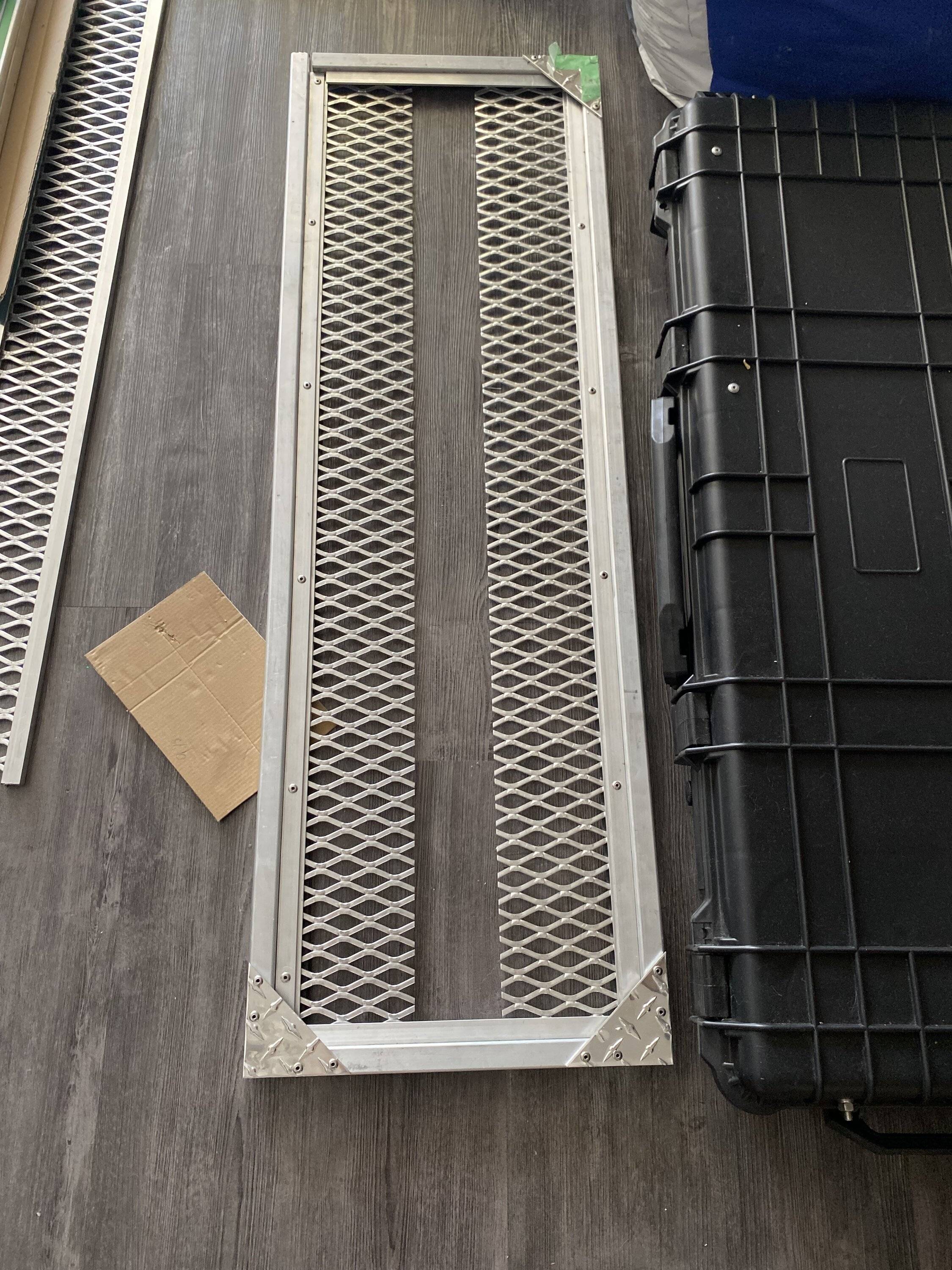

but a sneek peek at my next project, equipment racks for inside the canopy



[Doak Steezy]

Actually may be another week I was evacuated due to wildfires here in BC

No worries, stay safe out there.



[9zero1790]

Actually may be another week I was evacuated due to wildfires here in BC

but a sneek peek at my next project, equipment racks for inside the canopy

those look great you should sell them!



[bka0721]

Any updates before the end of 2023?



[QuickSilver]

Any updates before the end of 2023?

I am building out the tool racks and then I will do a video for the whole setup before I start in on the electrical stuff. I plan on an update by spring.



[QuickSilver]

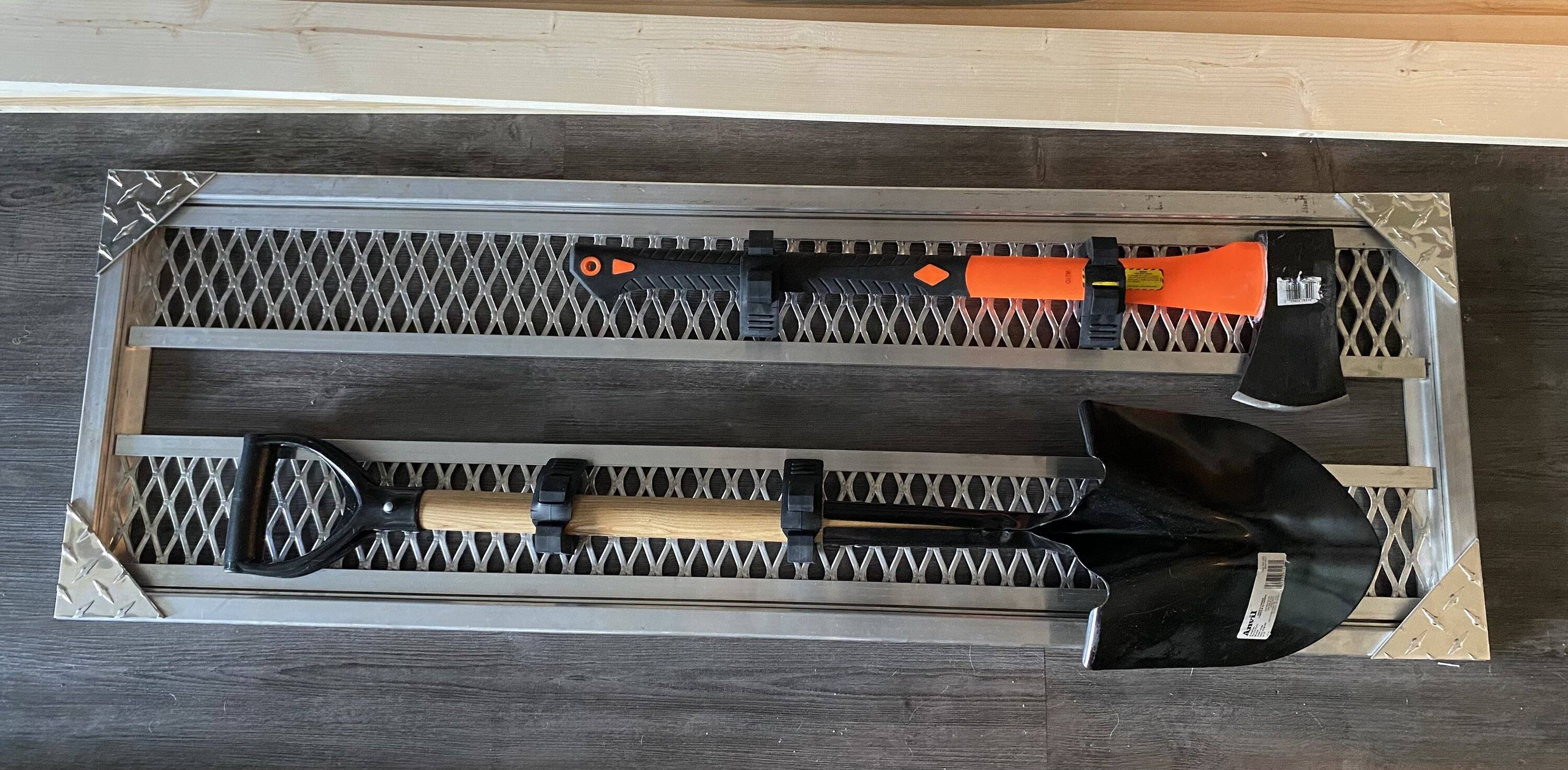

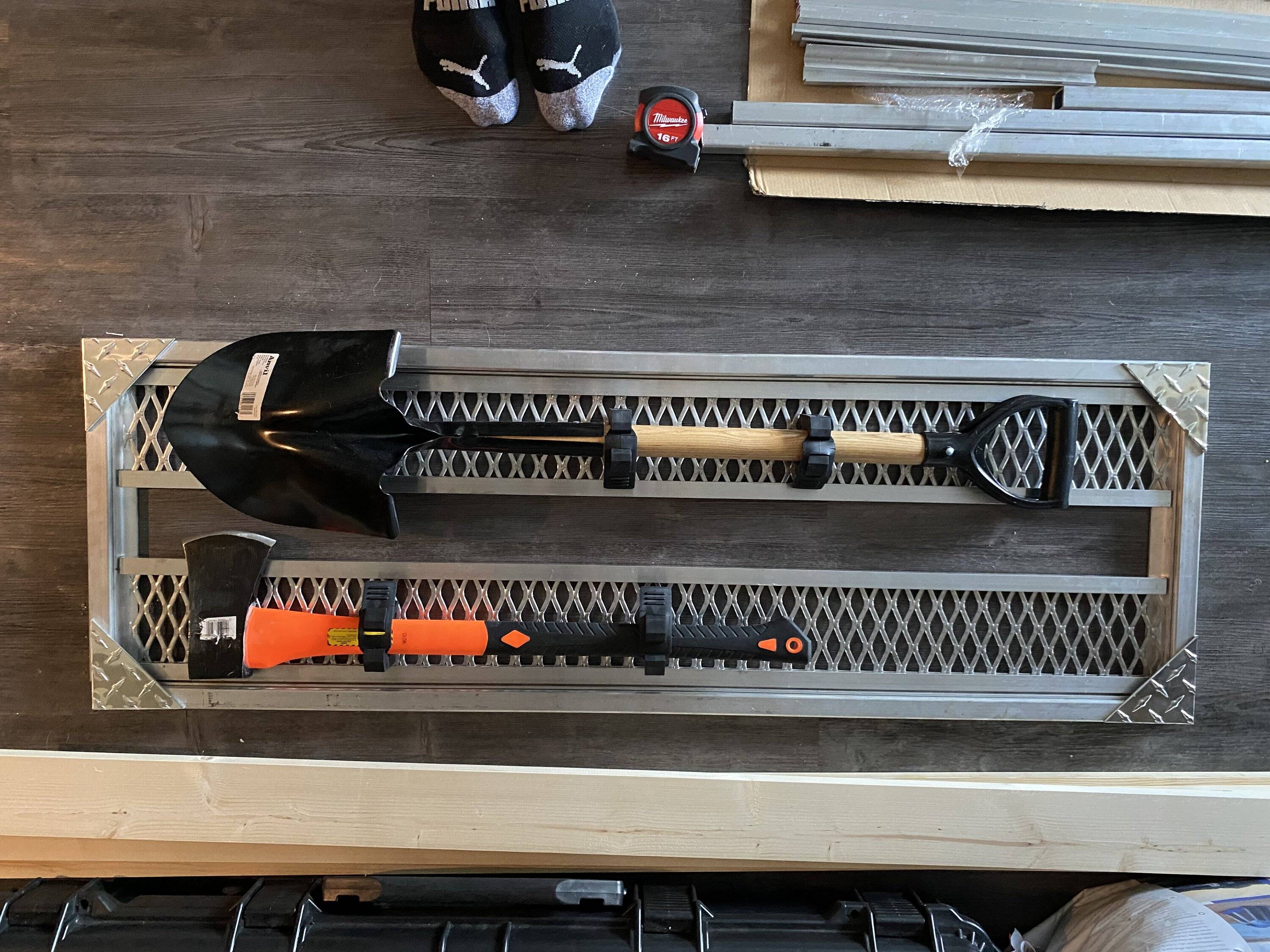

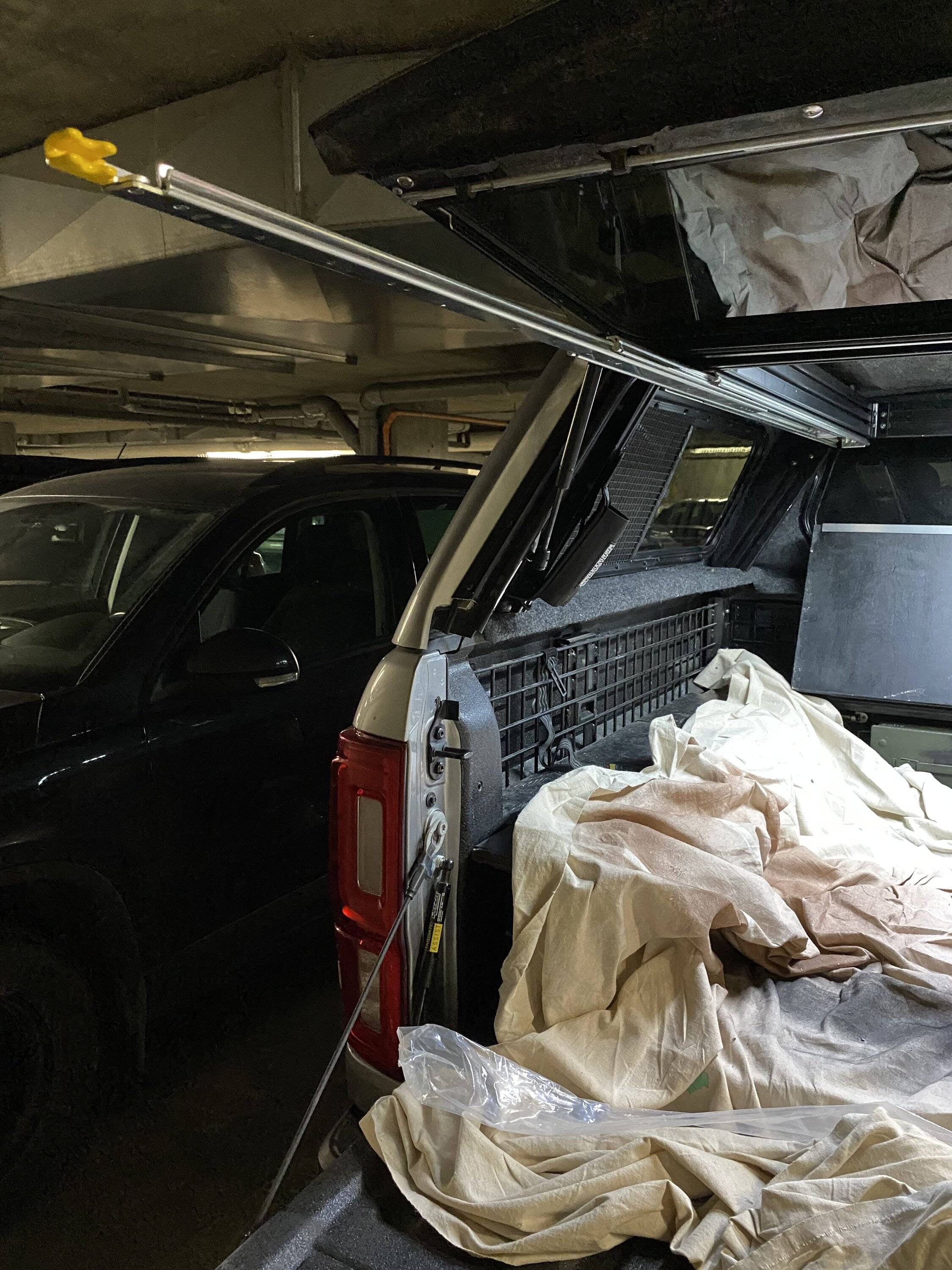

Just got the drawer slides mounted for the tool racks, now I will mount them to the slides with a hinge and figure out a latching setup to secure them to the sides.



[QuickSilver]

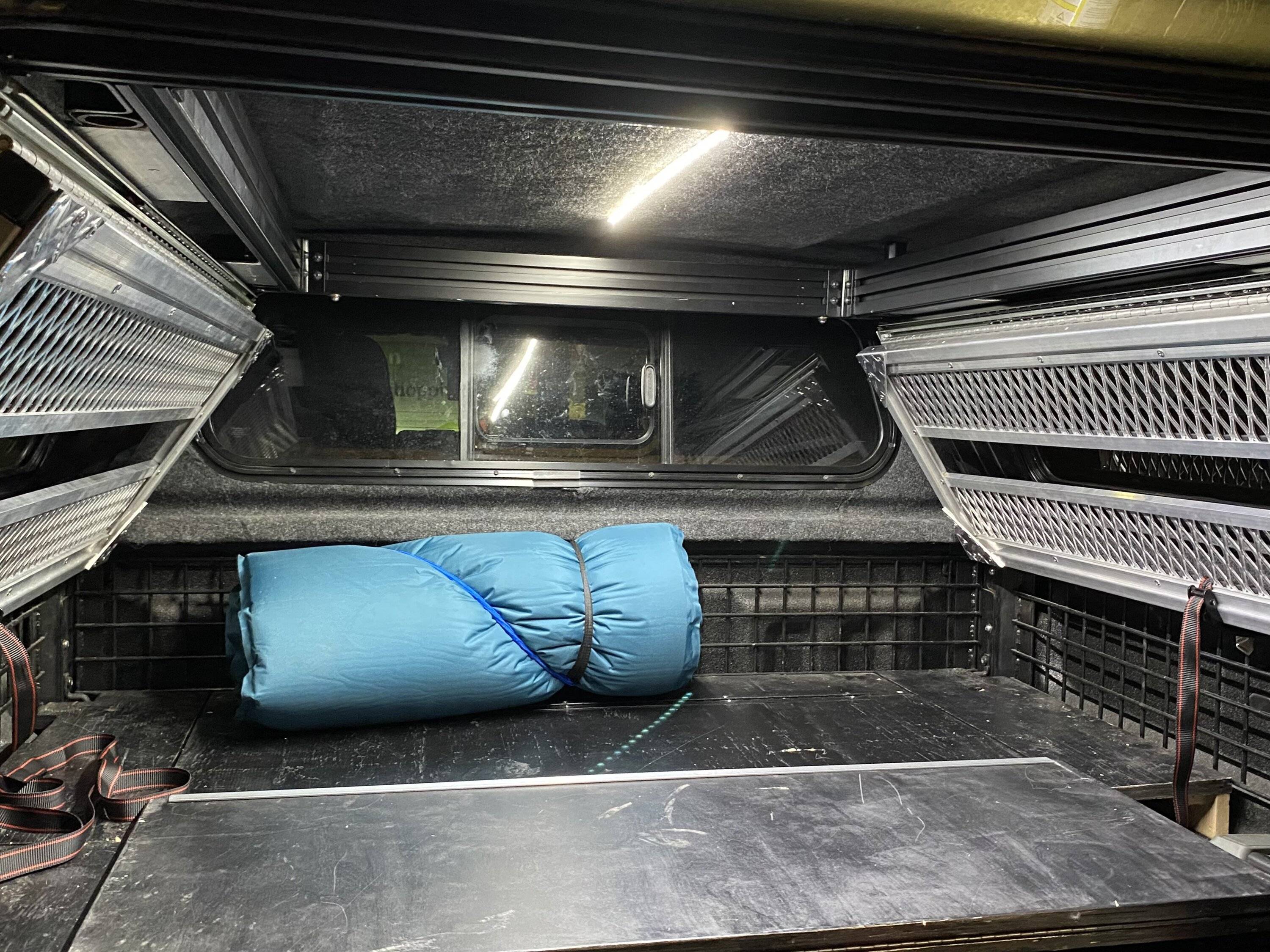

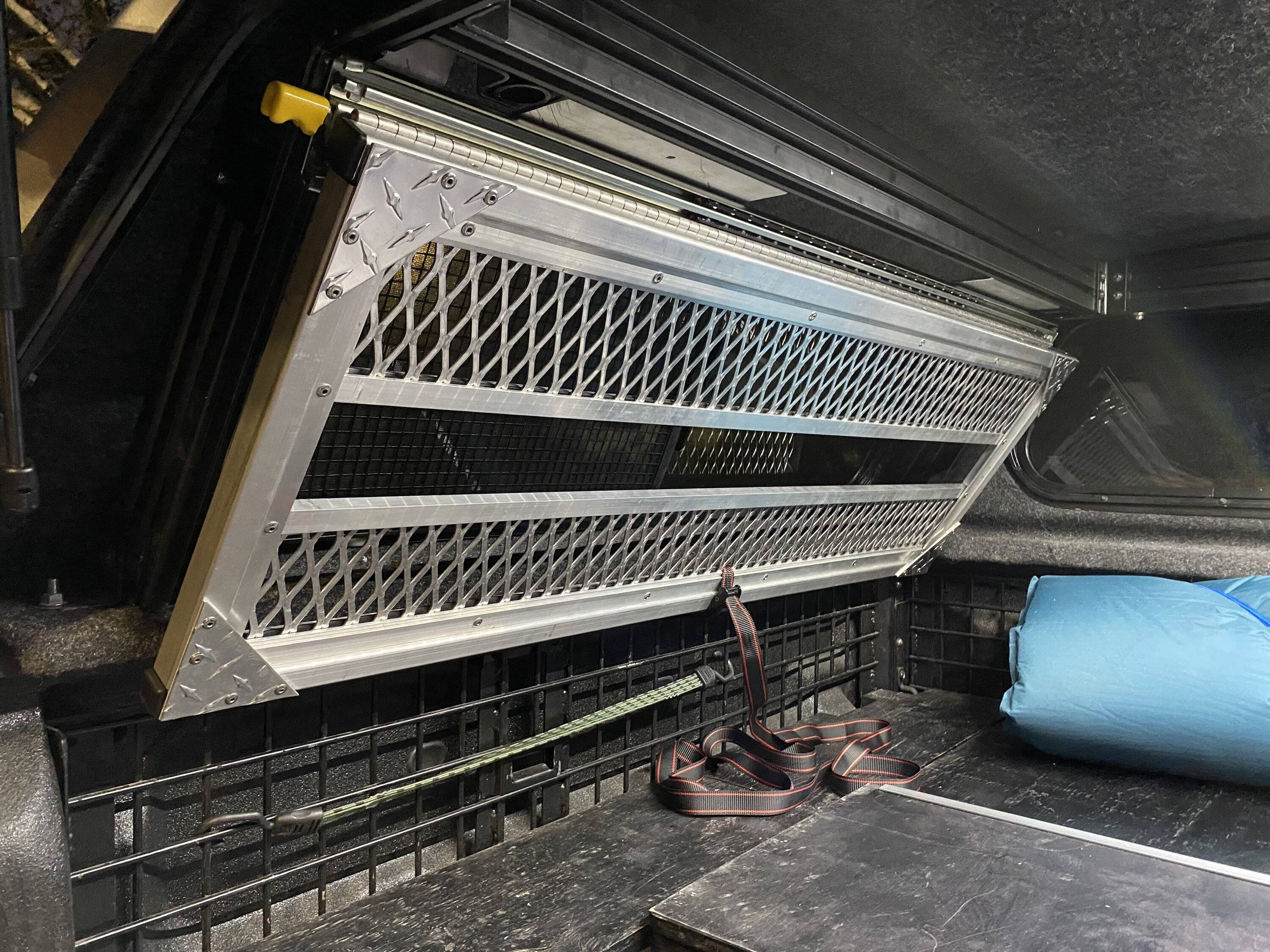

Changed the tool racks to be mounted on the sides instead of the roof, having the slides vertical allows for the weight rating of 500lbs otherwise when pulled out the bow / bend. Next I will work out electric latches.



[harry wilson]

Looks nice ! great build

192.168.100.1 192.168.1.1​



[QuickSilver]

Looks nice ! great build

Thank you, I should get the latches next week and then will order the solenoid's and make a quick video to share the setup I have so far for camping.



[QuickSilver]

Quick video of my camp / sleeping setup,

click link: Ranger Sleep Setup

..and making coffee, cause why not lol

Making Camp coffee



[9zero1790]

a lot of great work!
