Been wanting a rack over my soft topper for a while now, and there was nothing on the market that I was happy with. Also I'm super cheap.

I had about 60' of extra 1.5x.095 DOM tubing laying around from a race car project that got sold, and some 3/16 x4" steel plate, so I decided it was time to get to work. Pictures are probably in no particular order.

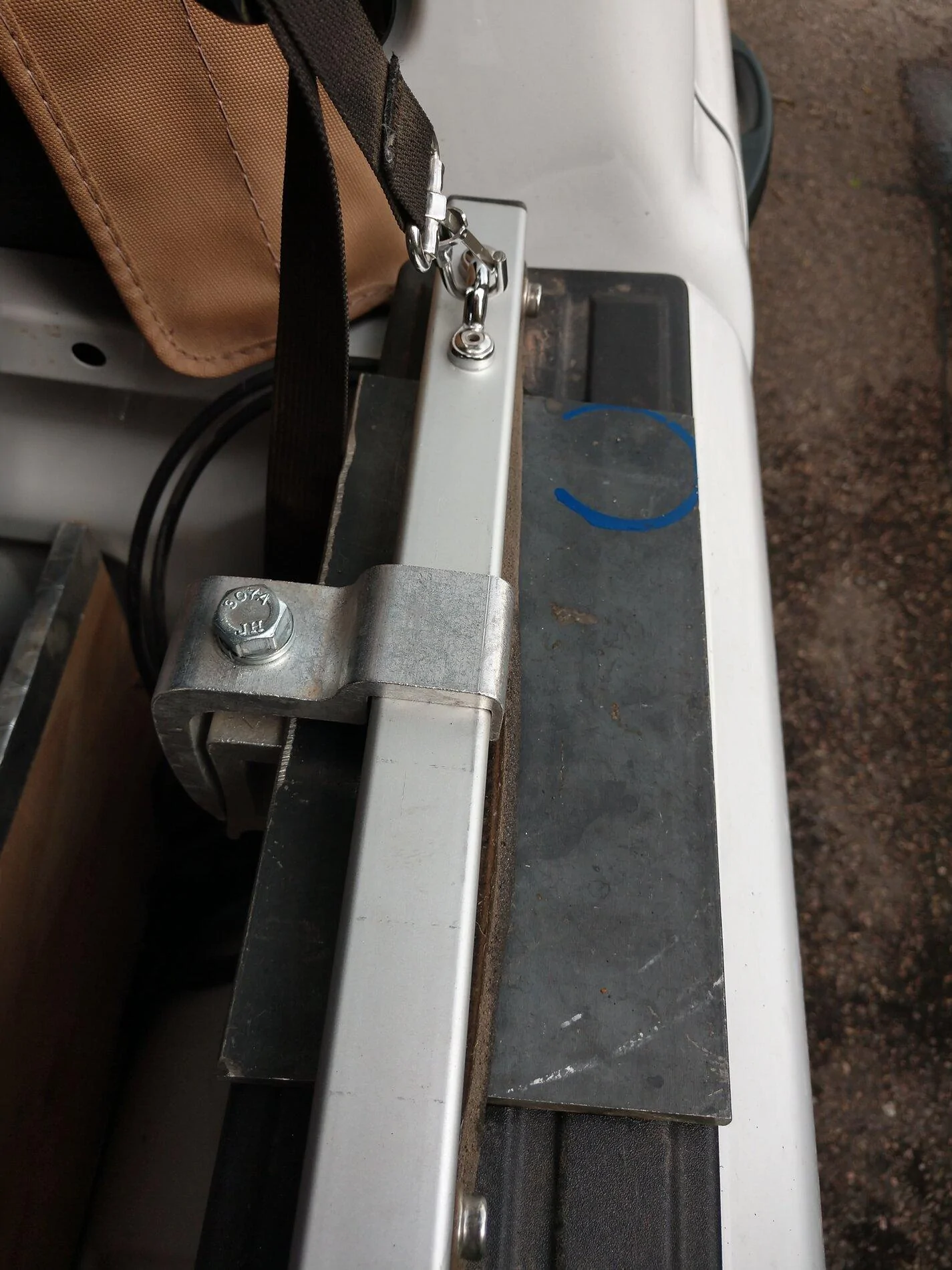

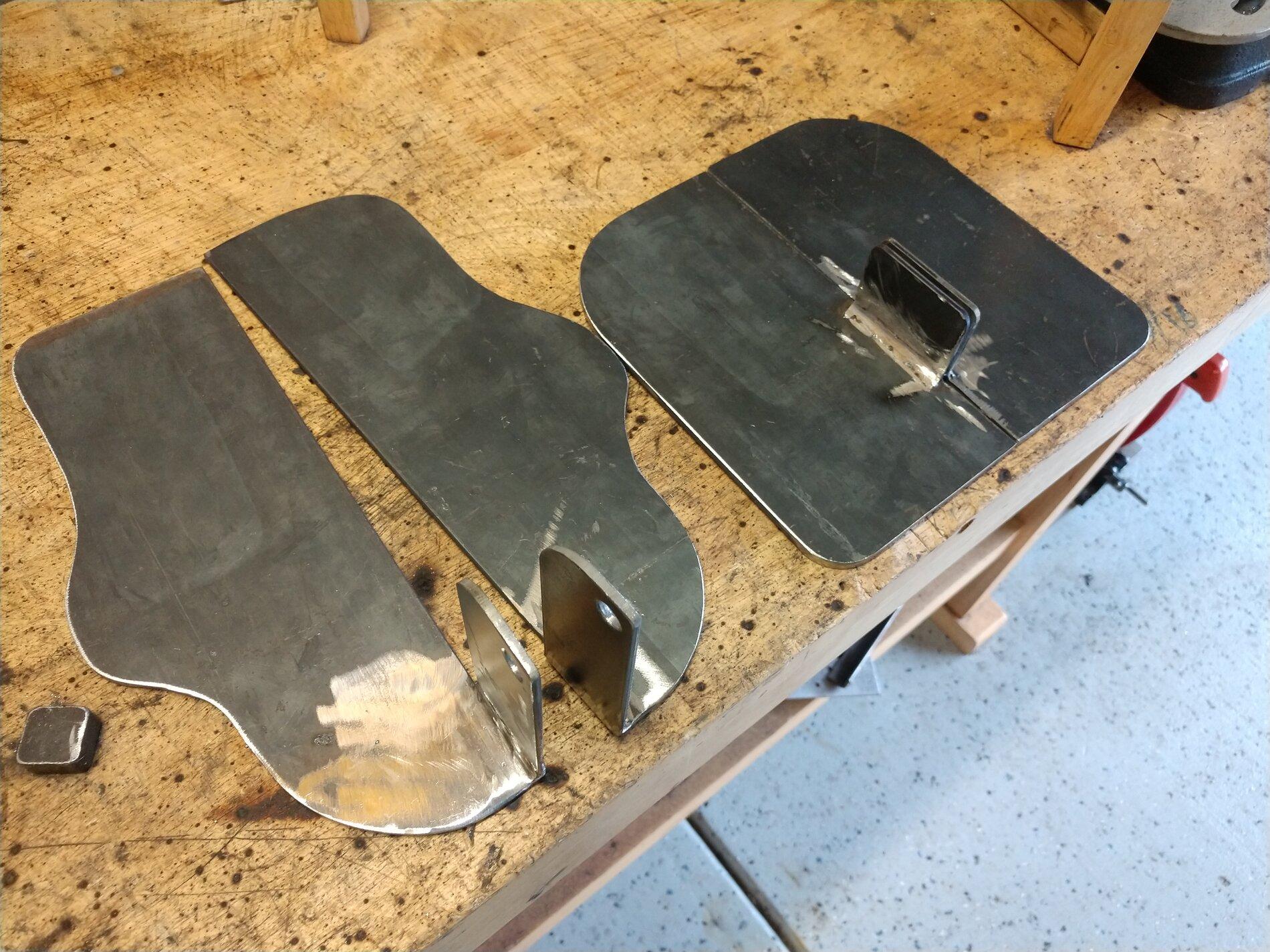

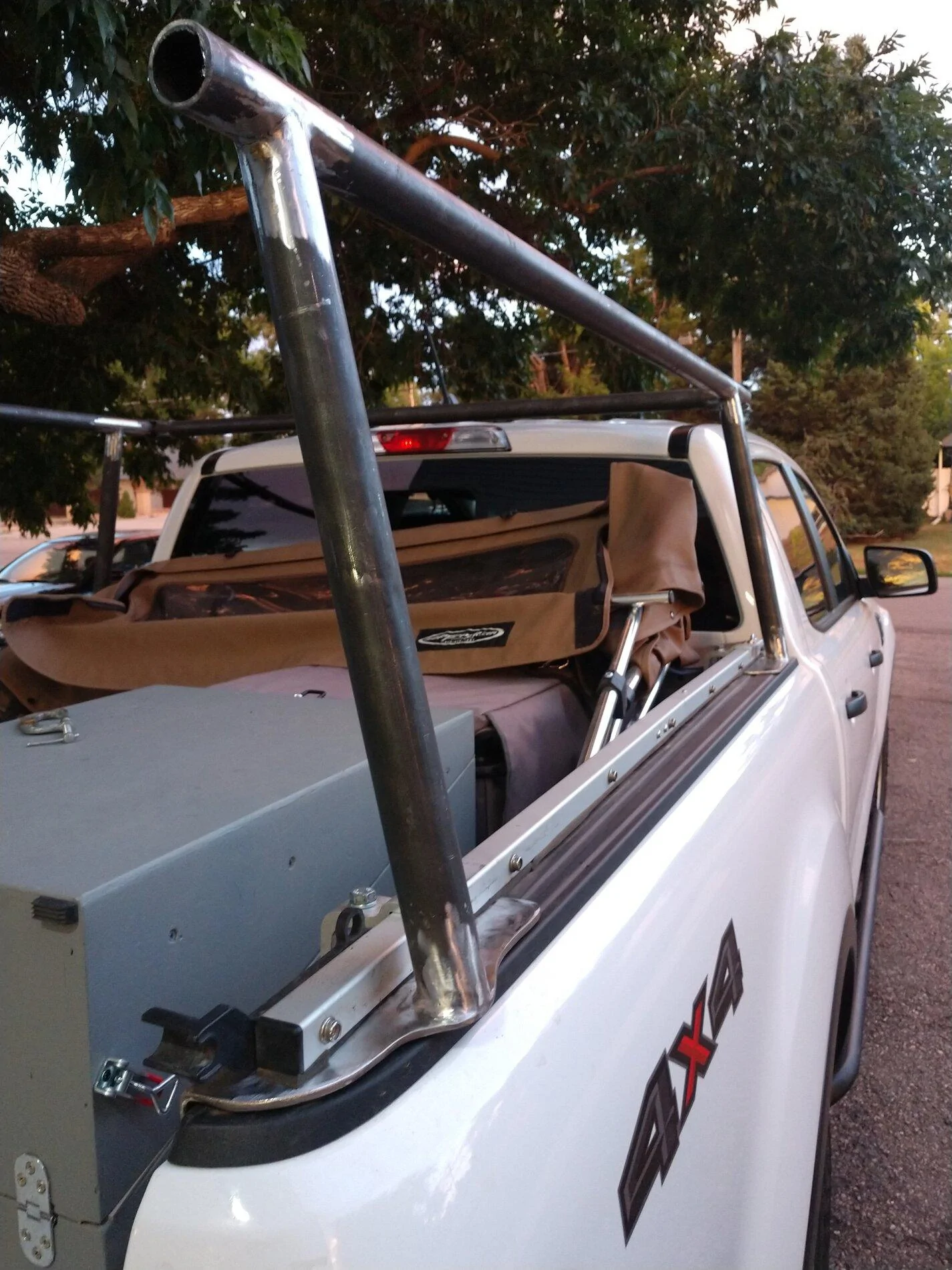

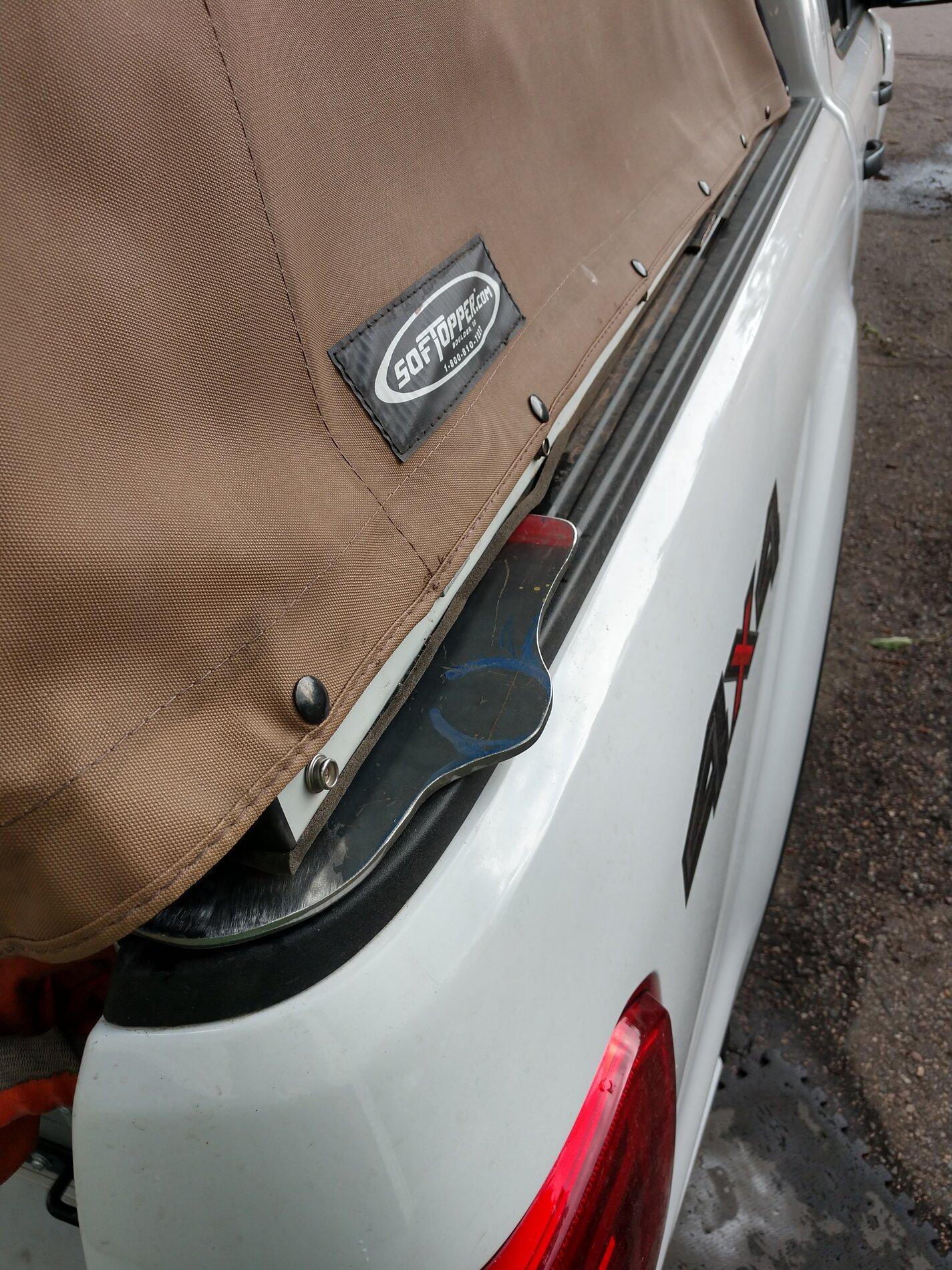

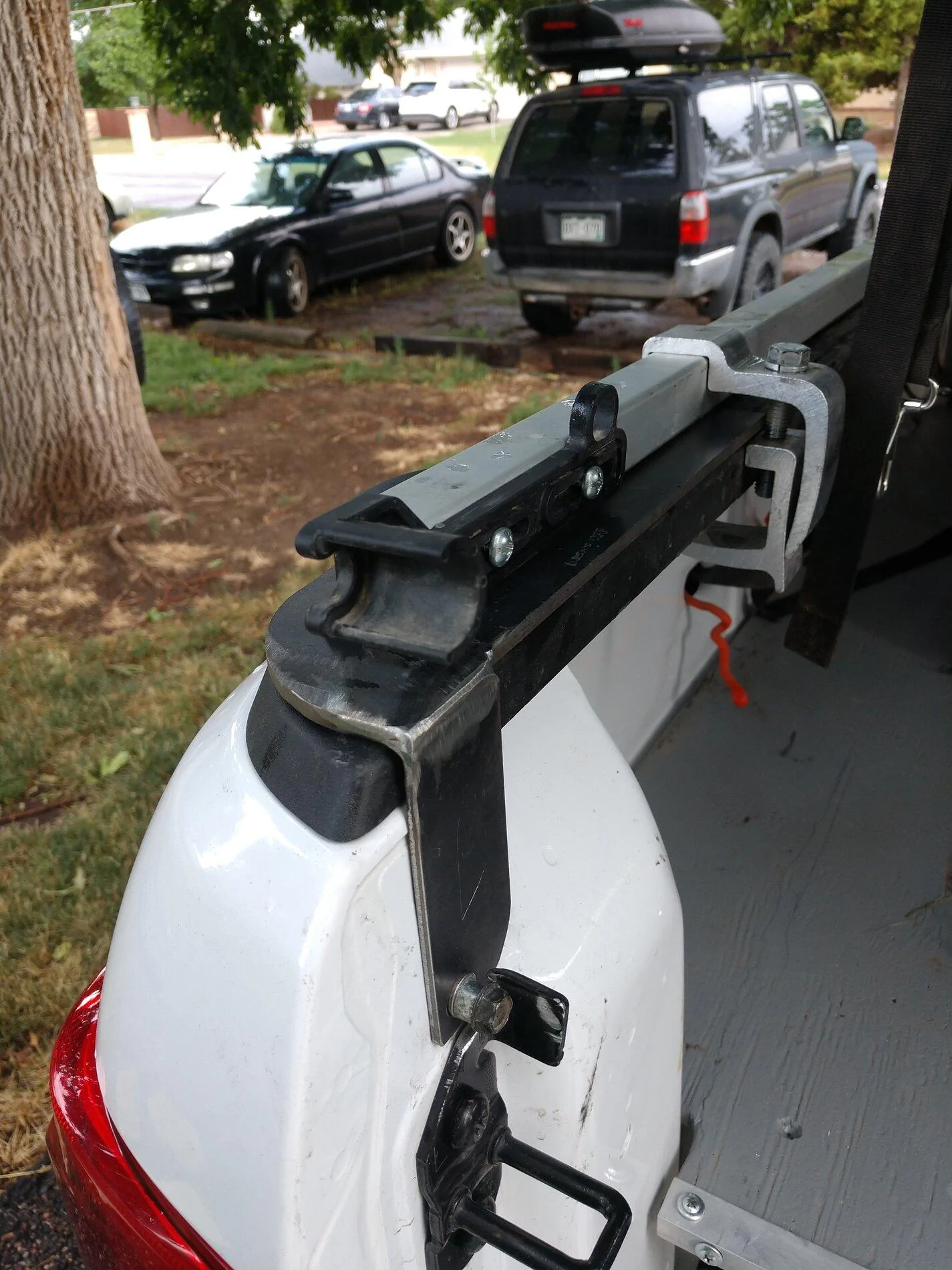

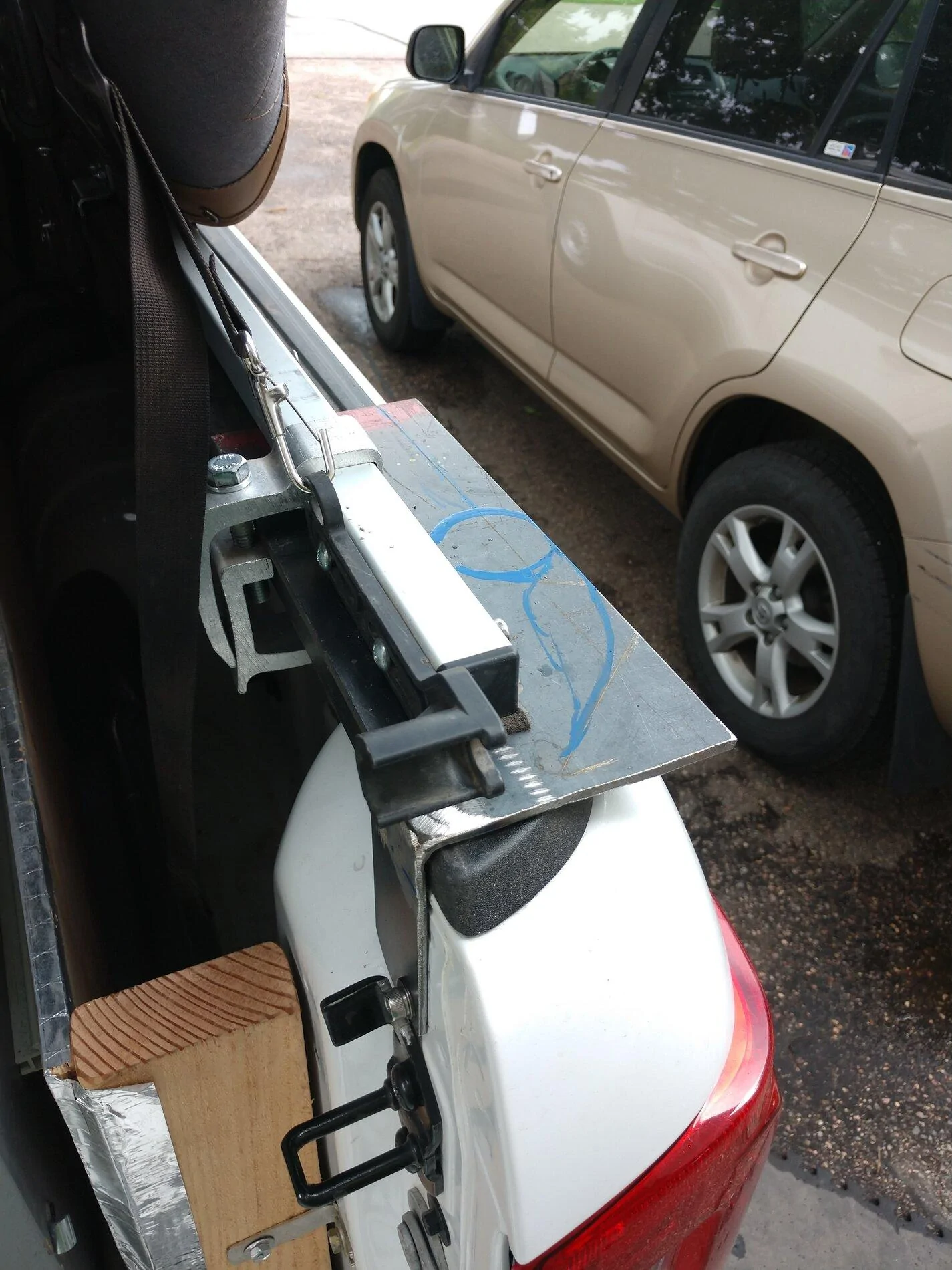

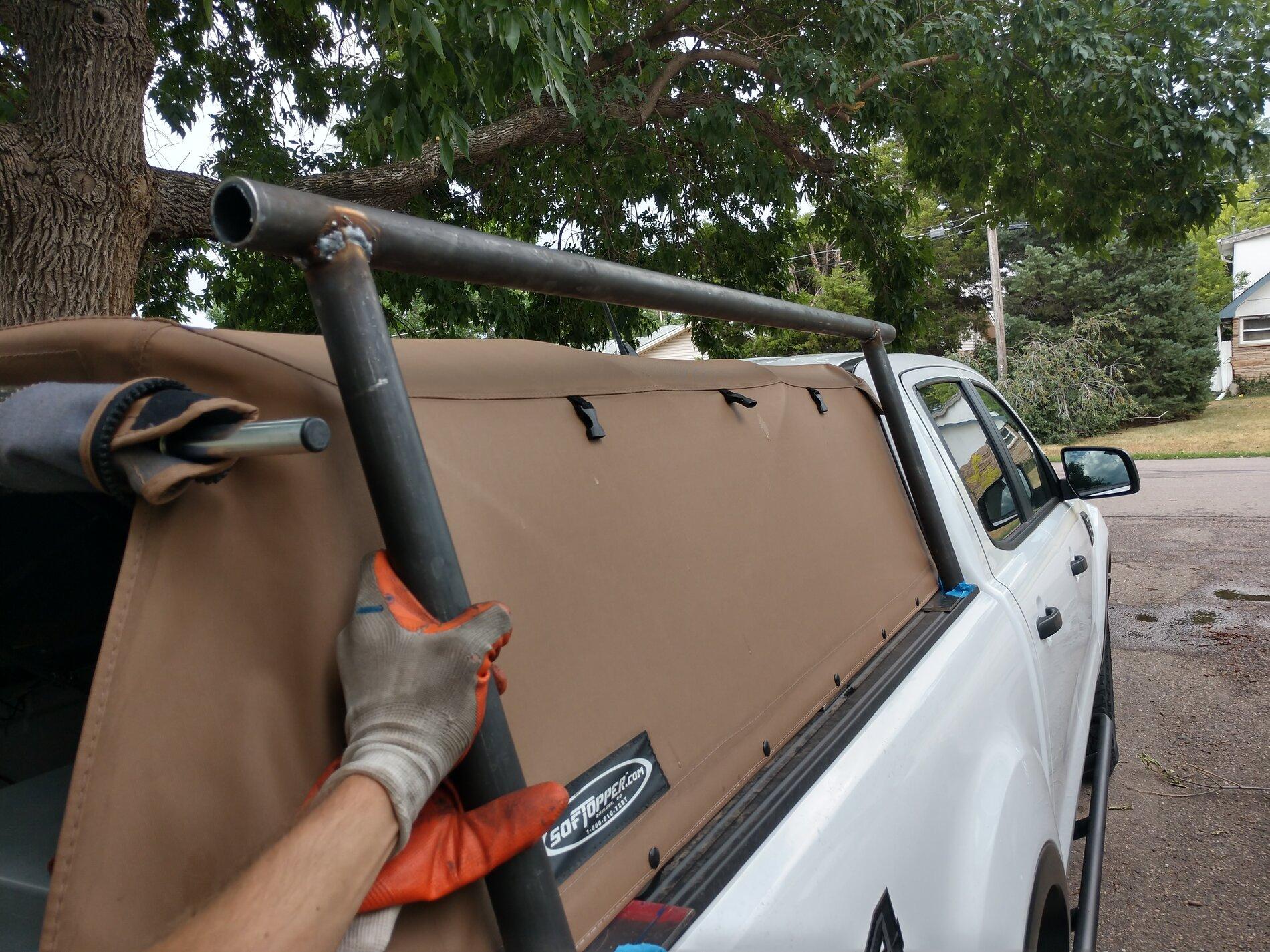

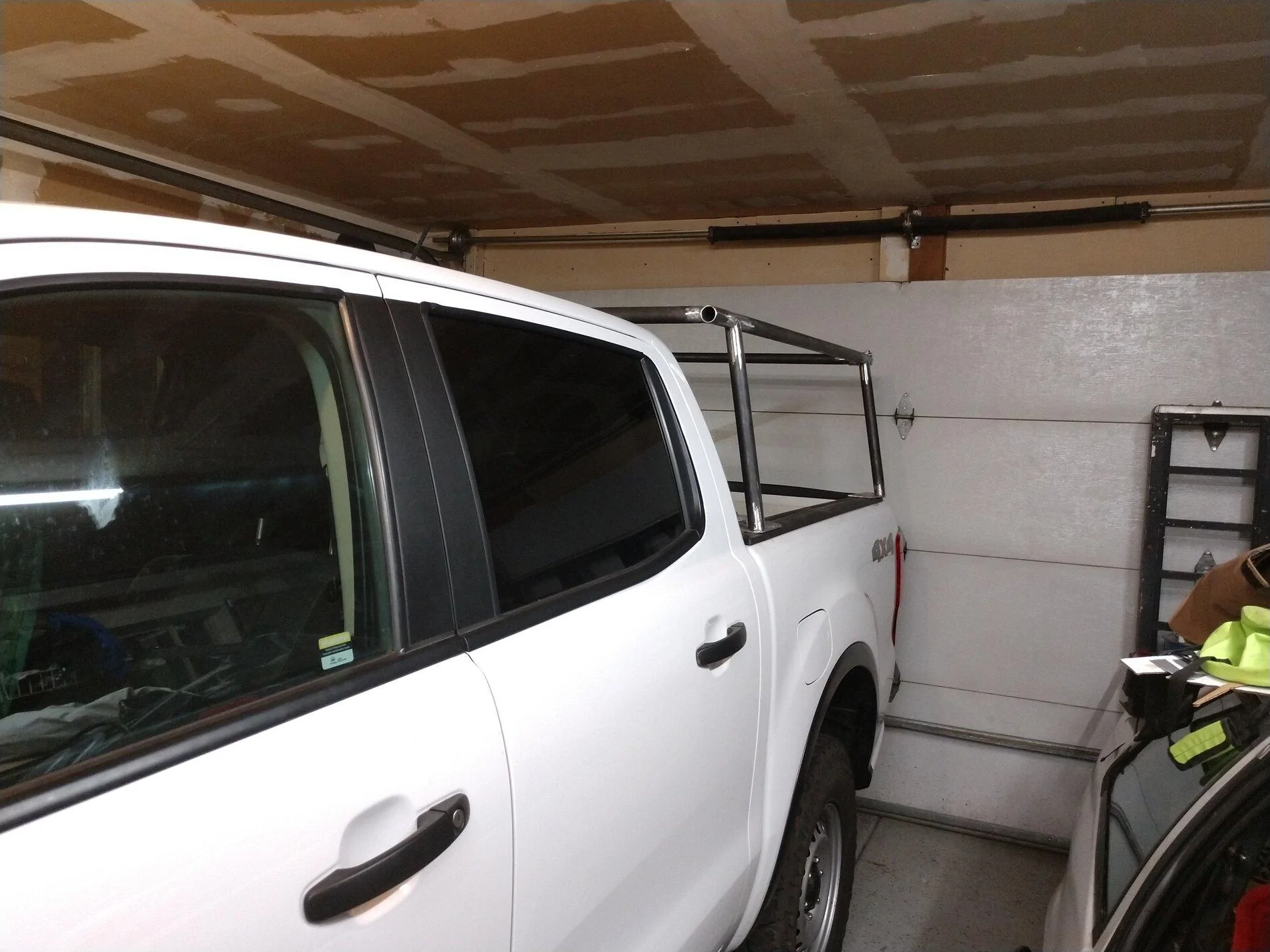

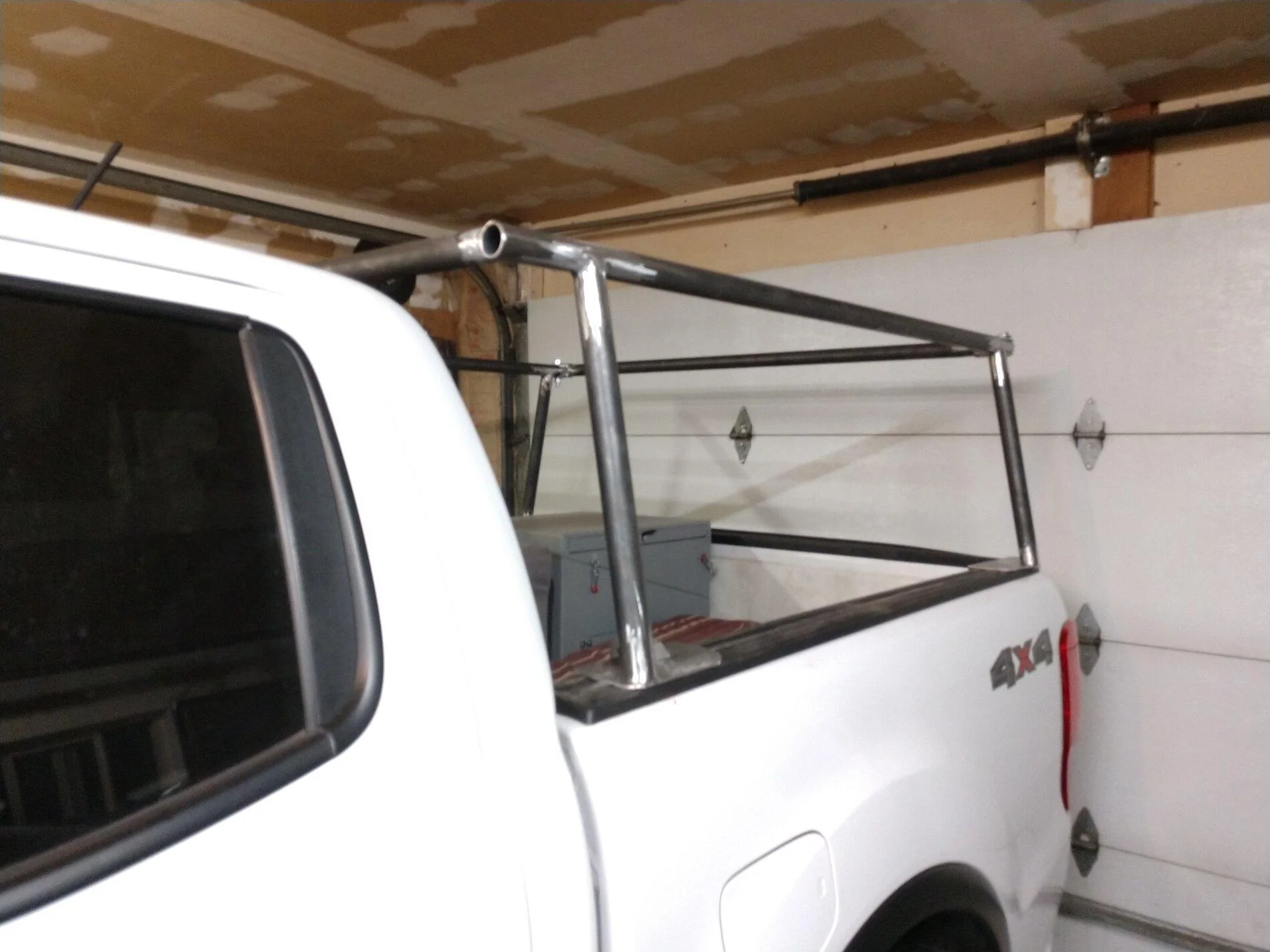

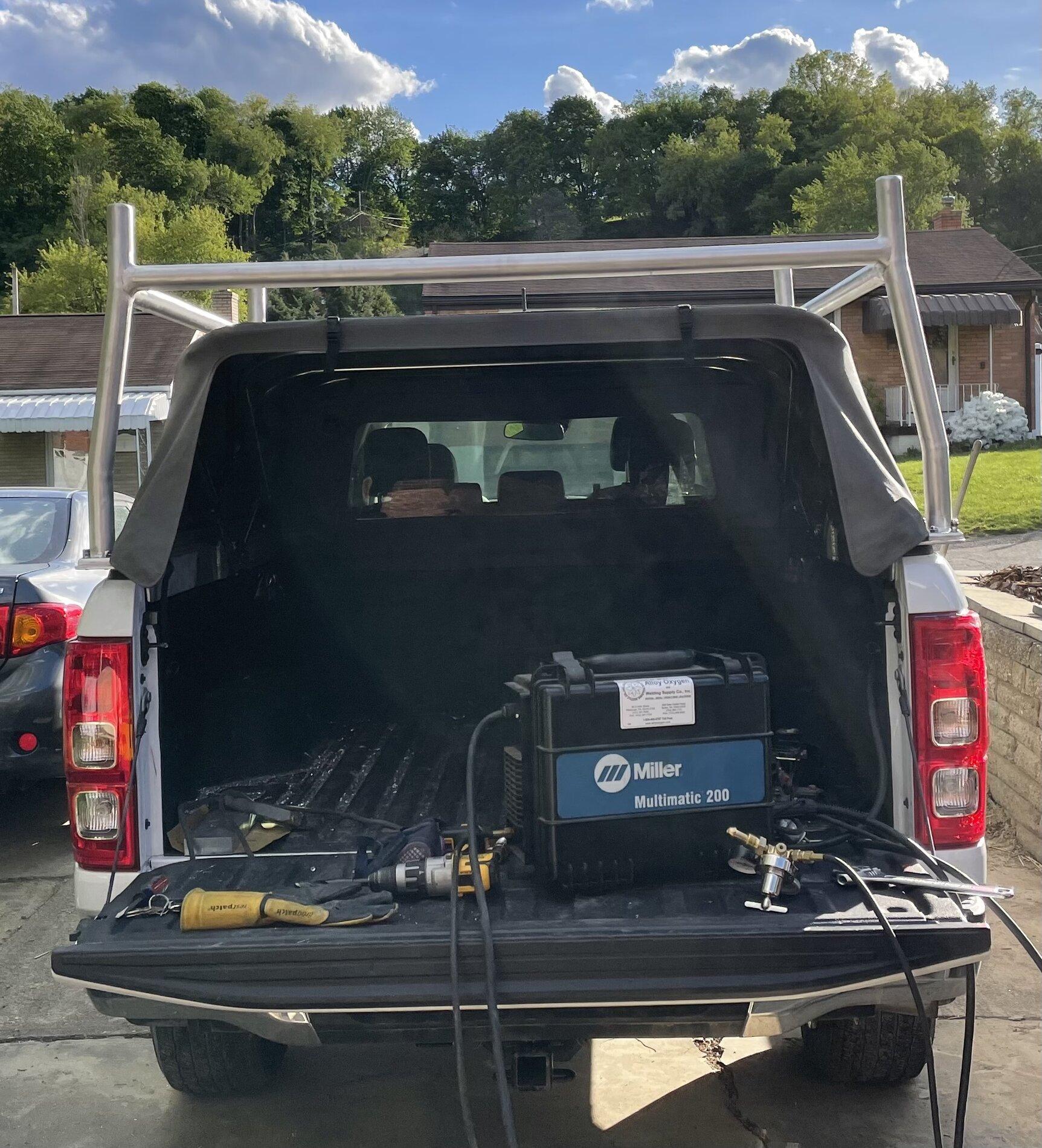

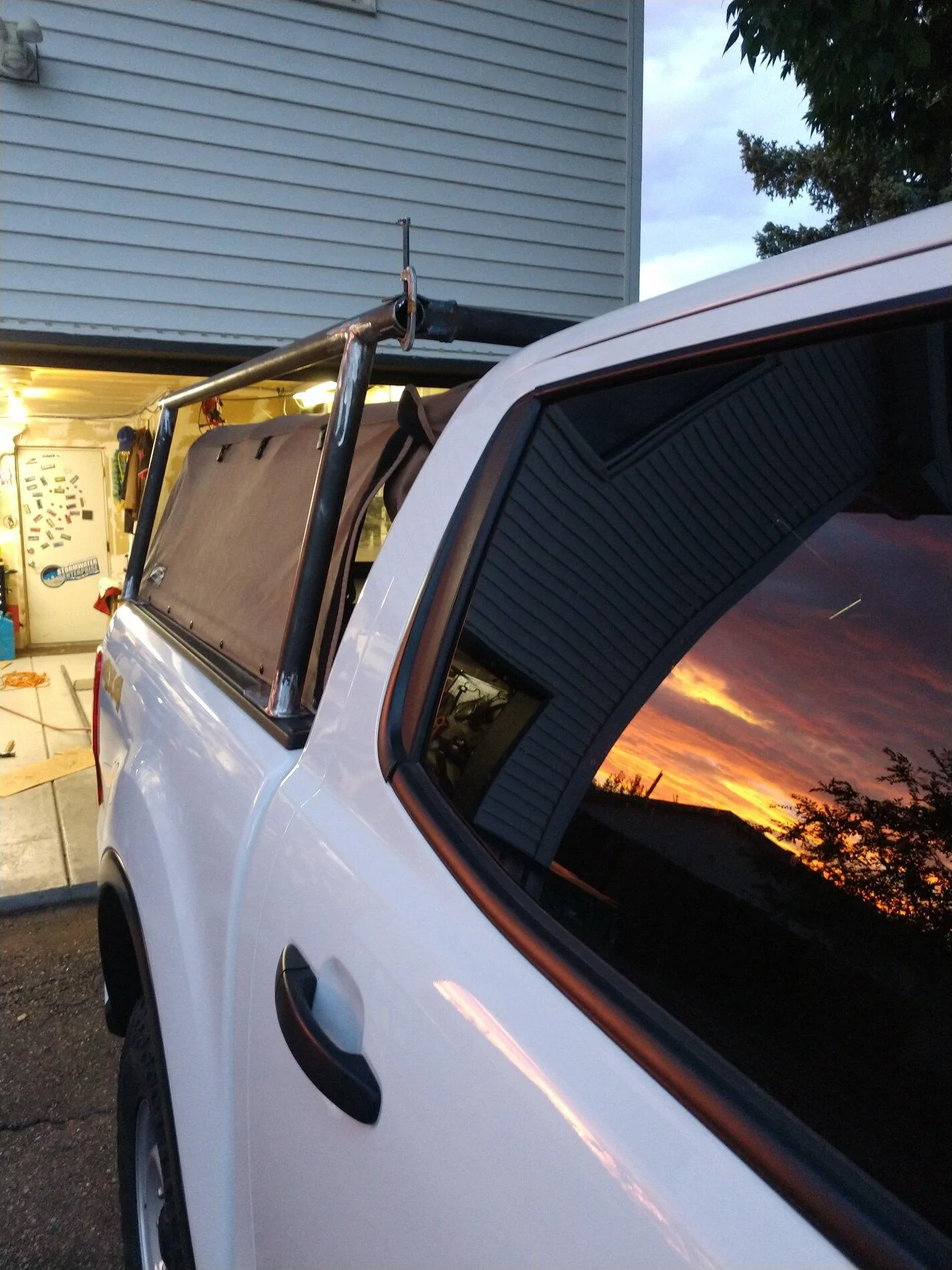

Made the side frames just high enough for the cross bars to clear the softopper, then had to make sure I got the angle right so it would still fold up. They stick out a little farther than I would have liked, but I can live with it. Also wanted an extra attachment point in the back so the rack was a little more than just simply clamped between the softopper and the rail. I was able to find an extra bolt hole above the tailgate latch that was easy to attach to. I also wanted this thing to look pretty slick with the lines of the truck, while still allowing the softopper to function, so I did a lot of test fitting, then cut the brackets down to just the right size and shape. Mocked it up in place, and started welding.
























Advertisement




Last edited:
OP
RoadBoss

RoadBoss

Well-Known Member
First Name
Travis
Joined
Apr 6, 2019
Messages
353
Reaction score
462
Location
Denver
Website
www.youtube.com
Vehicle(s)
95 Isuzu trooper, AE86 corolla, 19 ranger XL
Occupation
Driver
  • Thread starter
  • Thread Starter
  • #2

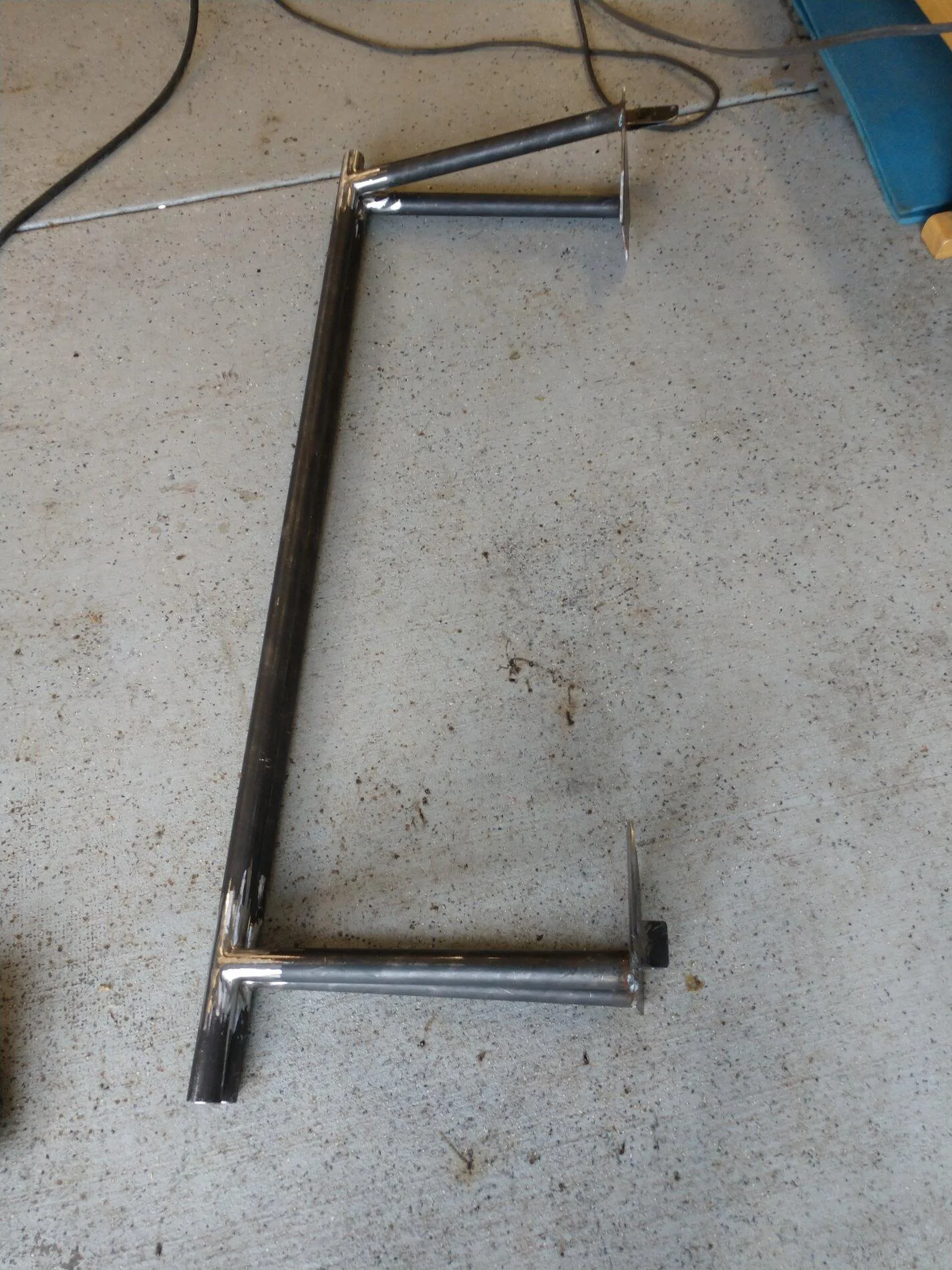

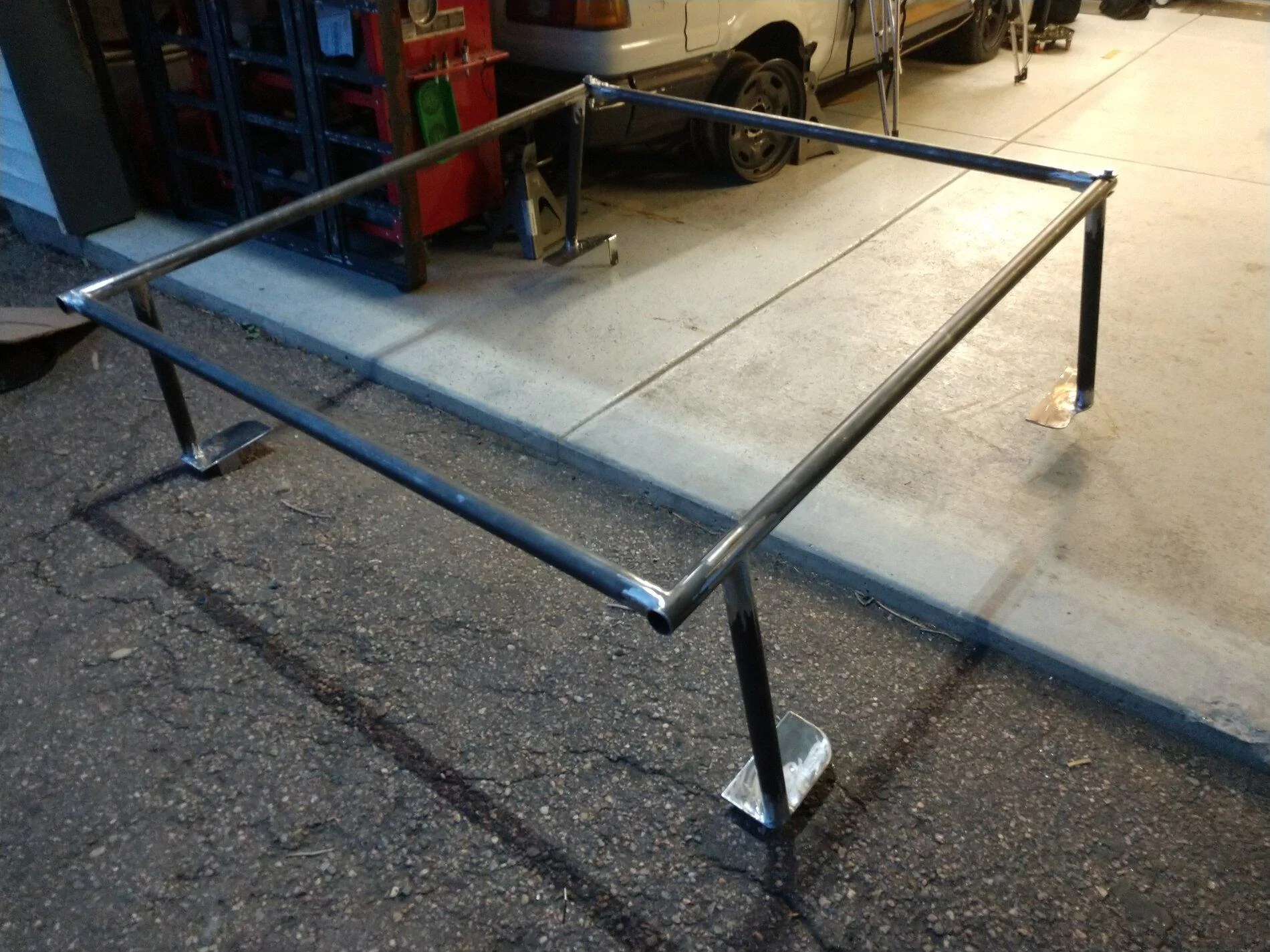

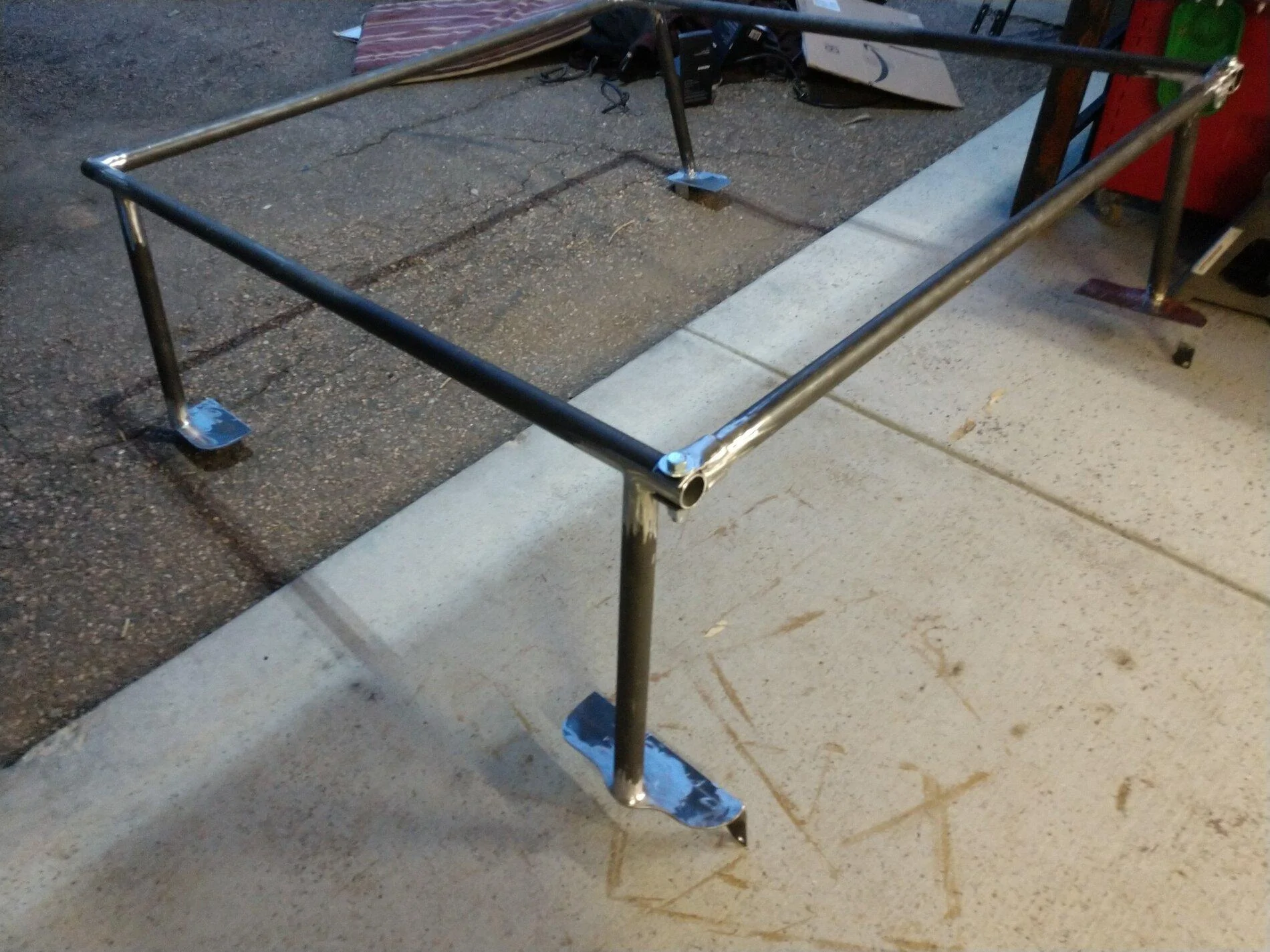

Got the front cross bar cut and decided it needed to be welded for optimal rigidity. The rear bar still bolts on for loading tall things into the bed.

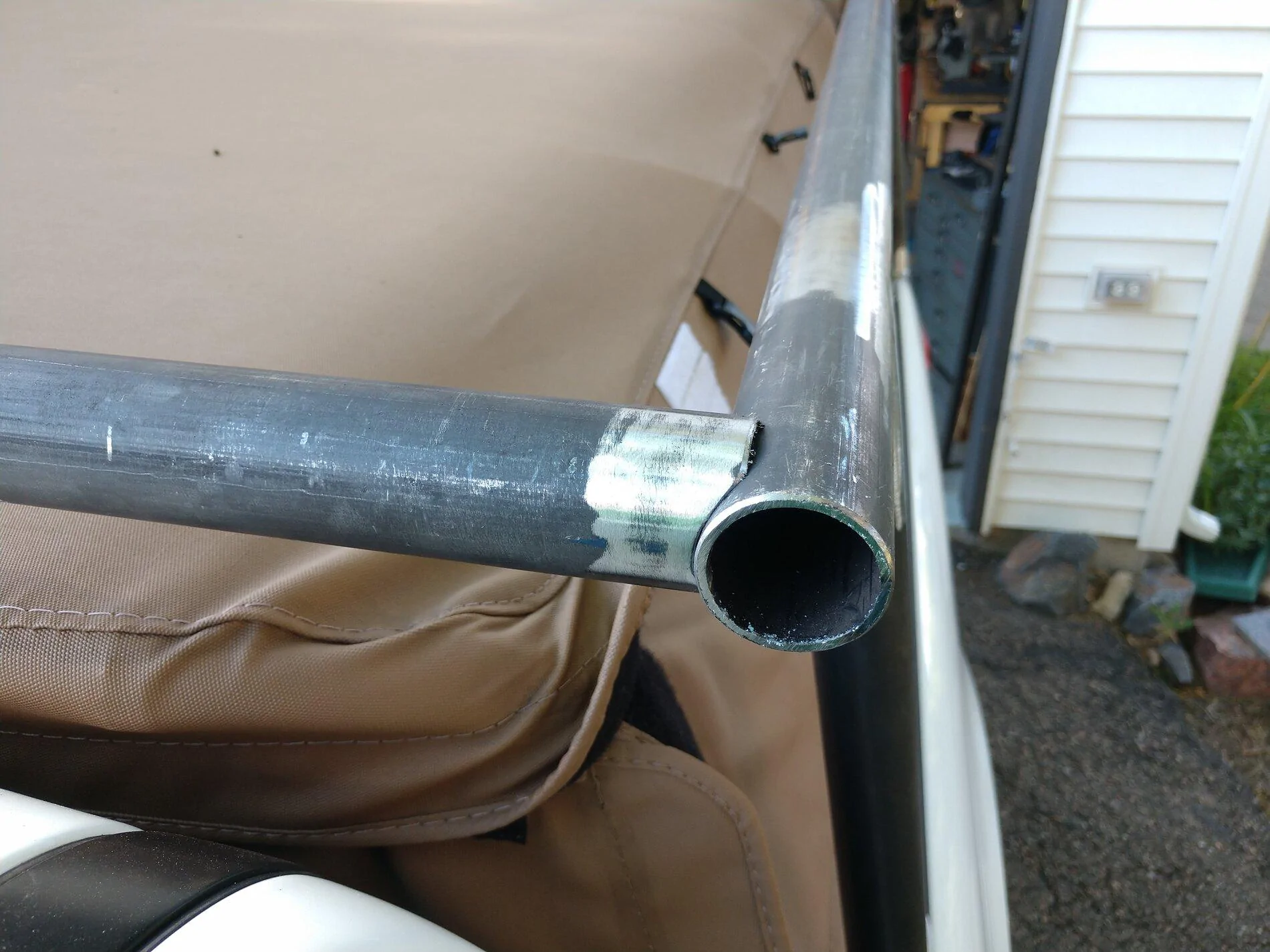

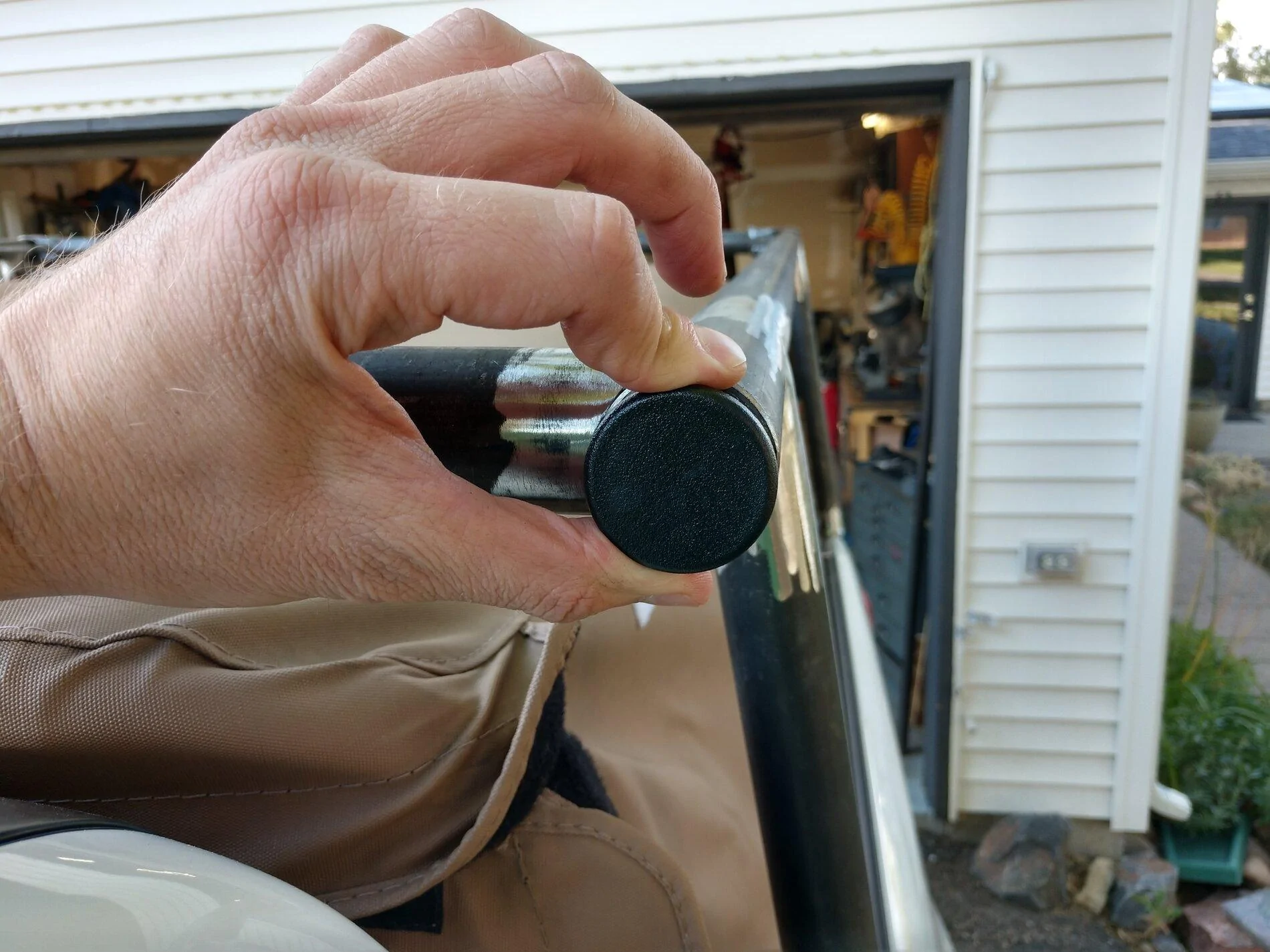

And I got some plastic end caps to clean it up rather than trying to weld on a cap and grind it smooth.

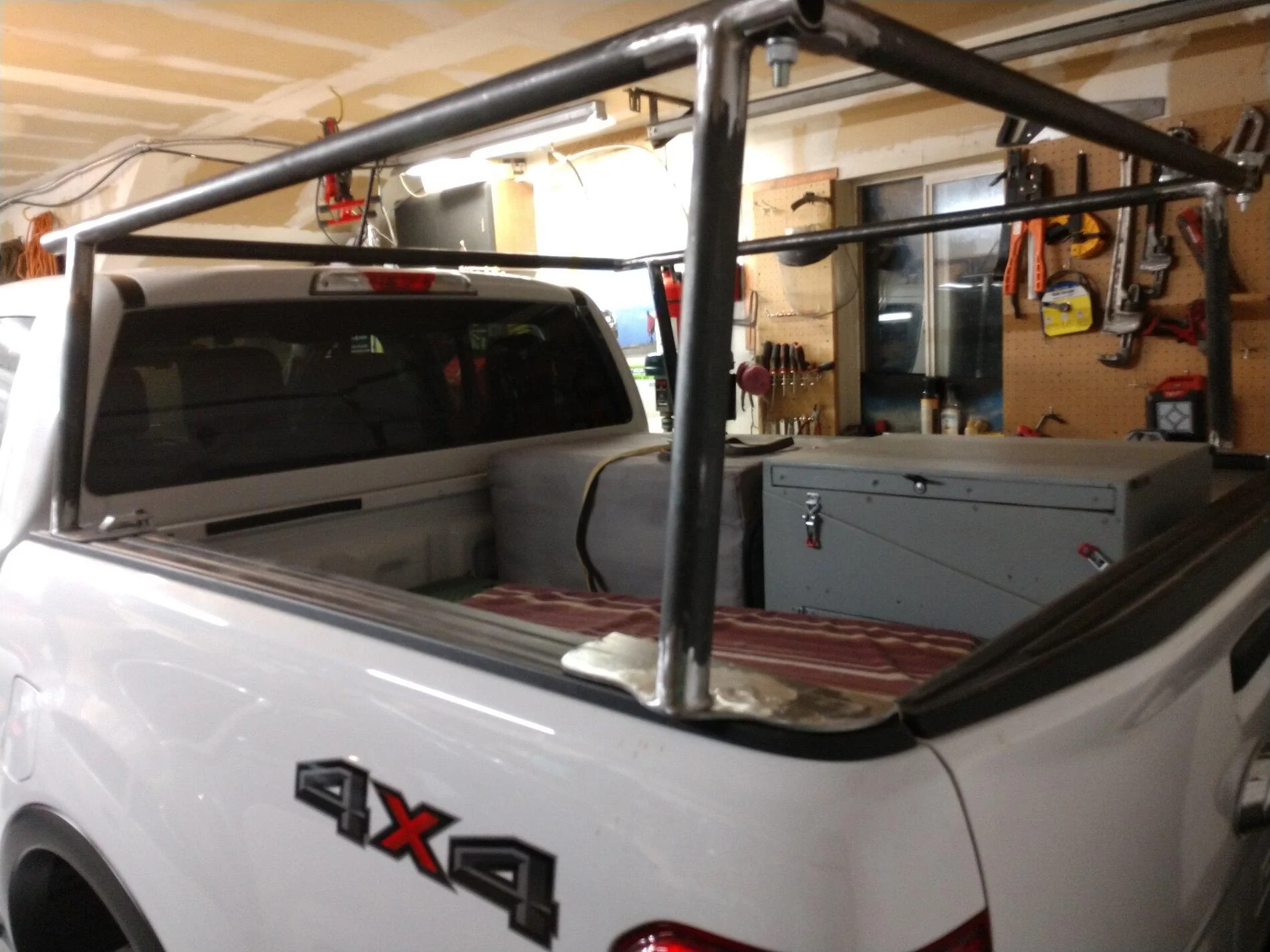

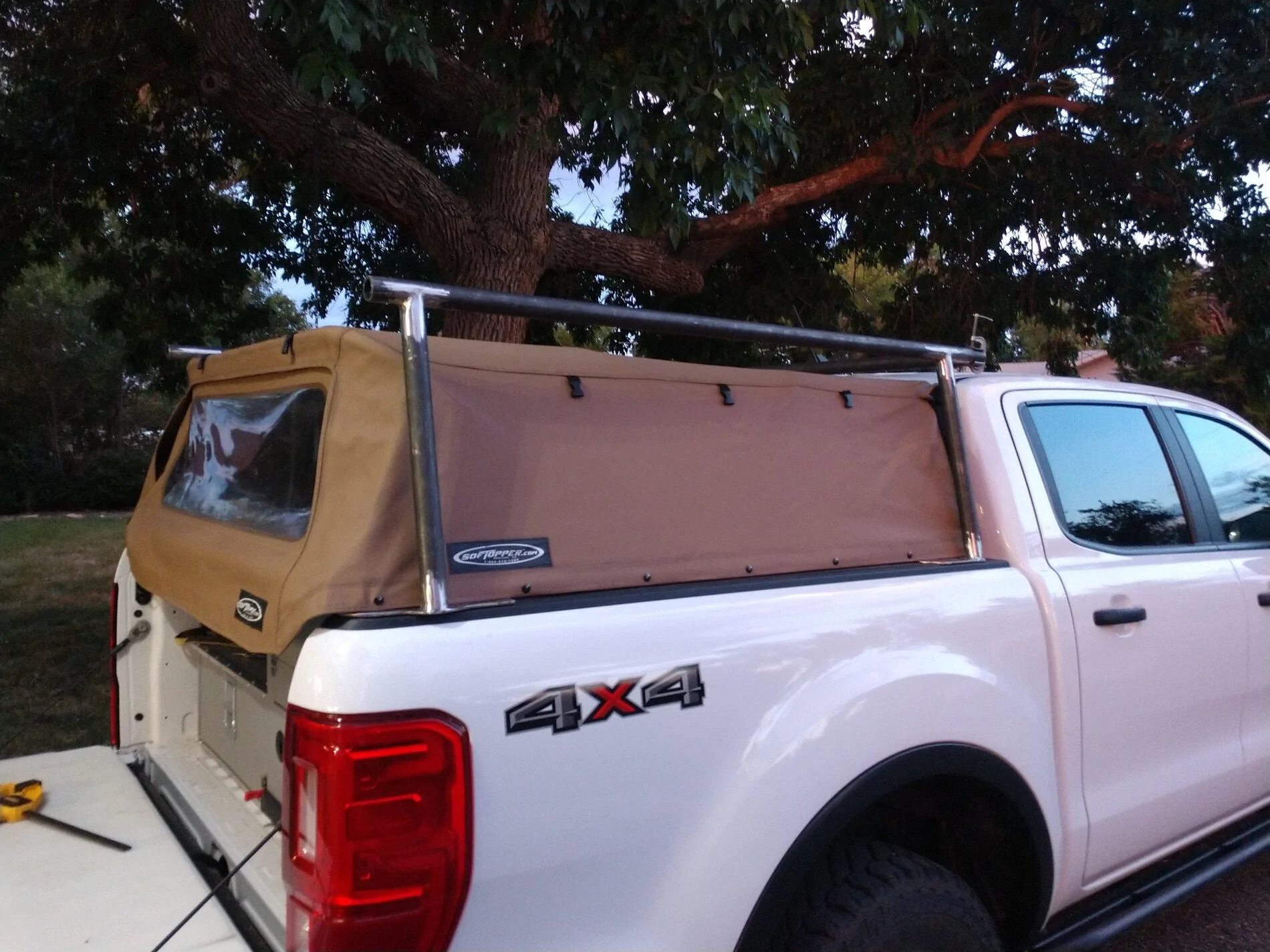

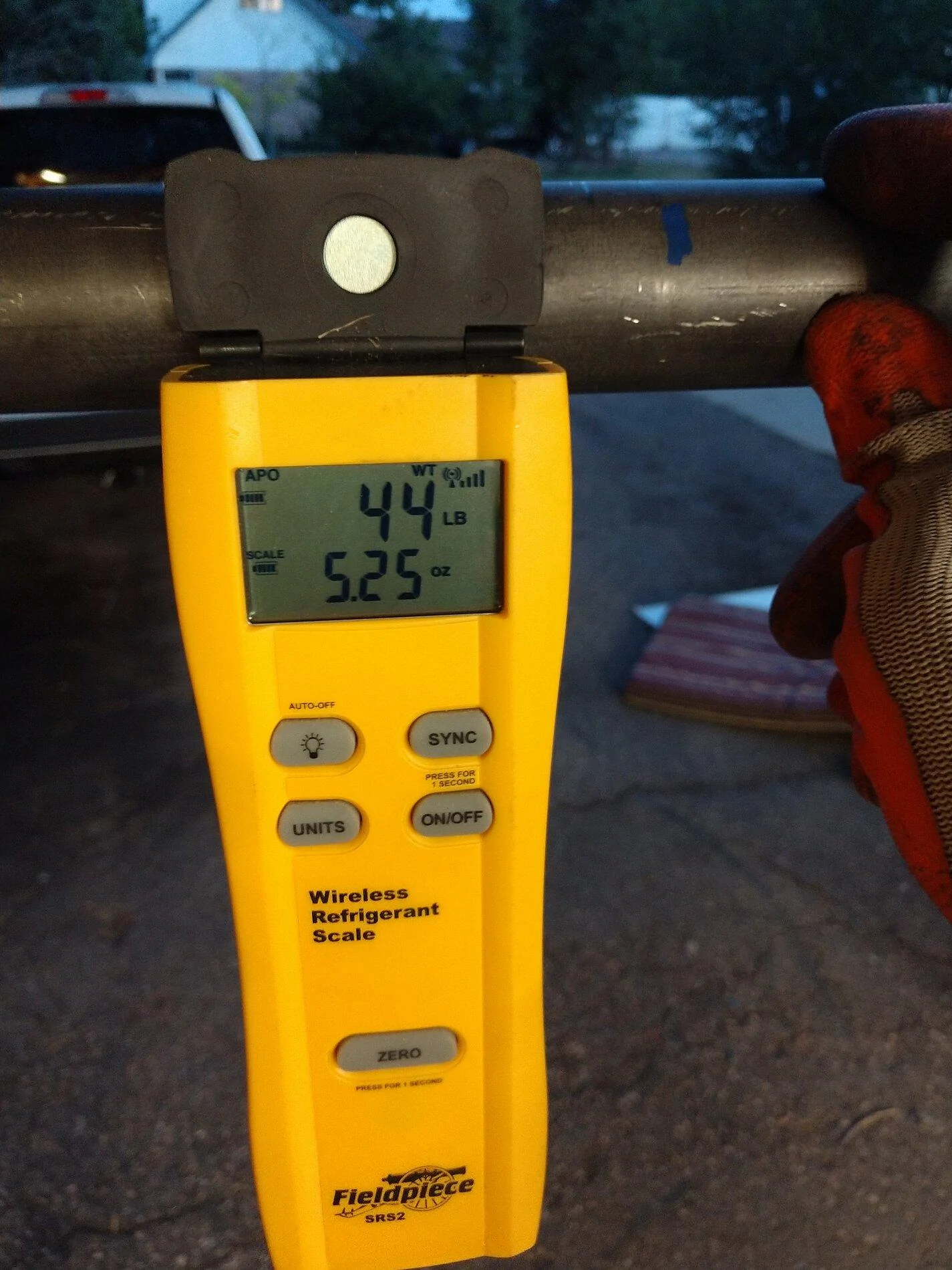

Got everything welded up am pretty excited about how it fits. It's also EXTREMELY rigid and tough, and only weighs 44 lbs, which is way better than I'd hoped for.

Hopefully I can get it off to powdercoating this week, and then figure out what I'm going to do for a tray/rack on top of this thing to hold stuff. Like I said earlier, I'm really cheap, so getting a nice slim rack from rhinorack or front-runner is probably not going to happen any time soon, but I've got a few different options and ideas.

















ldr01rl

Well-Known Member
First Name
Robert
Joined
Jan 17, 2020
Messages
152
Reaction score
242
Location
TR Wisconsin
Vehicle(s)
2019 Ford Ranger XLT 4x4
Vehicle Showcase
1
Just a suggestion, construct it to allow the Softtopper to retract and the rear piping to disassemble, allowing high loads.



ldr01rl

Well-Known Member
First Name
Robert
Joined
Jan 17, 2020
Messages
152
Reaction score
242
Location
TR Wisconsin
Vehicle(s)
2019 Ford Ranger XLT 4x4
Vehicle Showcase
1
This topic had been covered in previous posts.

OP
RoadBoss

RoadBoss

Well-Known Member
First Name
Travis
Joined
Apr 6, 2019
Messages
353
Reaction score
462
Location
Denver
Website
www.youtube.com
Vehicle(s)
95 Isuzu trooper, AE86 corolla, 19 ranger XL
Occupation
Driver
  • Thread starter
  • Thread Starter
  • #5

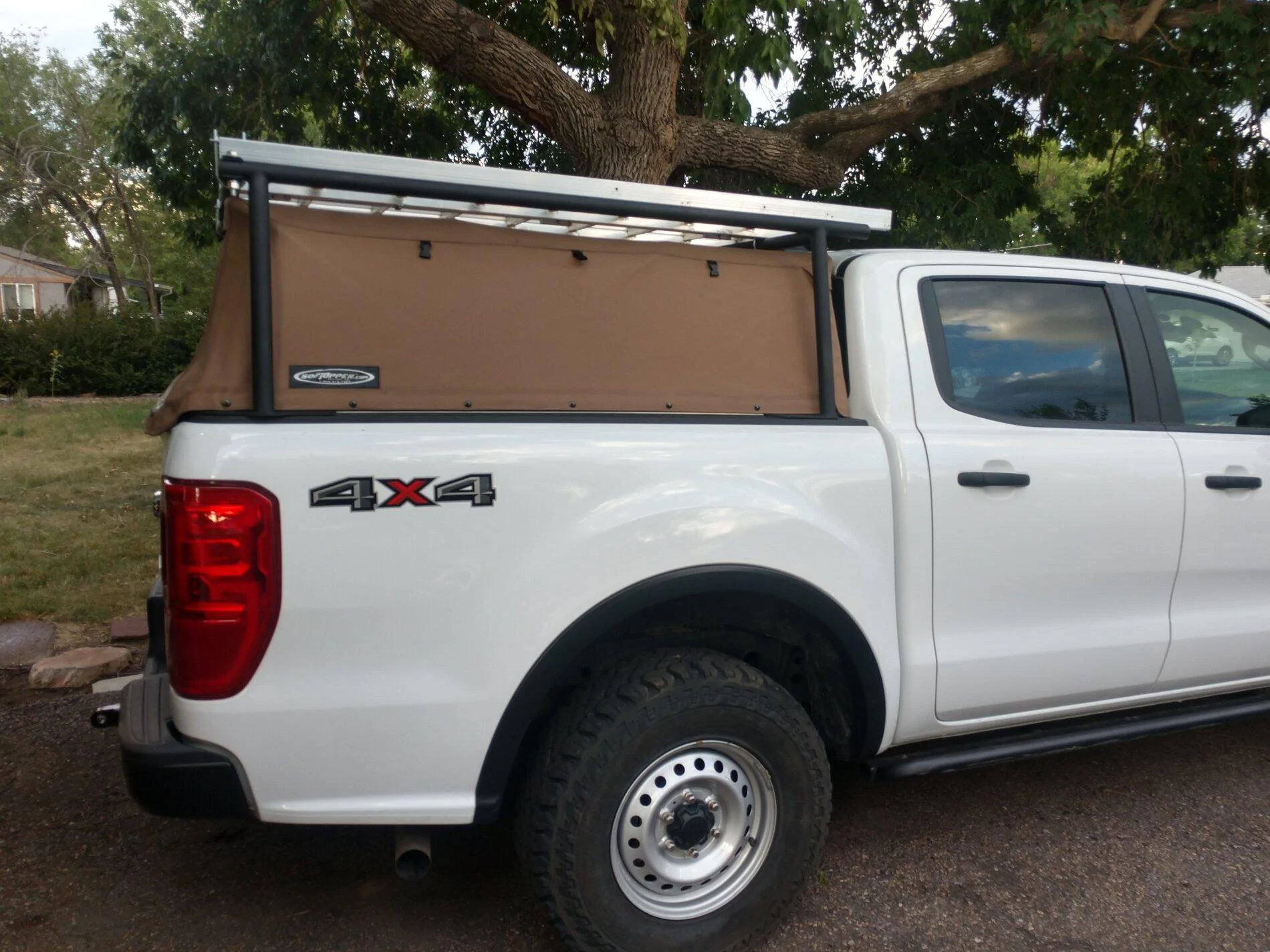

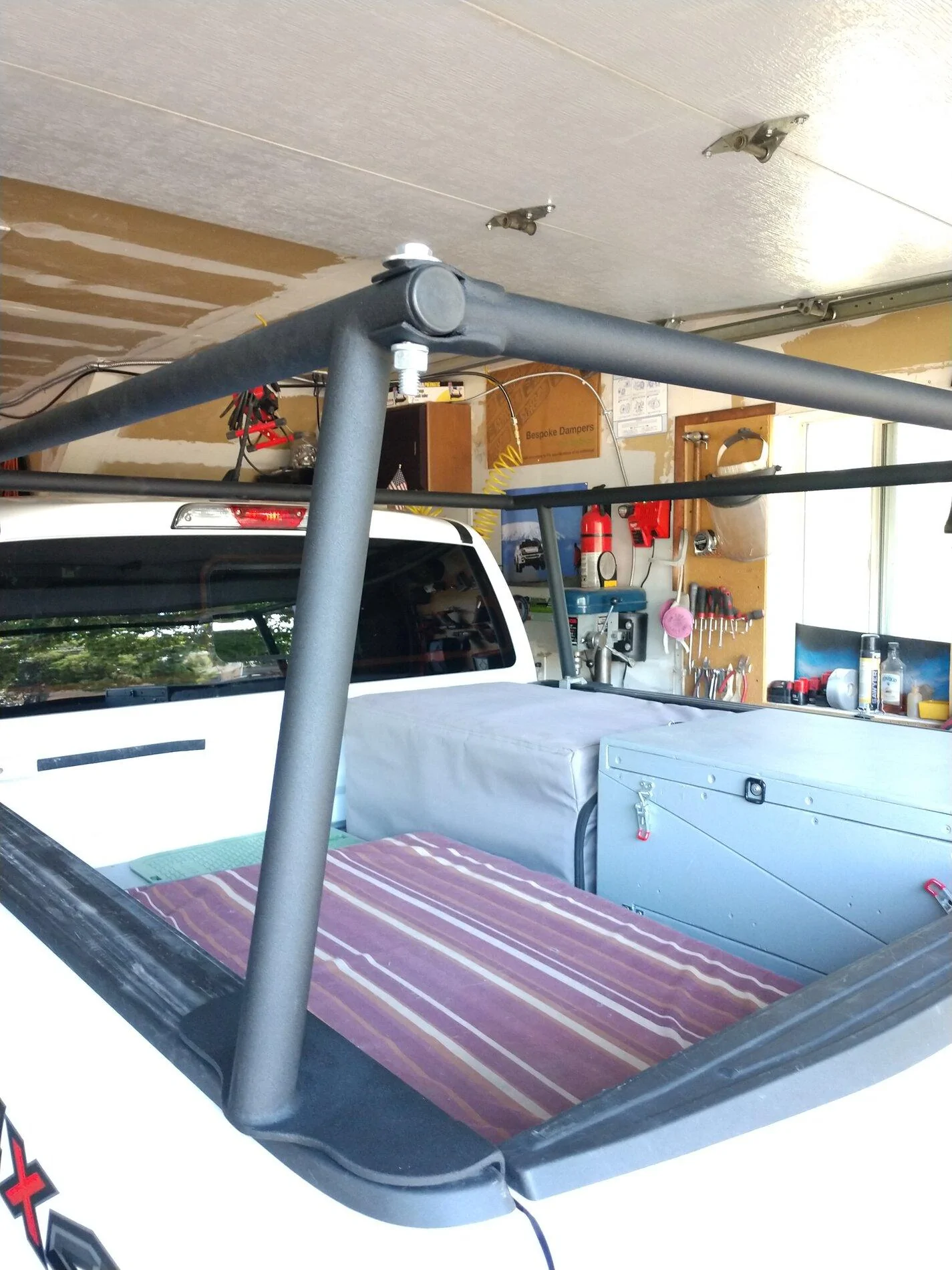

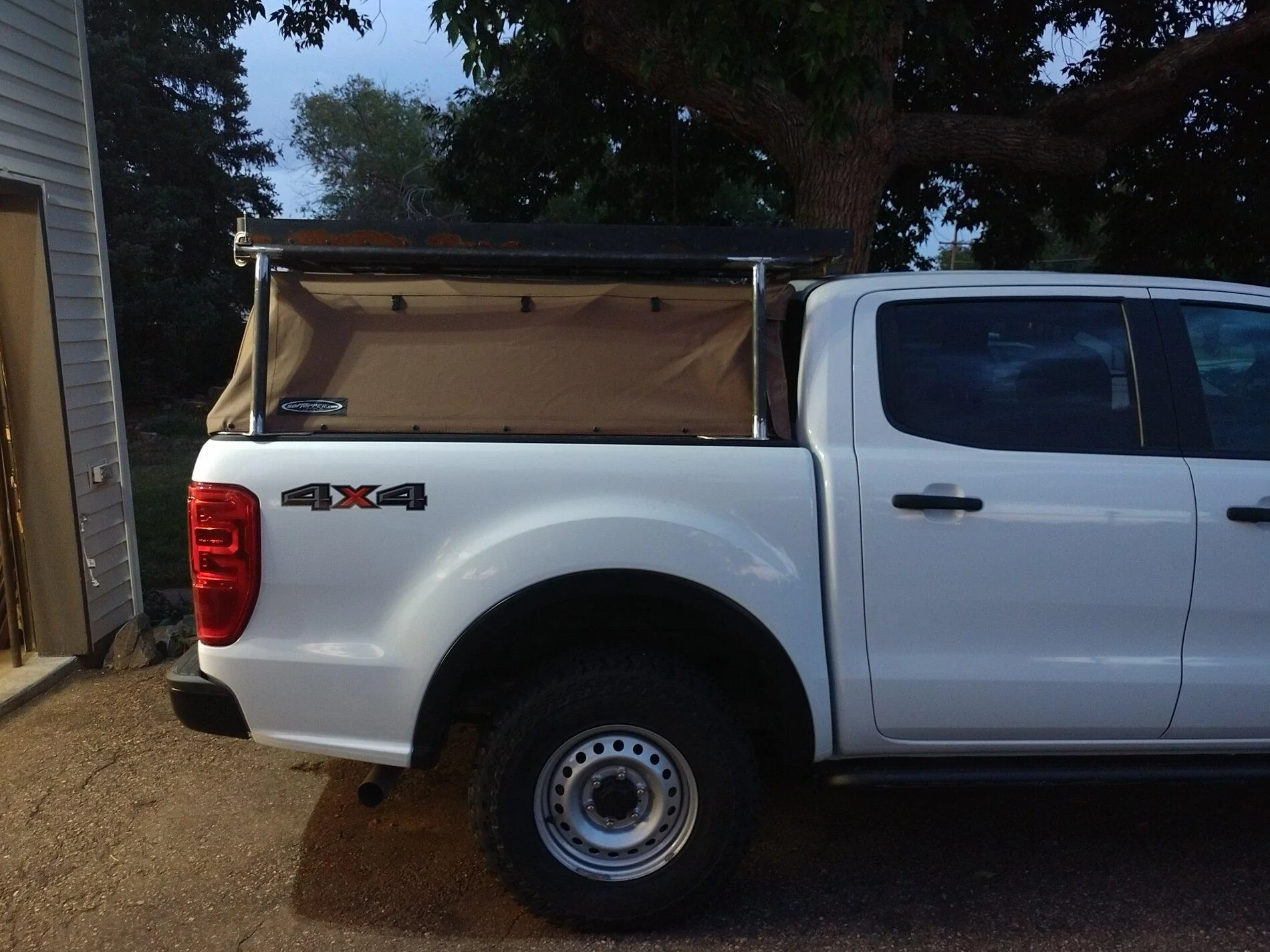

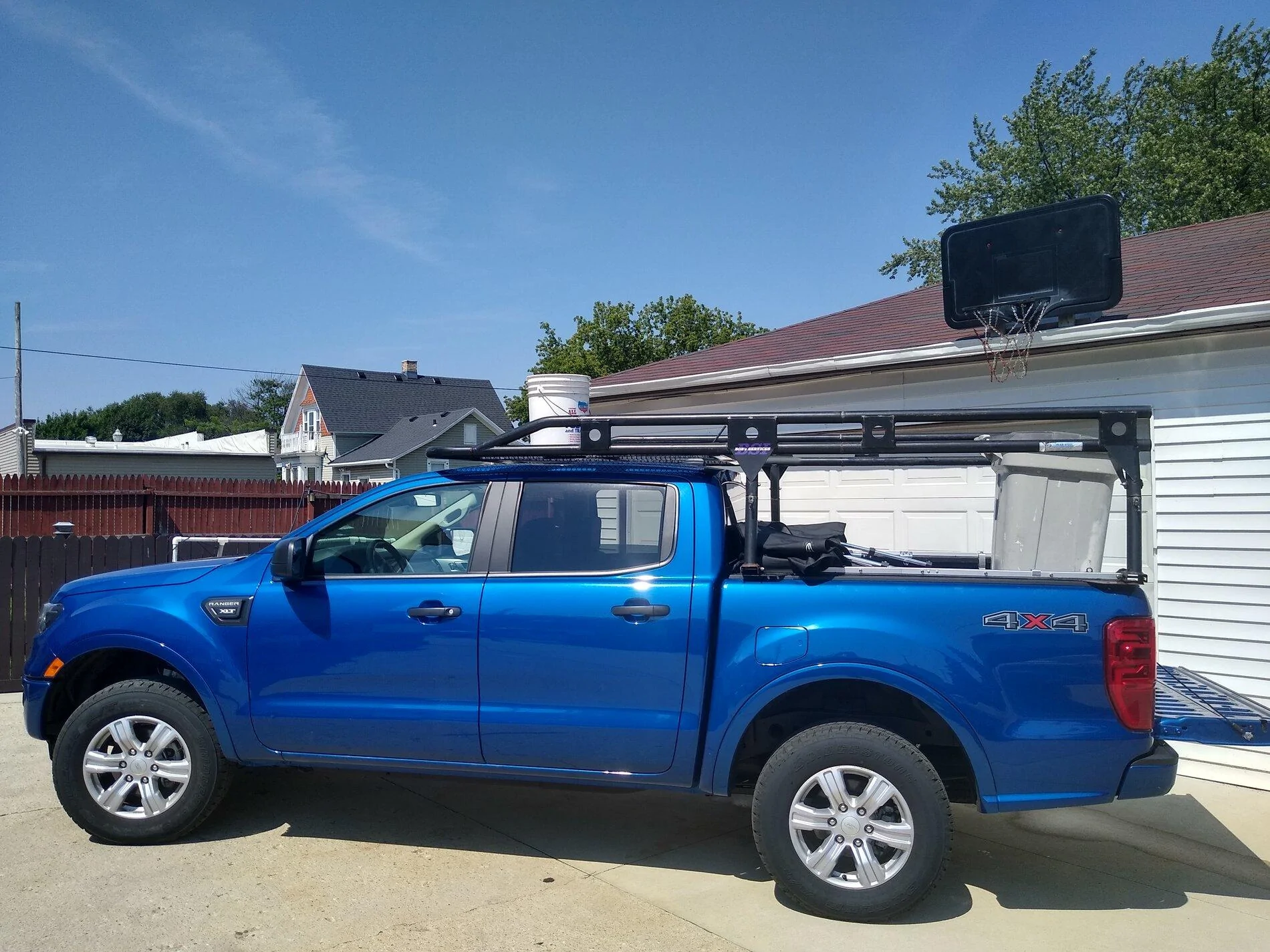

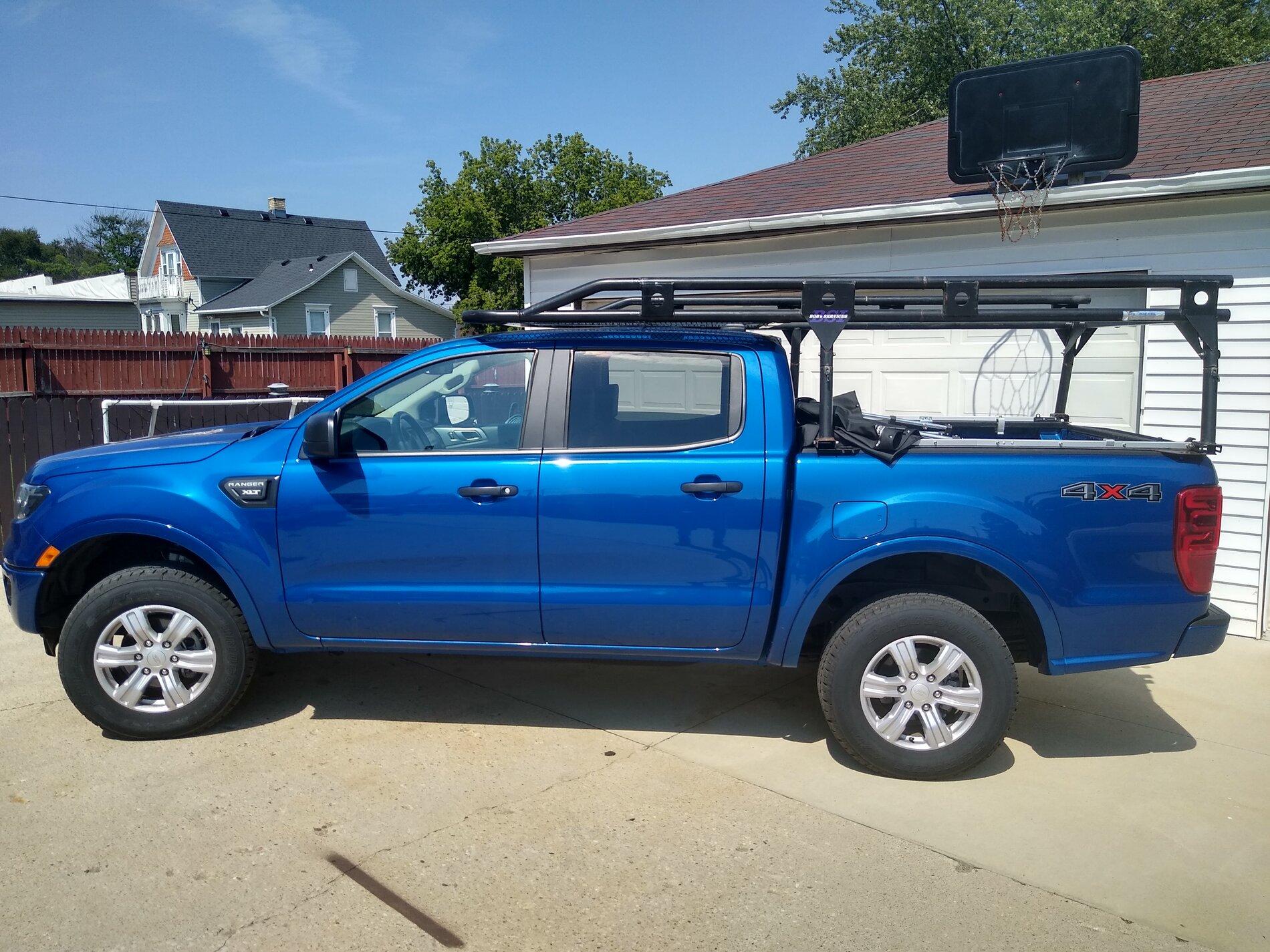

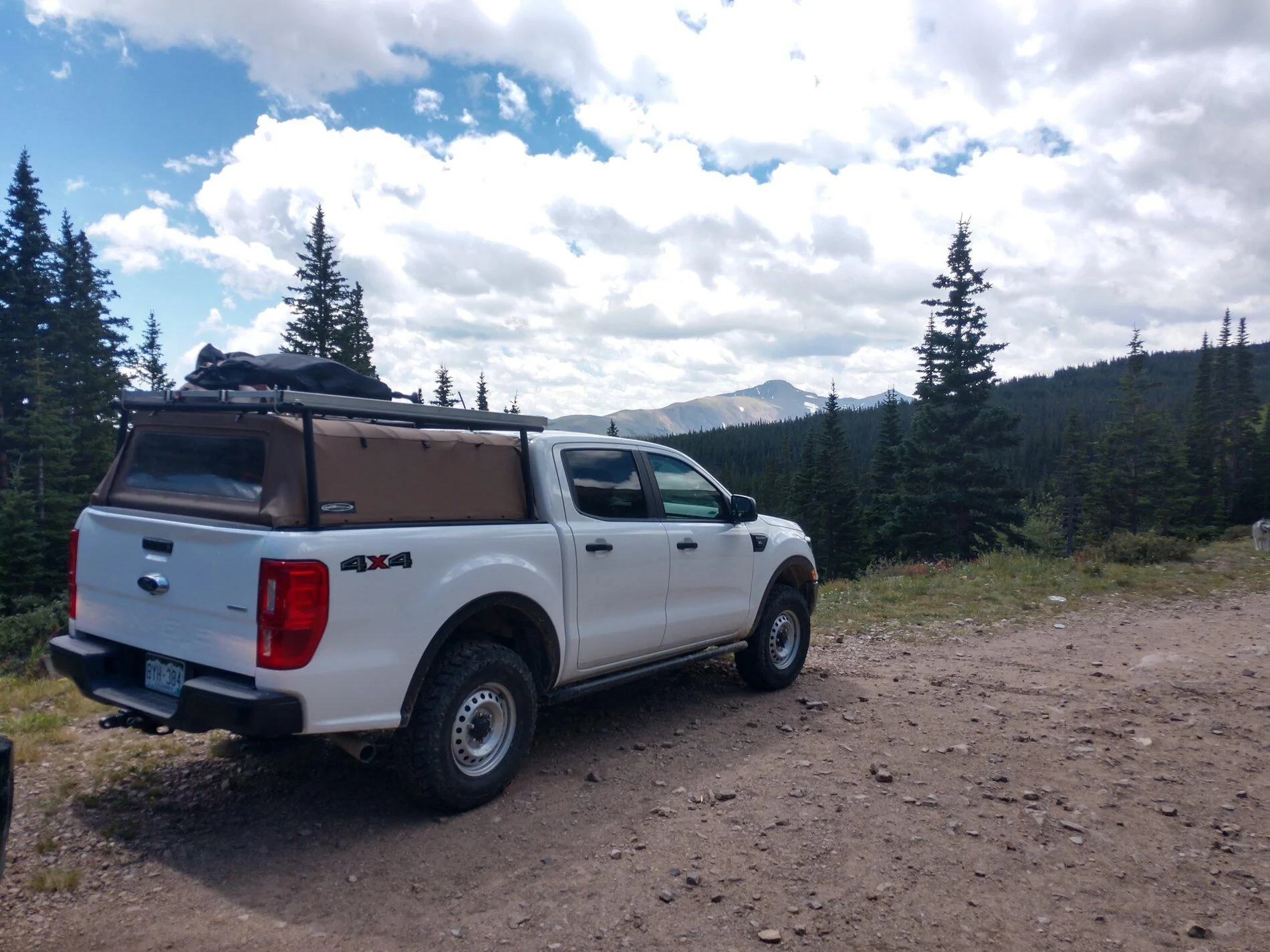

Got the rack back from powdercoating and hammered in the plastic end caps. Super happy with how it turned out. Also I had this aluminum rack thing laying that I clamped on for now... Need to either modify it a little or replace it with something eventually, but for now it'll hold gear at last. And of course I had to take it up the trail to test it out... Didn't fall off, so I'd say that's a success, lol.


ldr01rl

Well-Known Member
First Name
Robert
Joined
Jan 17, 2020
Messages
152
Reaction score
242
Location
TR Wisconsin
Vehicle(s)
2019 Ford Ranger XLT 4x4
Vehicle Showcase
1

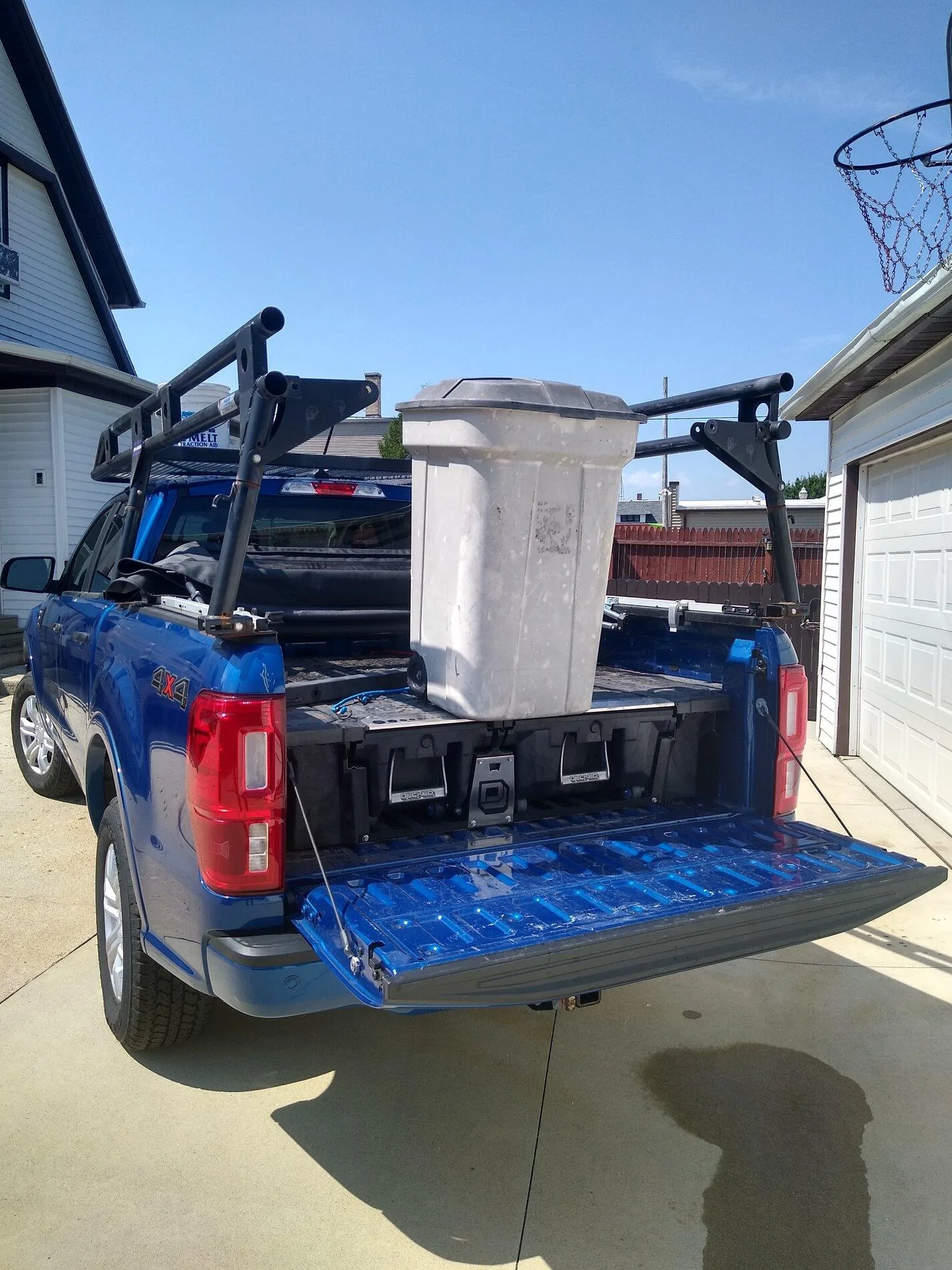

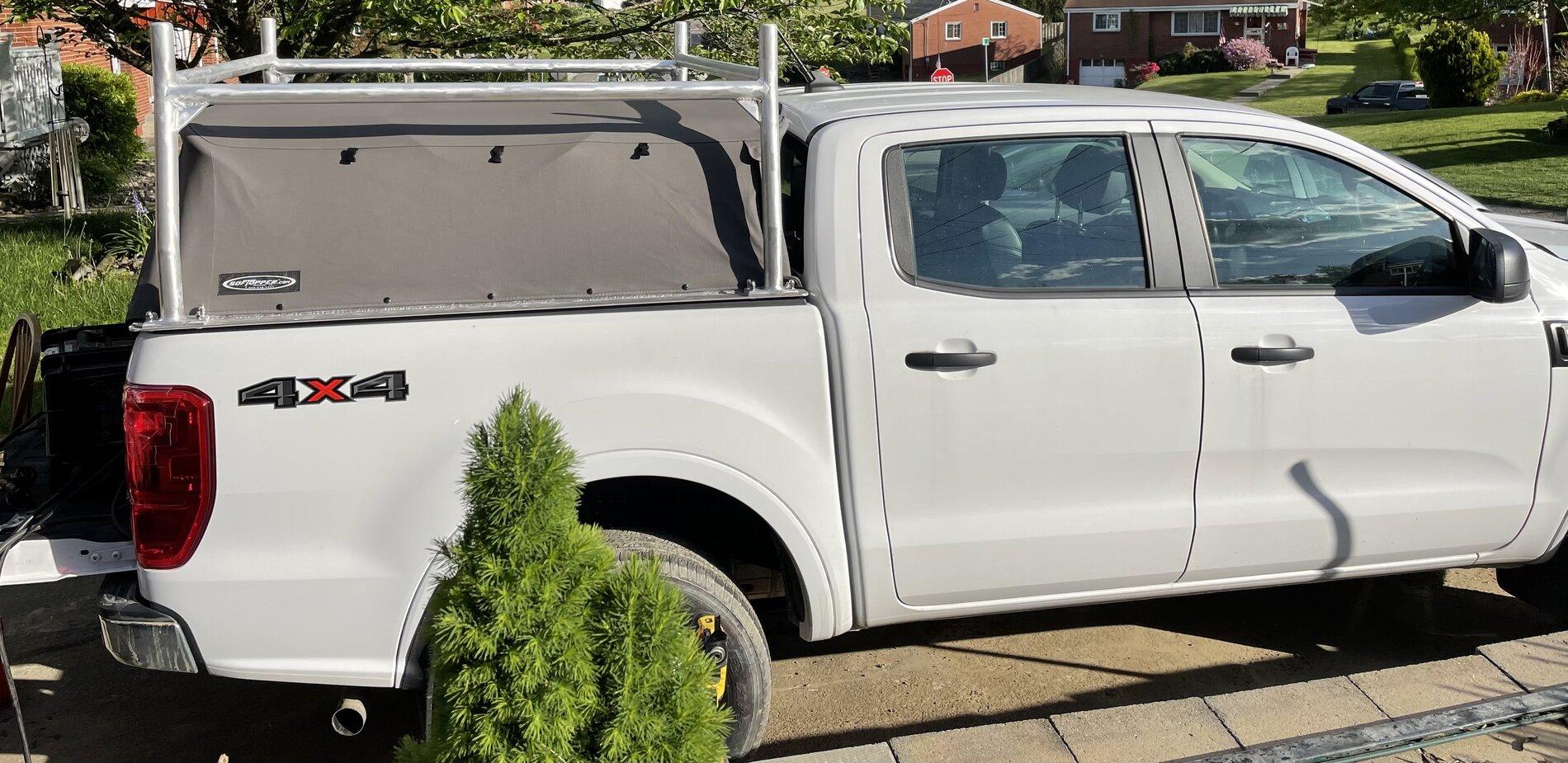

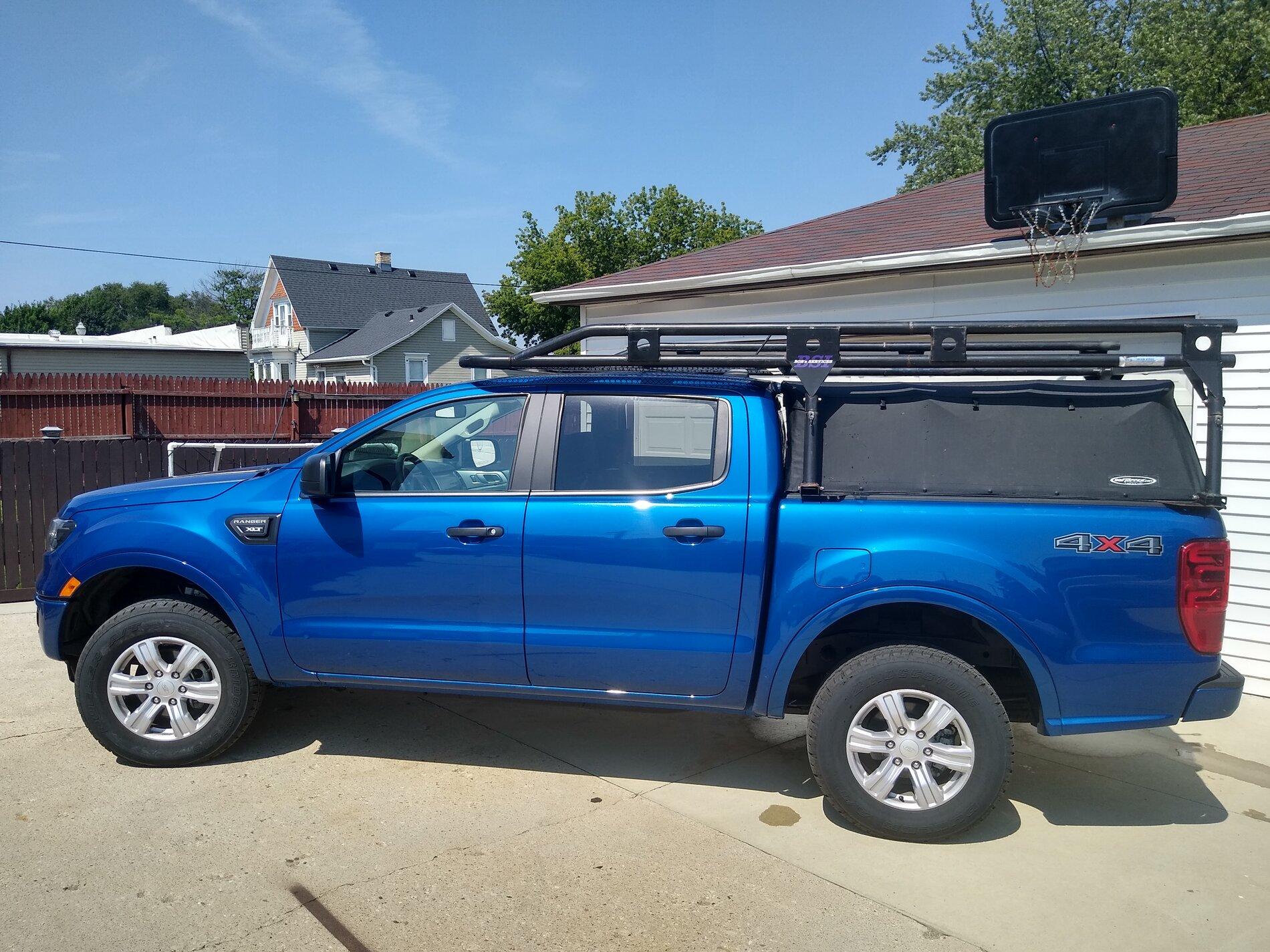

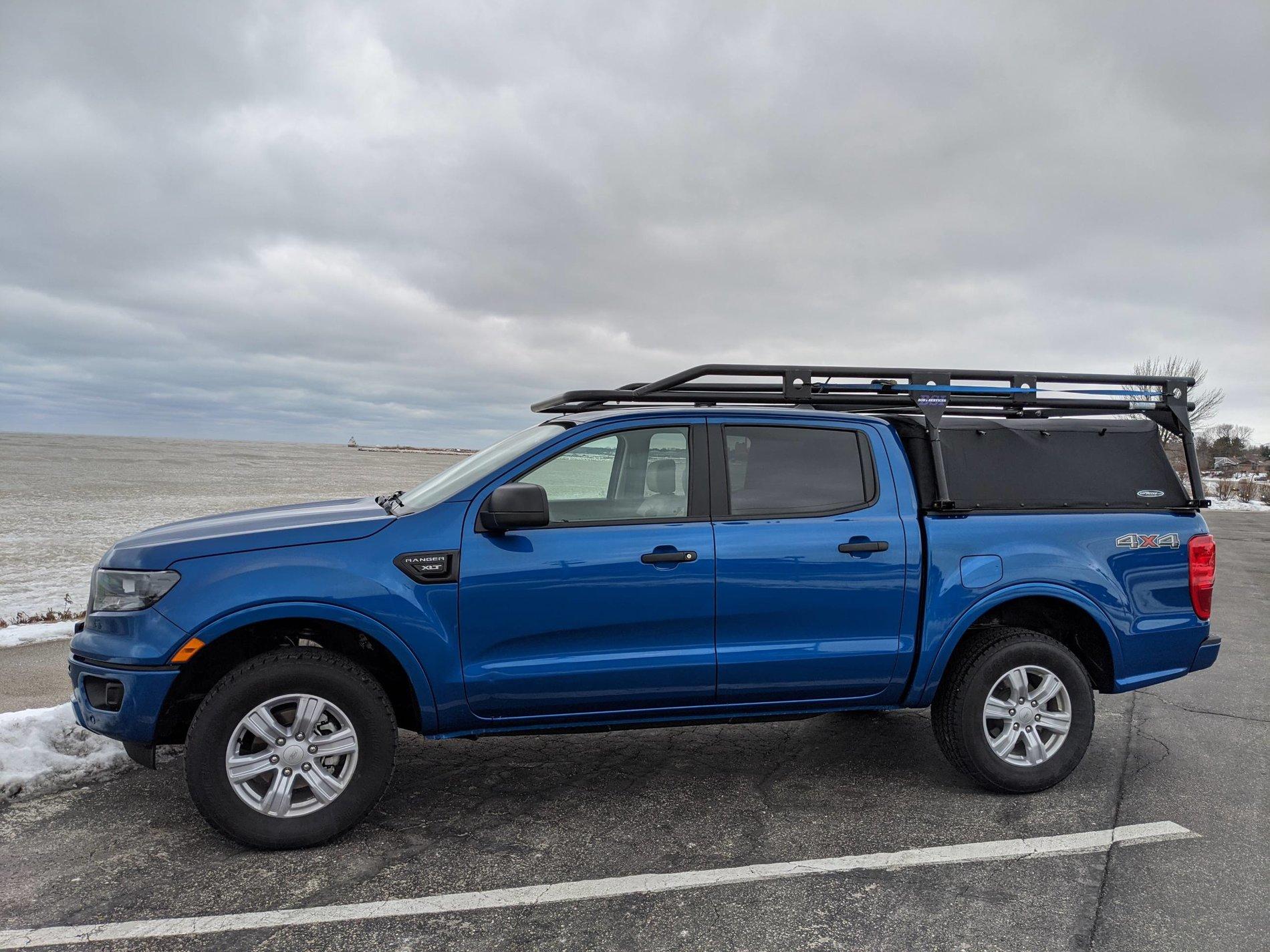

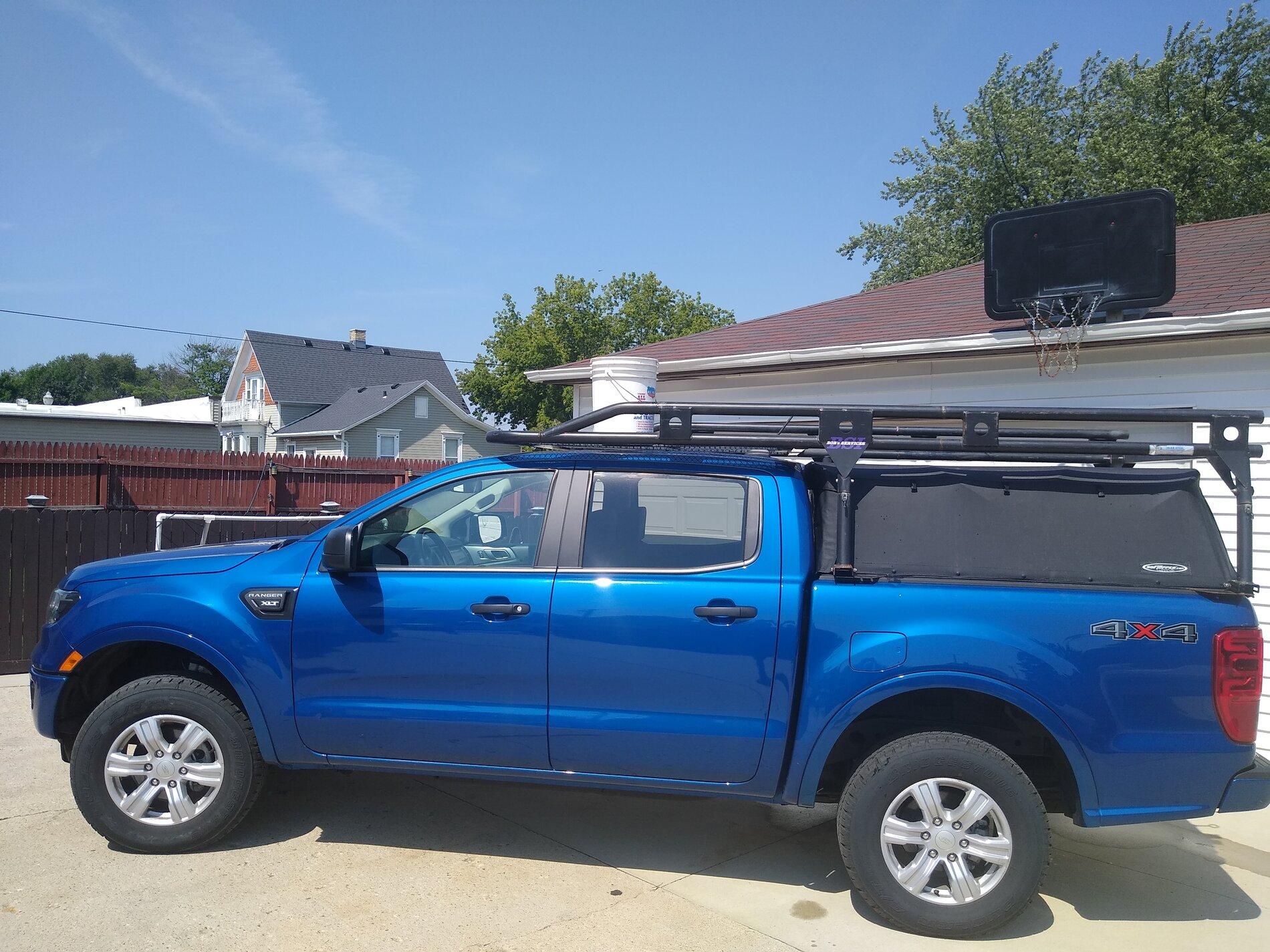

Hah! I just proofread this (Nov 28th). I widened my rack to allow the Softtopper to fold down. The front section of my rack is framed with expanded metal to allow some items to be placed up front and the rear bar had pins that can be pulled to allow high loads to be placed in the bed on the Decked system.
