Looking for a Replacement Rear Tail Light

Kataphrakt

Well-Known Member
First Name
Tim
Joined
Aug 6, 2019
Threads
6
Messages
144
Reaction score
227
Location
Grand Rapids Michigan
Vehicle(s)
Ranger XLT FX4 Offroad
Occupation
Mechanical Engineer - Mirrors
I'm sure there is a good reason you can't just replace the plastic outer piece.
IIRC These units are sealed together. The two plastic pieces of the housing are closed and then welded together.

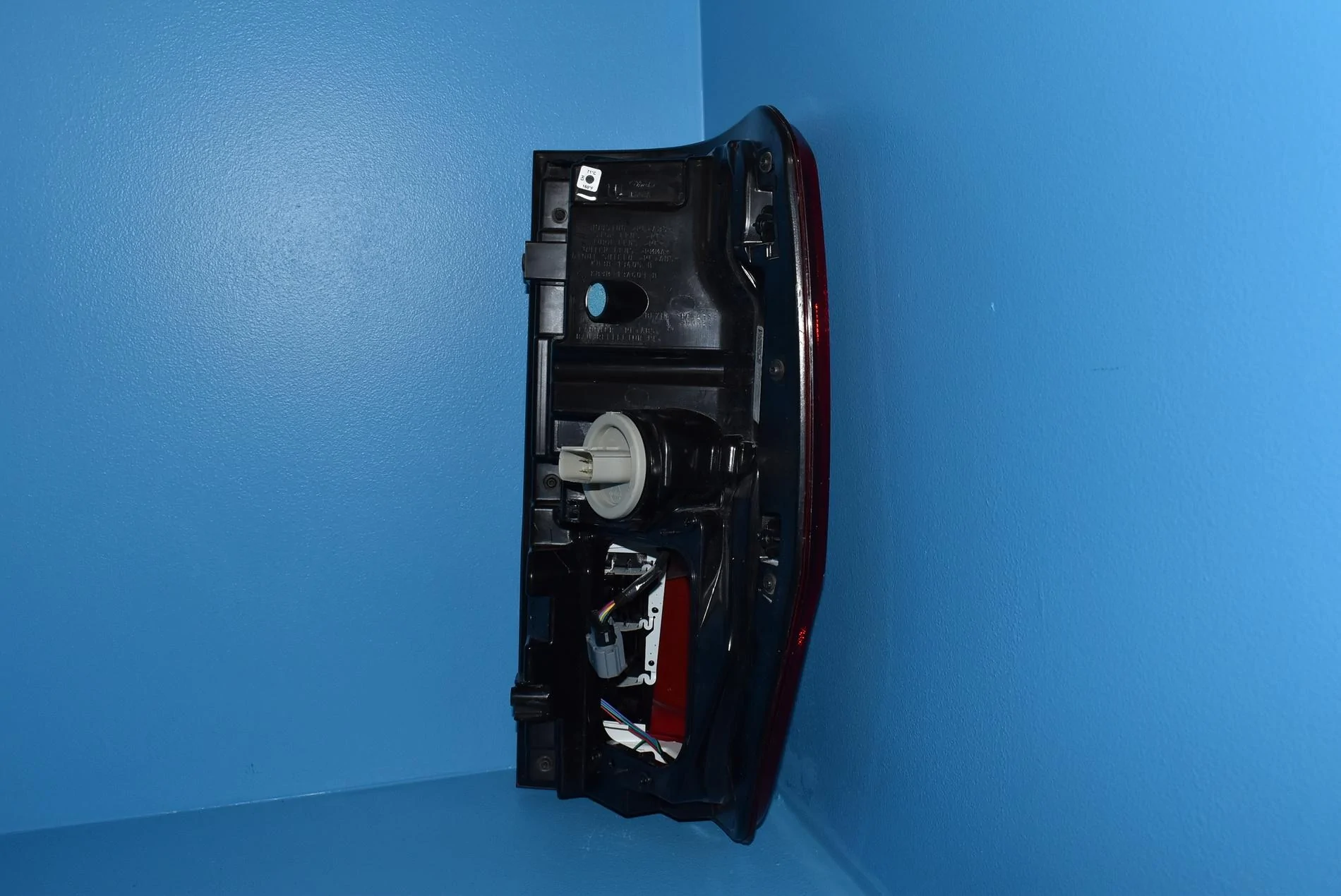

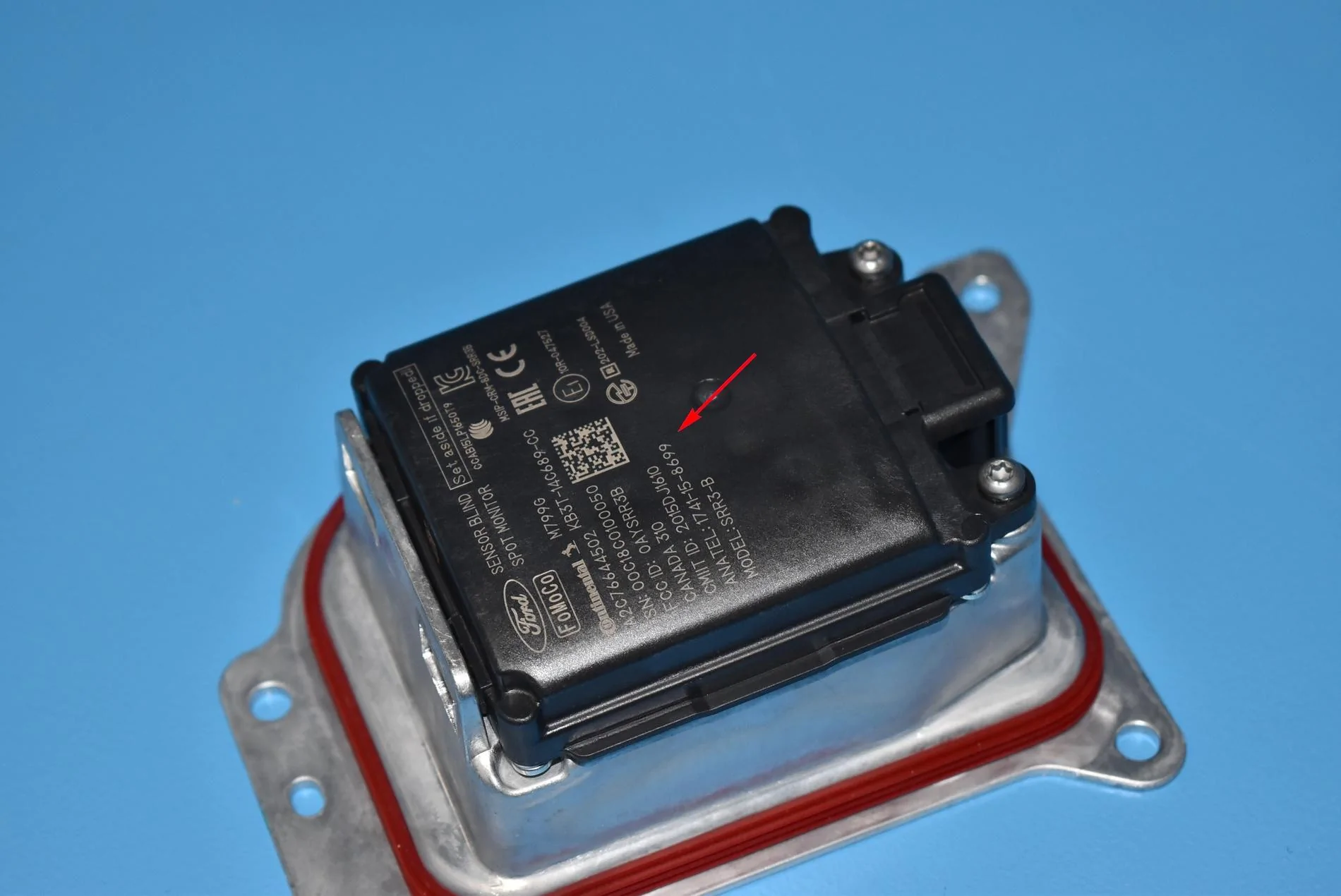

I can at least provide good news that the radar module is removable from the tail lamp. Next question is if you can get the radar module separate from the lamp. Maybe you can get the scrapyards to give you a discount when you remove the radar?




OP
OP
Ranger Boyd

Ranger Boyd

Well-Known Member
First Name
Boyd
Joined
Jul 19, 2019
Threads
3
Messages
57
Reaction score
28
Location
Westport Connecticut
Vehicle(s)
2019 Ford Ranger
IIRC These units are sealed together. The two plastic pieces of the housing are closed and then welded together.

I can at least provide good news that the radar module is removable from the tail lamp. Next question is if you can get the radar module separate from the lamp. Maybe you can get the scrapyards to give you a discount when you remove the radar?




OP
OP
Ranger Boyd

Ranger Boyd

Well-Known Member
First Name
Boyd
Joined
Jul 19, 2019
Threads
3
Messages
57
Reaction score
28
Location
Westport Connecticut
Vehicle(s)
2019 Ford Ranger

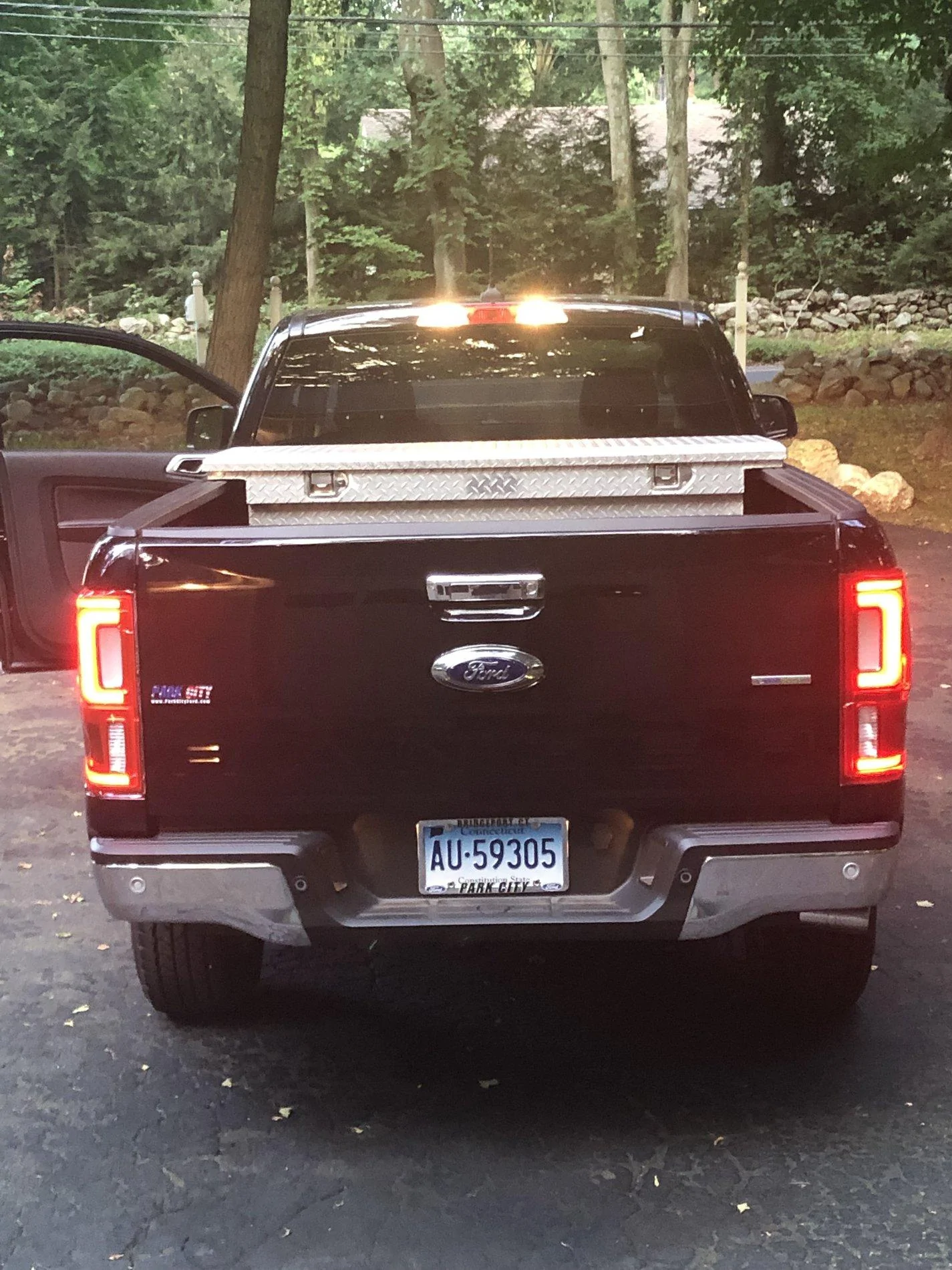

Thanks so much for the pic. I was going to take mine apart for investigative purposes. Saved me the time. As you can see from the pic , I snapped off all the red plastic and covered the clear lense with red taillight repair tape . $7! Not bad for a carpenter. I figure that eventually a bad taillight will show up that isn’t broken. I can’t thank all of you enough for your help and concern. Restores my faith in mankind. And I didn’t give any of you 35K for it. P S Love this truck!

OP
OP
Ranger Boyd

Ranger Boyd

Well-Known Member
First Name
Boyd
Joined
Jul 19, 2019
Threads
3
Messages
57
Reaction score
28
Location
Westport Connecticut
Vehicle(s)
2019 Ford Ranger
The 2019 Ranger taillight is a freakin AWACS radar system. I think we use it to track North Korean missles. Hence the $1200 price tag. The replacement taillights you see on eBay or through various parts distributors are for the older Ranger models. Not compatible. So I need a junkyard willing to take one apart or find one that doesn’t work that has a cover intact. A working used taillight is still $700. So my repair looks better every day.



OP
OP
Ranger Boyd

Ranger Boyd

Well-Known Member
First Name
Boyd
Joined
Jul 19, 2019
Threads
3
Messages
57
Reaction score
28
Location
Westport Connecticut
Vehicle(s)
2019 Ford Ranger
The 2019 Ranger taillight is a freakin AWACS radar system. I think we use it to track North Korean missles. Hence the $1200 price tag. The replacement taillights you see on eBay or through various parts distributors are for the older Ranger models. Not compatible. So I need a junkyard willing to take one apart or find one that doesn’t work that has a cover intact. A working used taillight is still $700. So my repair looks better every day.


Kataphrakt

Well-Known Member
First Name
Tim
Joined
Aug 6, 2019
Threads
6
Messages
144
Reaction score
227
Location
Grand Rapids Michigan
Vehicle(s)
Ranger XLT FX4 Offroad
Occupation
Mechanical Engineer - Mirrors
Thanks so much for the pic. I was going to take mine apart for investigative purposes. Saved me the time. As you can see from the pic , I snapped off all the red plastic and covered the clear lense with red taillight repair tape . $7! Not bad for a carpenter. I figure that eventually a bad taillight will show up that isn’t broken. I can’t thank all of you enough for your help and concern. Restores my faith in mankind. And I didn’t give any of you 35K for it. P S Love this truck!

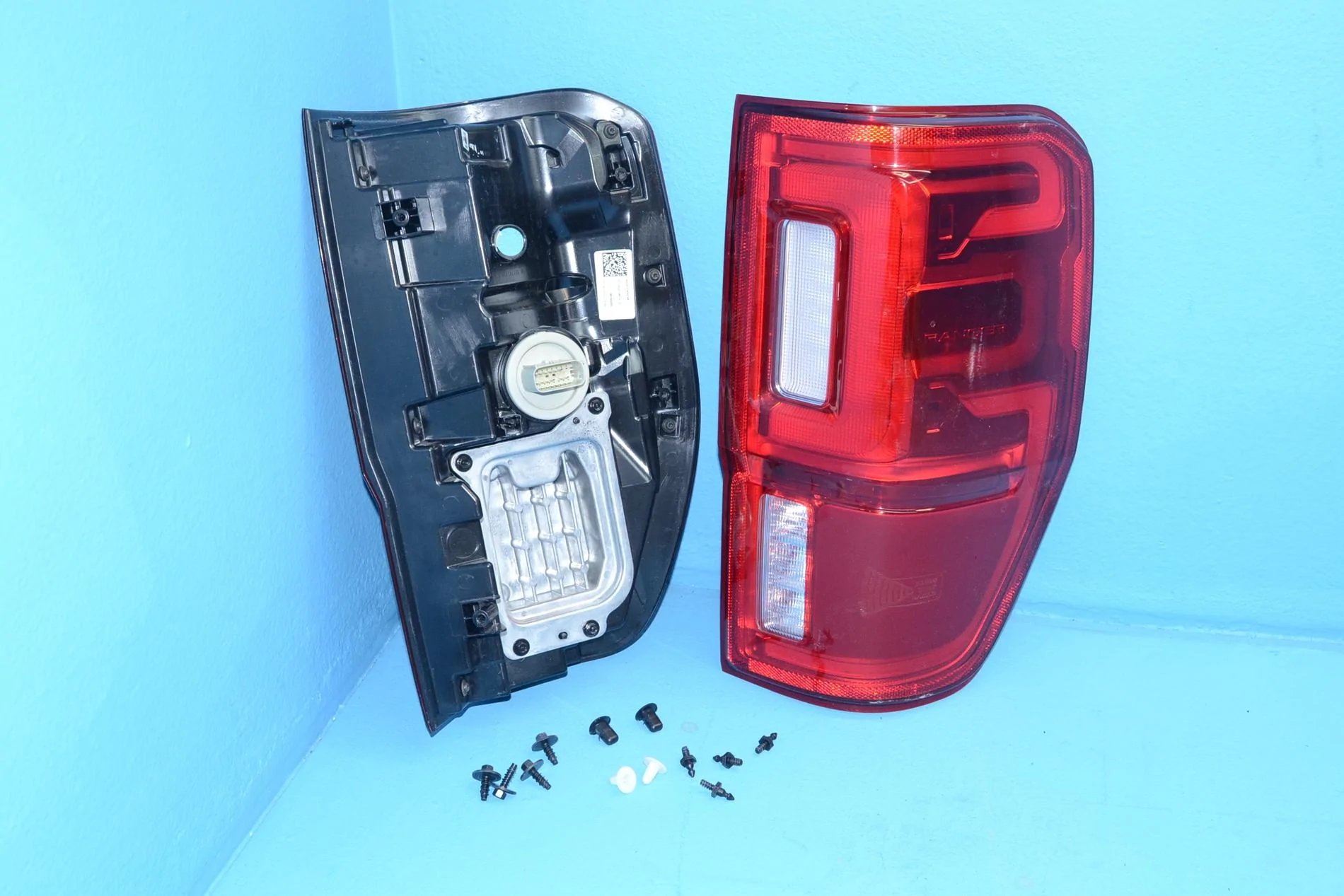

Also, while everyone has said that you cannot take apart another tail light to steal its plastic cover, it is both technically correct, but functionally slightly incorrect. If the module is welded together there certainly is no way to traditionally take it apart without breaking the casings; however, you could carefully cut off the plastic housing. You would probably want to use a dremel around the perimeter leaving enough of the clear red housing so you can sand it all flat for a smooth surface to attach to. Then take another light and do the same but removing the black housing so that the red housing is untouched. Once you have two housings you could glue the two together (probably with some kind of silicon sealant?). I havent got a standard (non-radar) tail light picture, but if you get extra fancy you might be able to use a portion of that to fix your tail light. It'd be a PITA though.
