Gotta love having a truck! Had an interesting drive to a different office than I usually go to and ended up taking me an hour and a half! Got most of the way there and then the expressway was barely inching along. So I decided to get off the main road and try a side road, ran into another backup! So I took one more additional route, and ended up on some dirt roads through farms and fields, some water over the road...quite an adventure! Once again though, the Ranger handled it with no issue at all! And i had a good smile on my face when I got into the office! Haha!







Advertisement




OP
WxNerd2015

WxNerd2015

Well-Known Member
First Name
Trevor
Joined
Oct 17, 2018
Messages
240
Reaction score
635
Location
Madison Heights, Michigan
Vehicle(s)
2019 Ford Ranger XLT SuperCrew, 2011 Jeep Wrangler Sport S, 2017 Ford Escape SE AWD
Occupation
Applications Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #92

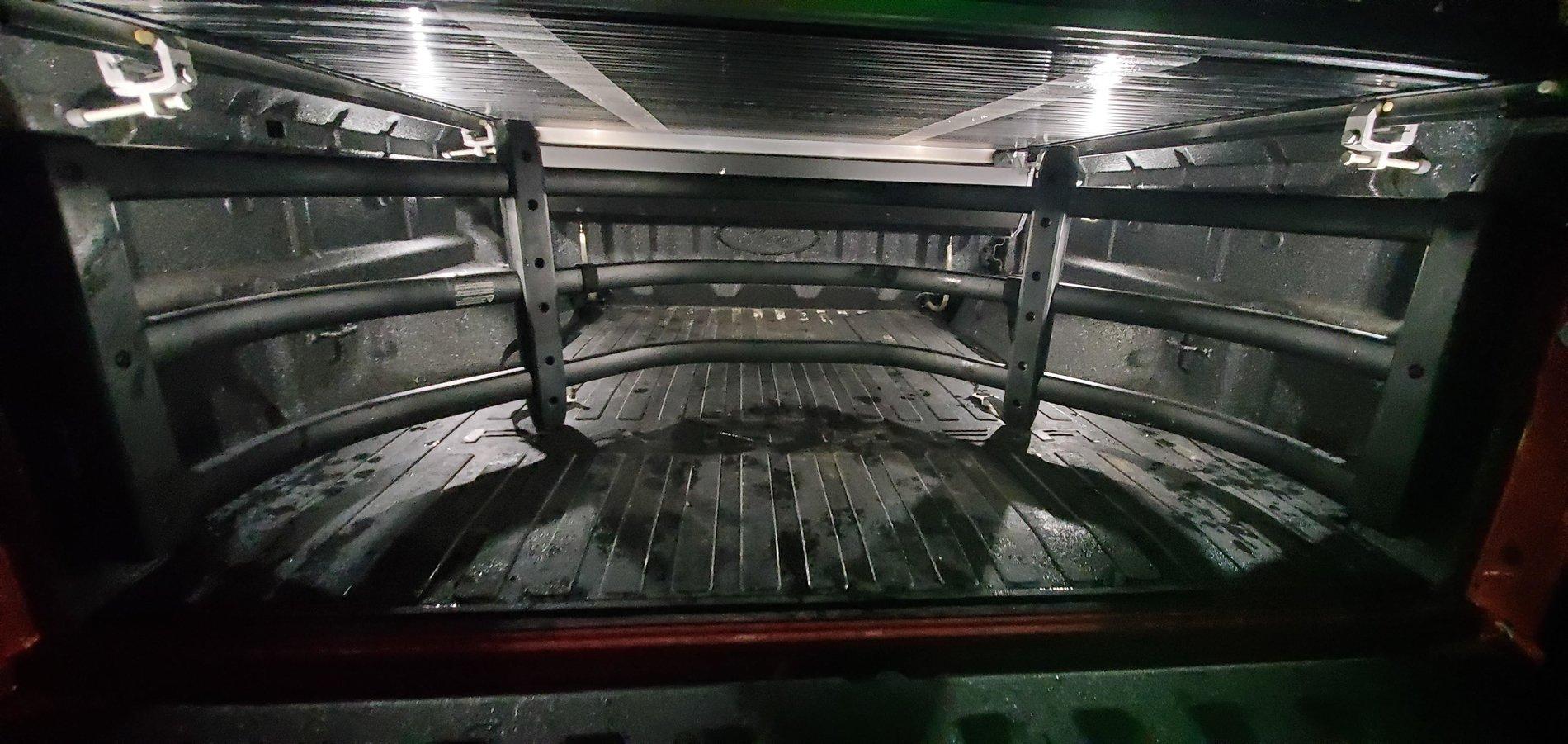

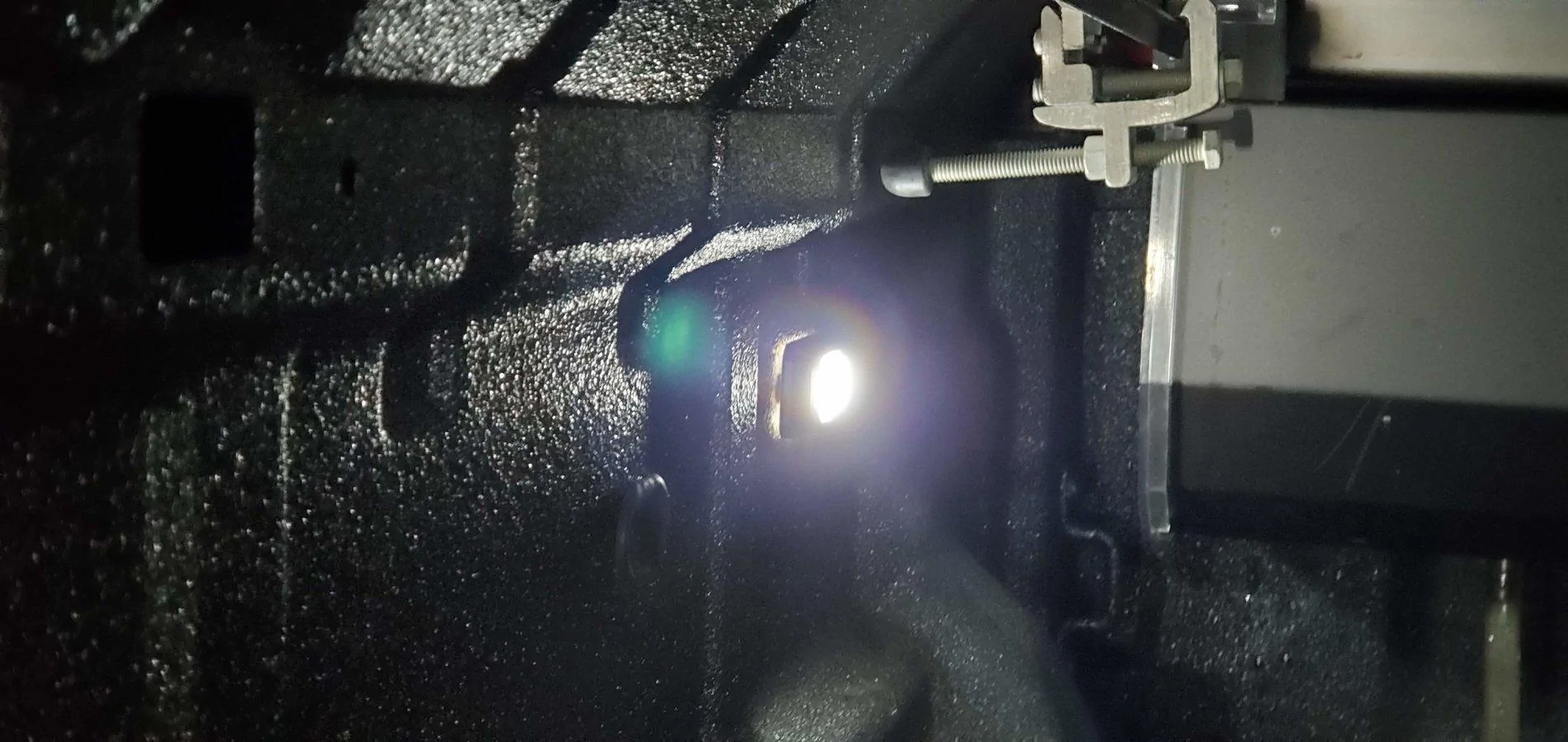

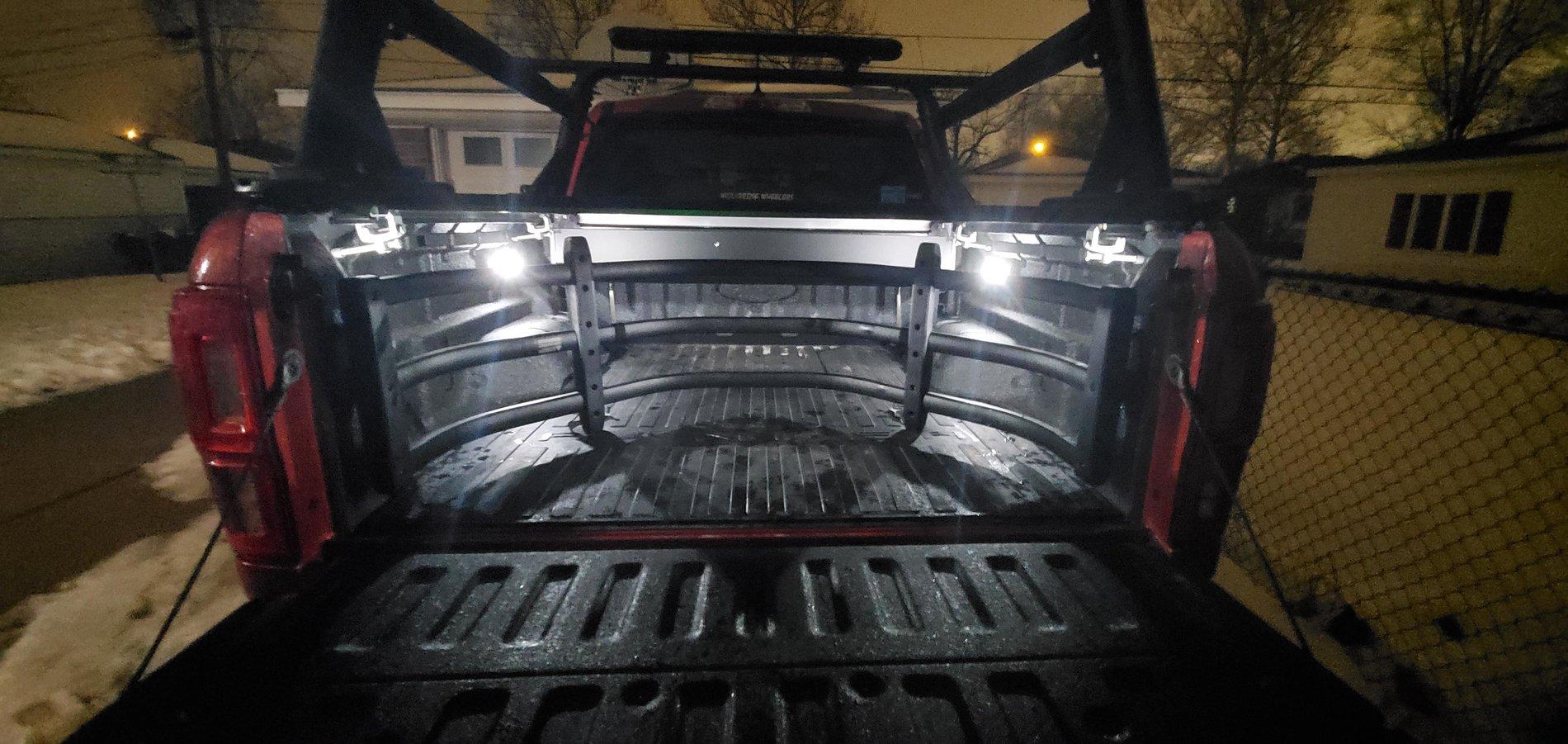

Just wanted to post a quick update on the truck! Back at the end of January, I got the taillight recall checked off the list, and mine did not display the issue, so no change needed! Also, I got the Ford Touchlink Bed Light kit and while the truck was in for the recall, I had the dealer install the kit as well! I am very happy with it and it is working great!




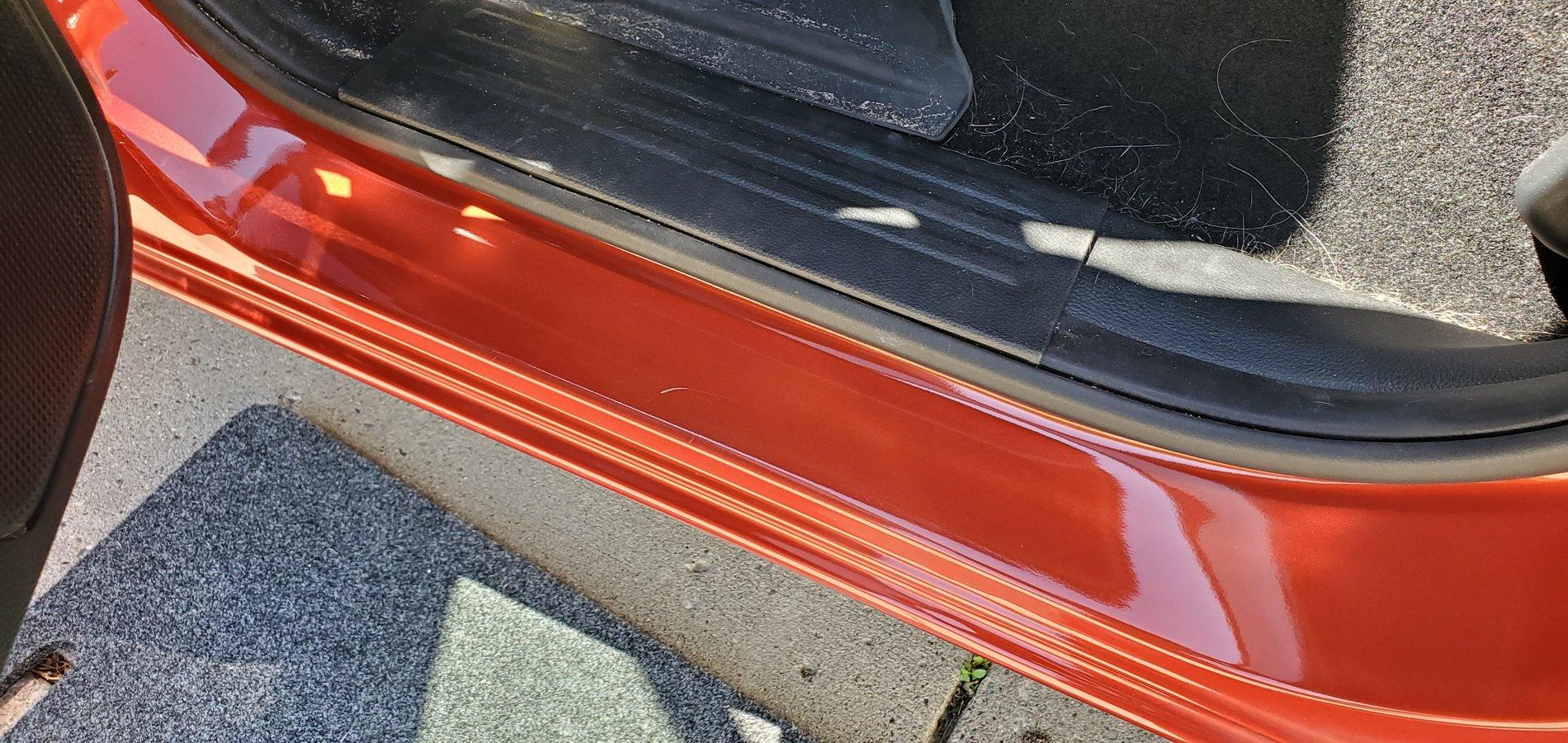

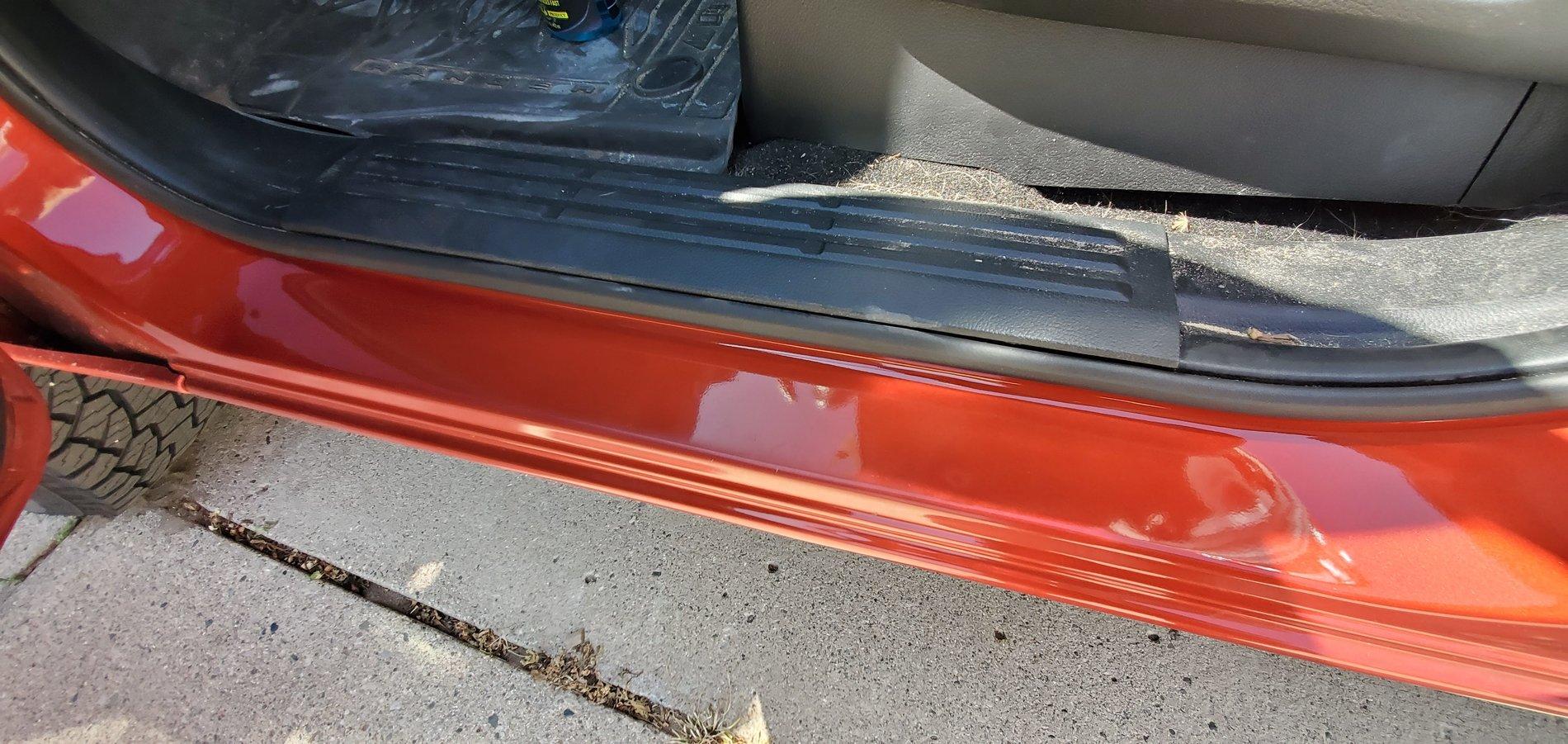

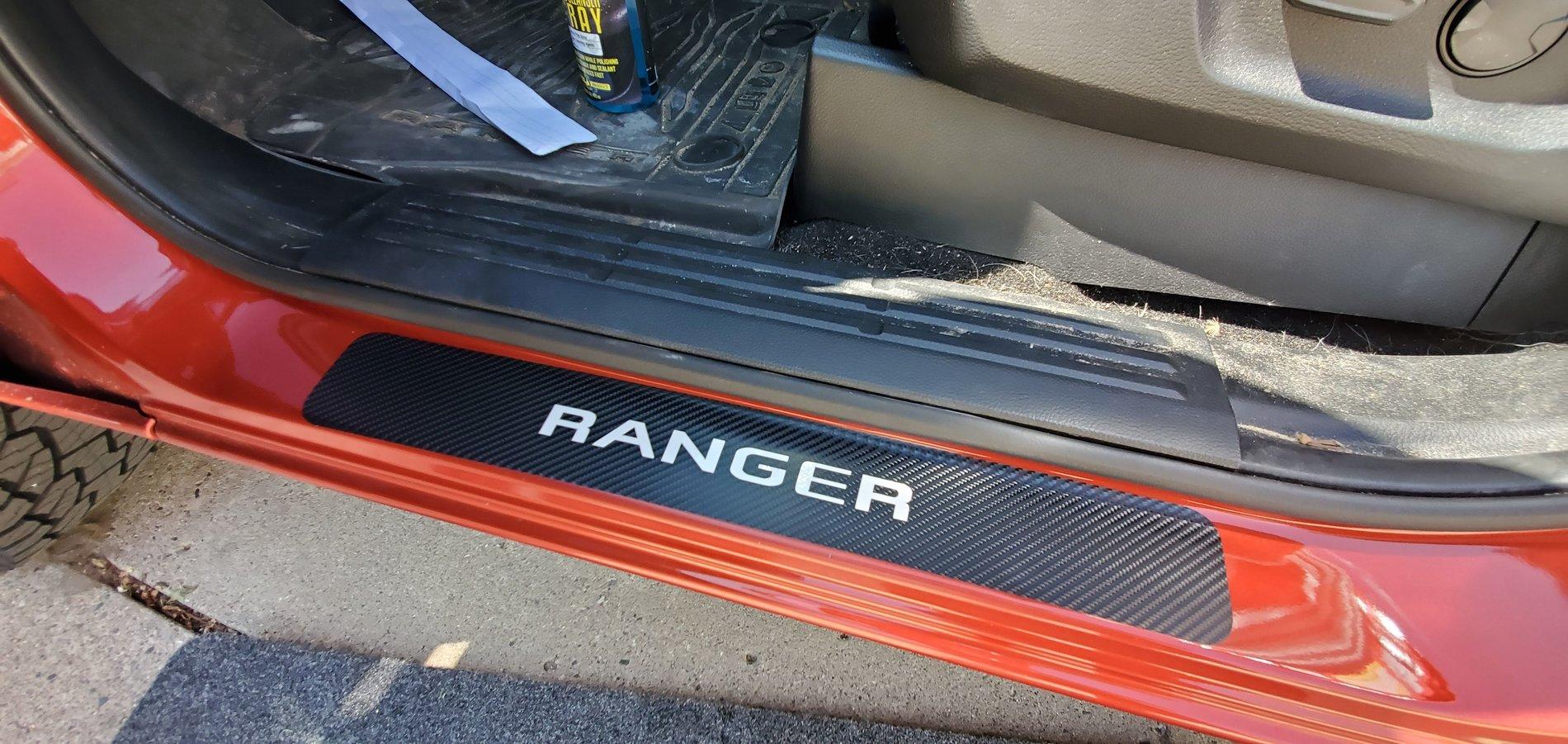

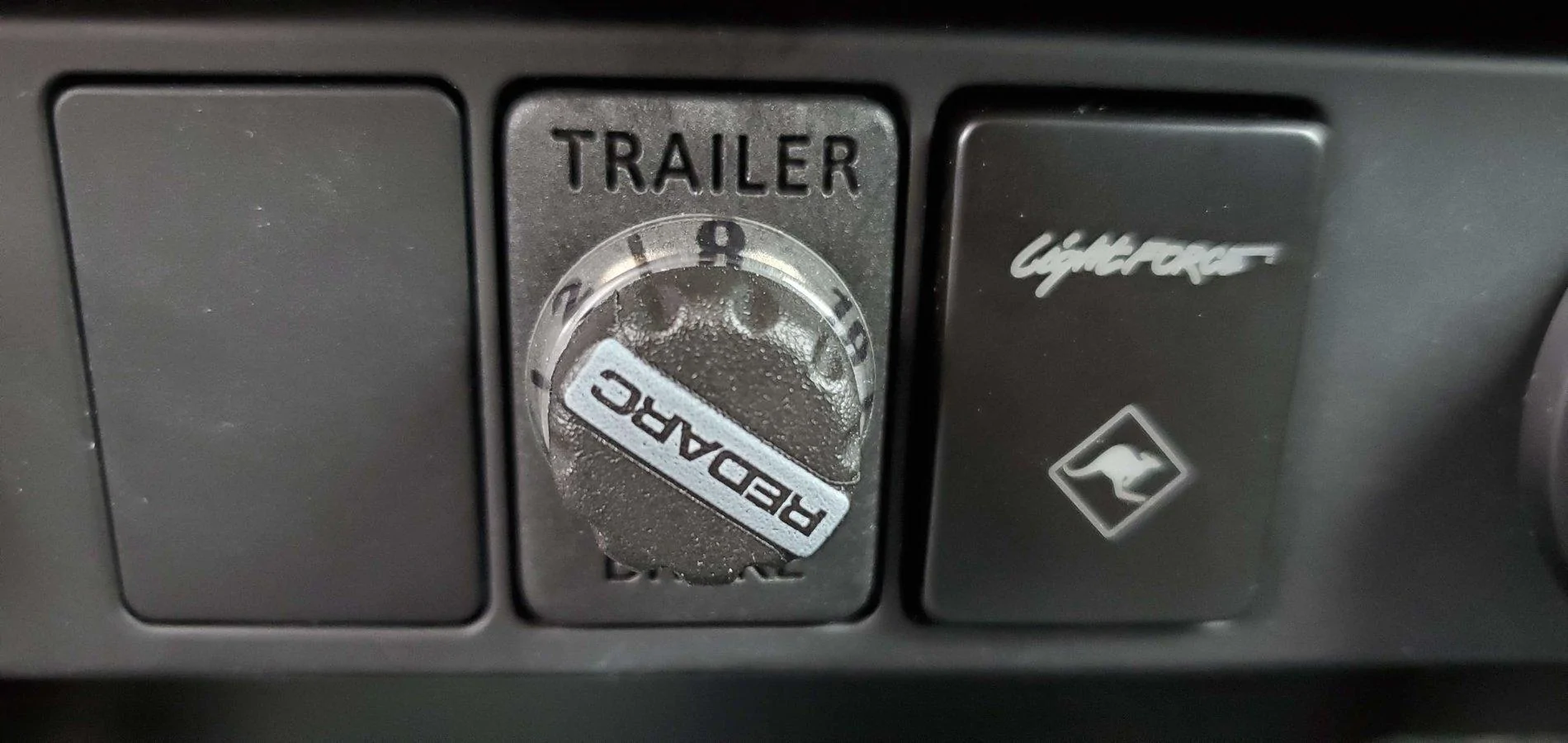

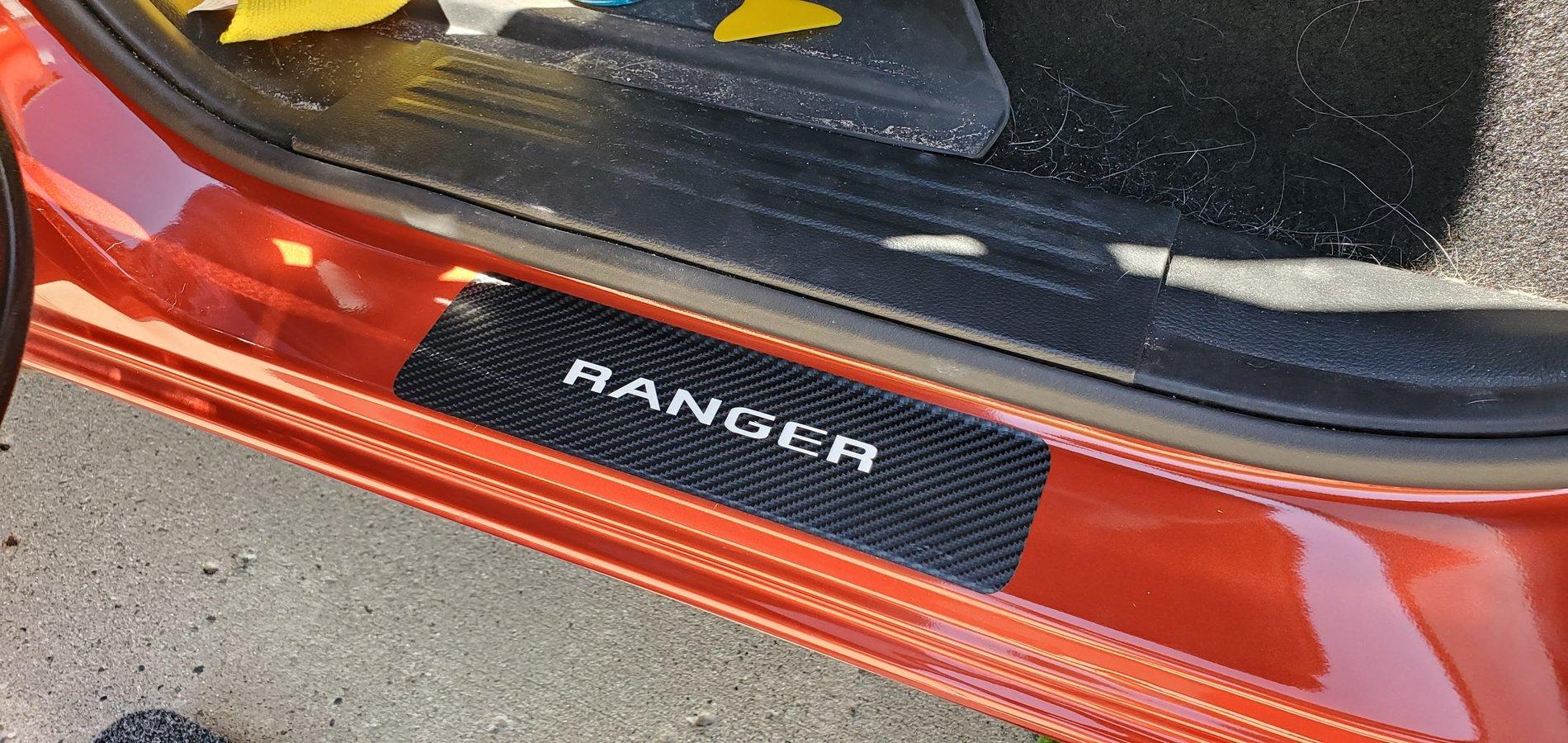

Also, I have some other misc. part around that will be installed soon, including some door sill guards, Trailer Brake Controller, light force switch fascia, CB radio, mounts for CB and Ham radio, CHMSL antenna mount and associated cables! So stay tuned! Lots more to come!


PatrickM

Well-Known Member
First Name
Patrick
Joined
Jan 13, 2019
Messages
276
Reaction score
491
Location
Sin City
Website
www.pmiyoshiphoto.com
Vehicle(s)
Subaru Outback16, Ford Ranger 11
Occupation
⭐ tender
Vehicle Showcase
1

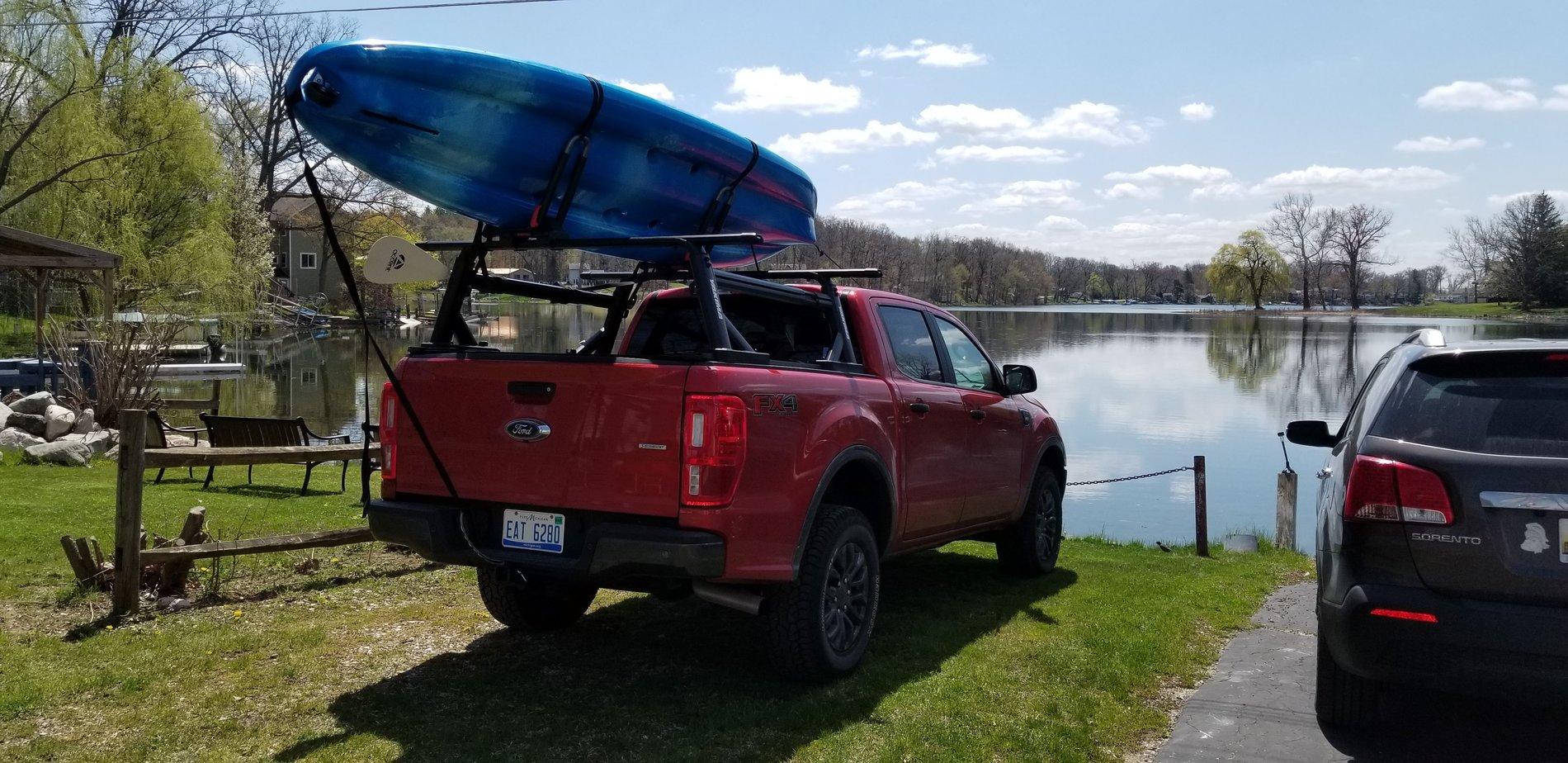

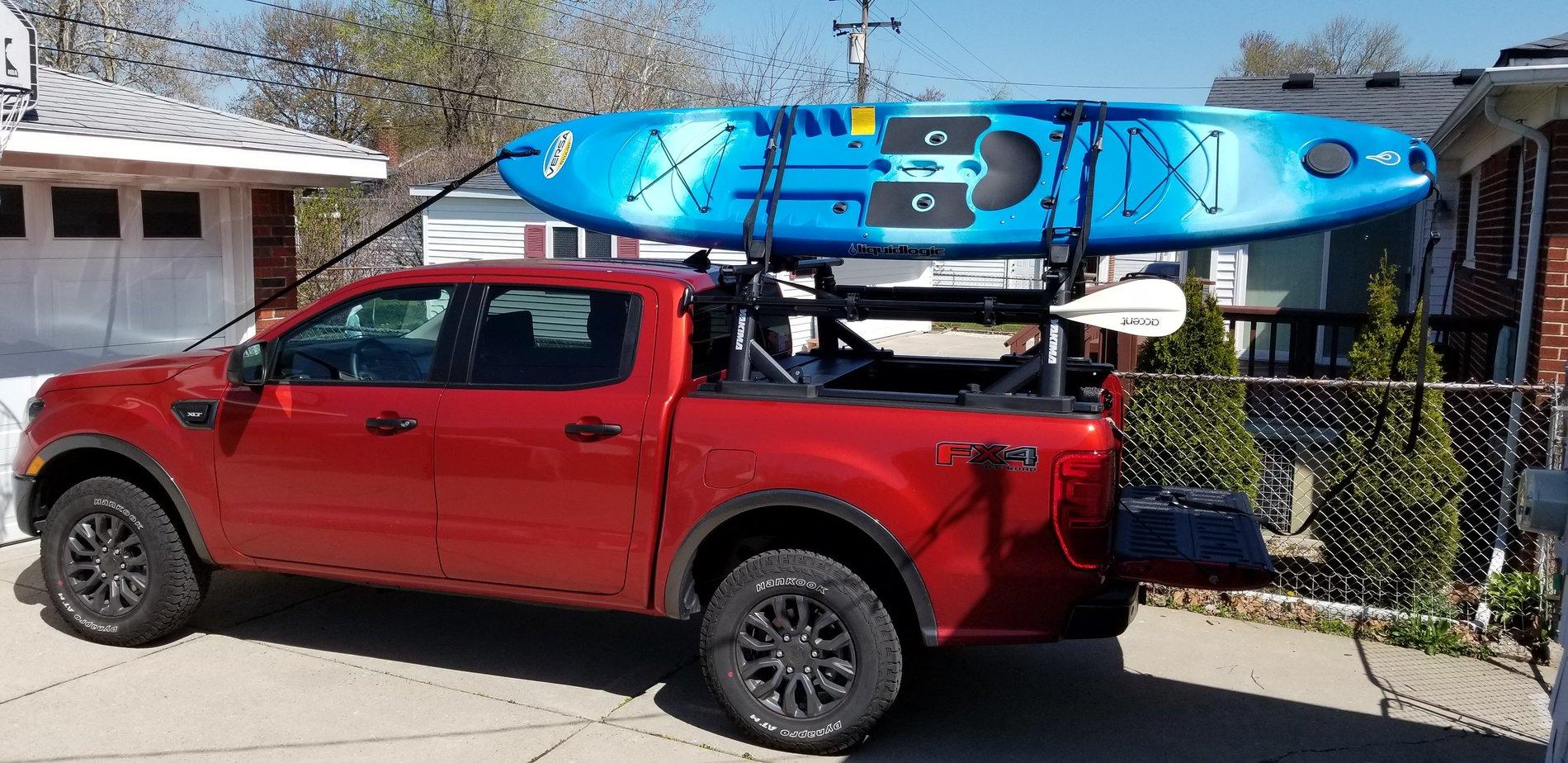

Ranger got to have some more fun this weekend! And the maiden voyage for the VersaBoard and the Jaylow mounts on the truck! The wife and I went out to a few local lakes in SE Michigan for some sunny fun on Sunday! The water was still a bit cold, but it was a beautiful spring Michigan day overall! Here's a few shots from the day and my wife enjoying the water a bit!





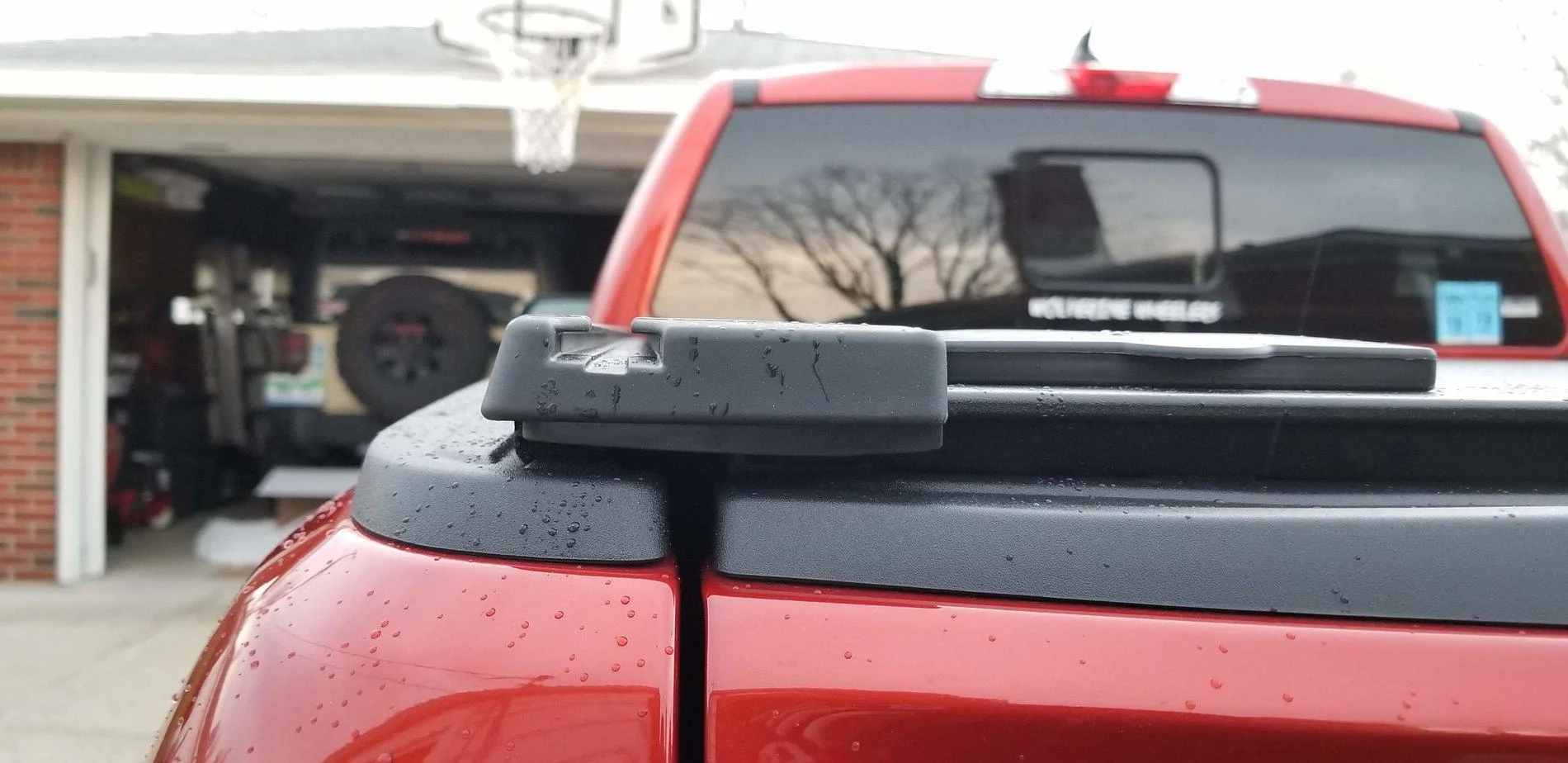

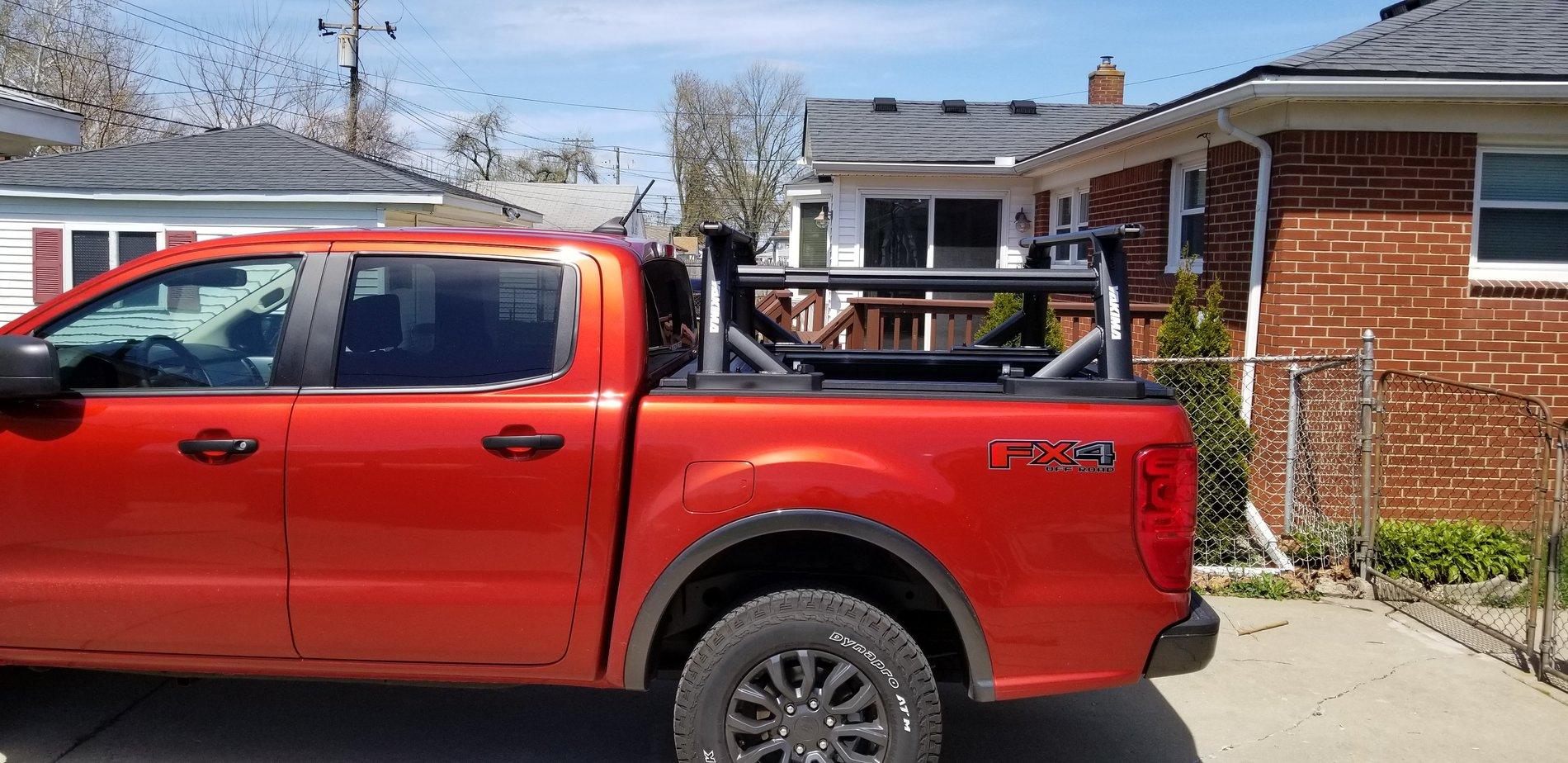

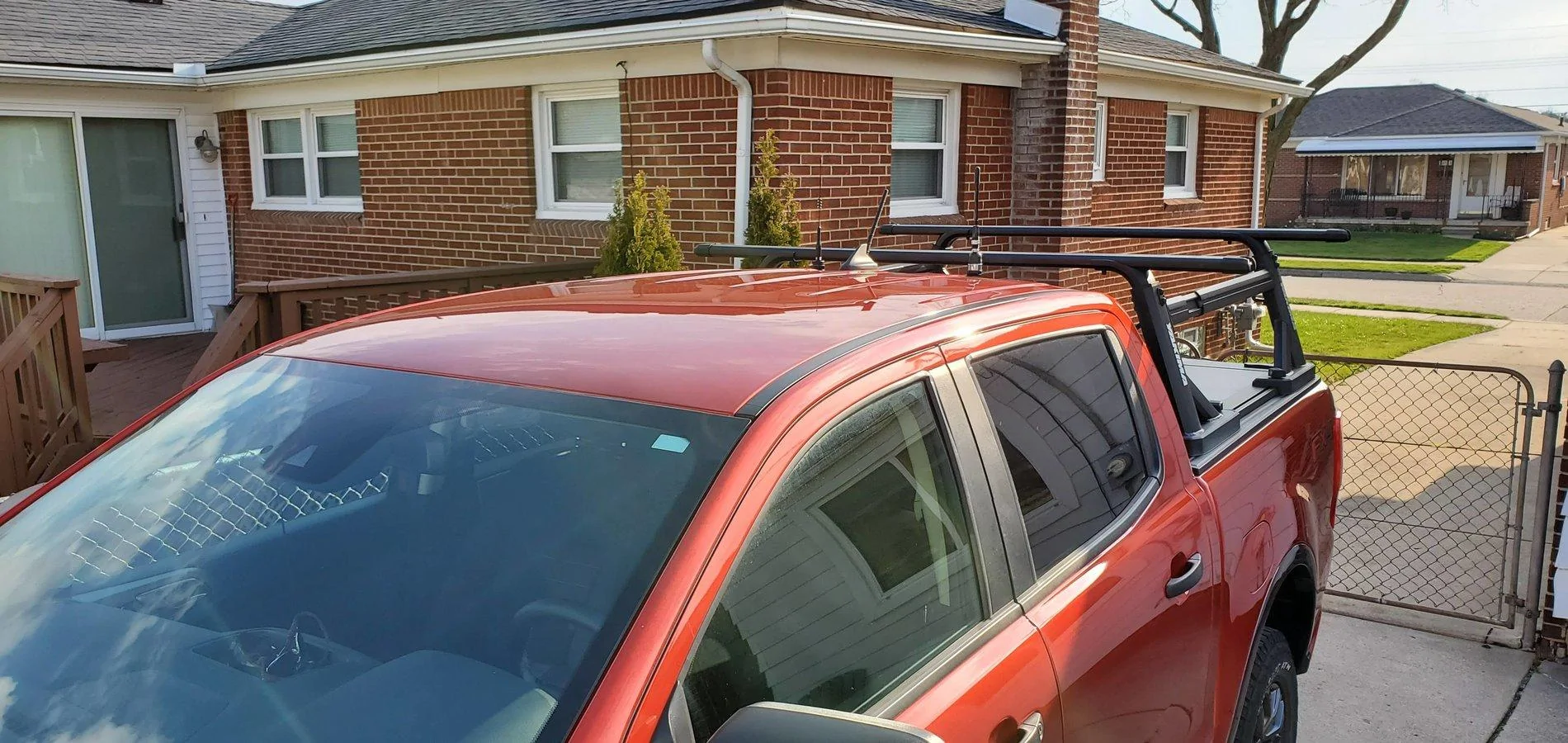

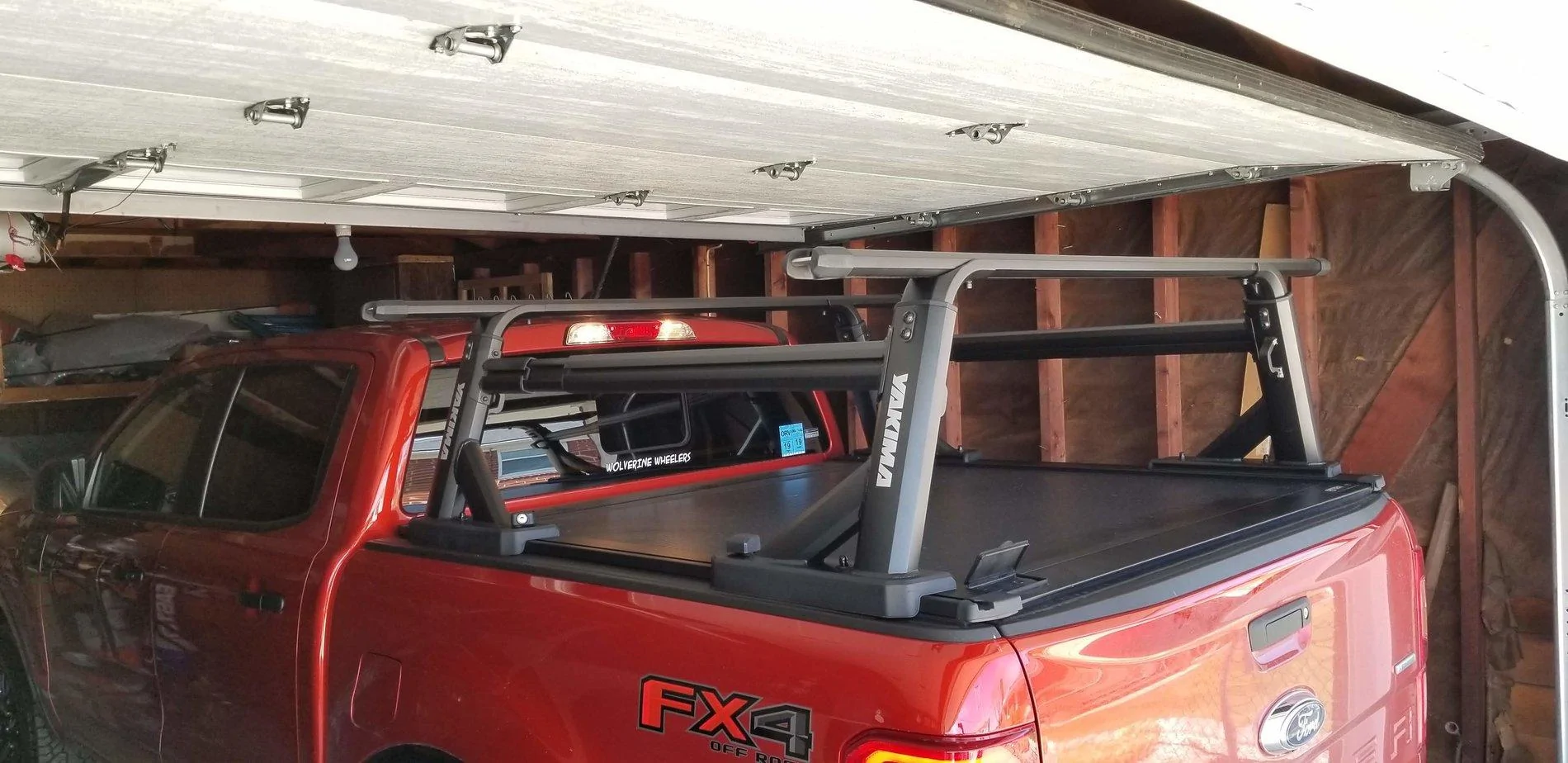

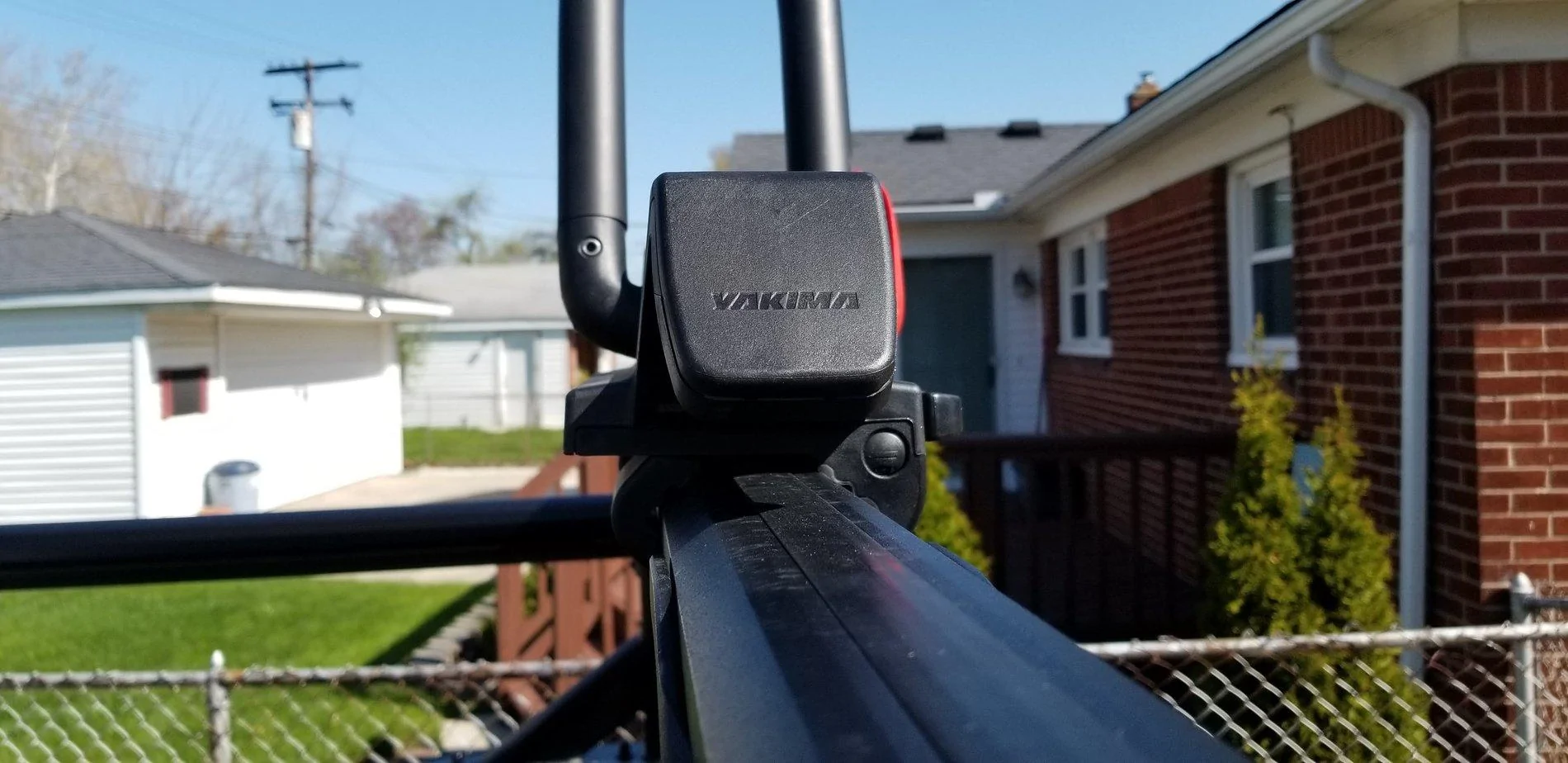

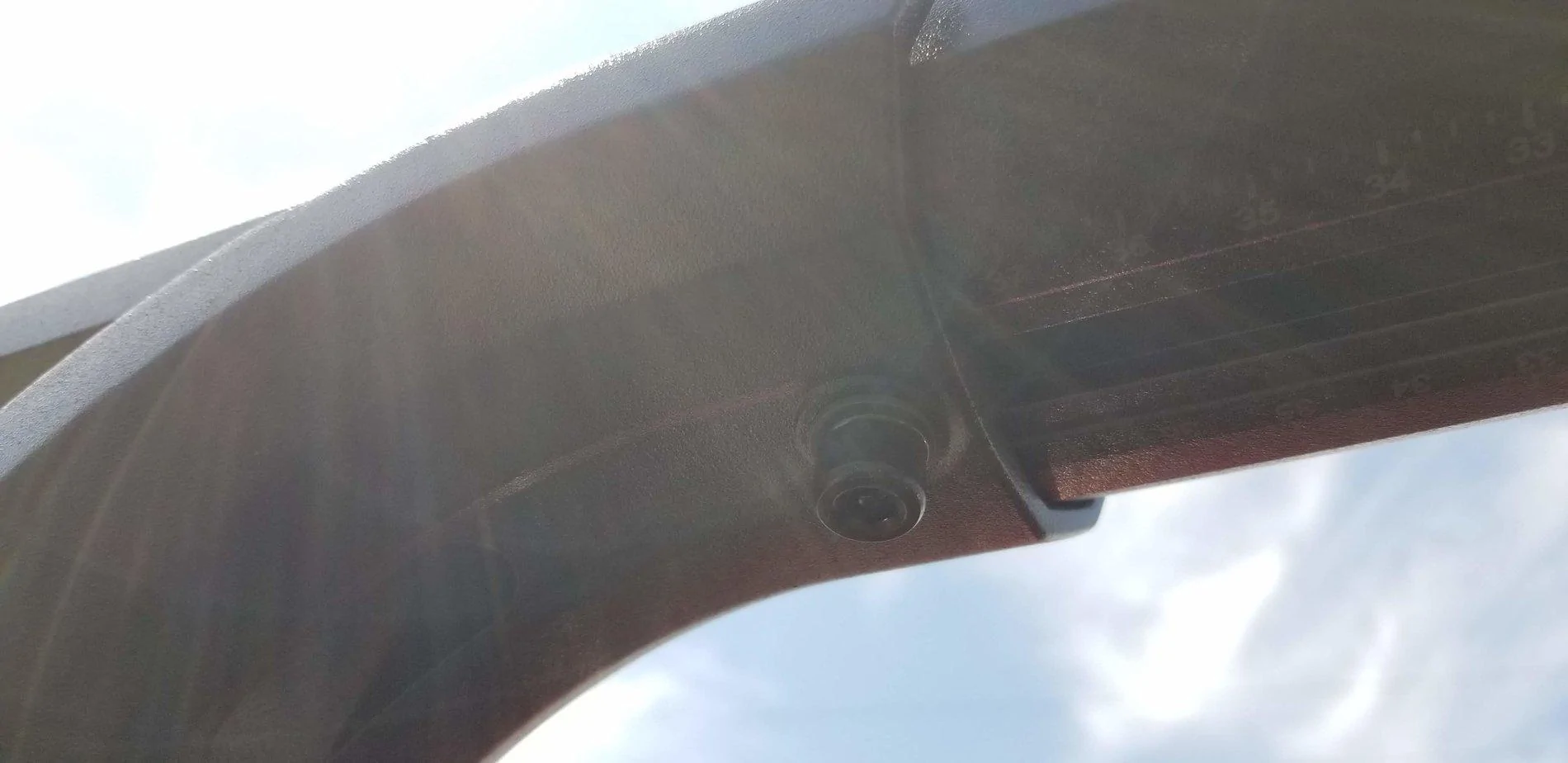

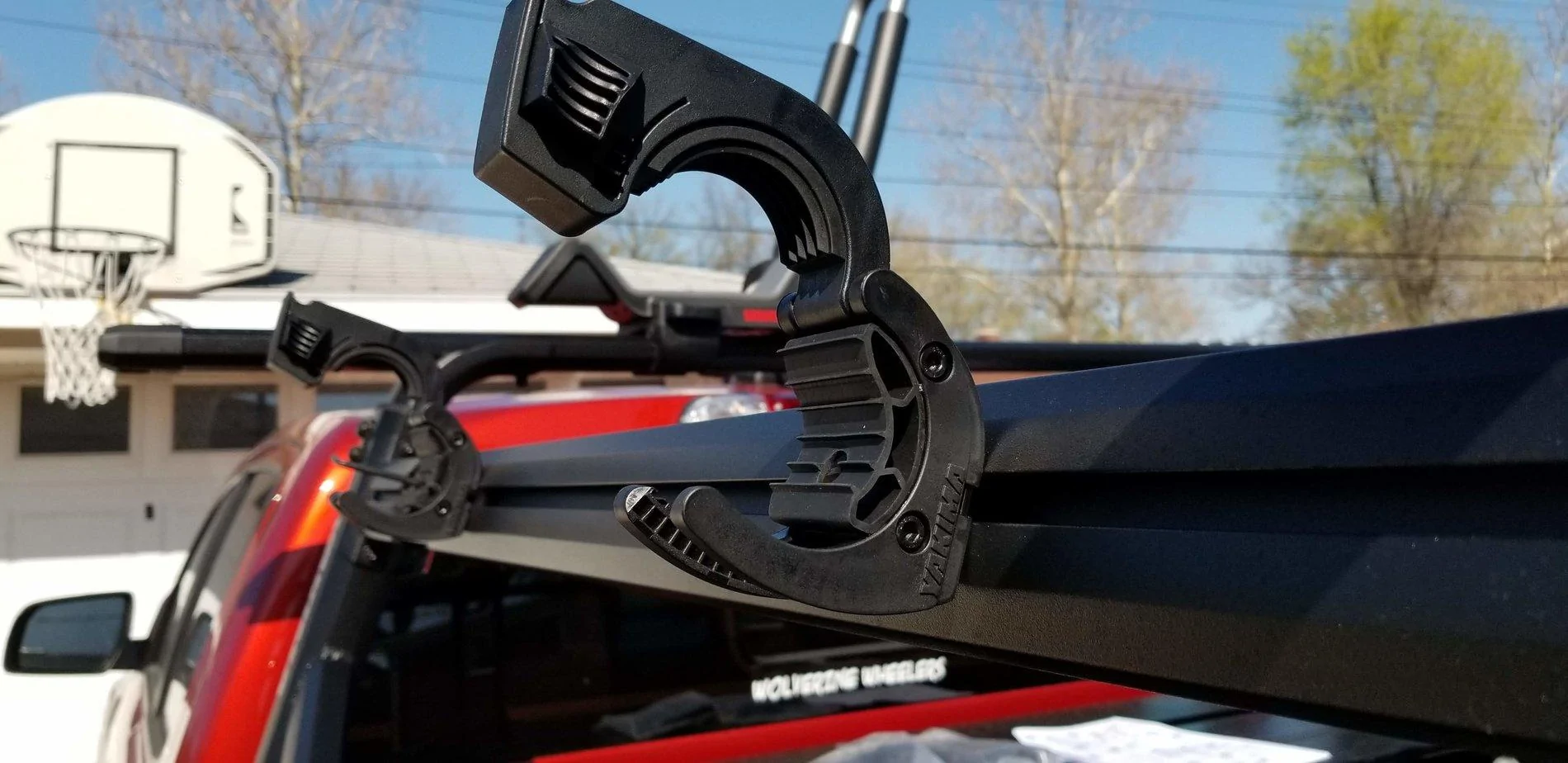

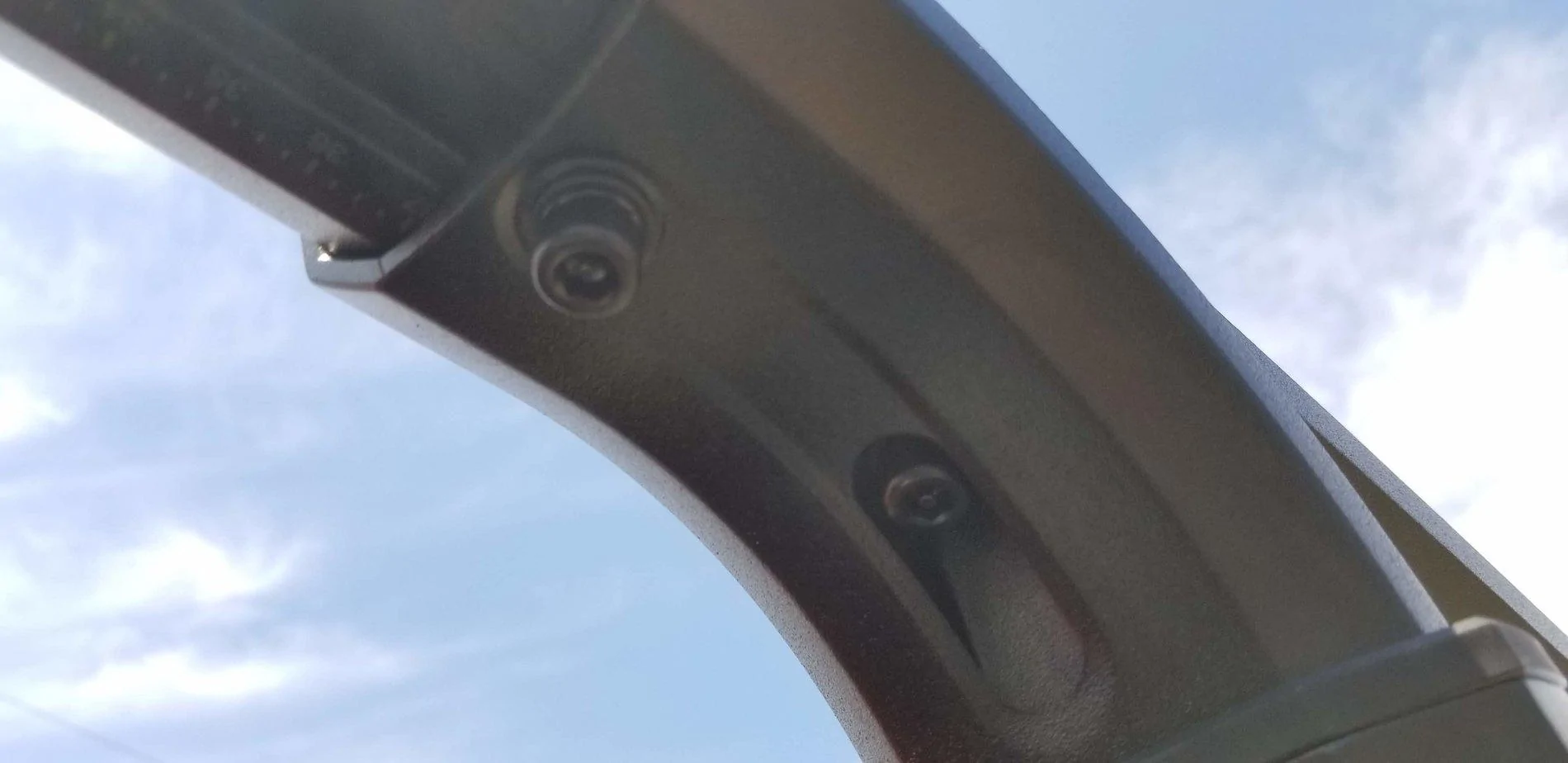

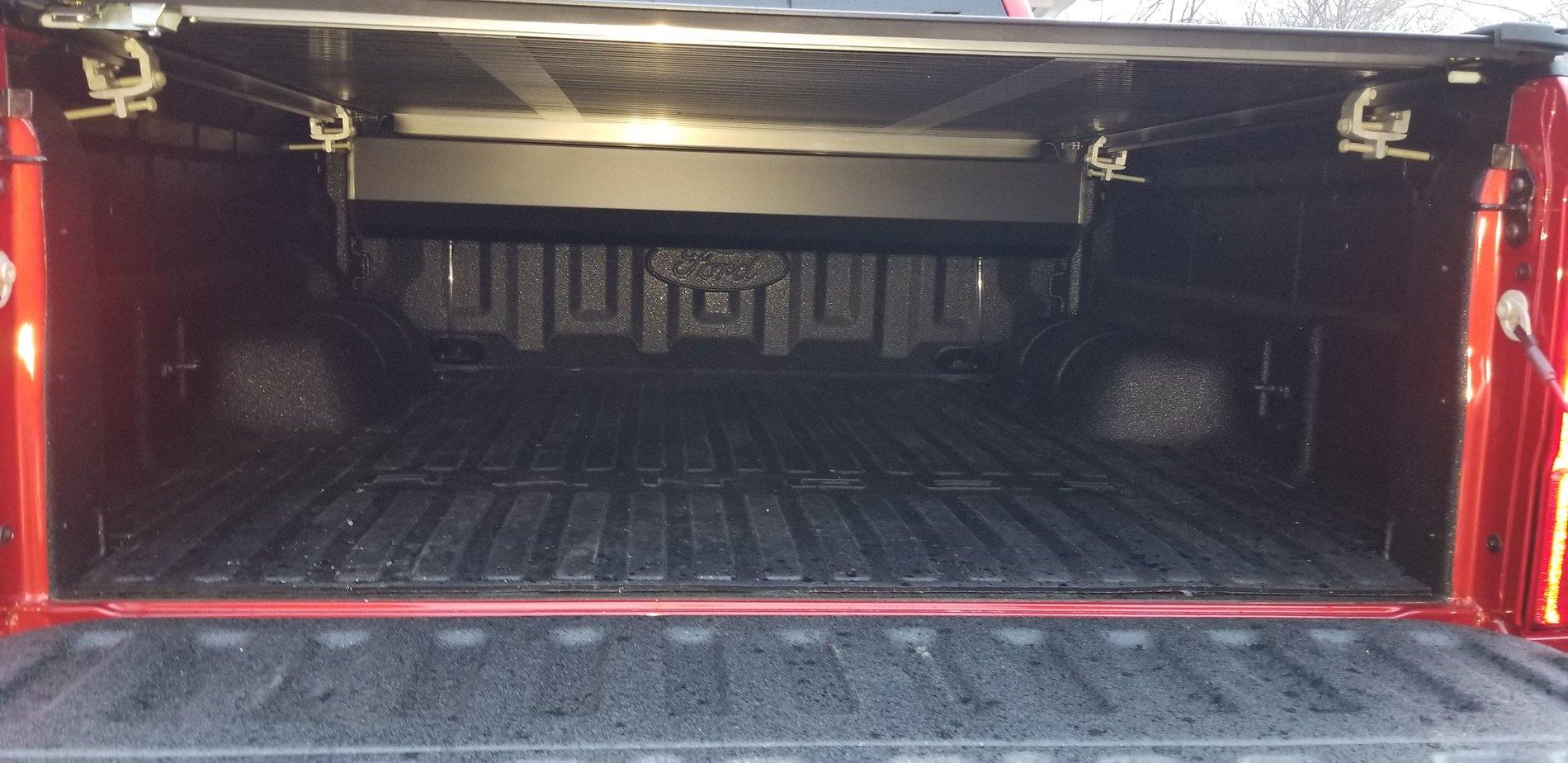

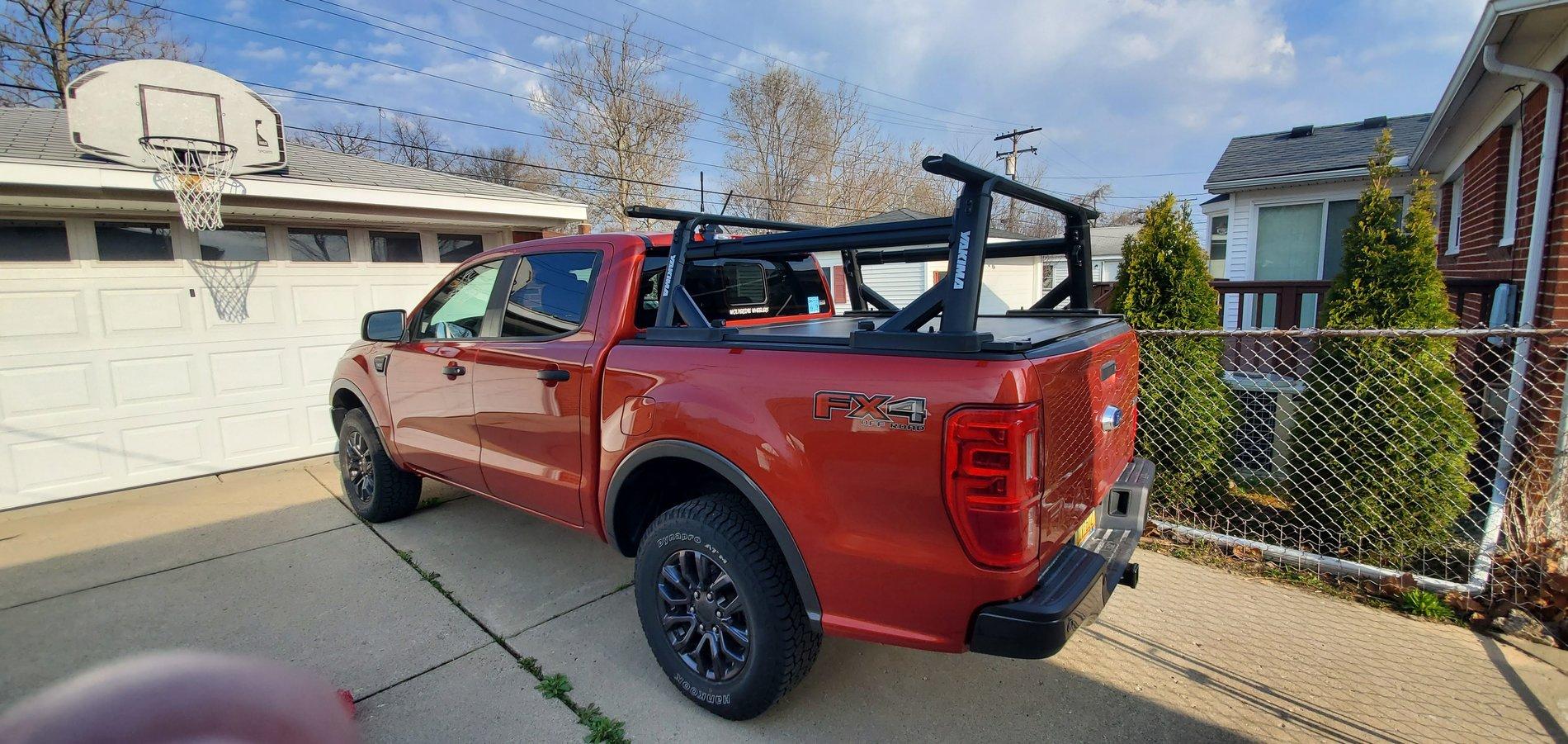

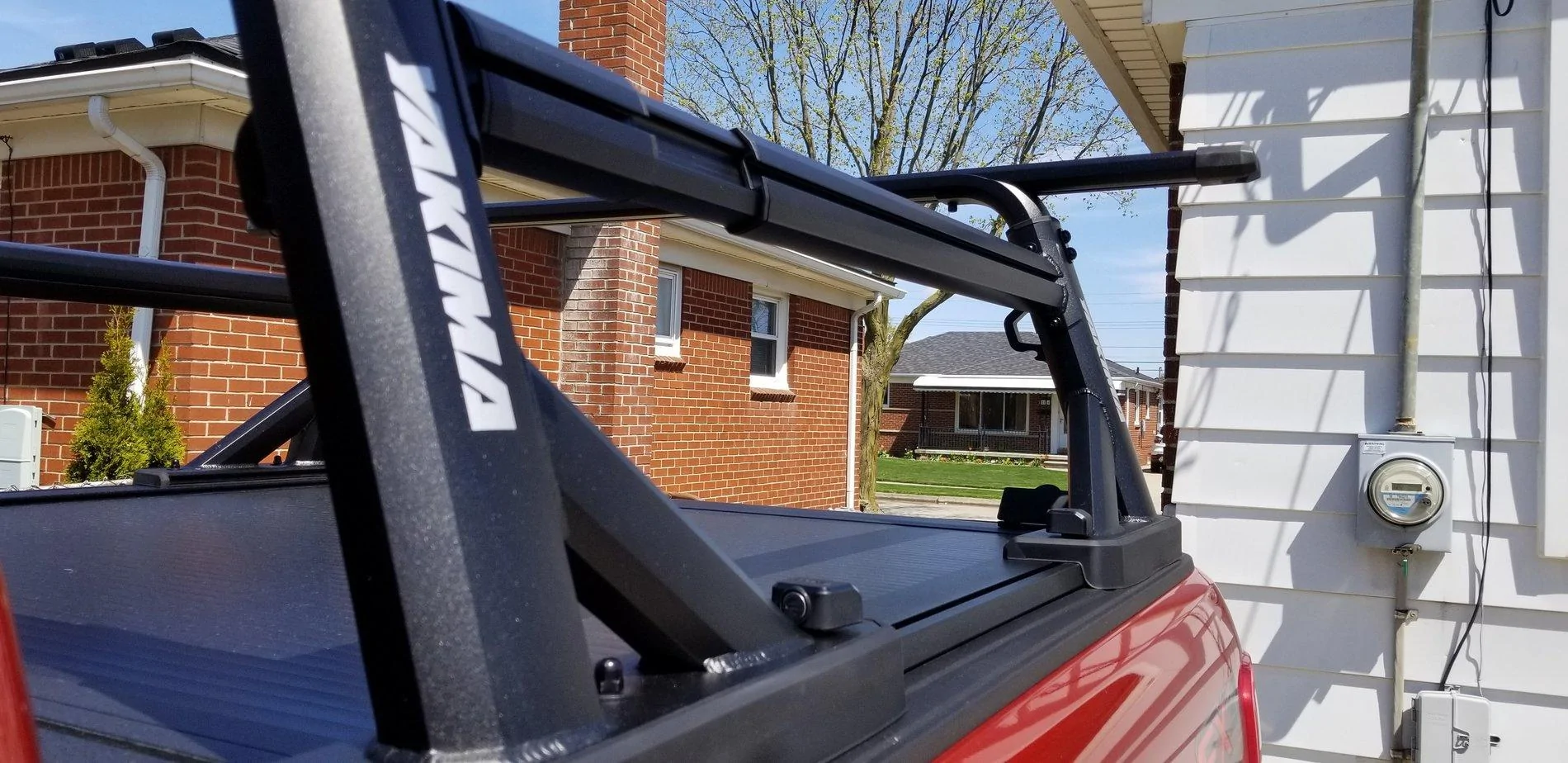

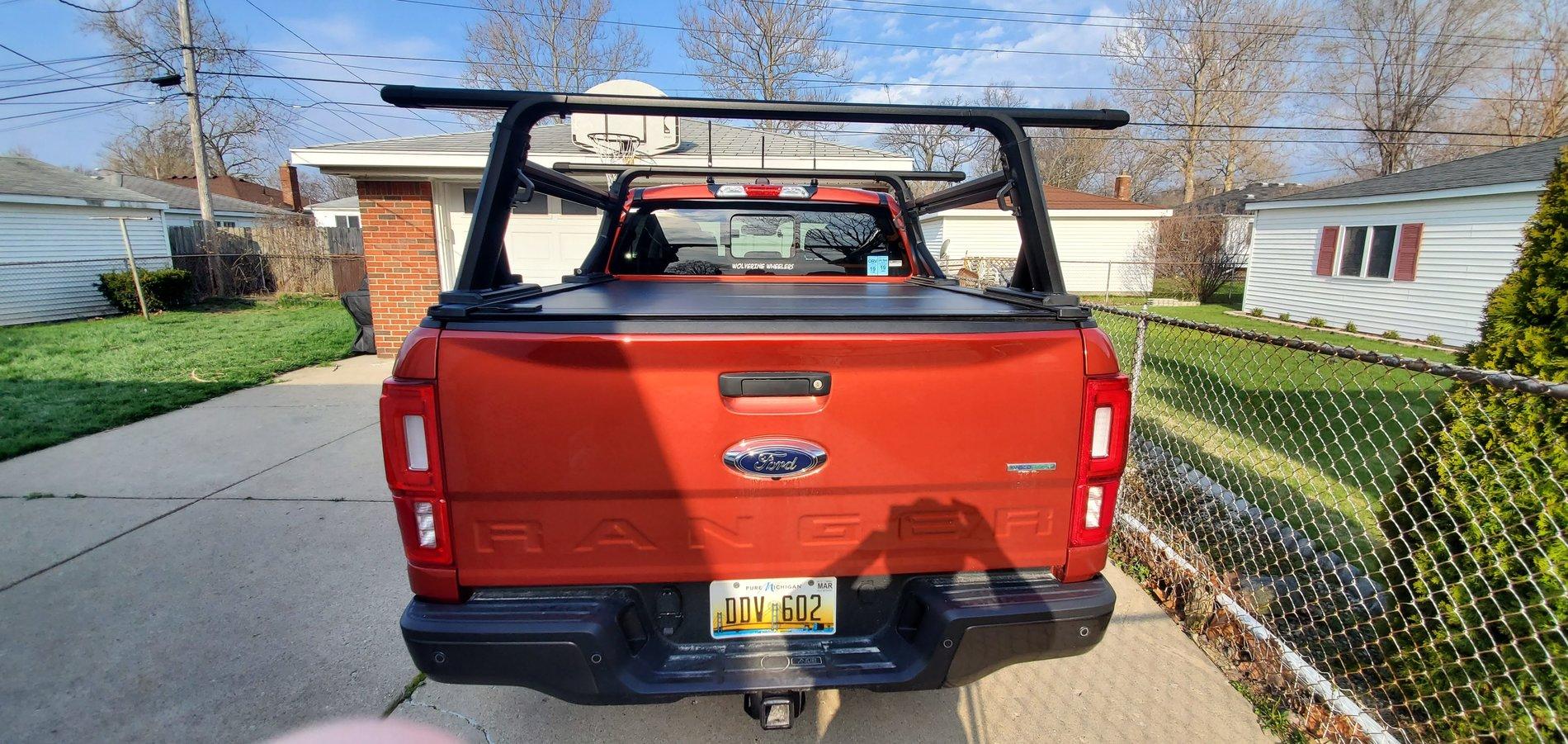

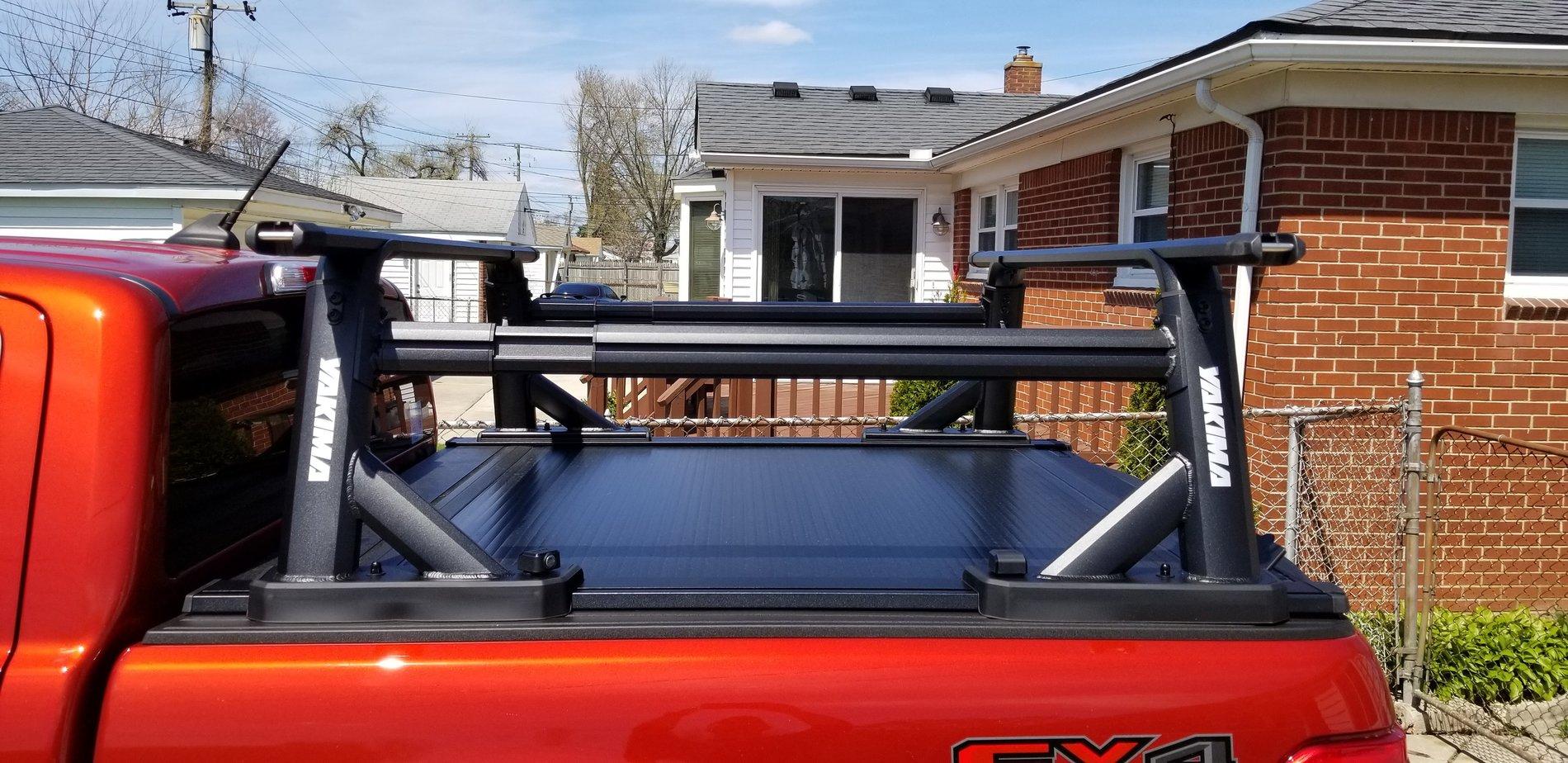

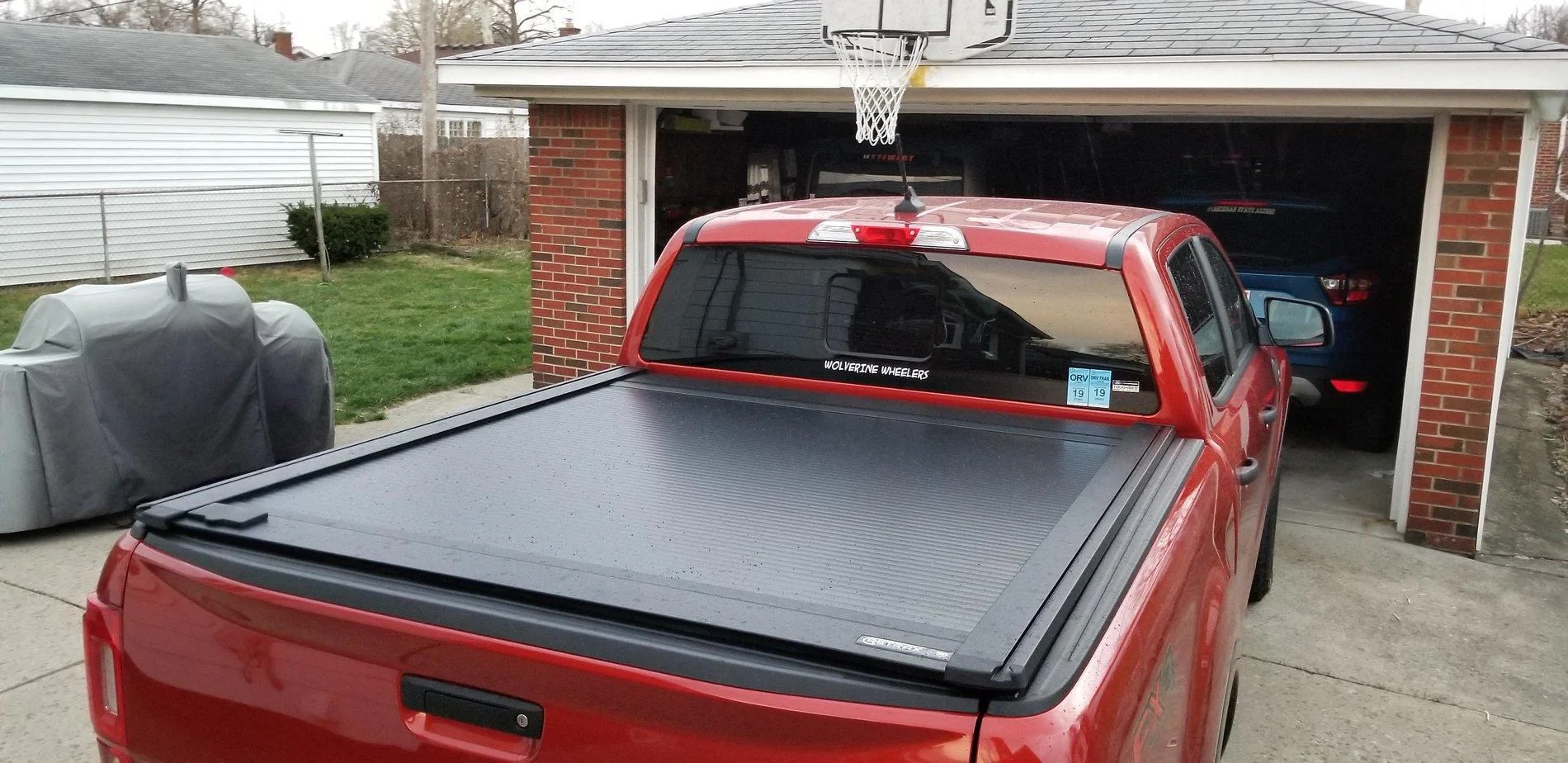

Anyways, here's the full setup on the Ranger now as well! We used the Overhaul HD and HD Bars, as well as the Short Bed SideBars attached to the RetraxOne XR Bed Cover. From there, we mounted the Yakima JayLow Kayak mount to hold my wife's VersaBoard (A hybrid SUP/Kayak ~56lbs). We also used the Yakima TopGrip on the SideBars to hold the paddle on the side of the rack! Here's the setup without the VersaBoard on it!







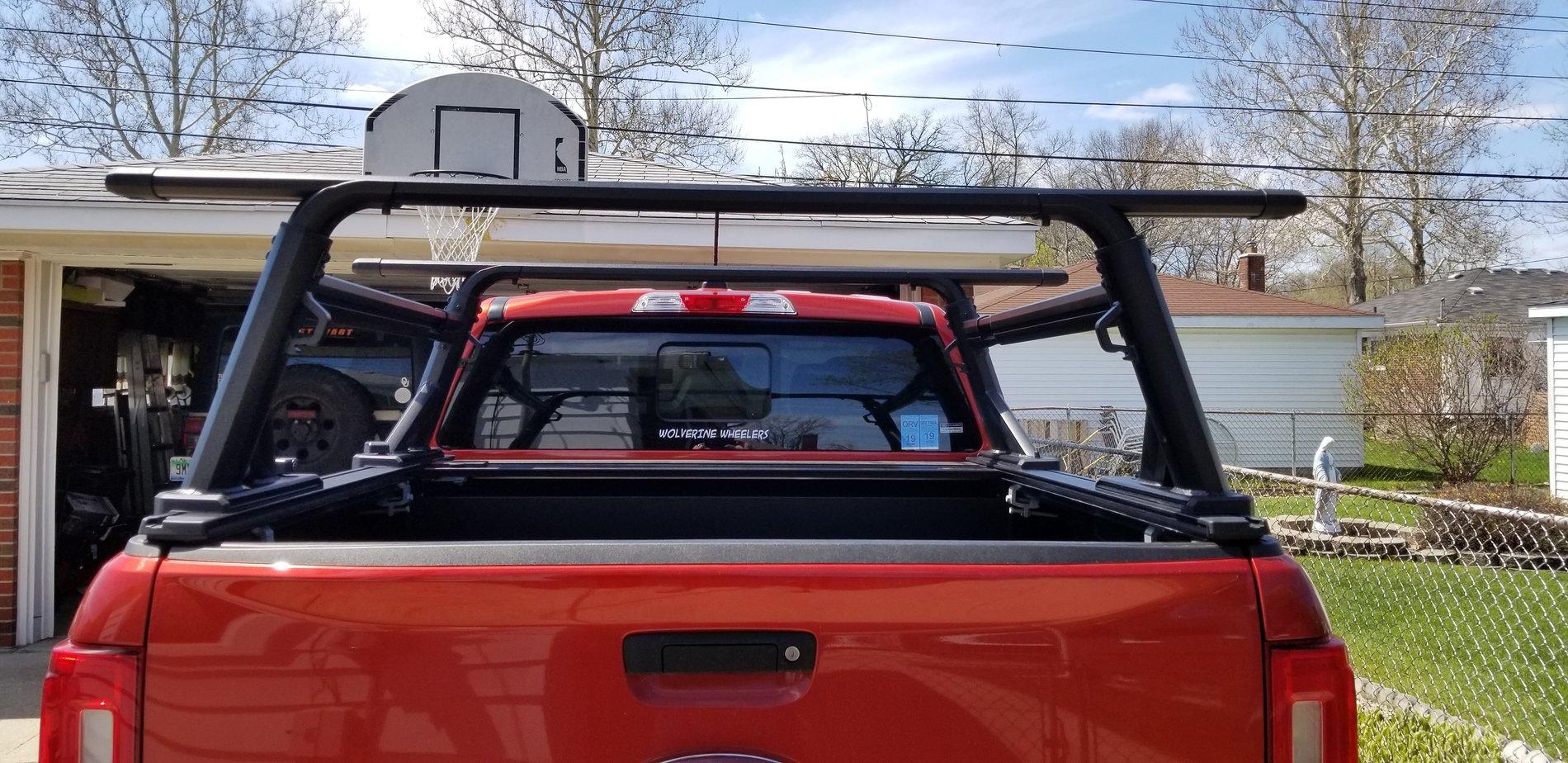

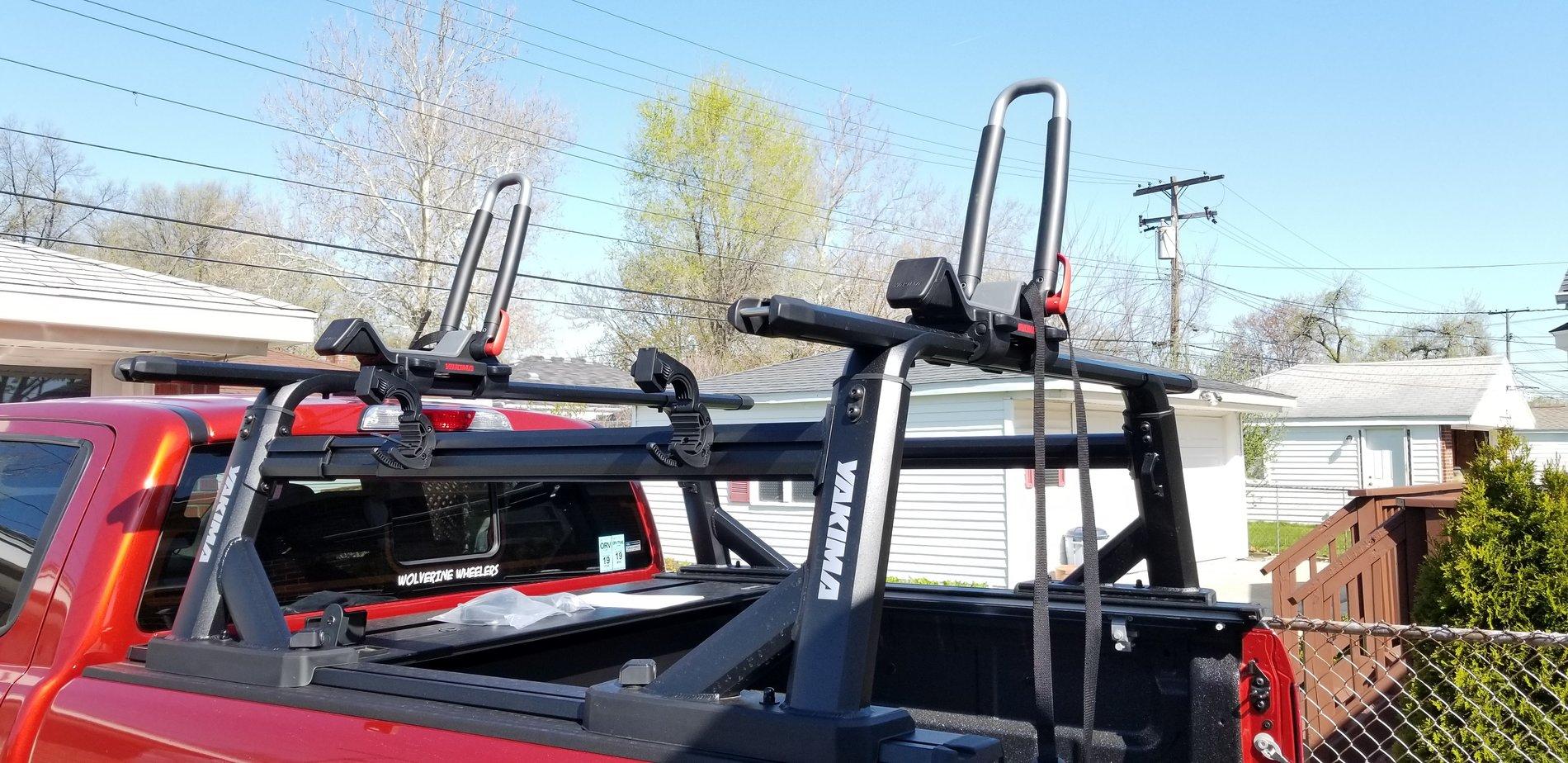

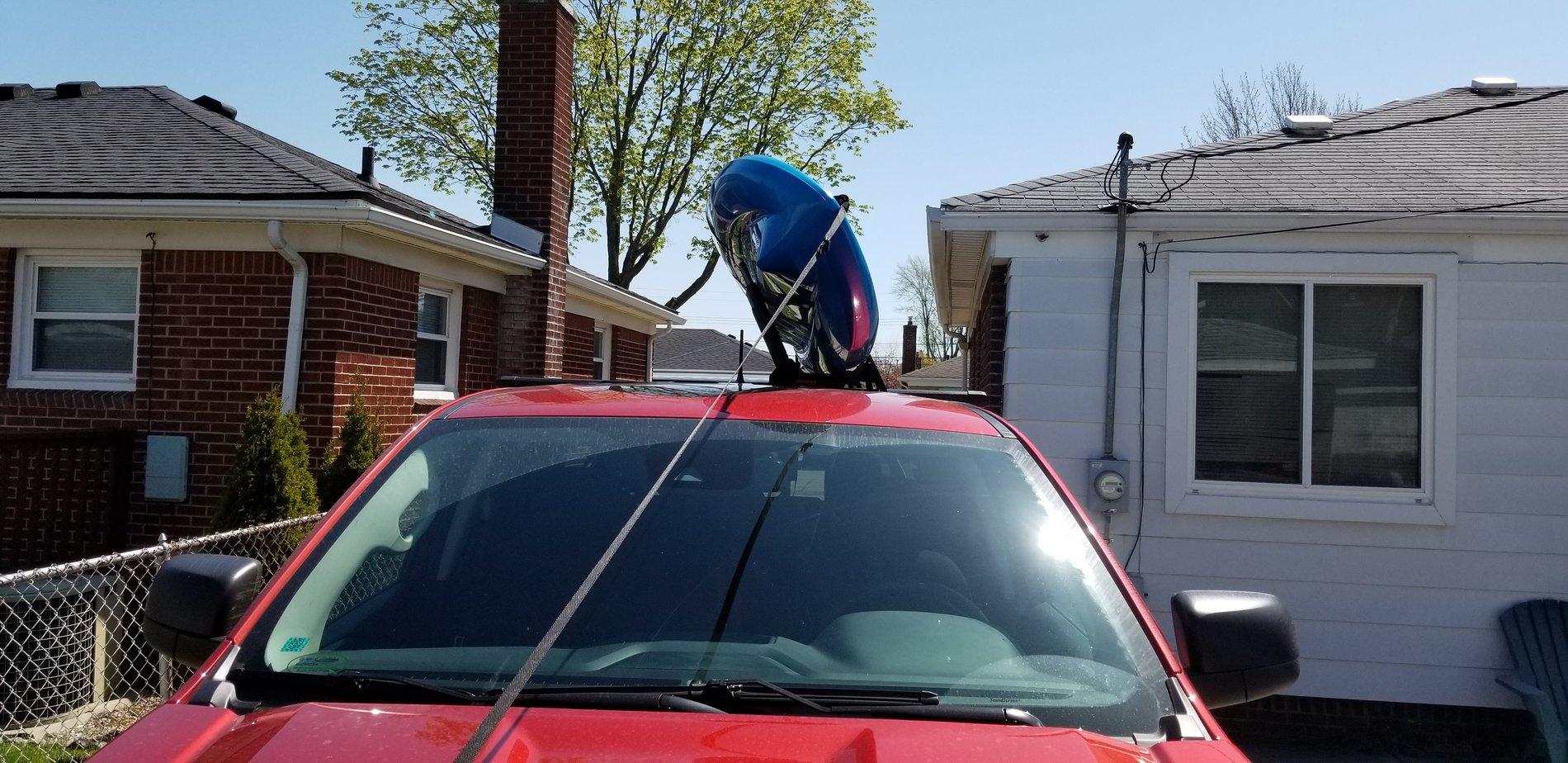

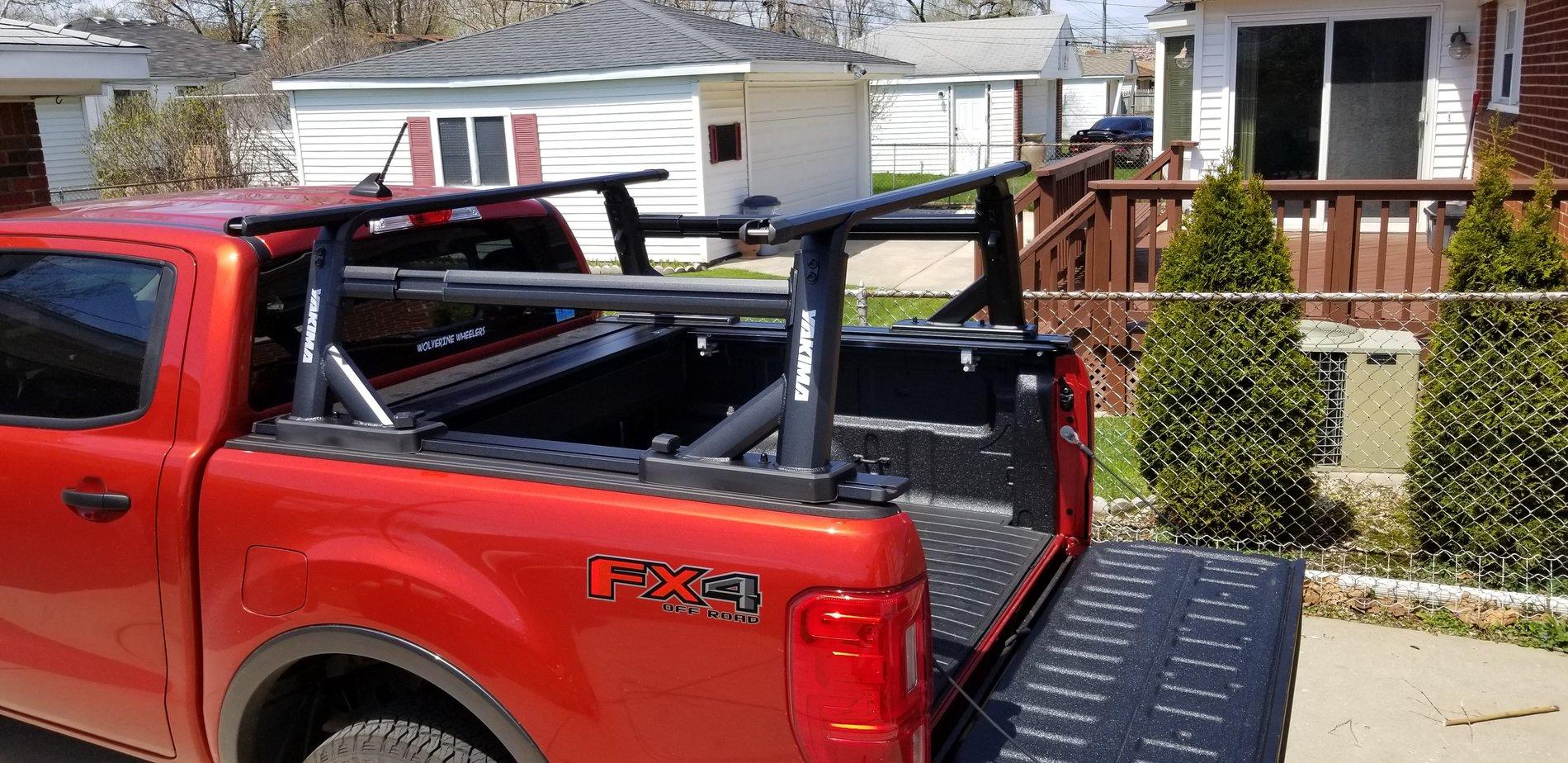

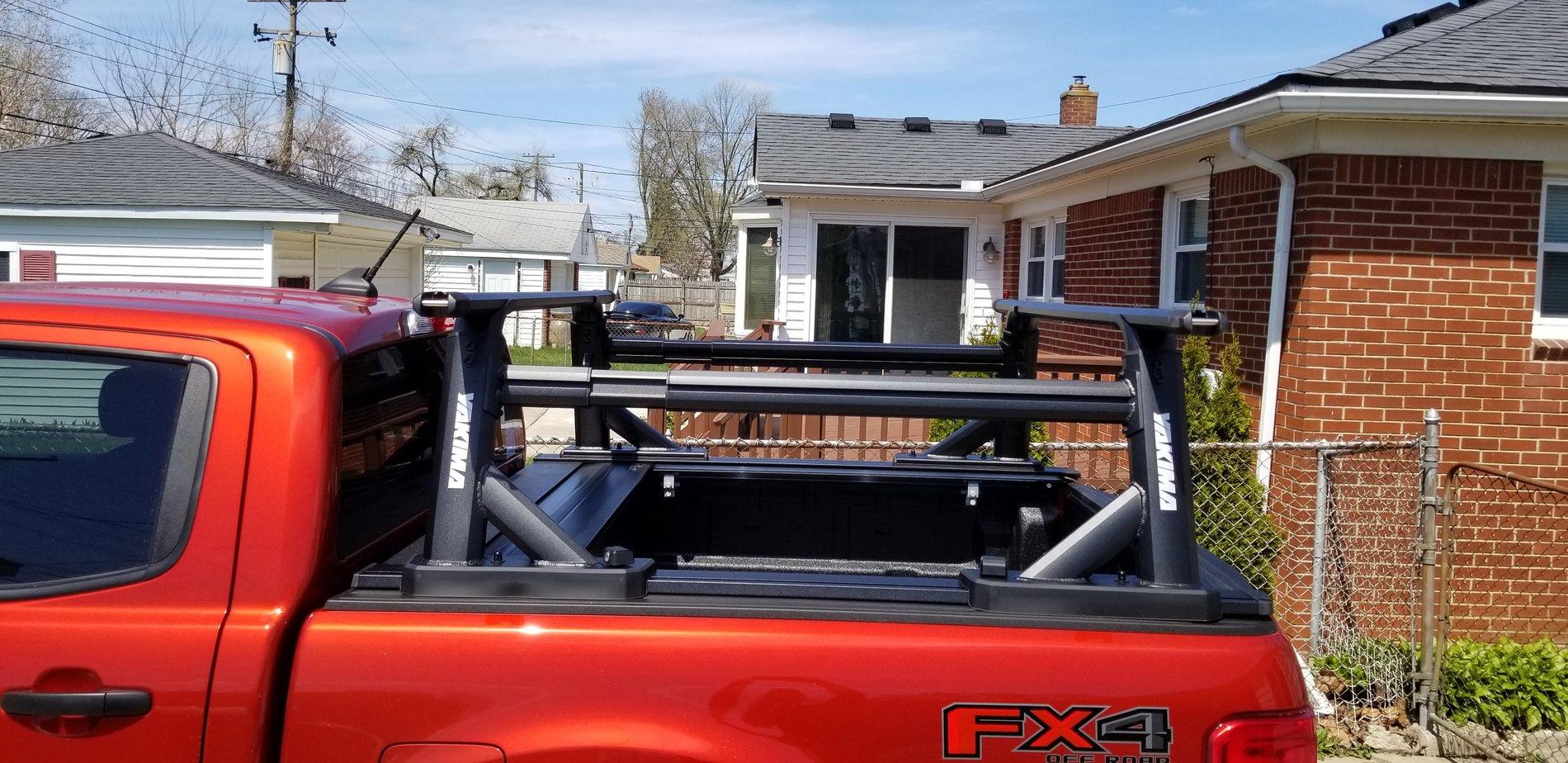

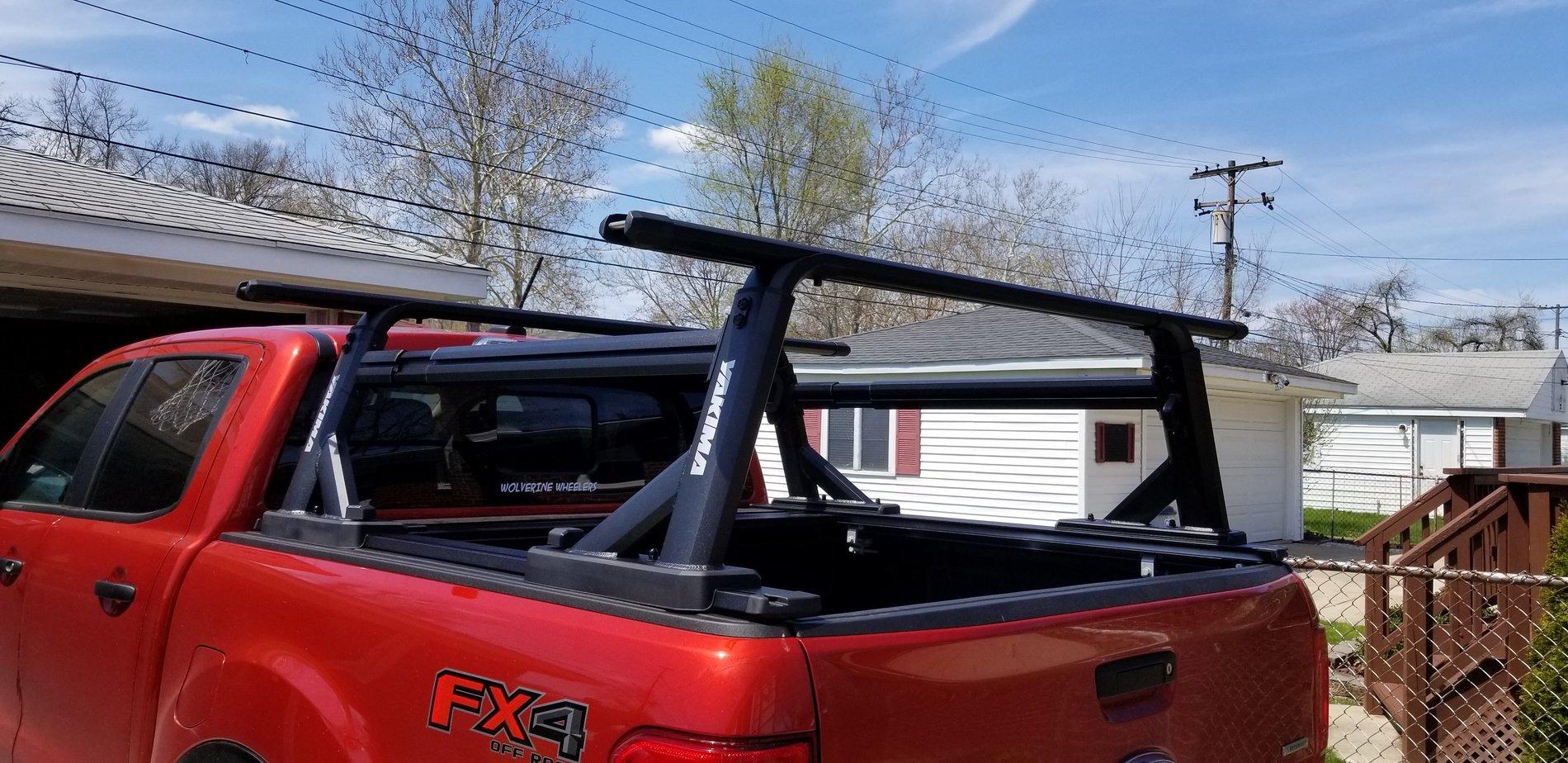

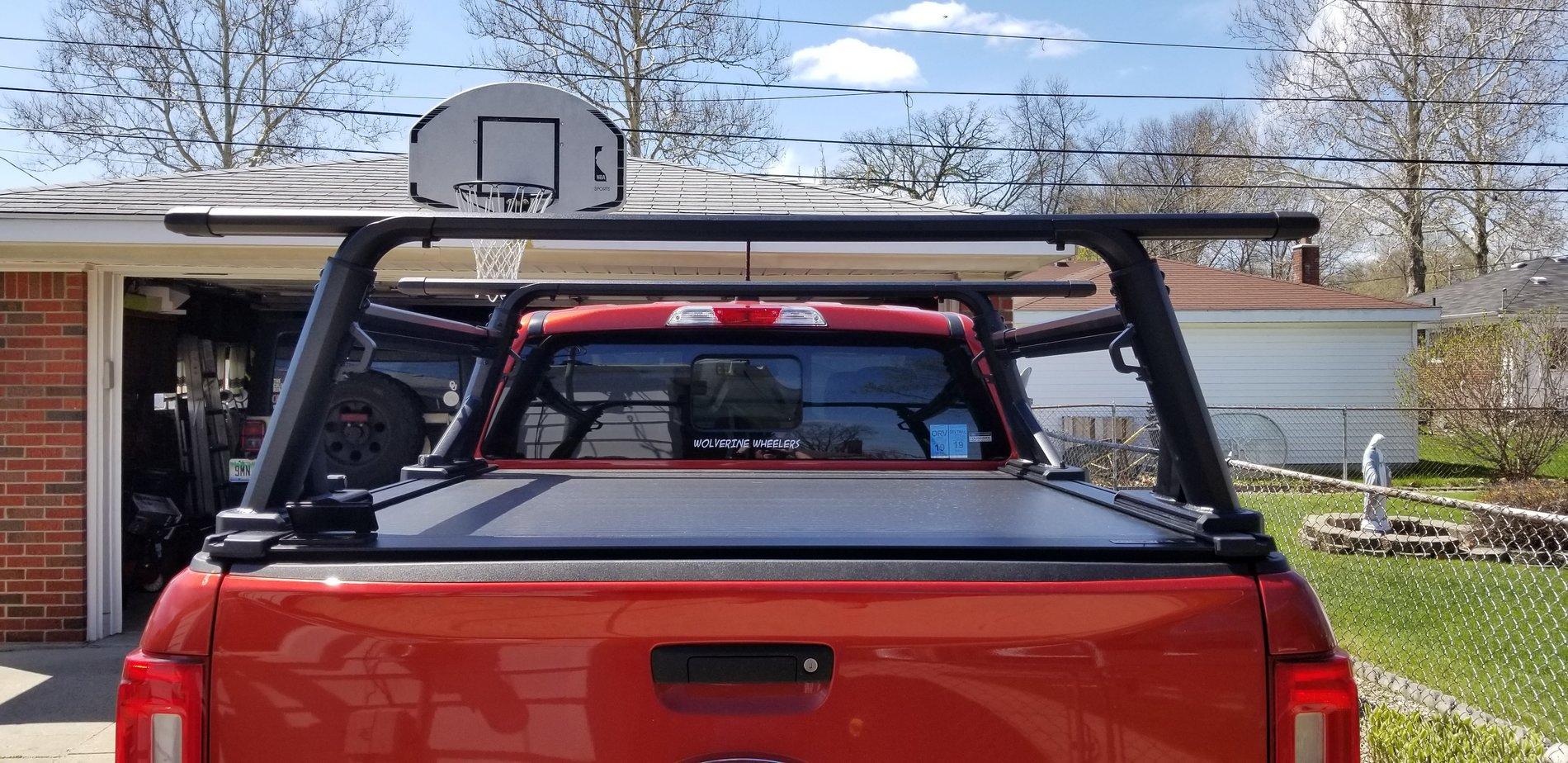

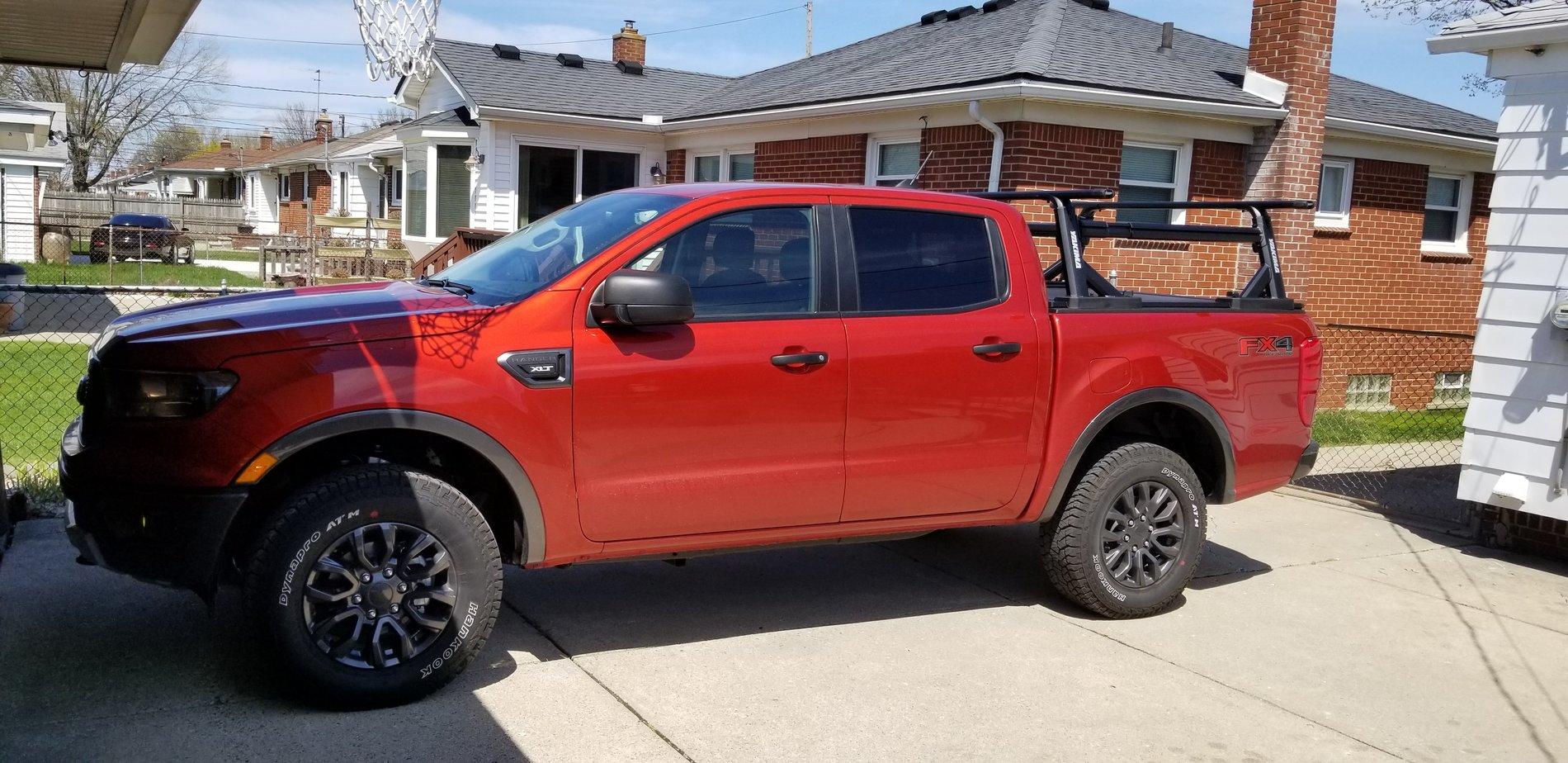

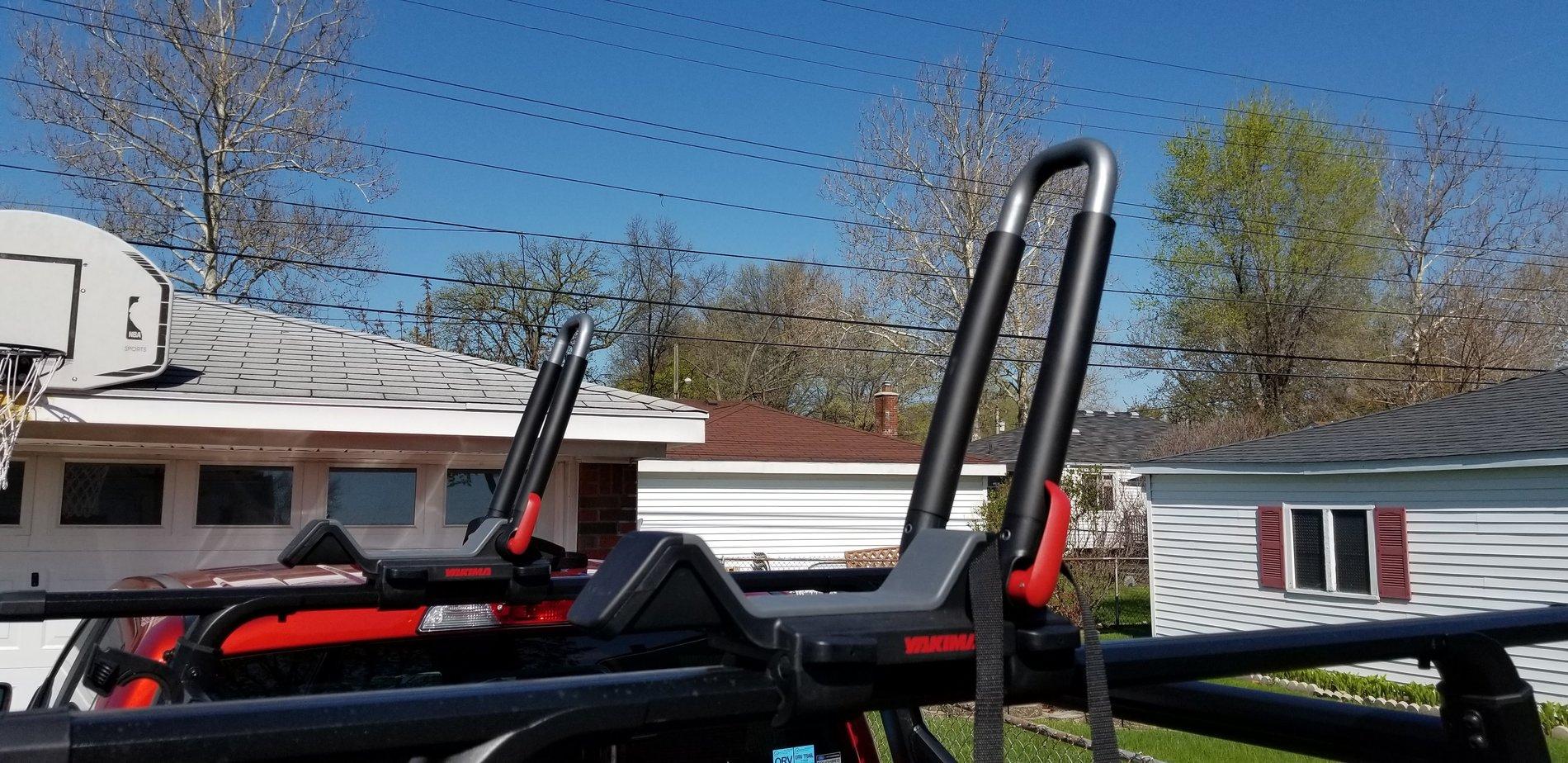

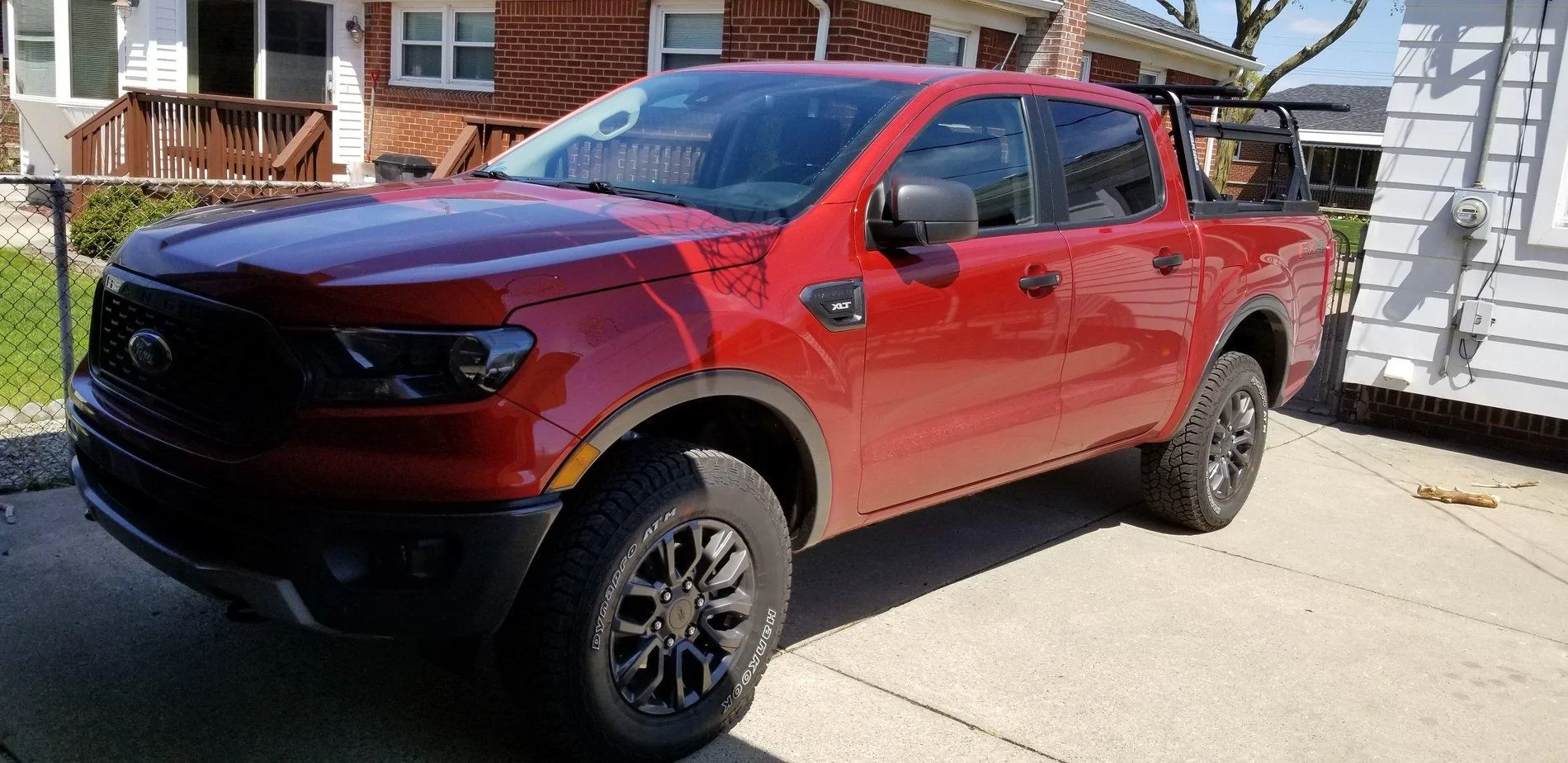

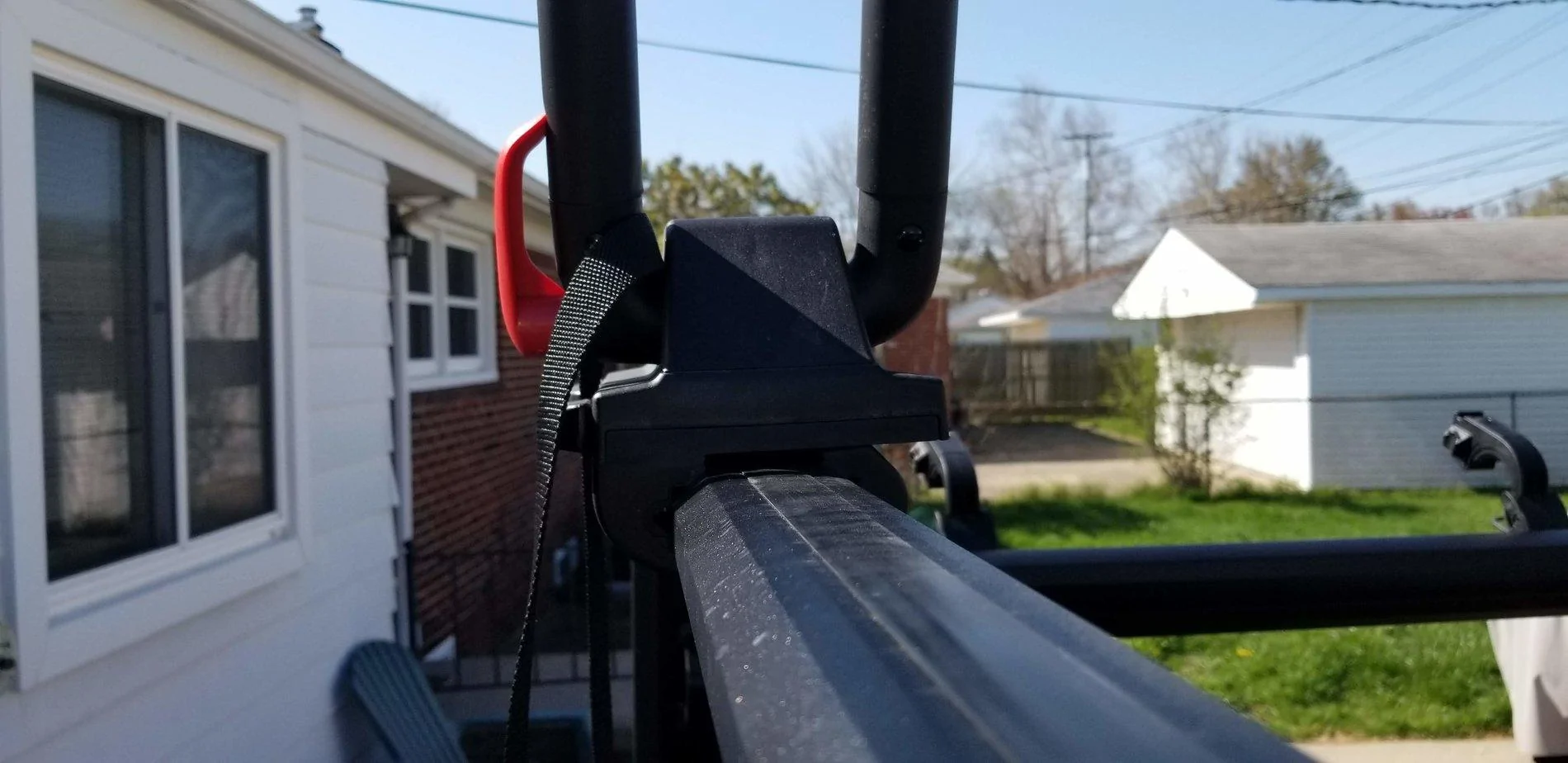

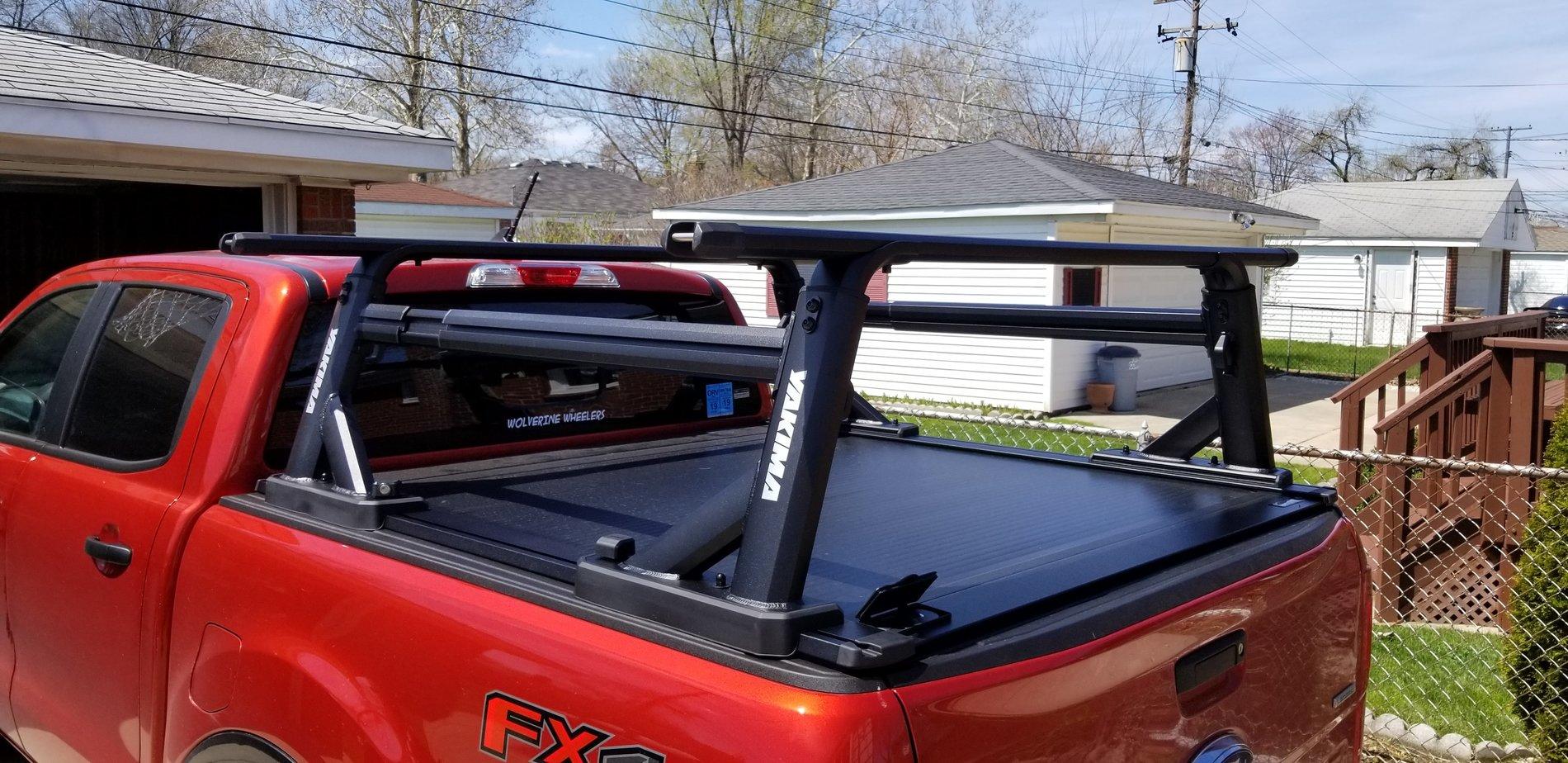

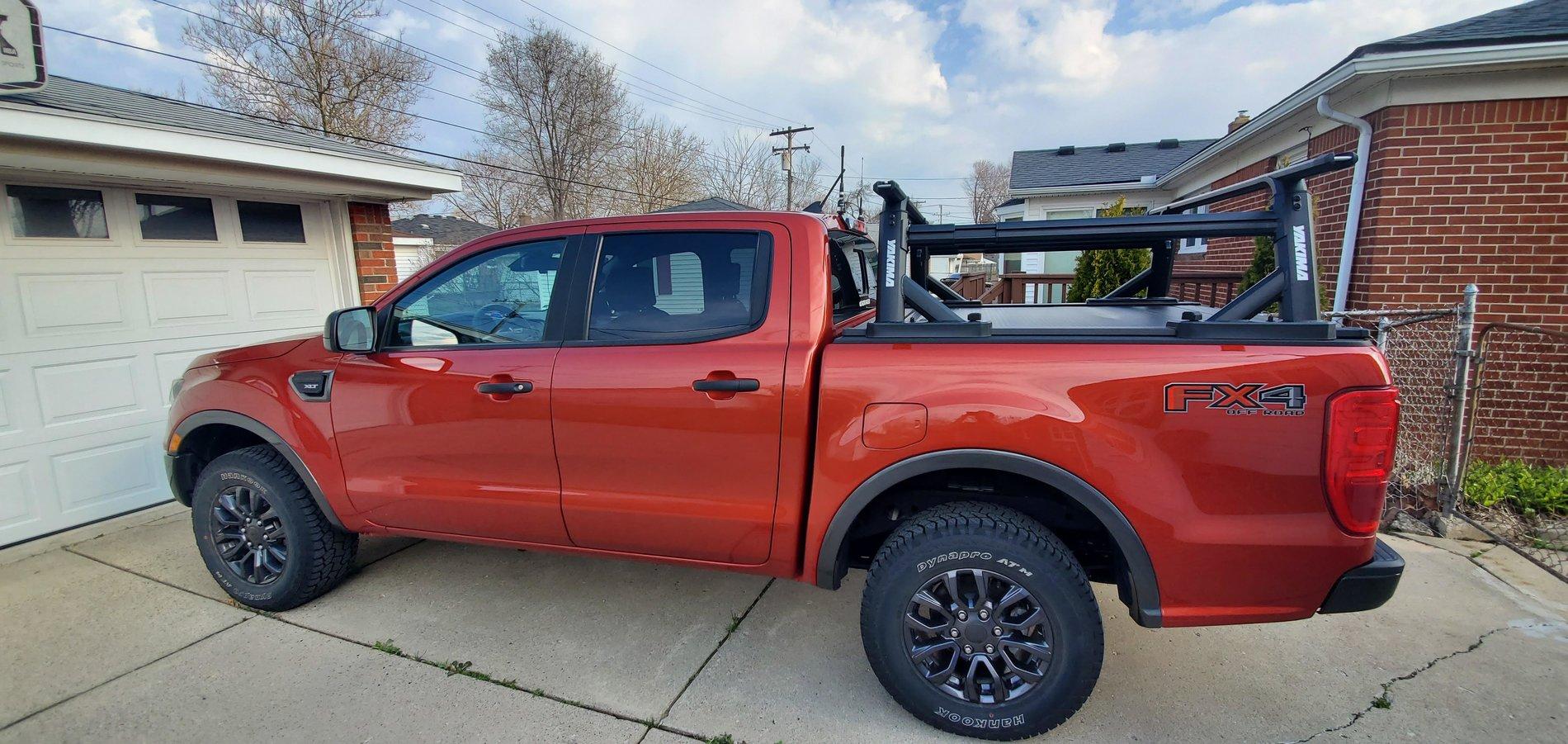

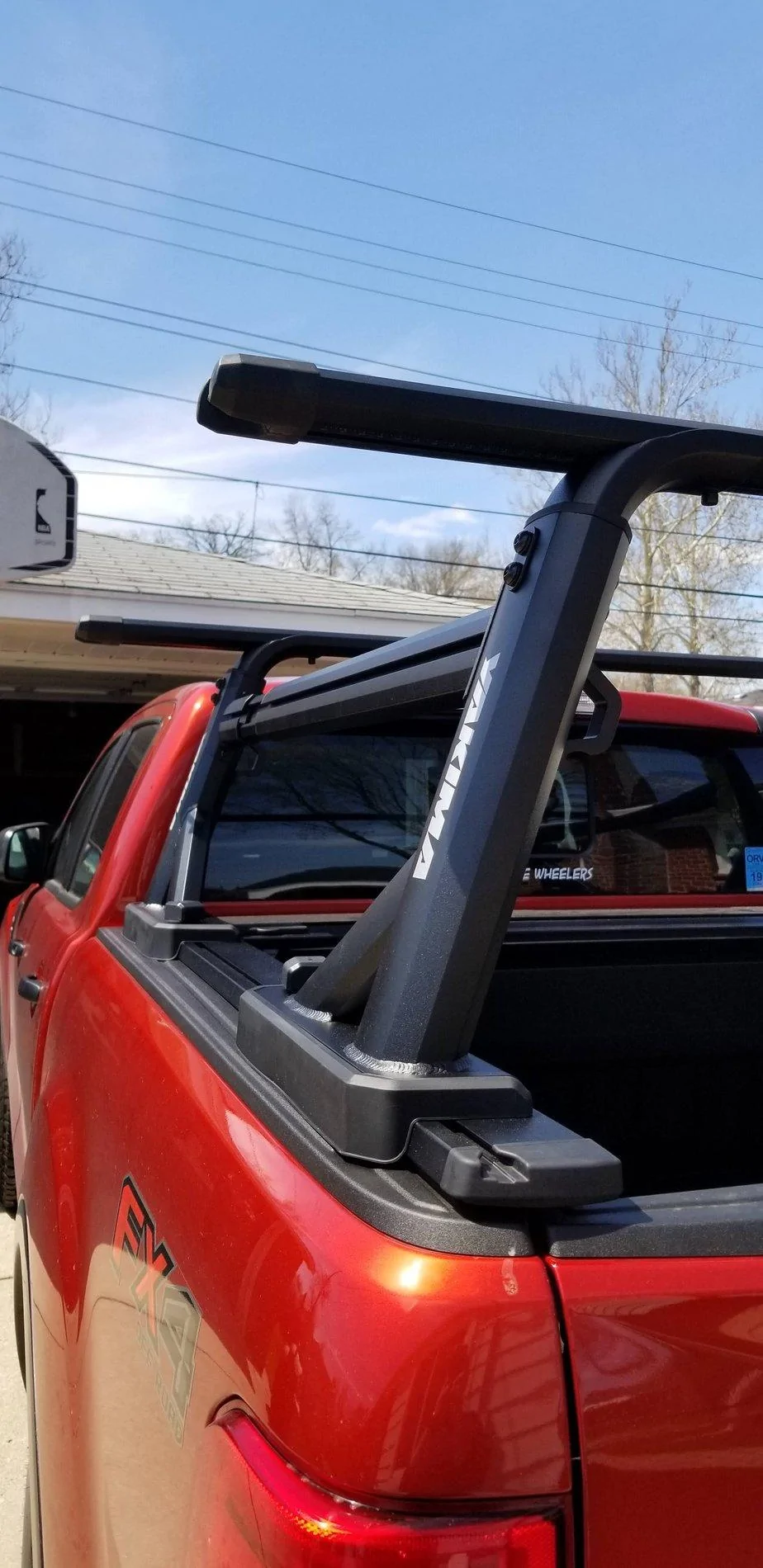

And here's the setup with the VersaBoard mounted!








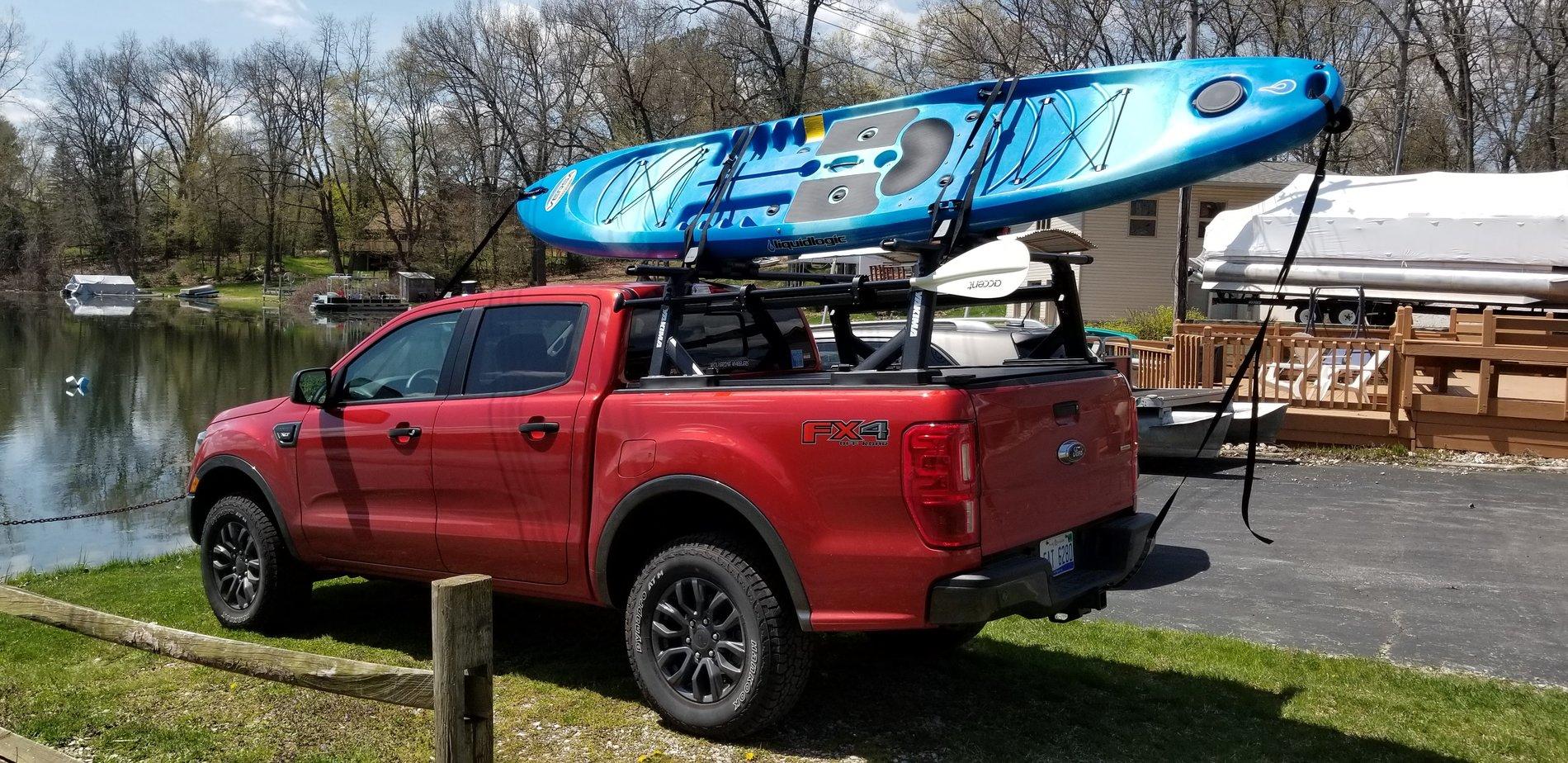

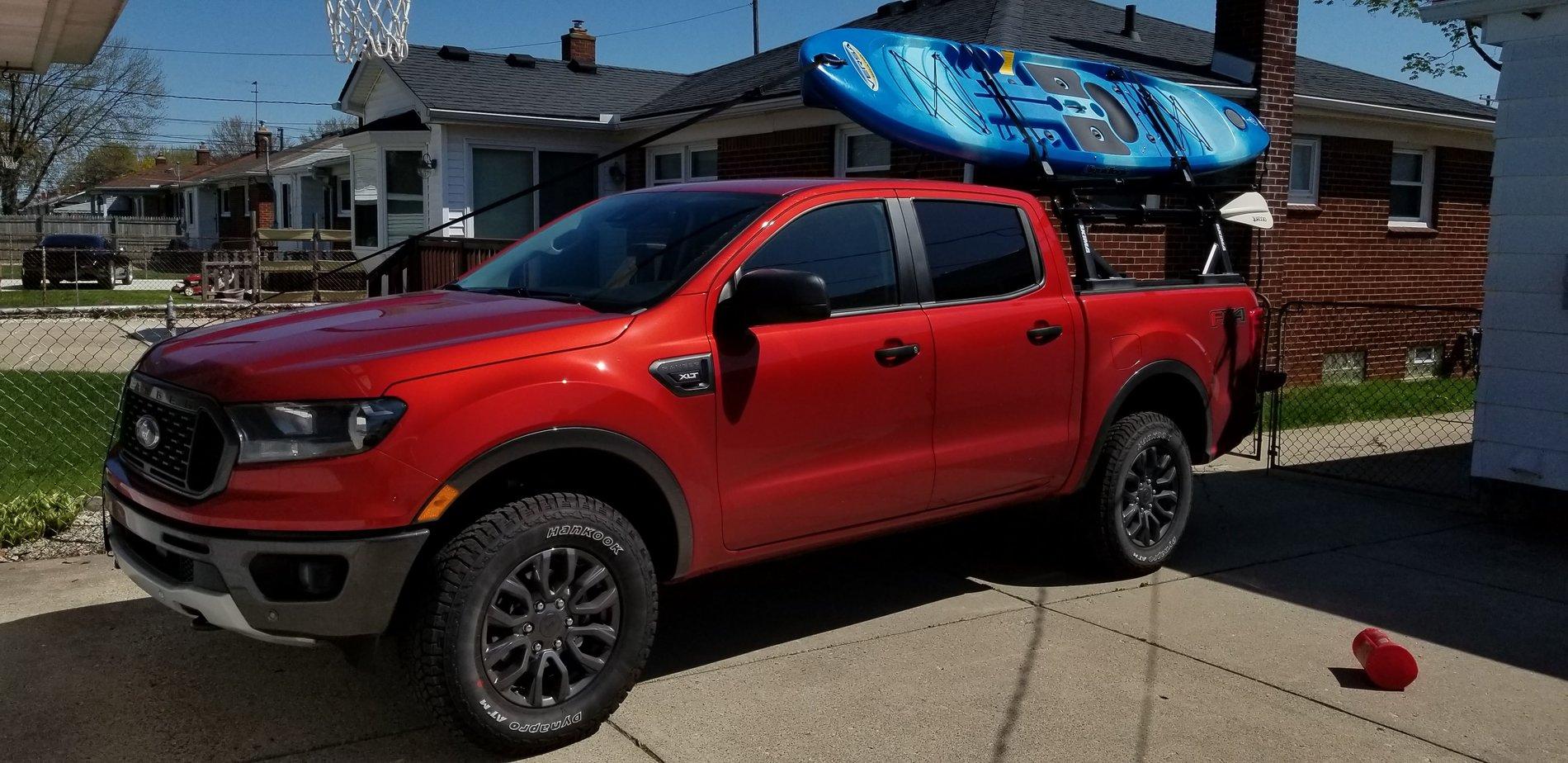

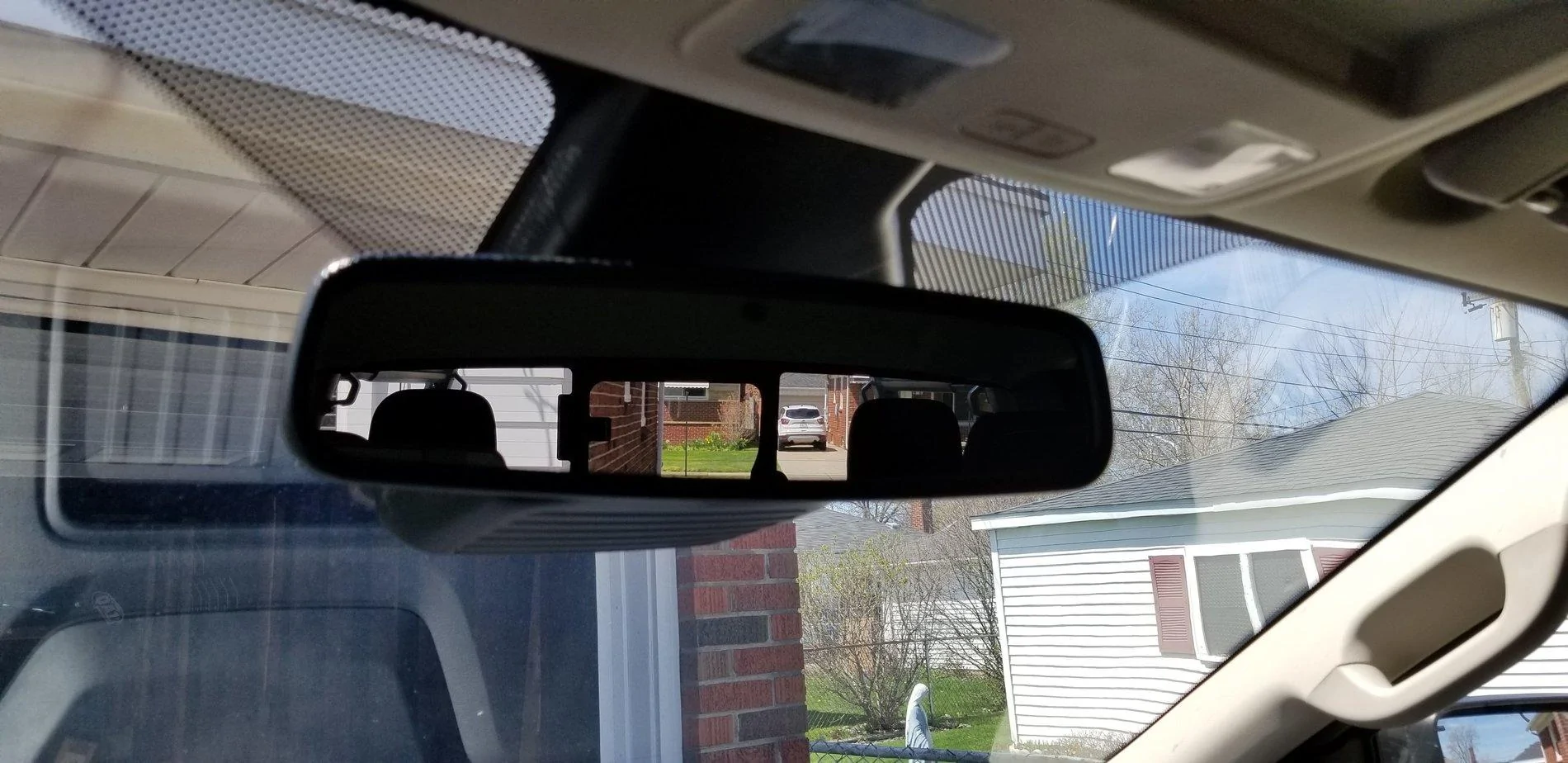

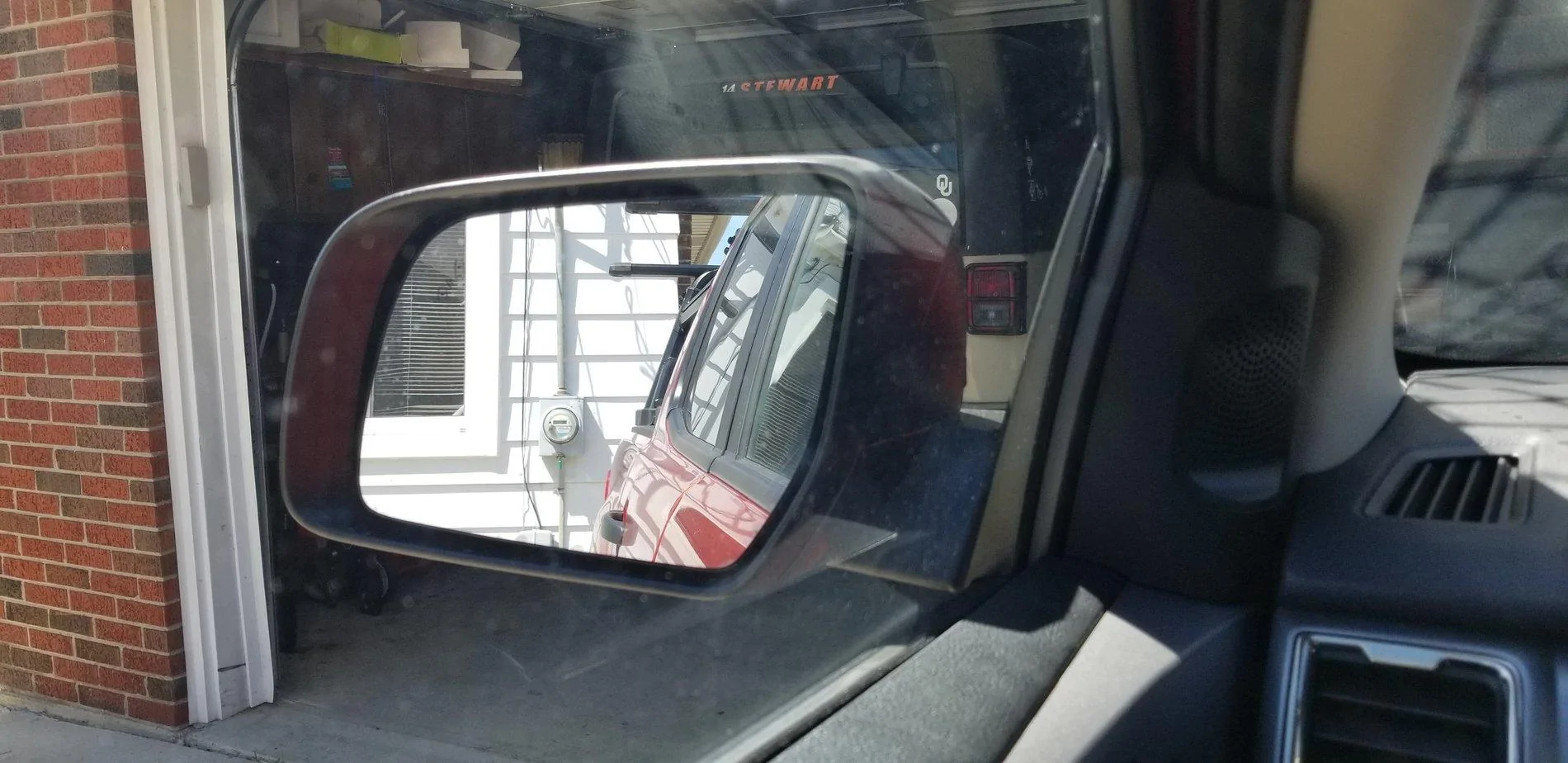

The setup worked very well and was completely secured with no issues! Even with a little bit of a cross wind on the expressway at 75 MPH, truck tracked very straight and smooth, and MPG was still great! Didn't lose a bit! Only thing I really noticed was that the strap that I ran from the front of the VersaBoard to front tow hook, I ran diagnoal to the passenger side hook with the board mounted on teh driver's side, and the lane keep assist was struggling a little with finding the right side of the lanes, as I realized the strap was crossing right in front of the camera, but no big deal! And it still worked most of the time, but definietly had to make sure not to rely on that for this drive with the strap mounted the way I had it! Other than that, I highly recommend this setup!

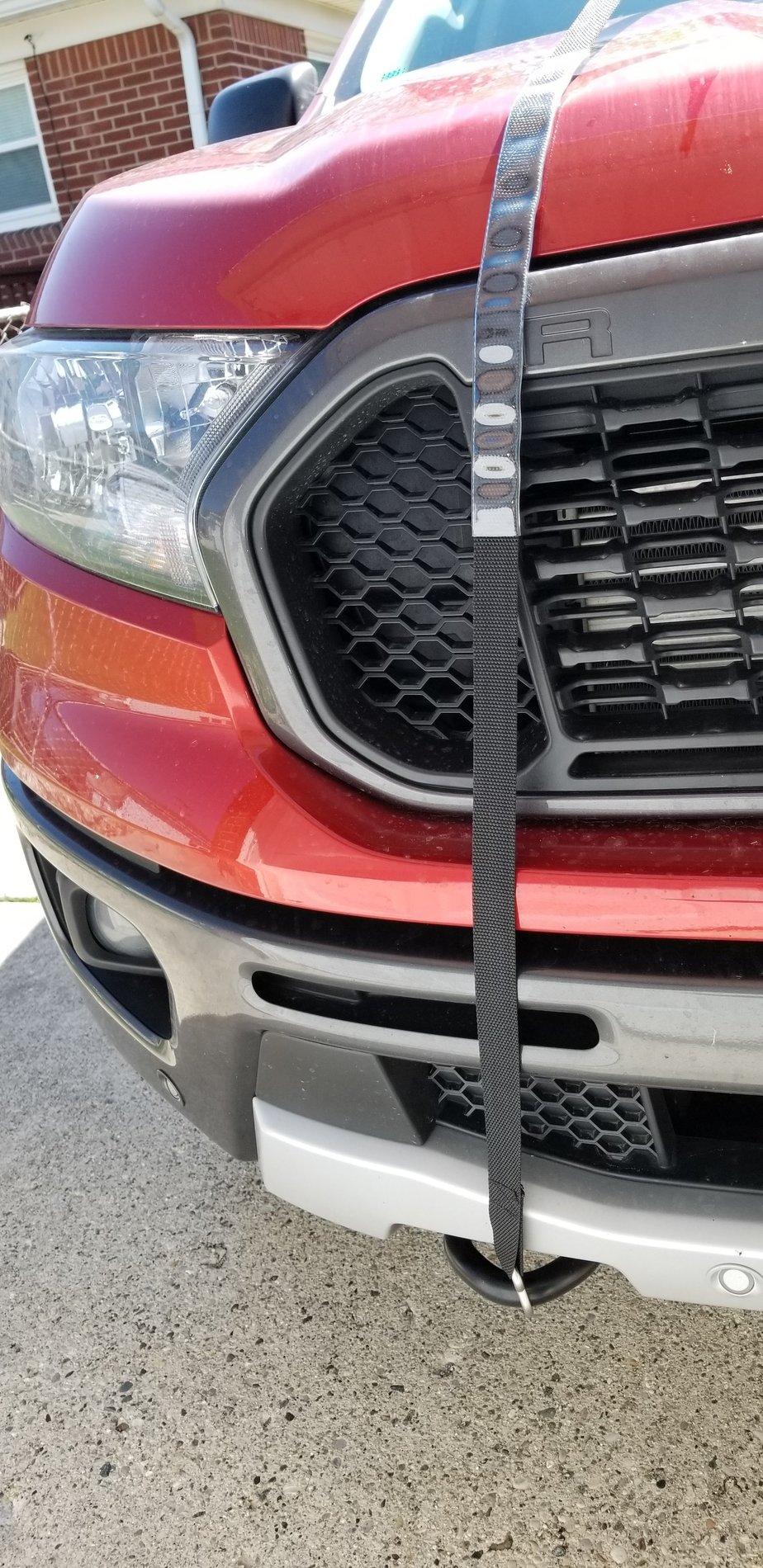

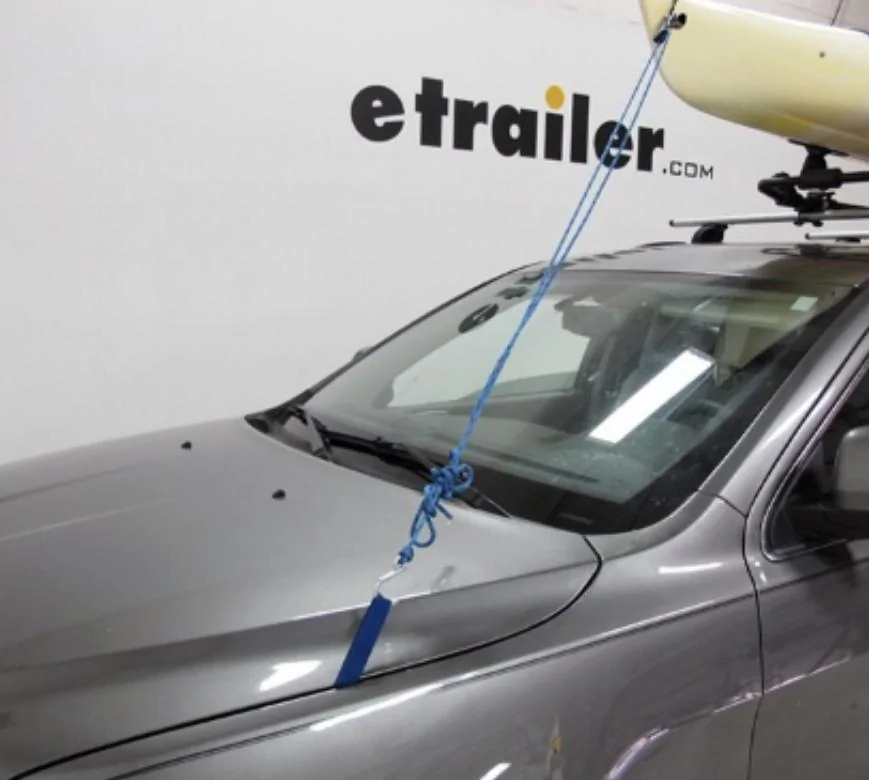

When I strap down I use this guy to go under the hood, this will prevent the strap from damaging the paint on the hood! And it’ll be out of the way of your view!
https://www.etrailer.com/Accessorie...NC0YZDvhT0FHa-4_8WJF6IzudedrT6rxoCOYYQAvD_BwE
These guys have overpriced, I got mine at REI for half the price. Don’t mind the photo of my outback, lol couldn’t find an image of the ranger example!! Nice ride btw

OP
WxNerd2015

WxNerd2015

Well-Known Member
First Name
Trevor
Joined
Oct 17, 2018
Messages
240
Reaction score
635
Location
Madison Heights, Michigan
Vehicle(s)
2019 Ford Ranger XLT SuperCrew, 2011 Jeep Wrangler Sport S, 2017 Ford Escape SE AWD
Occupation
Applications Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #94
When I strap down I use this guy to go under the hood, this will prevent the strap from damaging the paint on the hood! And it’ll be out of the way of your view!
https://www.etrailer.com/Accessorie...NC0YZDvhT0FHa-4_8WJF6IzudedrT6rxoCOYYQAvD_BwE
These guys have overpriced, I got mine at REI for half the price. Don’t mind the photo of my outback, lol couldn’t find an image of the ranger example!! Nice ride btw
Thanks for the tip! I will look into! So far, the setup all the way to the front tow hook has worked well for me with no issues, but I will look into it! :like: :beer:

OP
WxNerd2015

WxNerd2015

Well-Known Member
First Name
Trevor
Joined
Oct 17, 2018
Messages
240
Reaction score
635
Location
Madison Heights, Michigan
Vehicle(s)
2019 Ford Ranger XLT SuperCrew, 2011 Jeep Wrangler Sport S, 2017 Ford Escape SE AWD
Occupation
Applications Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #95
OP
WxNerd2015

WxNerd2015

Well-Known Member
First Name
Trevor
Joined
Oct 17, 2018
Messages
240
Reaction score
635
Location
Madison Heights, Michigan
Vehicle(s)
2019 Ford Ranger XLT SuperCrew, 2011 Jeep Wrangler Sport S, 2017 Ford Escape SE AWD
Occupation
Applications Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #96
I first want to preface this post by stating that I purchased this product on my own and have no affiliation with Bullet Proof Diesel, but I want to share my honest opinions and experience when installing the Third Brake Light Dual Antenna Mount.

So what we have for review today is the Third Brake Light Dual Antenna Mount from Bullet Proof Diesel. They started out with creating these mounts for the 15+ Raptor and F-150, and have now created these for most of the modern trucks today!




These mounts are built solid. I believe they are machined out of solid steel, but they provide some great strength for your antenna mounting needs. Additionally, these come with two separate NMO antenna mounts located at either side of side. From the mounts, there is 15 feet of low profile coax cable for each antenna. and lastly, to provide a good and safe seal to the truck, there is a thick gasket across the entire backside of the mount, and two cab supports for your antennas as well so no damage will come to your cab.

I purchased this mount for $499. I know $499 is still quite a steep price, definitely some sticker shock with it, but this was the mount that I thought looked the best, and fit my need the best. From this entire mount, that is definitely the biggest downside, as that price is a hard pill to swallow, but once you get the mount in your hands, you know you have a great mount that will last a long time!

I chose this mount as I will be needing to run both a CB Radio and a VHF/UHF Radio from my truck and I had had my eye on these for a while. Additionally, I wanted a most ideal antenna location on the the truck, without needing to drill into the body or make too many, or really any body modifications. The highest mounting location you can get in the middle of the roof of the vehicle, and this is about the closest I can get, short of using a magnet mount, and I wanted more permanent than that. From there, I also had to take into consideration the location of the stock antenna on the Ranger. This is located in the middle of the rear taillight, sloped back. If one were to use the single antenna mount, my concern would be the antennas being much to close together or even touching. So moving the antennas out to the side of the third brake light gives more space for each antenna to prevent interference as well. And lastly, I really do like the look of this truck in OEM fashion, so I don't want to change that too much at this time! And this mount is definitely one of the most OEM looking mounts that I can see!

So with that out of the way, on to getting the mount and a couple of struggles starting out! I will cover the installation procedure in the next post then! When I received the mount, my first two impressions were that It was very heavy (very solid), and that it was quite large. I couldn't believe that taillight was that big, but it definitely appears a bit smaller on the truck than holding it in your hands. Everything was packaged great in the box and the mount was basically ready for installation. I did however have a few failed starts with getting the mount installed though, as there is a white felt sticker over the hole where the stock taillight wiring passes into the cab. It had no play, and I could not even attempt to move the wiring at all, let alone pass a coax cable through! I was also hesitant to push too hard to move the felt or poke a hole through it, as I didn't want to damage my headliner on the other side.



Not the white felt looking portion. It was actually sealed extremely tightly around that hole and held on stronger than you would think. But after some further investigation, I contacted Bullet Proof Diesel for some customer service, and they actually brought a Ranger into their facility and investigated themselves to provide me with further details and pictures from their side as to how to run through the cab! Definitely some great customer service that I really appreciated! Specifically Andrew from Bullet Proof Diesel for the helpful information!

Last thing to note is, when I purchased this mount, it was only listed for the F-150s, though the Ranger is the same taillight, and it was also verified for the Ranger, so the instructions that came with the mount, are specific to the F-150. In most of the installation, it really makes no difference, but the portion of routing the wiring through the mount and cab is where the confusion came in. SO please read the following post for my details on the Ranger installation for this mount!


Last edited:
OP
WxNerd2015

WxNerd2015

Well-Known Member
First Name
Trevor
Joined
Oct 17, 2018
Messages
240
Reaction score
635
Location
Madison Heights, Michigan
Vehicle(s)
2019 Ford Ranger XLT SuperCrew, 2011 Jeep Wrangler Sport S, 2017 Ford Escape SE AWD
Occupation
Applications Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #97
On to the installation now! As mentioned in the previous post, this is the Third Brake Light Dual Antenna Mount for 2019 Ford Ranger from Bullet Proof Diesel! Just to repeat a couple of things, removing the taillight itself is very simple, however I struggled with where to route the wiring through the cab, as the hole was pretty much sealed up with a piece of felt from the factory and didn't even really allow movement of the factory wiring harness, let alone getting two coax cables through! And the directions were F-150 specific that came with the mount, so all is very similar, with the exception of the wiring locations in the cab.

SO...after some work with customer service over at Bullet Proof Diesel, they were able to provide me a great explanation and some pictures as to what I needed to do, and I was able to progress from there. Here is what it looks like behind the Ranger's third brake light.

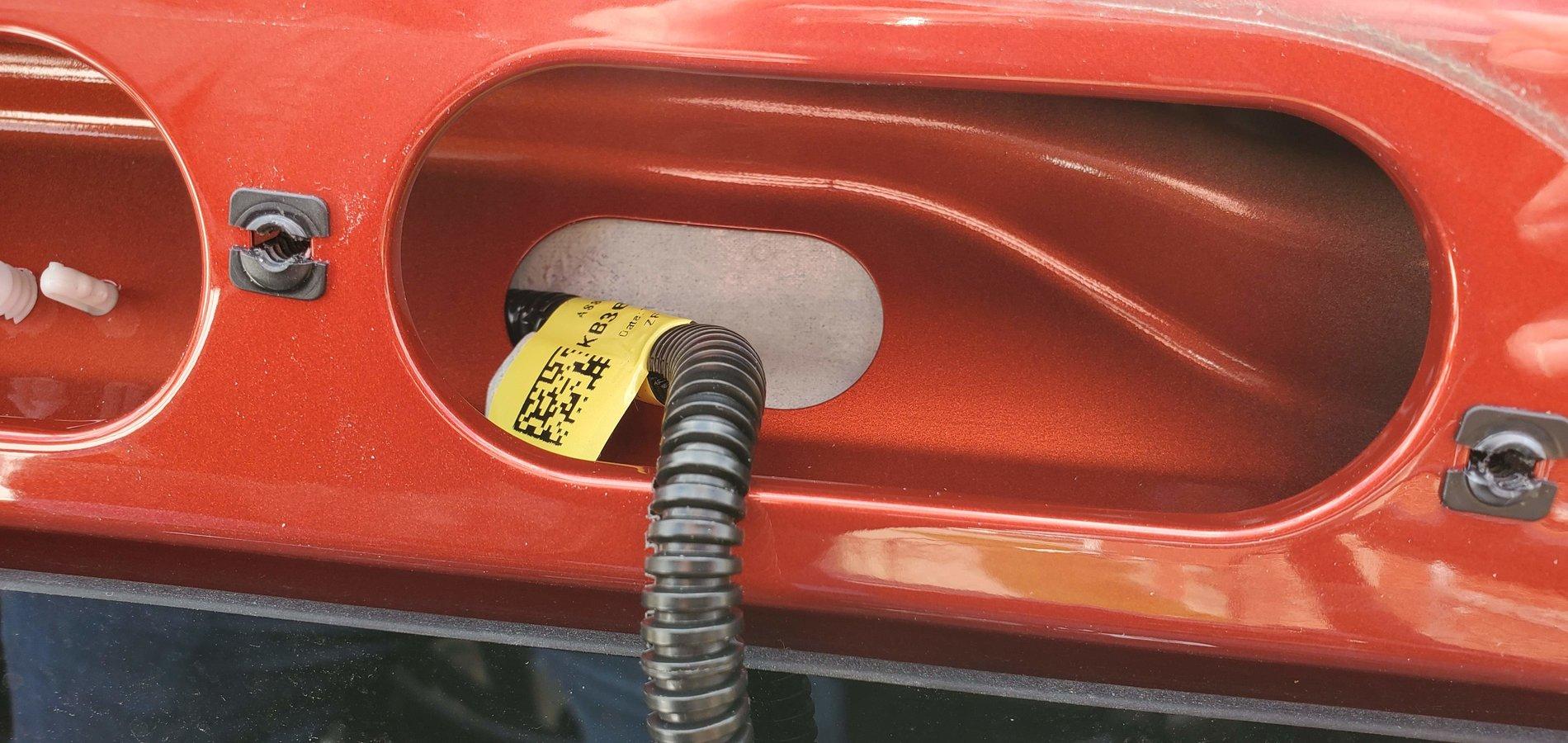

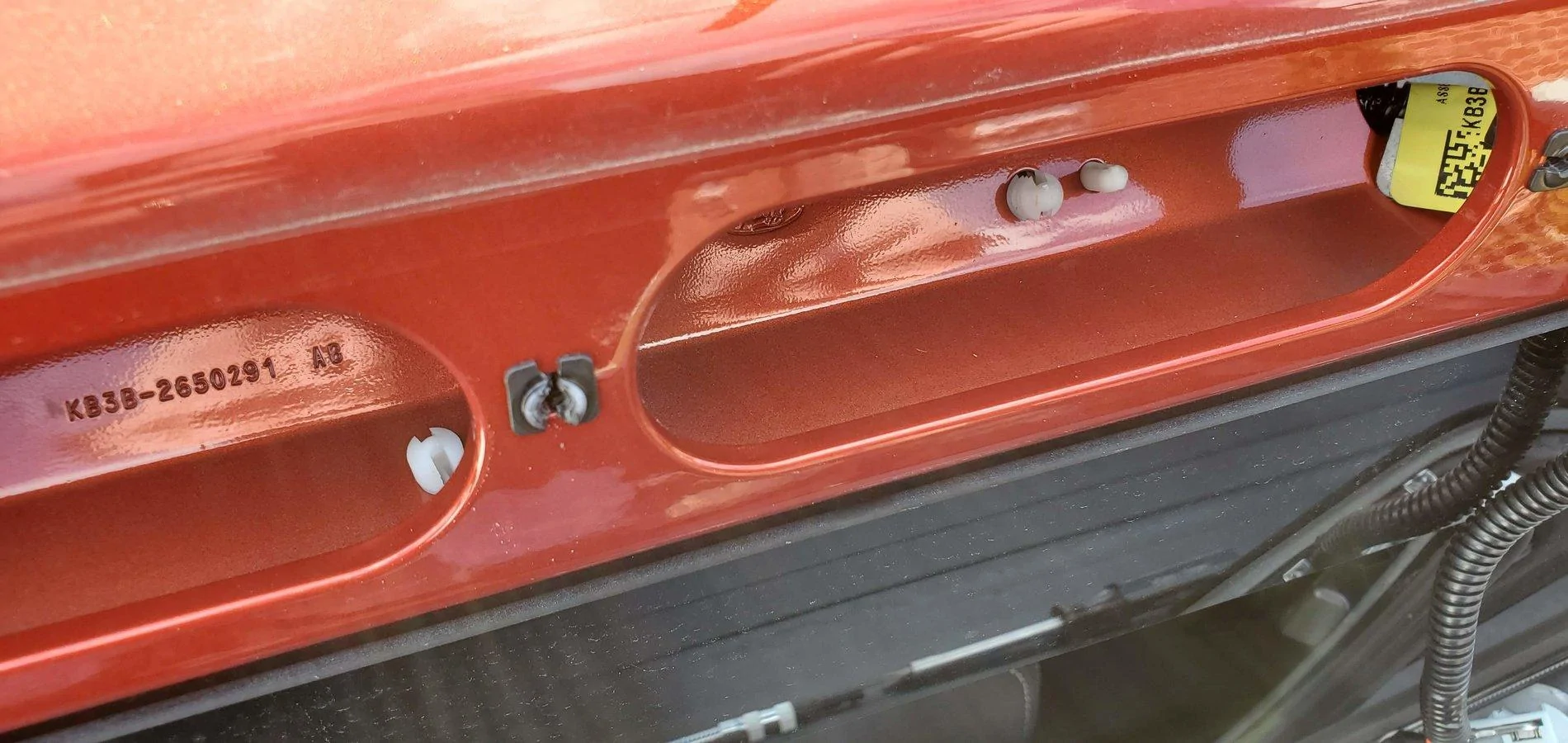

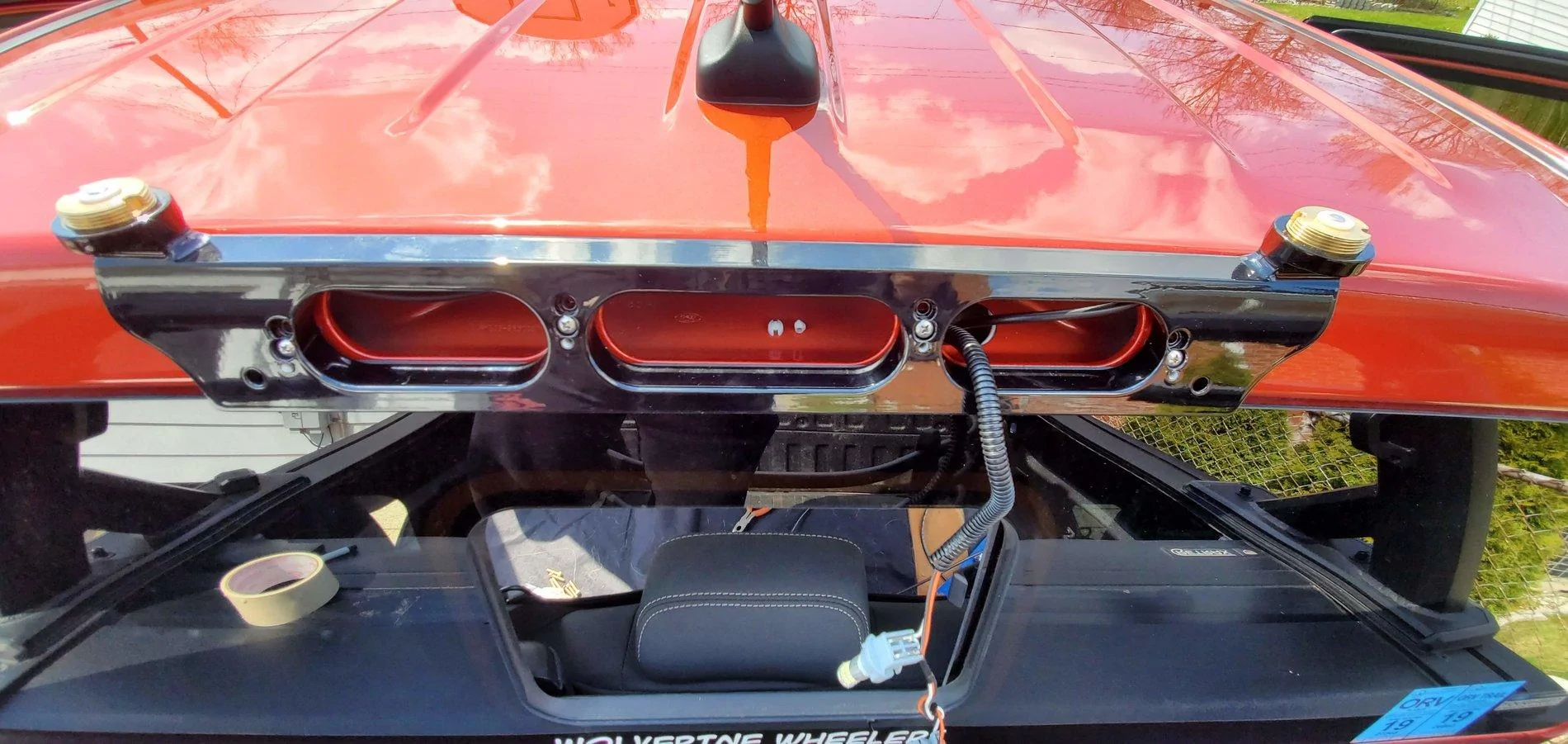

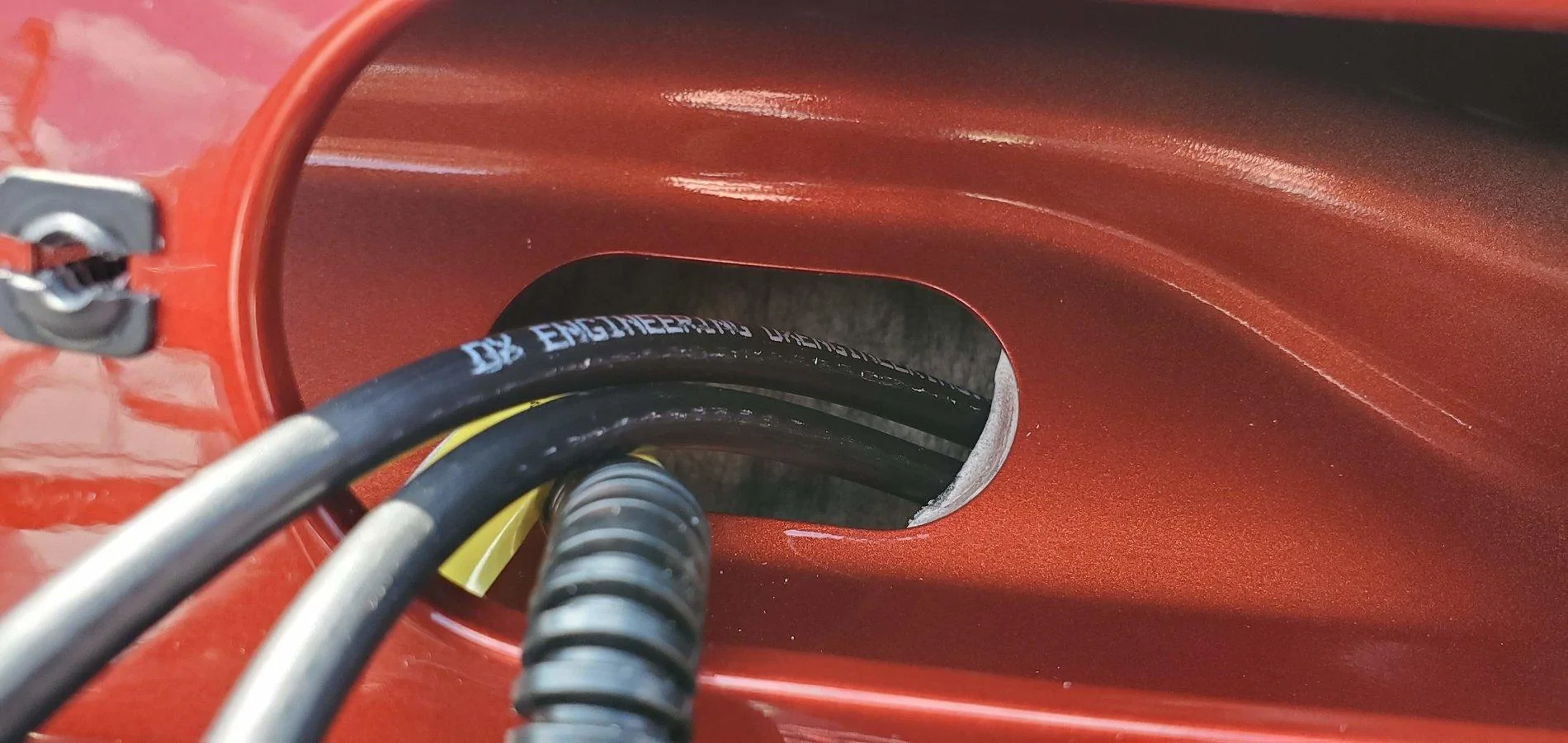

Note that hole is covered by what appears to be some sort of felt pad! So the first step, after removing the taillight of coarse, is to start right at the side the wiring loom goes through and give it a good amount of pressure with your thumb to release this sticker from the loom and the cab. You will have to give it more force than you would think for what it is, but it will start to release and open that hole up much better! And don't worry, there is a good amount of room behind the headliner there, so using your finger, you shouldn't worry about any headliner damage! Once removed, the hole should look something like this:

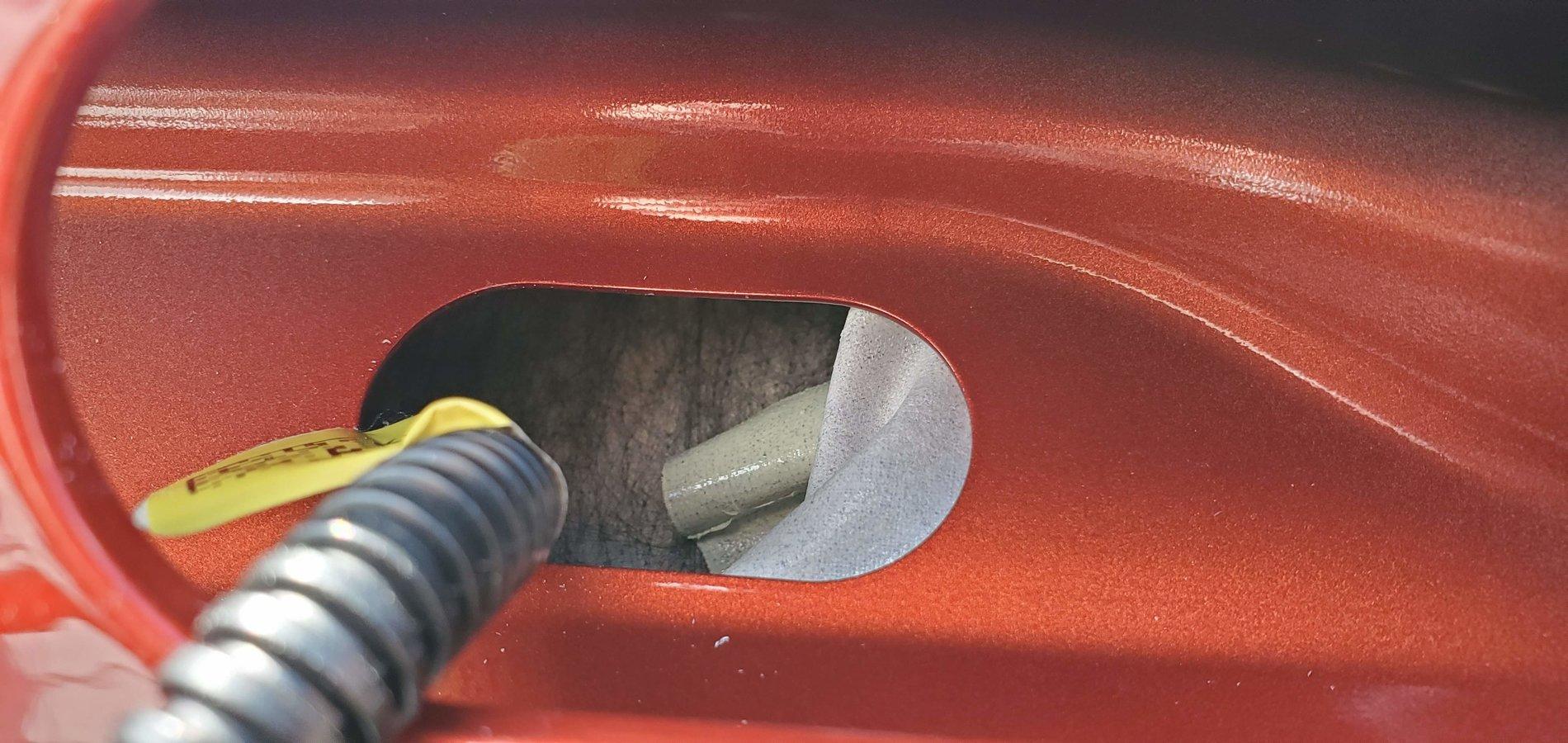

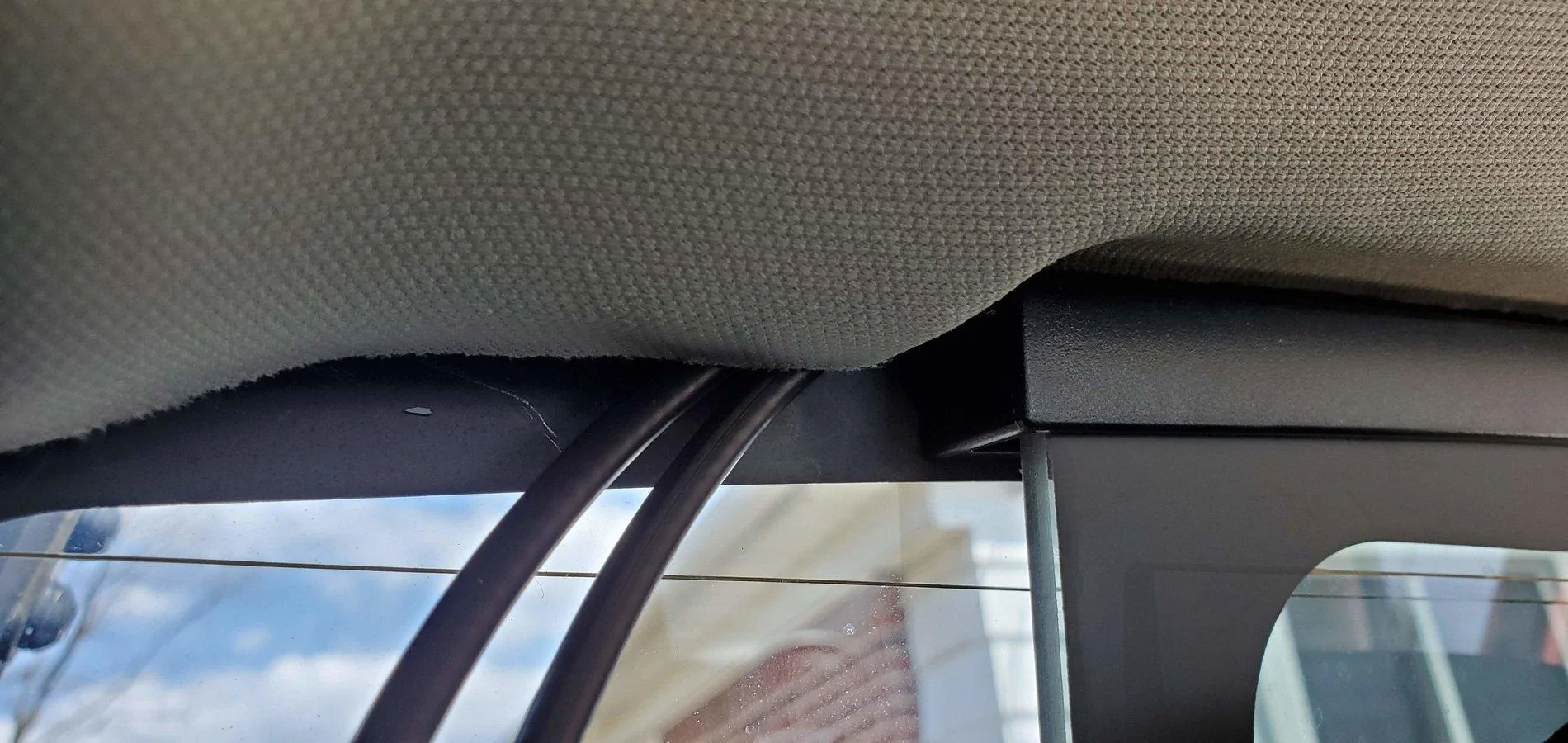

You can see the back of the headliner through the hole, but you, like me, might wonder what that piece of felt was for. To the best of my knowledge so far, it seems as though it was there to block light from coming into the cab from the third brake light. The third brake light is not fully sealed on the inside, so when the cab lights are on, I actually get a small light spot on the inside of the headliner now, but all it is, is the light reflecting into the cab slightly, no big deal!

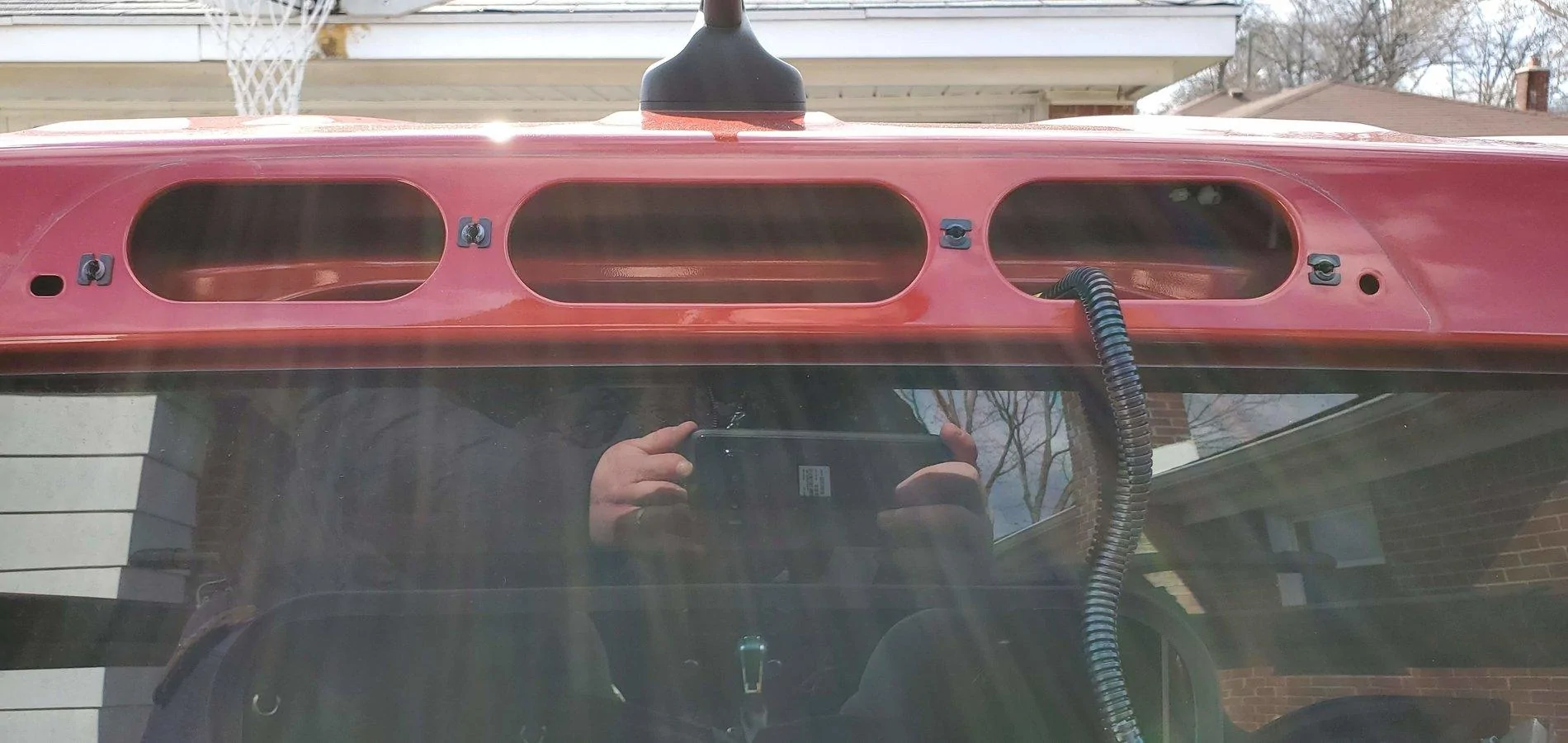

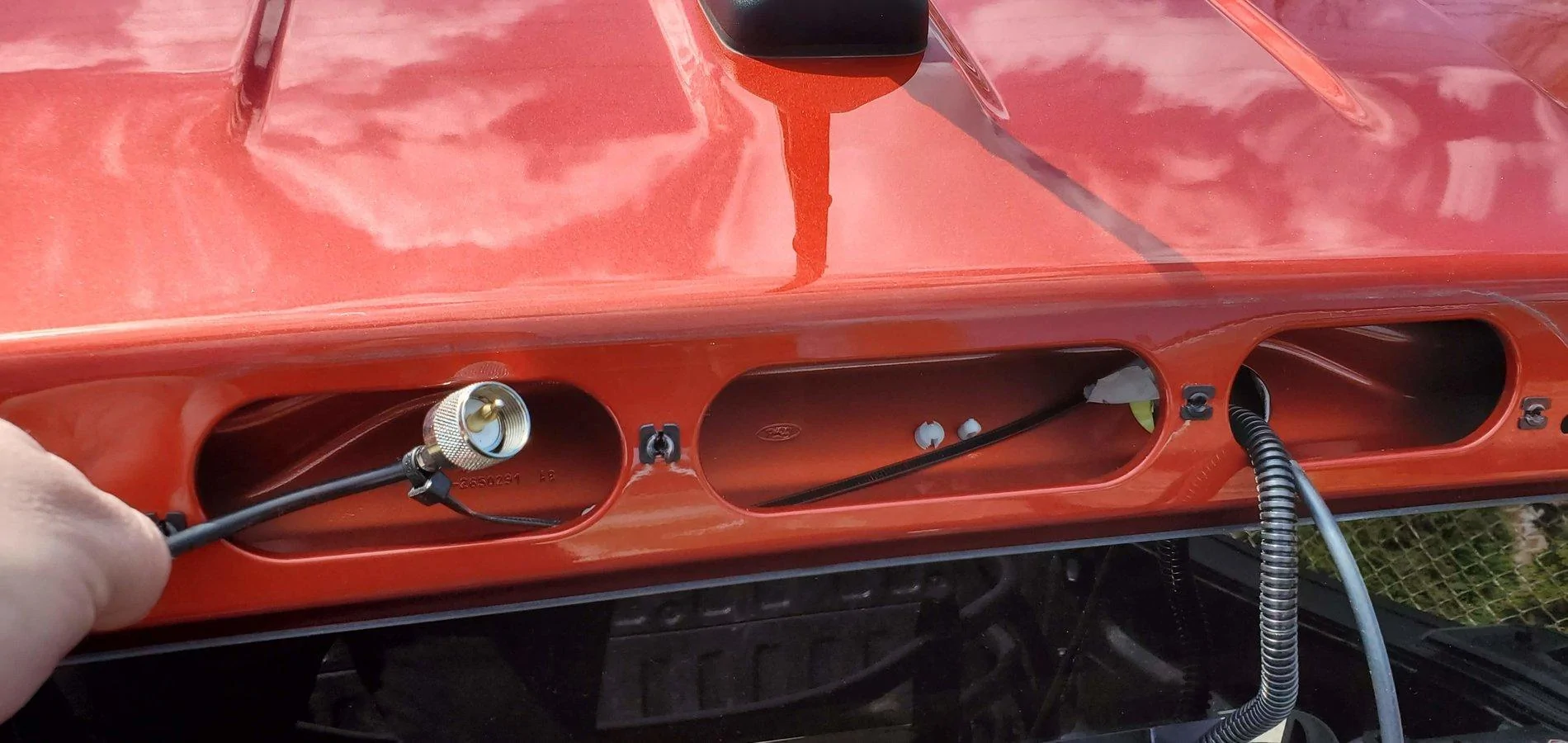

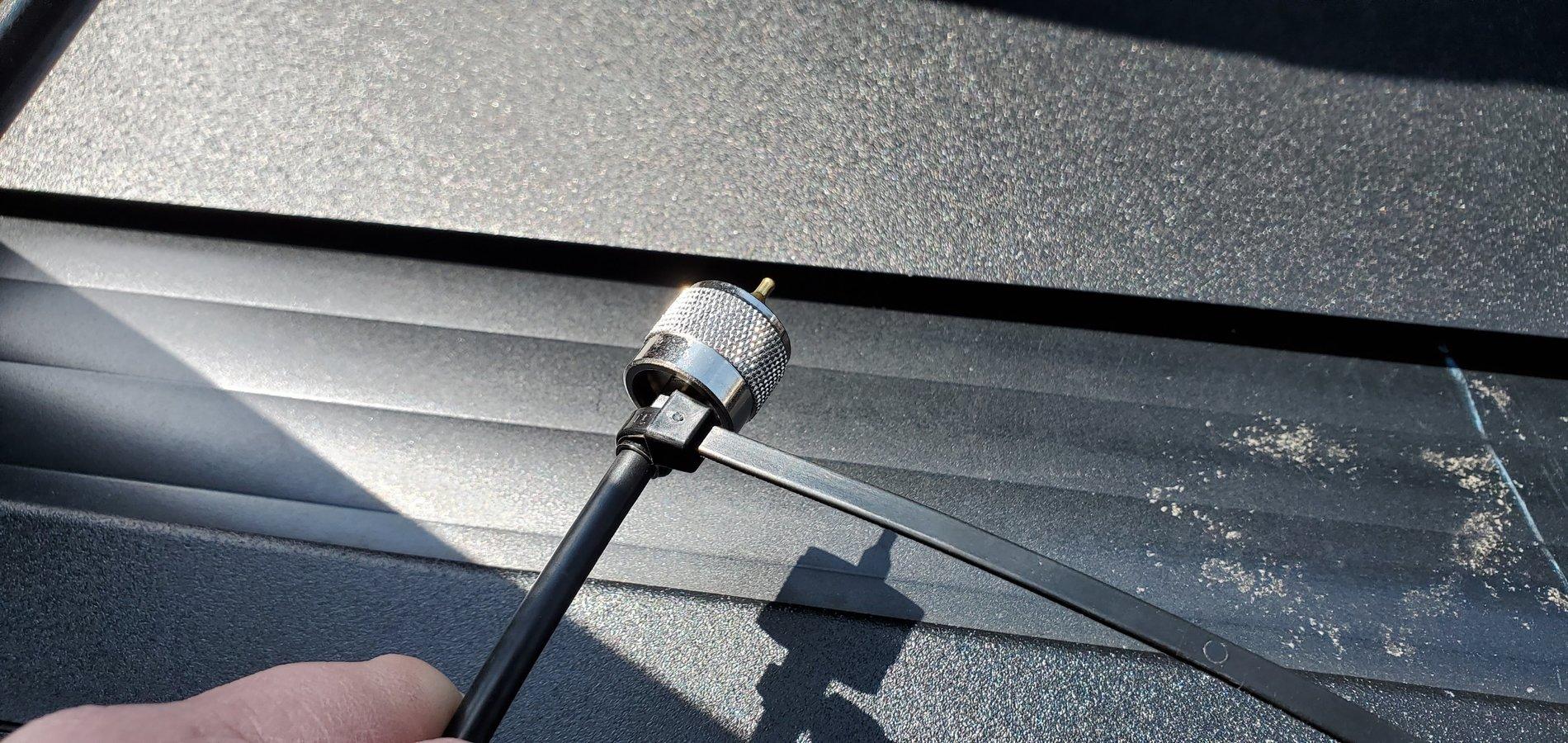

Next up, is to start to run the 15 feet of coax cable through into the cab for each antenna mount that you have. In my case, two! Before you start though, I caution a few things to take into consideration, as well as a few notes! First, note where your antenna is located on the mount and where the wiring runs. This caused me to have to remove one of the cables completely and start from scratch because I did not pay close enough attention. Here is the backside of the antenna mount:

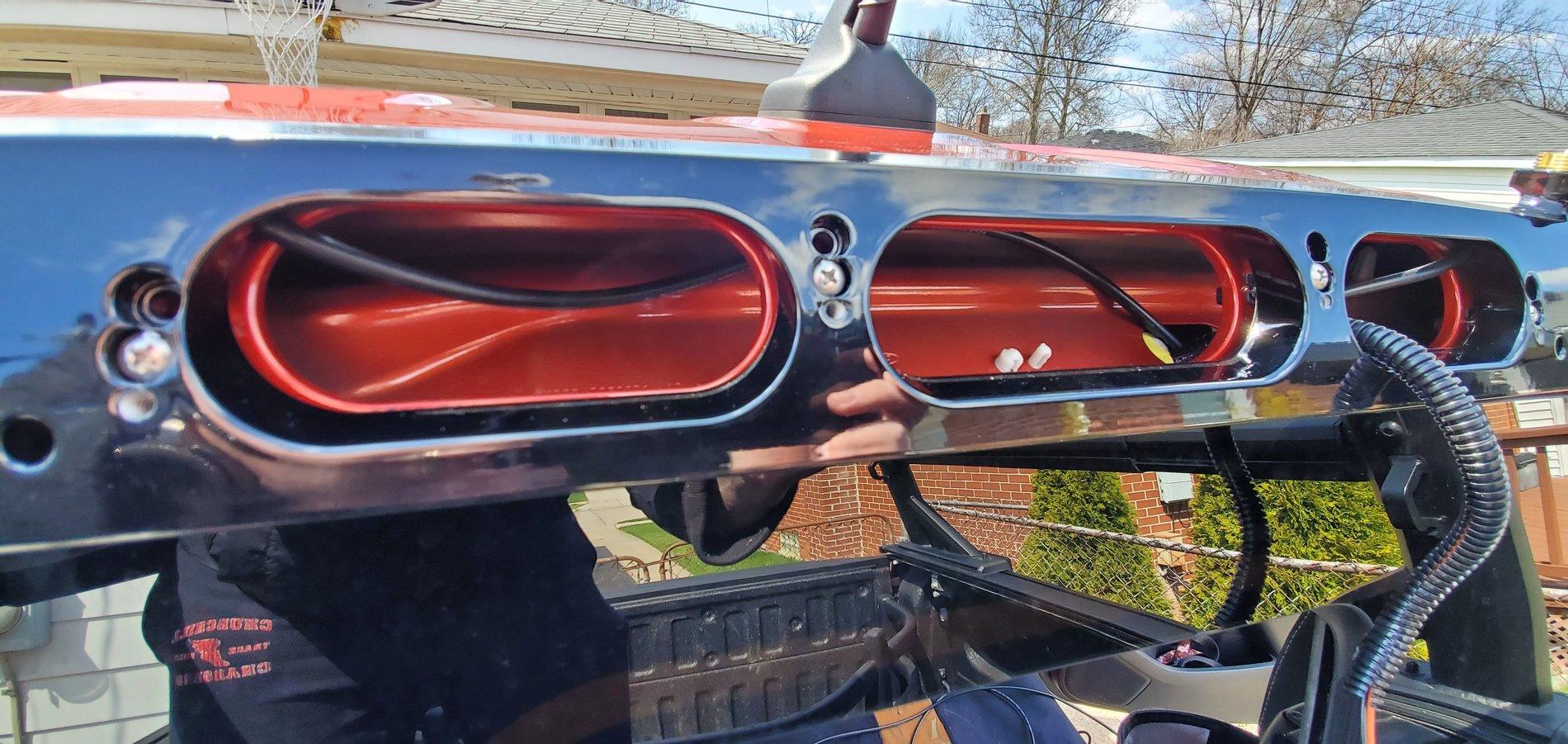

In the dual mount, note how each of the cables comes through at the outside edge of the light. (For the single mount, it will come through the middle). Also note in the above picture that there are three separate holes for the third brake light. In the directions, nothing is specifically stated which holes on the outside of the cab to run the wiring through, so I just took the most direct route, as the mount was still sitting on the bed cover until I run the wiring, which was the right side hole. I ran all of the wiring through and then went to put the mount up to the cab and released that I needed to run the driver's side antenna cable through the driver's side hole. It is a very slight difference, but make sure you get it right the first time because it is not something you would notice right away when installing! So for the dual mount, you initial cable routing should look something like this with one going through teh passenger side hole and the other the driver's side:



Next, make sure to label each wire for driver's side and passenger side. It's a minor detail, but once they are passed through the cab, it's a lot harder to tell them apart! SO I just took a small piece of tape on each able and labels DS and PS so i could more easily keep the cables straight on the inside.

And lastly, on the Ranger, it is very hard to try and get your fingers behind the headliner at the taillight, as with our manual sliding real window, the track does not provide enough space to move the headliner or pull it down without potentially damaging it. So I decided to try and make locating the wires a bit easier. I attached a zip tie to the end of each coax like below:



From there, I then had my wife go inside the truck, and I carefully routed the zip tie straight down along the headliner until it appeared on the inside of the cab.



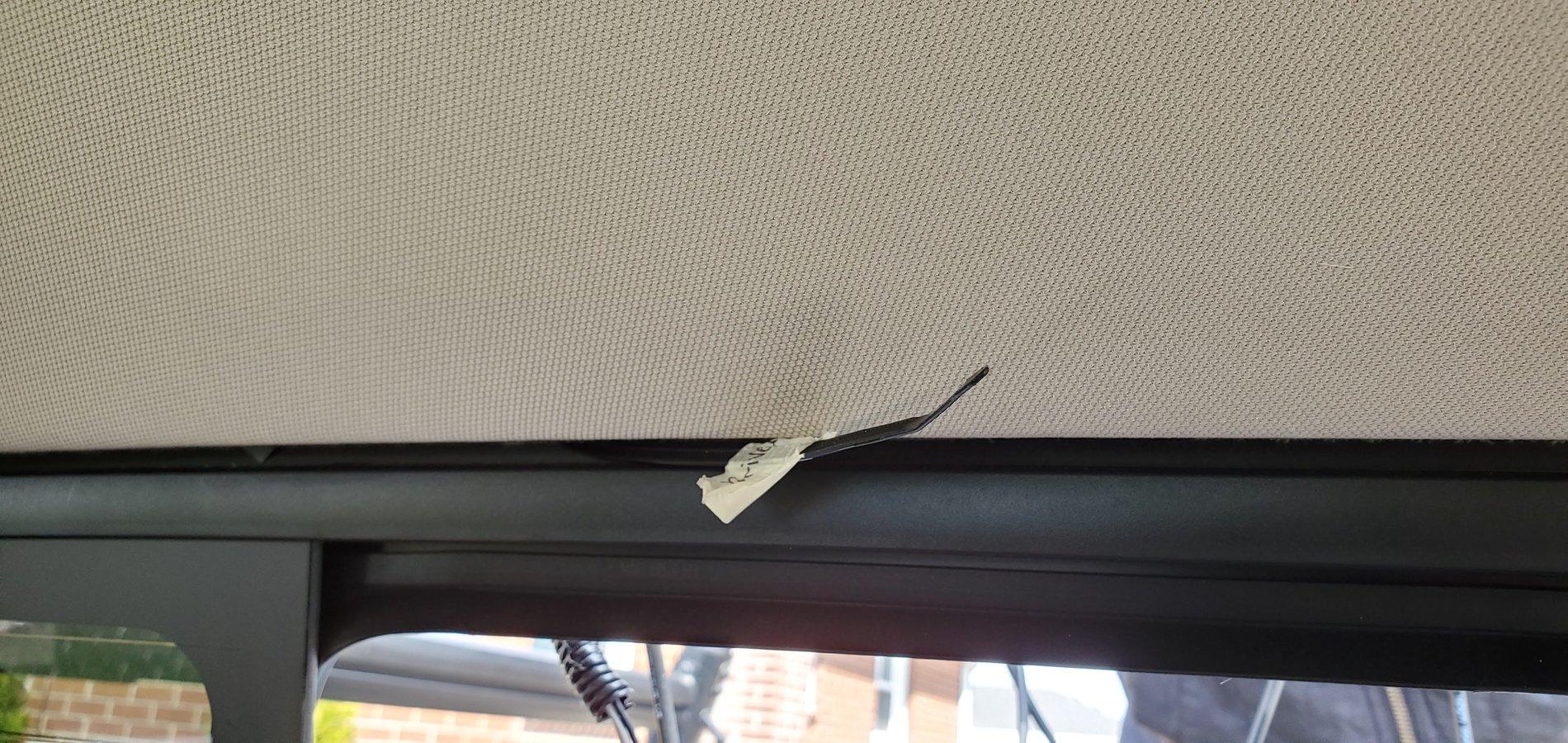

Once my wife saw it, she pulled the zip tie through a bit further, so we had a good handhold, while I carefully routed the coax end into the cab. This also eliminated the need for us to try and pass the coax through the headliner right there. What it did do, was allow us to use the zip tie as a guide to pull sideways along the headliner to the passenger side and run the coax inside the headliner with no troubles. Once you get to the passenger side, the rear window track stops and allows more space for you to easily pull the coax through. However this part definitely takes two people to make it a lot easier!





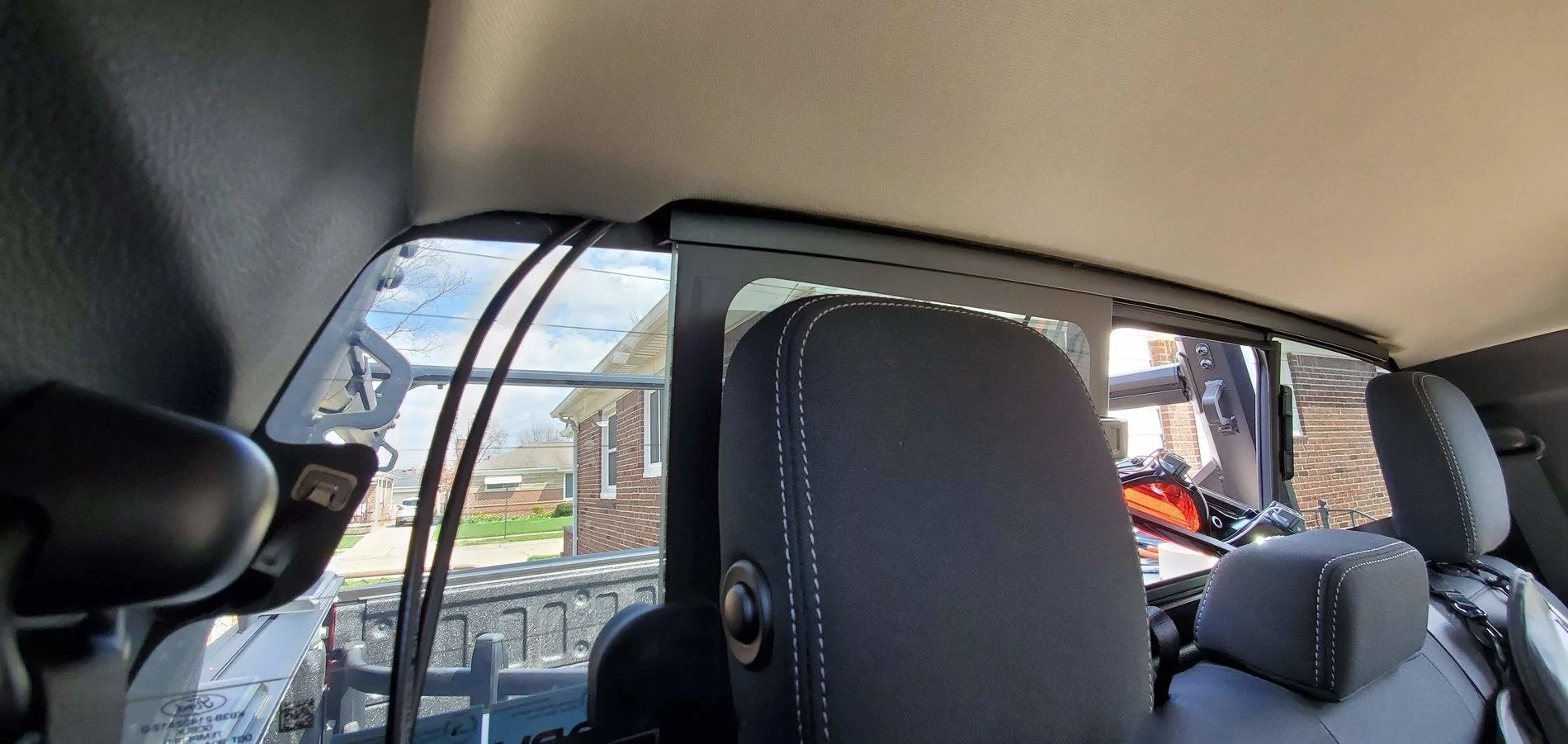

Once the coax cables are inside the cab, the next step is getting the mount placed up to the cab and routing the stock wiring harness through the mount. The directions specify that you should disconnect the light wiring from the plug inside the cab. These clips are really are to release to begin with, and I decided against it due to the fact that you cannot get your fingers behind the headliner to push the clip back in after removed. So I opted to remove the wiring from the third brake light, which turned out to be super easy, and I had new LED bulbs from Diode Dynamics to install anyways. The bulbs simply just twist out, and the clips along the backside of the light easily release the wiring loom. I then replaced the stock bulbs with the LED bulbs and verified that they were working properly, and then it was time to get the mount up!




Also, it is important to note that this part is specific to the XL and XLT Rangers with the halogen third brake light, not the LED one. I do not have any experience with the LED Third Brake Lights!

Now, with the wring loom free, route the loom through the passenger side hole in the mount and place the mount then up to the cab like below:

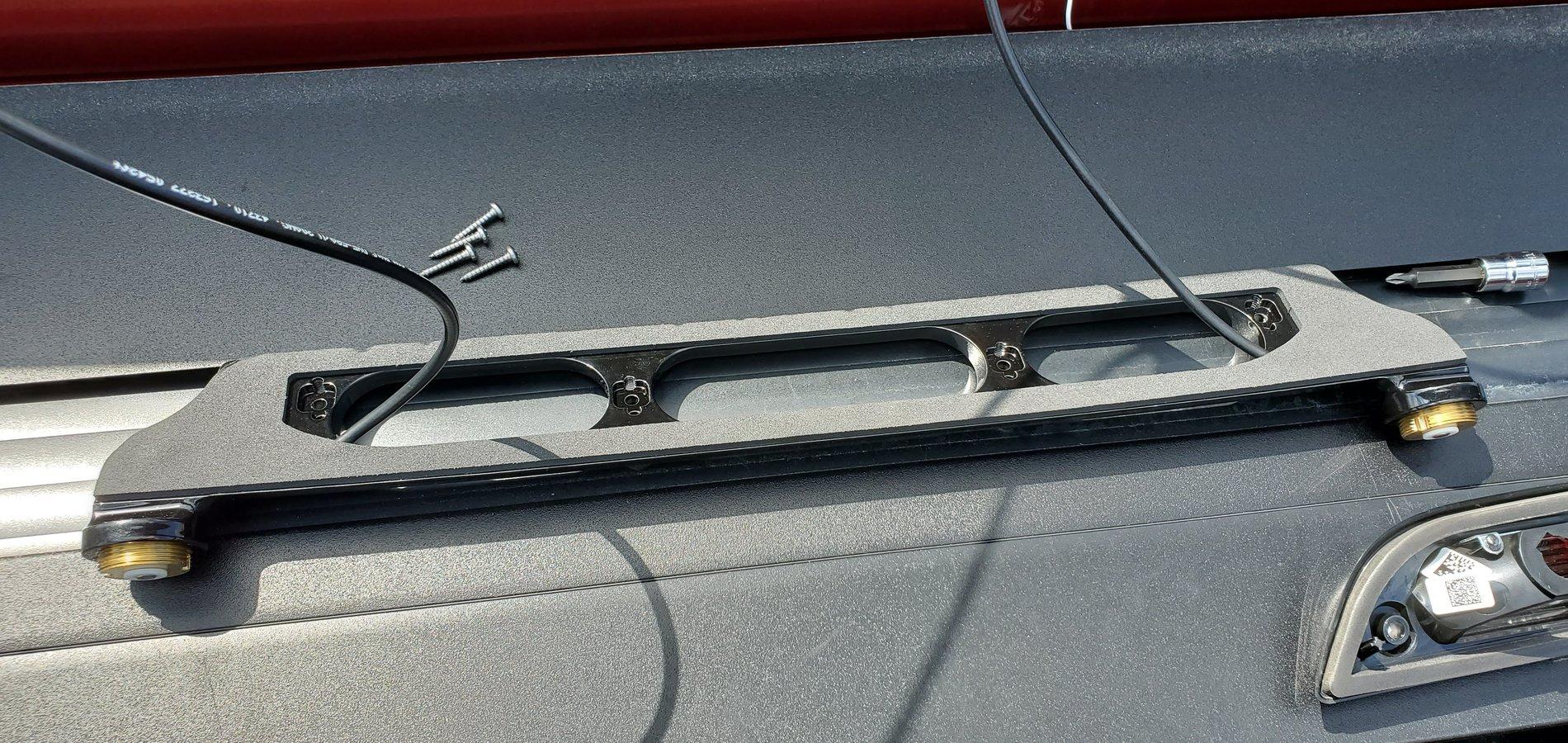

The kit provides new pan head phillips screws to attach the mount to the cab using the stock mounting holes. On the mount itself, that would be the middle holes. Now is also the time to attache the cab supports if you will be installing them. On the dual mount, that consists of two two piece that you place on the inside of the cab, and you drill through the upper holes on the mount, through the cab, and then you can attach the strengthening brackets through those holes. This is the one step that I did not do. I did not feel like drilling through my cab, and the mount itself felt solid enough in it's current location as is. Additionally, I do not plan on running larger antennas very option, and the truck is not parked in a garage, so there are very minimal conditions that I would experience currently that would cause me to need the strengthening bracket, but that can be each our your own choices when installing. I decided to take my chances for now. On the single mount, I believe you only need to drill the upper middle two holes, as there is only one support bracket for the middle.

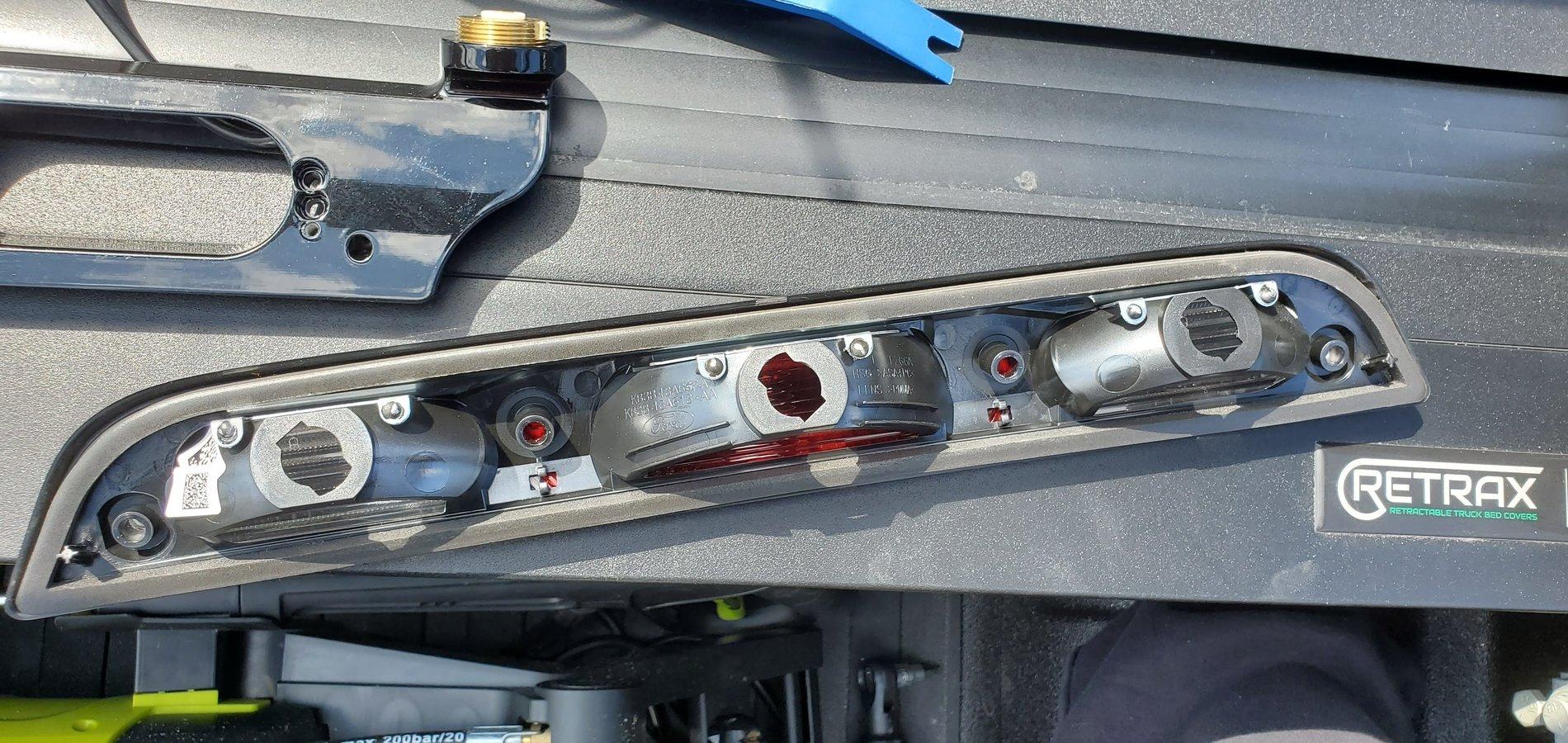

Moving on, I next grabbed my third brake light, and started reinstalling the wiring loom to the light housing, and it went back in just at it came out, with no problems at all! Honestly, if you have the halogen light, I have no idea why you would struggle with the plug in the cab, this method is so much easier! Once the lights are installed back into their sockets and the loom is attached, Bullet Proof Diesel also supplies new button head cap screws to install the taillight, and you thread those through the light housing and into the bottom holes of the mount. Initially, there will appear to be a big gap between the light housing and mount, but as you tighten the screws up, it sucks the housing up very nicely to the mount and seals great!

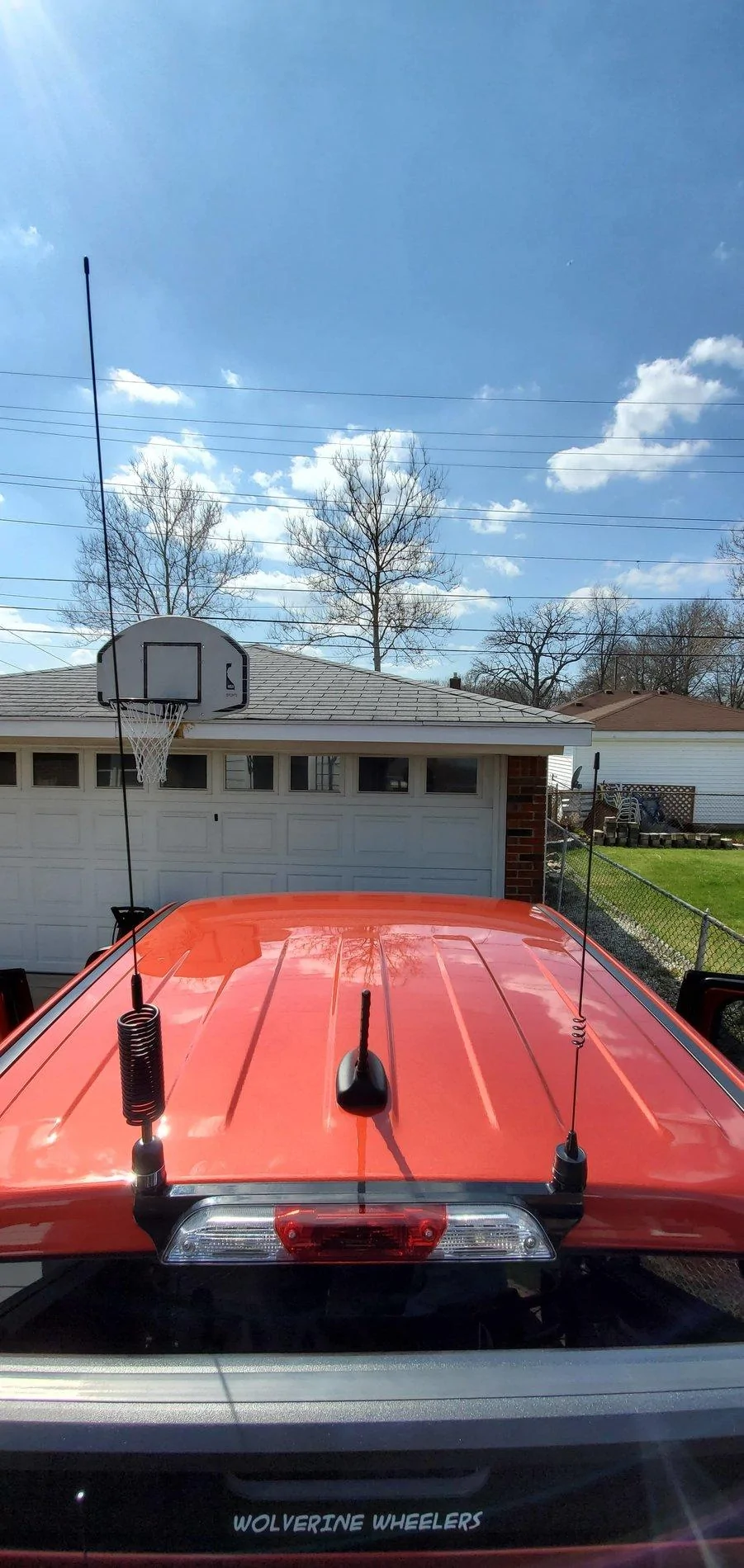

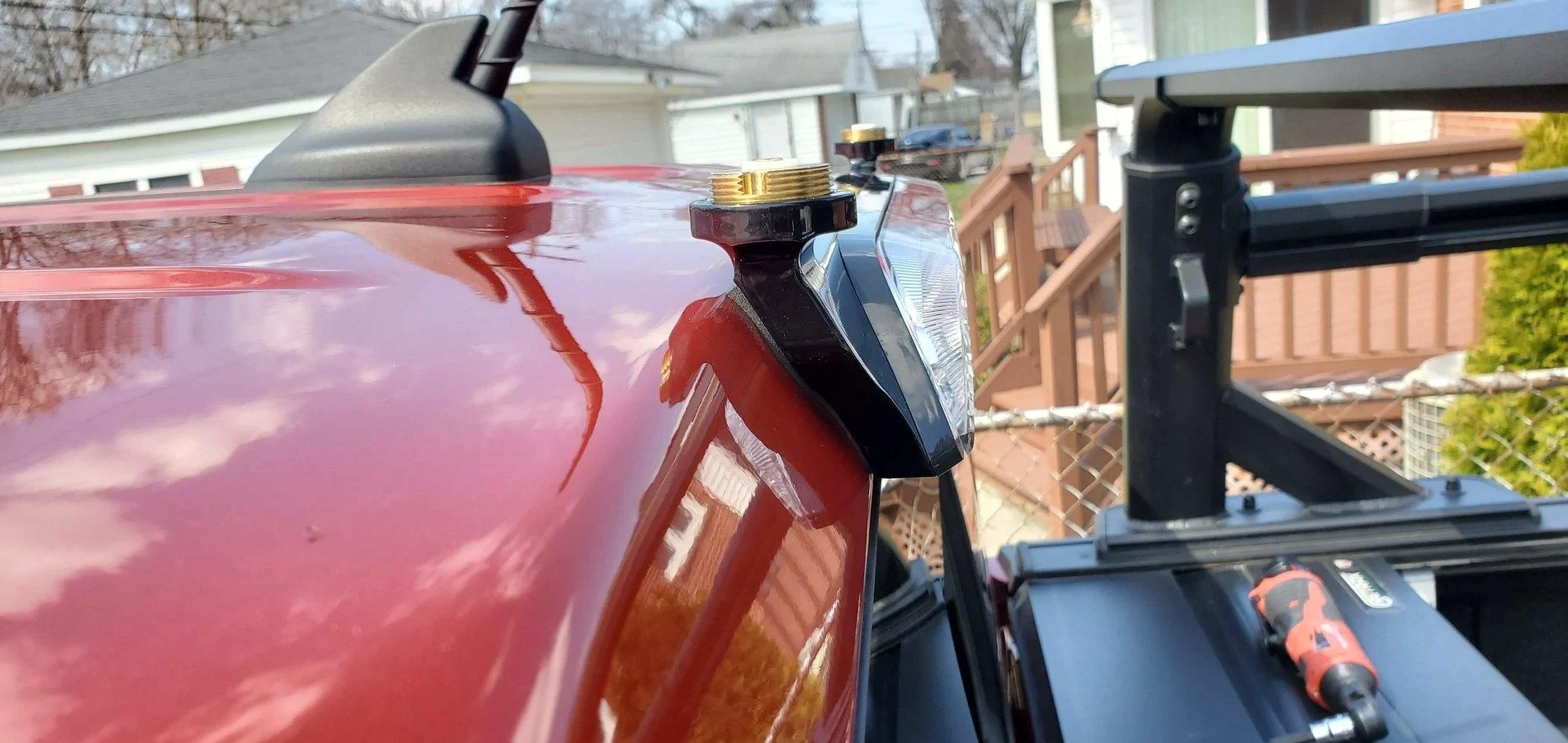

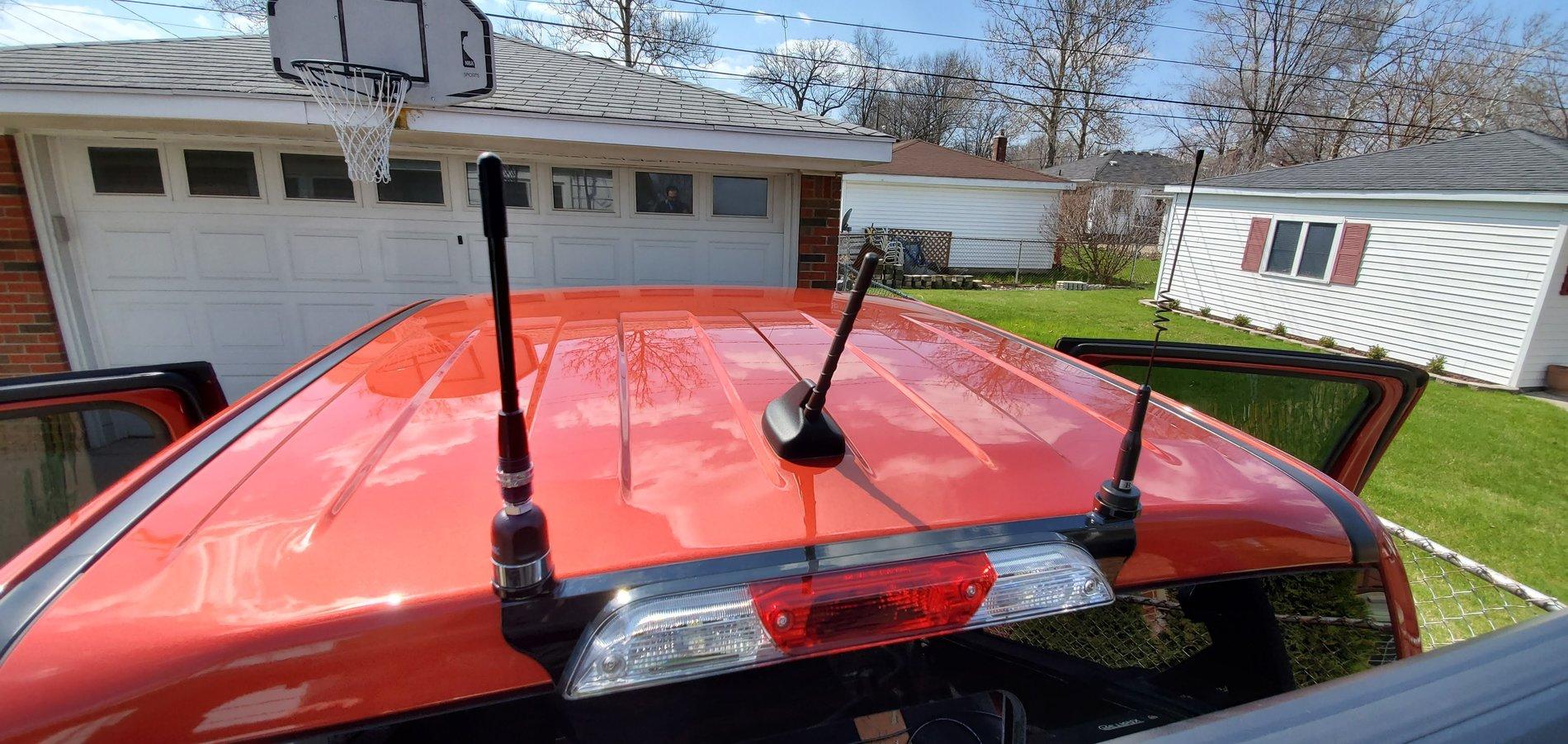

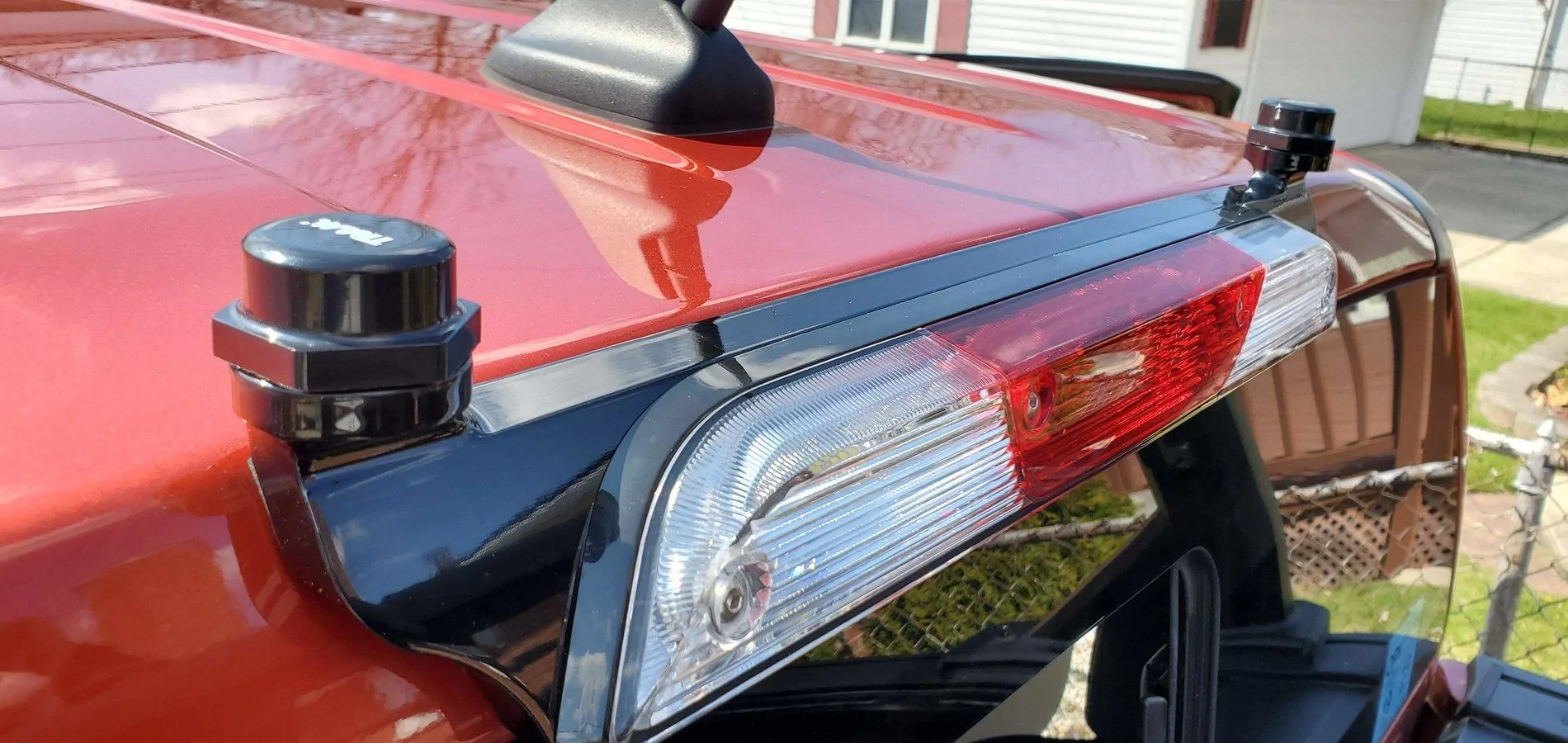

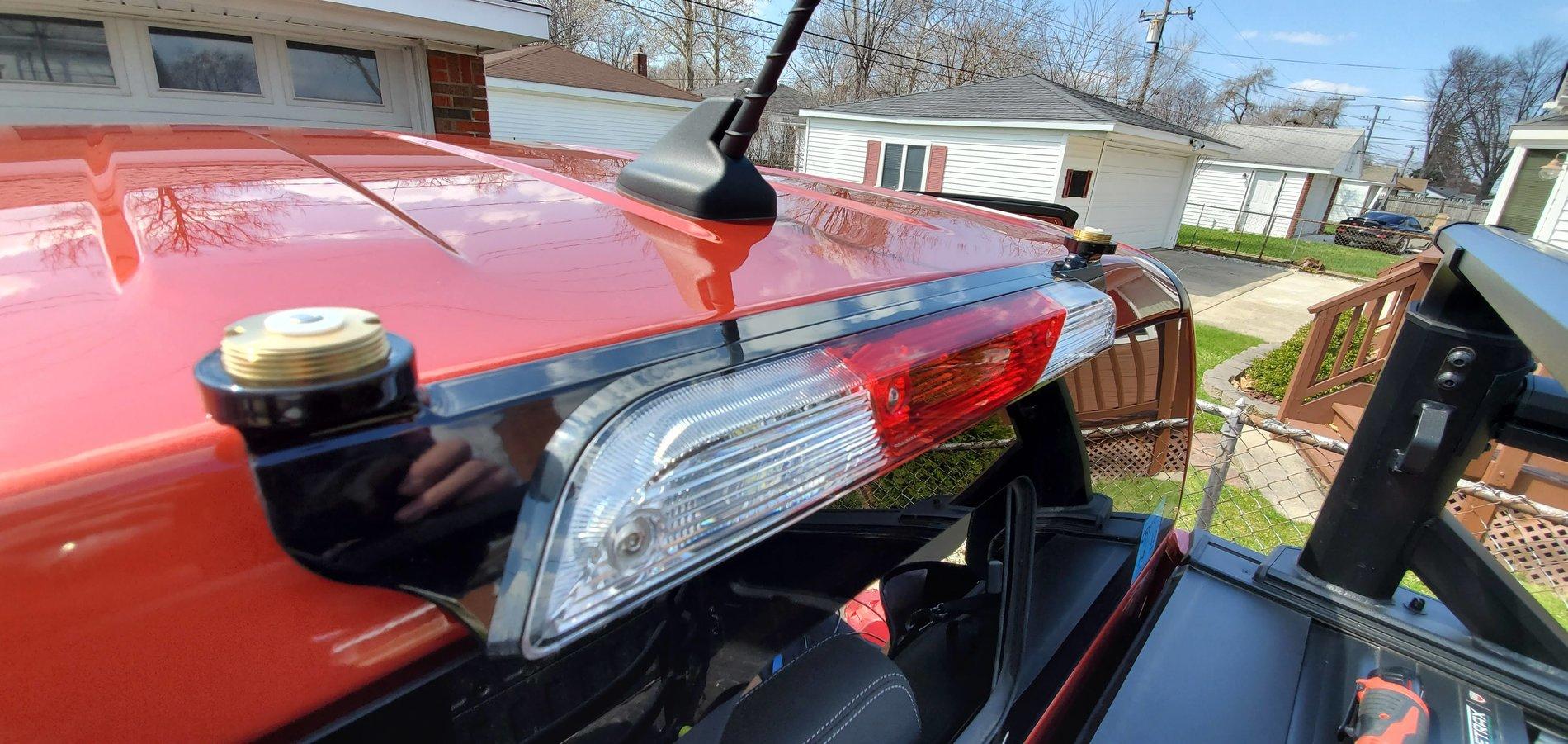

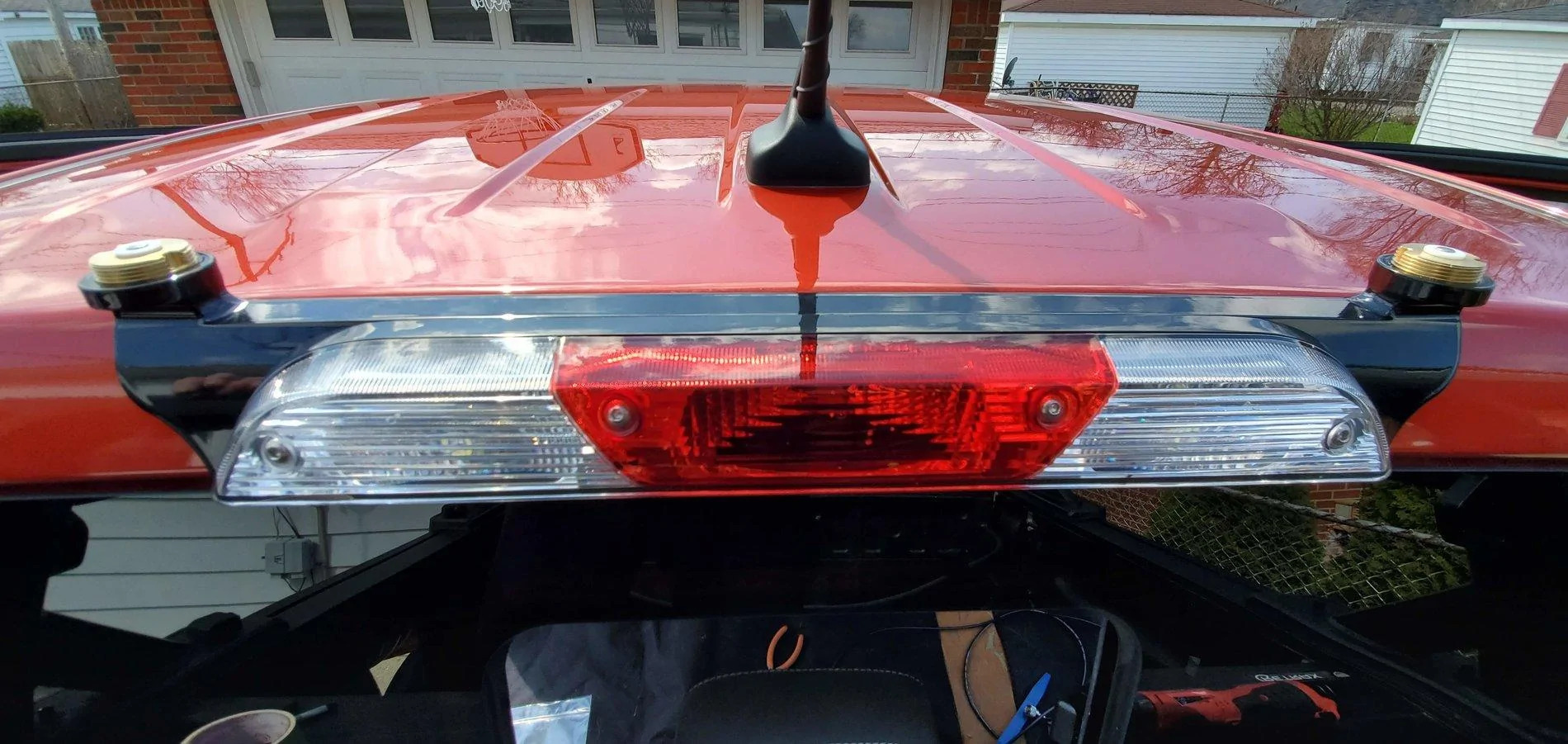

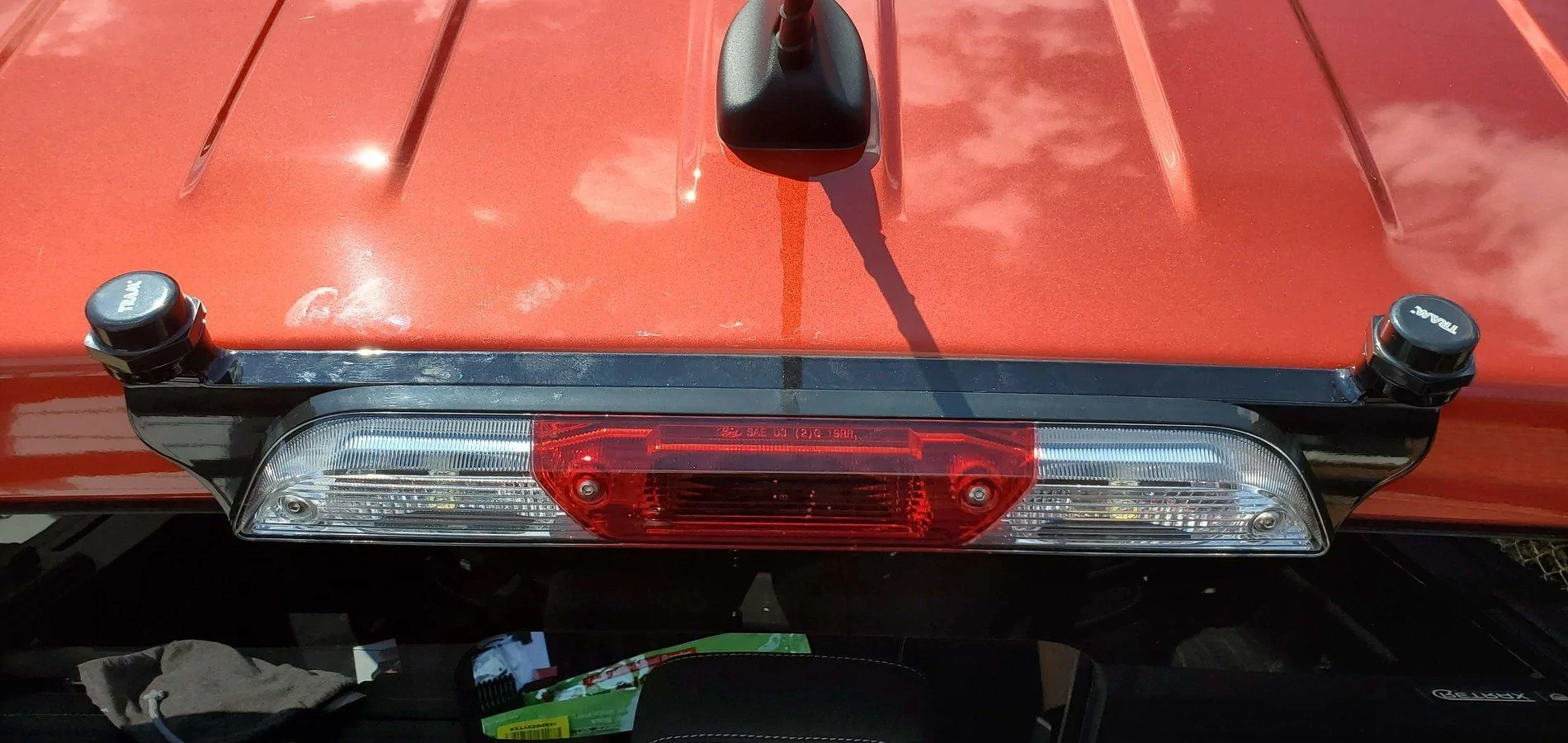

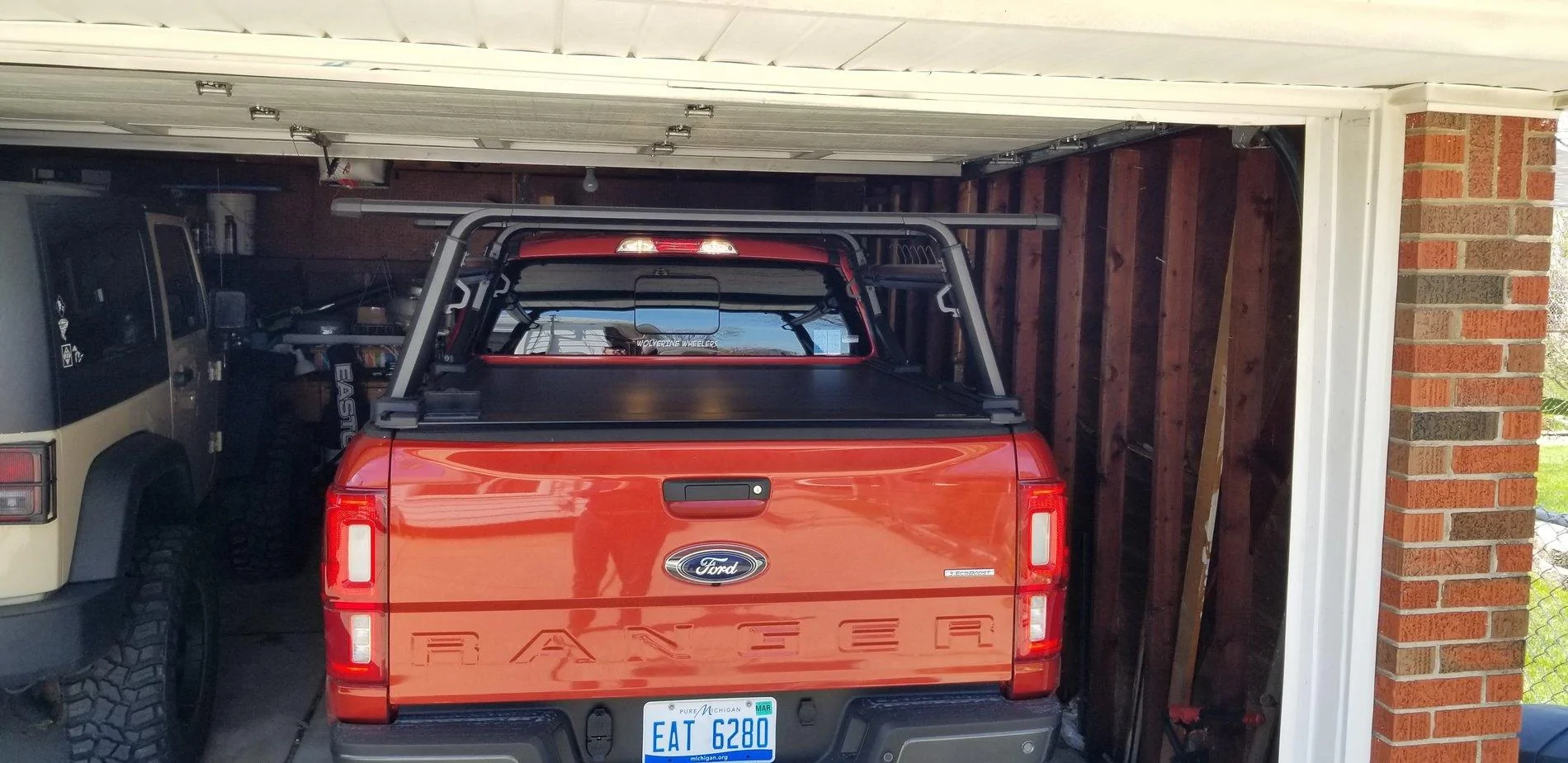

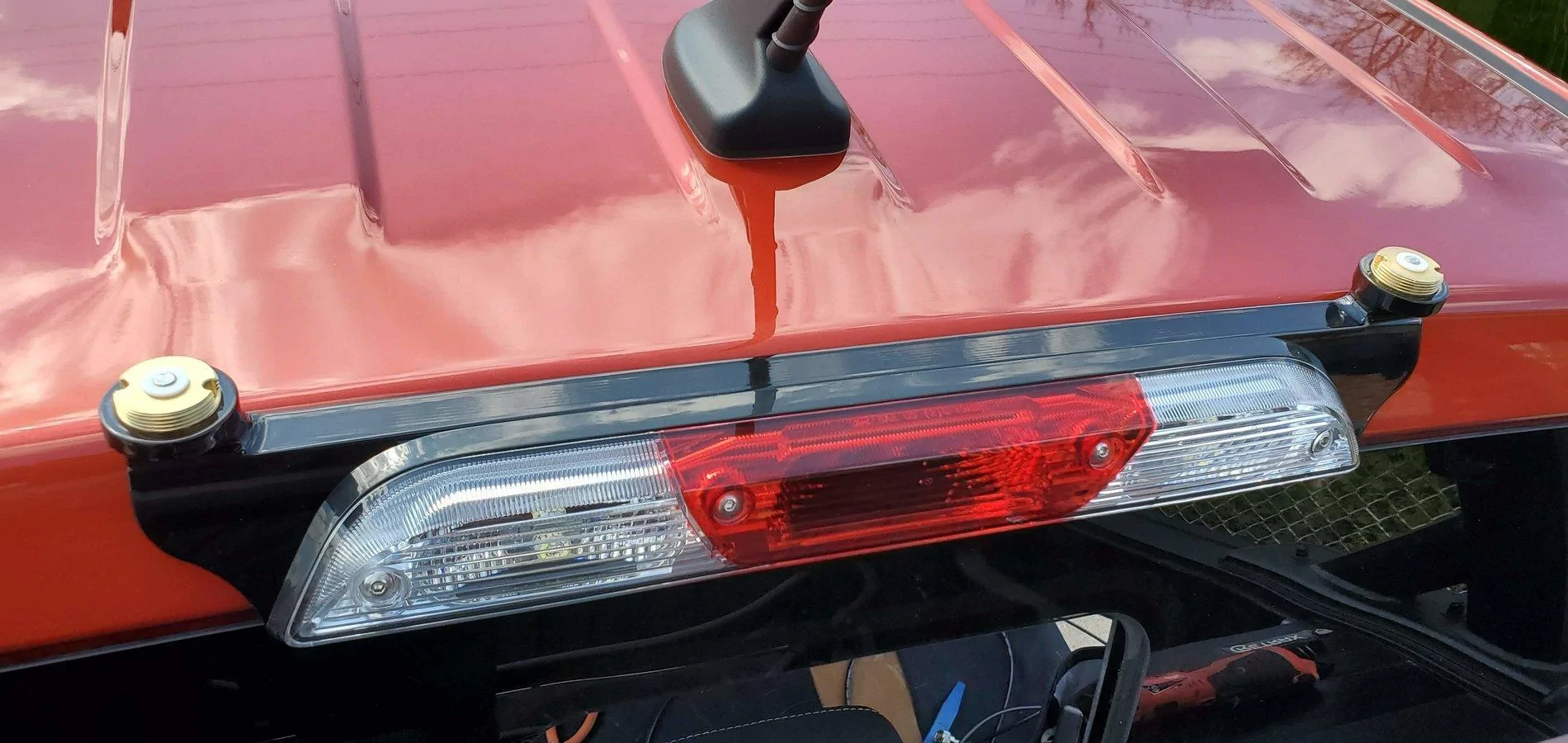

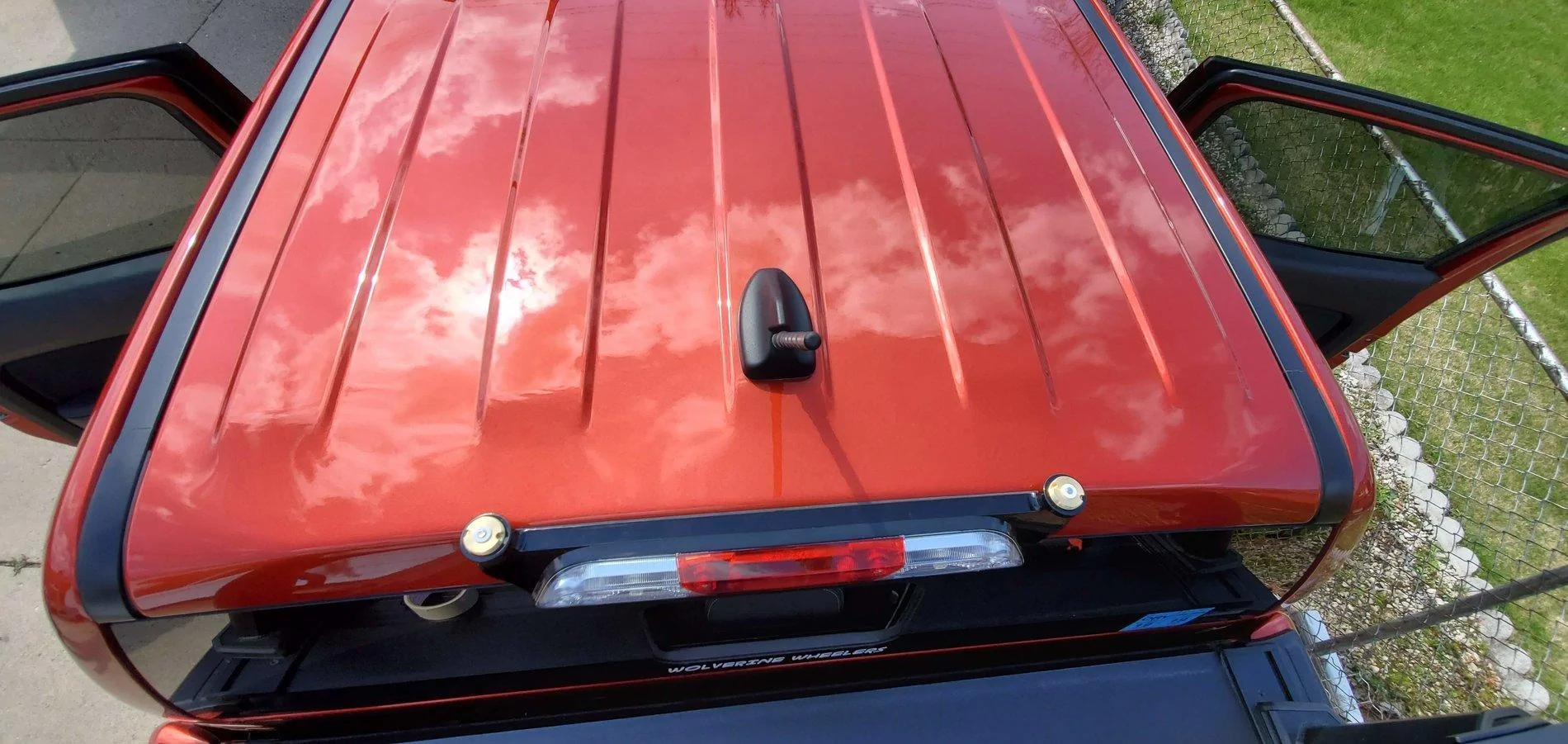

And without further adieu...here is the mount installed on the truck!







Overall, once I figured out the routing into the cab and I got out of my own way with some dumb mistakes, this mount was very easy to install, and with the right info and procedures you could easily get this installed in 30 minutes to an hour! The fitment is perfect and I love the look! It feels very solid and everything installed exactly as it was supposed to! I have now had the mount on for almost a month I believe and it has worked great, no noises, no leaks, and all the cables and lighting is working as it should! I know it is pricey, but if you can afford it, you get what you pay for, and this is a very high quality mount that is going to last a long time!

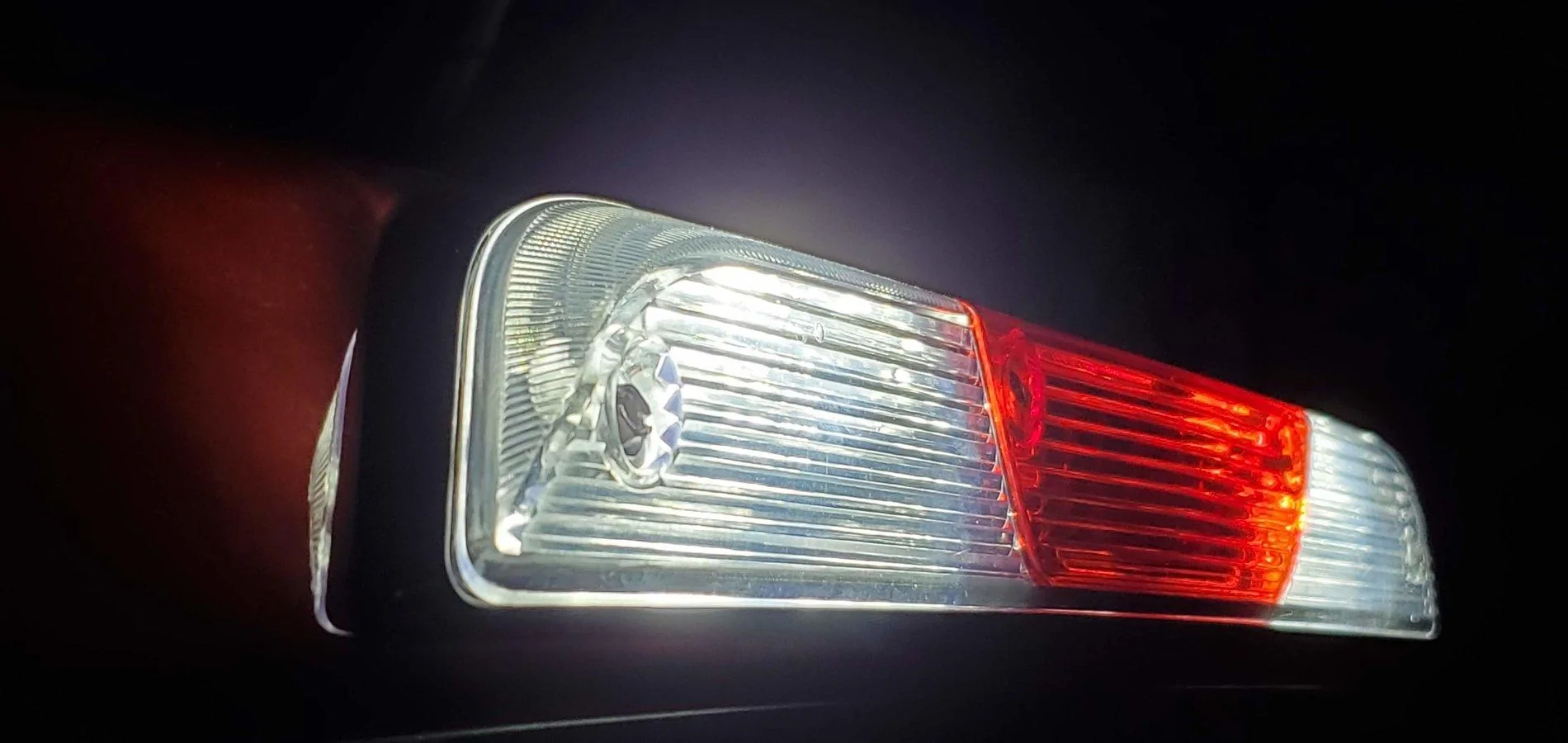

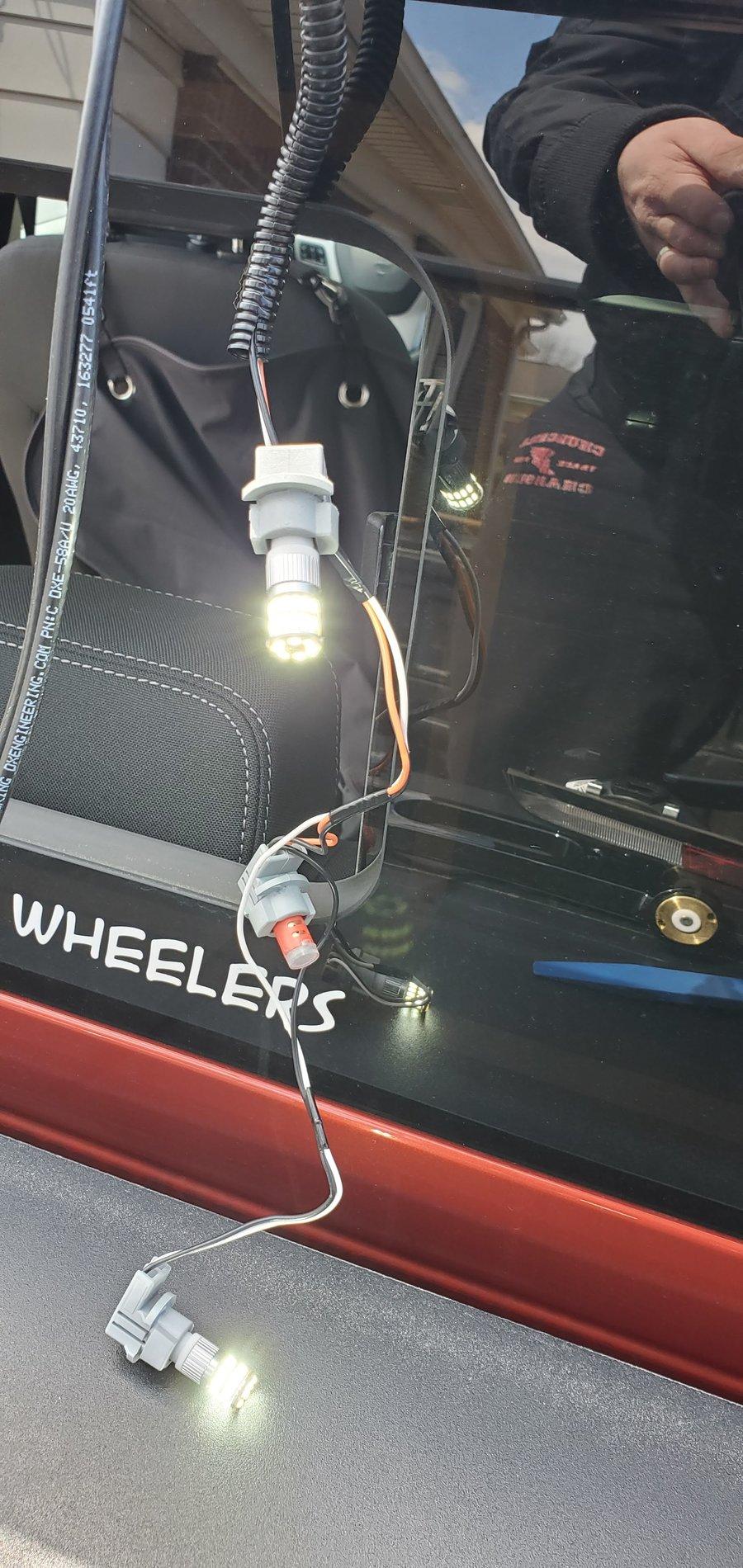

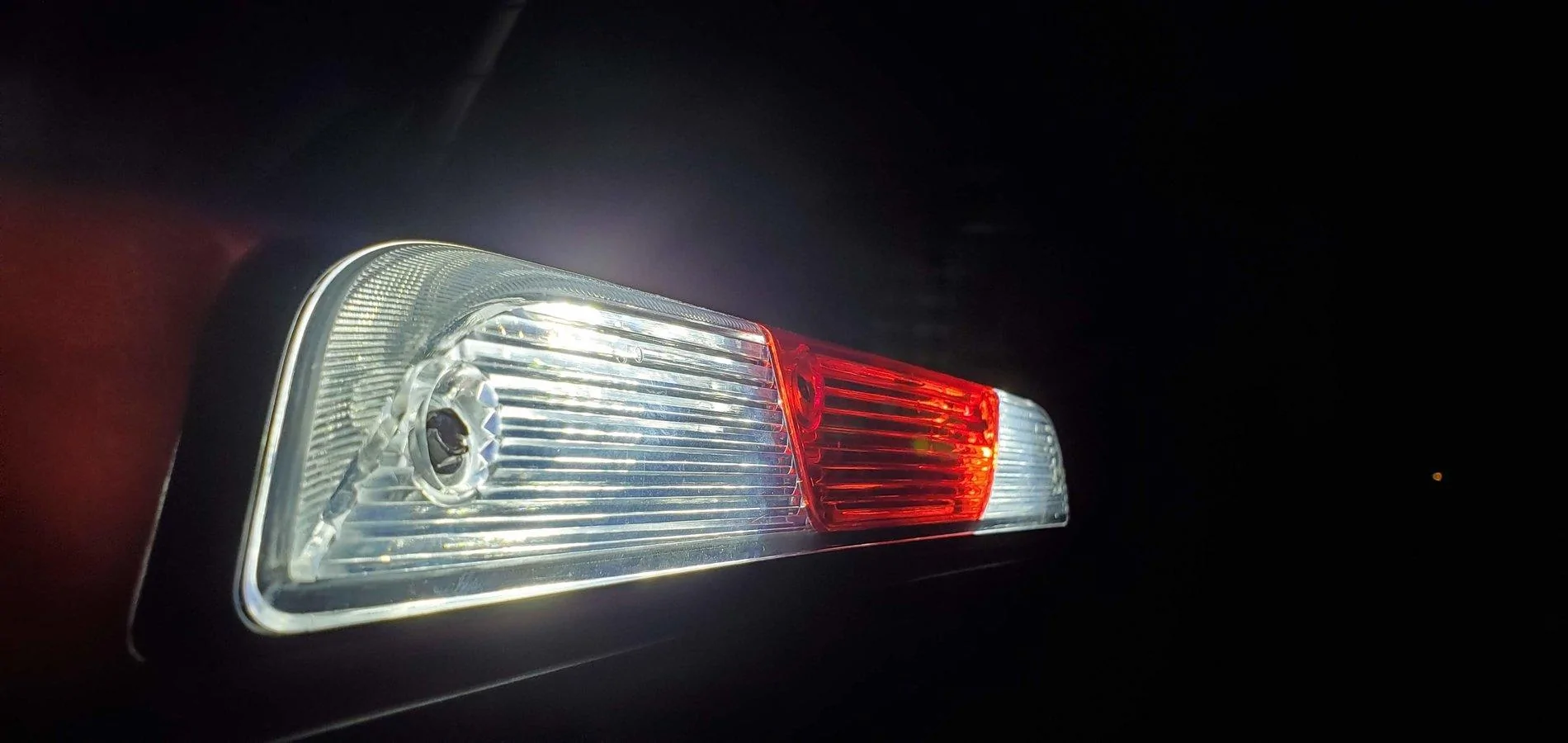

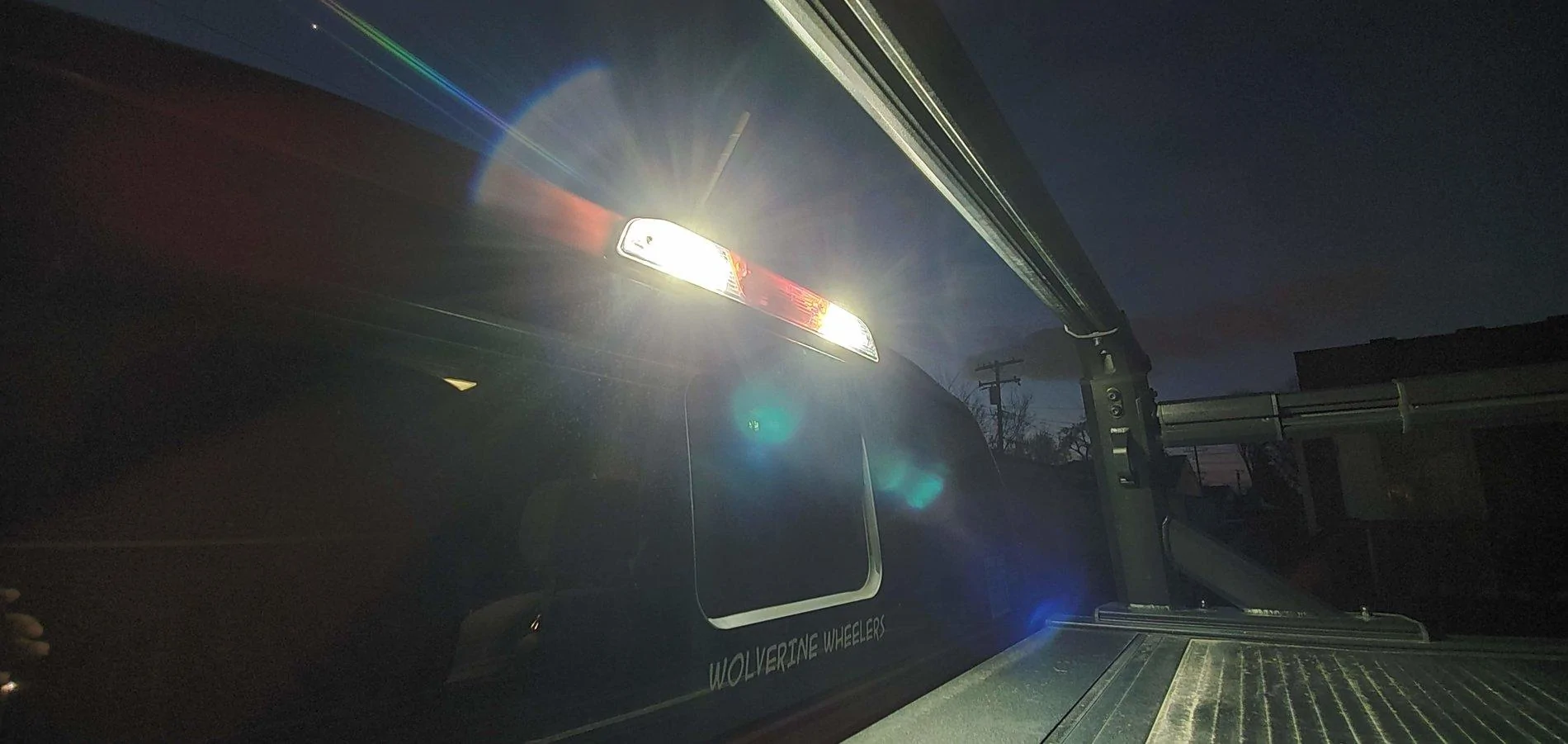

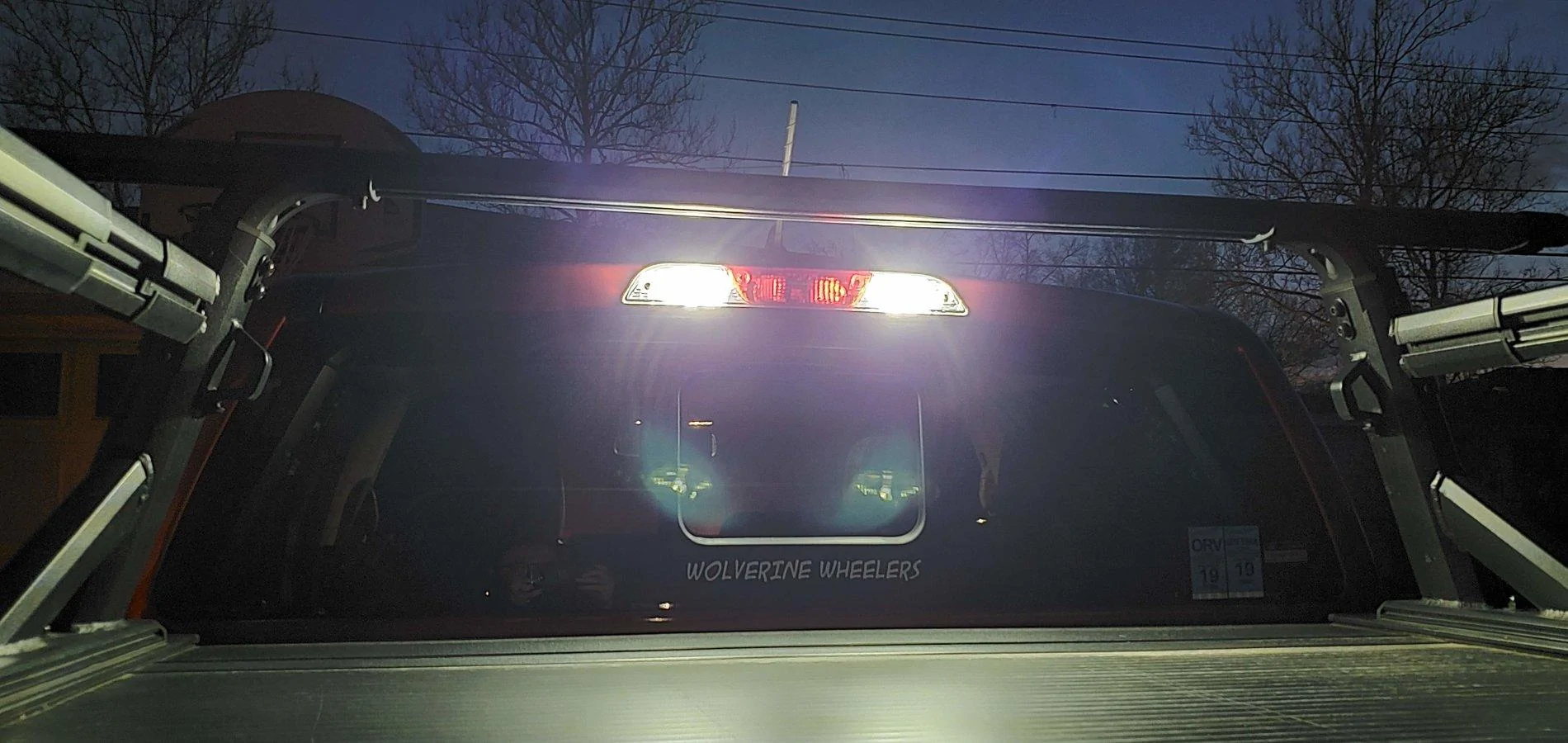

Additionally, here's a few shots of the new LEDs in the third brake light as well as night!





OP
WxNerd2015

WxNerd2015

Well-Known Member
First Name
Trevor
Joined
Oct 17, 2018
Messages
240
Reaction score
635
Location
Madison Heights, Michigan
Vehicle(s)
2019 Ford Ranger XLT SuperCrew, 2011 Jeep Wrangler Sport S, 2017 Ford Escape SE AWD
Occupation
Applications Engineer
Vehicle Showcase
1
  • Thread starter
  • Thread Starter
  • #98

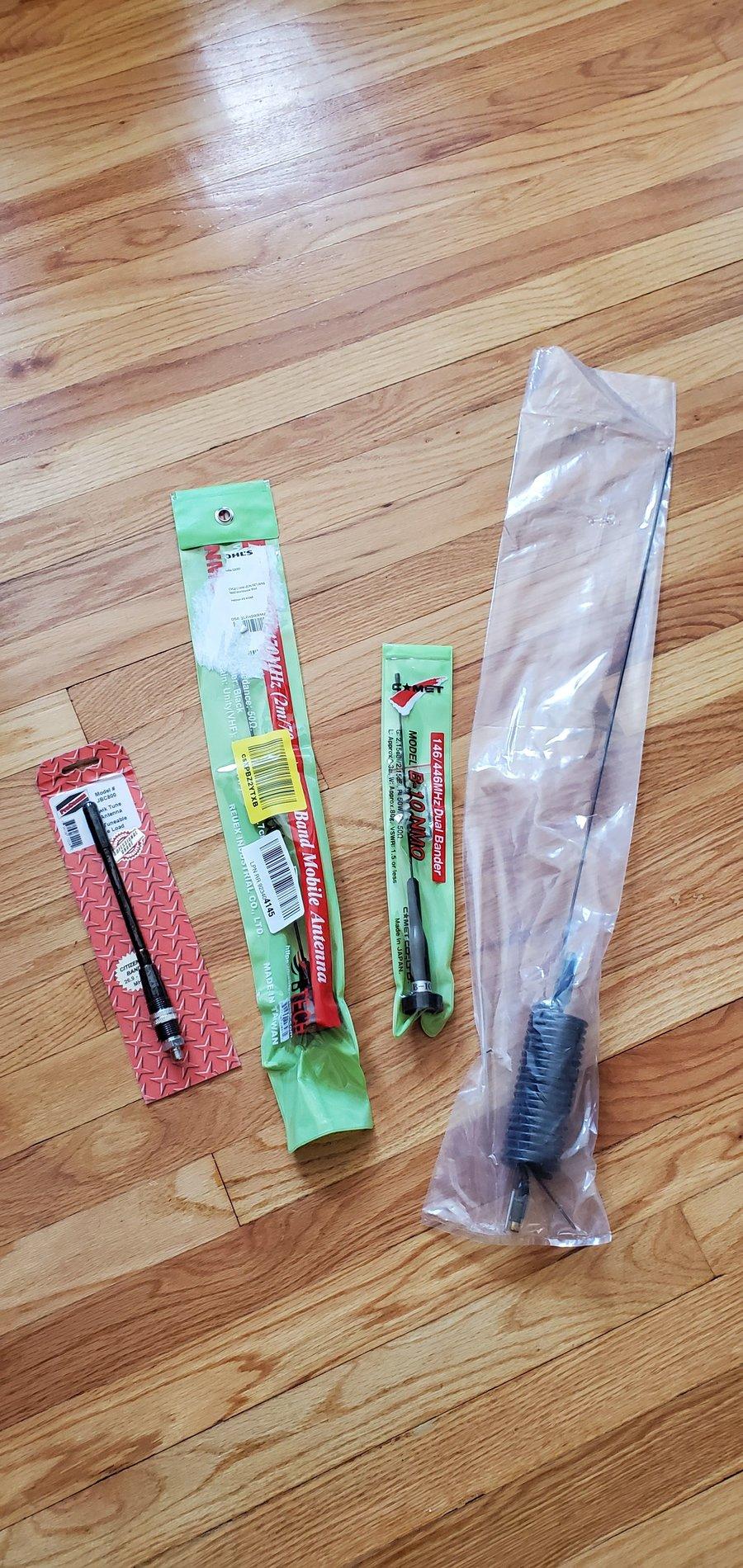

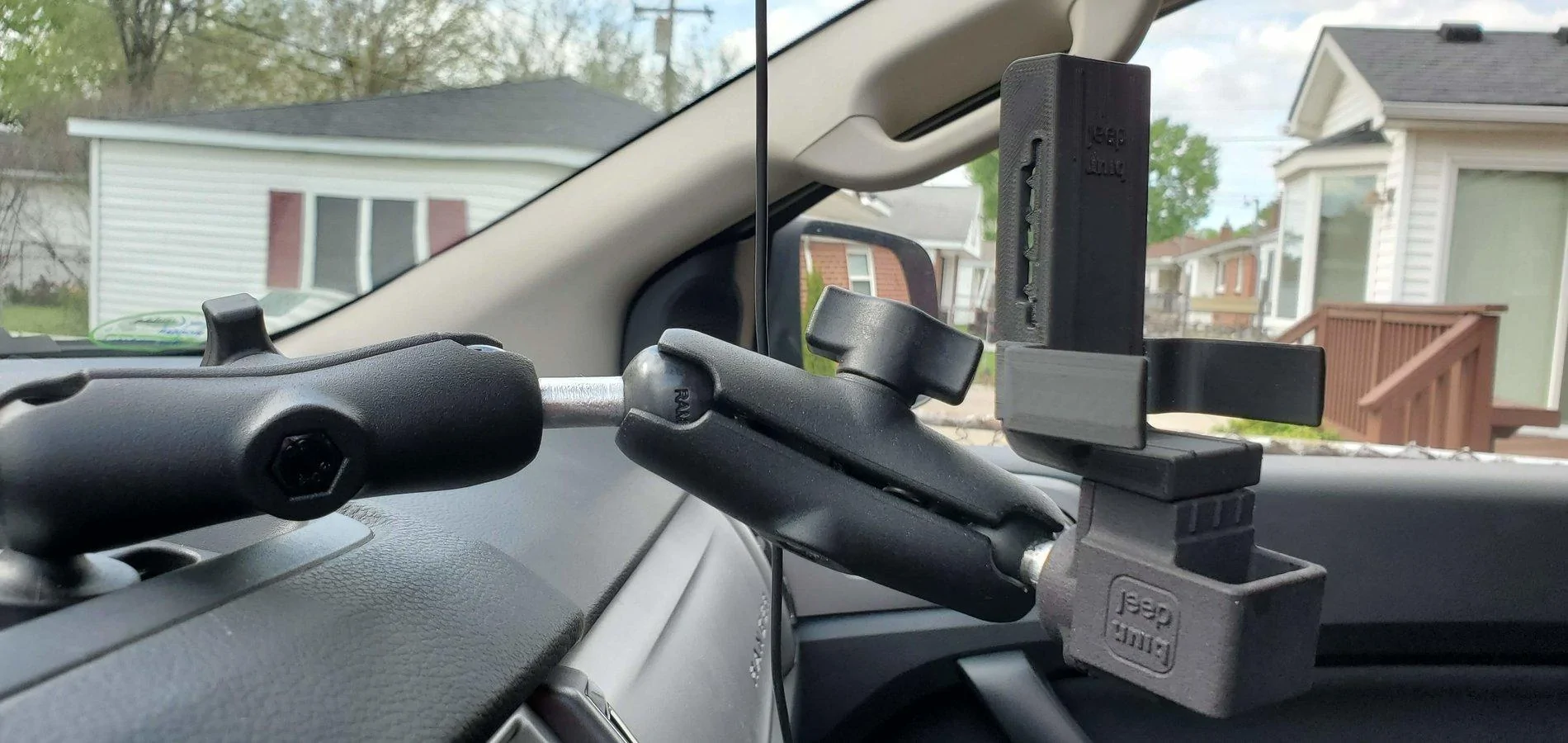

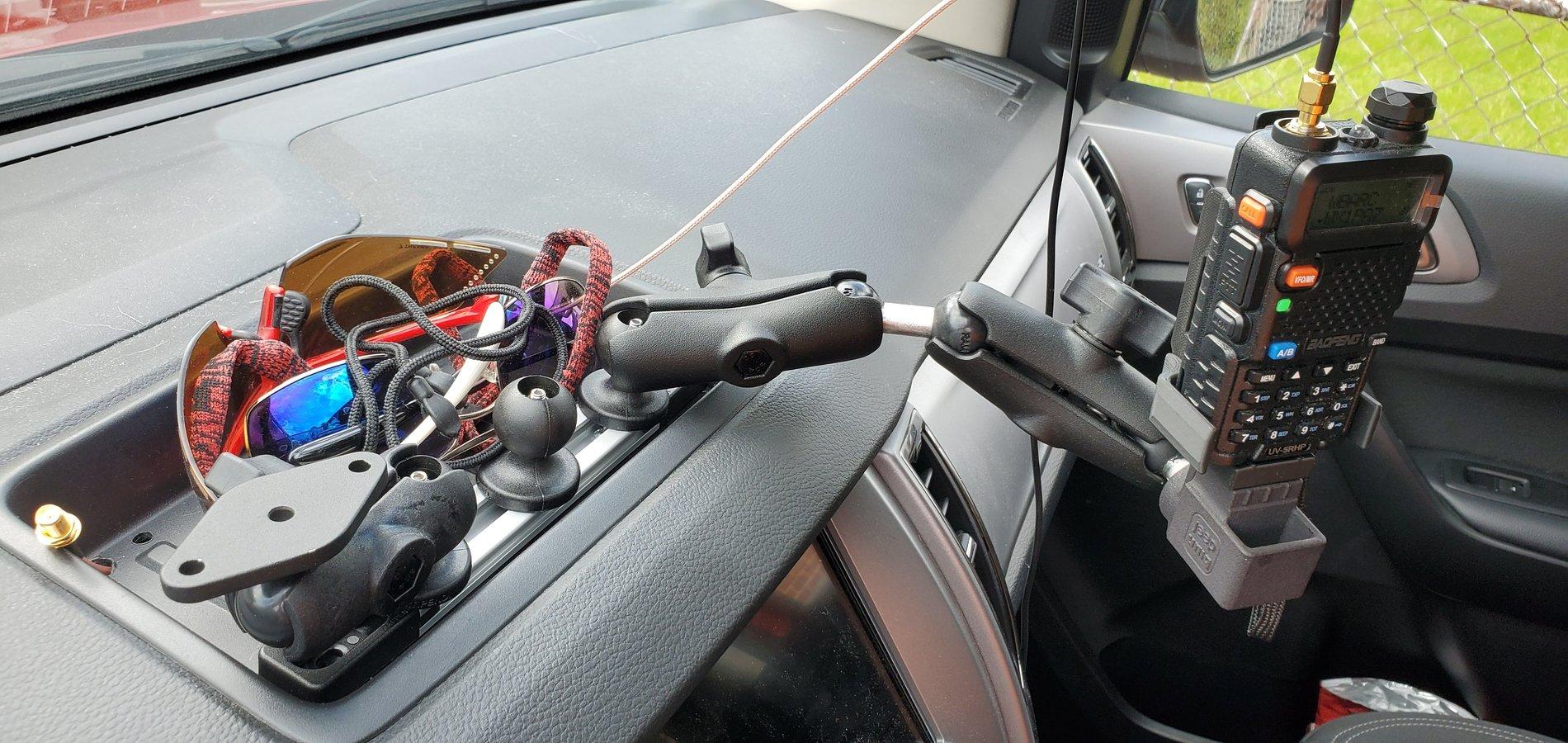

Lastly, I of coarse how some radios still to install, along with the mounting for them and the antennas. I am still working on the radio mounts. Those will be done soon, but I will cover my antenna setups that I will be using here and some links to what I have here.

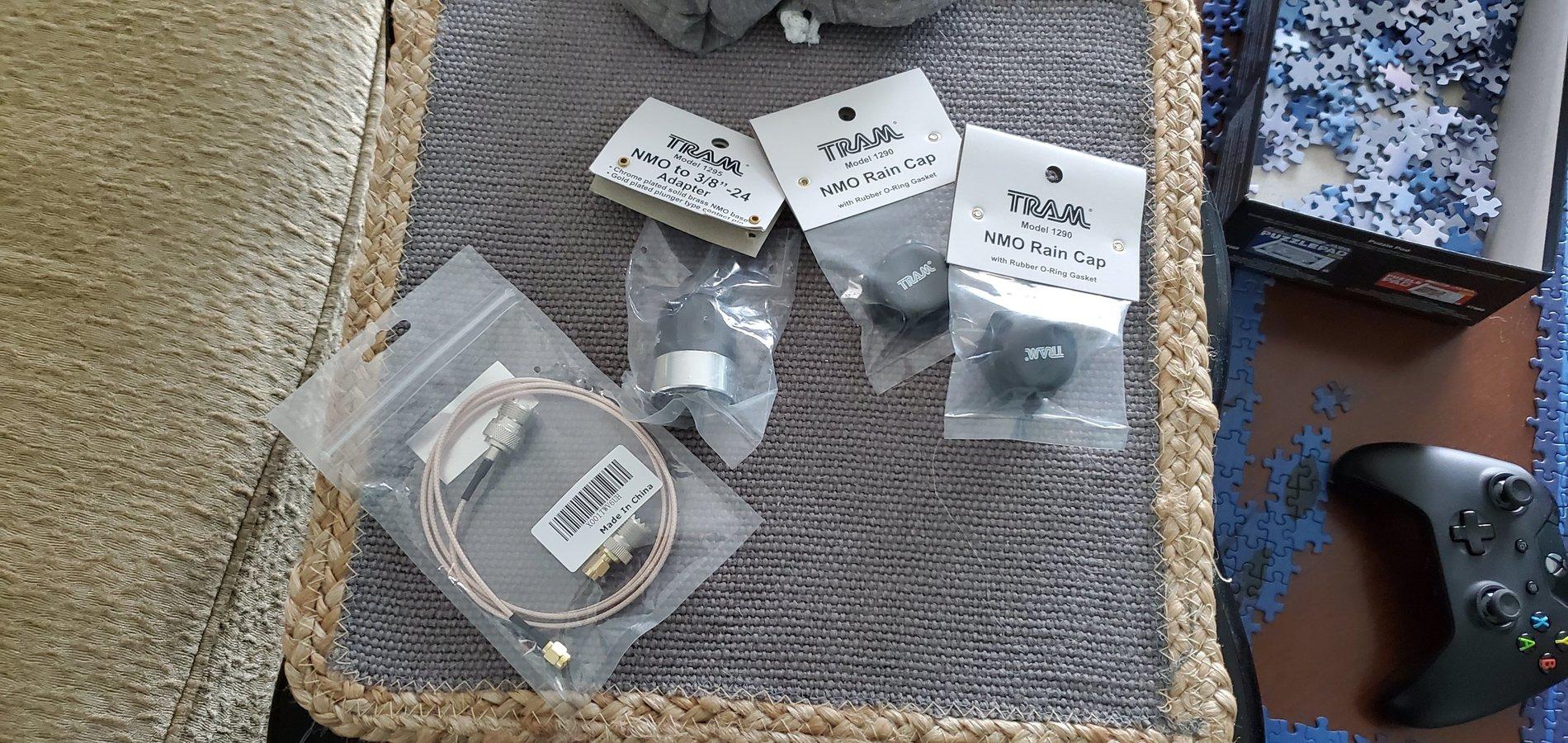

First up, I needed to make sure the bases were NMO mounts, as this is what the mount included. I needed an antenna for CB bands, and an antenna for UHF/VHF bands. And lastly, I considered two setups, one for daily use, and one for heavier use.

First up, NMO antennas for Ham bands are no problem to find, as their are plenty of options, however the options for CB antennas are much more limited. So I decided, instead of limiting myself on antenna choices, I would use the Tram 3/8 24 antenna adapter (TRAM1295). This adapter basically allows you to attach a standard thread CB antenna (3/8 24) to an NMO mount.



With that figured out, I then set out on finding my daily antennas. My main priorities with the daily antennas were to keep them right around the height of the stock radio antenna, as they should then be able to fit into lower clearance locations without needing to take the antennas off, such as parking garages and such. I figured that if the stock radio antenna is that height, that should be a relative standard for most locations to be able to fit with extra antennas as well.

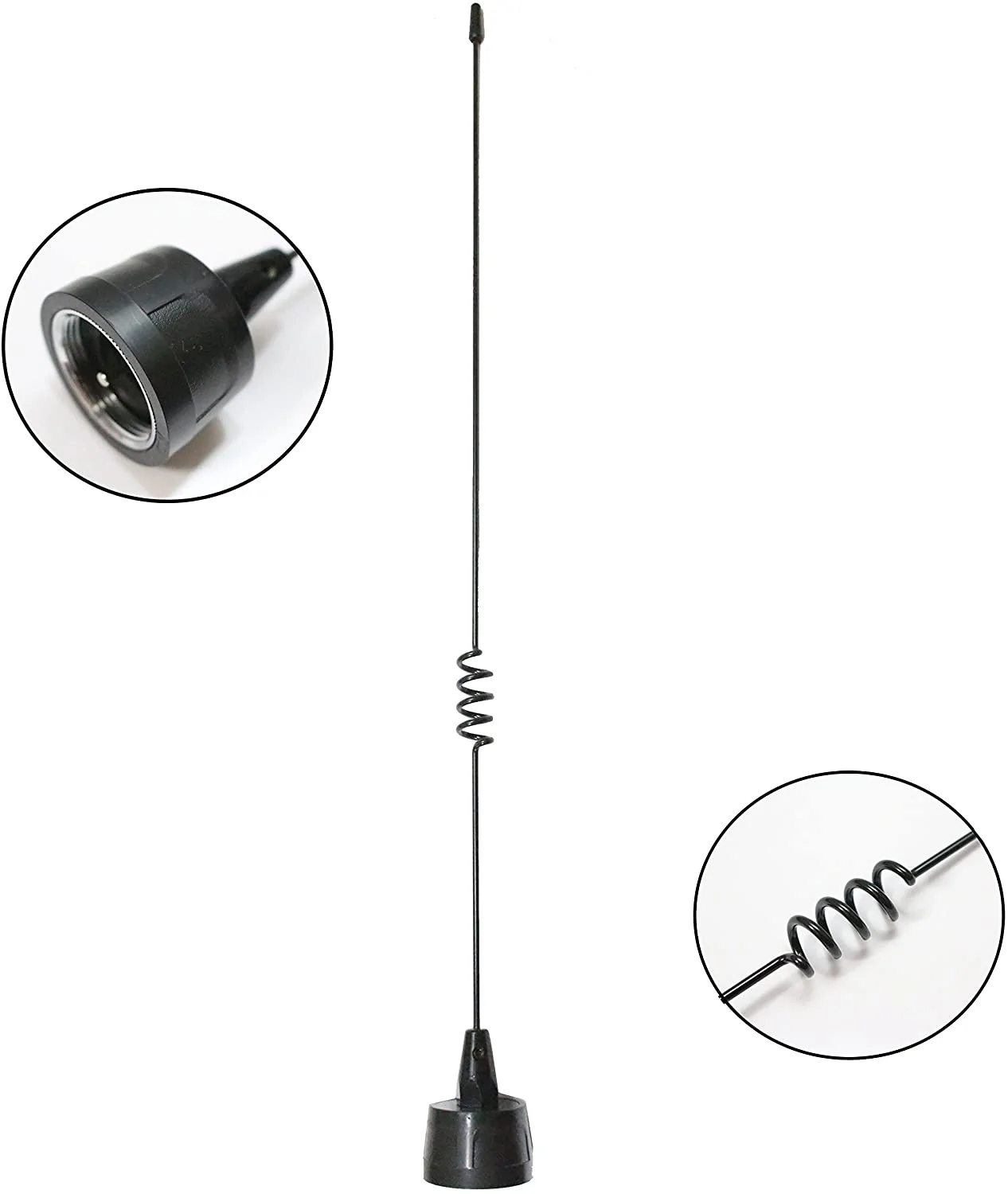

So for the CB, I settled on the ProComm 8" Base Loaded CB Antenna (JBC800)

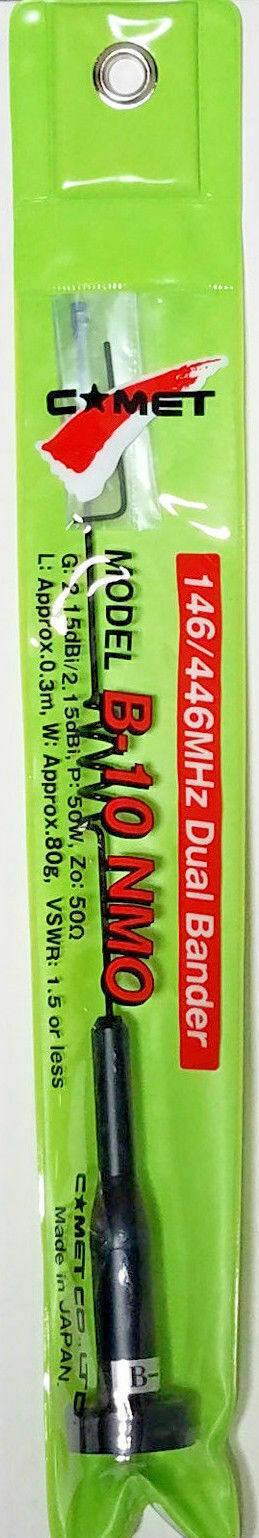

And for the Ham, I went with the Comet B-10NMO



Both of these antennas end up sitting about 10" high and fit with the height of the stock radio antenna greatly!





Next up was the heavy use setup. This would be used for Amateur Radio Club and Emergency operations, Off Road Trips, Convoy trips, etc. where I know I will need better antennas to help get further range and make everything clearer. Here, I was only restricted by making sure they had the right base mounts. No height or other restrictions!

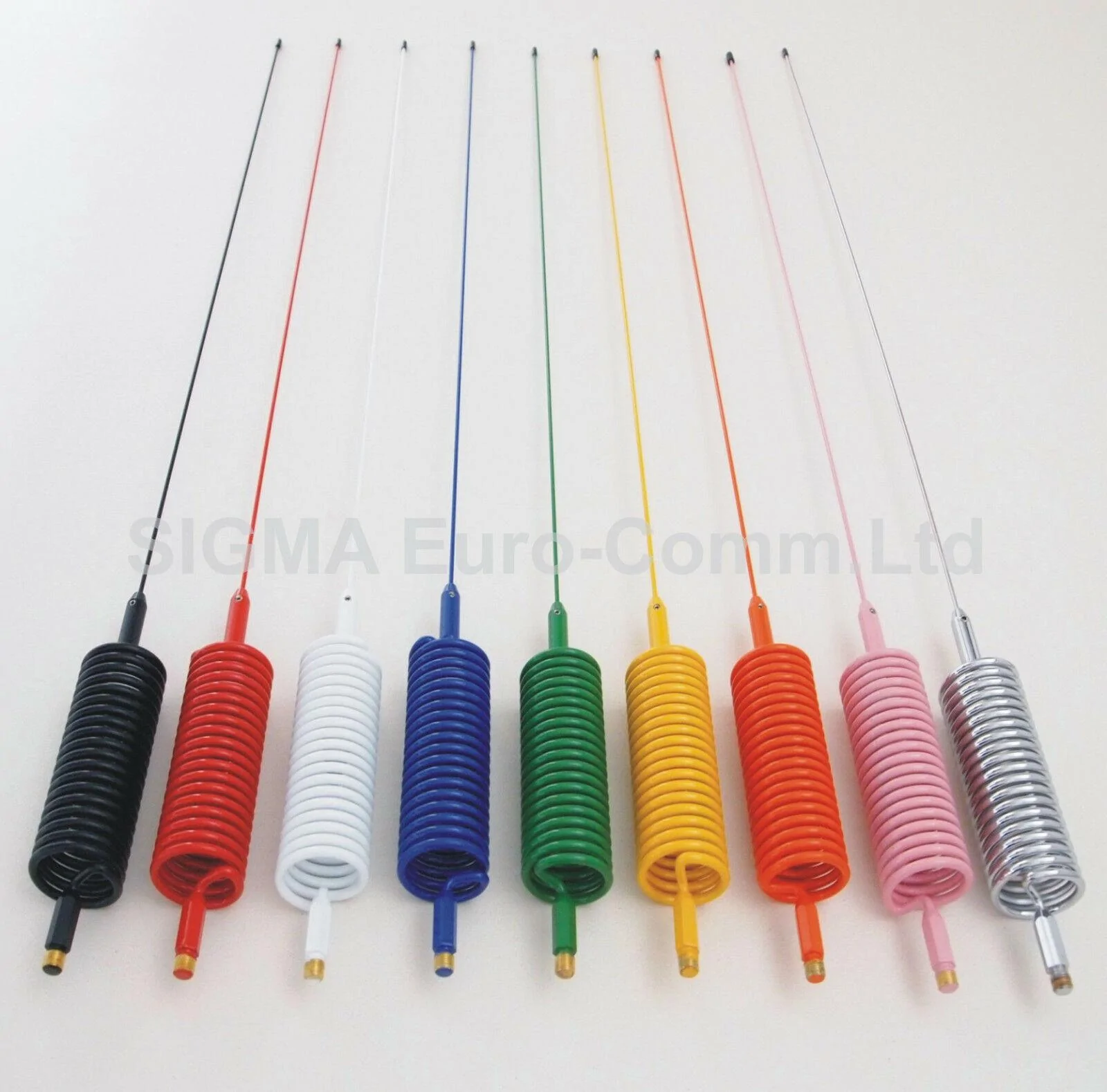

For the CB, I settled on the Mini Stinger Springer 90cm Antenna in Black. For CB a longer antenna will in many cases preform much better as the ideal length is 102", and with this base loaded antenna (the coils), it definitely should work out pretty well when I am utilizing it more heavily!

s-l1600 (1).jpg


And for the Ham, I went with the Nagoya NMO-72 19.25" Antenna.

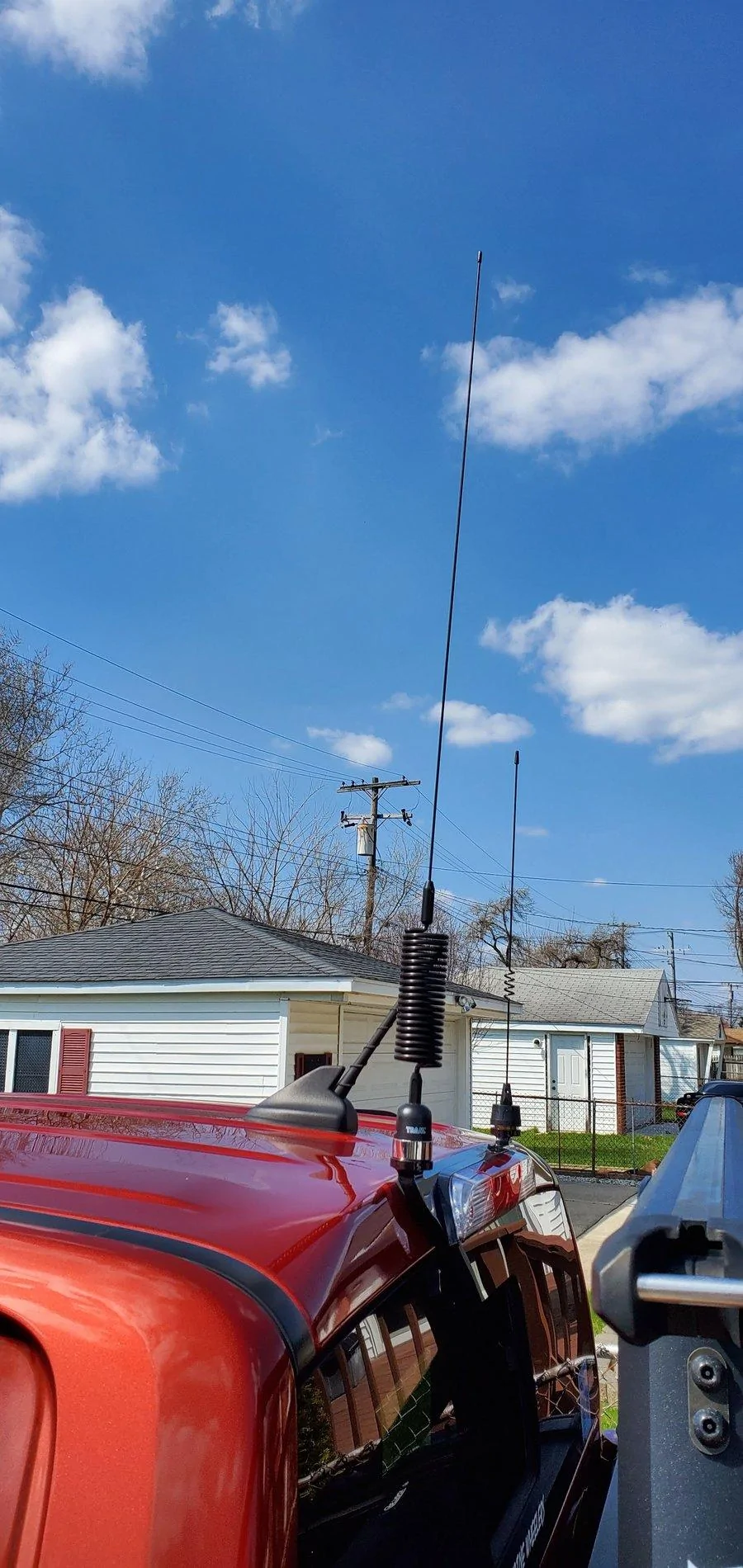

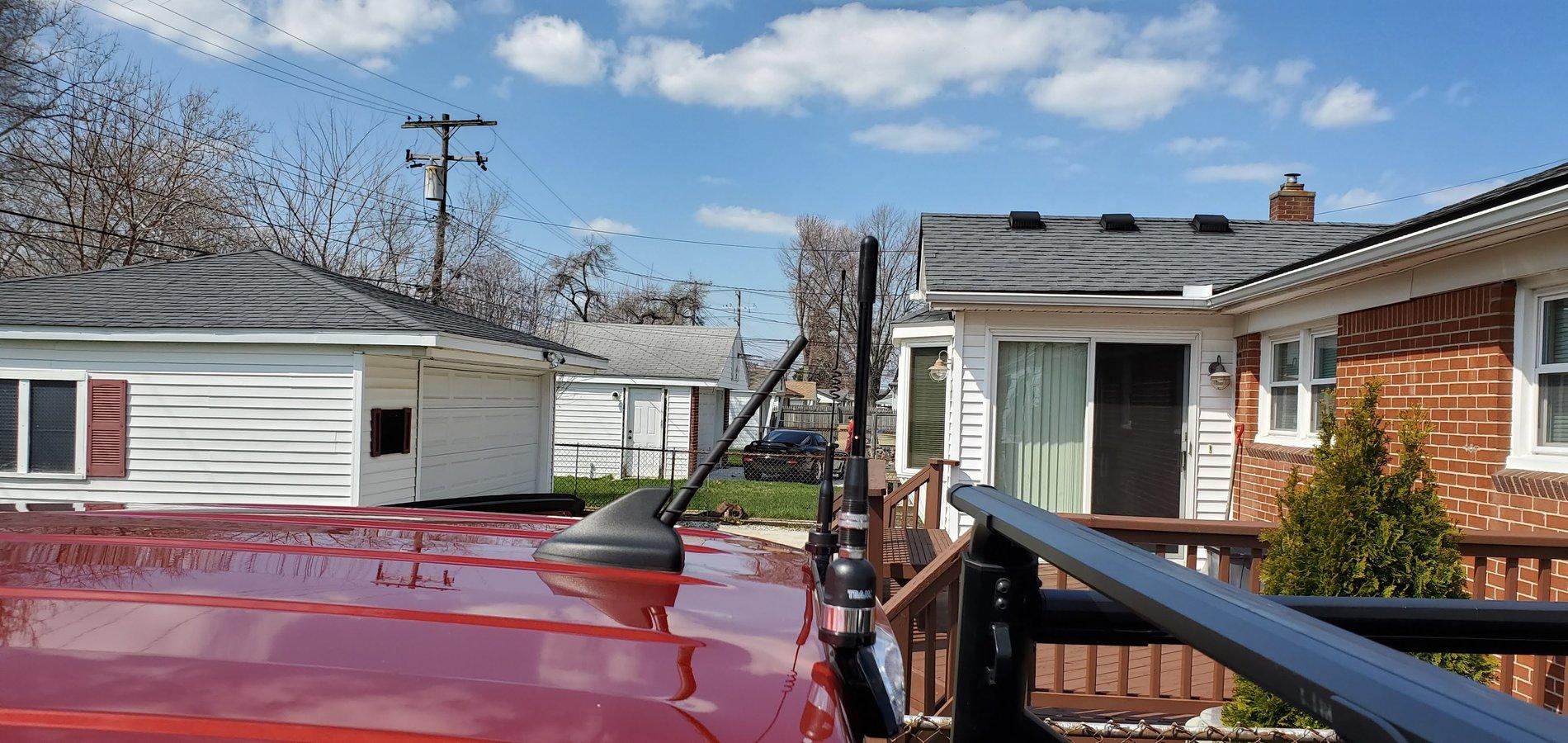

And this setup definitely gets some more height, but I have already utilized it some and it gets great reception for me! The antennas attach great to the mount and no movement or anything like that has occurred.




And lastly, I also do know there are times that I might remove the antennas completely, and especially with NMO mounts, you do not want to leave them exposed to the elements, so I got a couple of rain caps from Tram as well! They feel like a cheaper plastic, but should do their jobs fine, just make sure not to lose the o ring in the base of the caps as they were not seated very good when I got mine and I almost lost one!

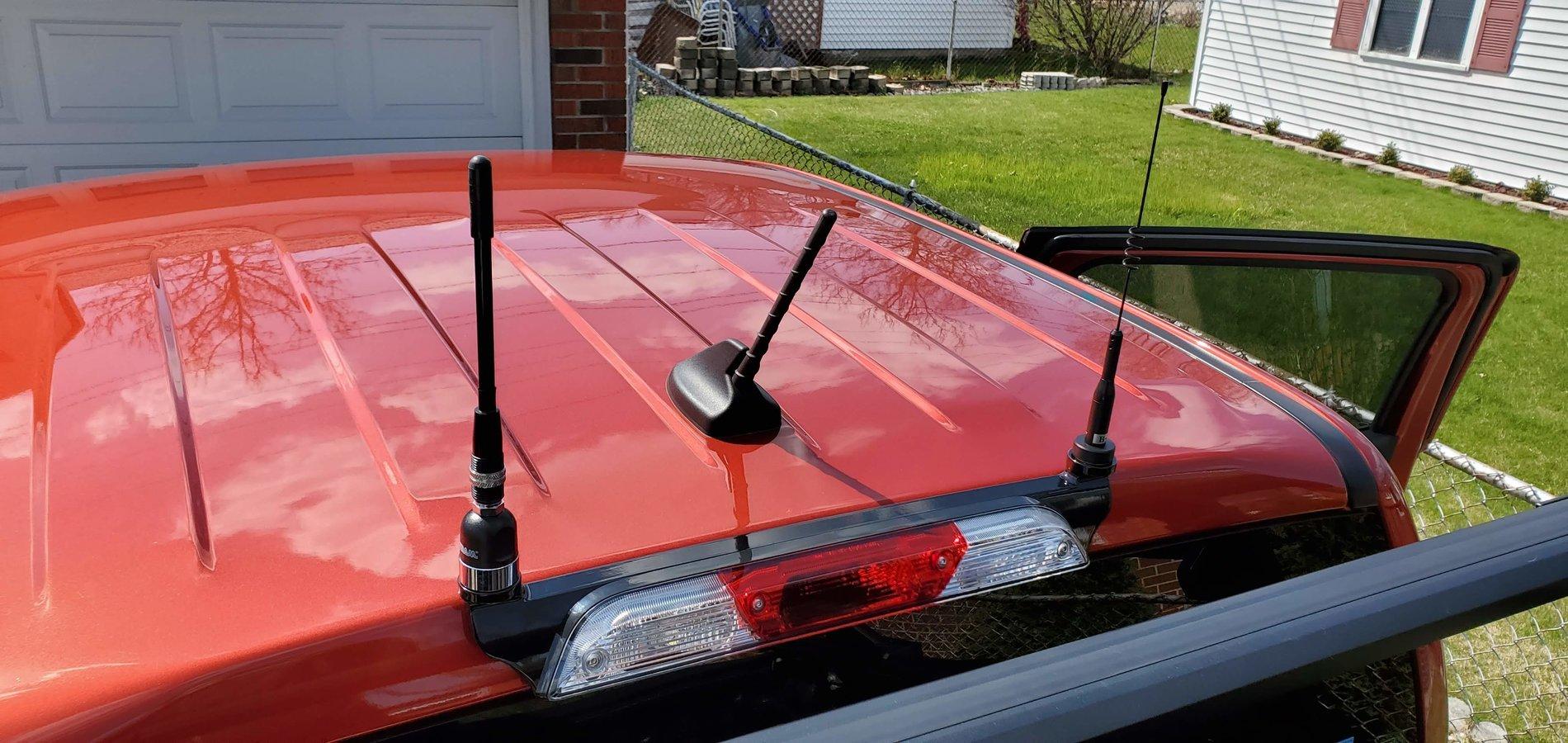

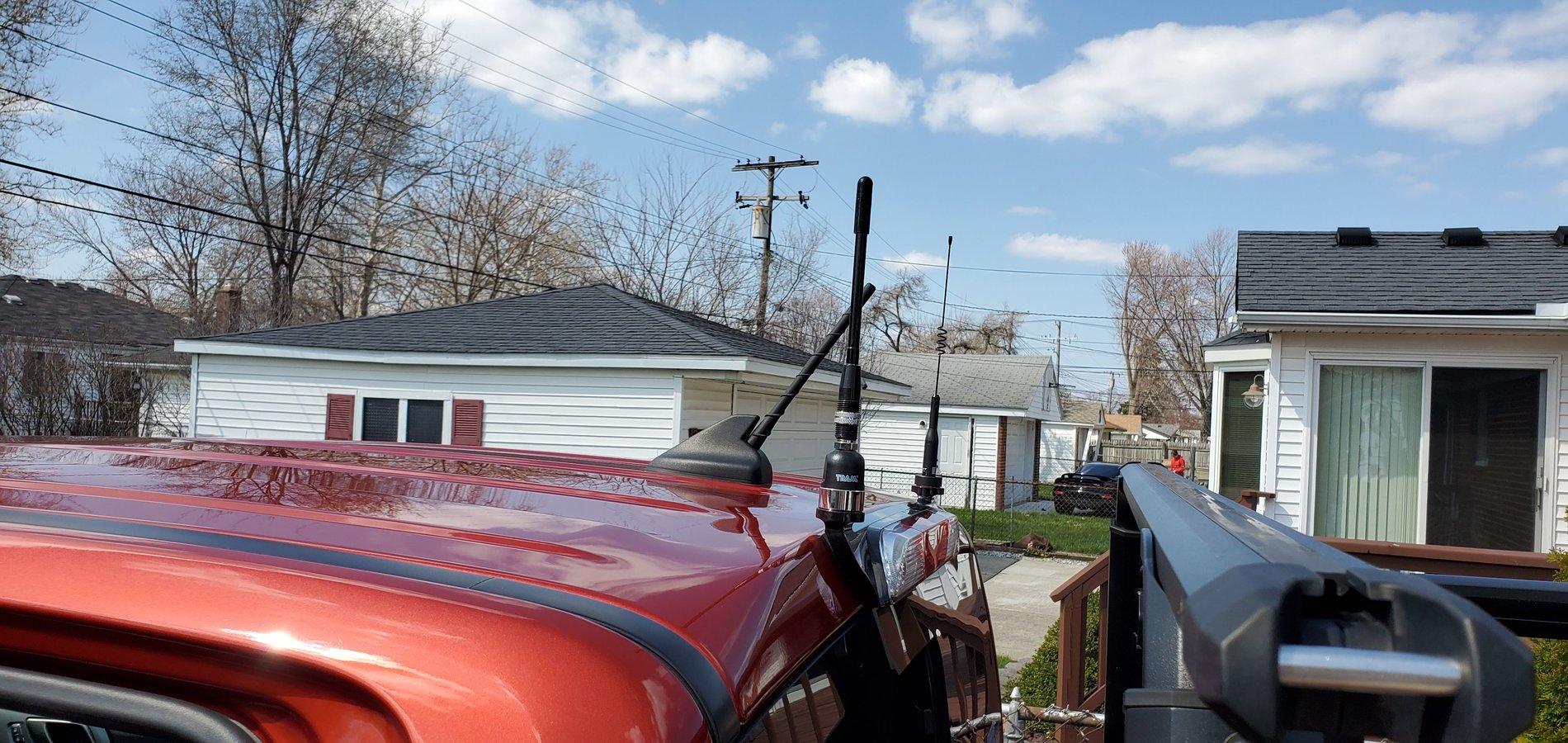

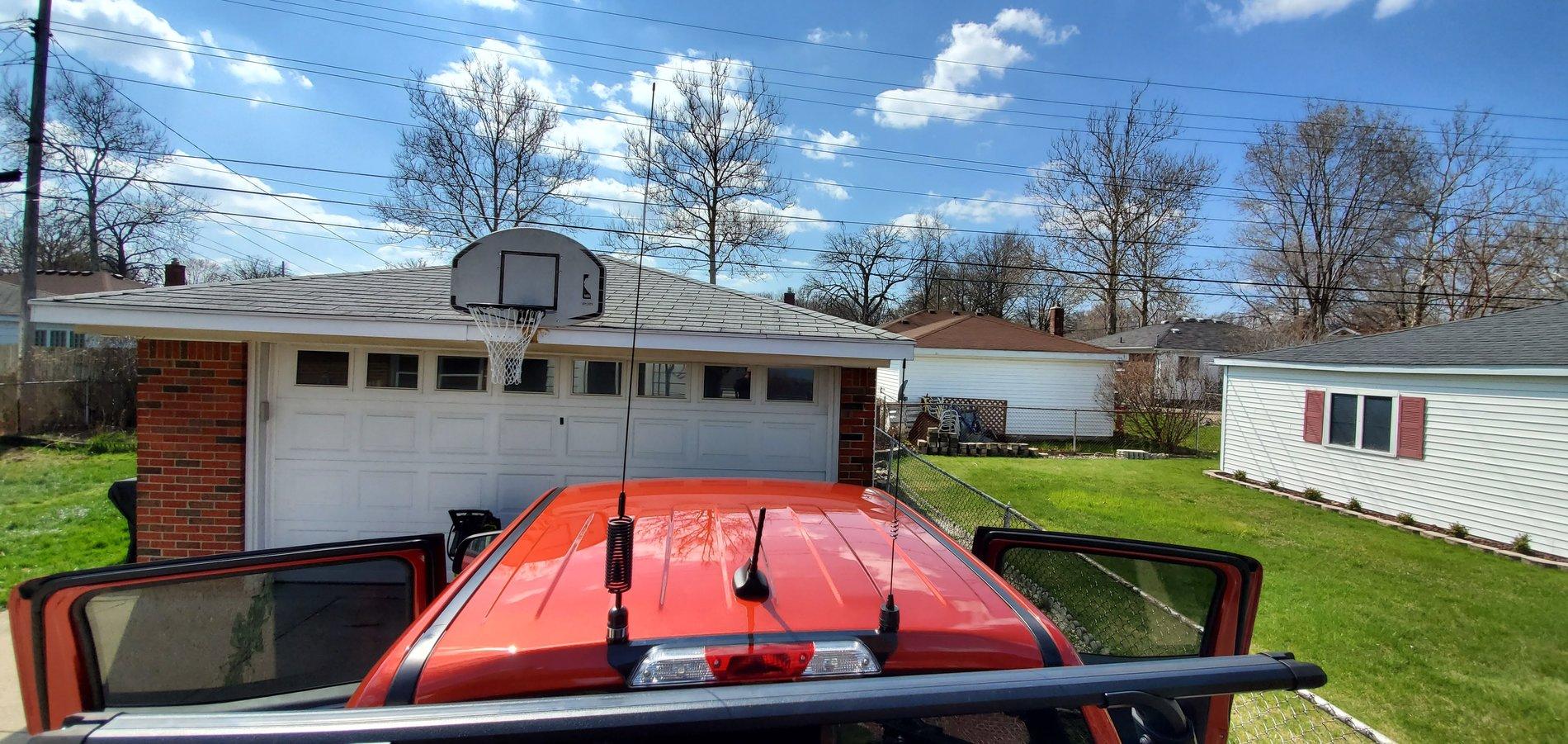

And lastly, here's a few shots of the whole truck with the antennas on! Besides, who of us doesn't want to see more of the Ranger on here, it's a beautiful truck!
