Upfitter switch pin out

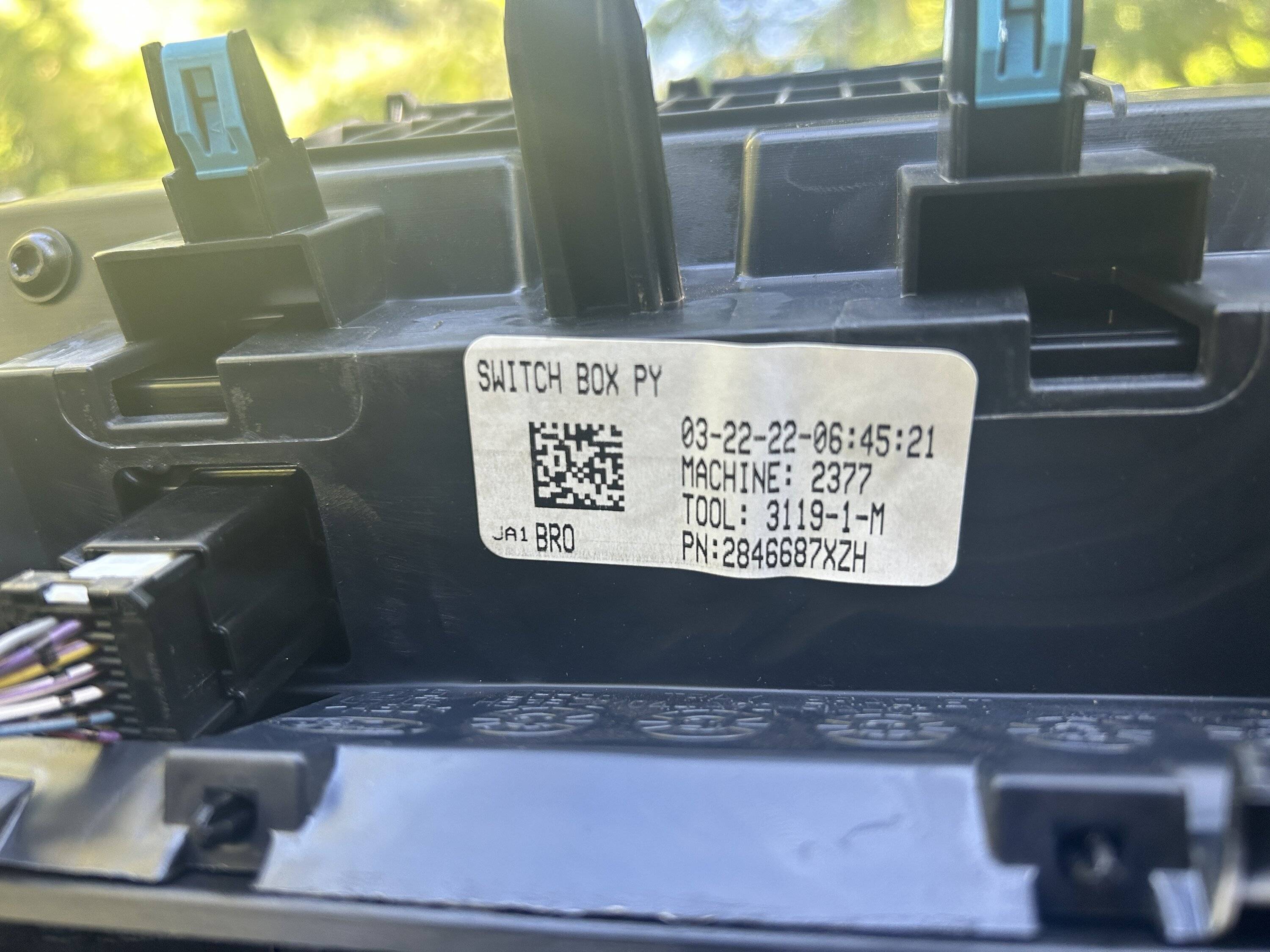

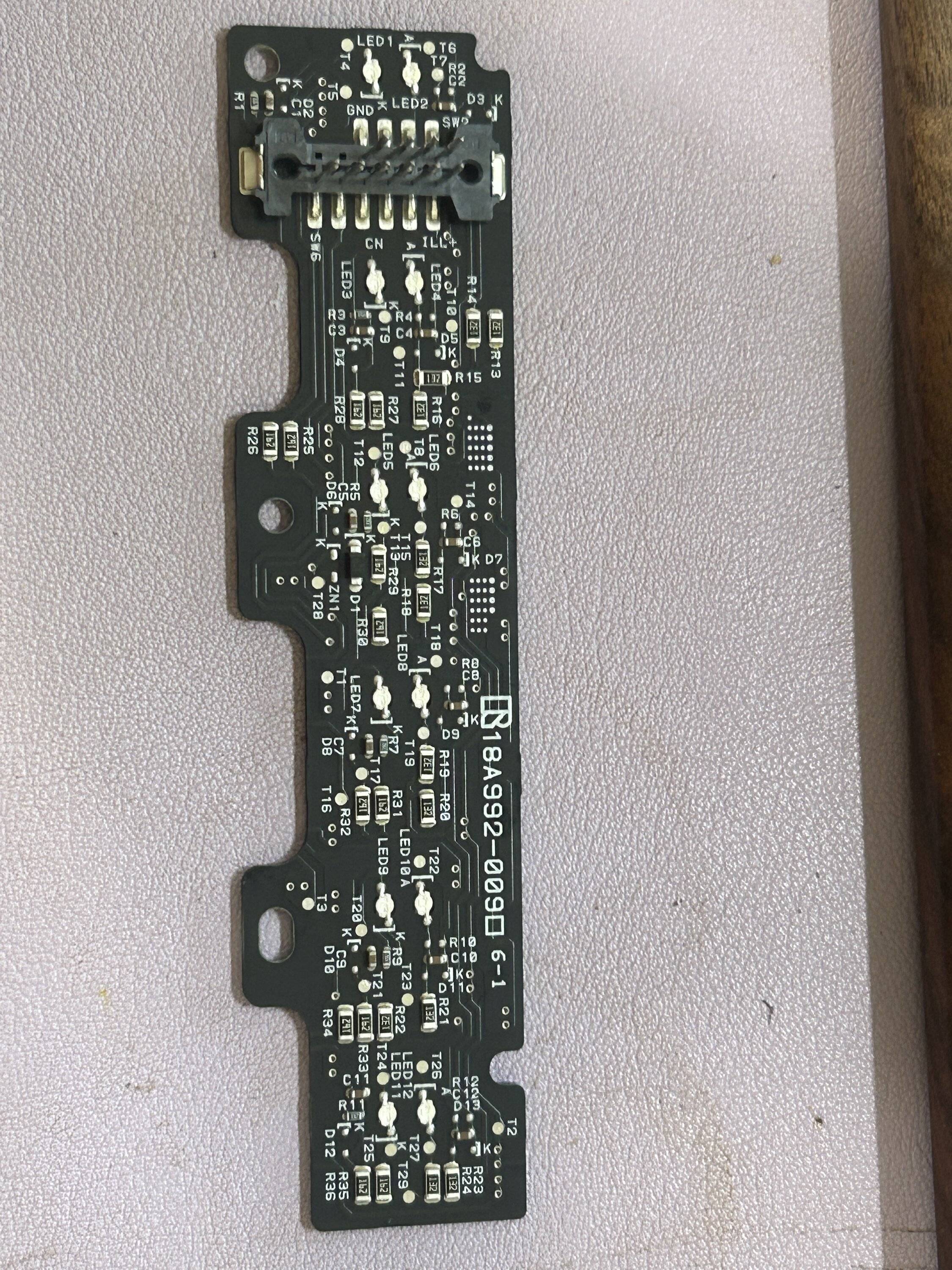

I’m working to replace the factory upfitter switches with some custom ones. I took apart the module and managed to map out most of the pins from the wiring harness. Does anyone have a guess on what the three I can’t figure out are for?

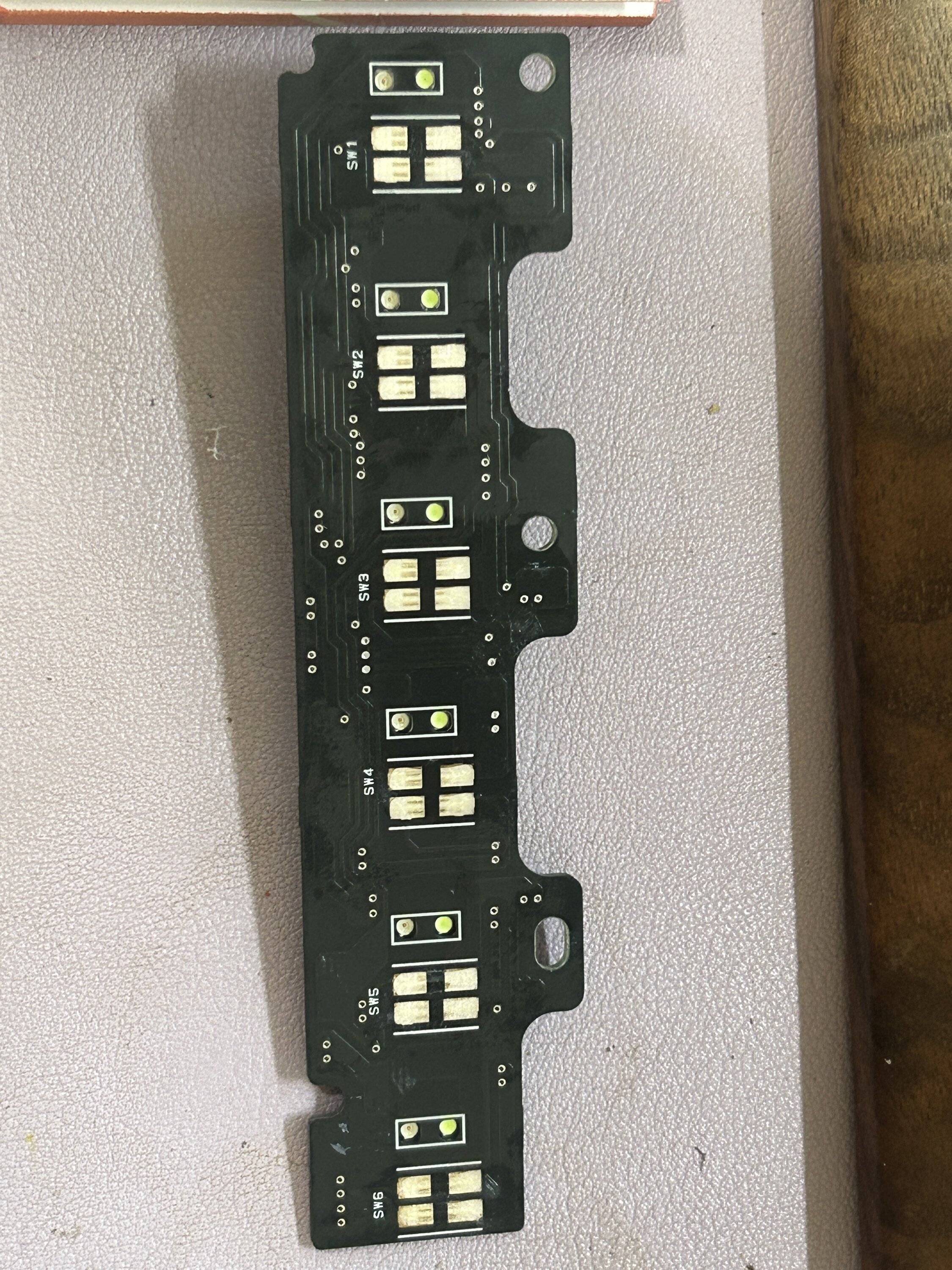

Each switch has a dedicated PIN, then there’s a common ground.
One pin is labeled K that seems to map to a couple of the LEDs but not all

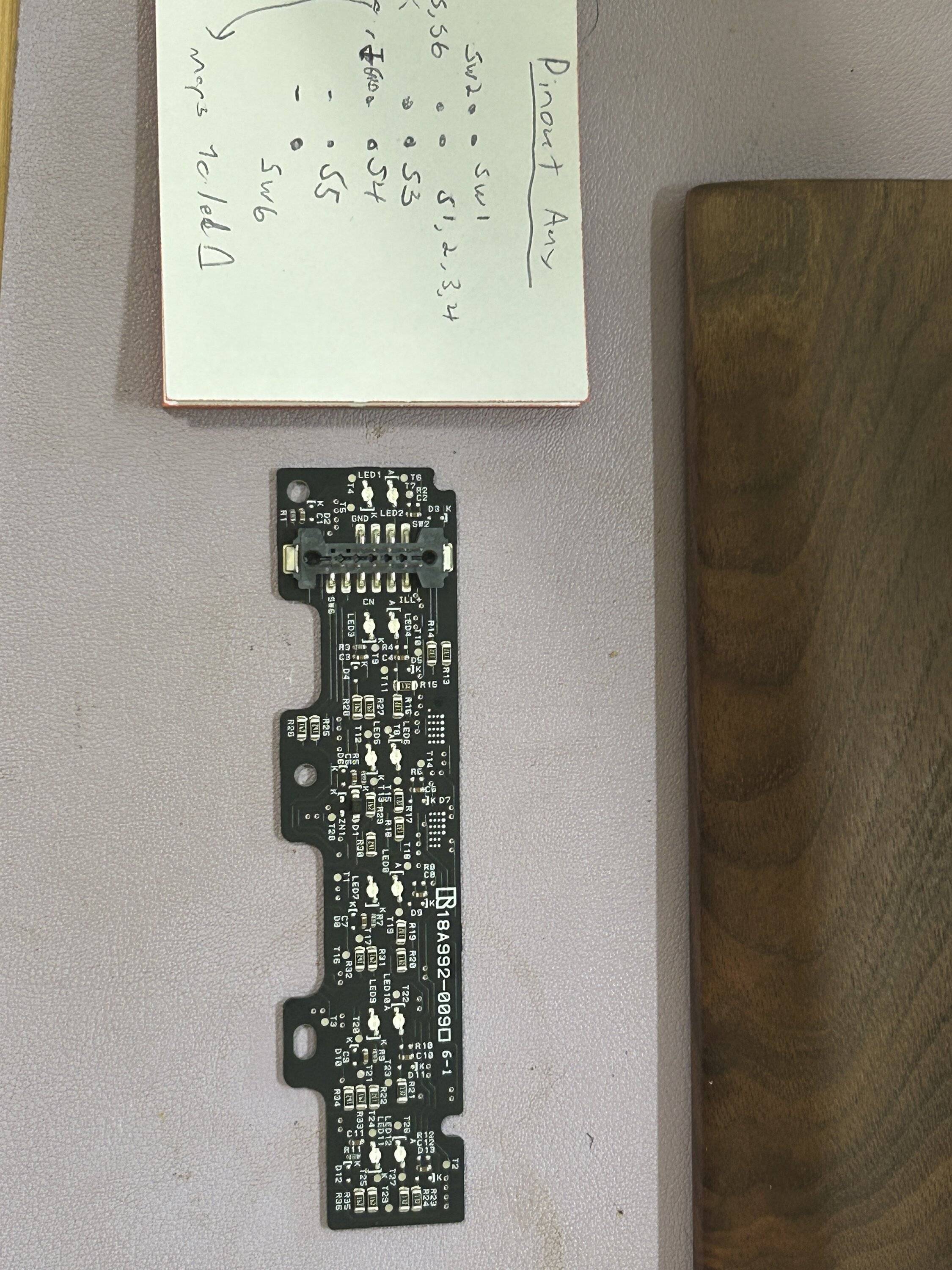

Two of the pins map to partial switches as the sticky note indicates.
I’m working to replace the factory upfitter switches with some custom ones. I took apart the module and managed to map out most of the pins from the wiring harness. Does anyone have a guess on what the three I can’t figure out are for?
Each switch has a dedicated PIN, then there’s a common ground.
One pin is labeled K that seems to map to a couple of the LEDs but not all
Two of the pins map to partial switches as the sticky note indicates.
