Pivot Storage Box - Ford Accessories??

Discussion in 'Racks, Carriers, Toppers, Cargo, Bed Mods' started by Ranger's My Middle Name, Mar 29, 2019.

  1. FX4Offroad

    FX4Offroad Well-Known Member

    First Name:
    J
    Vehicle(s):
    2014 F150 FX4
    Joined:
    Jan 21, 2019
    Location:
    South Florida
    Posts:
    439
    Likes Received:
    504
    I'm going to the dealer today to get the M8 screws for the missing tie down. Do I need the tie down (metal bar) to secure the swing case bracket or just the two M8 screws?

    THANK YOU very much for clarifying how to remove the spray liner and the proper screws needed. VERY helpful!

  2. dmeyer302

    dmeyer302 Well-Known Member

    First Name:
    Daniel
    Vehicle(s):
    1991 F-150, 2014 Escape
    Joined:
    Feb 18, 2019
    Location:
    Carthage, MO
    Posts:
    365
    Likes Received:
    506
    Occupation:
    Mechanical Engineer
    Garage Profiles:
    1
    Tie down not required but I put mine back on just in case I would ever want to tie to it.

    If you want matching screws from the dealer, I don’t blame you, but just FYI any M8’s from the hardware store will work.

  3. FX4Offroad

    FX4Offroad Well-Known Member

    First Name:
    J
    Vehicle(s):
    2014 F150 FX4
    Joined:
    Jan 21, 2019
    Location:
    South Florida
    Posts:
    439
    Likes Received:
    504
    #93 Sep 16, 2019
    Last edited: Sep 16, 2019
    Yeah, dealer said they are back ordered until the end of October - both screws and tie downs.

    Hardware store is my next stop.

    Again, thanks for your help.

    Edit: Are either of of the two tie downs useful after the swing case installation? I know I still need the screws for all points but if the tie downs are rendered useless...or at least one of them, I might put the tie down on the middle only.

    Thoughts?

    dmeyer302 likes this.
  4. FX4Offroad

    FX4Offroad Well-Known Member

    First Name:
    J
    Vehicle(s):
    2014 F150 FX4
    Joined:
    Jan 21, 2019
    Location:
    South Florida
    Posts:
    439
    Likes Received:
    504
    #94 Sep 21, 2019
    Last edited: Sep 21, 2019

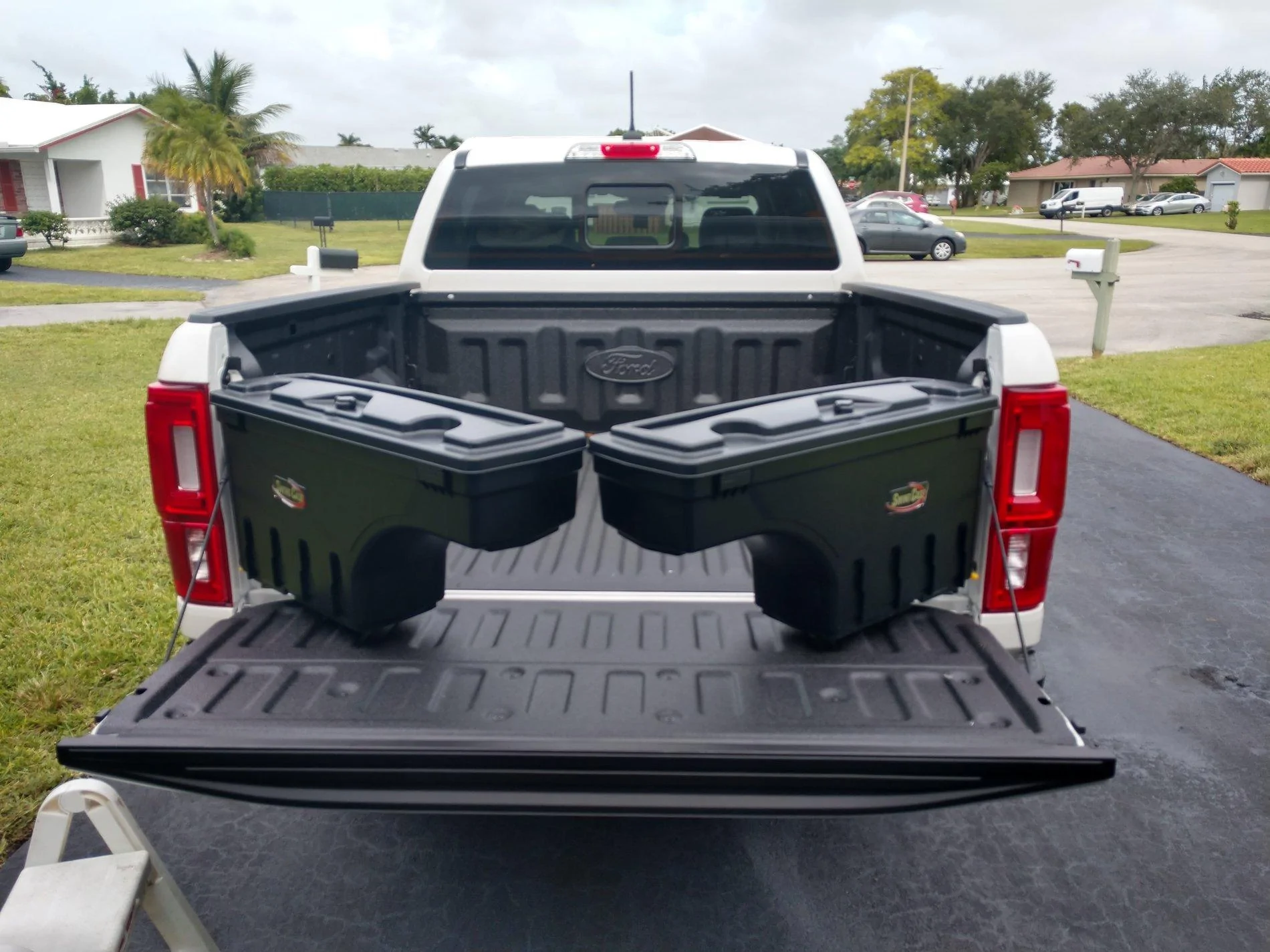

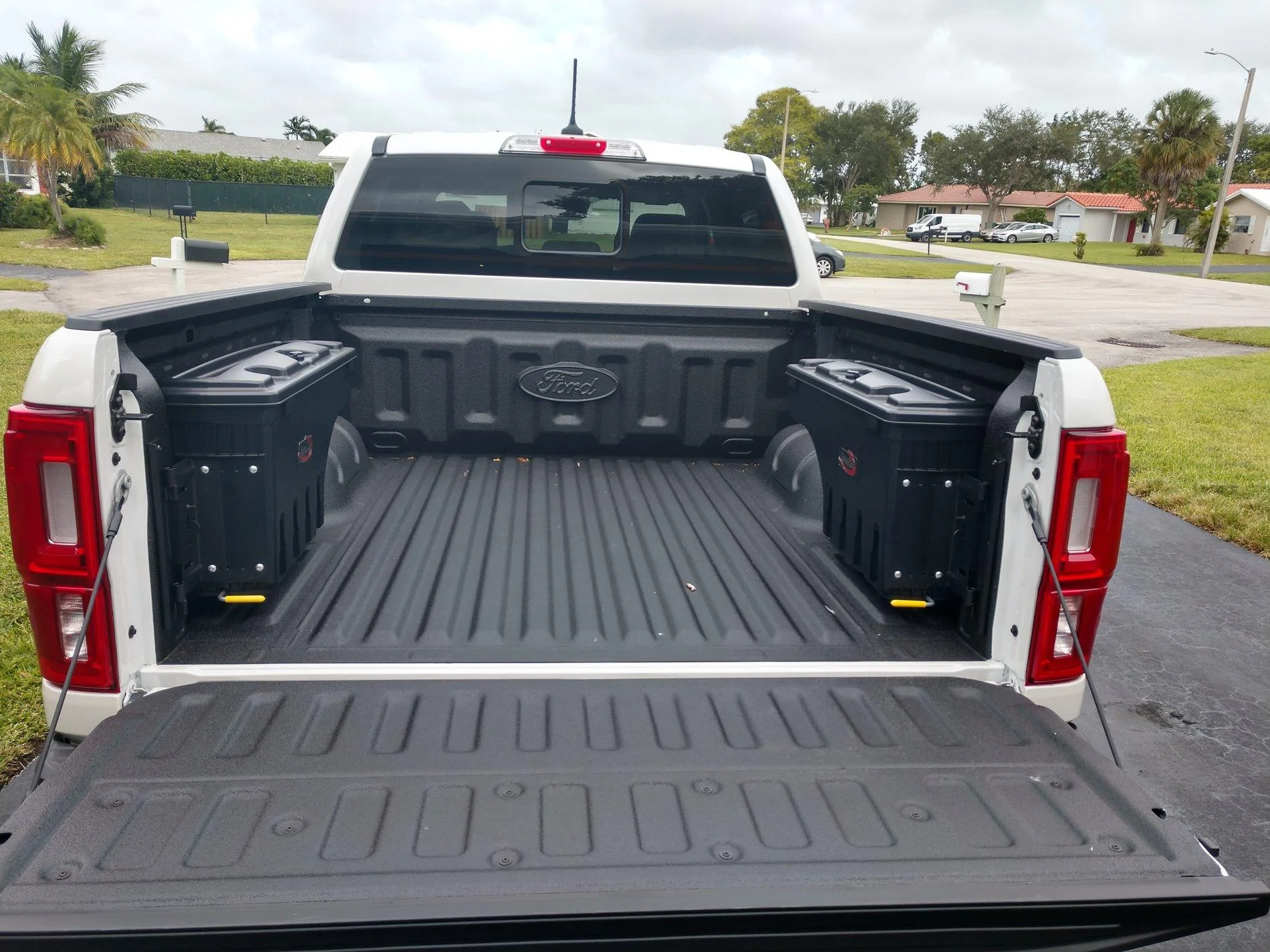

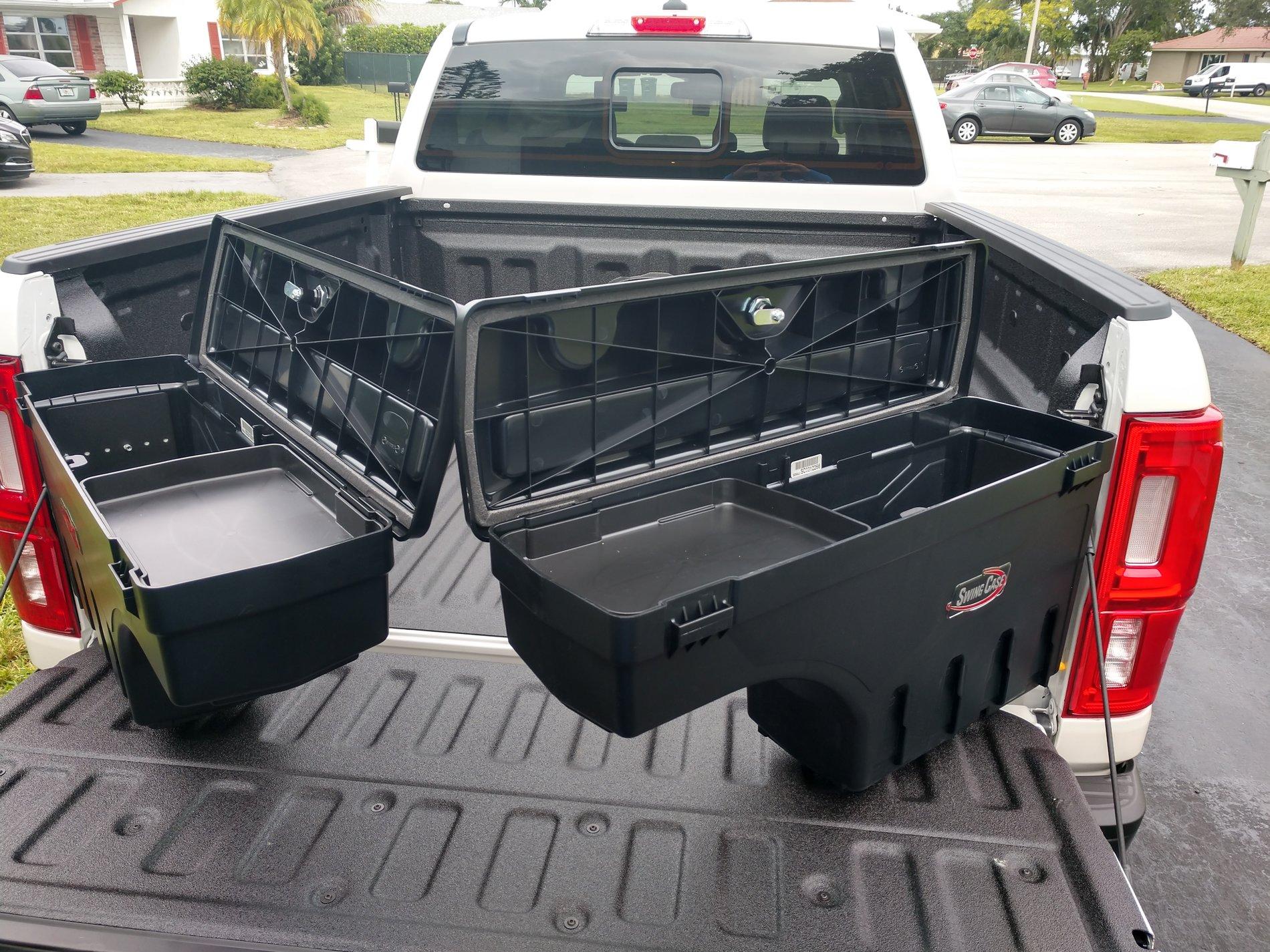

    DONE! Swing cases in.

    What a PITA. Why?

    I was missing the middle tie downs so I had to use a tap to clear the threads that the Fordp spray liner covered and had to remove the spray liner from the screw heads to get them out.

    I had to get additional screws because of the missing tie downs in the middle.

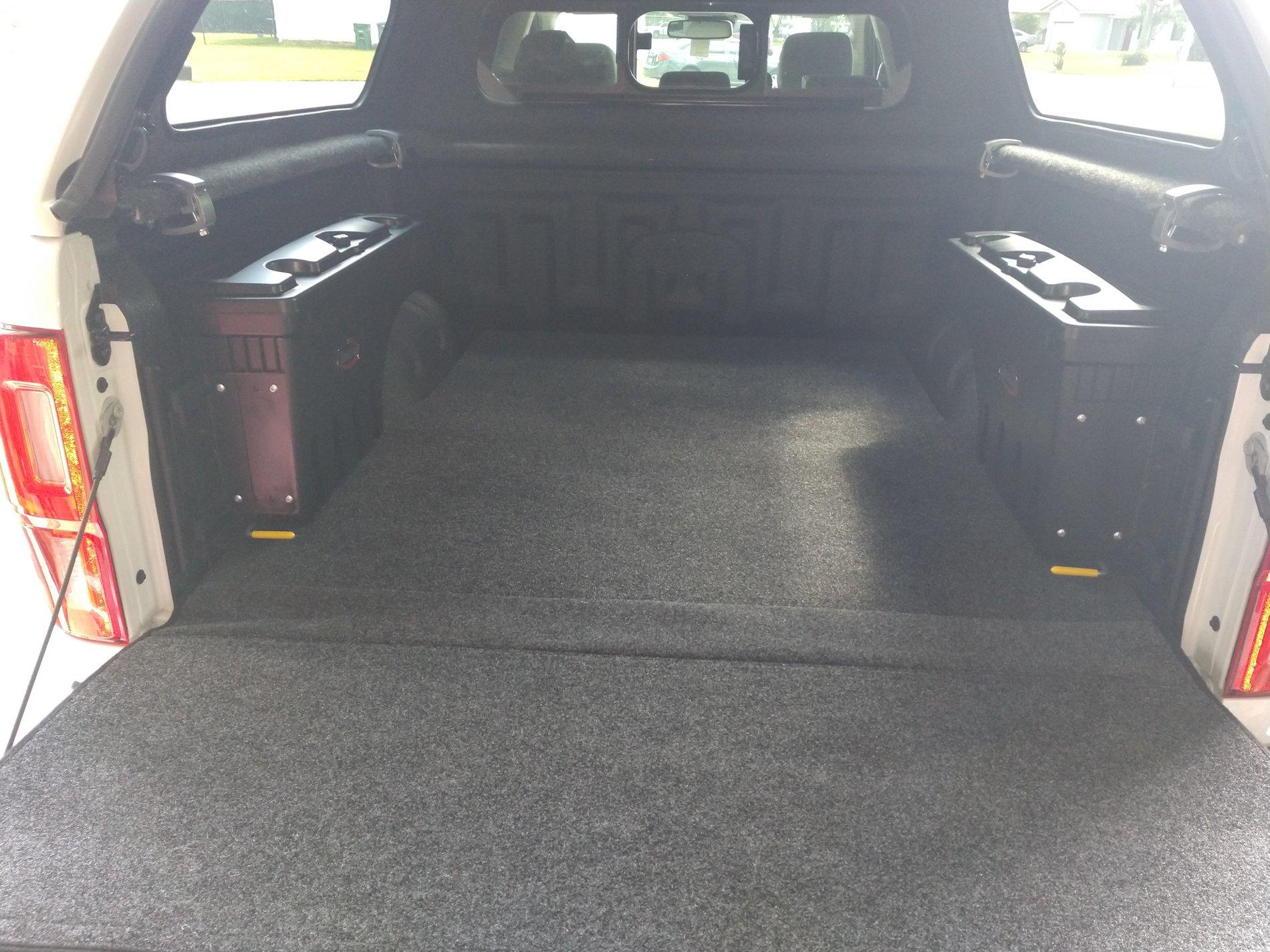

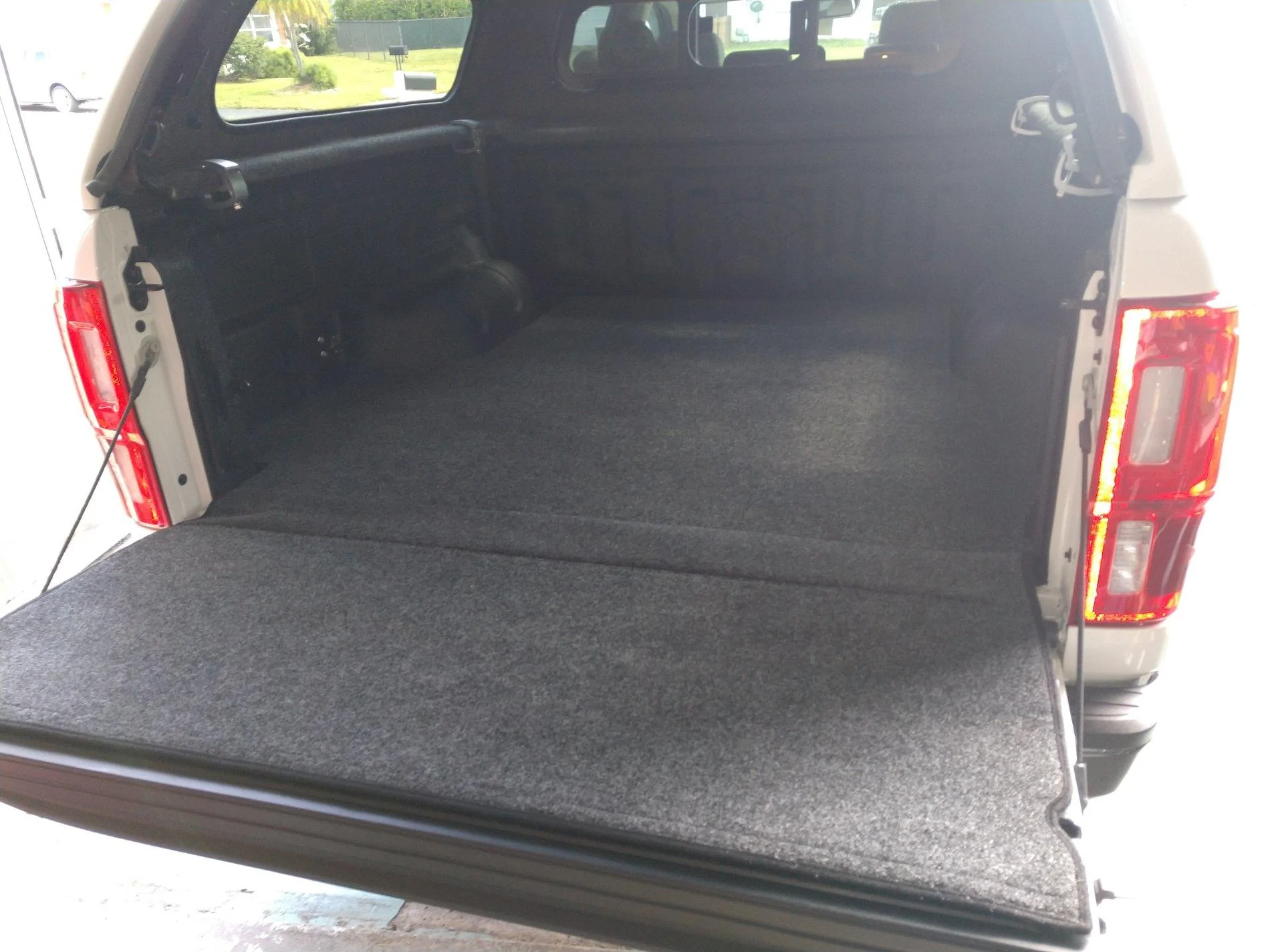

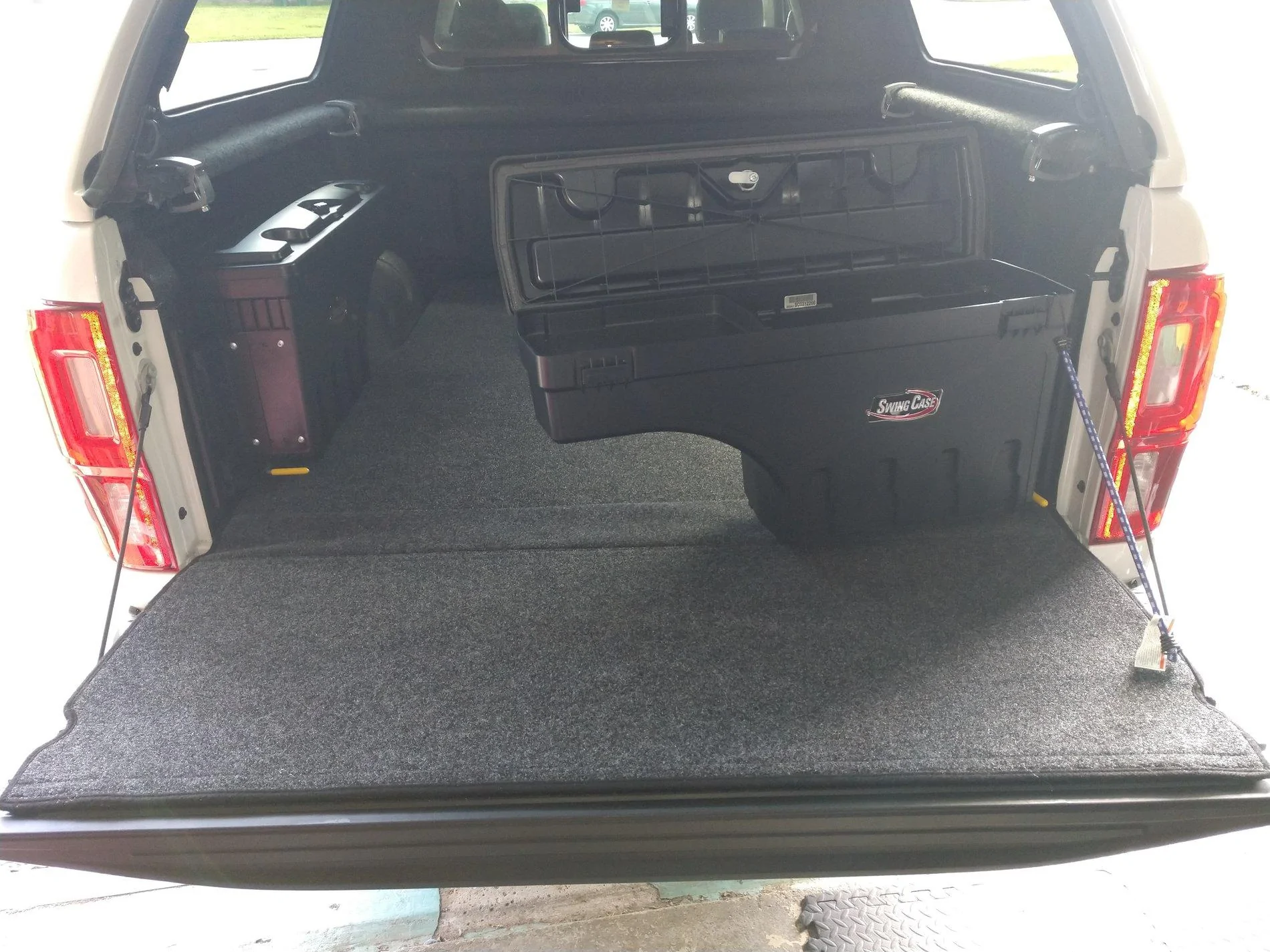

    Good news is, I now have my 4 tie downs in the middle and the corners near the cab. The tie downs in the corners near the tailgate are completely useless with the swing case installed so the swing case brackets at the tailgate have two metal loops for a padlock so I can use those as the new tie downs. For now, I removed the swing cases and put them in my garage until I get my A.R.E. topper installed on Monday. When complete, I can put the swing cases back on their brackets and install the bed rug.

    Very happy with the quality of the swing cases.

    Truck is finally coming together.

    Next...install my Weathertech window visors. That should take no more than an hour. Lastly, the Wheelskins leather steering wheel cover. THAT project is several hours minimum.

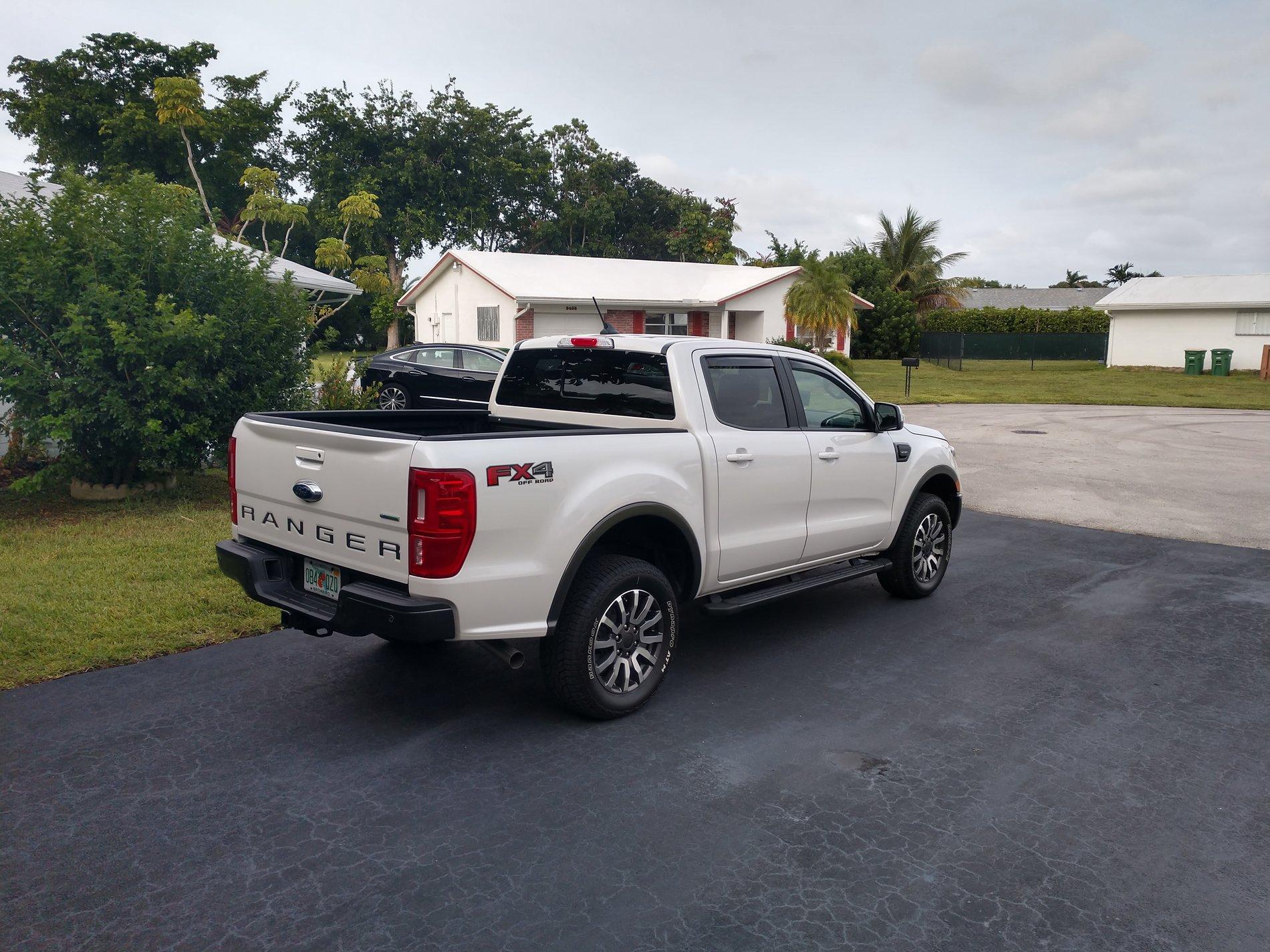

    Pictures didn't load in the order I chose them but you get the drift.

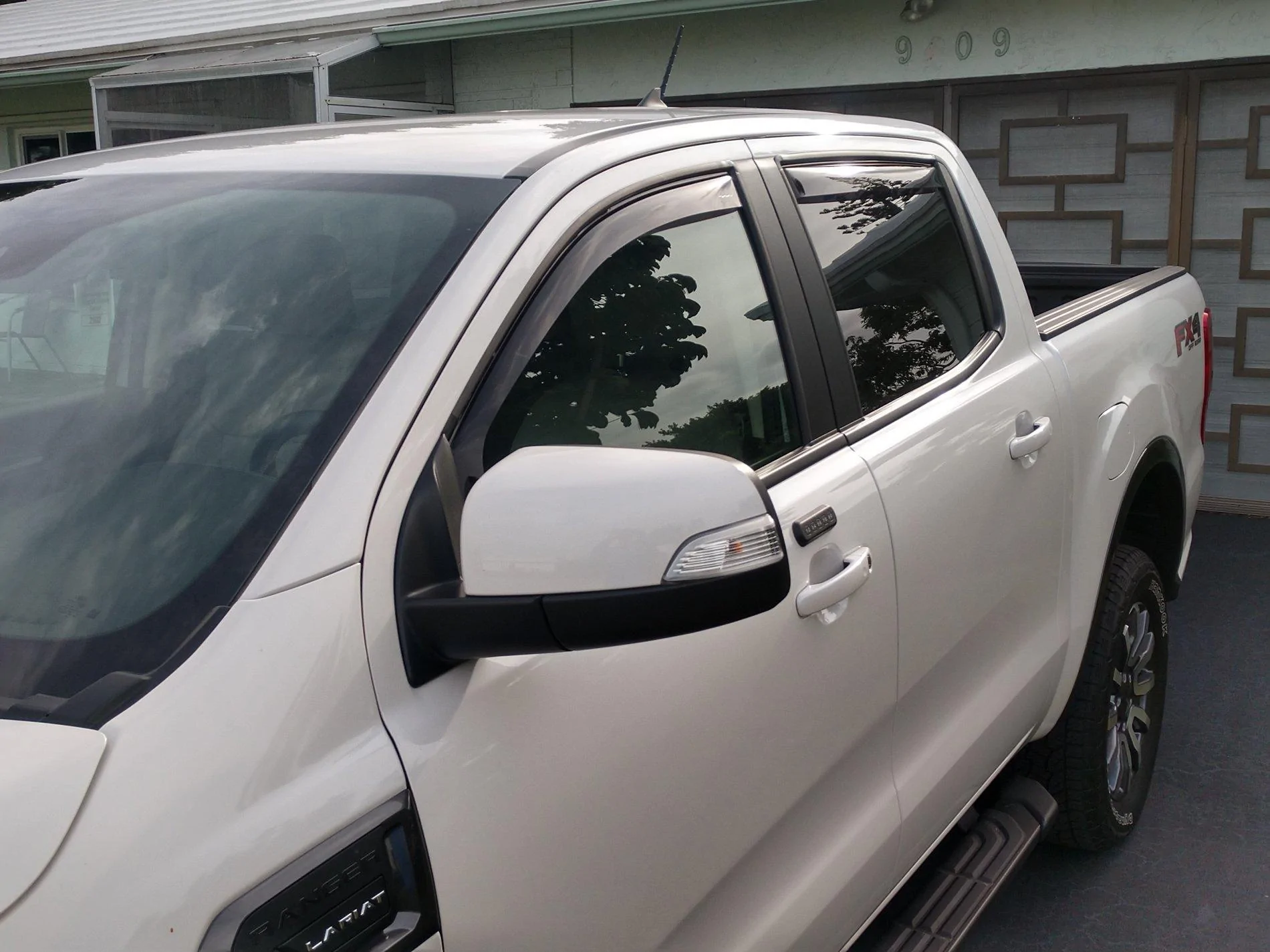

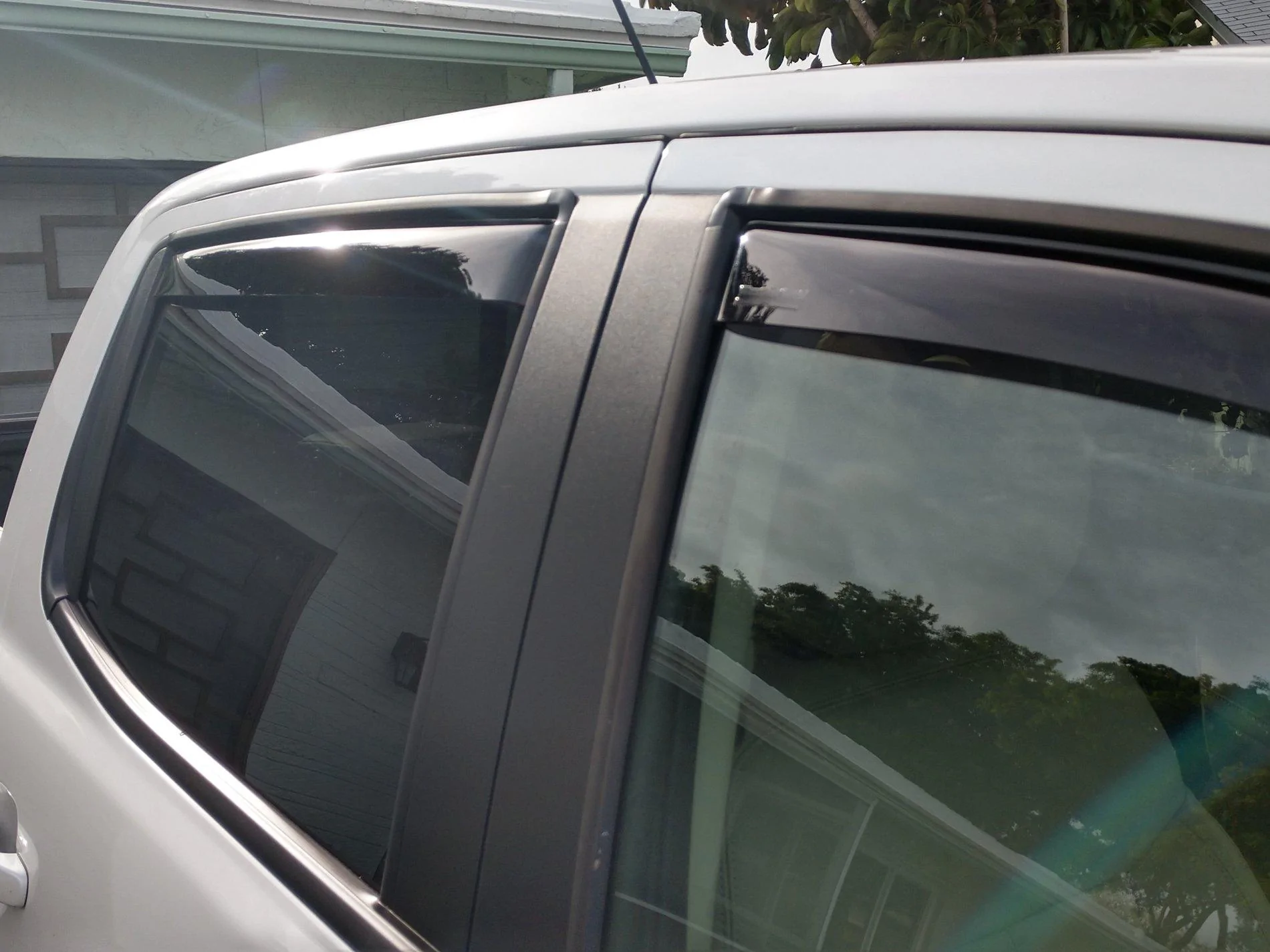

    Weathertech in-channel window visors are VERY low profile and very easy to install. Took 15 minutes for all windows.







    Dredgerie, BHunted and Stevie Gee like this.
  5. FX4Offroad

    FX4Offroad Well-Known Member

    First Name:
    J
    Vehicle(s):
    2014 F150 FX4
    Joined:
    Jan 21, 2019
    Location:
    South Florida
    Posts:
    439
    Likes Received:
    504
    Added pictures






    Tracy Bowman and Stevie Gee like this.
  6. FULLSCALE

    FULLSCALE Well-Known Member

    First Name:
    Adam
    Vehicle(s):
    2019 Ford Ranger Lariat FX4 Supercrew, 2011 Mazda 3 Sport GT-E, 1968 Ford Mustang
    Joined:
    Jan 7, 2019
    Location:
    Ontario, Canada
    Posts:
    1,763
    Likes Received:
    1,329
    Looks too good to get it dirty in there!

  7. FX4Offroad

    FX4Offroad Well-Known Member

    First Name:
    J
    Vehicle(s):
    2014 F150 FX4
    Joined:
    Jan 21, 2019
    Location:
    South Florida
    Posts:
    439
    Likes Received:
    504
    I have a tarp for the inside but will be looking for a rubber mat to hold any dirt/fluids. I occasionally carry a generator and more frequently carry gas cans. For the most part those items would be the dirtiest things I'd put in the bed.

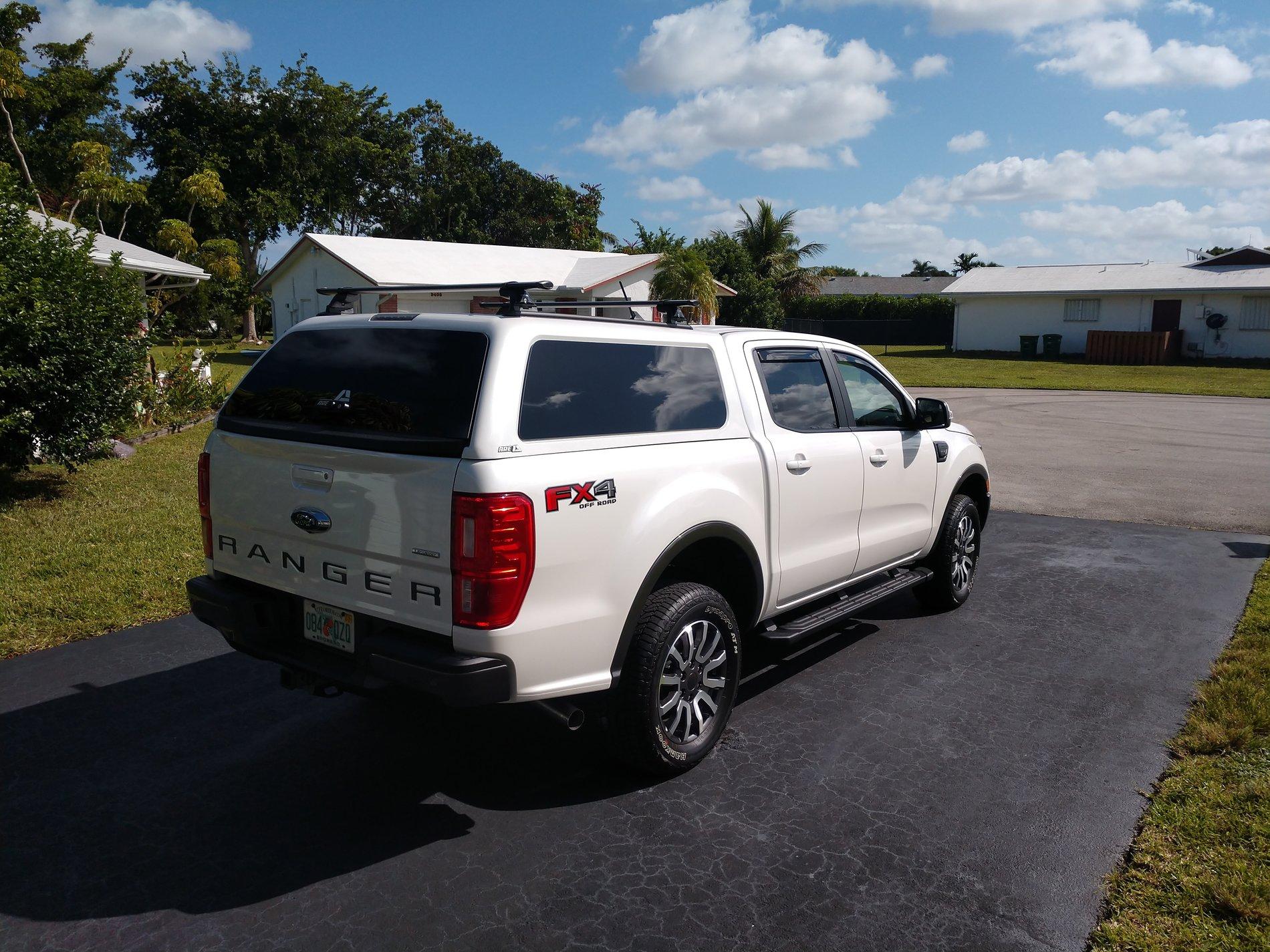

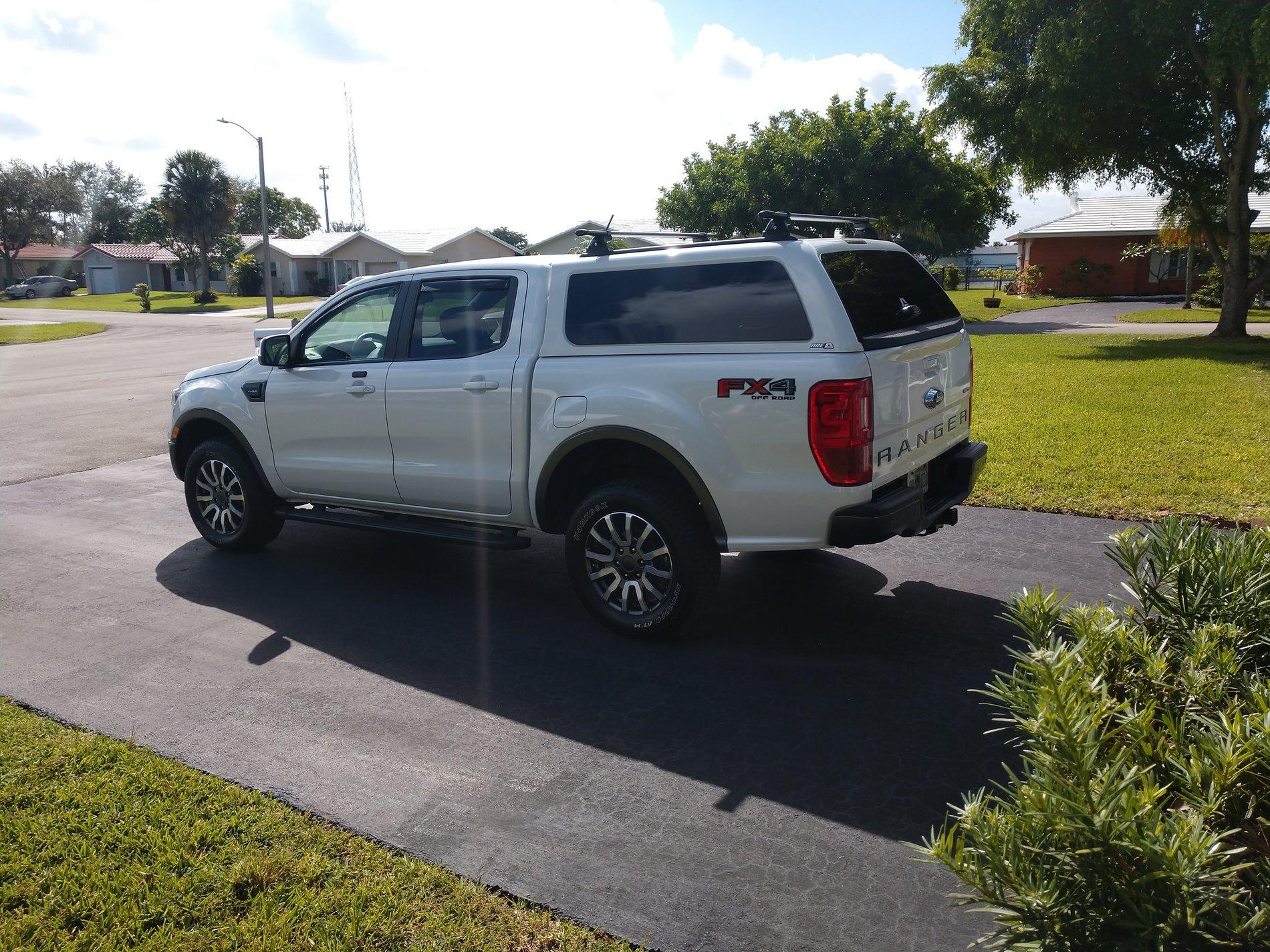

    The pictures don't show it well but I have a Yakima rack on the topper to secure lumber and larger items. I'm looking for the same rack to put on the cab to extend the length of the rooftop storage of materials to be secured, ie. Plywood, 2x and 4x lumber and such.

    Still a work in progress trying to make this smaller truck (inside the cab as well as the bed) as functional as my F150 Supercrew with a 6 1/2' bed. I know it'll never be the same but I'm going to continue to try.

    FULLSCALE likes this.
  8. Tracy Bowman

    Tracy Bowman Well-Known Member

    First Name:
    Tracy
    Vehicle(s):
    2013 Hyundai Accent, 2001 Ford F-150, 2019 Ford Ranger FX4 Saber Lariat
    Joined:
    Apr 11, 2019
    Location:
    Alabama
    Posts:
    476
    Likes Received:
    867
    That looks really good.:thumbsup:

    P. A. Schilke likes this.
  9. HotPepperRedRanger

    HotPepperRedRanger Active Member

    First Name:
    Kevin
    Vehicle(s):
    2019 Ranger Lariat 2015 Ford Edge 2012 Toyota Camry
    Joined:
    Sep 12, 2019
    Location:
    California
    Posts:
    26
    Likes Received:
    36
    For those who installed with a bed rug, did you mount the bracket on top of the bed rug or did you pull the bed rug and install under the rug? TIA

  10. chasvs

    chasvs Well-Known Member

    Vehicle(s):
    2019 Ranger Lariat, 2017 MB GLE350, 2006 Porsche Cayman S
    Joined:
    Feb 6, 2019
    Location:
    Tampa
    Posts:
    839
    Likes Received:
    1,014
    Garage Profiles:
    1

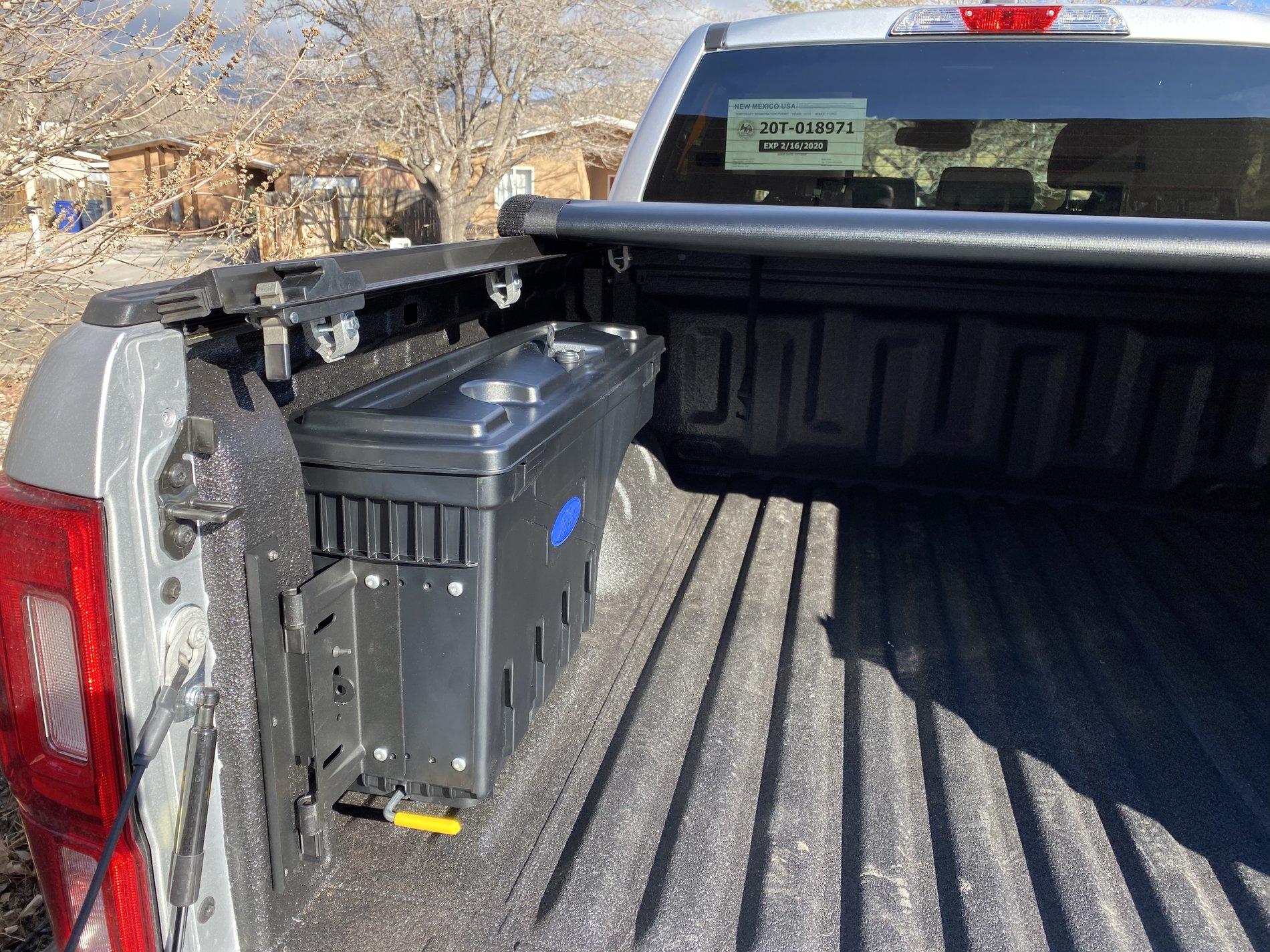

    If you're asking about the Pivot Box mounting bracket whe mounted it is about an inch above the bed so the bed rug fits underneath it and the box swings freely above the rug. I installed over the rubber bed mat which is similar in height to the bed rug and no clearance issues.
    https://www.ranger5g.com/forum/threads/pivot-storage-box-ford-accessories.2350/page-3#post-40767

  11. FX4Offroad

    FX4Offroad Well-Known Member

    First Name:
    J
    Vehicle(s):
    2014 F150 FX4
    Joined:
    Jan 21, 2019
    Location:
    South Florida
    Posts:
    439
    Likes Received:
    504
    I think he's talking about the bedrugs with the sides as well. I'm like you, my bed rug is on the floor only.

    chasvs likes this.
  12. BHunted

    BHunted Well-Known Member

    First Name:
    John
    Vehicle(s):
    2019 Ford Ranger Lariat
    Joined:
    Sep 26, 2019
    Location:
    Sumner County, TN
    Posts:
    324
    Likes Received:
    308
    Occupation:
    Retired
    Garage Profiles:
    1
    FYI, I had a missing HM1 I believe it was. The plastic one for the wheel well.. They wanted $6 for one screw. As mention, hardware store. Just not dealer.

  13. Andrew

    Andrew Well-Known Member

    First Name:
    Andrew
    Vehicle(s):
    2019 Ranger Sport
    Joined:
    Dec 16, 2019
    Location:
    Albuquerque
    Posts:
    191
    Likes Received:
    222

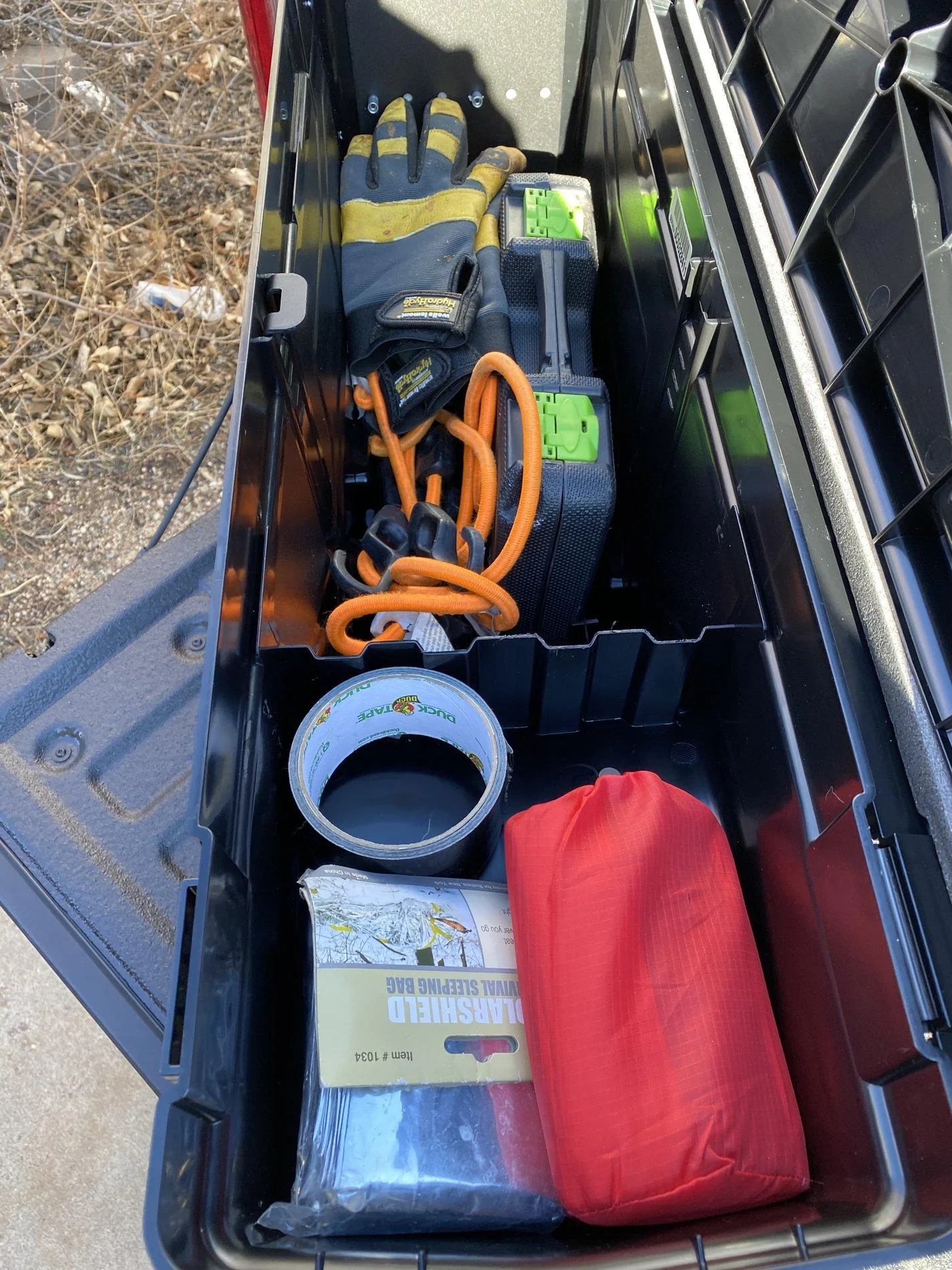

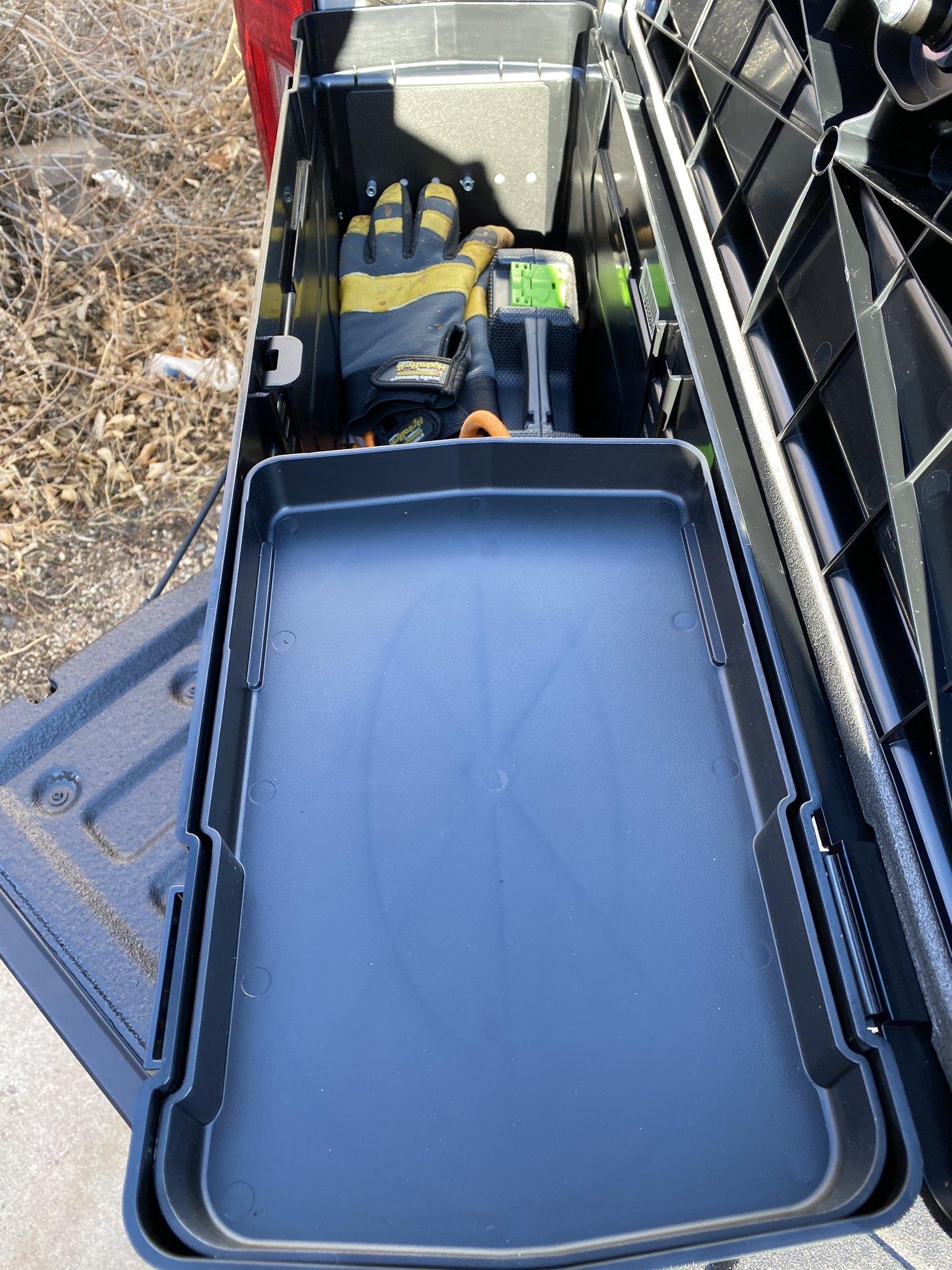

    I used my Ford Pass points and got the box for 12 bucks. This thing has plenty of space and storage that the Ranger clearly lacks.




  14. Noel Willhite

    Noel Willhite Well-Known Member

    First Name:
    Noel
    Vehicle(s):
    2019 Ranger XLT
    Joined:
    Jan 2, 2020
    Location:
    Bonita Springs
    Posts:
    76
    Likes Received:
    102
    Garage Profiles:
    1
    Does anyone know what the 4 slide in notches on the bottom exterior of the cases are for? Do they have any use or is it just for looks?

  15. FX4Offroad

    FX4Offroad Well-Known Member

    First Name:
    J
    Vehicle(s):
    2014 F150 FX4
    Joined:
    Jan 21, 2019
    Location:
    South Florida
    Posts:
    439
    Likes Received:
    504
    I would guess that they are for 2x6 wood to create enclosed areas. You'd need two swing cases for that to work.

    That's my guess.
