LED Bed Lights

Discussion in 'Racks, Carriers, Toppers, Cargo, Bed Mods' started by Randy2400h, Mar 2, 2019.

  1. DrRoger

    DrRoger Well-Known Member

    First Name:
    Roger
    Vehicle(s):
    2011 Taurus, 2019 Ranger XL (May 20)
    Joined:
    Mar 16, 2019
    Location:
    Dallas, TX
    Posts:
    369
    Likes Received:
    265
    Occupation:
    Retired
    The switch came with the lights. I mounted it just inside the tail gate, high on the side. I have a cover, so no water issues.

    Johnpenn likes this.
  2. fah3

    fah3 Active Member

    First Name:
    Fred
    Vehicle(s):
    2019 Ford Ranger Lariat
    Joined:
    Sep 11, 2019
    Location:
    Virginia
    Posts:
    28
    Likes Received:
    42
    Garage Profiles:
    1
    I got my $25 bed lights installed this weekend. Thanks to those who contributed to this thread on tapping the 12V bed power supply.

    I spliced the wiring harness (part #KB3Z-14A411-A) for the bed 12V socket assembly (part #: 7A2Z-19N236-A) and used crimps with glue and some heavy duty landscape wiring for my pigtail to power the lights. Wired in an 18mm round rocker switch to turn them on/off as needed.

    I can confirm, as others have, that the 12V bed socket (and thus my lights) stays powered for an extended period of time after you turn the truck off. The only downside is if you walk up to the truck and it has been turned off, you need to at least hit the ignition button once to fire up the electronics in order for the lights to work. Remote start can solve this problem.

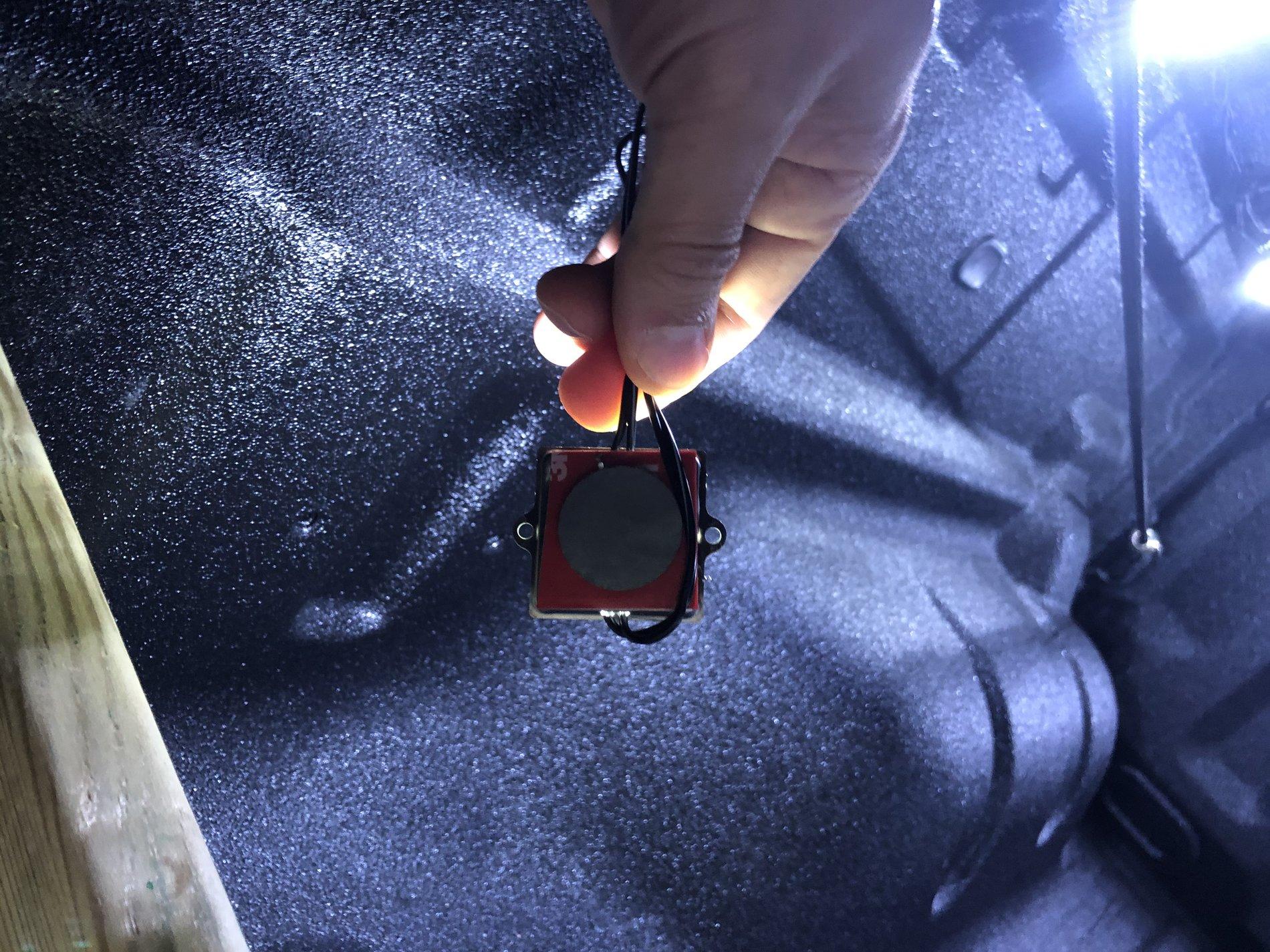

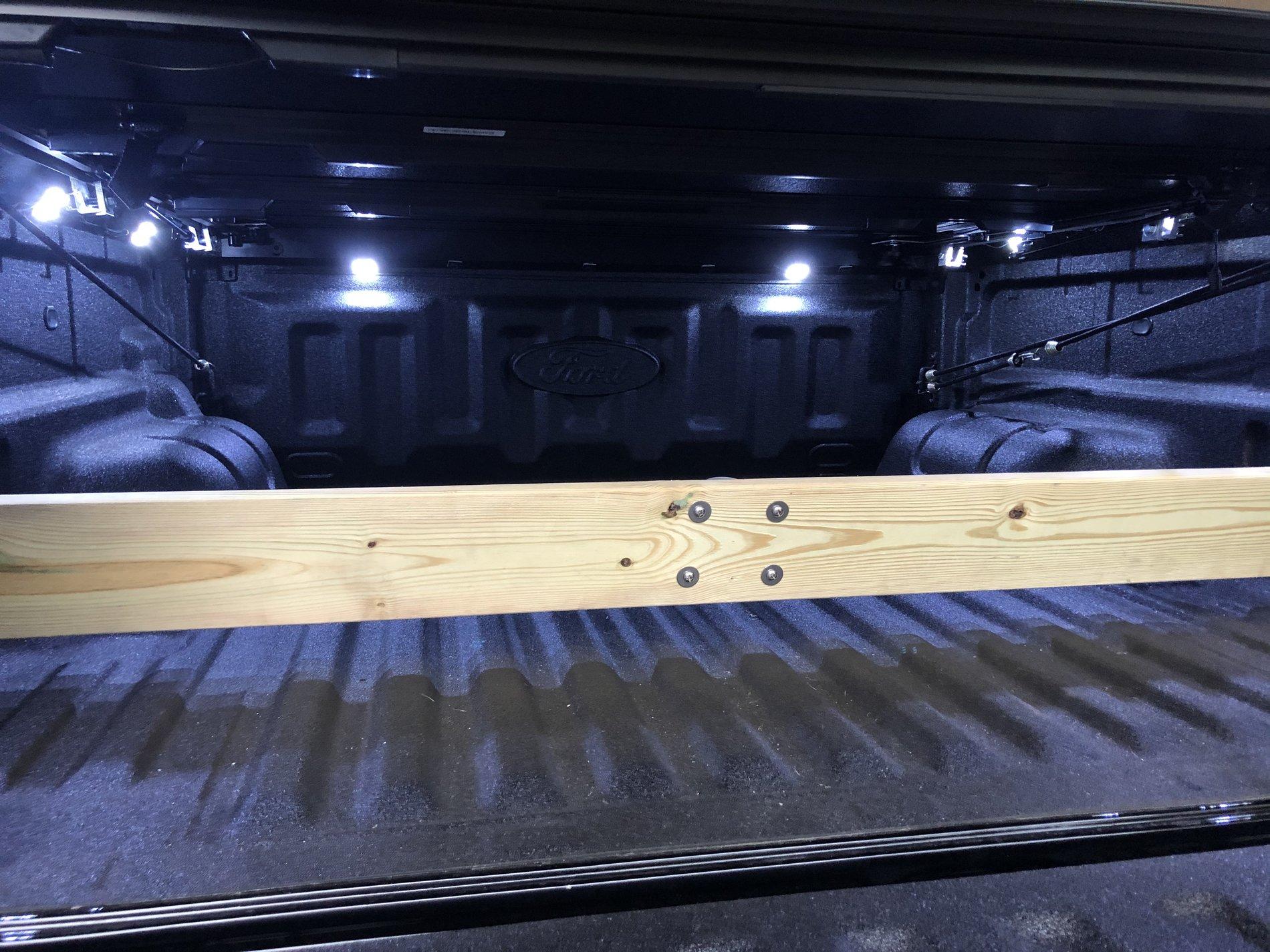

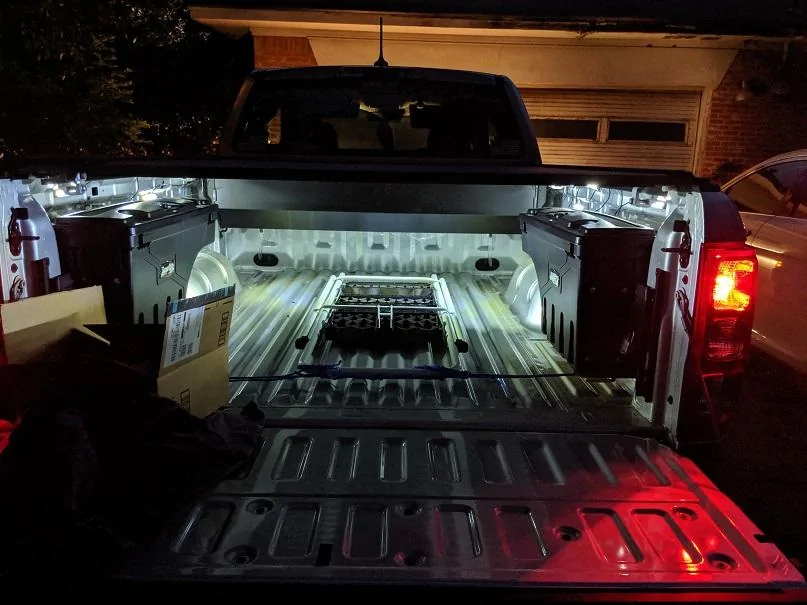

    The lights are 1” square and have 3M adhesive on the back. I took the advice of an Amazon reviewer and bought nickel sized round magnets that I attached to the adhesive/lights and then used the magnets to affix the lights to the truck bed. Super easy and the lights are now movable. The lights, 8 total, give off the perfect amount of illumination to let you see what’s going on under your tonneau.

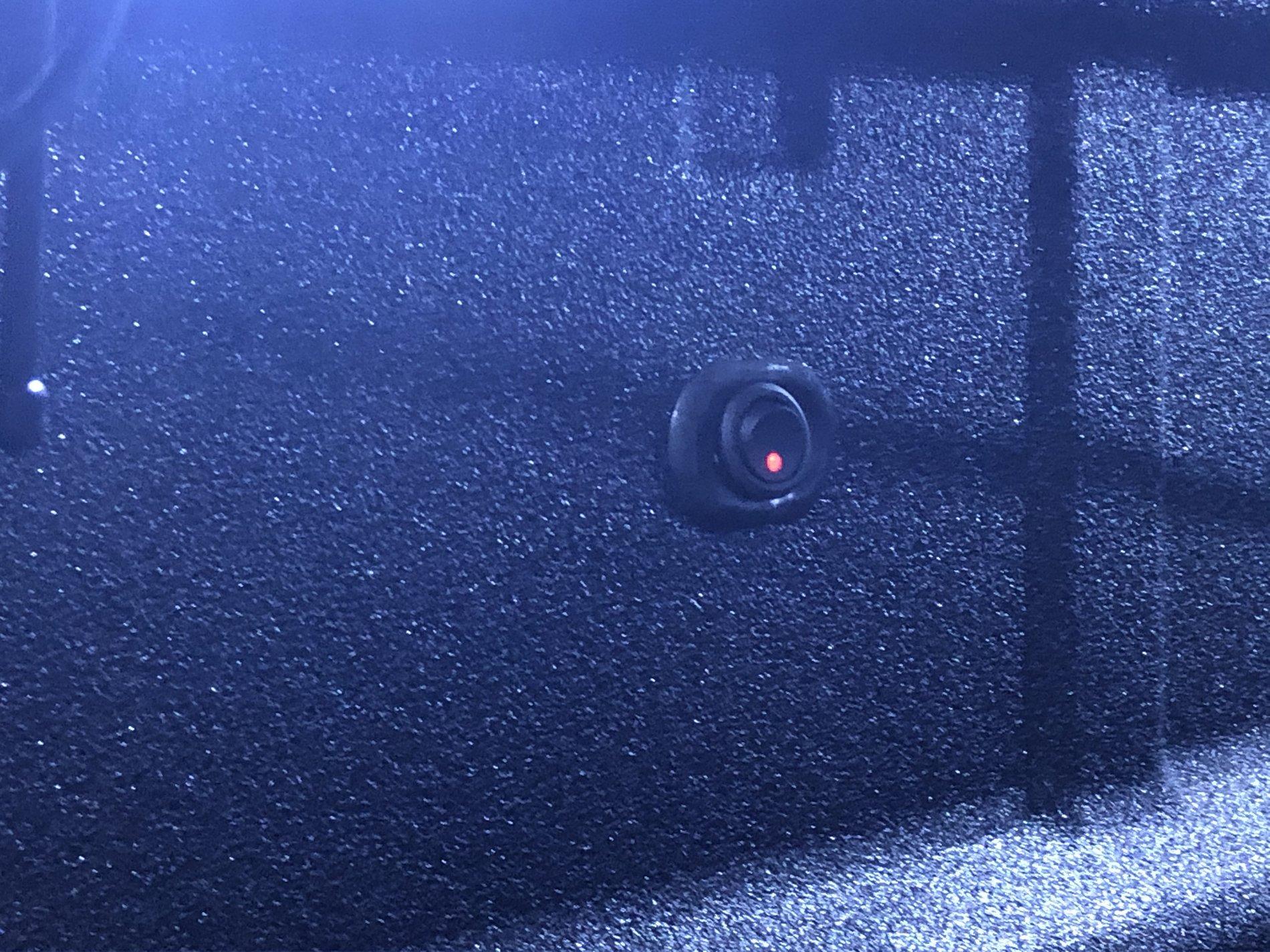

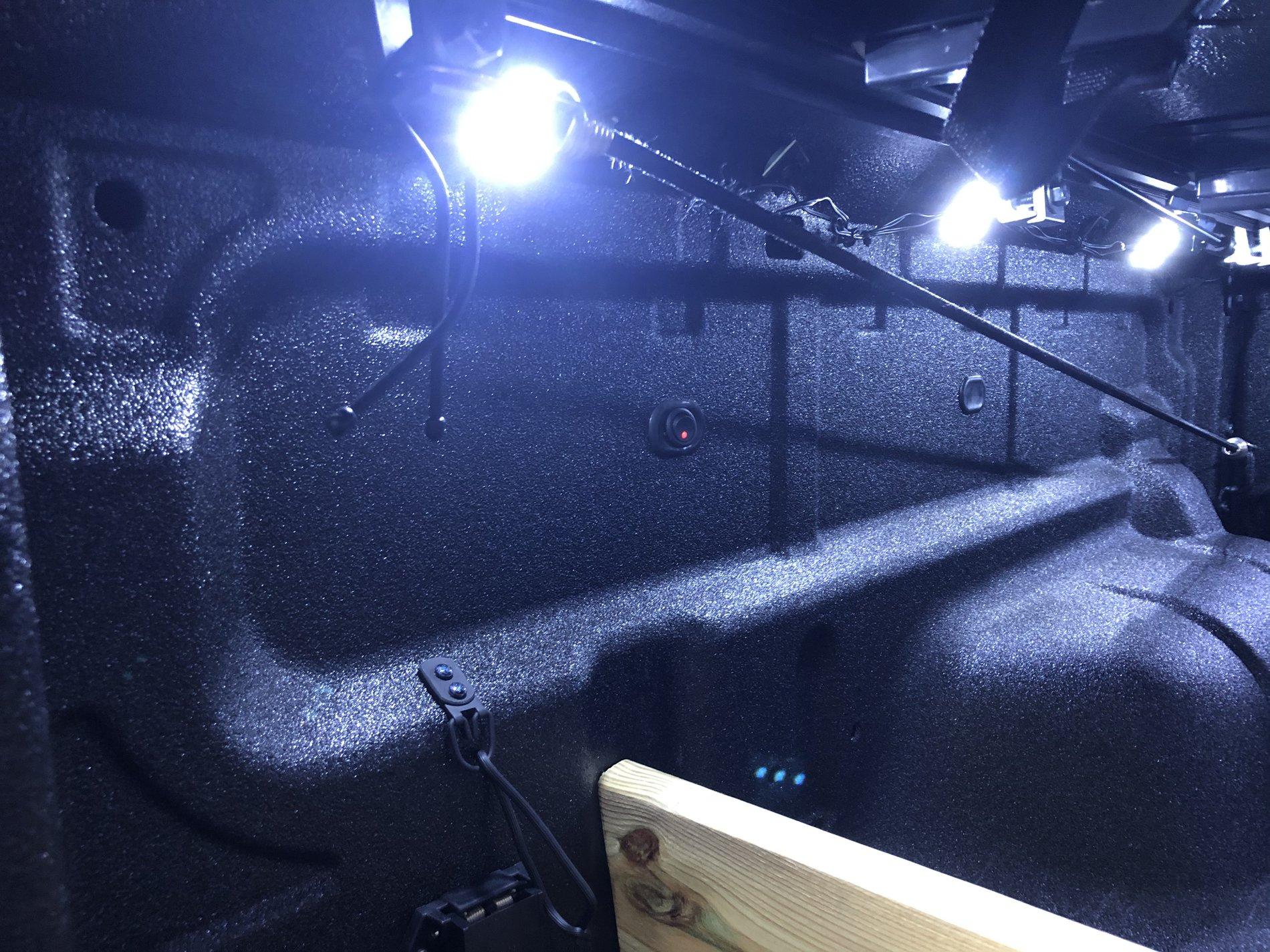

    The rocker switch location was my only mild miss on this project. I didn’t want to drill a hole in the bed, so I cut a hole out of one of the rubber oval shaped plugs on the sidewall. All was great until I found that there was not enough depth on the sidewall to accommodate the switch with the wiring harness on the back. It’s really close, but not perfect.

    If anyone has ideas for a spacer or bracket setup to give it a perfect finish, please chime in. I probably need about an 1/8” more.





  3. Johnpenn

    Johnpenn Well-Known Member

    First Name:
    John
    Vehicle(s):
    2019 Ranger Lariat FX4, 2004 Corvette, 2005 Ranger Edge
    Joined:
    Mar 31, 2019
    Location:
    Rockwood TN
    Posts:
    241
    Likes Received:
    110
    Occupation:
    Retired Quality and EHS Manager
    I used the same switch but just drilled a hole in the bed behind the driver's side tail light. The bed has a bunch of holes punched in it already so I didn't worry about adding one more and there is lots of room for wires back there. You might try an appropriately sized grommet, o-ring or rubber washer as a spacer. That should give you a little more depth. I usually search the hardware stores when I'm improvising.

    DrRoger likes this.
  4. Junior Blue

    Junior Blue Active Member

    First Name:
    Pete
    Vehicle(s):
    2016 F150 RCSB
    Joined:
    Aug 21, 2019
    Location:
    southern N.J.
    Posts:
    38
    Likes Received:
    50

  5. Junior Blue

    Junior Blue Active Member

    First Name:
    Pete
    Vehicle(s):
    2016 F150 RCSB
    Joined:
    Aug 21, 2019
    Location:
    southern N.J.
    Posts:
    38
    Likes Received:
    50
    fah3
    I put my switch in the round hole, it's just below the bed rail, one on both sides. There's about 1 and 3/4 inch space behind it and the outside fender.The hole is about 1/2 inch in diameter. I guess I'm to late you already mounted your switch.

    fah3 likes this.
  6. Johnpenn

    Johnpenn Well-Known Member

    First Name:
    John
    Vehicle(s):
    2019 Ranger Lariat FX4, 2004 Corvette, 2005 Ranger Edge
    Joined:
    Mar 31, 2019
    Location:
    Rockwood TN
    Posts:
    241
    Likes Received:
    110
    Occupation:
    Retired Quality and EHS Manager
    I tried to find a switch that fit that hole too but ended up with 19mm which seems to be a standard for round rocker switches. I never was able to find a 1/2 inch switch so I just drilled a new hole in the most convenient place.

  7. fah3

    fah3 Active Member

    First Name:
    Fred
    Vehicle(s):
    2019 Ford Ranger Lariat
    Joined:
    Sep 11, 2019
    Location:
    Virginia
    Posts:
    28
    Likes Received:
    42
    Garage Profiles:
    1
    #22 Oct 2, 2019
    Last edited: Oct 2, 2019
    I picked up some #14 (3/4” inner diameter) O-rings at Home Depot. Pulled my 18mm round switch out enough to make the oval plug fit as it should and then slipped two of the O-rings on to give it a finished look. All good.

    Thanks all for helping with the solution!

  8. Fawnbuster

    Fawnbuster Well-Known Member

    First Name:
    Mike
    Vehicle(s):
    2019 Ranger
    Joined:
    Jul 14, 2019
    Location:
    Indiana
    Posts:
    96
    Likes Received:
    106
    Occupation:
    Lieutenant, Sheriffs Office
  9. j0shm1lls

    j0shm1lls Well-Known Member

    First Name:
    Josh
    Vehicle(s):
    2016 Focus RS, 2019 Ranger SCrew Lariat FX4 Sport
    Joined:
    Oct 30, 2018
    Location:
    SoCal, USA
    Posts:
    857
    Likes Received:
    943
    Garage Profiles:
    1
    No I didn't. No bed lights yet.

    Fawnbuster likes this.
  10. BHunted

    BHunted Well-Known Member

    First Name:
    John
    Vehicle(s):
    2019 Ford Ranger Lariat
    Joined:
    Sep 26, 2019
    Location:
    Sumner County, TN
    Posts:
    324
    Likes Received:
    308
    Occupation:
    Retired
    Garage Profiles:
    1
    Jerva likes this.
  11. Fawnbuster

    Fawnbuster Well-Known Member

    First Name:
    Mike
    Vehicle(s):
    2019 Ranger
    Joined:
    Jul 14, 2019
    Location:
    Indiana
    Posts:
    96
    Likes Received:
    106
    Occupation:
    Lieutenant, Sheriffs Office
    nice lights! cannot find the magnetic ones anywhere, googled it and the peel and stick ones are all the come up on amazon, even went to a top ten bed light list on a site with links to amazon (quoted magnetic) and that links to the peel and stick amazon lights.
