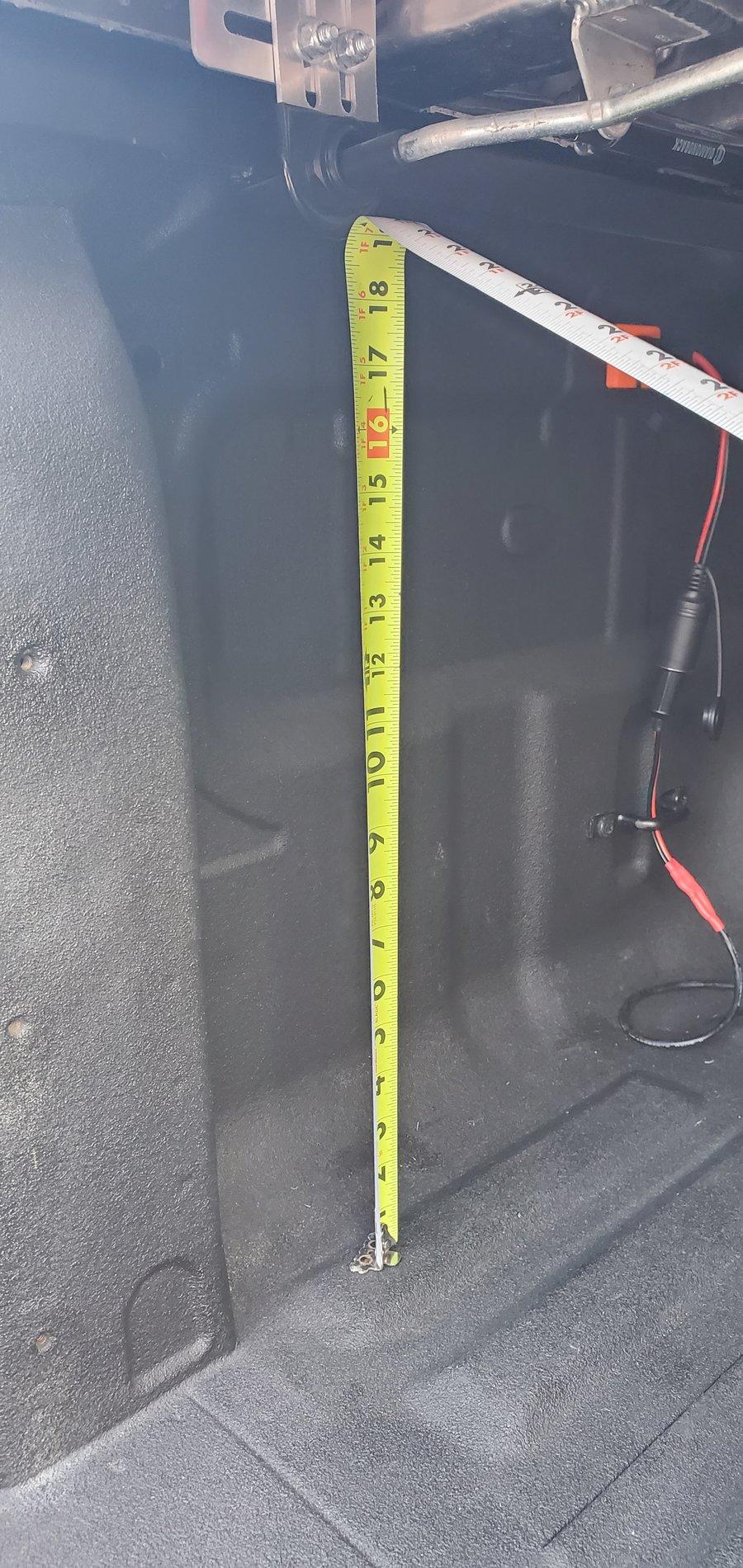

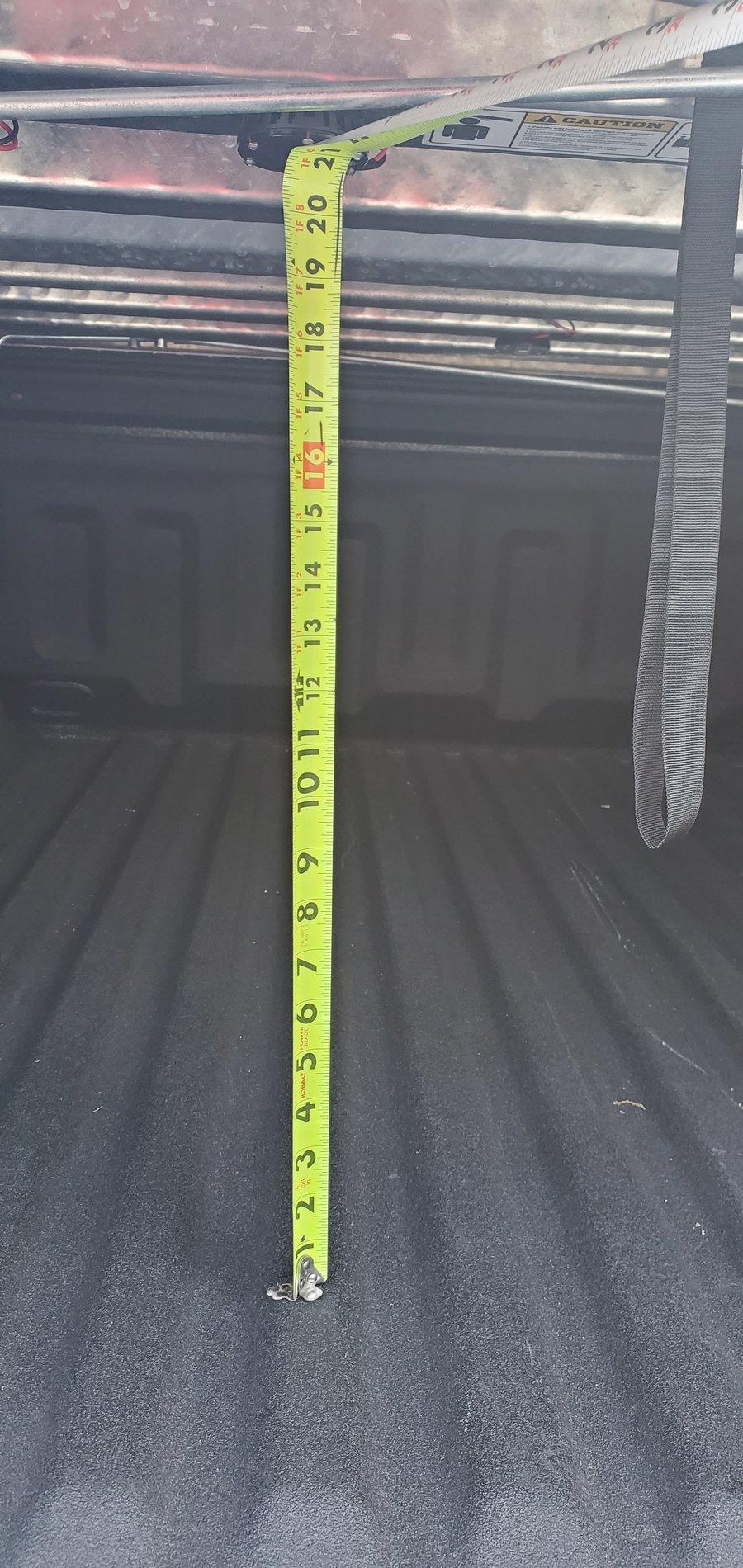

Lowest point (because of the locking brackets) and highest point. Measured from the tops of the ridges. I got a 55L cooler from monoprice and it fits REALLY nicely.

Sponsored



[Desert Rider]

Thanks! I ordered an 18” tall Cordova Adventure Cooler,. It should fit just fine, even with my bed mat.



[Desert Rider]

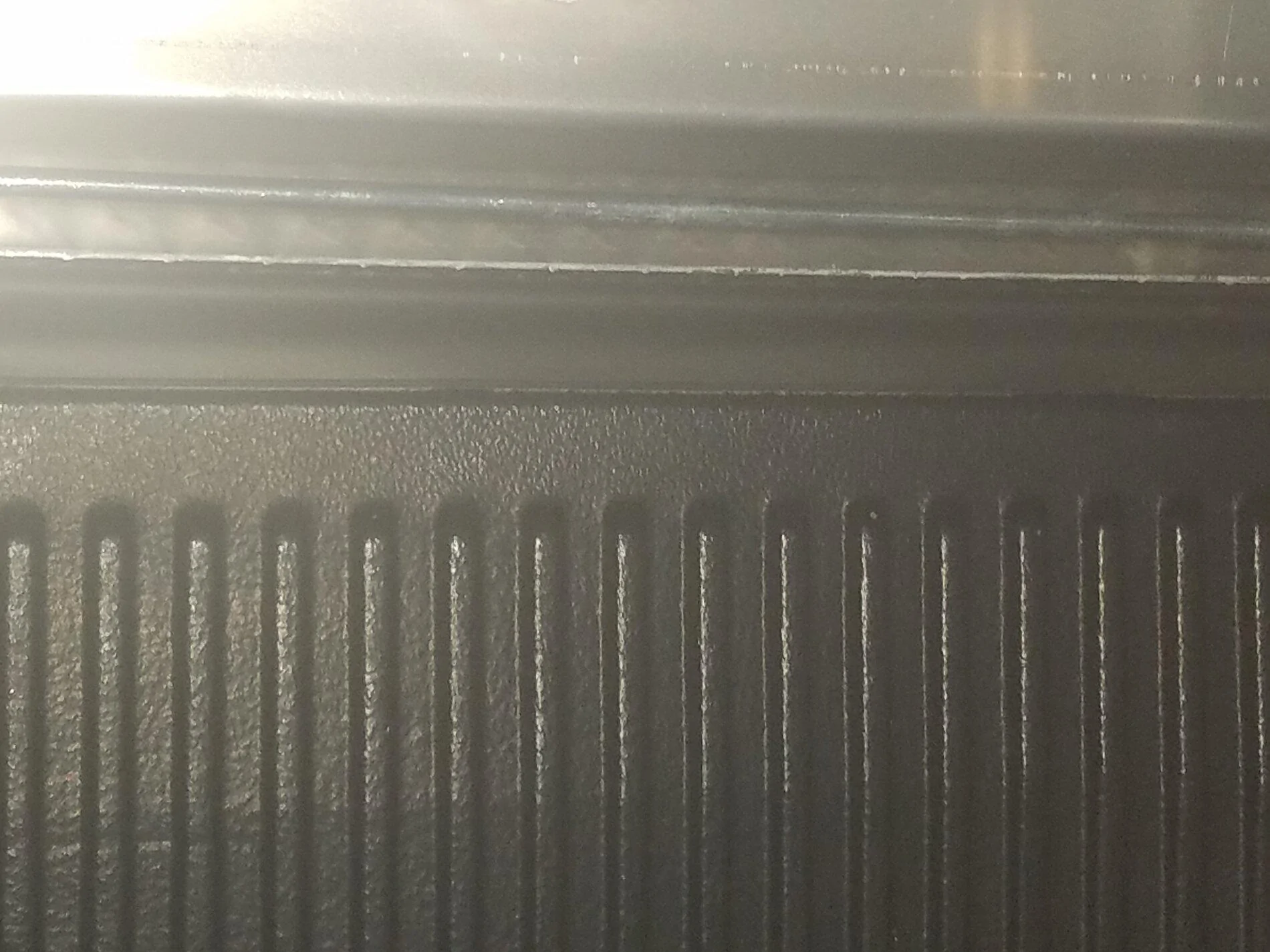

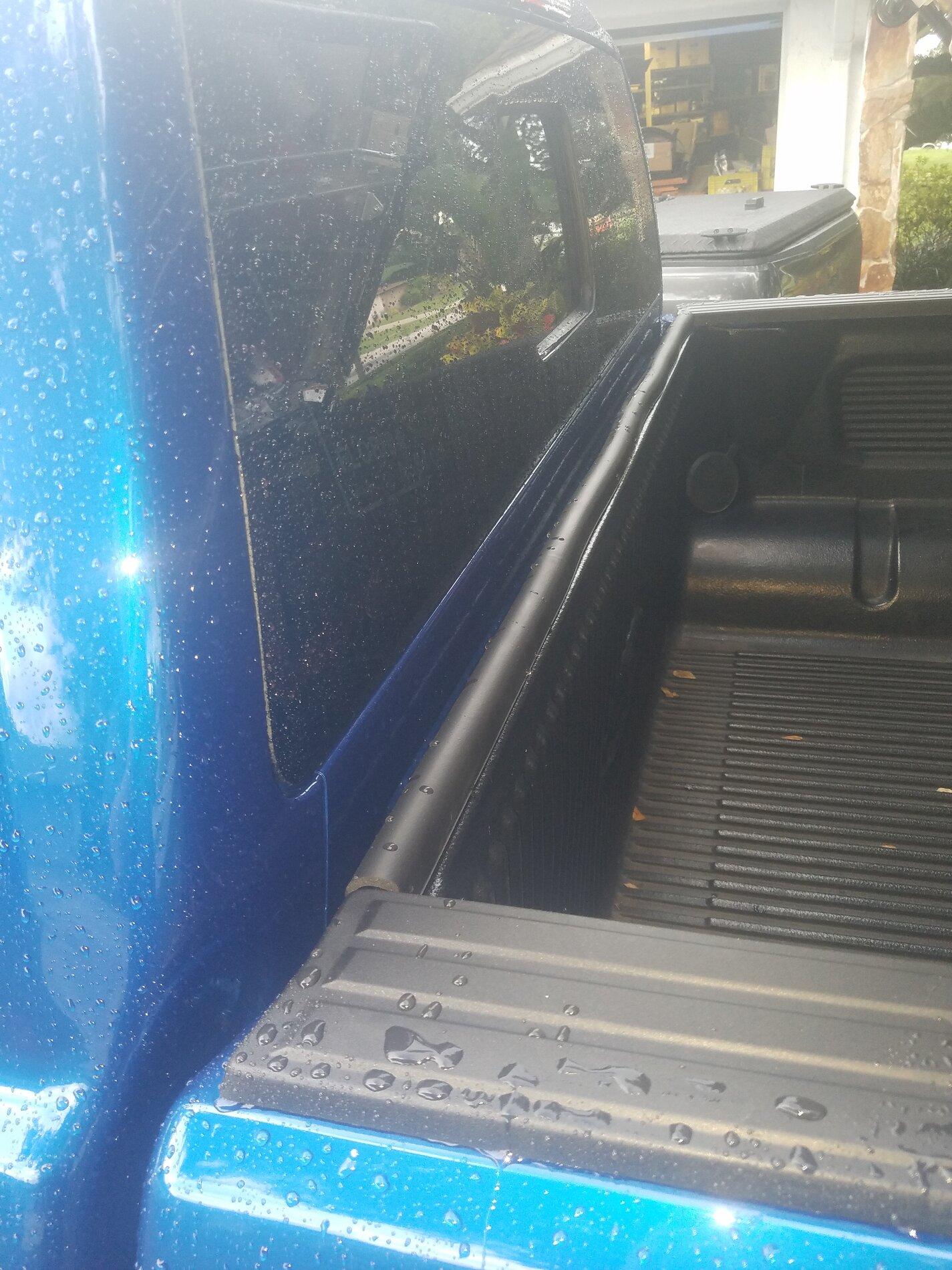

Can someone take a pic of the front seal, at the bulkhead, and underneath the cover. I’d like to see the installation.



[SOHK_Alumni]

Can someone take a pic of the front seal, at the bulkhead, and underneath the cover. I’d like to see the installation.

Just installed this on my wife's Ranger, still need to tweak the locking rods a bit.

The Diamondback on mine keeps the bed dry except at high pressure car washes.



[Desert Rider]

Thank You.



[Desert Rider]

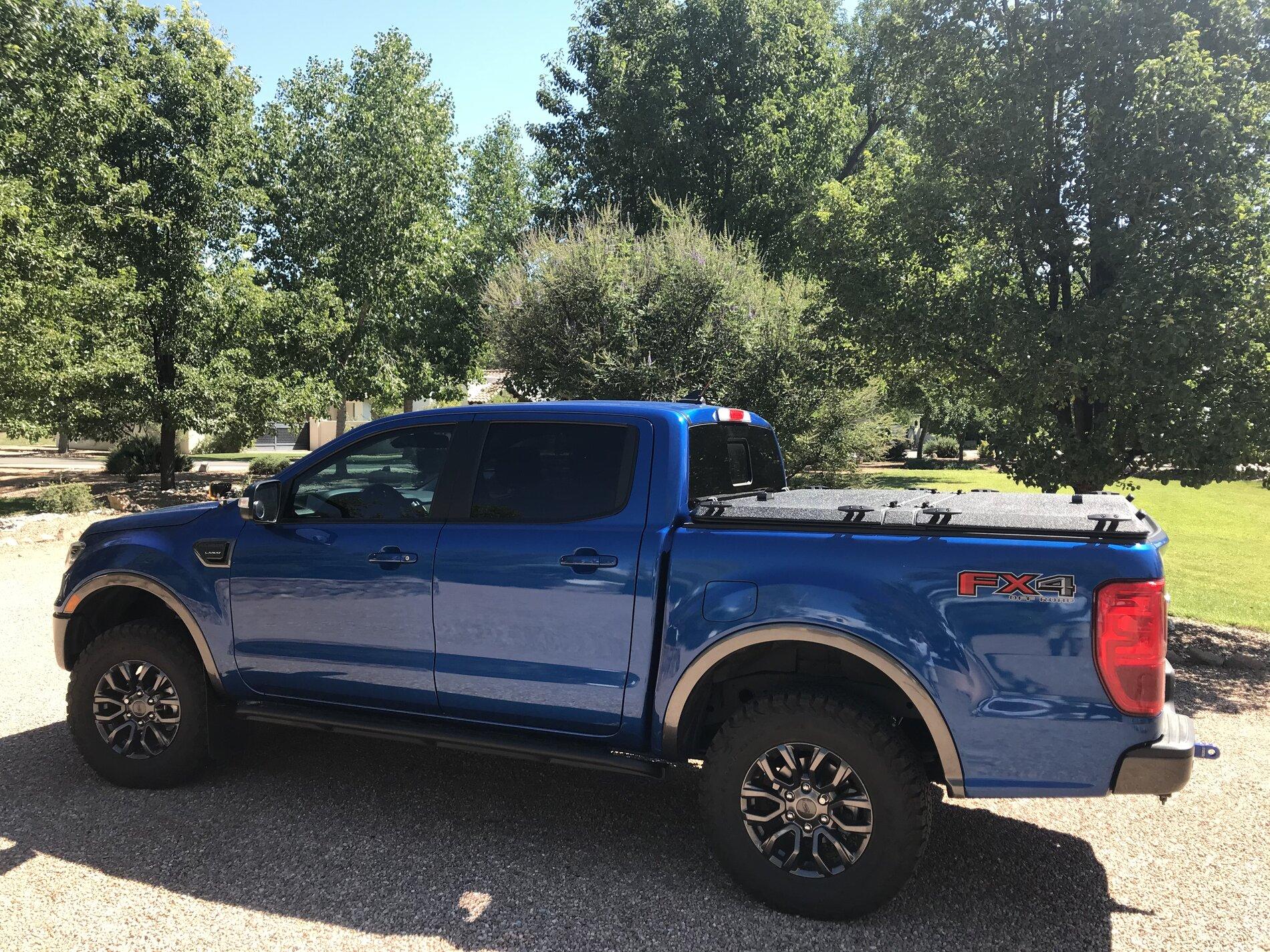

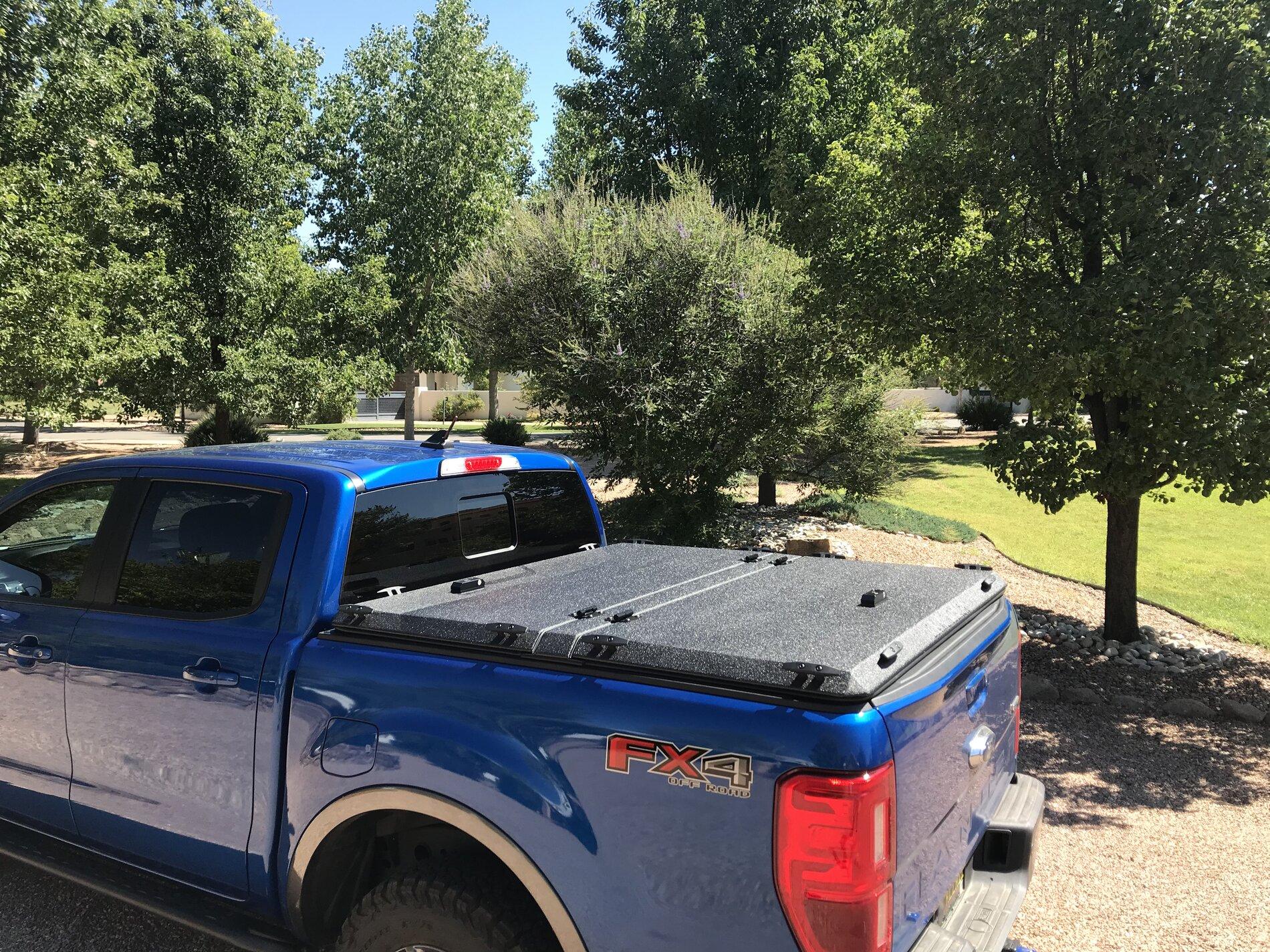

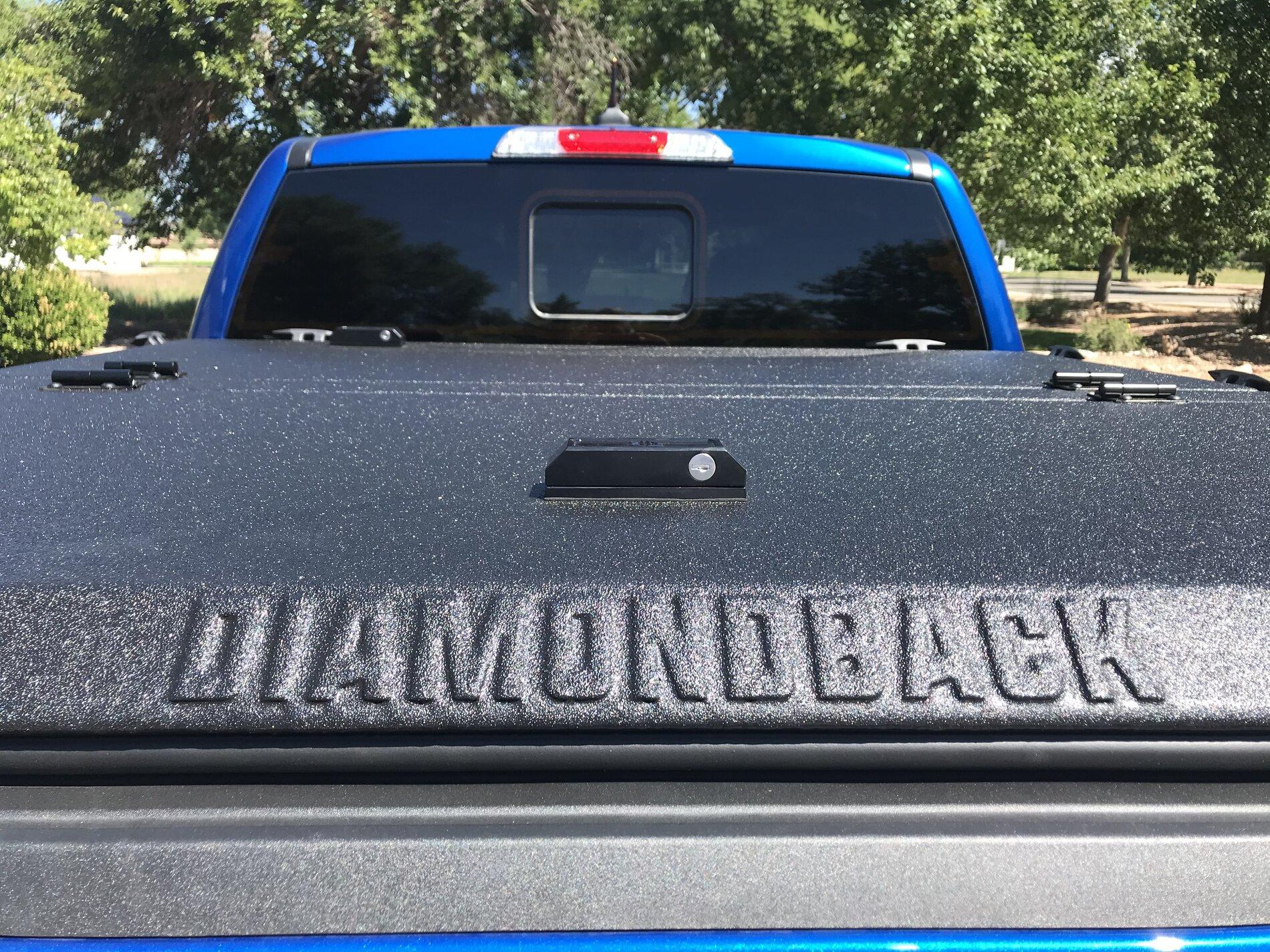

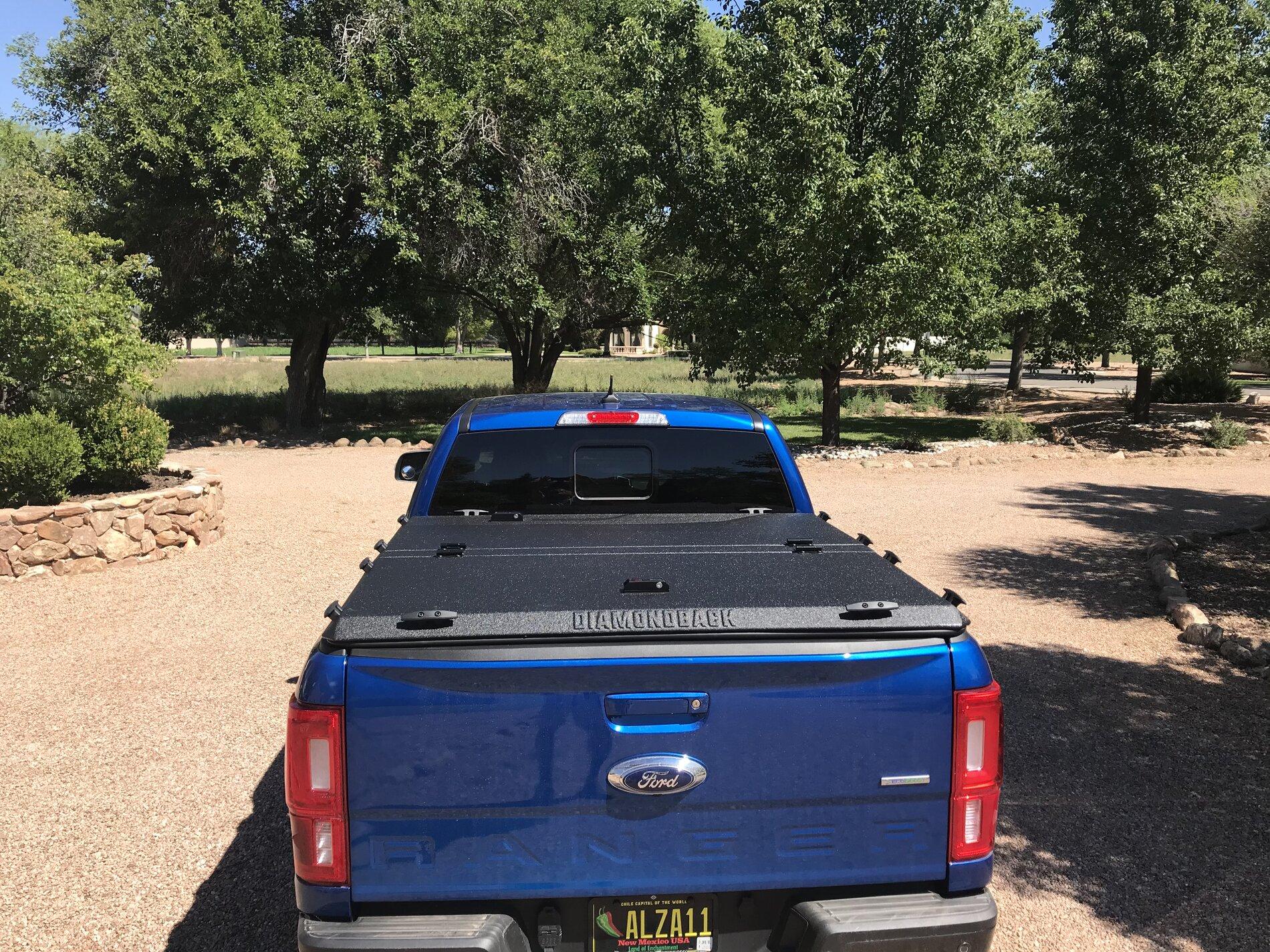

Installed my new HD Diamondback Cover. It has the smooth black bed liner finish. Very happy with the fit and finish. Plan to load all of my camping gear, in soft dry bags, on top of the cover and go camping soon.



[SOHK_Alumni]

Lowest point (because of the locking brackets) and highest point. Measured from the tops of the ridges. I got a 55L cooler from monoprice and it fits REALLY nicely.

Hmmm, think your locking rods are not "clocked" as they should. The long section should be parallel with the top, then angle down to the bushings then straight across to under the lip of the bed.



[Murph]

Just order mine too. Glad I checked here to see if there were discounts first.

Quantity Item Rate Amount
1 DIA-FR19-CX
DiamondBack Black HD Tonneau Cover

2019 Ford Ranger 5'1" Bed $2,049.00 $2,049.00
Customer Discount
Ranger Forum Pricing -7.5% $-153.68
Subtotal $1,895.32
Tax (5.3%) $100.45
Total $1,995.77

I don't get it, did you make contact with customer service and tell them about Ranger5g to get the discount? I'm trying to figure out how to get the discount and it doesn't work for any promo code on other websites.



[Randy2400h]

Installed my new HD Diamondback Cover. It has the smooth black bed liner finish. Very happy with the fit and finish. Plan to load all of my camping gear, in soft dry bags, on top of the cover and go camping soon.

I like my diamond plating with LineX, but I have to say it looks equally good when it’s smooth metal. I have been nothing but impressed with quality and functionality of my HD cover.



[Murph]

Well, I just called the companies listed previously in this post, ref possible discounts. They both claim Diamondback has hold on price and they are unable to discount. FAIL for me. I was trying all kinds of promo codes, too! It's just right out of my comfort zone. LOL



[rangerfinland]

Im trying to find actual package size for Diamondback HD Tonneau Cover. (Ford Ranger Raptor 2020).
Does anyone know package dimensions and weight? (Tonneaucoversworld.com does not actually know their package measurements or weight...)



[WLFPIR8]

Ask diamondback directly. Their support is great. Also, order from diamondback directly. Everything is made to order and ships from them anyway, and the Tonneaucovers (and related sites) have garbage support.



[rangerfinland]

I´ve been in contact directly to diamondback, but the problem is that they dont ship outside US. Now when Im trying to find courier for this, I would need the measurements and weight for the package and they dont know it ; )

EDIT: Sorry messed up tonneaucovers to diamondback site. Thanks, ill check that out.



[WLFPIR8]

Ah, didn't know you were trying to get outside US. Canada? They ship from PA and I'd assume they can ship directly via some freight service.



[JRRangerAZ]

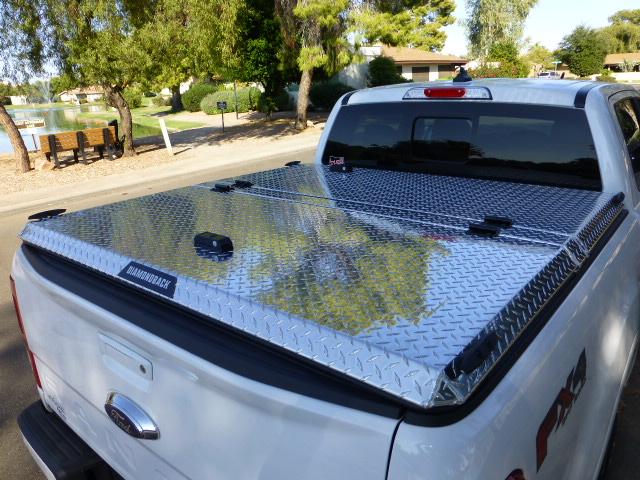

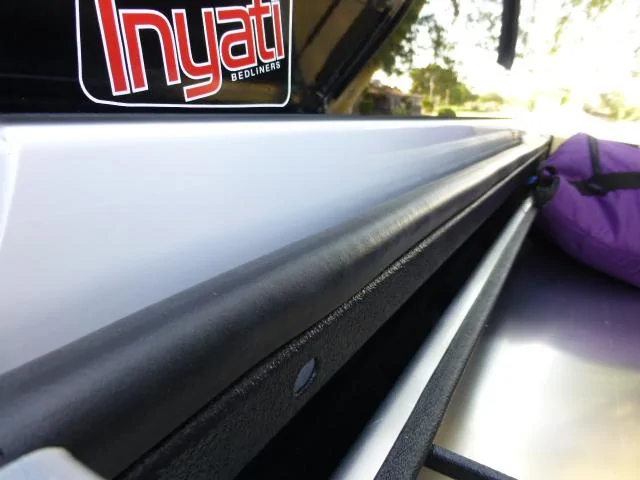

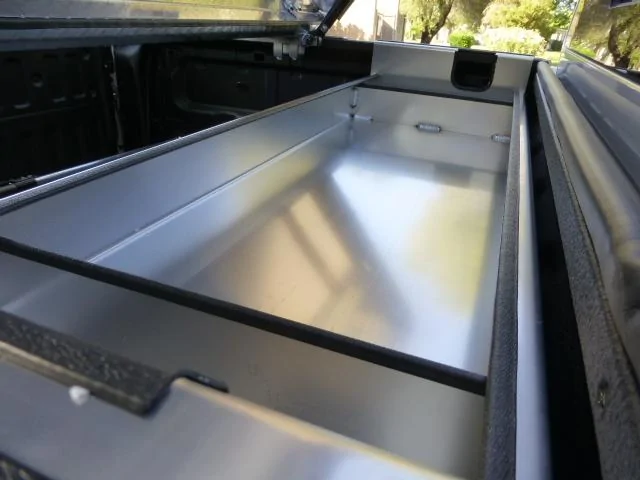

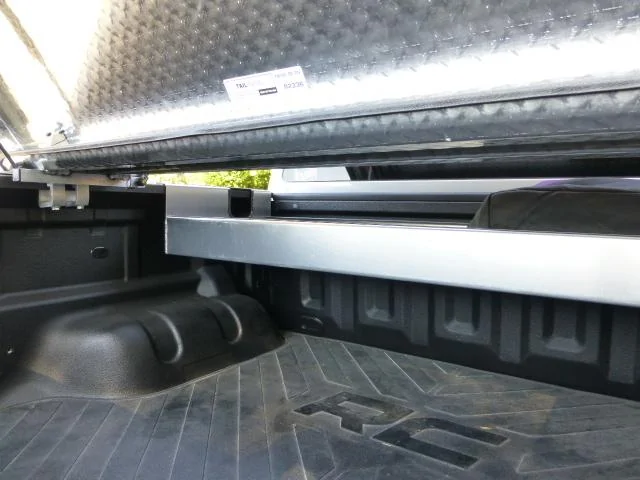

In case anyone is interested in the look of a bare metal unit (black is too hot for AZ!), plus a detail of the tray, and also the bulkhead gasket someone requested:
