Hey all, I thought I'd post my audio upgrade adventure.

I have a 2019 supercab XLT so no B&O. I have Sync 3 and the 8" screen, upgraded to Sync 3.4.

The stock system wasn't terrible, but I wanted better. And I wanted to do it retaining the stock look.

Parts List:

T-harness
Speed wire
DS18 loc/line driver. This give me a summed sub woofer output.
Kicker Key 200.4 4 channel auto DSP amp
Kicker Key 500.1 auto DSP sub amp
JL Audio C1-660 Components
JL Audio 6.5" sub, 6W3v3-4
Plyboard
Sound deadening material
Poly fill
20 amp fuse taps.
Power and Ground wire.
Other miscellaneous hardware...

First thing I did was use Forscan to disable the built in DSP and to enable line level outputs. In my testing using 0db test tones and an oscilloscope with line outs enabled the head unit produces no distortion even at full volume. Without line level outputs enabled distortion starts at 20 on the dial. Line level outputs appear to be 2 volt.

Then I made the dash side of the wiring harness using the T-Harness:


For power I repurposed the two 20 amp fuses in the fuse box for the B&O system I don't have. This makes it so I don't have to drill a hole in the firewall for power.

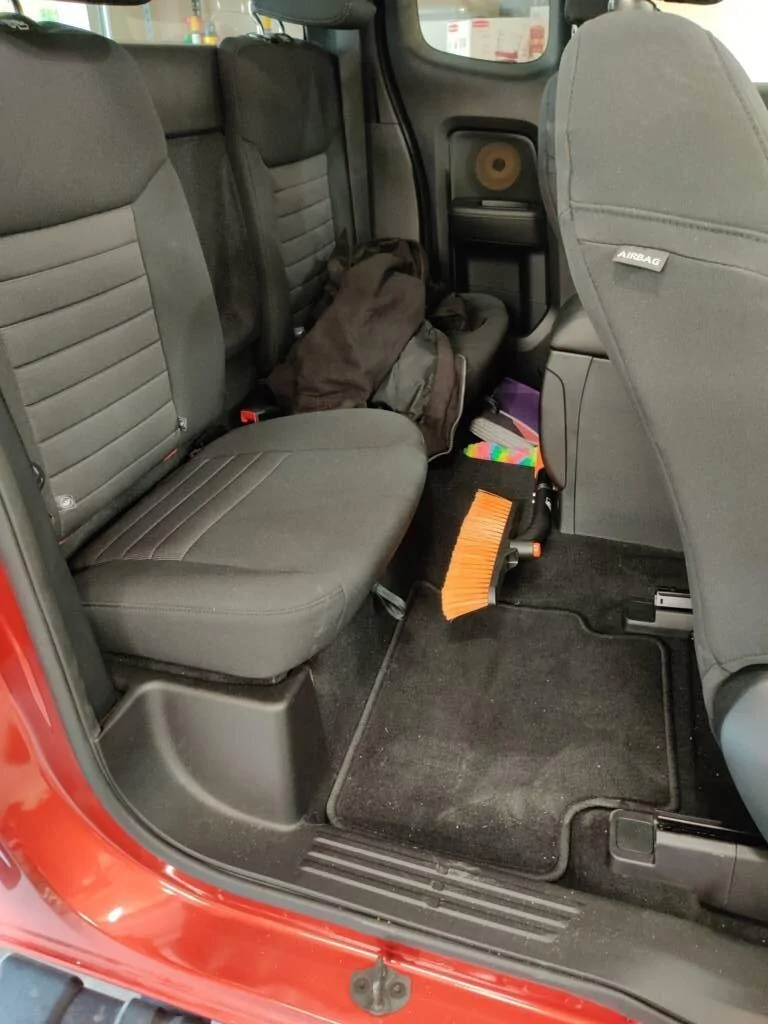

I repurposed the space under the rear drivers side seat for my amp rack. I put the jack and accessories in my swing boxes.

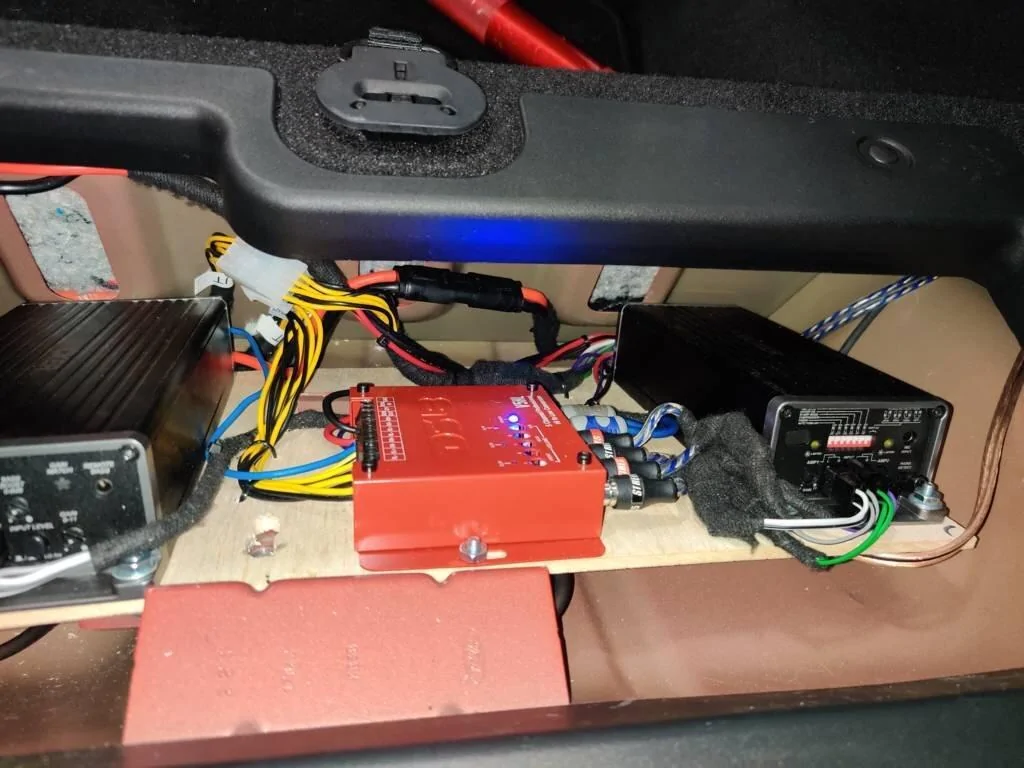

With wires ran and amps mounted it looks like this:






Everything just fits, and I can get to all of the adjustments.



Now onto the speakers. I ordered them from Crutchfield and they sent along very good instructions on how to disassemble everything.

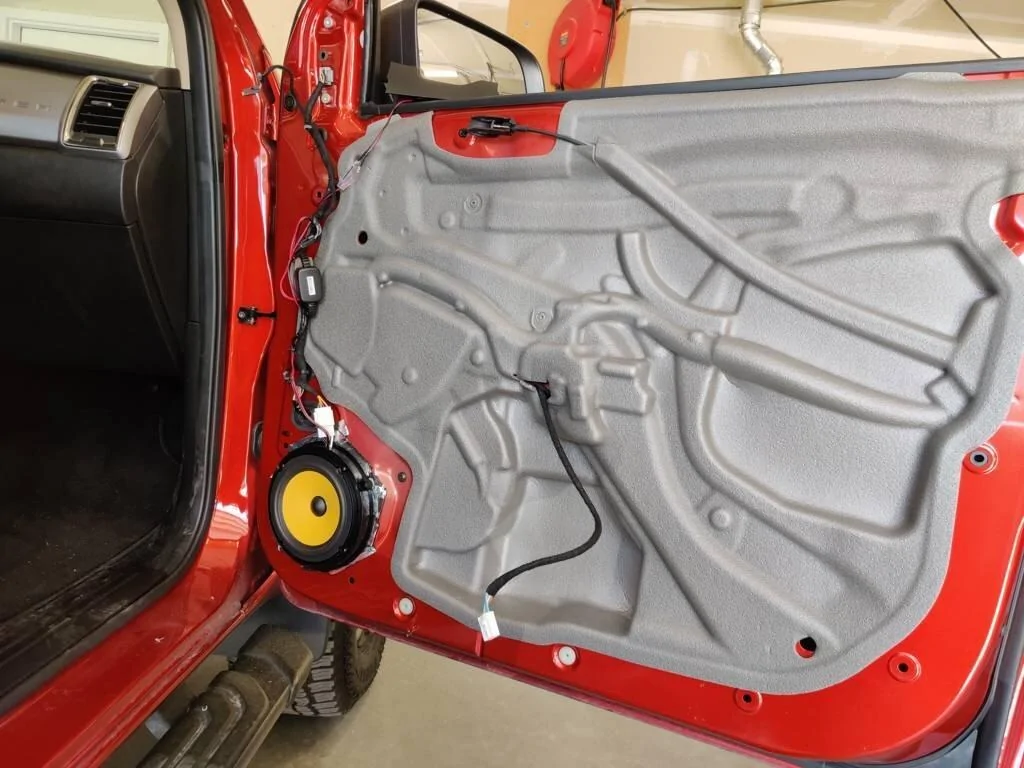

The new tweeters fit the stock locations like they were supposed to be there.


Note: I didn't use the tweeters for the rear channels, I run those full range.

New vs Old Speakers:



They look nice installed



On to the sub. For the sub I decided to use the space under the rear passenger side seat. I took out the plastic bin and then sound deadened the rest to within and inch of it's life. I used the holes were the three plastic retainers that hold the plastic bin on to hold on the top plate I made. I drilled out the holes a little bigger and used threaded rivet inserts.






I did add polyfil and foam strips to the back edges of the mounting plate to create a seal., but forgot to take pictures of that.

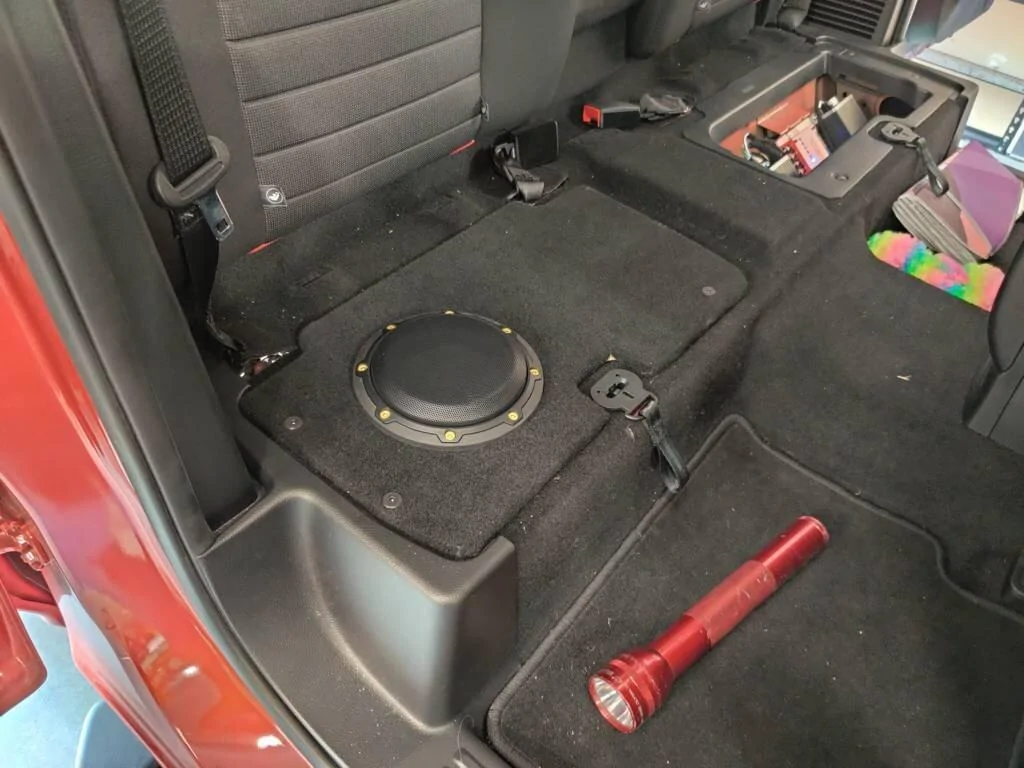

Final product

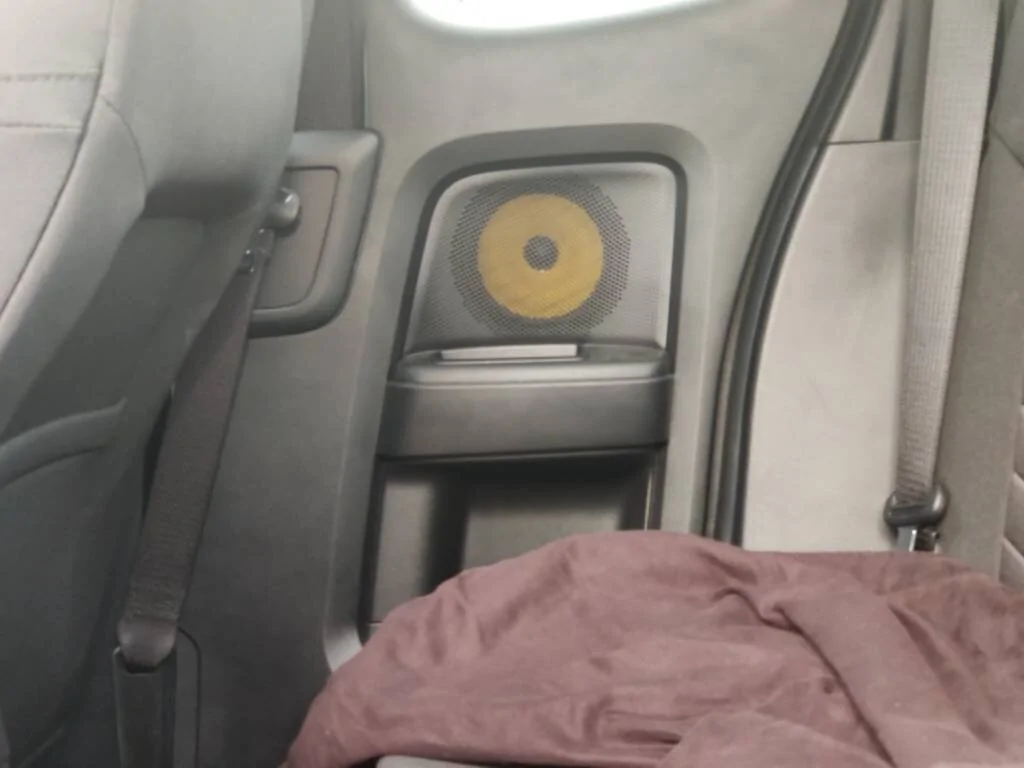

Everything put back together, looks stock still except for the yellow speakers.


If you sit in that seat you can tell something is under it but it's not bad. ...I'm mean no worse that sitting in that seat to begin with.


I probably missed some steps.

Questions? Ridicule?

Thanks!

Inspirational and very nicely done. I too have a SuperCab and did not think that much was possible given the limited space. The Lariat SC does not come with the B&O so was thinking of a sub upgrade at the least.


ceejkay

New Member
First Name
Corey
Joined
Nov 25, 2020
Threads
0
Messages
4
Reaction score
27
Location
South Fl
Vehicle(s)
2020 XLT FX4
Occupation
Coastie
Another thing to note: Since the park assist and other beeps and buzzers use the stereo speakers and don't have a volume control I set the gains on my amps so that was volume I wanted. If I had set the gains in the traditional way the park assist would have blown me out of the truck first time it came on.

The Forscan codes I used were:
ACM
727-01-01 xx50 Turns on line-outs.
727-01-02 00xx Turns off factory DSP.
Could you post a pic or explain a little more of your forscan mods. I’m having a hell of a time getting rid of all the extra bass from the oem dsp.

OP
OP
pocket_geek

pocket_geek

Active Member
First Name
Curtis
Joined
Dec 29, 2019
Threads
1
Messages
25
Reaction score
52
Location
Caldwell, Idaho, USA, Earth
Vehicle(s)
2019 Ford Ranger XLT FX4
Occupation
Nerd
Could you post a pic or explain a little more of your forscan mods. I’m having a hell of a time getting rid of all the extra bass from the oem dsp.
I'll get back to this and answer some other questions in this thread, I've just been super busy the last few weeks.



Langwilliams

Well-Known Member
First Name
Langley
Joined
Dec 31, 2019
Threads
24
Messages
2,925
Reaction score
6,629
Location
Lorain, Ohio
Vehicle(s)
2019 Ford Ranger XLT, 2014 Harley Street Glide
Occupation
Mail Carrier (retired) Navy Vet
I ordered a pair of Hertz component speakers for the front doors. They have a a high sensitivity rating, I'm hoping that helps since I'm not adding an amp. I run a coax pair of Hertz in my Harley with an amp an I really like them.

it'd be nice to find a video or something of the super cab rear door skin removal....Guess it's gonna be trial an error on the first one.

https://www.crutchfield.com/p_301K170/Hertz-K-170.html?omnews=16751583


Flapilot

Well-Known Member
First Name
Jordan
Joined
Sep 19, 2019
Threads
5
Messages
67
Reaction score
141
Location
Parrish FL
Vehicle(s)
2019 XLT
@pocket_geek
I’m trying to track the wiring here.

From the head unit to T harness then all 8 into the dsp(yellow wires?) then Dsp to rca to key 500 and key 200? Then back to t harness.

OP
OP
pocket_geek

pocket_geek

Active Member
First Name
Curtis
Joined
Dec 29, 2019
Threads
1
Messages
25
Reaction score
52
Location
Caldwell, Idaho, USA, Earth
Vehicle(s)
2019 Ford Ranger XLT FX4
Occupation
Nerd
@pocket_geek
I’m trying to track the wiring here.

From the head unit to T harness then all 8 into the dsp(yellow wires?) then Dsp to rca to key 500 and key 200? Then back to t harness.

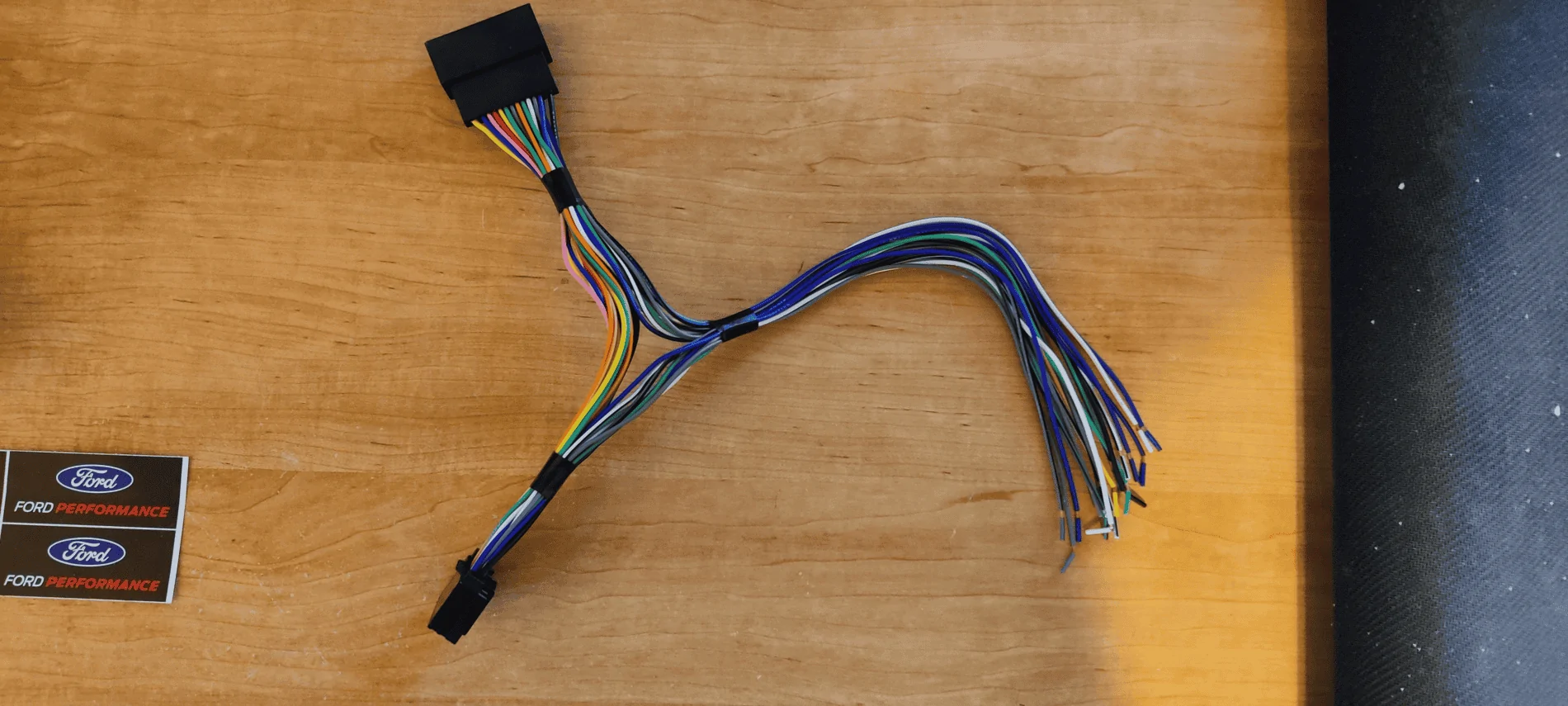

Let me take some pictures of my extra FOR-11CK harness and try and explain what I did. (Yeah, I have an extra. I bought two because I figured I'd screw one up and didn't)

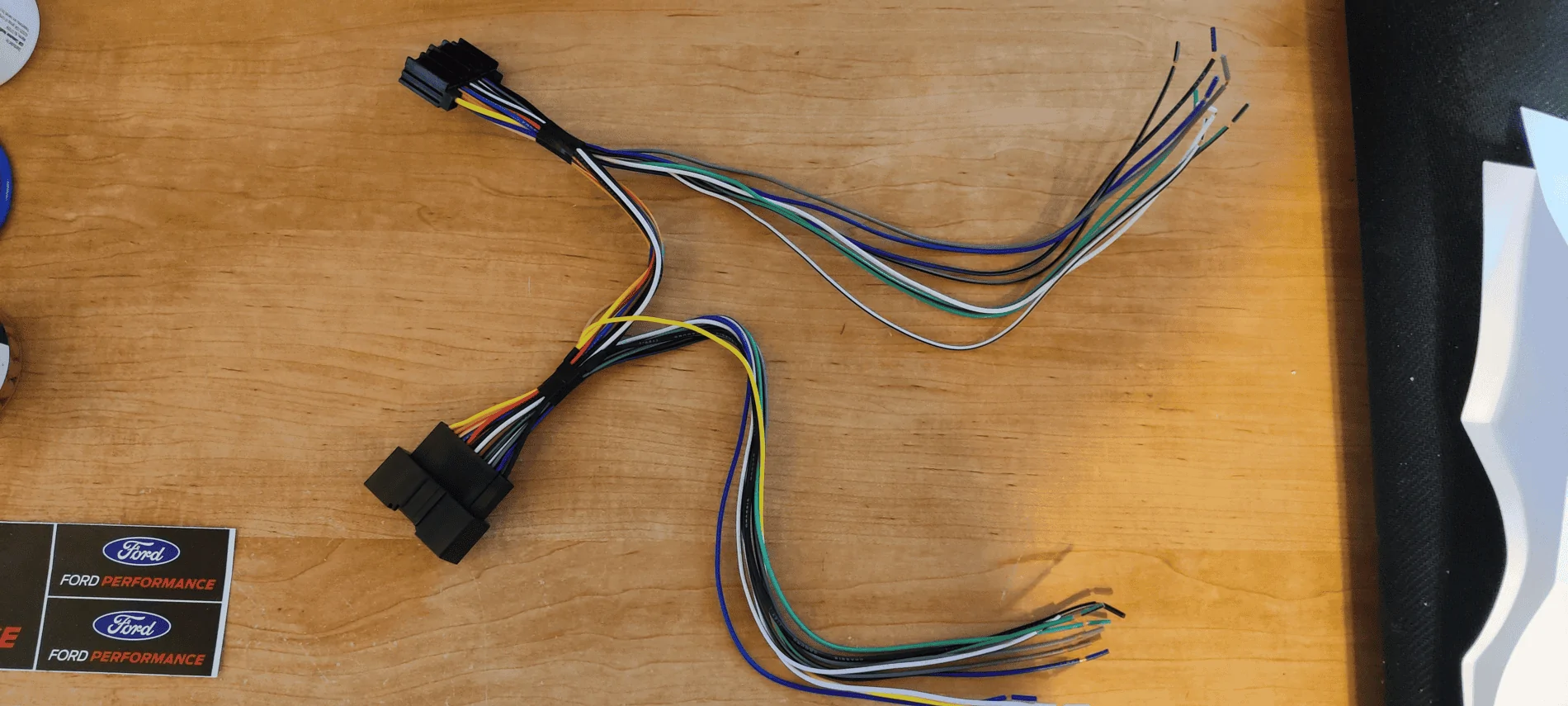

Here is the harness fresh out of the package. You'll notice the bare ends are all taped together.

I removed that bit of tape to make things less insane.

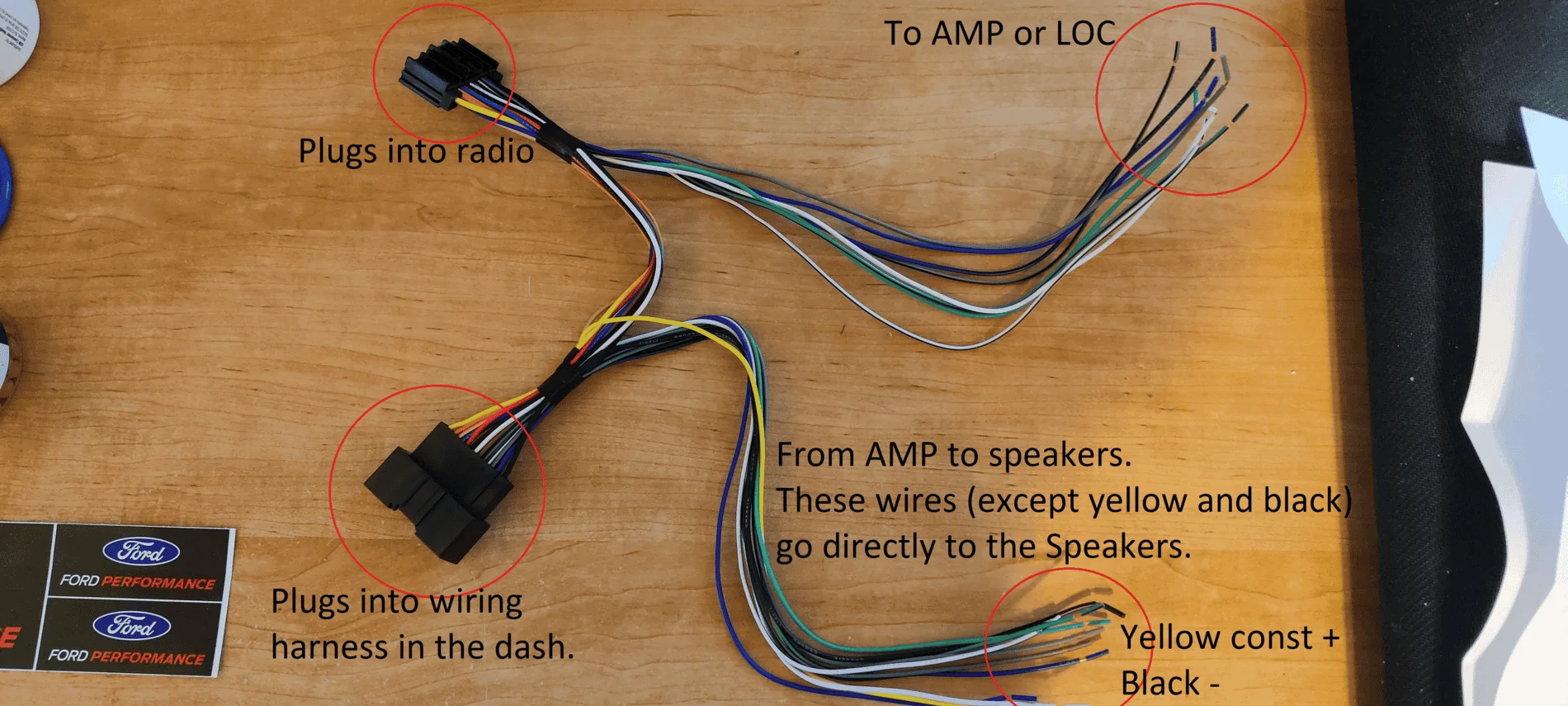

Here's things annotated showing where everything goes. I did not use the Yellow or Black wire for my install.

To run from the dash to the LOC then from AMP back to the dash I used some 9 conductor speed wire, but didn't use the 9th (blue) wire.

I ran battery and ground to my LOC and AMPS. The LOC I'm using is smart enough to only turn on when it has signal and provides a signal wire to my AMPS, so I didn't have to worry about finding a accessory wire to tap.


Dr.Me

Well-Known Member
First Name
Daven
Joined
Sep 7, 2019
Threads
2
Messages
152
Reaction score
152
Location
Kapolei,Hi
Vehicle(s)
2019 Ford Ranger XLT FX4
Like an idiot I was trying to clean up my wiring(finally have time)as my previous set up I just tapped into the wires in the kick panels and at the base of front seat belts. I got some speed wire and the for-11ck harness but I lost all audio. The speakers don't play anything and I can't select audio source or open audio settings. Anyone else have this issue and solved it?

2019 XLT no B&O 8" touch screen

Only modification I've done to harness was remove speaker pins from female/car side since my amp is behind rear seats I didn't want to run more wire into dash.


kieefer

Well-Known Member
First Name
keith
Joined
Dec 26, 2017
Threads
18
Messages
991
Reaction score
1,856
Location
Tennessee
Vehicle(s)
2019 2WD SuperCab - 97 BMW M3
Occupation
Retired
Nice, good job ?


calistangr

Member
First Name
Randy
Joined
Jan 16, 2021
Threads
4
Messages
20
Reaction score
25
Location
SoCal
Vehicle(s)
2019 Ford Ranger, 1990 Mustang GT Convertible
What's up fellas, I have been wanting to upgrade my system for some time now after reading this thread. So now that it's cooling down I started phase 2 of 4 of my upgrade. Which is hard wire in and install the amplifier for the door speak and I chose the Kicker cxa 360.4. It's pretty much idgit proof. Yes I use the CAr124 harness thingy and a few quick connect plugs but other than that it's a straight run to the amp.
