SCAB Seat Delete Project

[Tom_C]

Might as well go all the way !!! Take out seat belts and get the XL pillar trim and remove all doubt that they actually expected people to ride back there , The new Tacoma Supercabs don't even have the seats anymore , just nifty storage , and at least a look from me if nobody else wants to make supercabs anymore...

Really? No seats? In my extended cab pre-taco, I think I had a person back there once, maybe twice. In that model the seat bottom folded up to reach the under seat storage.

When I got the ranger I mentioned to my wife that I'll never need the rear seats and, of course, she said oh well maybe a niece or nephew (or now, their kids). Never gonna happen.

ADDED: You know, instead of a rear seat delete option, they should have a rear seat add.

Sponsored



[NotBudule]

Do it ! passenger side is a dollar more ? that's odd...



[alaska2baja]

Whats that doohickie?

That was a temporary hanging toggle for my surfboard bag, one on each side for a quick trip to Baja prior to completing the rear panel instal. Good Eye.



[RedDakooter05]

Damn, Look at OP here flexing his skills.



[NotBudule]

Do you think that platform could be hinged and lock in the up position against that back panel ?



[NotBudule]

in case anybody wants to dive in ...



[Lostsoul]

Great work!! Maybe it will inspire me to get to work.



[alaska2baja]

That looks fantastic! I wish I could buy one of those.

You can...from Goose Gear but the price tag is $1900

https://www.goose-gear.com/collecti...-crew-100-second-row-seat-delete-plate-system



[alaska2baja]

Do you think that platform could be hinged and lock in the up position against that back panel ?

I suppose anything is possible. There are four (4) existing seatbelt connection points in the rear of cab that are bomber and you could attach a hinged ledger board of sorts to those points. I used those and also installed 1/4-20 riv nuts to the edge of the seat base framework and secured the forward edge of the platform to the inserts. A 10mm bolt fits the the seatbelt points and 1/4" bolts at the front. I'll also mention that when you remove the Ford seat bottoms what you are left with is not a flat plane. There is a hump above the driveshaft that creates an area that is raised in the center. I solved this by creating spacers to level everything out. It was not a quick project. It took me a solid week to get everything dialed in.



[Rocketeer61]

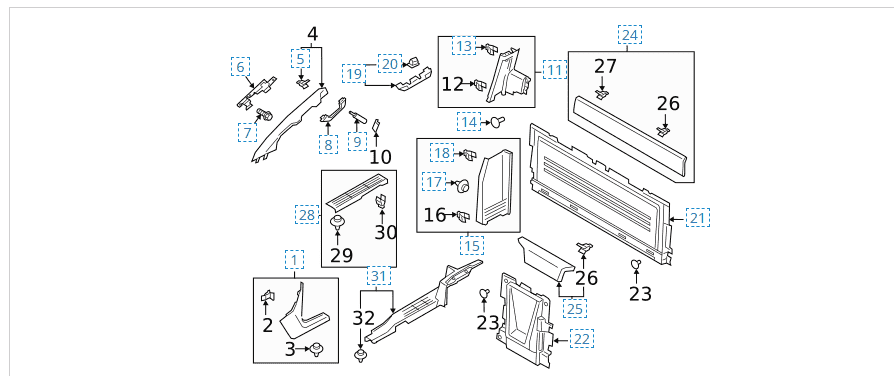

I wanted a platform for totes and gear inside my 2020 SuperCab so I pulled the rear seats out and fabricated a bench using a sheet of 3/4" Baltic Burch which I had coated with Line-X. Mounted up into the stock seatbelt points in the frame and purchased the OEM Ranger Seat Delete panel and trim to cover up the rear wall of the cab. Considerably less expense than a Goose Gear Panel and in my opinion a better fit and finish. Plan to add L-Track to the forward edge to afifix straps to hold down cargo. Stoked on the results. Onto the next project...

Nice and clean. Well done!



[DukeCanBuildit]

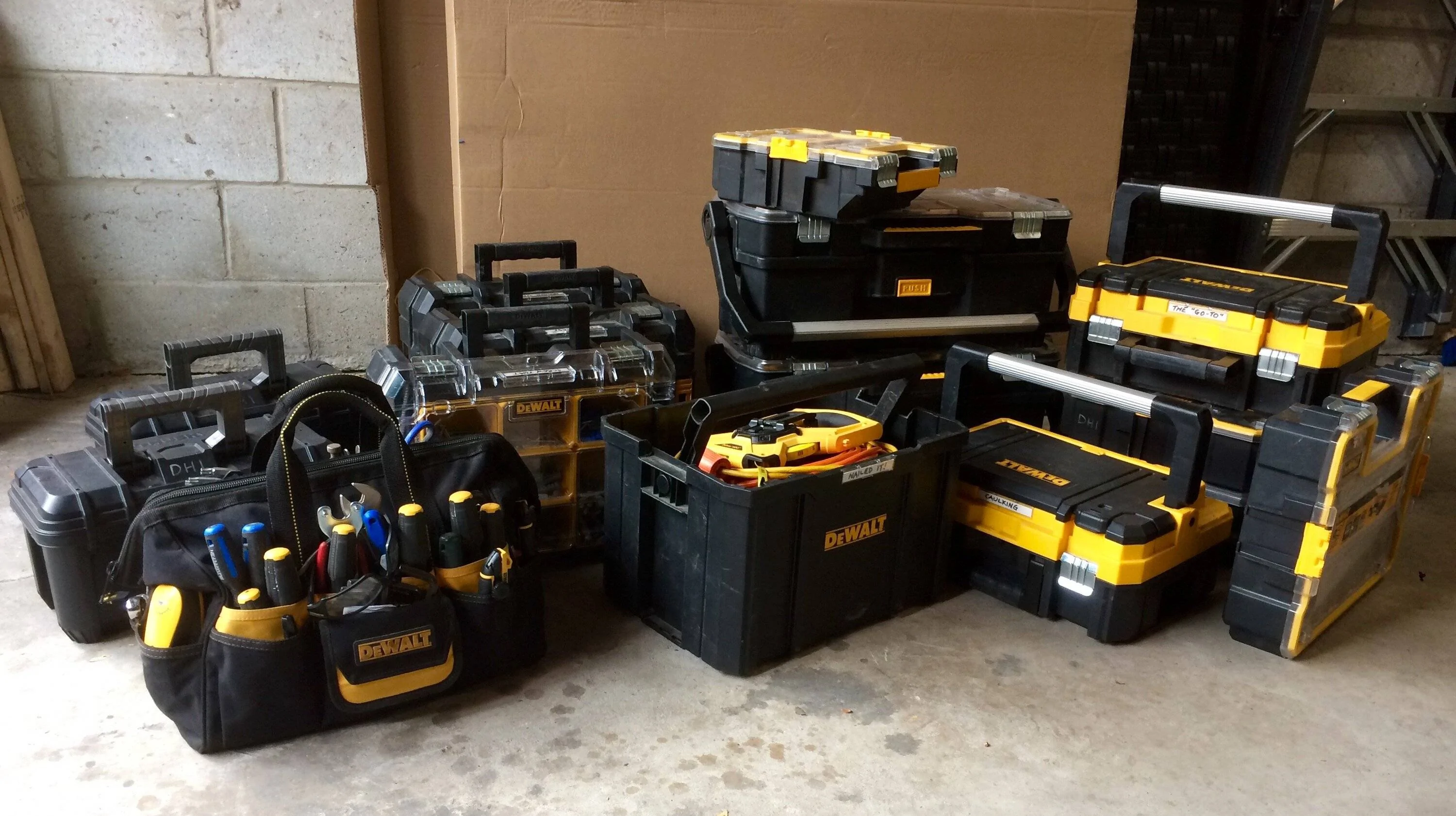

Really looks great - just imagine all the gear you can put back there! When I had my rear seat delete, I could put all this back there and still managed to keep it all well below the rear or side windows.

I didn’t buy the factory trim kit but it really looks great with your platform - nicely done!



[dart330]

You can...from Goose Gear but the price tag is $1900

https://www.goose-gear.com/collecti...-crew-100-second-row-seat-delete-plate-system

I had looked at that before. Besides being ridiculously expensive, it is only for crew cabs.



[TechEditor]

I didn't want to give up access to those factory storage boxes with my rear seat delete.



[harry wilson]

Looks nice
