Recovery prep on a XL

Illking

Well-Known Member
First Name
Jason
Joined
Nov 10, 2021
Threads
23
Messages
154
Reaction score
517
Location
Los Angeles
Vehicle(s)

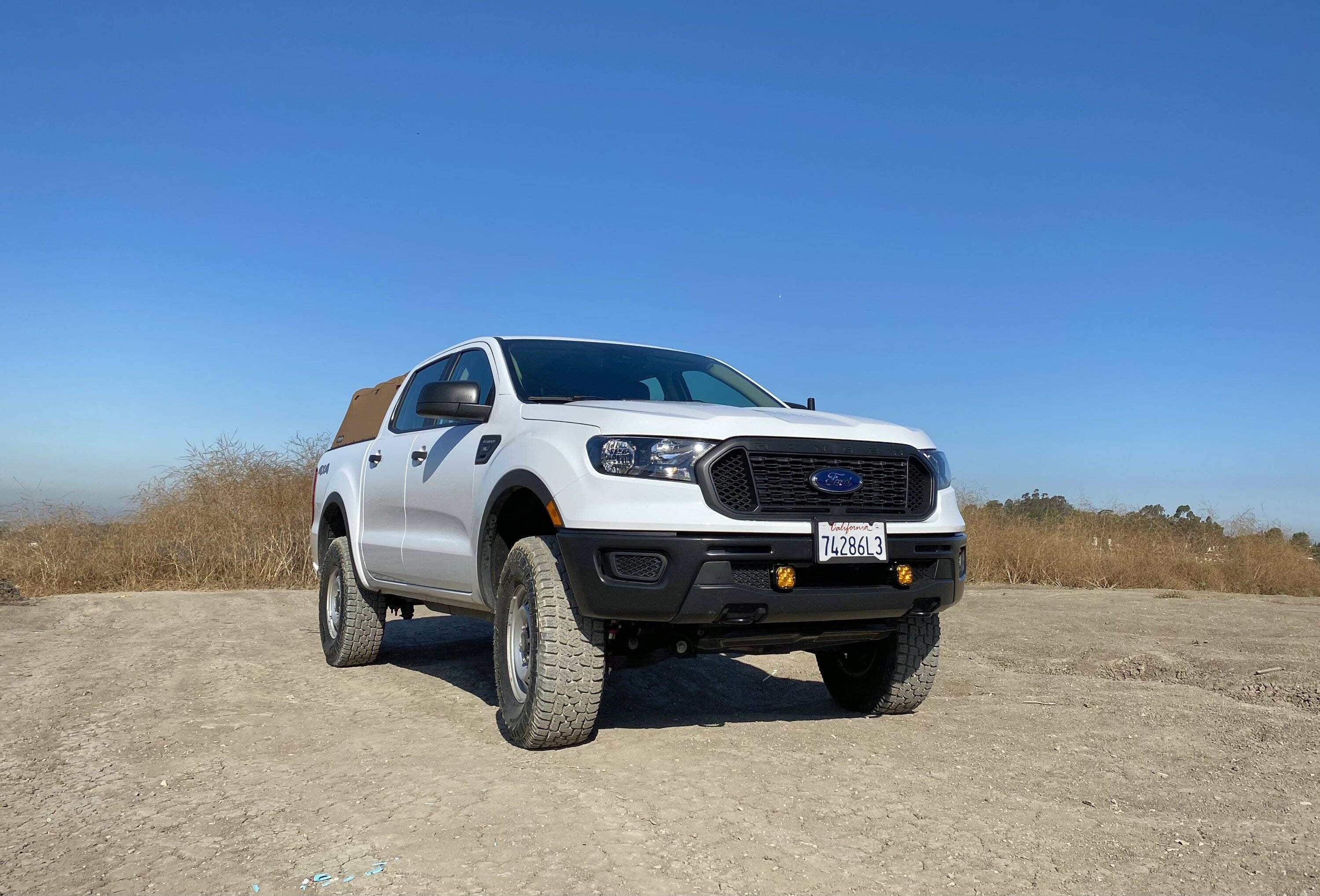

2022 Ford Ranger XL
I have a question regarding recovery points. Are the front factory tow points (black hoops) on my xl sufficient for recovery? Also is it ok to use a bow shackle on them or would i want to use a soft shackle or another rigging system? for the rear, I don't currently have a hitch or tow hooks in the rear, Im thinking a e-trailer hitch receiver and shackle hitch will be my best rear recovery option unless anyone has other ideas maybe bolt up the F150 tow hooks and use those?

Hoping to tap the collective knowledge here as I build and prep my truck recovery kit and ask all the dumb questions here so i can avoid the dumb decisions out there. Im not completely unexperienced in the matter, I took a Bill Burke recovery class where we went and buried a bunch of 4x4 ford vans to the axels in Anza Borrego in 2019 and then learned to recover. It was a lot of fun, but i haven't had to put any of it to use in my van.



My truck is a 4DR XL 4x4 w/added e locker no tow package. Let me know if you see anything crucial I'm missing from my recovery kit below

Current recovery/off-road kit includes:
589 Winch mount (not mounted yet)
Winch RC9.5k w/ synthetic (not mounted yet)
2 Traction boards
Onboard air w Tire kit (ARB repair, deflators, psi gauge) & 1 full size spare
Shovel, limb saw, axe
Gloves
oem jack

Planned gear
Hitch Receiver & Shackle hitch or other rear recovery points
Kinetic rope / snatch strap
Tow strap
Shackles x 4
Snatch block
Tree strap
pulpal land anchor
Sponsored


Last edited:

_TraMor

Well-Known Member
First Name
TraMor
Joined
Aug 1, 2022
Threads
10
Messages
109
Reaction score
140
Location
Upstate NY
Vehicle(s)
22 Ranger Tremor, 17 Focus St, 97 Escort Wagon
Occupation
IT by day, shade tree Mechanic... also by day
My kit is similar but I have 2 different lengths of shovels, cribbing, bottle jack, trolley jack, and at least 100' of multipurpose rope.

I gave up on the come-along after the first time I tried to move 4400lbs with it. I'd prioritize the winch installation.

The front tow points are 100% up to the job for pulling you out.


FX4rd

Member
First Name
Ethan
Joined
Jun 28, 2023
Threads
1
Messages
12
Reaction score
19
Location
Arizona
Vehicle(s)
2022 Ford Ranger FX4 302A Iconic Silver
Definitely don't rely on the OEM scissor jack. I recently picked up an 'off-roadified' bottle jack for peace of mind.

Any bottle jack will out last/perform the factory jack, but I went with SafeJack as they include some nice pre-assembled kits geared specifically for offroad use.
Thankfully haven't used it yet, but it all seems very quality and they are highly reviewed.

The simple starter kit, linked below, is more than I could imagine ever needing.
https://safejacks.com/collections/bottle-jack-accessories/products/basic-bottle-jack-kit
