2019 Crew Cab - Rear Seatbelt/Seat Wiring

[Sinner]

Good afternoon everybody! I know this is a shot in the dark but was hoping to get some clarification on this.

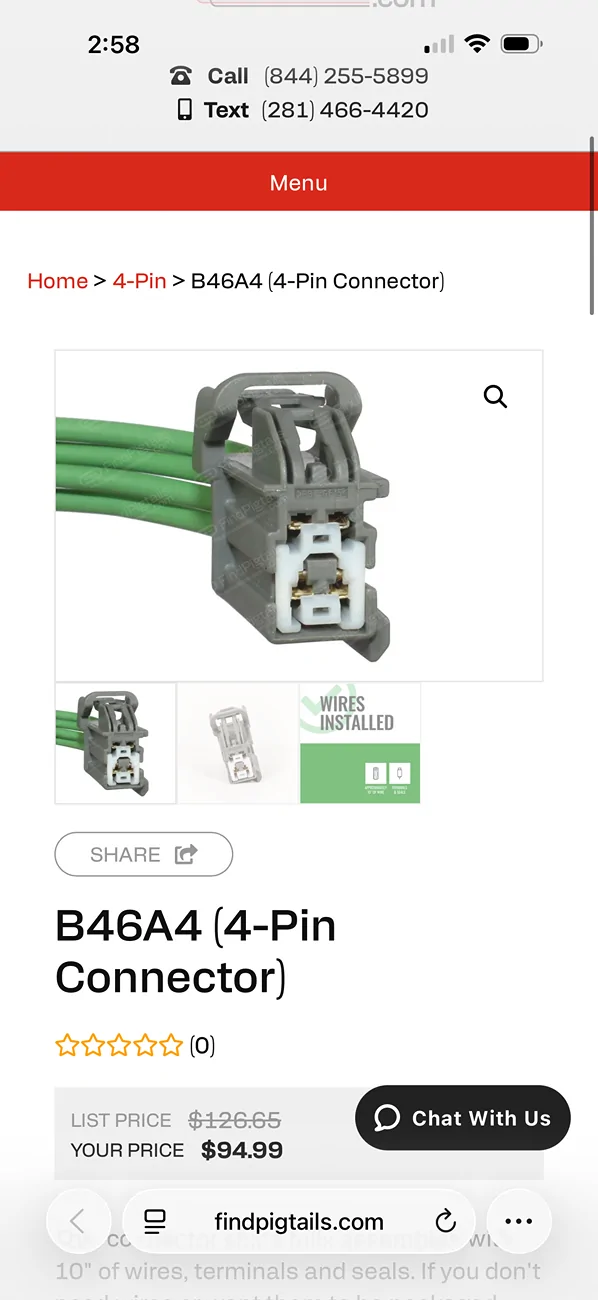

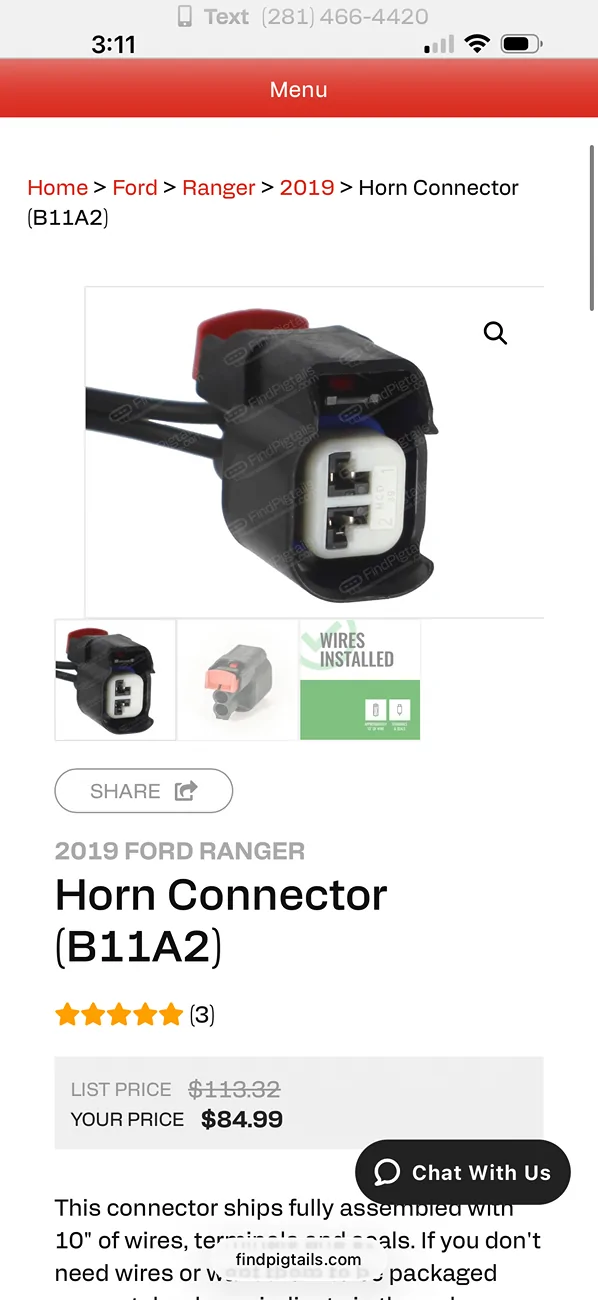

About a year ago I had an airbag light pop up on my Ranger with an error “Restraints Indicator Lamp Warning.” I checked under the second row and found two connectors that had been either chewed through or severed, one on the left and one on the right, both rear seats. I’ve put this repair off until this week and I found the two connectors from FindMyPigtails. One is the B11A2 connector and the other is B46A4 which I’ll picture below.

What I’m hoping to get clarification on are what these two connectors do. The one is listed as a horn connector but it connects under the driver side rear seat. The other one I have no clue. I was hoping to find a diagram that explained these.

Thanks guys!

Sponsored



[RangerBill]

Good afternoon everybody! I know this is a shot in the dark but was hoping to get some clarification on this.

About a year ago I had an airbag light pop up on my Ranger with an error “Restraints Indicator Lamp Warning.” I checked under the second row and found two connectors that had been either chewed through or severed, one on the left and one on the right, both rear seats. I’ve put this repair off until this week and I found the two connectors from FindMyPigtails. One is the B11A2 connector and the other is B46A4 which I’ll picture below.

What I’m hoping to get clarification on are what these two connectors do. The one is listed as a horn connector but it connects under the driver side rear seat. The other one I have no clue. I was hoping to find a diagram that explained these.

Thanks guys!

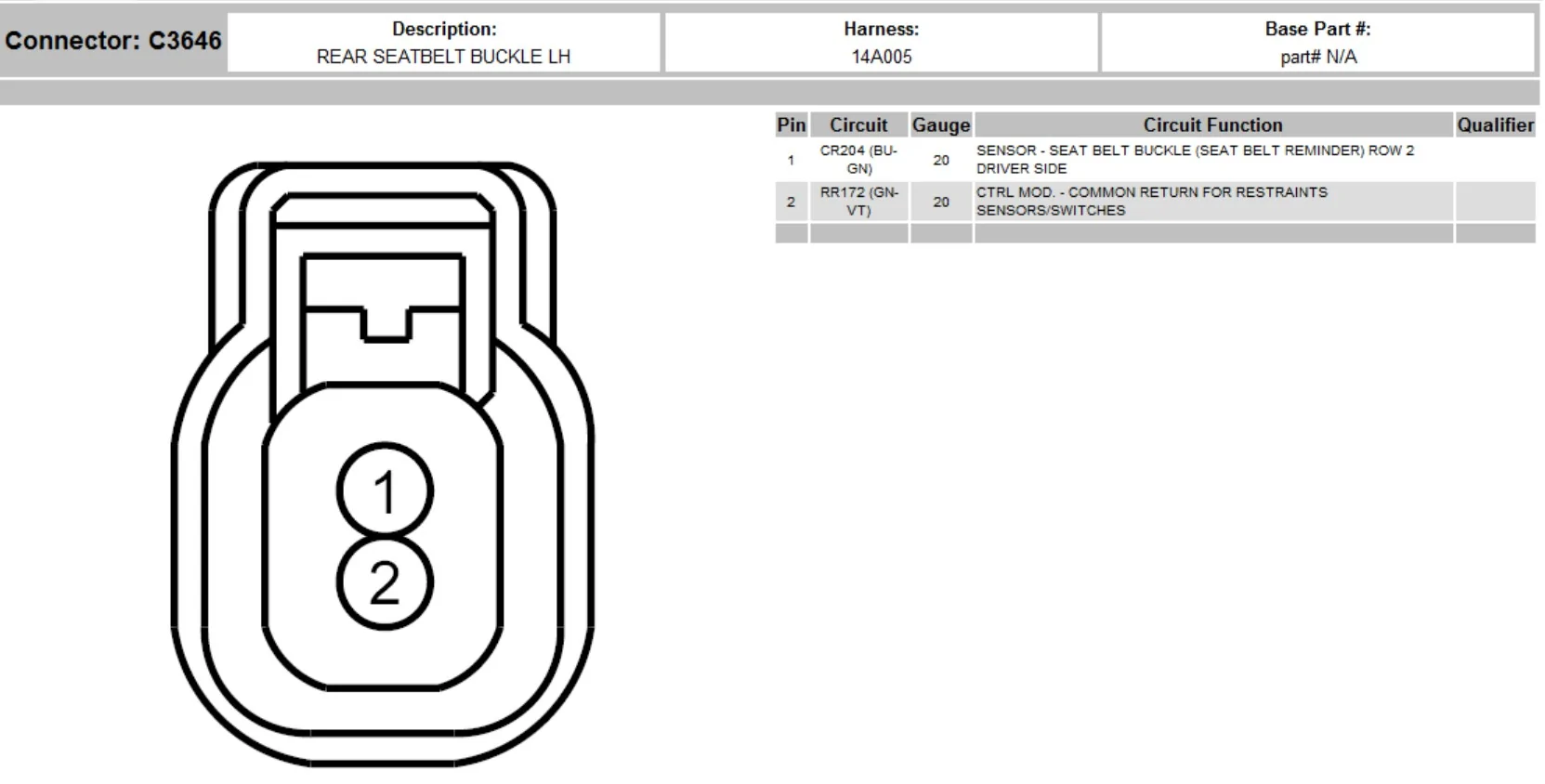

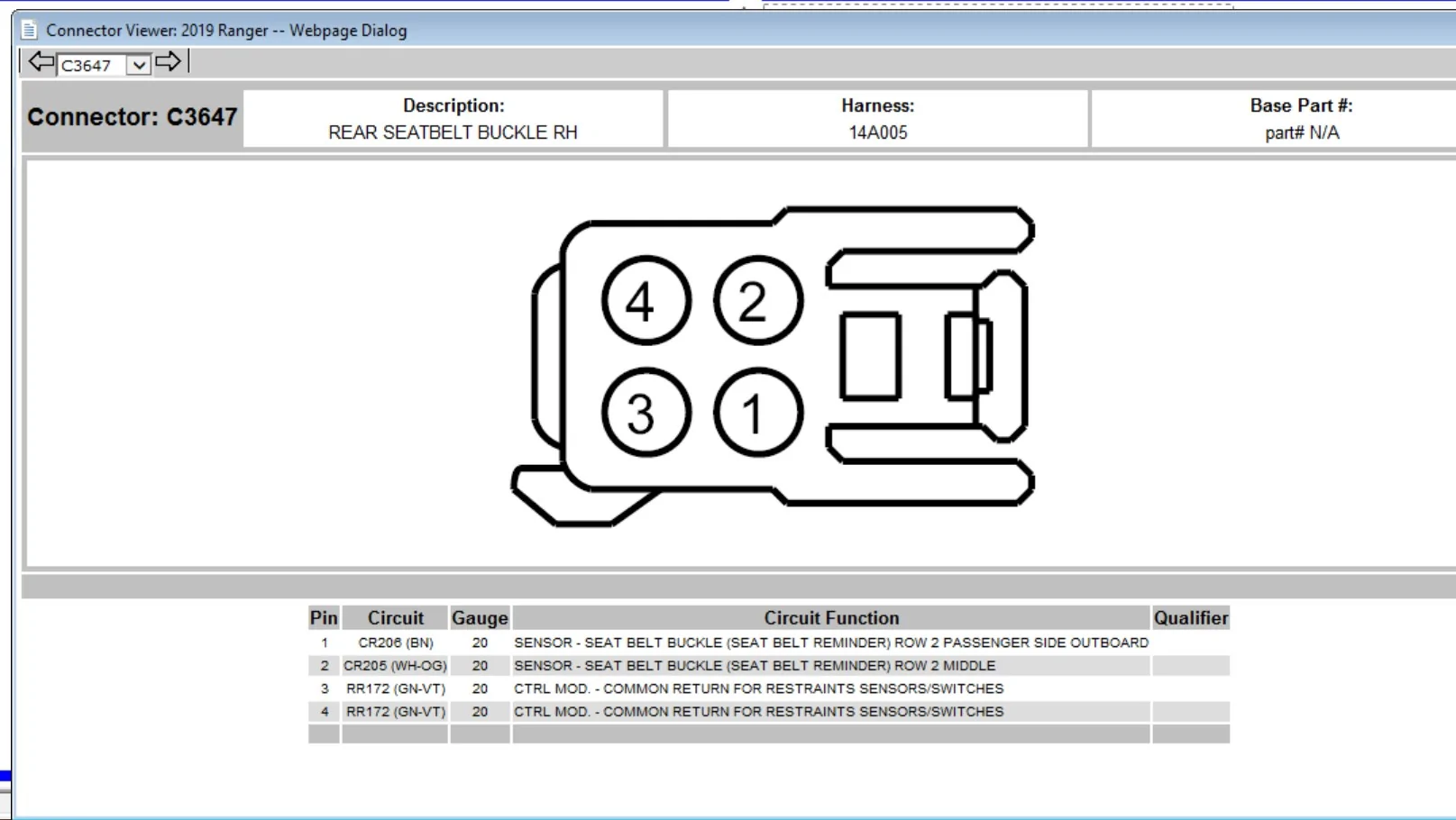

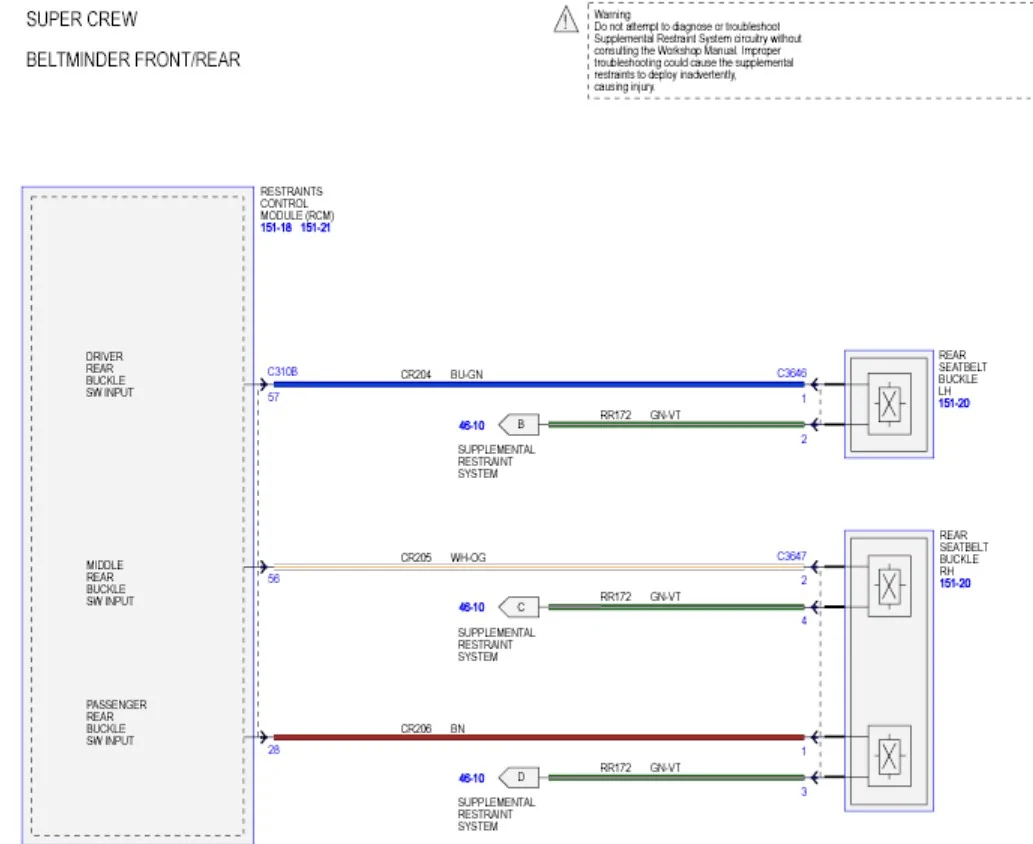

Here is info from the shop manual.



[Sinner]

Here is info from the shop manual.

Thank you so much! Looks like the connectors are indeed correct so now it’s just a matter of getting them done.



[Grandaccess]

What are the damn odds! the same thing happened to me 2 years ago, mouse chewed the wires, its in an easy location to get to and fix, and I have been meaning to LOL, Fxxx spending money on connectors just do away with the connector, twist and solder them across...
under the back seat right behind the driver, it could be much worse, like in the dash somewhere or under hood and have to spend weeks and trace it down like my last ford



[DukeCanBuildit]

Robert has a point but if you must have connectors, those seem pricey and Benny @LevittownFordParts.com looked up some connectors/pigtails for me a few years ago and I’m sure they were a lot less than the ones shown above.

Maybe he’ll see this post and be able to help you out.



[LevittownFordParts.com]

Thanks to @RangerBill for doing the leg work

Ford sells the connector pigtails below

https://parts.levittownfordparts.com/oem-parts/ford-wire-assembly-3u2z14s411lub
https://parts.levittownfordparts.com/oem-parts/ford-wire-assembly-3u2z14s411bxab

Im also listing the pigtail PDF for future reference for others

- Benny
