Hi all,

I’m trying to see if it’s possible to return the rear/reverse camera to my 2021 Ranger (Australian model FYI).

This vehicle had the stock tub swapped for a tray and lost the rear camera and parking sensors.

I’ve looked at some previous threads and diagrams but am struggling to make sense of what I’m seeing. I am considering camera JC3Z19G490H, but need to figure out where it will plug in…

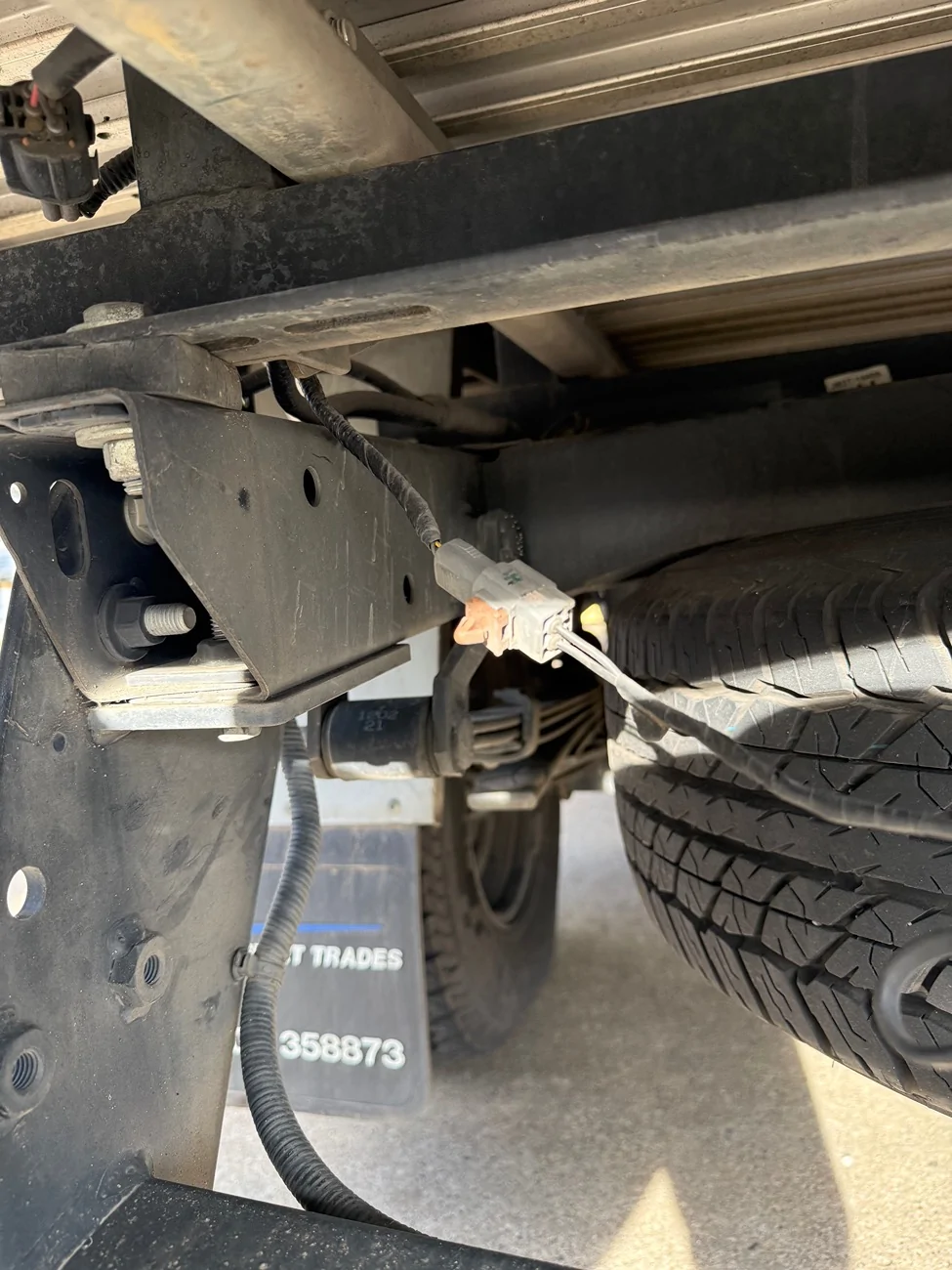

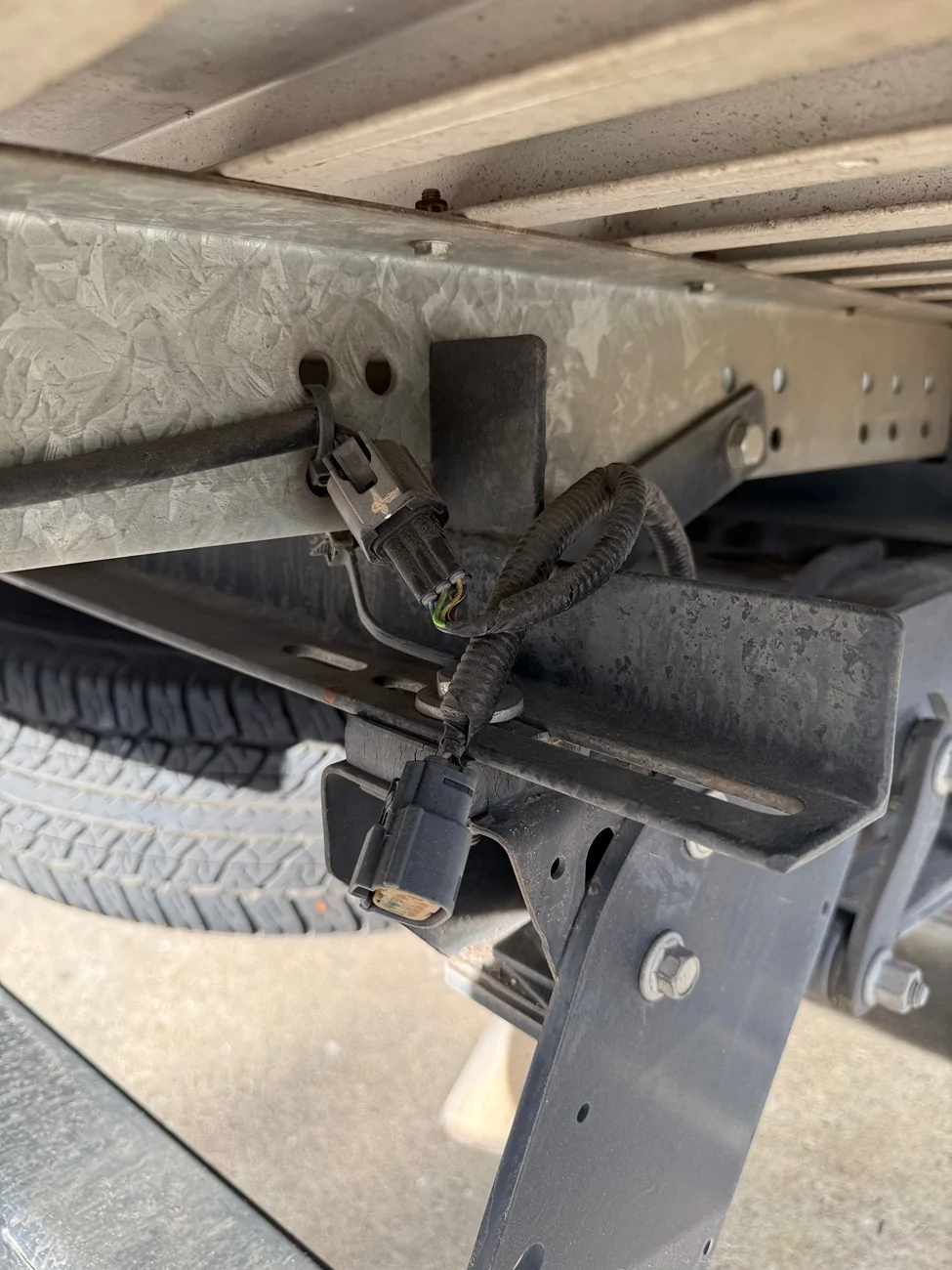

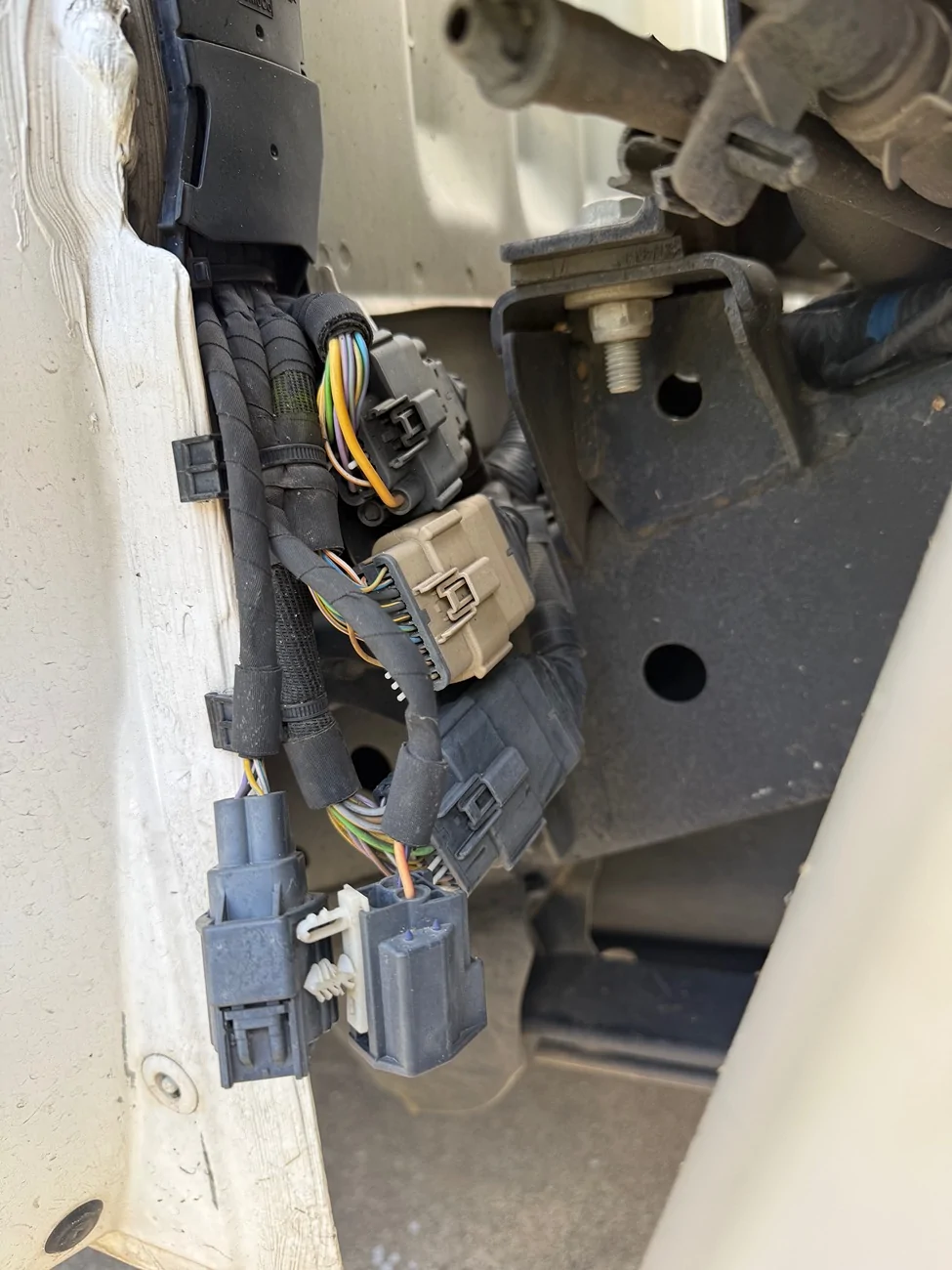

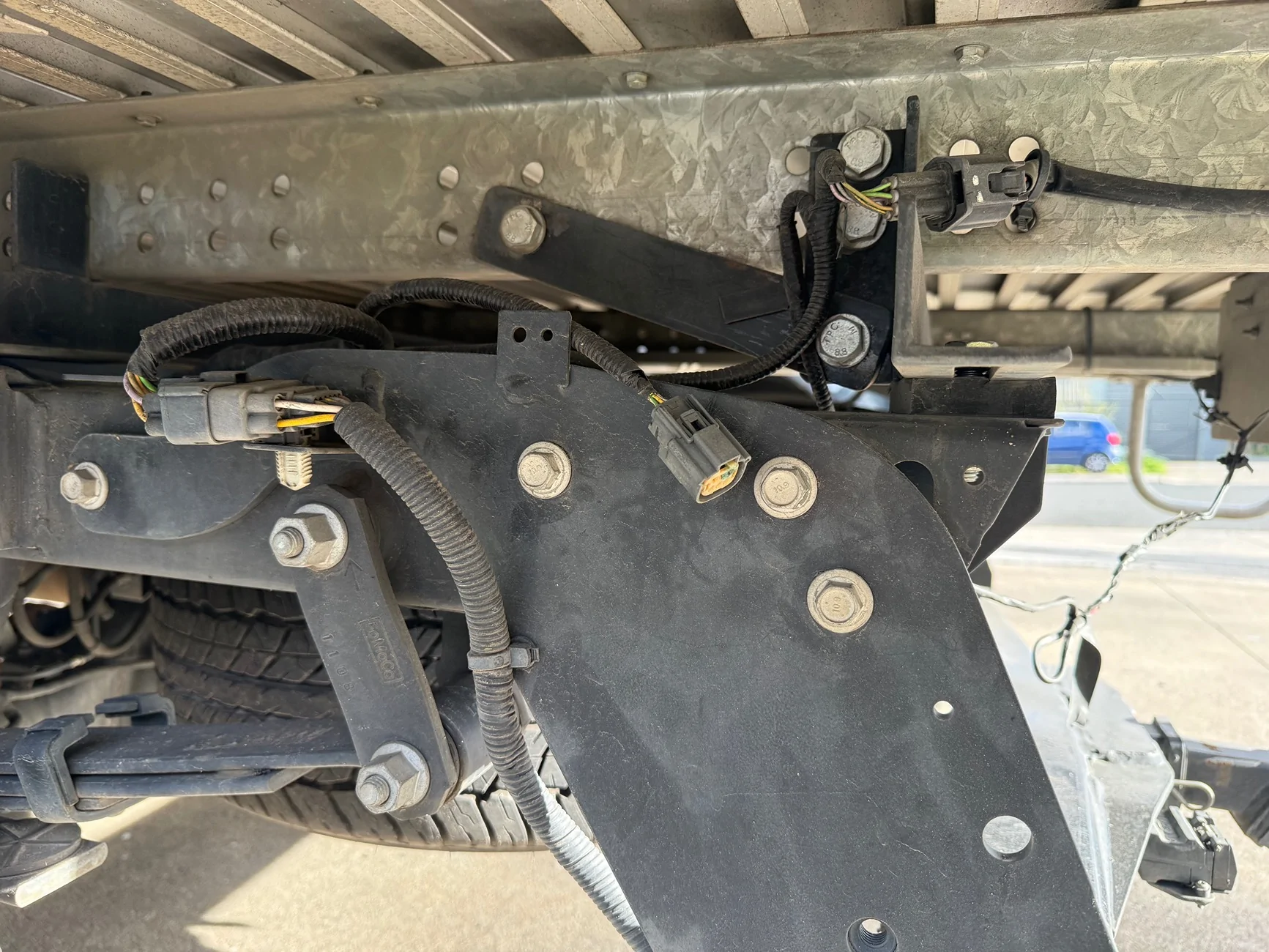

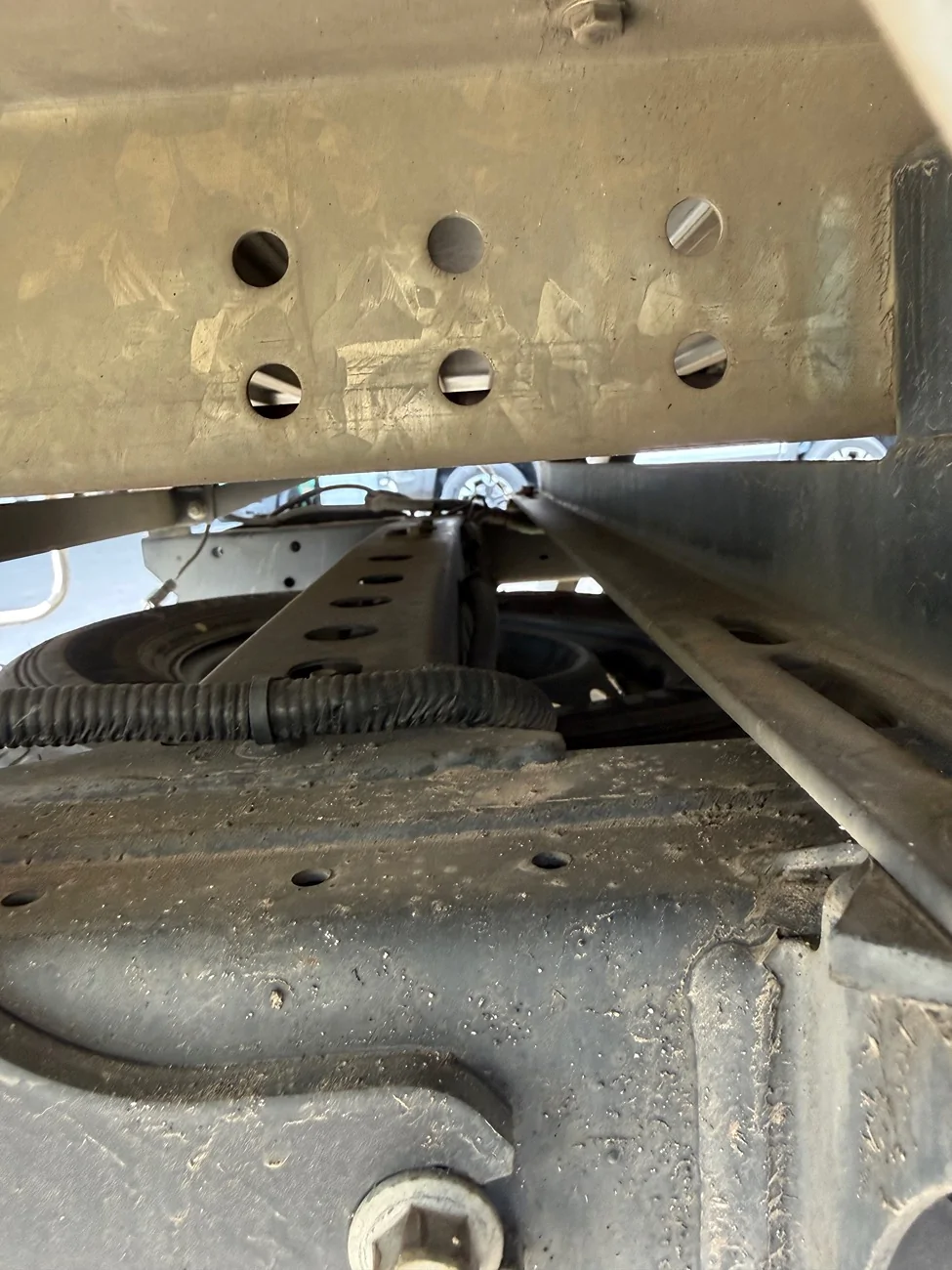

Can anyone tell from the attached images if the connector for the camera is there, or am I maybe missing a harness that used to connect to one of these plugs?

If further information will help let me know. I would also like to add back in sensors if possible.

Sponsored



[RangerBill]

Hi all,

I’m trying to see if it’s possible to return the rear/reverse camera to my 2021 Ranger (Australian model FYI).

This vehicle had the stock tub swapped for a tray and lost the rear camera and parking sensors.

I’ve looked at some previous threads and diagrams but am struggling to make sense of what I’m seeing. I am considering camera JC3Z19G490H, but need to figure out where it will plug in…

Can anyone tell from the attached images if the connector for the camera is there, or am I maybe missing a harness that used to connect to one of these plugs?

If further information will help let me know. I would also like to add back in sensors if possible.

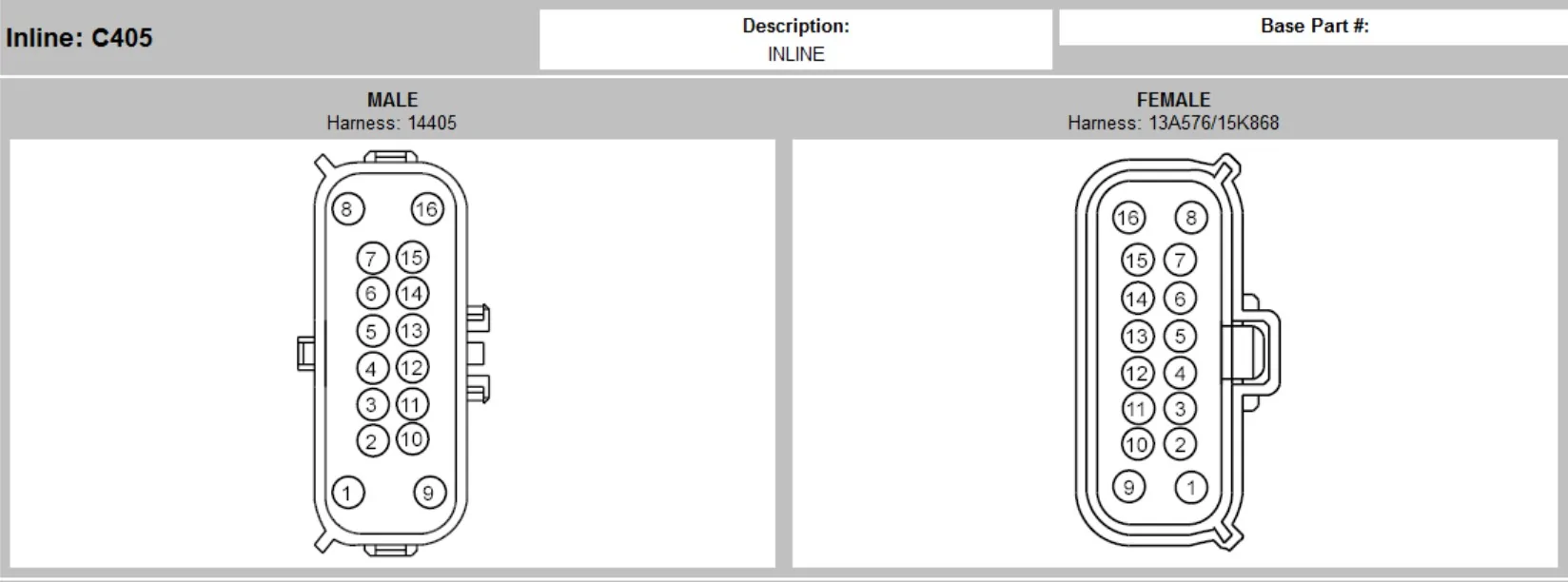

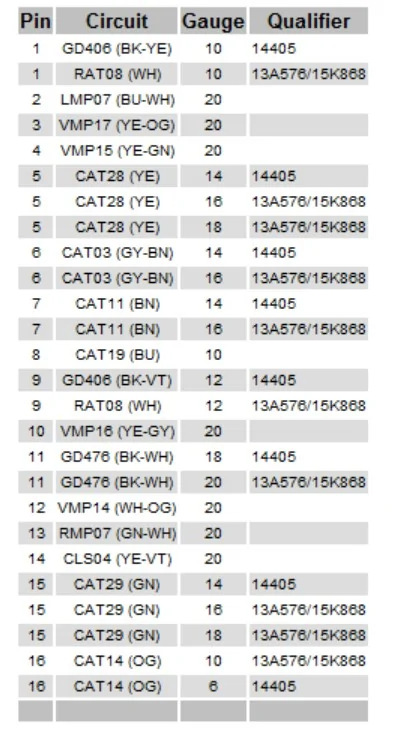

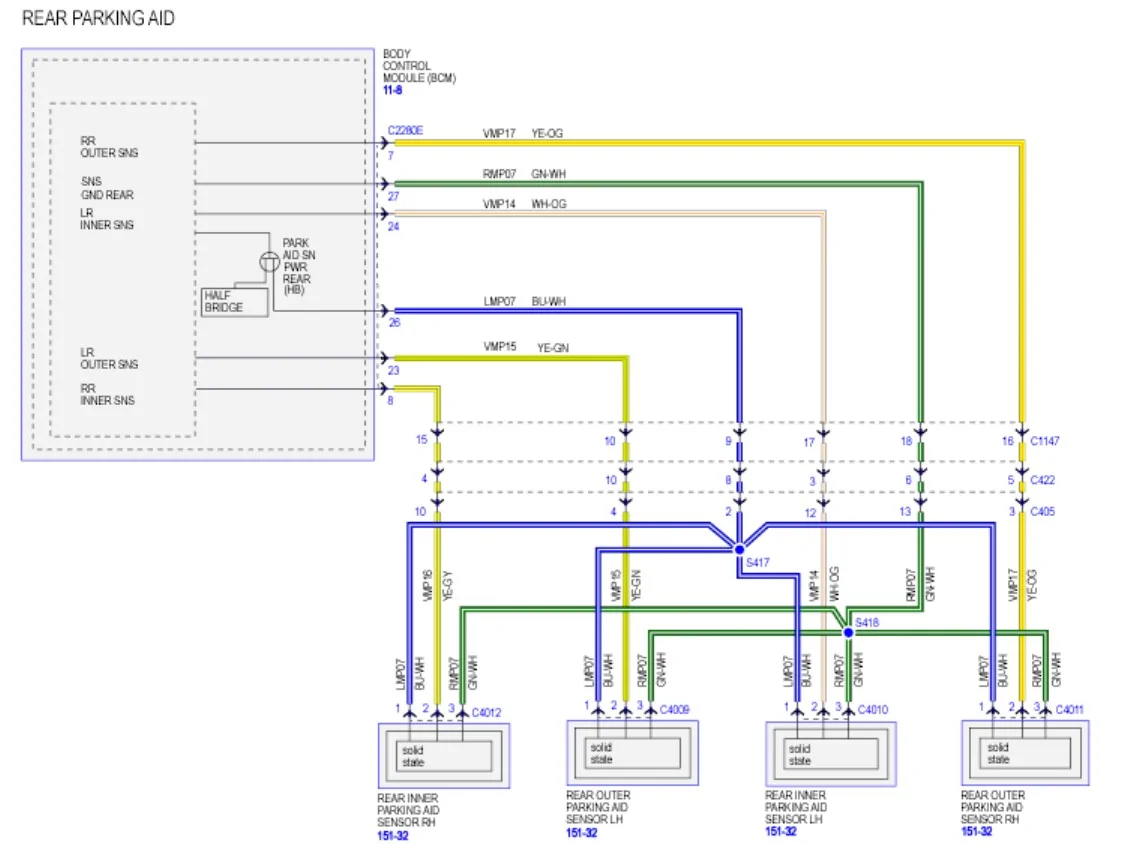

Here is the North American wiring for the rear camera and parking aid sensors.



[airline tech]

Its hard to tell for sure - if they left the (OEM) wiring.

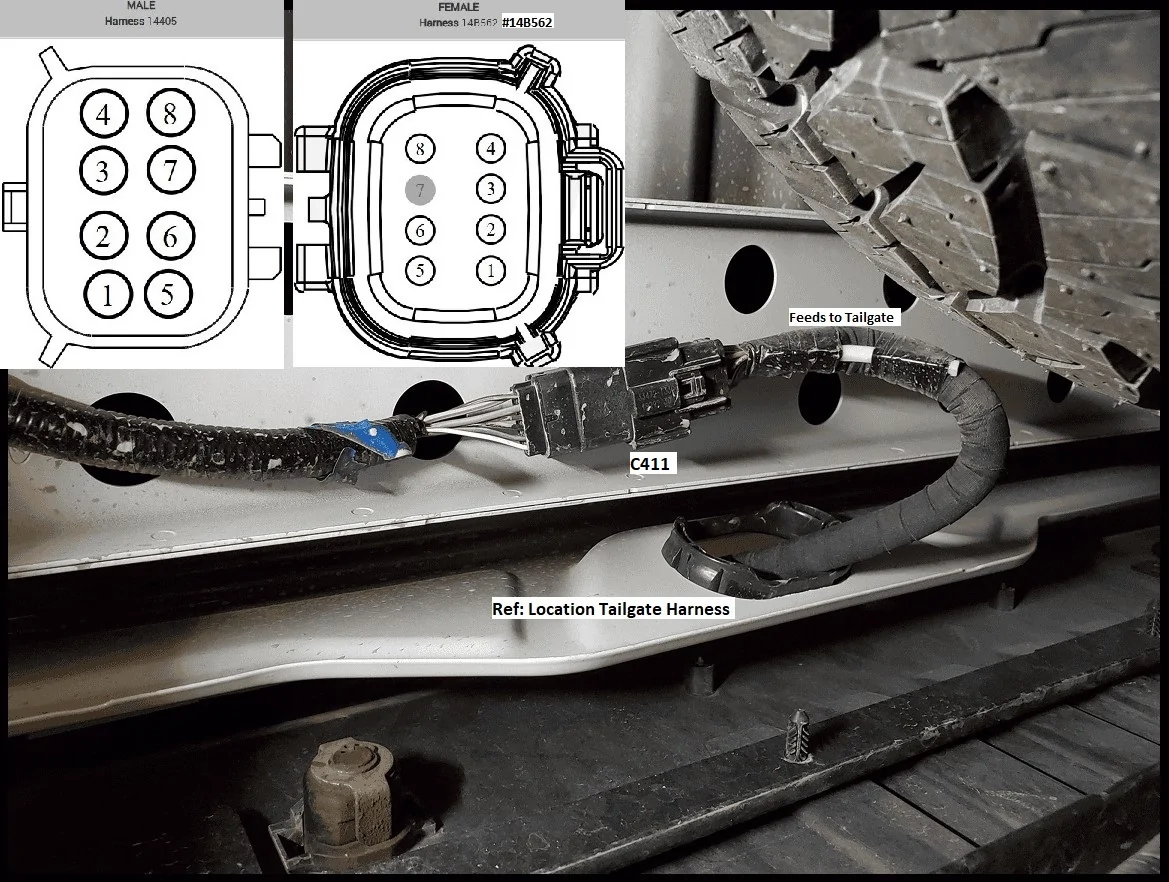

You are looking for at least with the US Ranger C411 - its a 8 cavity (7-Wires) if you have a (Remote - Lock/Unlock) tailgate

The Tailgate itself had the internal camera and lock wiring - it ran down to an opening in the tailgate and it connected at C411 - so it would be just aft of the spare tire, from what I can tell they removed that section of the harness (from your pics)

This is where it comes down from the tailgate and connects to the trucks wiring harness, you are looking for the (Male) half
and if this matches (US Wiring) - Key On - Pin #6 - will have power - This is Camera Power
It may be a (Brown / Yellow) Wire

I cannot tell what the unplugged connectors are for - OEM Taillights or Camera Feeds from your pics - the plug on the LH side that has a (Dummy Plug) is for (Bed Power Points)
I am thinking that the unplugged connectors were the (OEM) Taillight Plugs)

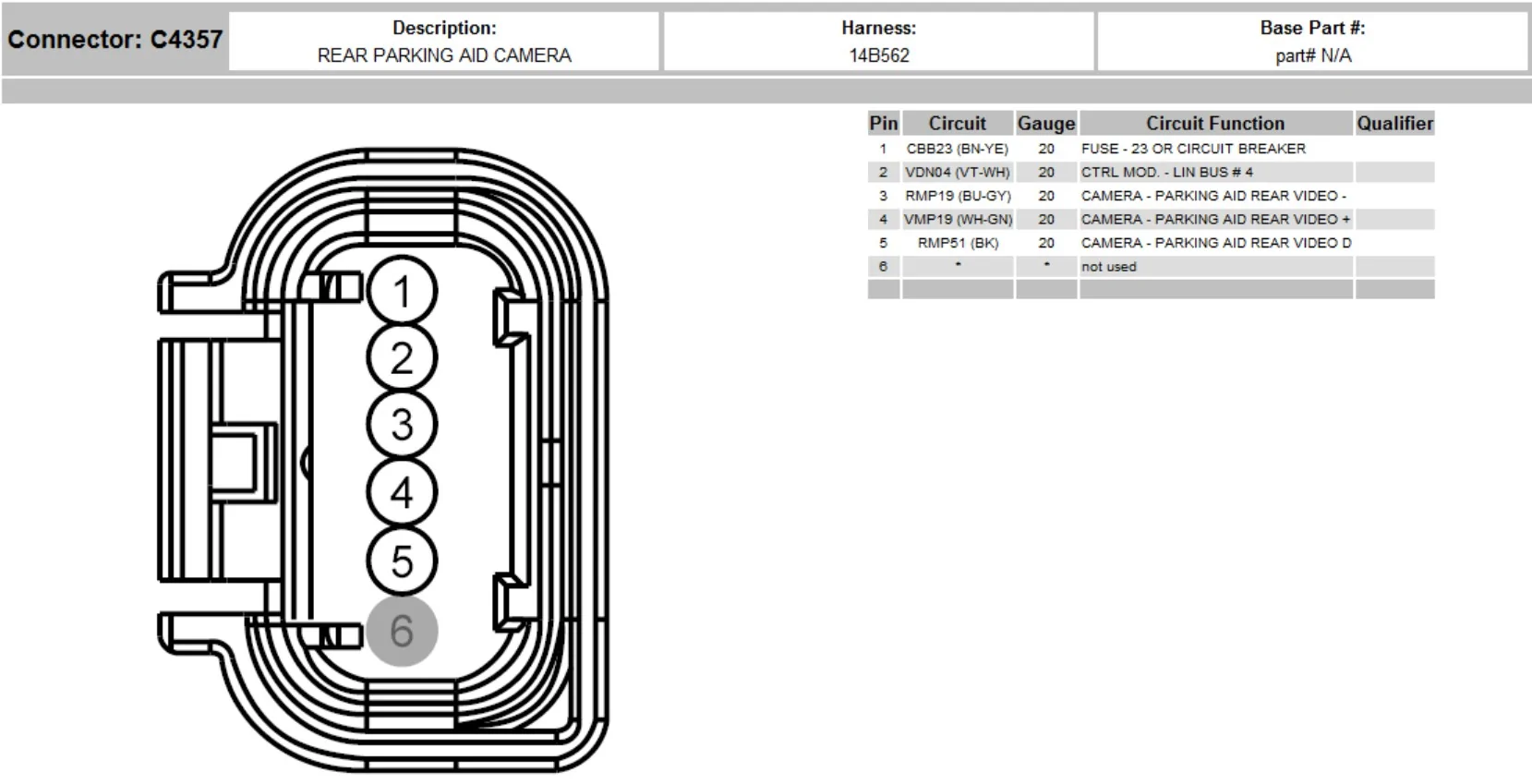

This connector - is for the camera itself - and its (Part Of - included) with the harness that feeds down to C411 - Harness # 14B562

So you would need this harness + Rear Cam and locate C411
and
A alternative place to mount a modified mount point (Enclosure)
Possible get the complete Ford (Oval) housing and find a good spot to mount it
