Drilling holes on chassis! Will it void warranty?

P. A. Schilke

Well-Known Member
First Name
Phil
Joined
Apr 3, 2019
Messages
1,983
Reaction score
4,696
Location
GV Arizona
Vehicle(s)
2019 Ranger FX4 Lariat 4x4, 2016 Lincoln MKX, 2005 Alfa Motorhome
Occupation
Engineer Retired
Vehicle Showcase
1
Put it on your truck drive it like a wild man for 10 years and see what happens. Isnt that the type of testing most companies use before releasing to the public? :giggle:
Hi Thom,

Not quite. However if you heard them say "you are kidding? You will actually drive this vehicle over this pot hole course for 1000 Cycles?" We have tests that are so sever that the vehicle is literately trashed at the end of their prototype life. Our pot hole course is longer than two football fields end to end with 6" deep steel rimmed pot holes and one cycle is up and back down. You cannot see the speedometer due to the violent nature of the course and so they have strobes to flash into the side window to ensure you are at 30 mph for the course. At the end of 1000 cycles there is a Slide for Life test...the fully loaded vehicle is driven into the mother of all pot holes at 30 mph where the brakes are hit as you hit the pot hole which collects both front wheels at the same time...6" deep steel rimed. The only criteria of Slide for Life is that the vehicle has to move 100 ft under its own power...things are bent to shit, but it has to move and steer... The vehicle then goes to the crusher...totally trashed. Dido for a durability section called Silver Creek. So violent that the drivers are allowed to unbuckle the seatbelts due the shoulder bruising from the violent motion of the truck...

Best,
Phil Schilke
Ranger Vehicle Engineering
Ford Motor Co. Retired



Advertisement



OP
Shadowranger

Shadowranger

Well-Known Member
First Name
Eric
Joined
Aug 21, 2019
Messages
61
Reaction score
130
Location
Palmdale ca
Vehicle(s)
2019 Ford ranger and 2013 Volkswagen passat
Occupation
Owner and operator Xplicit wraps
  • Thread starter
  • Thread Starter
  • #17
If your frame folds in half where you drilled a hole, I would assume some serious push back from Ford.
But really, a few small holes isnt going to fold your frame in half. At least under normal use.

Myself, if I was going thru a boxframe...I'd weld a spacer or a doubler in there. But that's added cost and time. But I feel that trade off if worth it for piece of mind
I did this.
If your frame folds in half where you drilled a hole, I would assume some serious push back from Ford.
But really, a few small holes isnt going to fold your frame in half. At least under normal use.

Myself, if I was going thru a boxframe...I'd weld a spacer or a doubler in there. But that's added cost and time. But I feel that trade off if worth it for piece of mind
That's actually what I did



Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,057
Reaction score
3,098
Location
North Carolina
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
1
OP
Shadowranger

Shadowranger

Well-Known Member
First Name
Eric
Joined
Aug 21, 2019
Messages
61
Reaction score
130
Location
Palmdale ca
Vehicle(s)
2019 Ford ranger and 2013 Volkswagen passat
Occupation
Owner and operator Xplicit wraps
  • Thread starter
  • Thread Starter
  • #19

Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Messages
2,057
Reaction score
3,098
Location
North Carolina
Vehicle(s)
2003 MINI Cooper S Modified, 2009 Chevy Cobalt SS Turbo Modified
Occupation
Mack Trucks Senior Industrial Designer
Vehicle Showcase
1

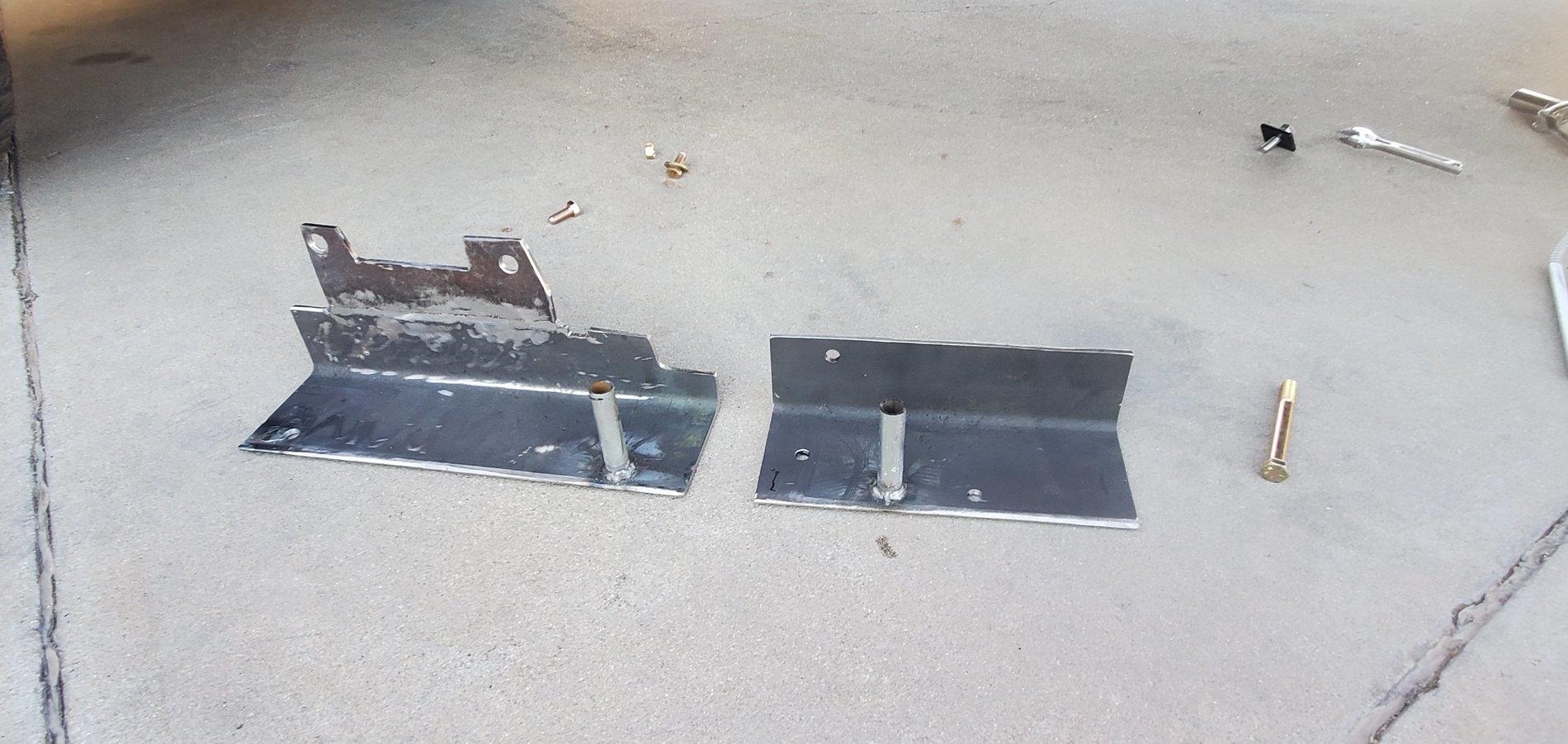

Referring to your comment about a spacer, that's what I did on my brackets.
Help me out a little...can't quite figure out what that thing is you're showing...o_O


HoosierT

Well-Known Member
First Name
Tyler
Joined
Feb 1, 2019
Messages
646
Reaction score
749
Location
Fishers, IN
Vehicle(s)
‘19 Ranger Lariat FX4, '17 Explorer Sport
Do you have any pictures?
What would you like to see pictures of? I posted quite a few pictures of the Shrockworks sliders on the Rock Slider thread.

OP
Shadowranger

Shadowranger

Well-Known Member
First Name
Eric
Joined
Aug 21, 2019
Messages
61
Reaction score
130
Location
Palmdale ca
Vehicle(s)
2019 Ford ranger and 2013 Volkswagen passat
Occupation
Owner and operator Xplicit wraps
  • Thread starter
  • Thread Starter
  • #22
OP
Shadowranger

Shadowranger

Well-Known Member
First Name
Eric
Joined
Aug 21, 2019
Messages
61
Reaction score
130
Location
Palmdale ca
Vehicle(s)
2019 Ford ranger and 2013 Volkswagen passat
Occupation
Owner and operator Xplicit wraps
  • Thread starter
  • Thread Starter
  • #23
What would you like to see pictures of? I posted quite a few pictures of the Shrockworks sliders on the Rock Slider thread.
Of the brackets mounted on the chassis. But I'll check out the thread
