Well, it's definitely taller than I'd like, and that's after cutting off 4.5 inches! It sits 4" above the cab. Good news is that any lower and I don't think it would clear the front crossbar when folding the top. The rear crossbar is removable with 2 wire lock pins.

I need to remake the two rear extensions because I cut them narrow close, trying to follow the taper of the bed--so I can't snap the side panels in on the rear. Too bad, because the close fit looked great.

I used 1/4 abs sheeting cut into strips in order to fill the gap between my extensions. Works great and keeps the topper rails from bending.

1/4" thick was the right way to go! The plates don't flex at all. The bed rail will flex before the plates do and I can rock the truck by swaying the rack.
Sponsored


Last edited:
OP
OP
armoredpig

armoredpig

Well-Known Member
First Name
Joseph
Joined
Mar 7, 2020
Threads
24
Messages
367
Reaction score
1,146
Location
VA
Vehicle(s)
2019 Ford Ranger STX
Occupation
Nurse

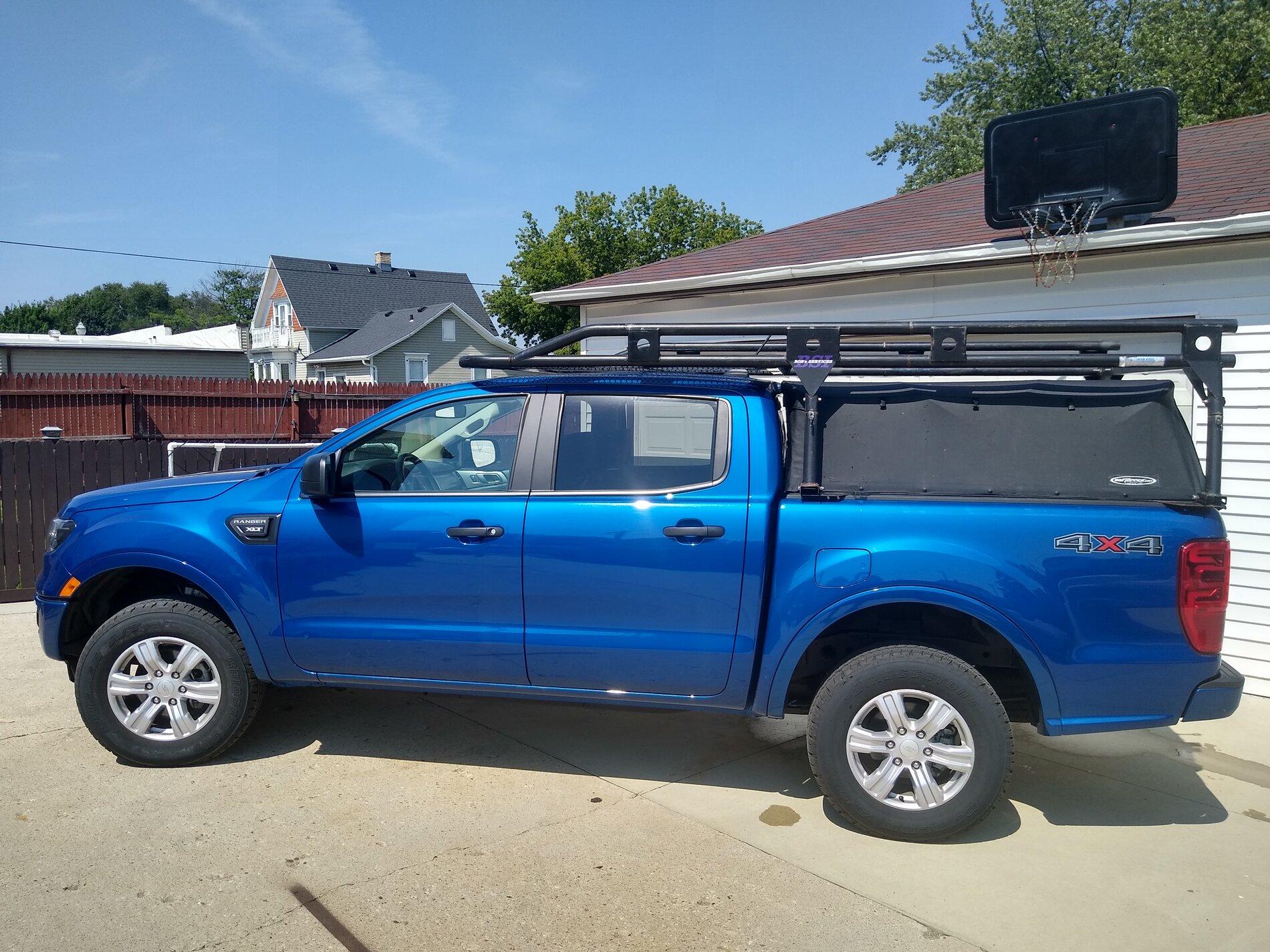

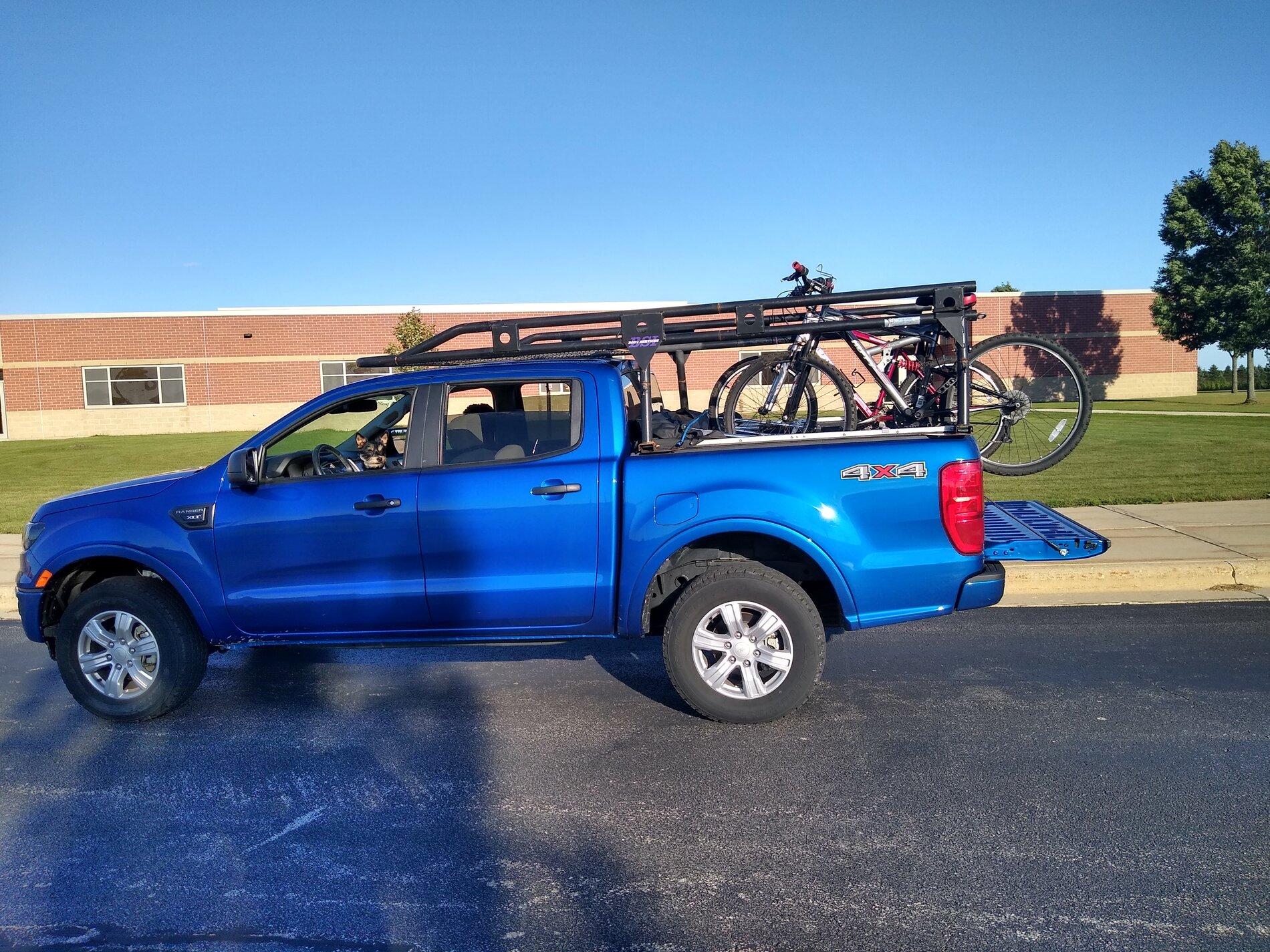

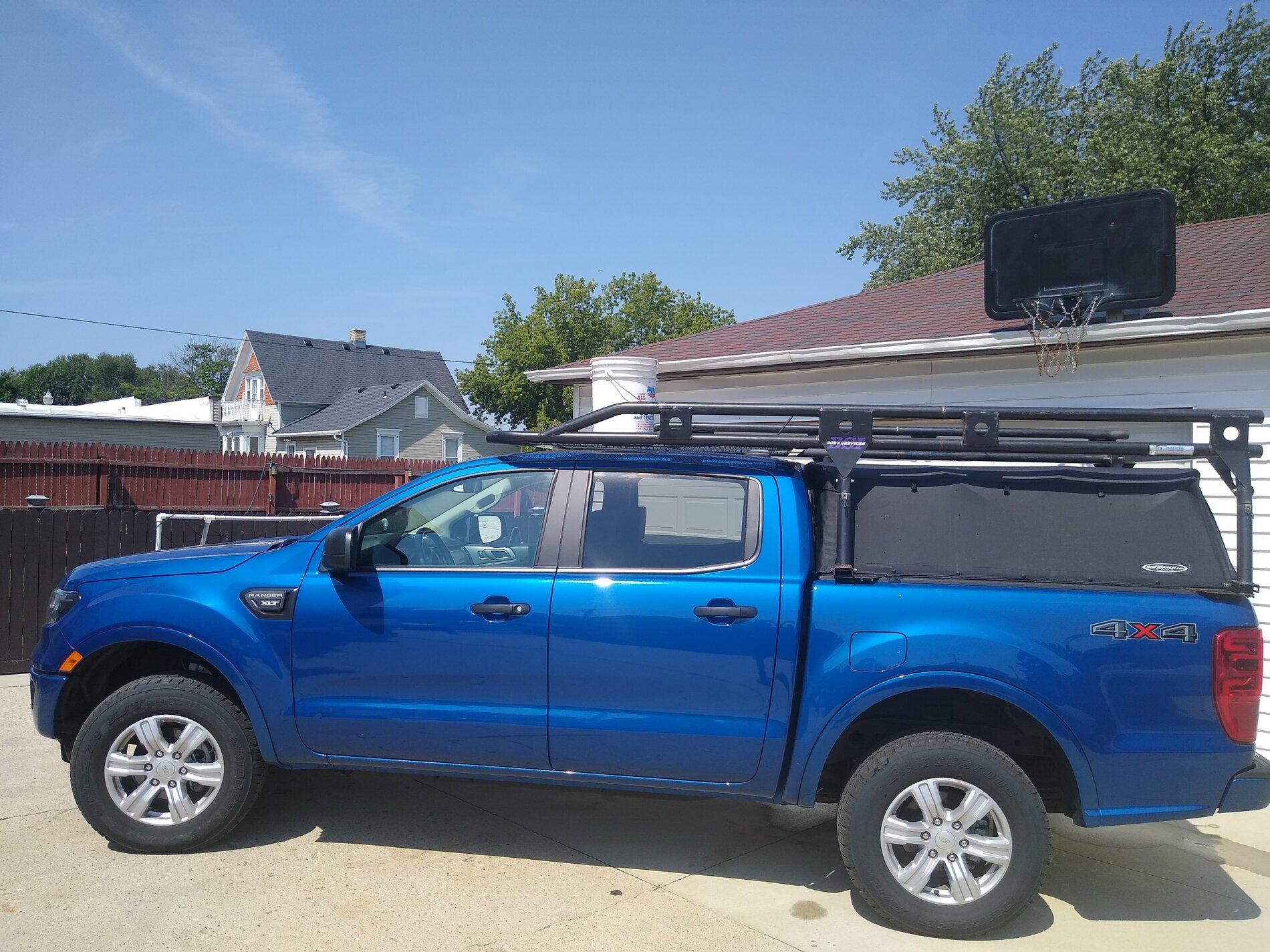

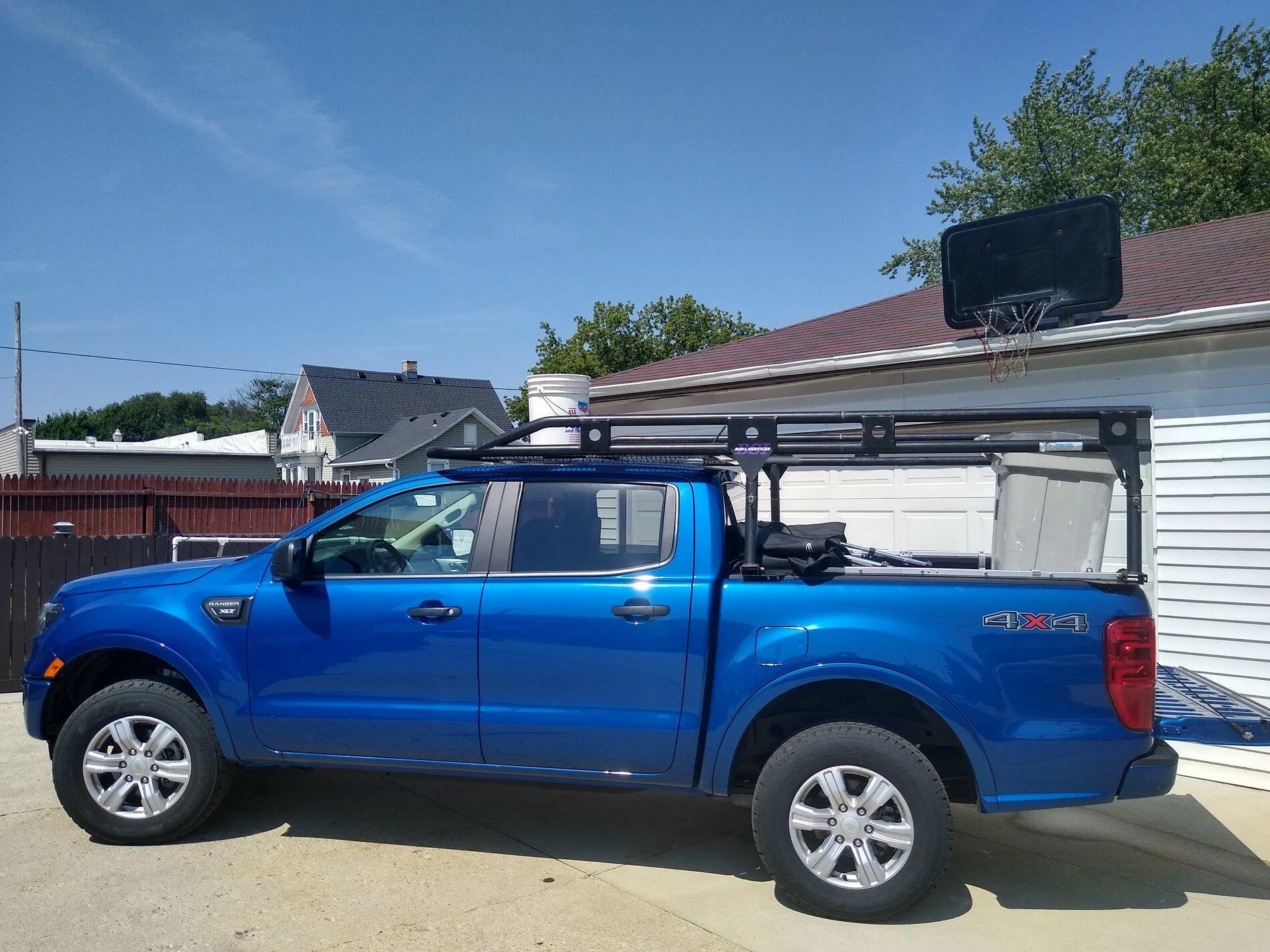

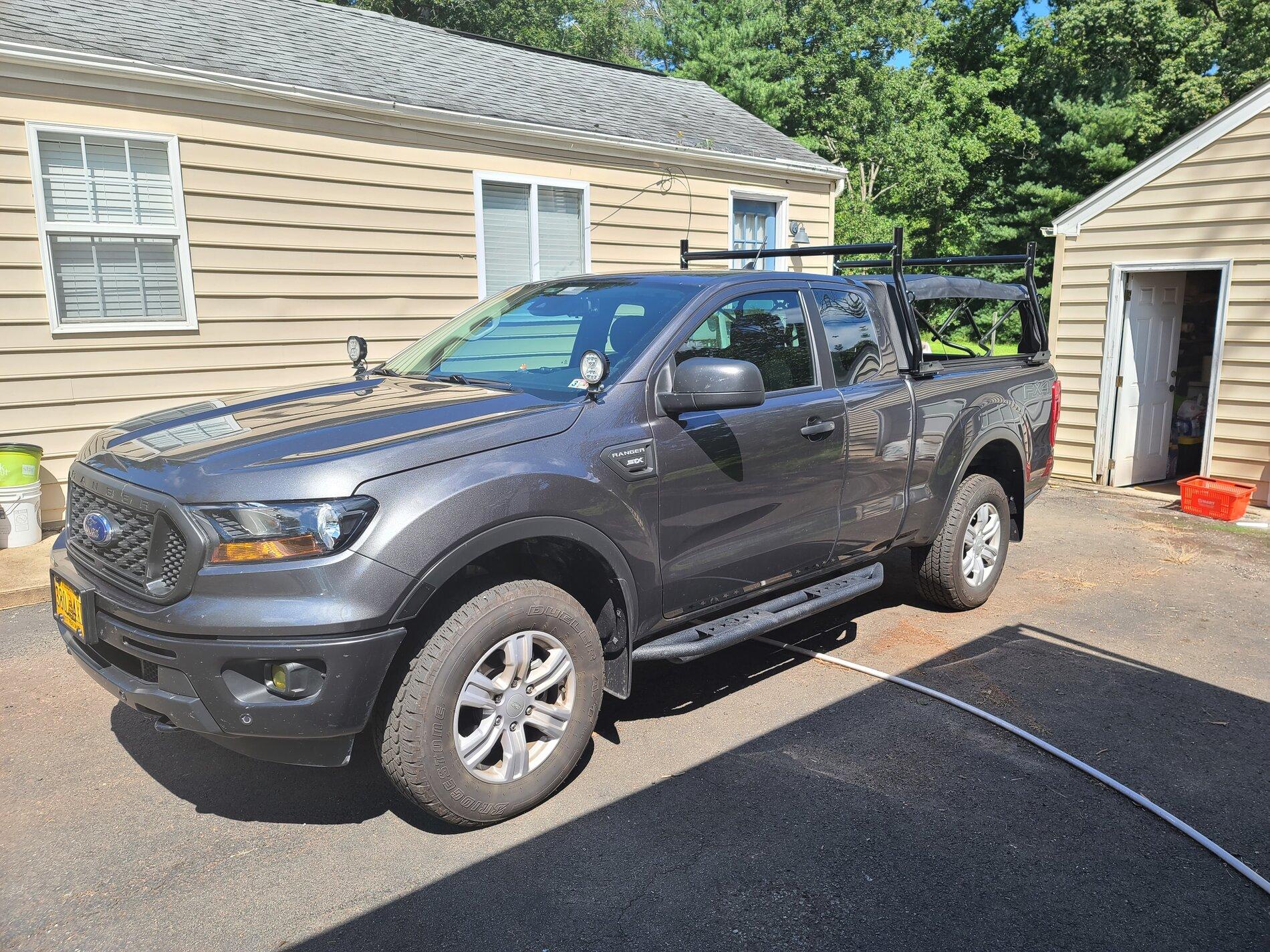

Here's a few photos of my rack. I thought I shared them. They are in other similar posts. They rear bar is removed with pins









Looks like you went full length with your bed rail extensions? Looks SOLID!

I also like how close you got it to sit to your roof. No wasted space and probably better for aero


ldr01rl

Well-Known Member
First Name
Robert
Joined
Jan 17, 2020
Threads
9
Messages
162
Reaction score
290
Location
TR Wisconsin
Vehicle(s)
2019 Ford Ranger XLT 4x4
Vehicle Showcase
1
I can park it in the garage with a ladder on it.



Hot Runr Guy

Member
First Name
Terry
Joined
Sep 2, 2020
Threads
0
Messages
5
Reaction score
5
Location
IL
Vehicle(s)
2018 Escape, 2019 Edge, 2023 Maverick
Occupation
Field Service

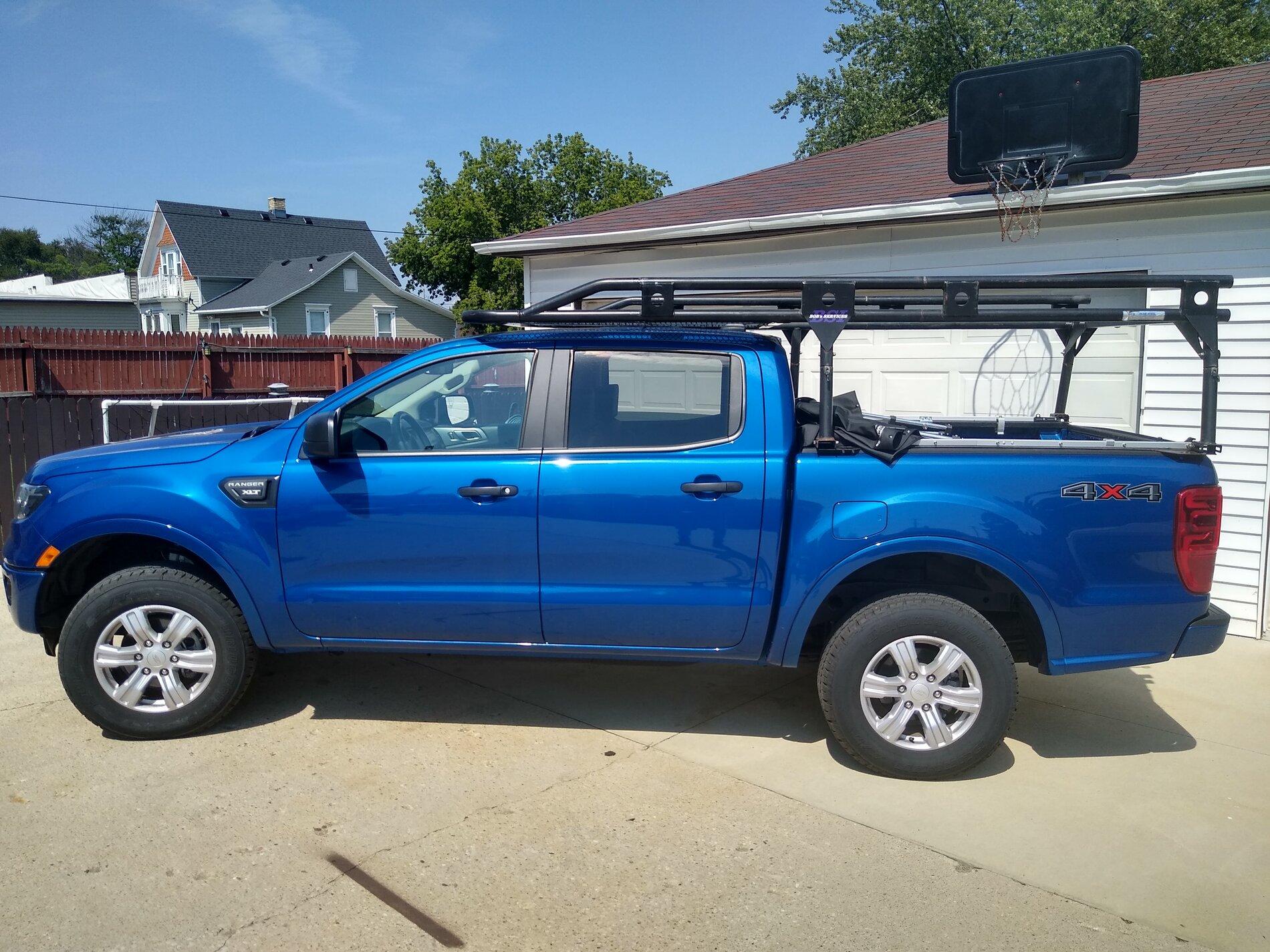

Mine is a beefy rack. I altered it to allow the Softtopper to be retracted. This idea has been covered in several posts. I'm currently working on it to be overland use as well.
