Raptor Wheels on Magnetic Ranger

OP

HarryD

Well-Known Member
Joined
Sep 3, 2019
Messages
180
Reaction score
95
Location
Western MA
Vehicle(s)
2020 Ranger 4X4 SuperCrew Magnetic Lariat Sport, 2014 Yamaha FZ-09
  • Thread starter
  • Thread Starter
  • #16
I very much appreciate all the responses and will be ordering a set of these for my 4x4 Suoercrew.
One last question though, do the the lug nuts from the aluminum Sport Package wheels fit the Ranger Raptor wheels? The Raptor wheels are listed as 60 degree conical, but I have not found the spec for my original wheels.



Advertisement





steveK

Well-Known Member
First Name
Asteve
Joined
Mar 23, 2020
Messages
50
Reaction score
147
Location
Long Island
Vehicle(s)
2019 Ranger
Occupation
Electronic Tech
I very much appreciate all the responses and will be ordering a set of these for my 4x4 Suoercrew.
One last question though, do the the lug nuts from the aluminum Sport Package wheels fit the Ranger Raptor wheels? The Raptor wheels are listed as 60 degree conical, but I have not found the spec for my original wheels.
yes.. they fit.


OP

HarryD

Well-Known Member
Joined
Sep 3, 2019
Messages
180
Reaction score
95
Location
Western MA
Vehicle(s)
2020 Ranger 4X4 SuperCrew Magnetic Lariat Sport, 2014 Yamaha FZ-09
  • Thread starter
  • Thread Starter
  • #18
Thank you, steveK
I am loving the helpful nature of the members of this forum!!


AuburnRanger

Well-Known Member
Joined
Sep 10, 2019
Messages
102
Reaction score
127
Location
Atlanta, GA
Vehicle(s)
Lightning Blue XLT
Is there anyone running the Ranger Raptor wheels with FX-4 size (265/65x17) tires without a spacer? I would just like to know how much space there is between the tire and aluminum knuckle.

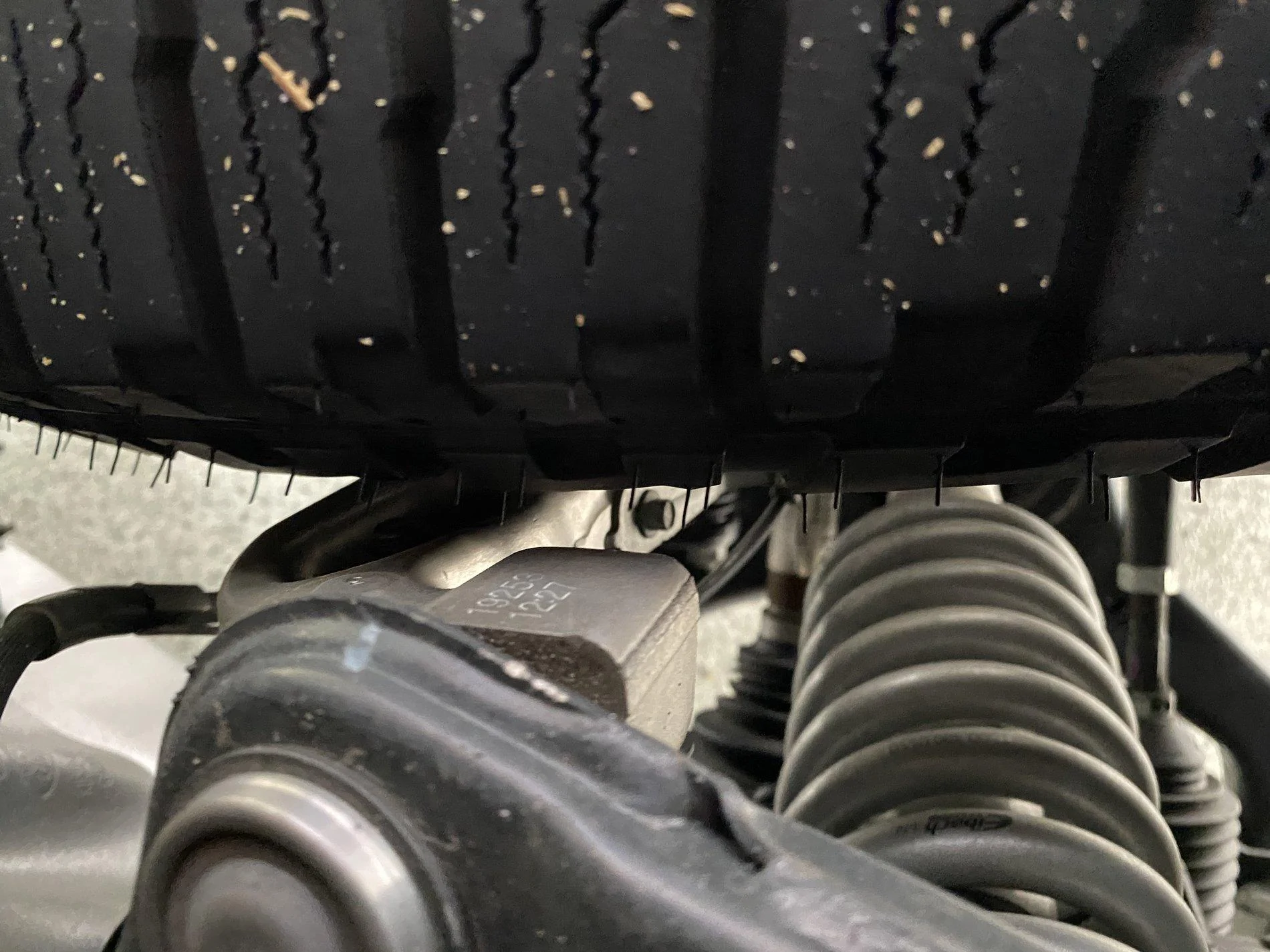

I’m running the Raptor wheels with 265/70-17 Wildpeaks and there is around 5/8” to 3/4” clearance between the tire and knuckle. (just eyeballing it)



johndoe08091989

New Member
First Name
John
Joined
Jun 4, 2020
Messages
1
Reaction score
0
Location
U.S.A.
Vehicle(s)
2020 XL
Ranger raptor wheels look great SteveK! New to the forum and still figuring out the protocol for starting threads/etc. but figured this may be a good place to get some answers. I am hoping to put the same Ranger Raptor wheels on my 2020 XL SuperCrew, 2WD.

I received a real "non-answer" from Ford Performance regarding whether they will fit on the 2WD models. Does anyone know whether the Ranger Raptor wheels will fit on the XL Supercrew 2WD?

I am hoping to replace the stock steelies but run a similar tire size (stock 255/70/r16 to a new 265/65/r17 or 255/70/r17) due to a low-clearance parking garage for work..

Big thanks for any insight on this!


BluBusa66

Member
First Name
Ron
Joined
Aug 13, 2020
Messages
11
Reaction score
61
Location
Sylvania, Ohio
Vehicle(s)
2020 Ranger
Occupation
Wholesale Parts and Collision at Mathews Ford Oregon

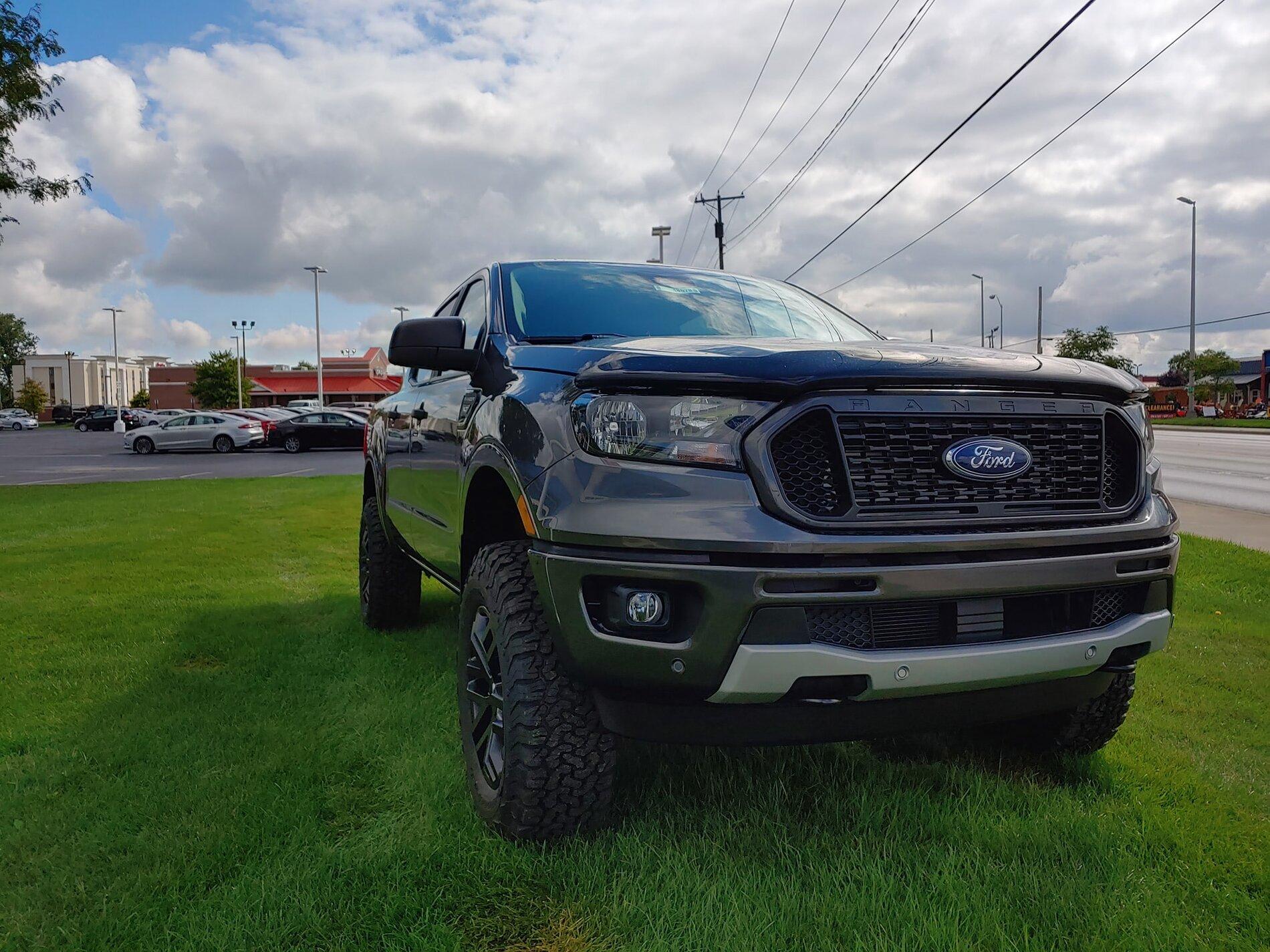

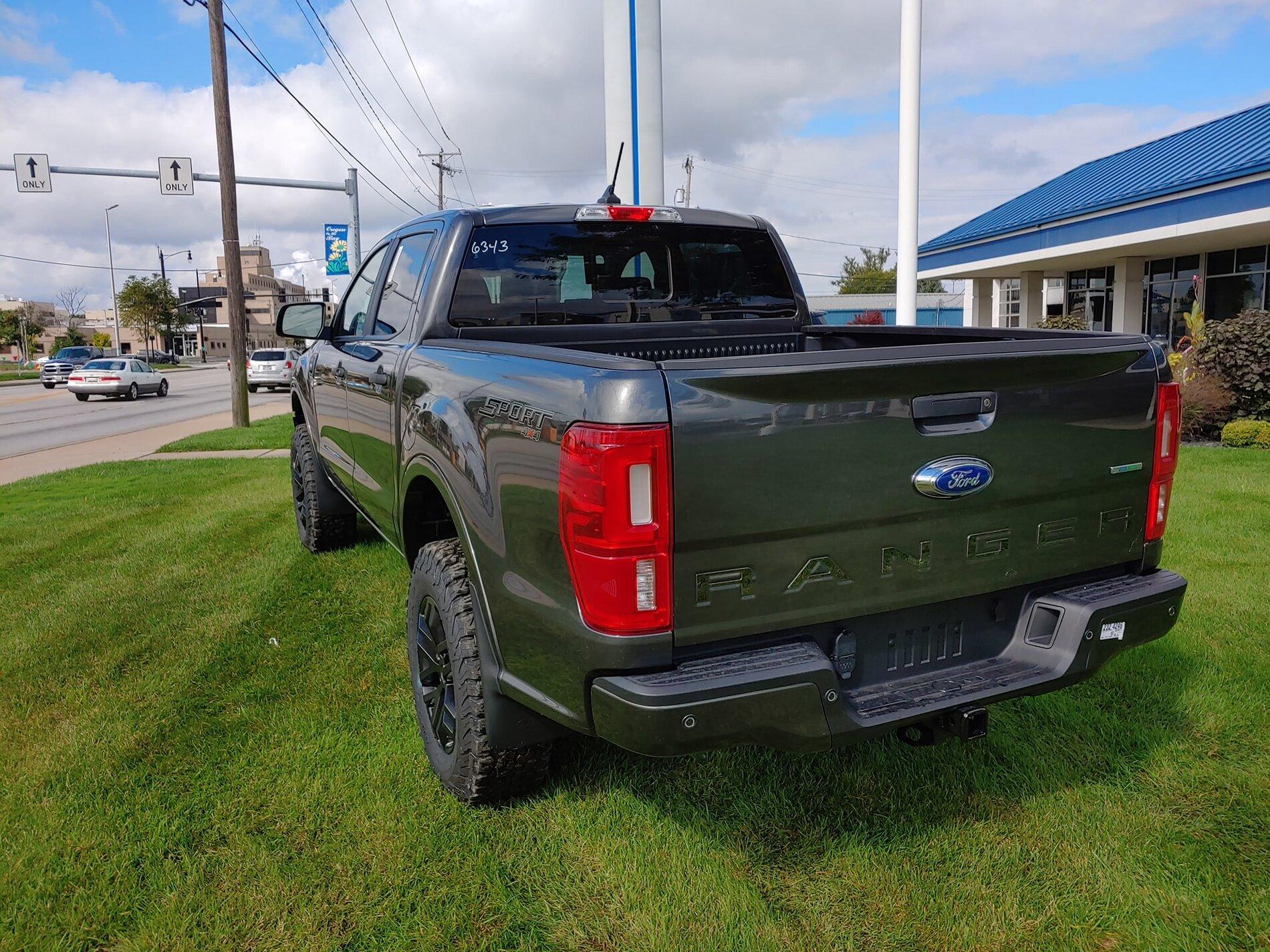

We did one at the dealership, RC 2.5 leveling kit, Ranger Raptor wheels, 265-70-17 BFG, 1.5" wheel spacer, VERY close to the spindle. Even Ford Performance says it's very close. Only took 5 days to sell it.

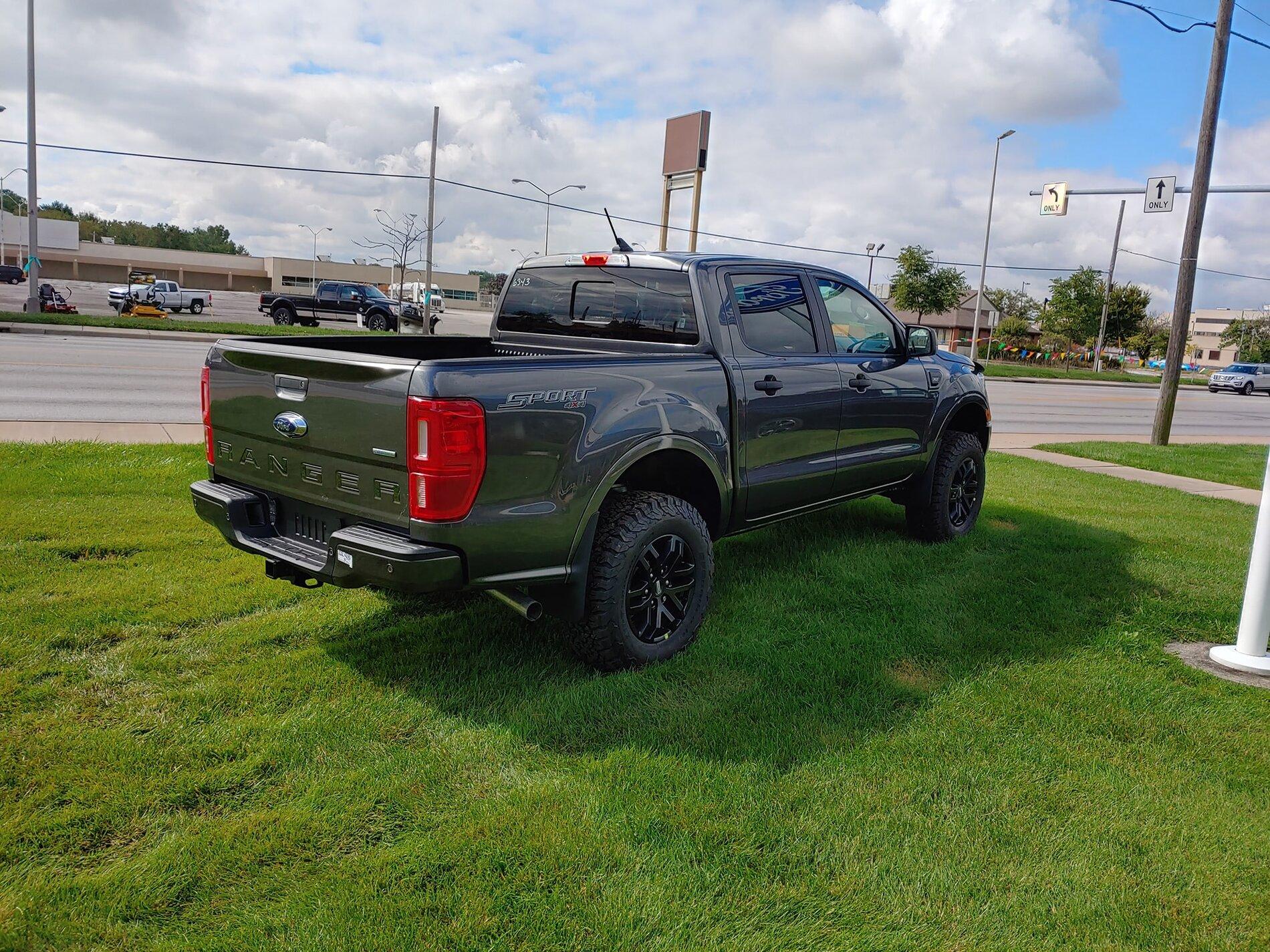

RANGER 3.jpg





OP

HarryD

Well-Known Member
Joined
Sep 3, 2019
Messages
180
Reaction score
95
Location
Western MA
Vehicle(s)
2020 Ranger 4X4 SuperCrew Magnetic Lariat Sport, 2014 Yamaha FZ-09
  • Thread starter
  • Thread Starter
  • #22
With 265/70R17 tires on the Raptor wheels there should be adequate clearance without spacers since these are slightly narrower than the 265/65R17s I will be running. I figure to have somewhere around 1/4" clearance and these will be a summer wheel/tire setup. For the winter I will be using my Sport Package wheels with winter tires eliminating any snow/ice buildup issues.


4g63det

Active Member
First Name
Harrison
Joined
Jul 17, 2020
Messages
33
Reaction score
101
Location
Milton, ON
Website
www.instagram.com
Vehicle(s)
2020 Ford Ranger 501A
Occupation
Electrician
With 265/70R17 tires on the Raptor wheels there should be adequate clearance without spacers since these are slightly narrower than the 265/65R17s I will be running. I figure to have somewhere around 1/4" clearance and these will be a summer wheel/tire setup. For the winter I will be using my Sport Package wheels with winter tires eliminating any snow/ice buildup issues.
265 is 265.. The sidewall height will be different but both tires will be 10.4 inches wide.


geophb

Well-Known Member
Joined
Aug 3, 2020
Messages
471
Reaction score
553
Location
Wisconsin
Vehicle(s)
2019 Ranger
Occupation
Mechanical Engineer
So a raptor grille is blasphemy/posing but raptor wheels aren't?


.....All Jokes. :)

OP

HarryD

Well-Known Member
Joined
Sep 3, 2019
Messages
180
Reaction score
95
Location
Western MA
Vehicle(s)
2020 Ranger 4X4 SuperCrew Magnetic Lariat Sport, 2014 Yamaha FZ-09
  • Thread starter
  • Thread Starter
  • #25
"265 is 265.. The sidewall height will be different but both tires will be 10.4 inches wide."


My apologies, am still learning new things. I thought that the width would be slightly different with a different aspect ratio.


Ranger_Pawl

Active Member
First Name
Paul
Joined
Sep 30, 2020
Messages
26
Reaction score
34
Location
Michigan
Vehicle(s)
2020 Ranger XLT Supercab
Occupation
Designer
I was curious about what size tires I could put on my soon to be Ranger SC FX4 with FP Leveling Kit, and Raptor 17" wheels, so I contacted Ford Performance. I asked if 265/70R17's would have any issues on a leveled 2020 XLT Supercab with Raptor wheels, and they said: "we have ran M-1007-RGR1785OR with BFG K02 265/70R-17 tires with zero issues on ranger".

Anyone have experience with a leveled Ranger (no additional lift beyond level), and Raptor wheels? Had any clearance issues with 265/70R17's??

let me know if you have had different results than FP is stating. Thanks, Paul


AuburnRanger

Well-Known Member
Joined
Sep 10, 2019
Messages
102
Reaction score
127
Location
Atlanta, GA
Vehicle(s)
Lightning Blue XLT
I was curious about what size tires I could put on my soon to be Ranger SC FX4 with FP Leveling Kit, and Raptor 17" wheels, so I contacted Ford Performance. I asked if 265/70R17's would have any issues on a leveled 2020 XLT Supercab with Raptor wheels, and they said: "we have ran M-1007-RGR1785OR with BFG K02 265/70R-17 tires with zero issues on ranger".

Anyone have experience with a leveled Ranger (no additional lift beyond level), and Raptor wheels? Had any clearance issues with 265/70R17's??

let me know if you have had different results than FP is stating. Thanks, Paul
I have 265/70/17s with the Ford Fox level. Absolutely no issues.


Ranger_Pawl

Active Member
First Name
Paul
Joined
Sep 30, 2020
Messages
26
Reaction score
34
Location
Michigan
Vehicle(s)
2020 Ranger XLT Supercab
Occupation
Designer
