New Switch Location

Shuebert

Member
First Name
Steve
Joined
Oct 17, 2019
Threads
0
Messages
7
Reaction score
7
Location
Chanute, Kansas
Vehicle(s)
2017 Ram 3500
Nope, it was quite easy. I started up at the overhead console and went between the windshield and headliner which is flexible enough to put a couple fingers under to stuff the wire in. Then at the a pillar I popped back the plastic just an inch or so at the top and went across avoiding any curtain airbags. I then pulled the rubber door seal down from the a pillar to the kick panel by the fuse box and routed the wire down. I also popped open the kick panel and door sill plastic for some extra room to route the wire. Then opened the panel under the steering wheel and got the wire into the fuse box with the add a circuit. Zip tie where you like and then push door seal back in being sure to keep the wire tucked in all the way.
I followed your instructions, worked out great


BetaBreezy

Well-Known Member
First Name
Brian
Joined
Jun 5, 2019
Threads
6
Messages
51
Reaction score
55
Location
Tacoma, WA
Vehicle(s)
2019 Ford Ranger XLT FX4 Ingot Silver
Occupation
Perfusionist
Did you have to pop the fascia off or can you get back there another way? The oem wiring you just tucked aside to run your own?
Correct, I popped the fascia off and there was plenty of room to tuck the OEM connector behind it.


psweeney

Well-Known Member
First Name
Patrick
Joined
May 14, 2019
Threads
3
Messages
141
Reaction score
335
Location
LA
Vehicle(s)
2019 Lariat FX4 (well, it started that way)

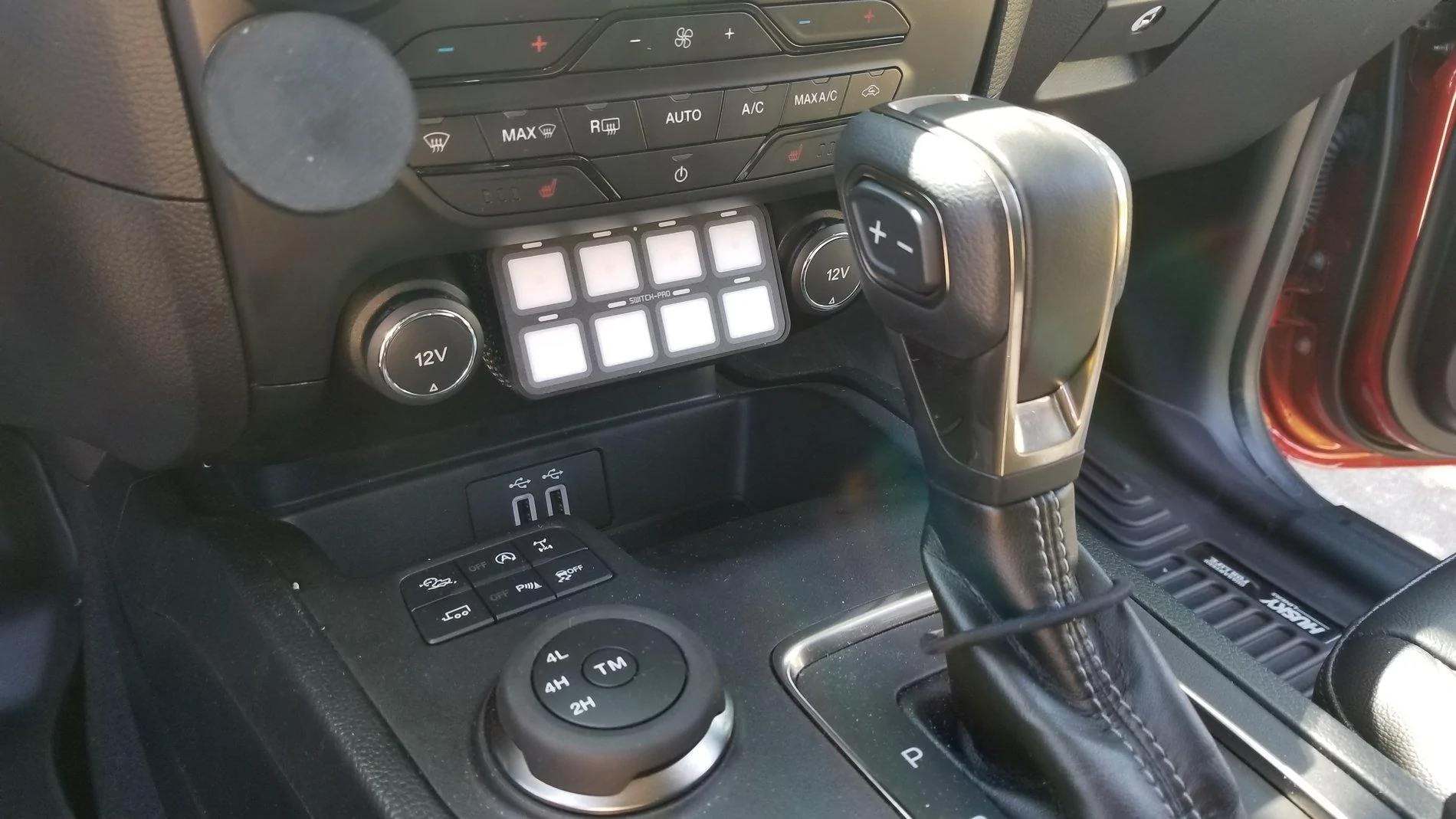

If you go with a SwitchPros unit, it fits perfectly between the 12v plugs and takes up no additional space. (Photo from before I labeled everything right after install).




psweeney

Well-Known Member
First Name
Patrick
Joined
May 14, 2019
Threads
3
Messages
141
Reaction score
335
Location
LA
Vehicle(s)
2019 Lariat FX4 (well, it started that way)

Noel Willhite

Well-Known Member
First Name
Noel
Joined
Jan 2, 2020
Threads
17
Messages
145
Reaction score
182
Location
Bonita Springs
Vehicle(s)
2019 Ranger XLT
Vehicle Showcase
1

psweeney

Well-Known Member
First Name
Patrick
Joined
May 14, 2019
Threads
3
Messages
141
Reaction score
335
Location
LA
Vehicle(s)
2019 Lariat FX4 (well, it started that way)

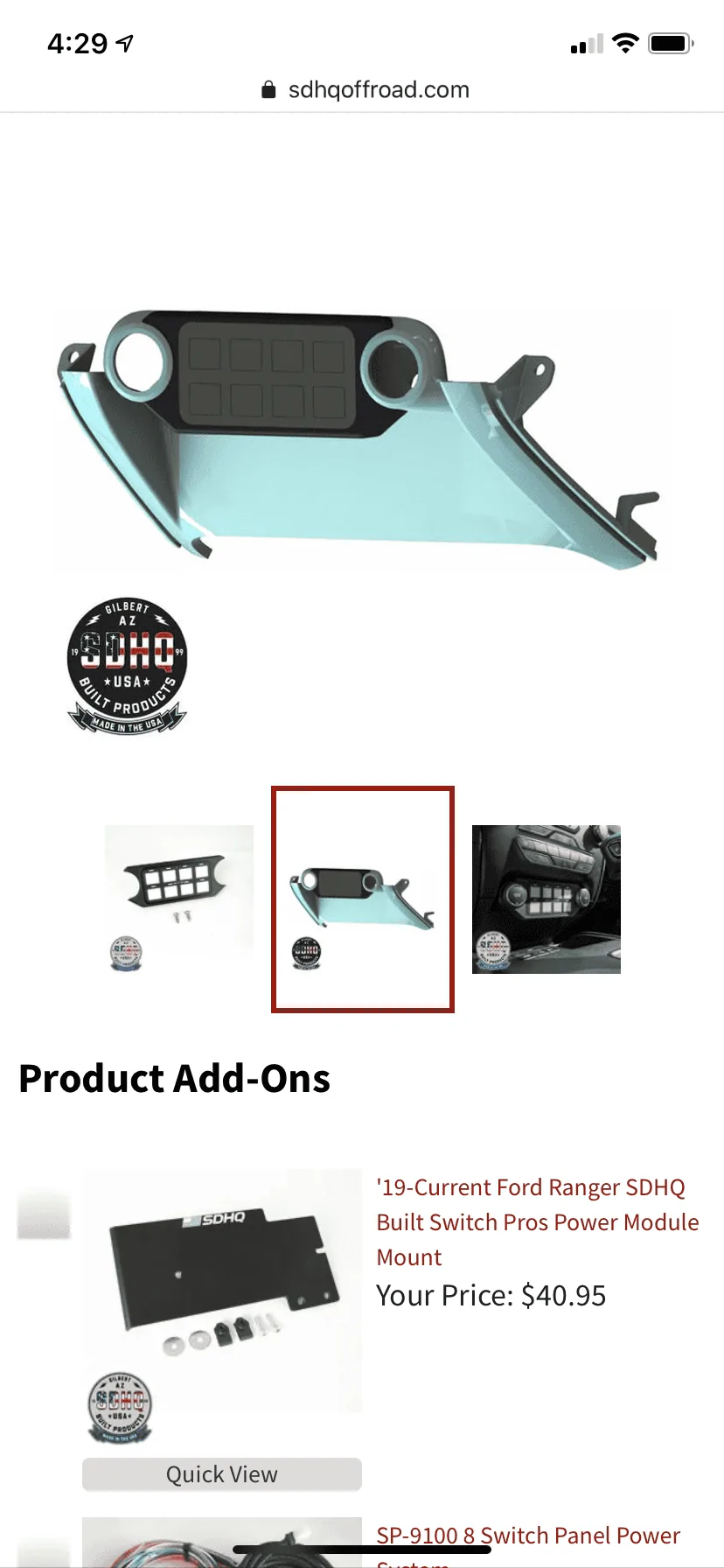

They just released one for our rangers too, fits snug in the fascia , very cool!

Haha I assume that basically just hides the wires and makes it look a tiny bit cleaner with the 12v. May make install a tiny bit easier too by corralling wiring. But yeah I put the panel down there a year ago right when I got the truck and just tied the wiring up and haven't had any issues with anything catching.

The only possible negative I see with that is mine is tilted up as you can see so I can see the buttons while driving, whereas that fascia plate makes it so it has to be vertical which means you'll have to duck down to see what button you're hitting unless you just know where they are or feel it out. But cool!


rooster

Well-Known Member
Joined
Oct 8, 2018
Threads
9
Messages
239
Reaction score
532
Location
BOS
Vehicle(s)
STX FX4 SuperCrew
Occupation
engineering systems admin
Vehicle Showcase
1

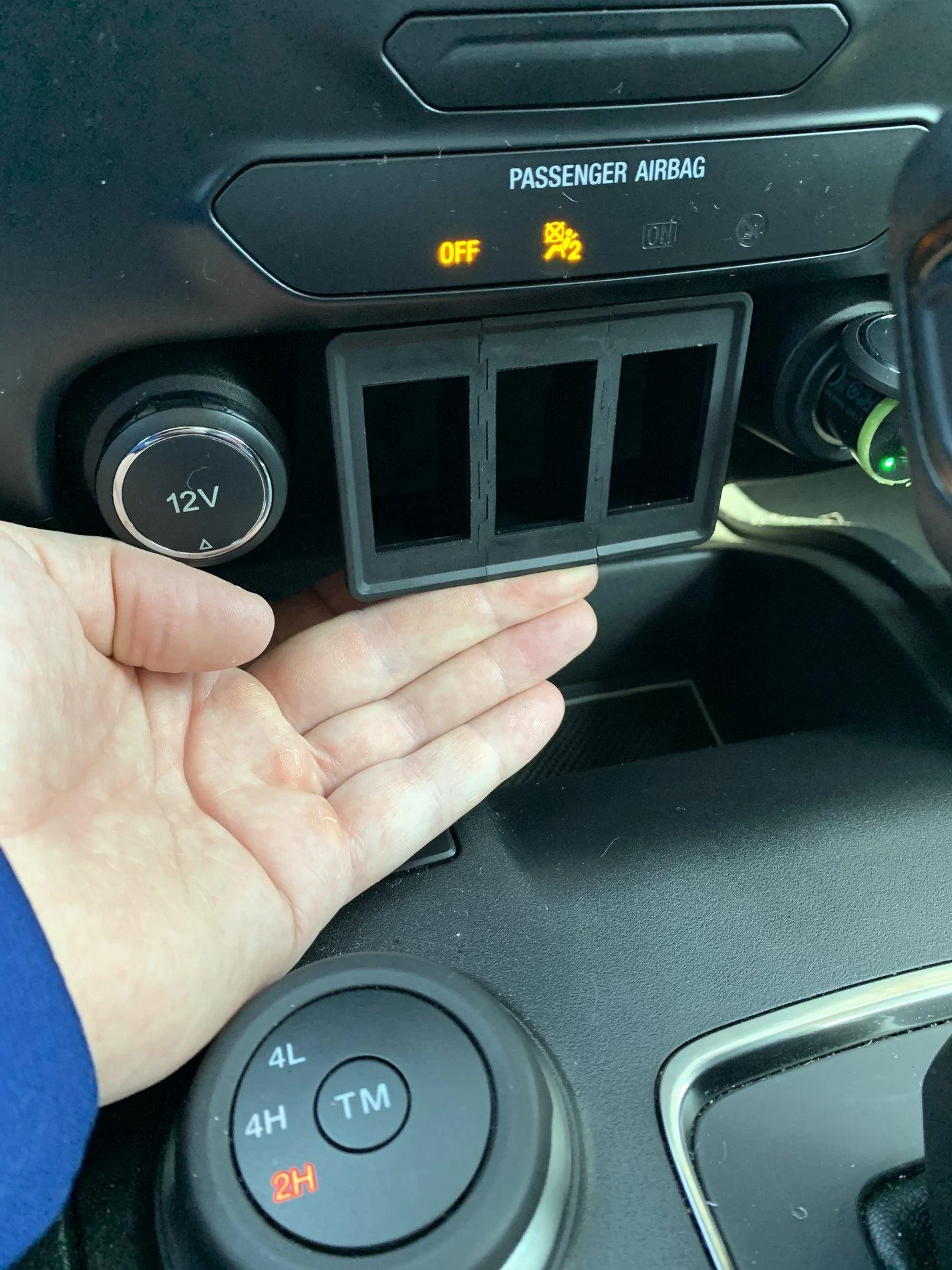

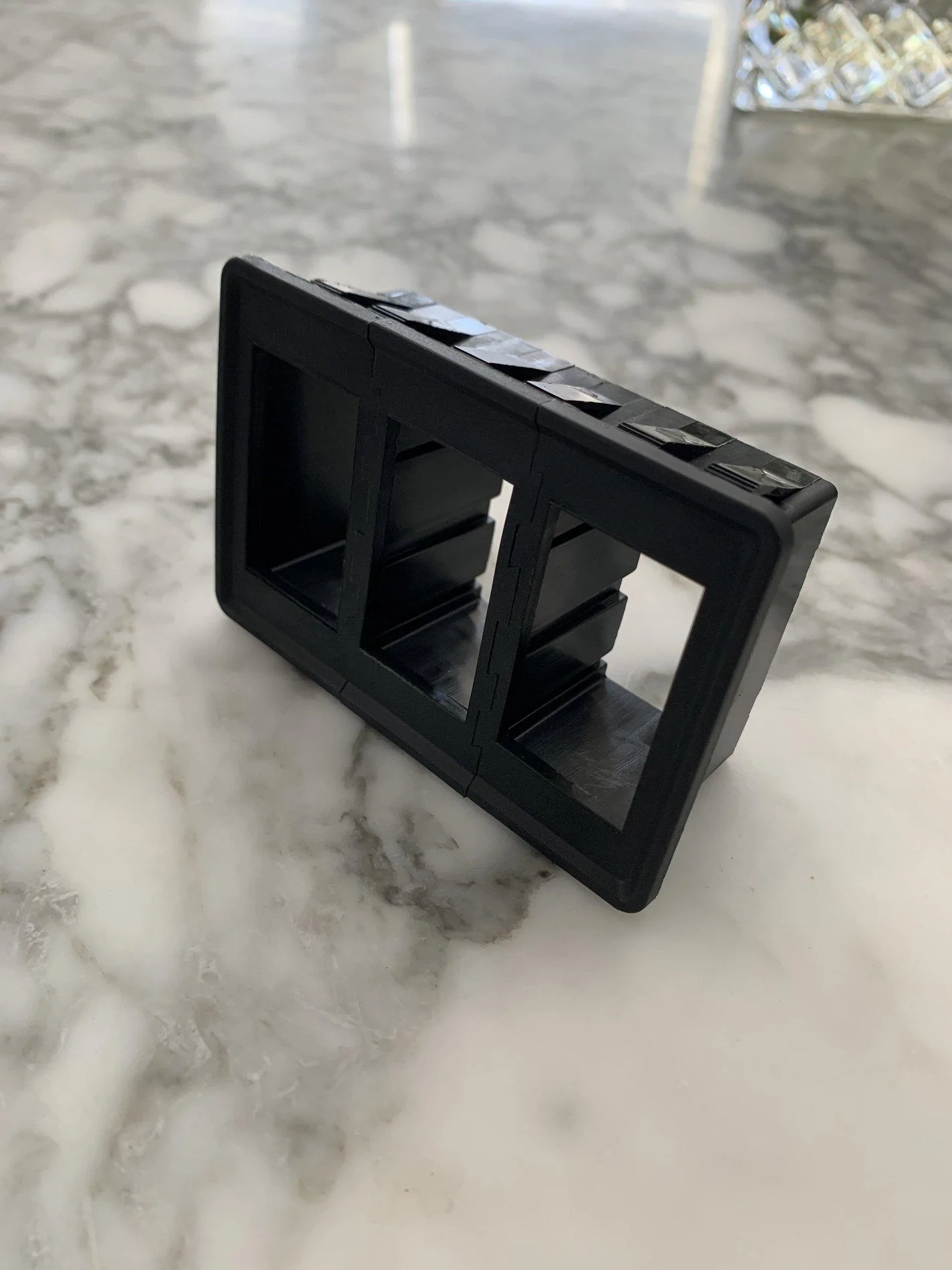

I’m working on a 3D printed 3 switch pod that clips or mounts thru the holes on the surface between the 12 volt sockets. You can mount a basic 3 switch pod easily as shown in the photos, I’m just trying to round out some lines with a slightly styled custom piece.







Noel Willhite

Well-Known Member
First Name
Noel
Joined
Jan 2, 2020
Threads
17
Messages
145
Reaction score
182
Location
Bonita Springs
Vehicle(s)
2019 Ranger XLT
Vehicle Showcase
1
I’m working on a 3D printed 3 switch pod that clips or mounts thru the holes on the surface between the 12 volt sockets. You can mount a basic 3 switch pod easily as shown in the photos, I’m just trying to round out some lines with a slightly styled custom piece.





Interested!


rooster

Well-Known Member
Joined
Oct 8, 2018
Threads
9
Messages
239
Reaction score
532
Location
BOS
Vehicle(s)
STX FX4 SuperCrew
Occupation
engineering systems admin
Vehicle Showcase
1
Interested!

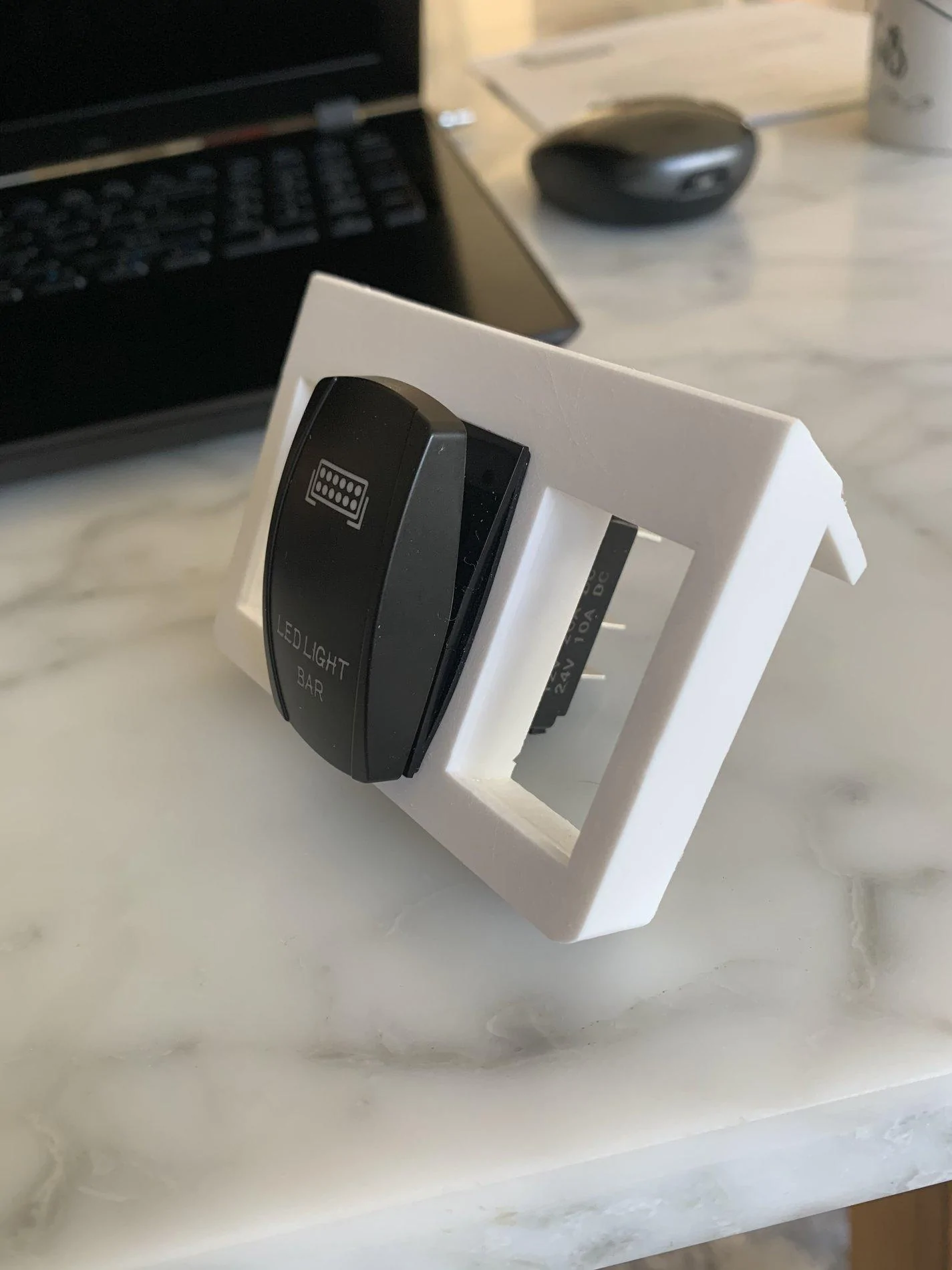

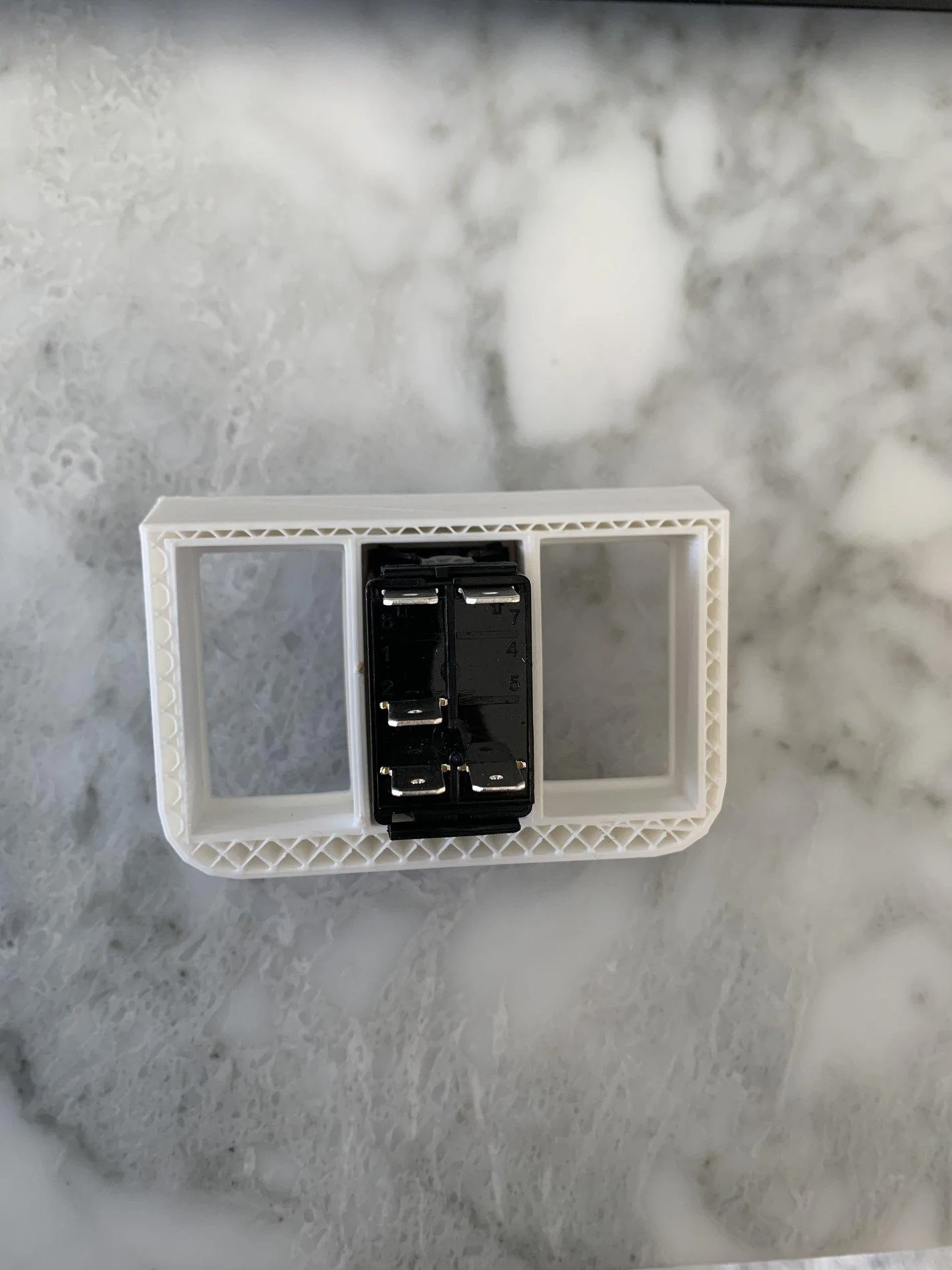

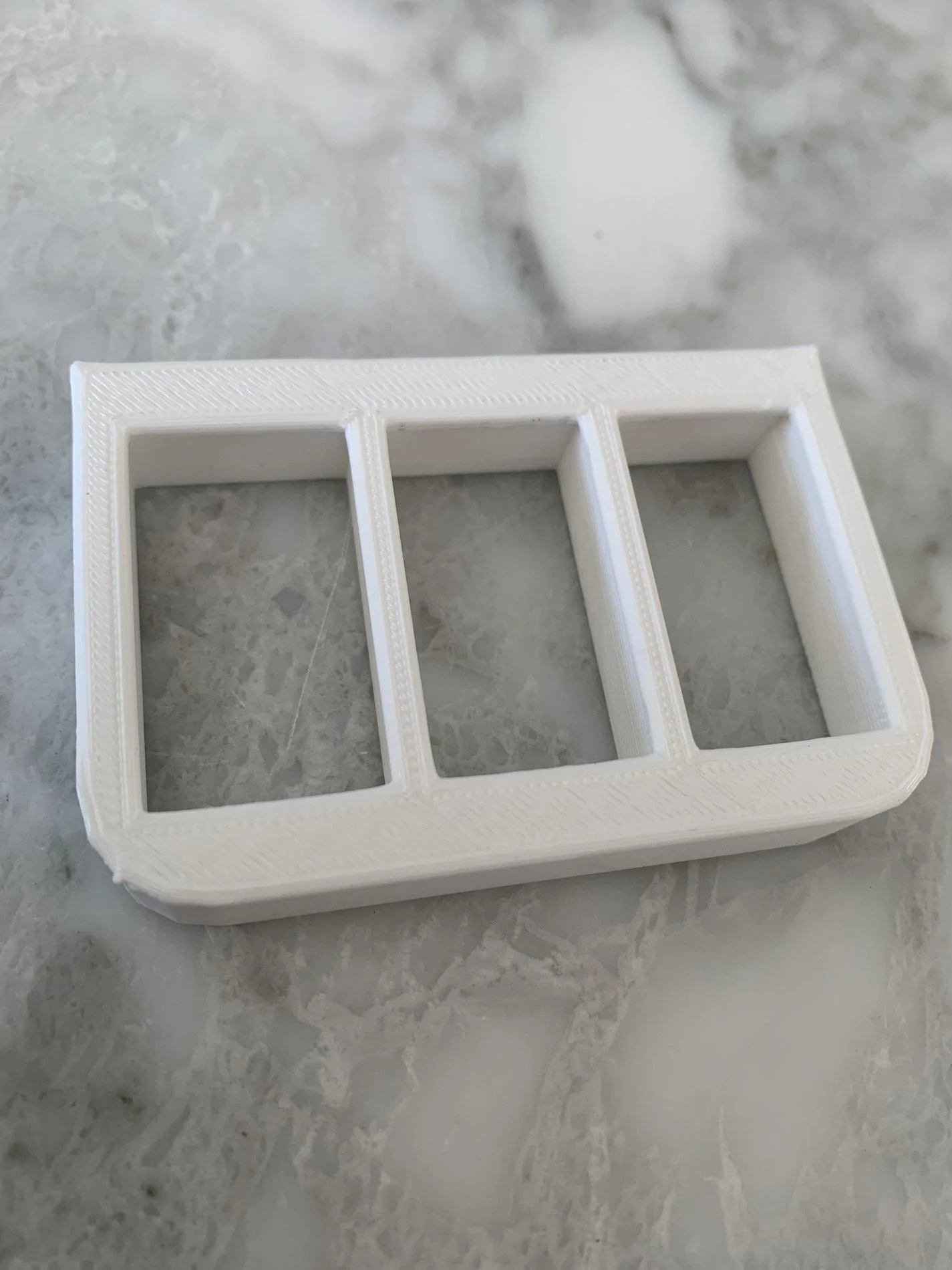

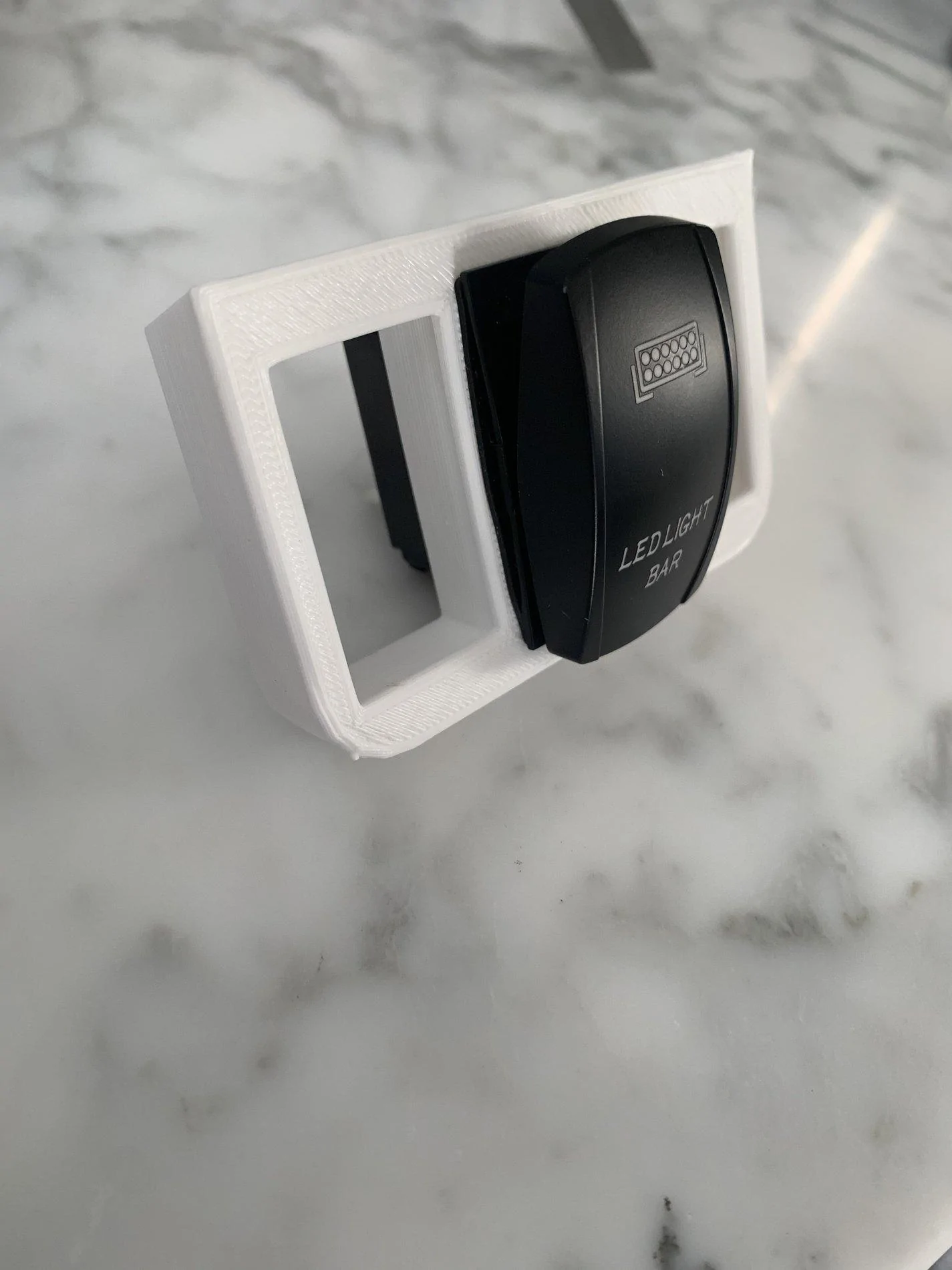

I’ll share the files when done. Made some progress... need to tweak the top mounting surface angle and space the switches a mm more apart. This is just a half depth print with white PLA I had lying around.







Mini.lobo

Member
First Name
Jay
Joined
Apr 16, 2020
Threads
1
Messages
15
Reaction score
17
Location
Phoenix Az
Vehicle(s)
2019 ranger
Occupation
Essential worker

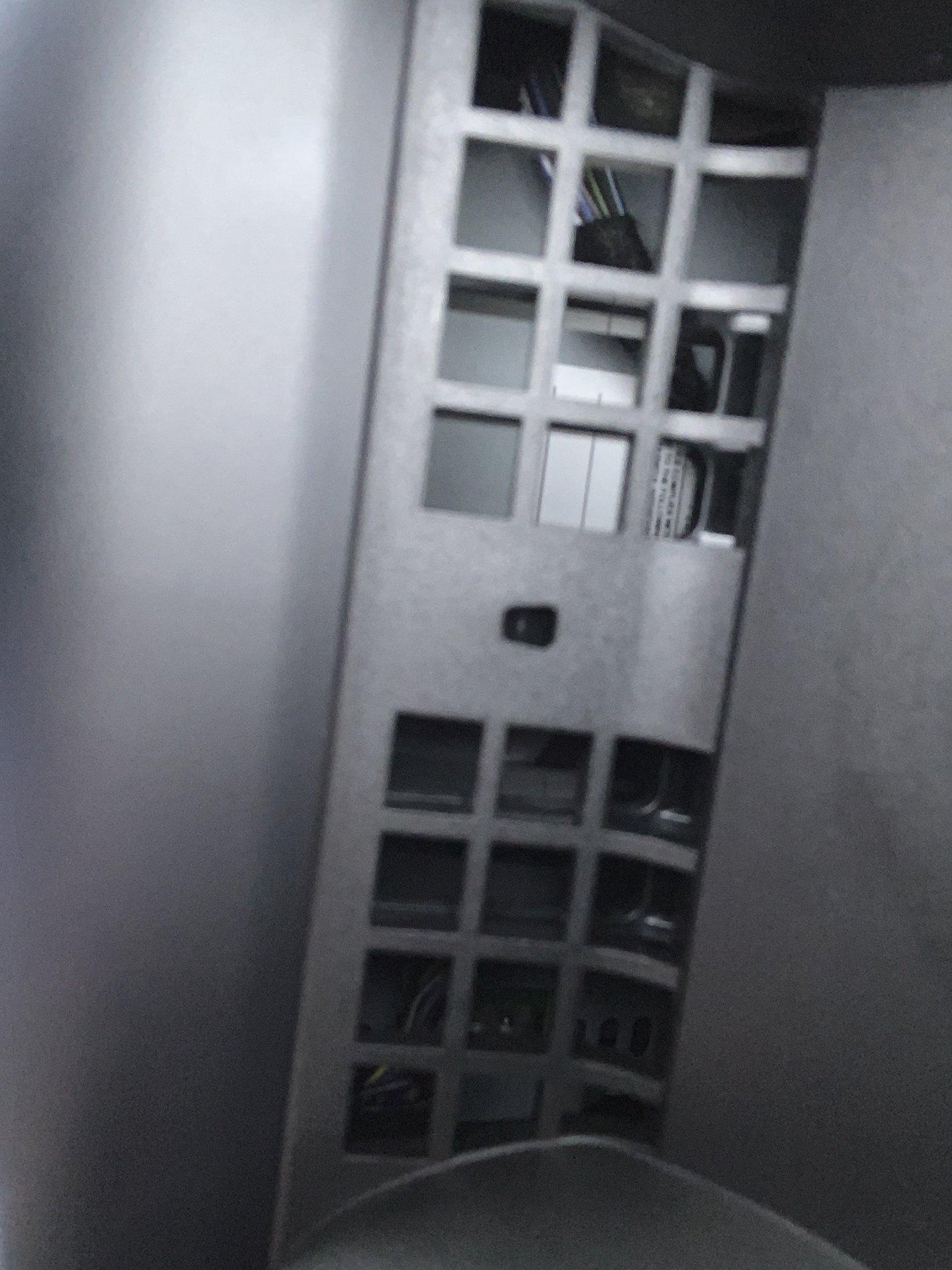

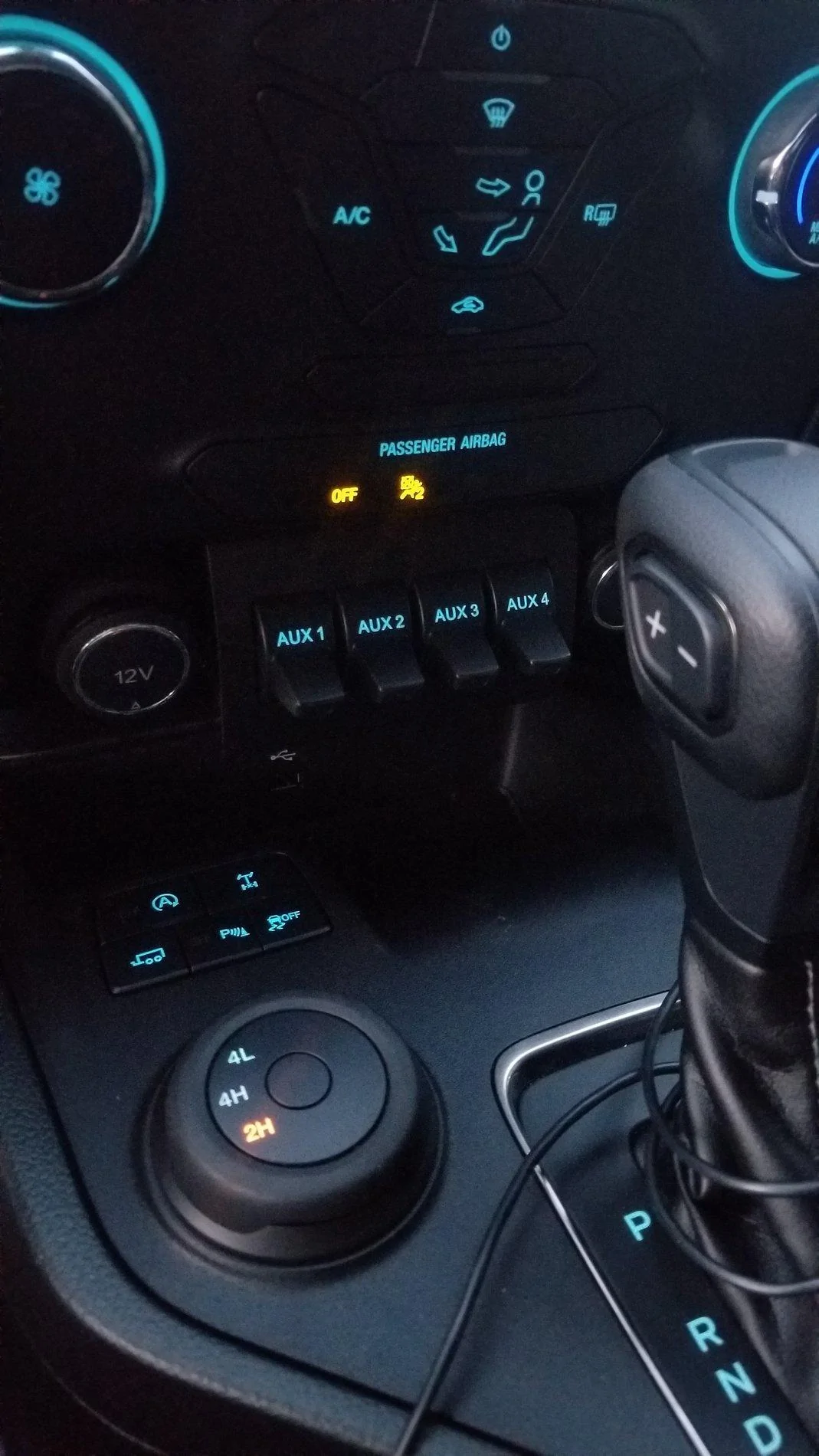

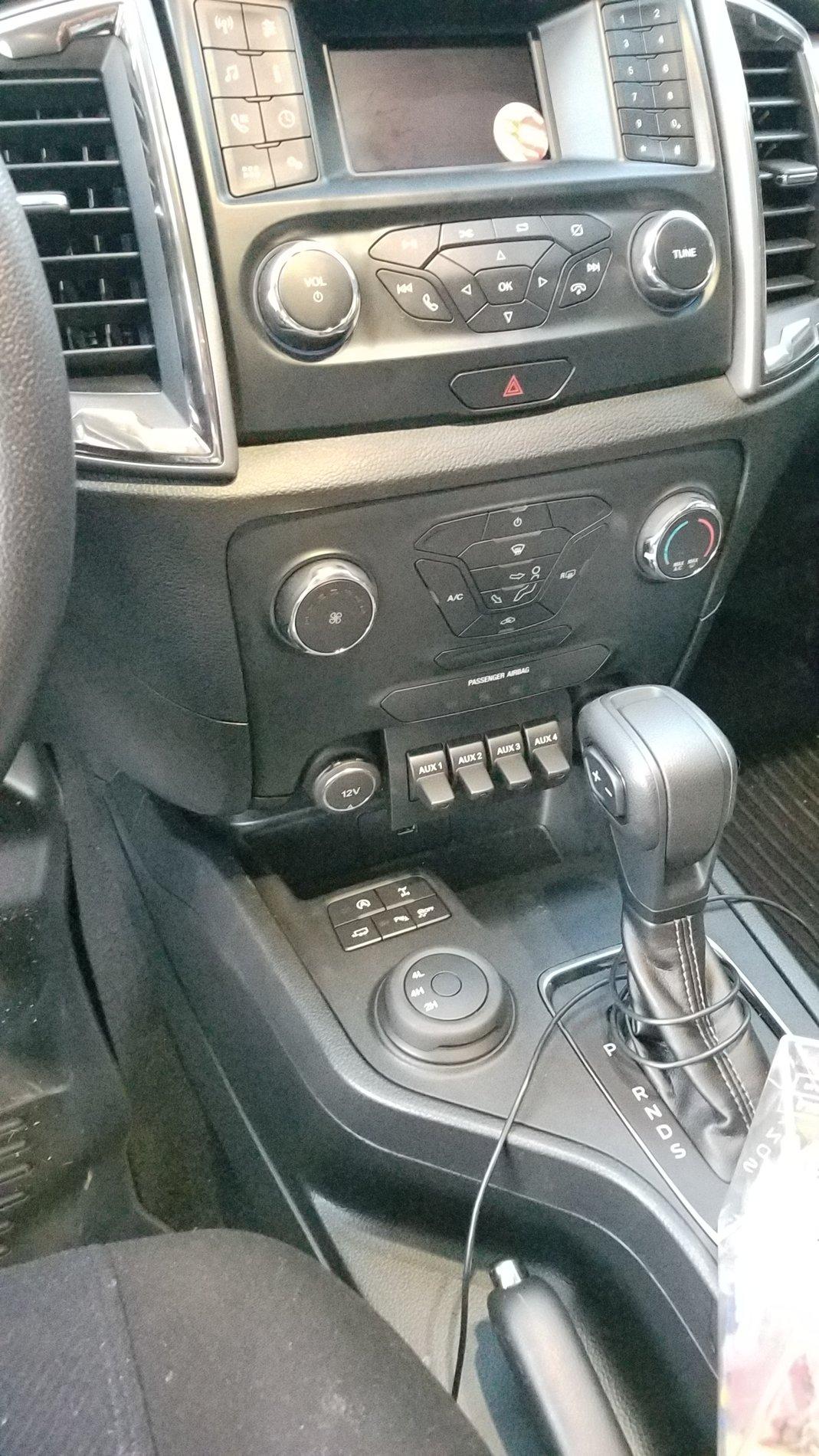

New member here. Figured id chime in as well just finished up my upfitter switch install no holes in the panels!
