Baja Designs S2 sport for Rear/ work/ Reverse aid lights.

Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
67
Messages
9,191
Reaction score
28,344
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
NWO Robot Polisher
Vehicle Showcase
1

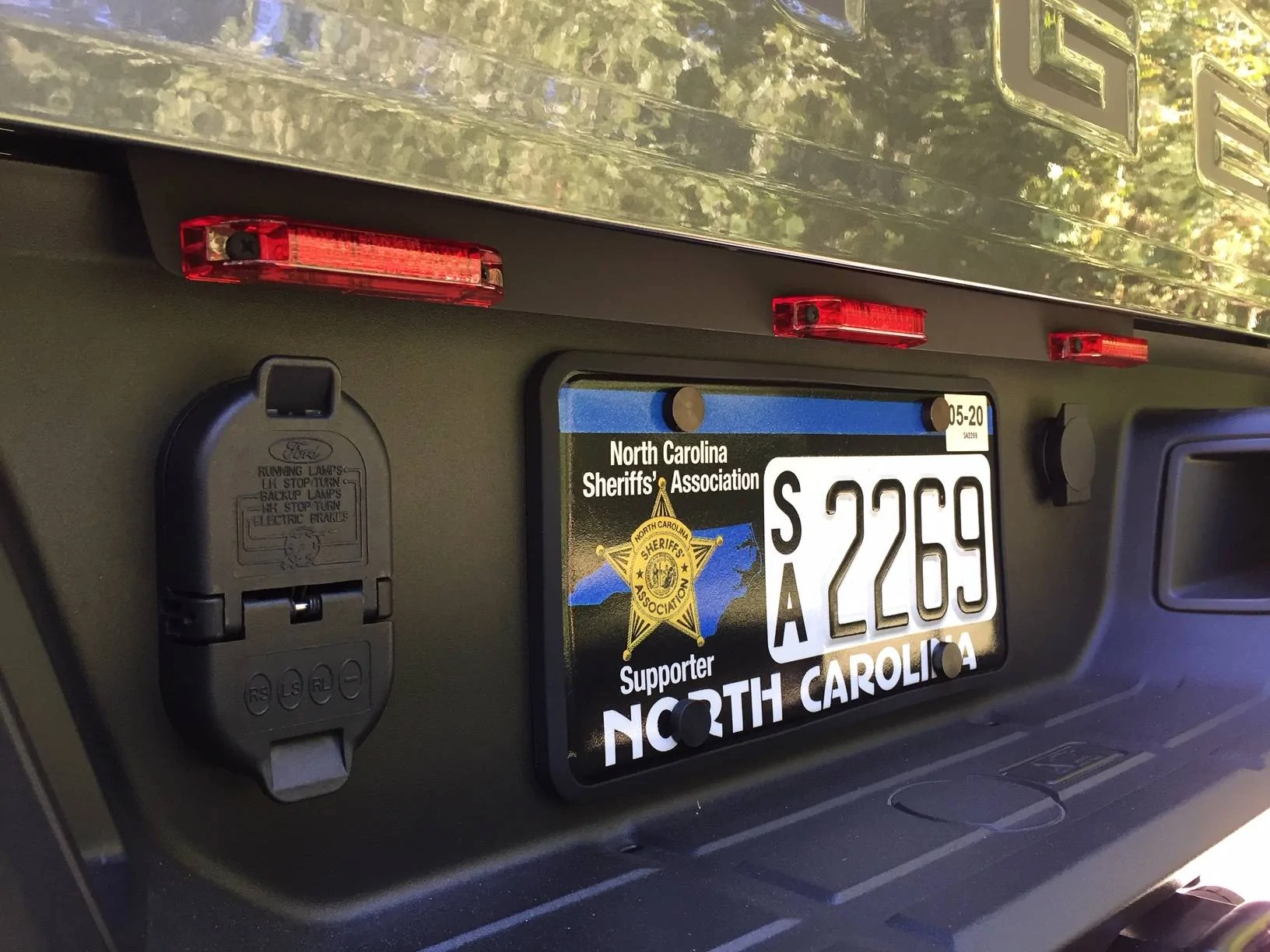

Would you mind sharing the parts list for the brake light set up? It looks really good.
Hi Brett...you can find details at my build thread in the links at the bottom of my posts...it's in one of the 61 pages...if I knew which page, I'd tell you... ?


typmoon

Member
First Name
Julio
Joined
Aug 31, 2021
Threads
2
Messages
21
Reaction score
27
Location
Kyle Texas
Vehicle(s)
2021 Ford Ranger Lariat Tremor
Occupation
Tire Installer
Vehicle Showcase
1
Update: 11/12/2020
Added pics of the Baja Designs Ranger S2 Reverse kit.
(see below)


Baja Designs S2 for rear/ reverse aid lights.
(this is not their reverse kit, mine was ordered, still pending)

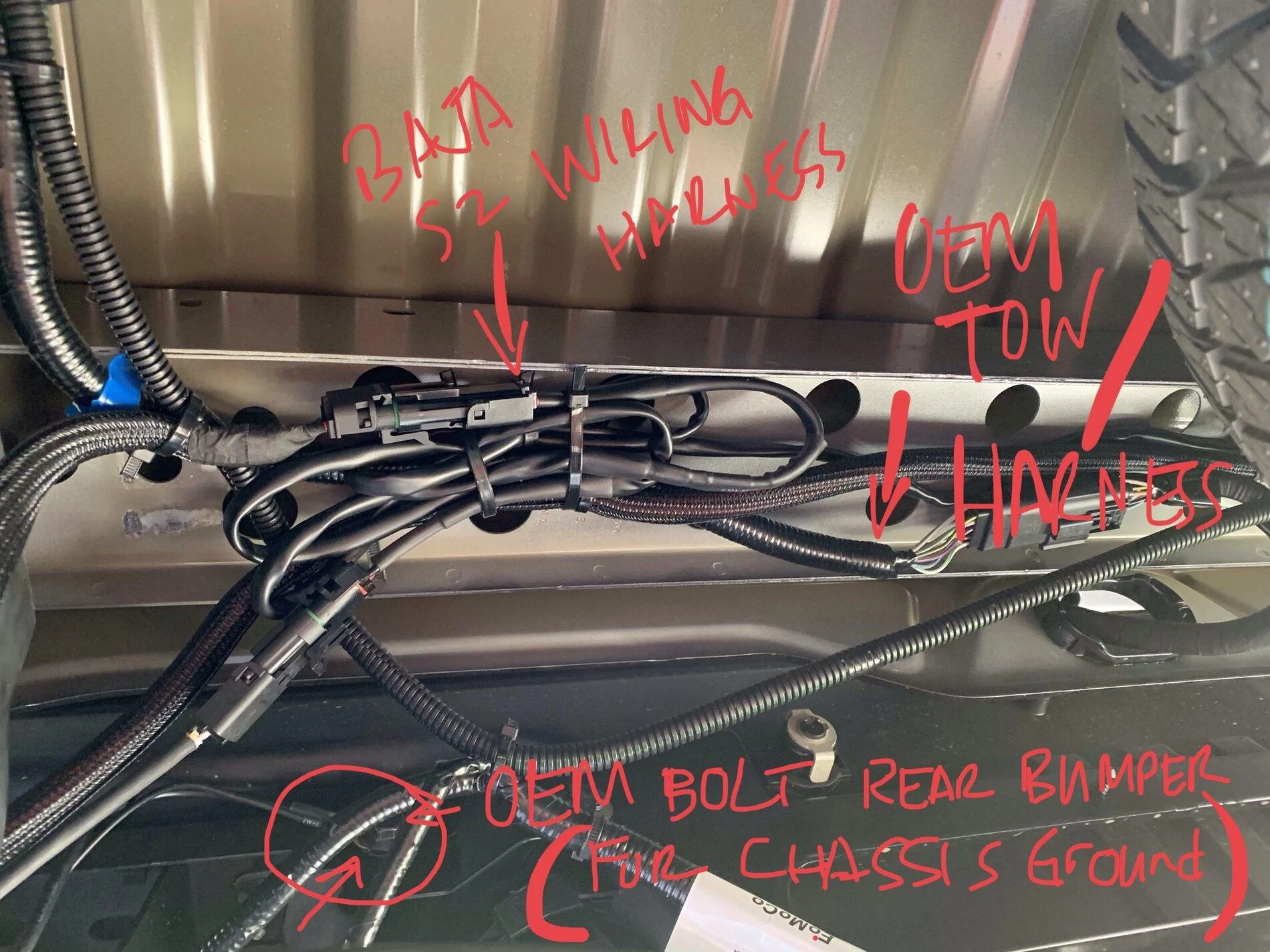

I had an extra set of S2 sport, so since I already did my wiring...

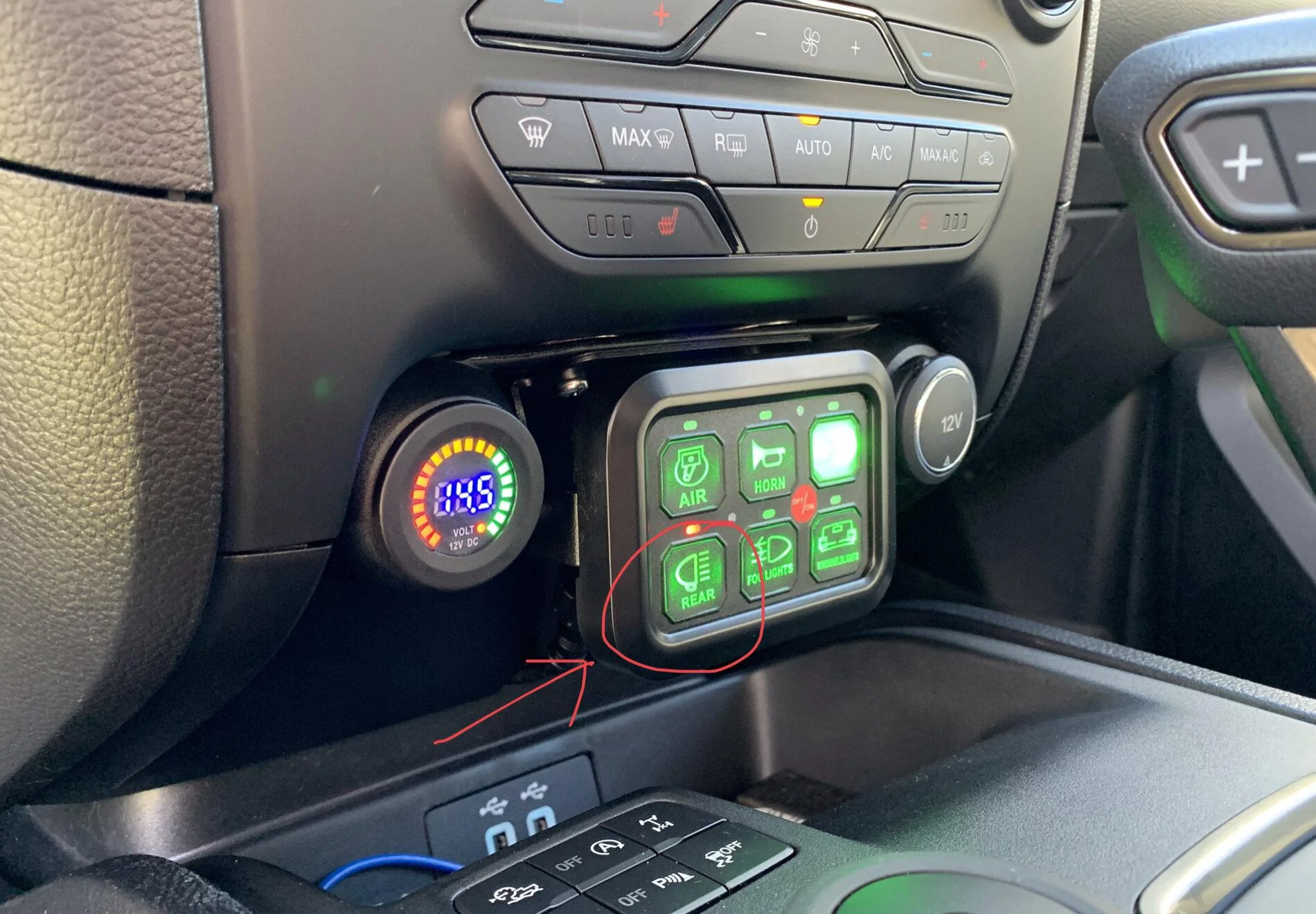

(from my aux power box)

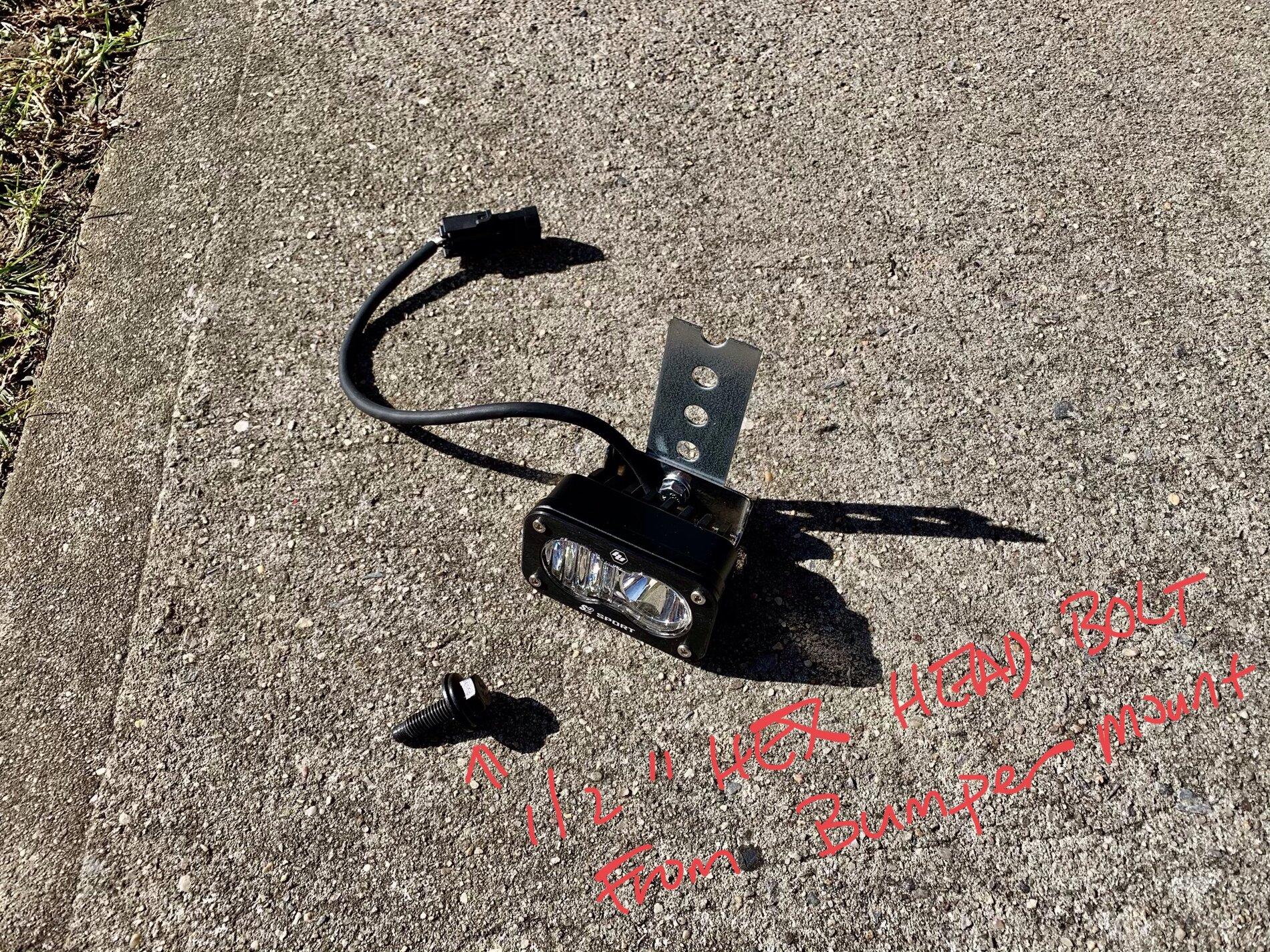

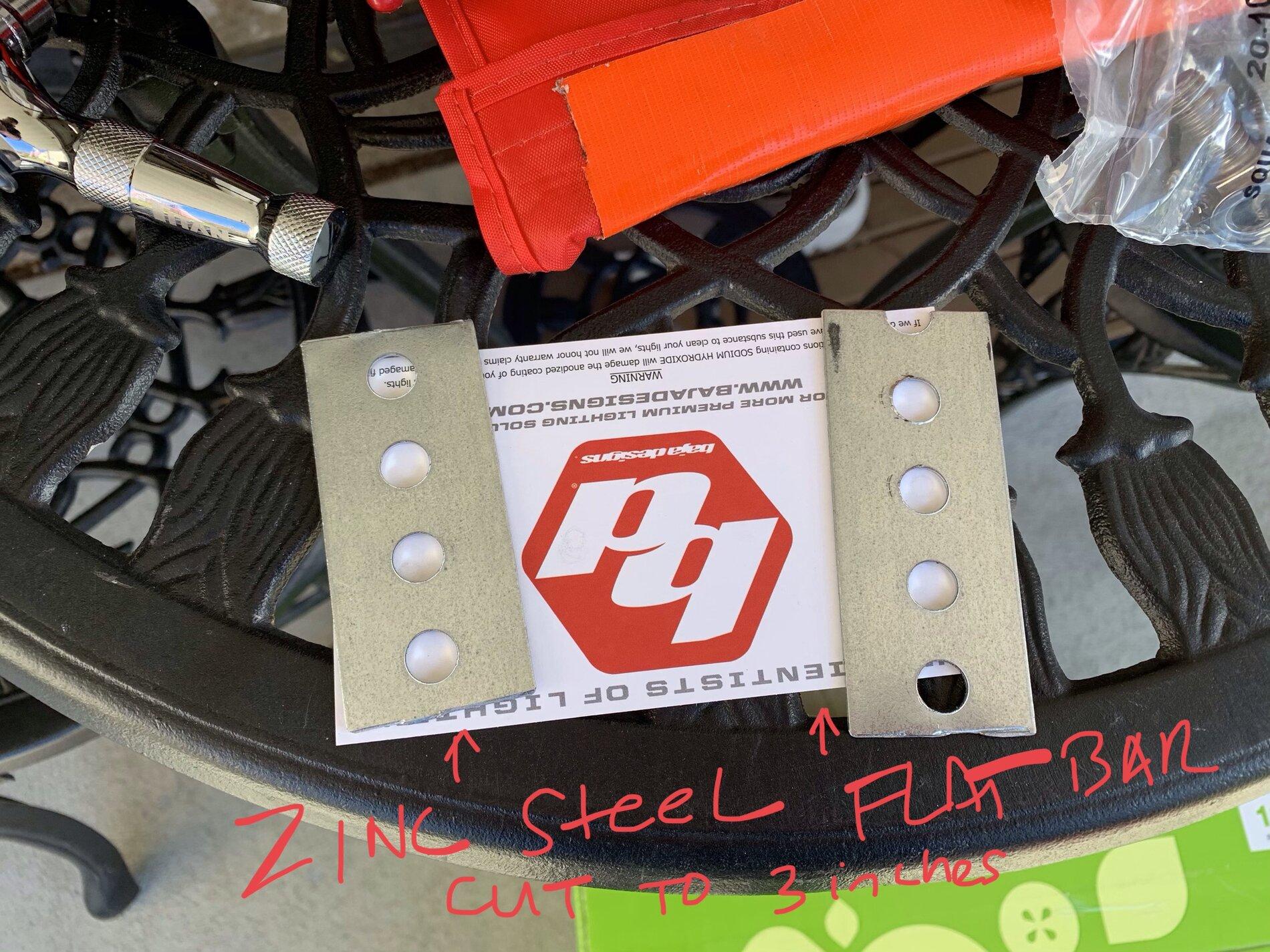

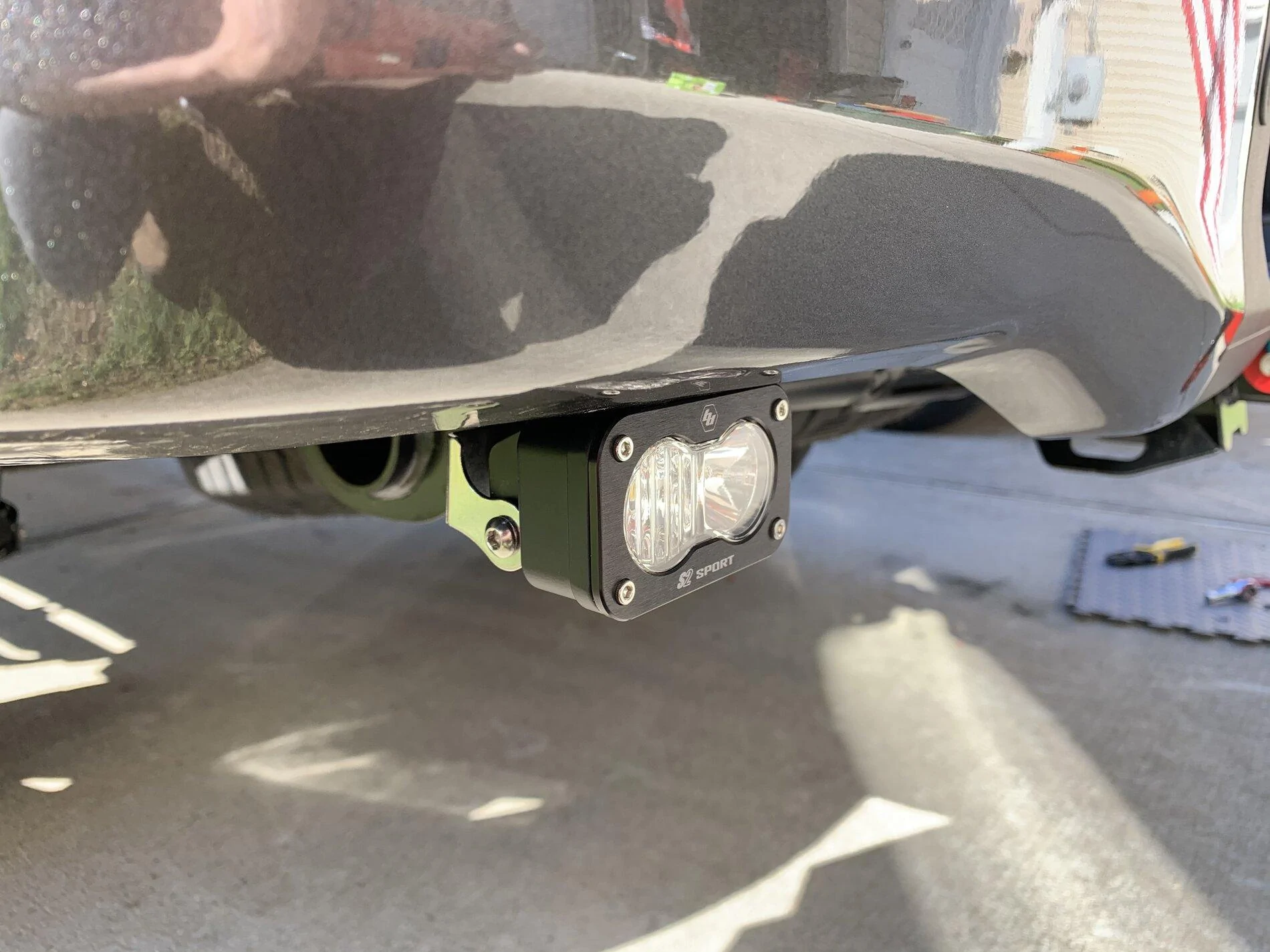

I decided to install these using 3” zinc steel flat bar pieces.

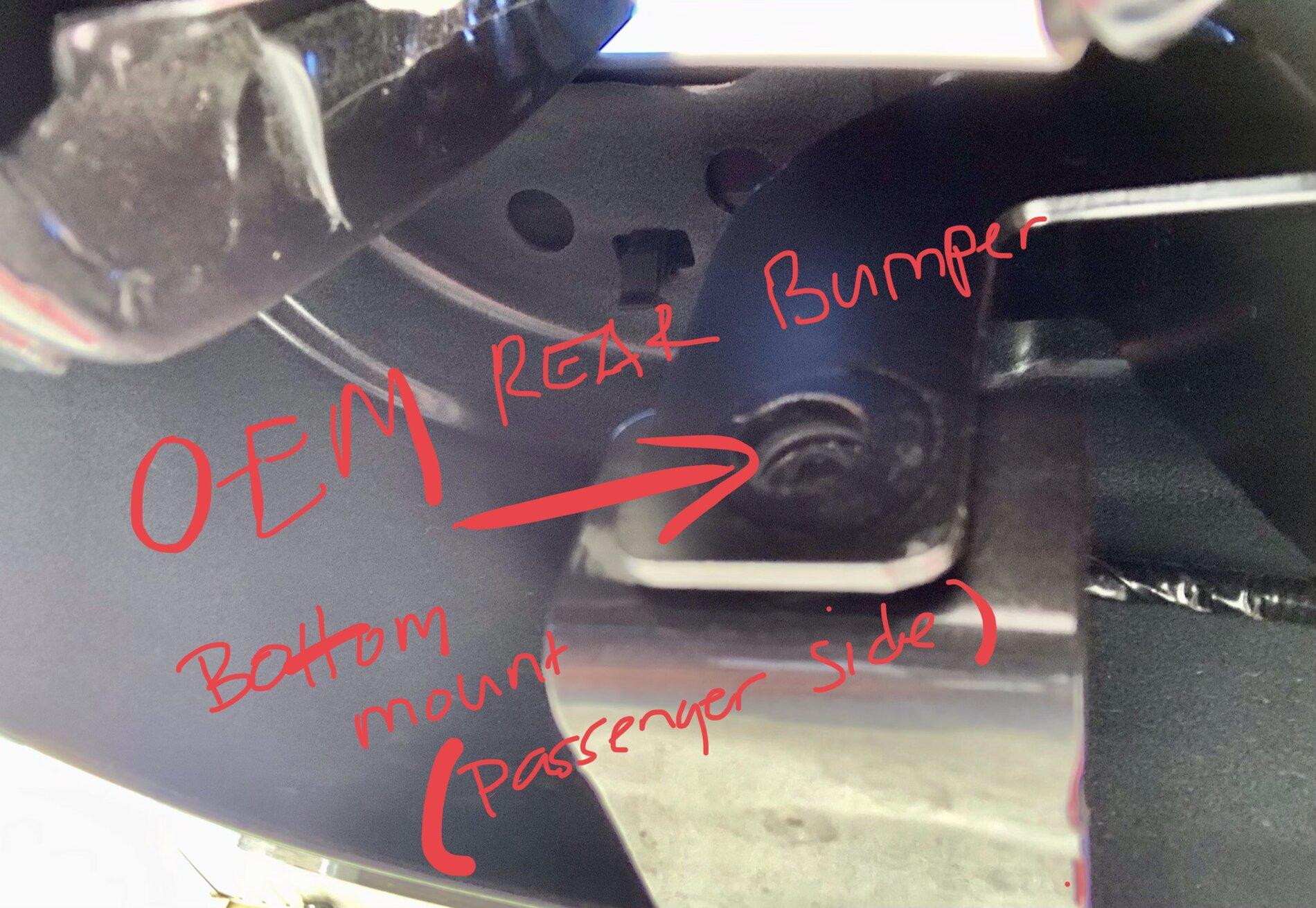

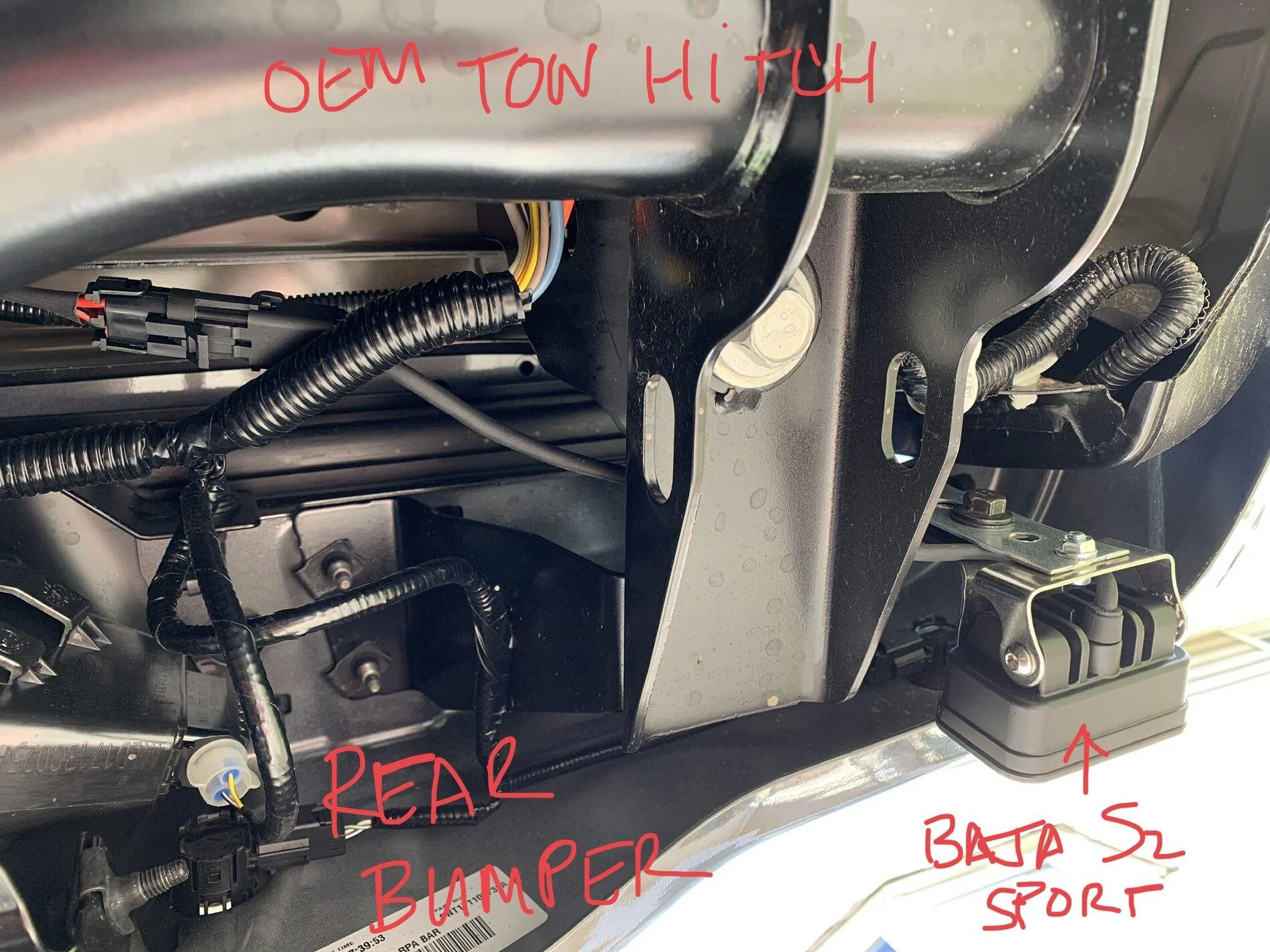

I just used the 2 oem bottom rear bumper mounts.

Note: These will be place holders, until my actual kit comes. :D

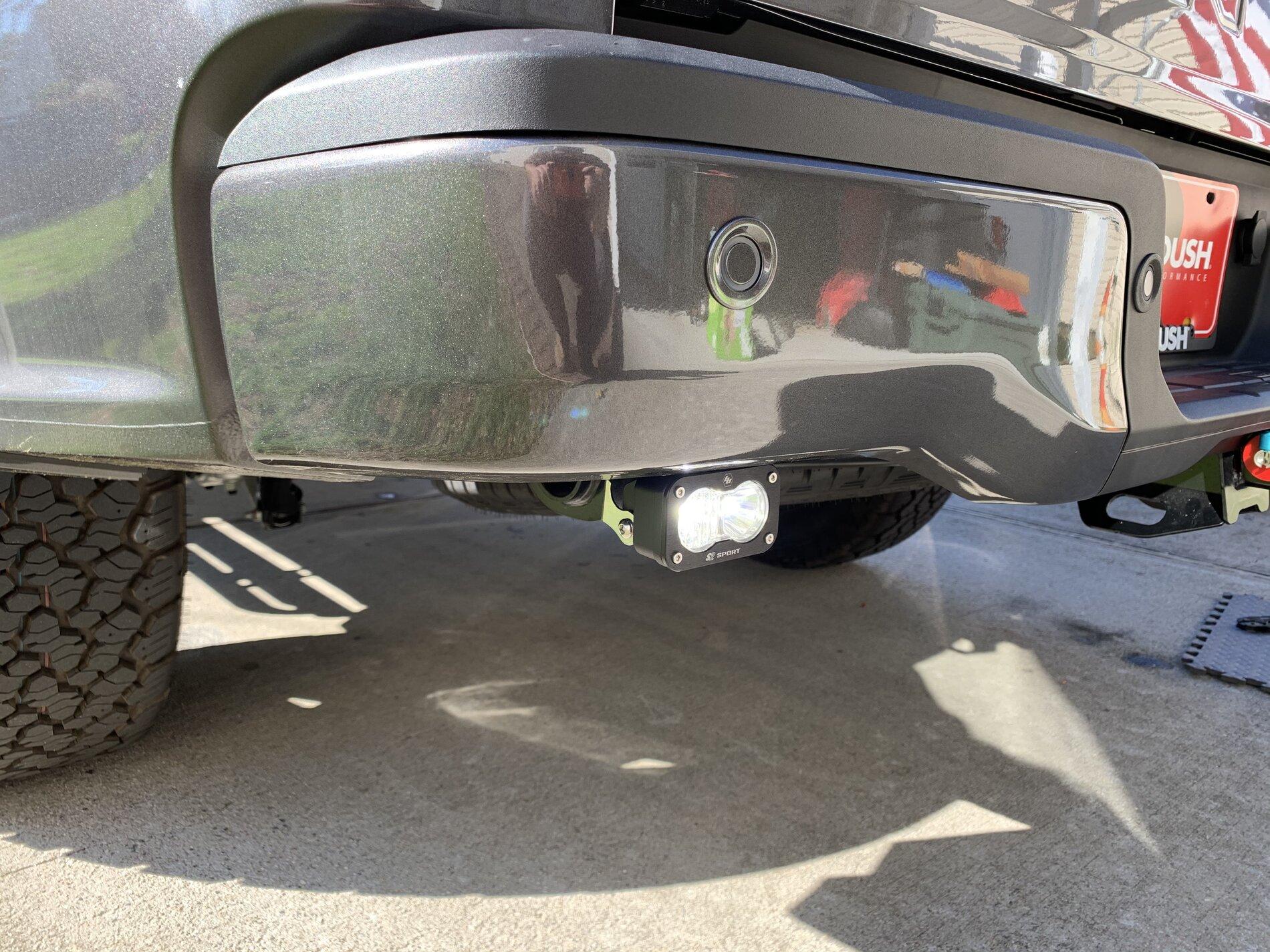

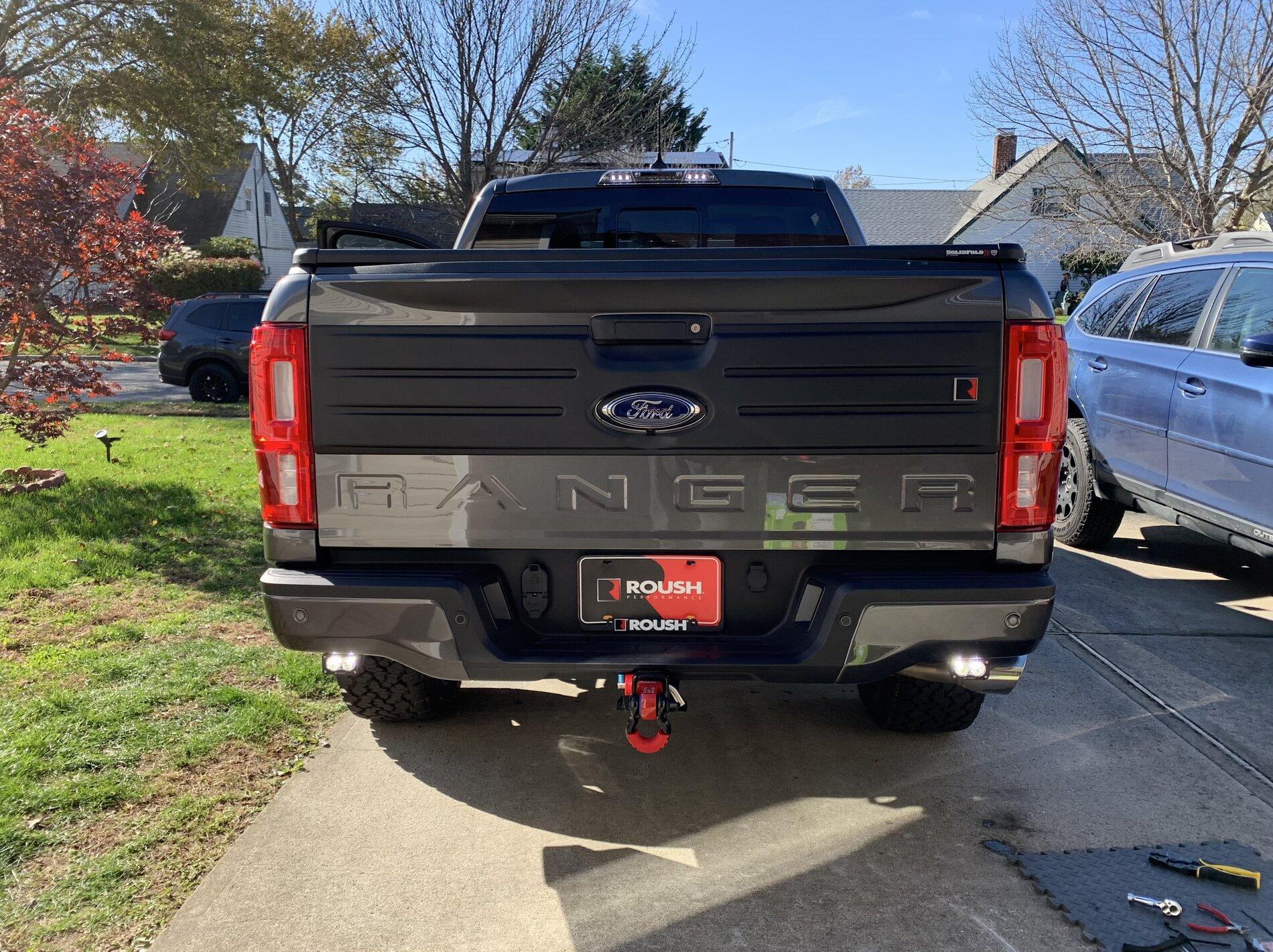

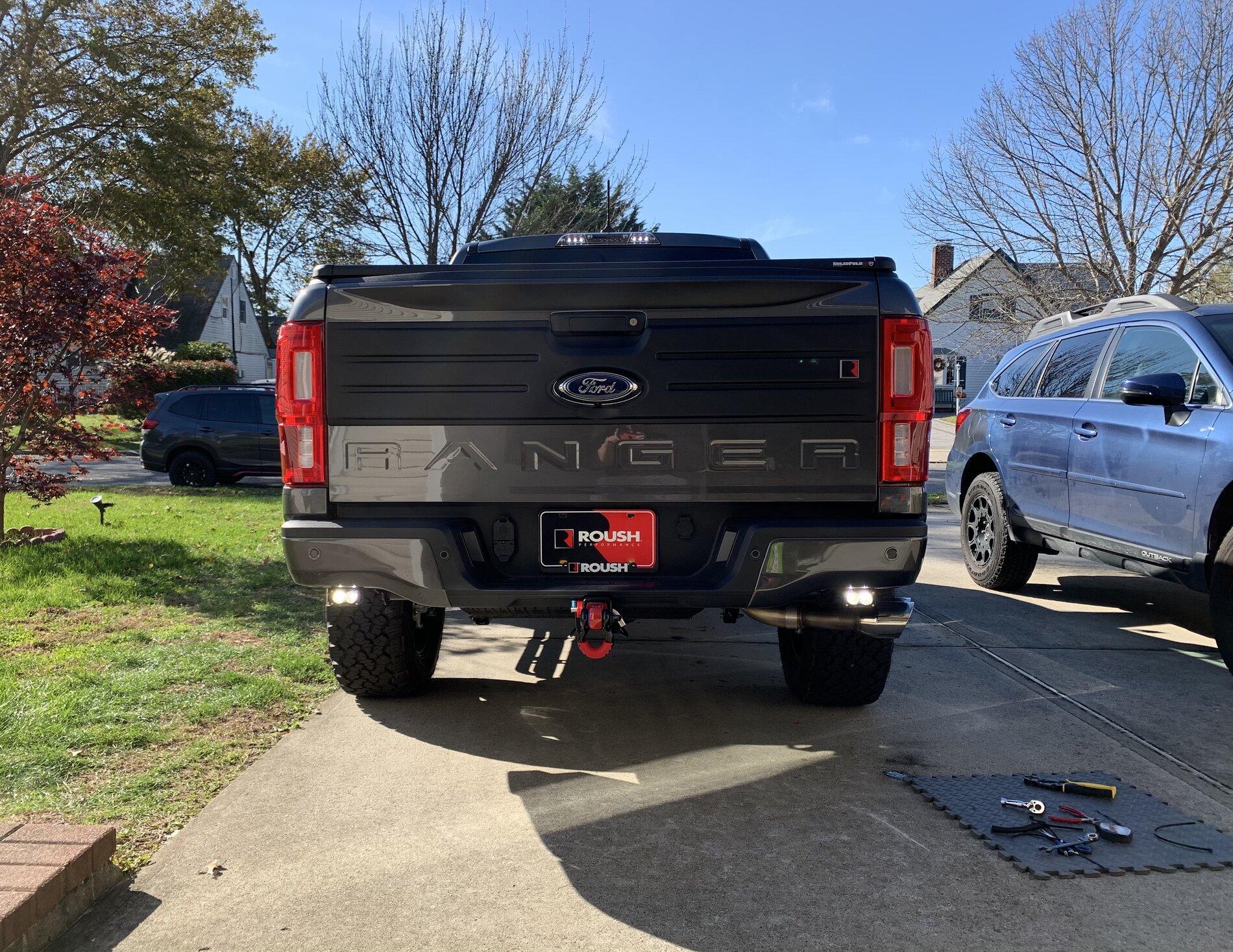

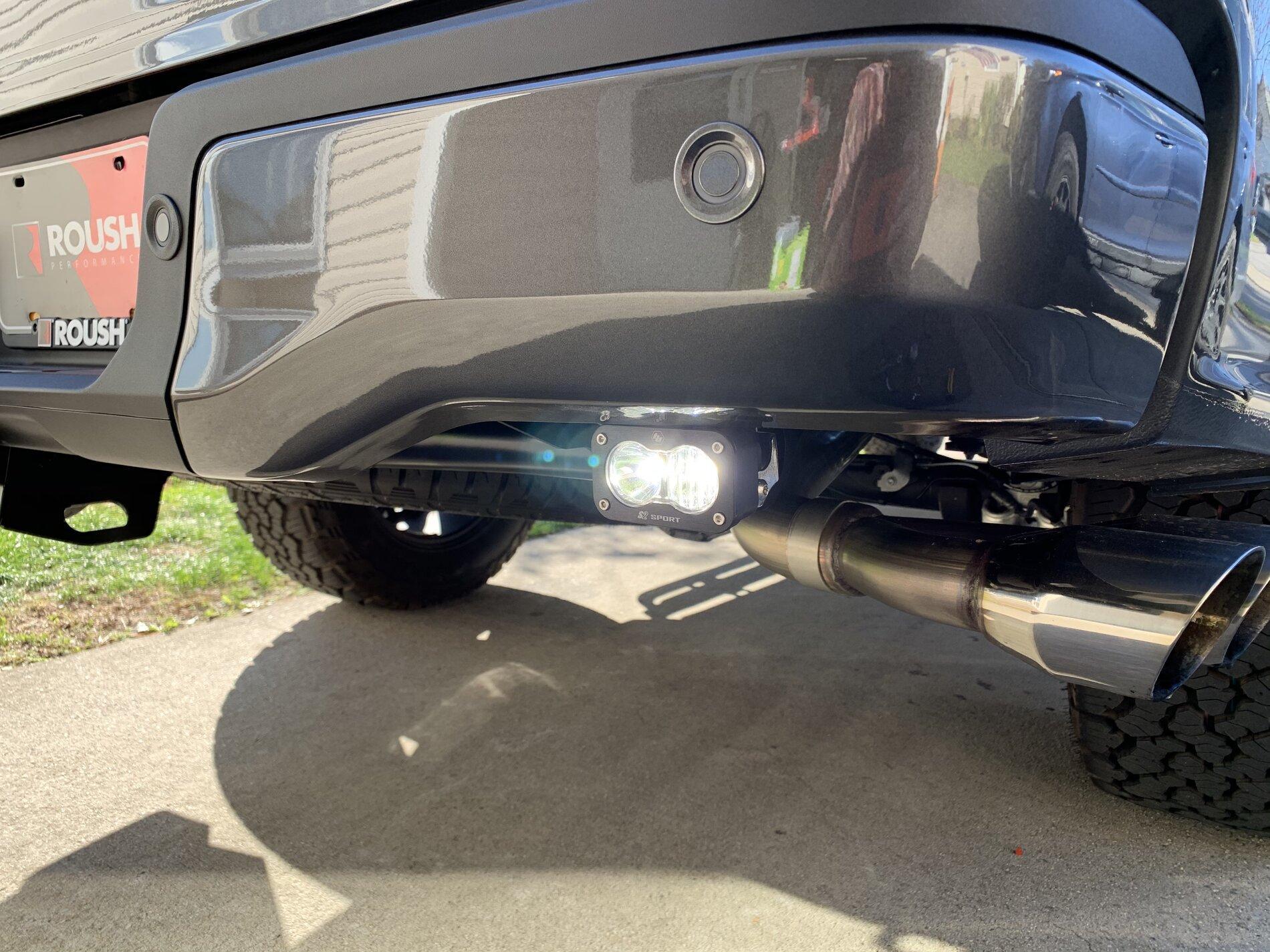

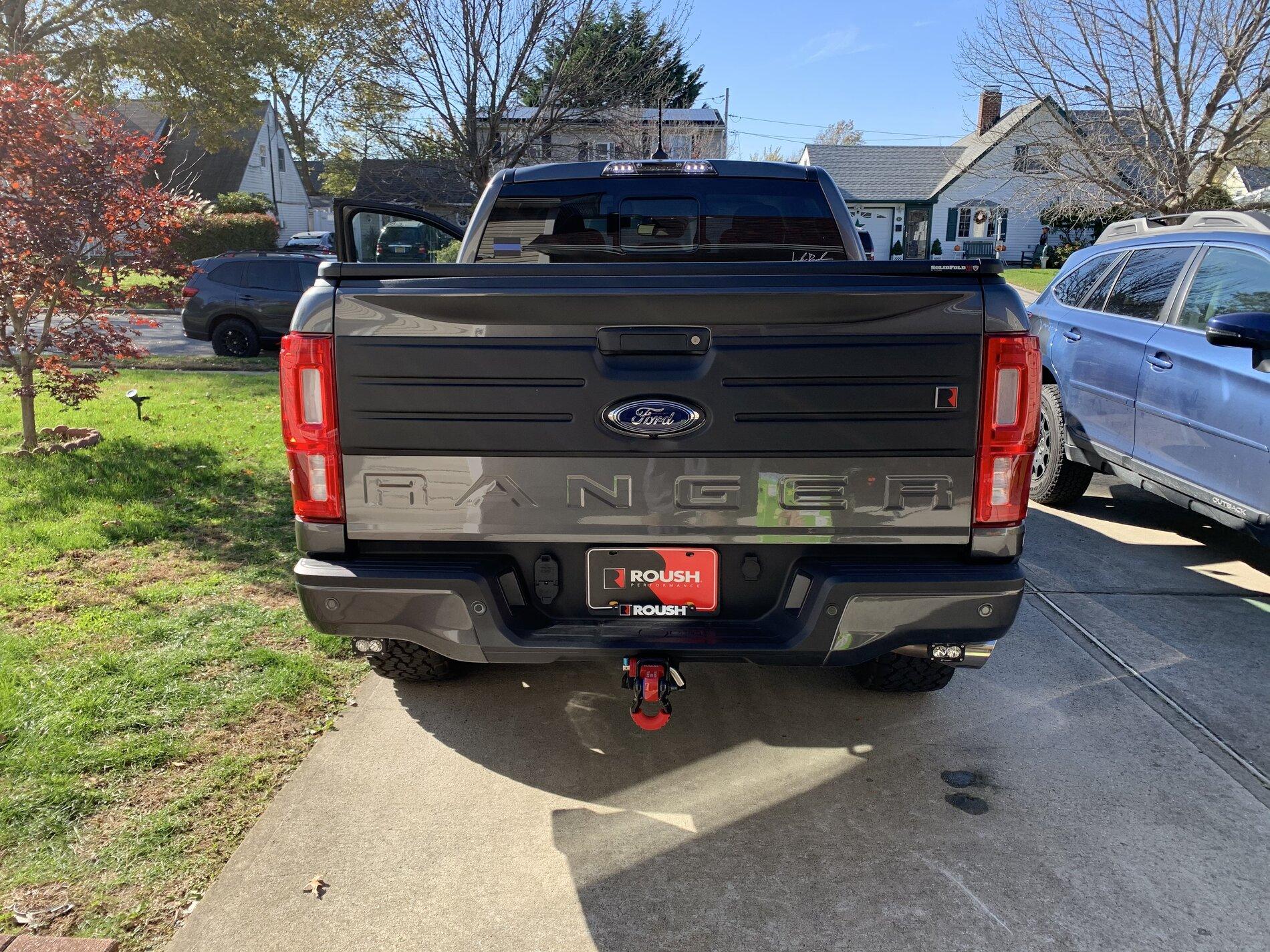

But, Hopefully this will give some members here an idea of where they can mount rear aux lights. ( useful as work lights or reverse aid)

As for the lights themselves, they’re bright with very little amp draw!
Only about 2 amps draw each, but puts out great amount of light.
I have used them on my previous trucks and happy with them.























I got excited when I saw this and then noticed you had it wired to the aux switch. I ordered the Reverse kit and it wanted you to splice into a reverse cable but instructions dont help if you have Blind spot monitoring set up.

Just tried to wire mine to the Reverse light wire and now I get a blind spot fault
