Window Module Install (detailed)

YouknowwhatImean

Well-Known Member
First Name
Zack Mayo
Joined
May 8, 2019
Threads
4
Messages
47
Reaction score
39
Location
Kalifornia, USA
Vehicle(s)
'19 XLT Ranger; '17 6spd WRX
Hey Guys,
Got my window module installed (correctly). These pics were during and/or post installation. Hopefully they will be of help and/or answer any questions that some may be wondering.

A few tips:
1. take your time. Set aside ~2 hours
2. Give thought to where you will stow the relay box -- longterm.

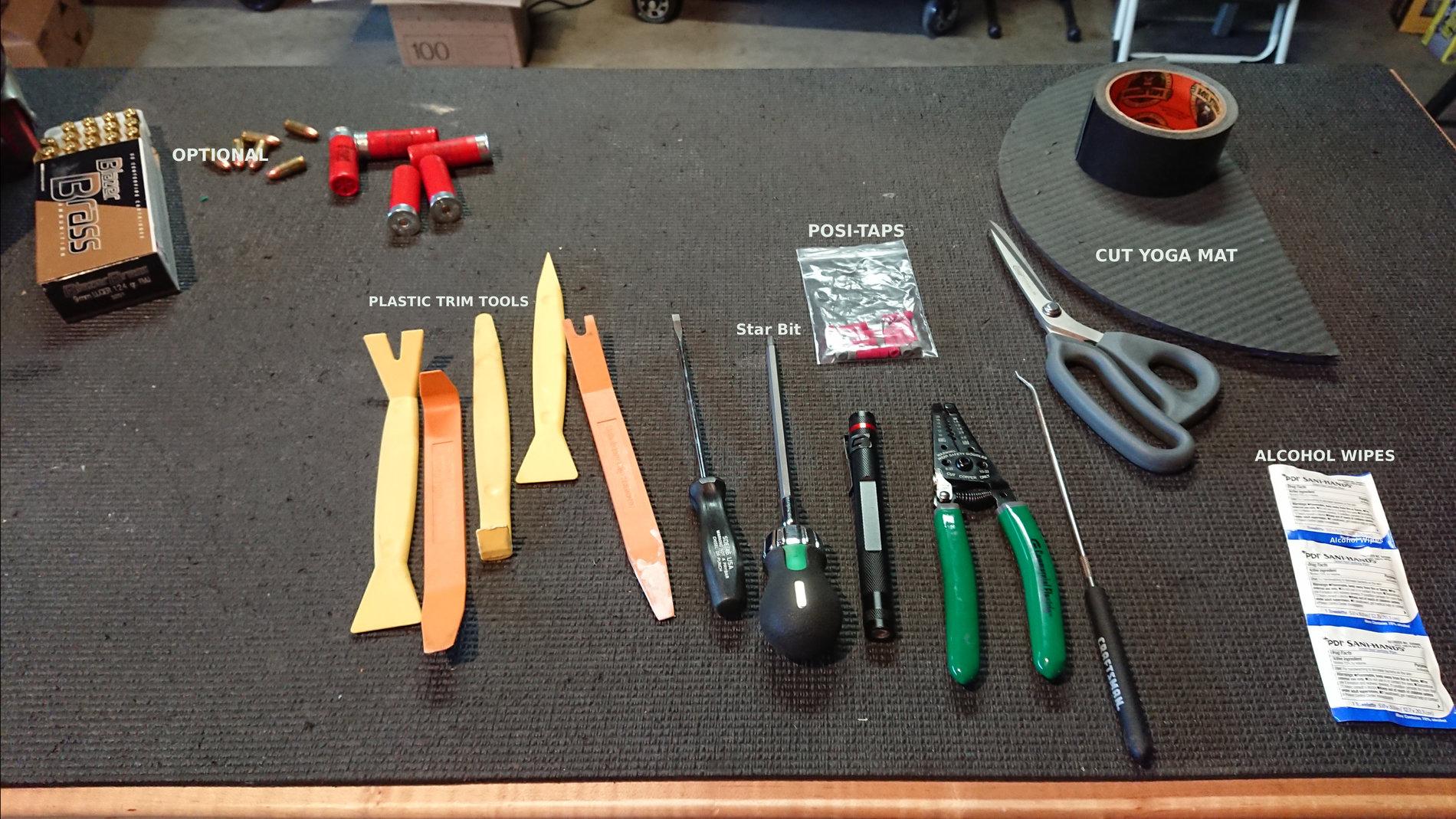

TOOLS NEEDED:

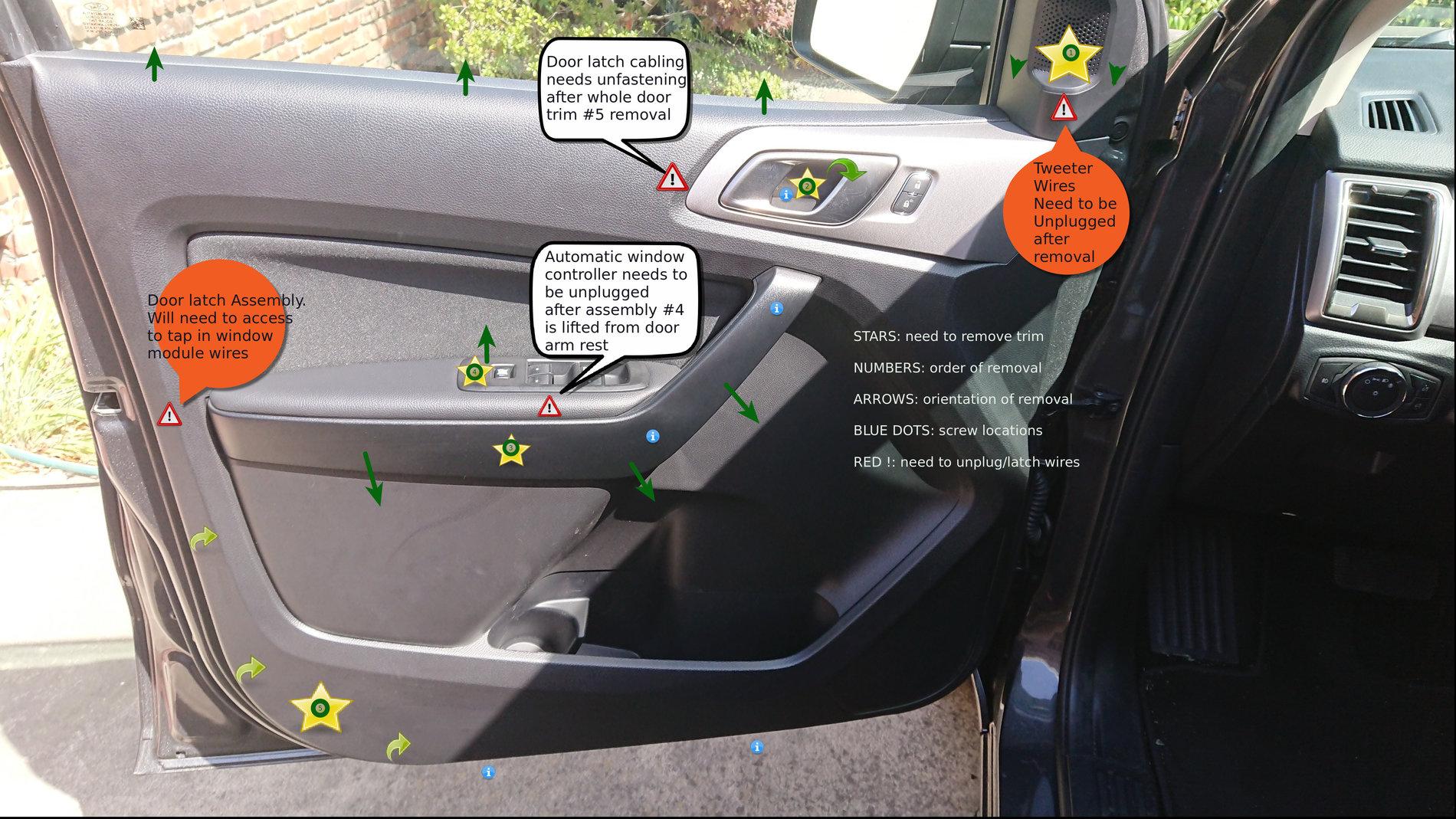

MOVING PARTS:

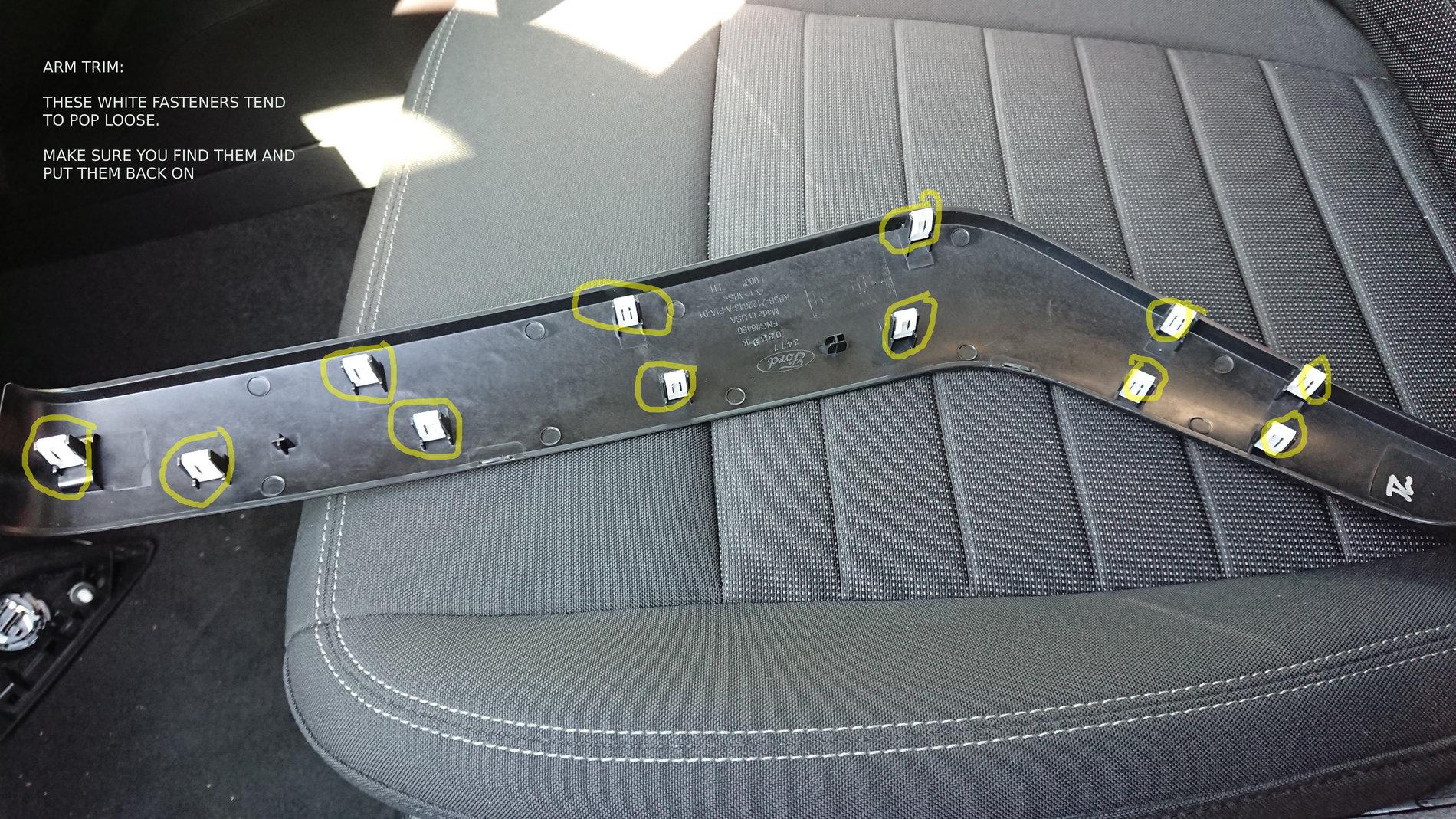

ARMREST:

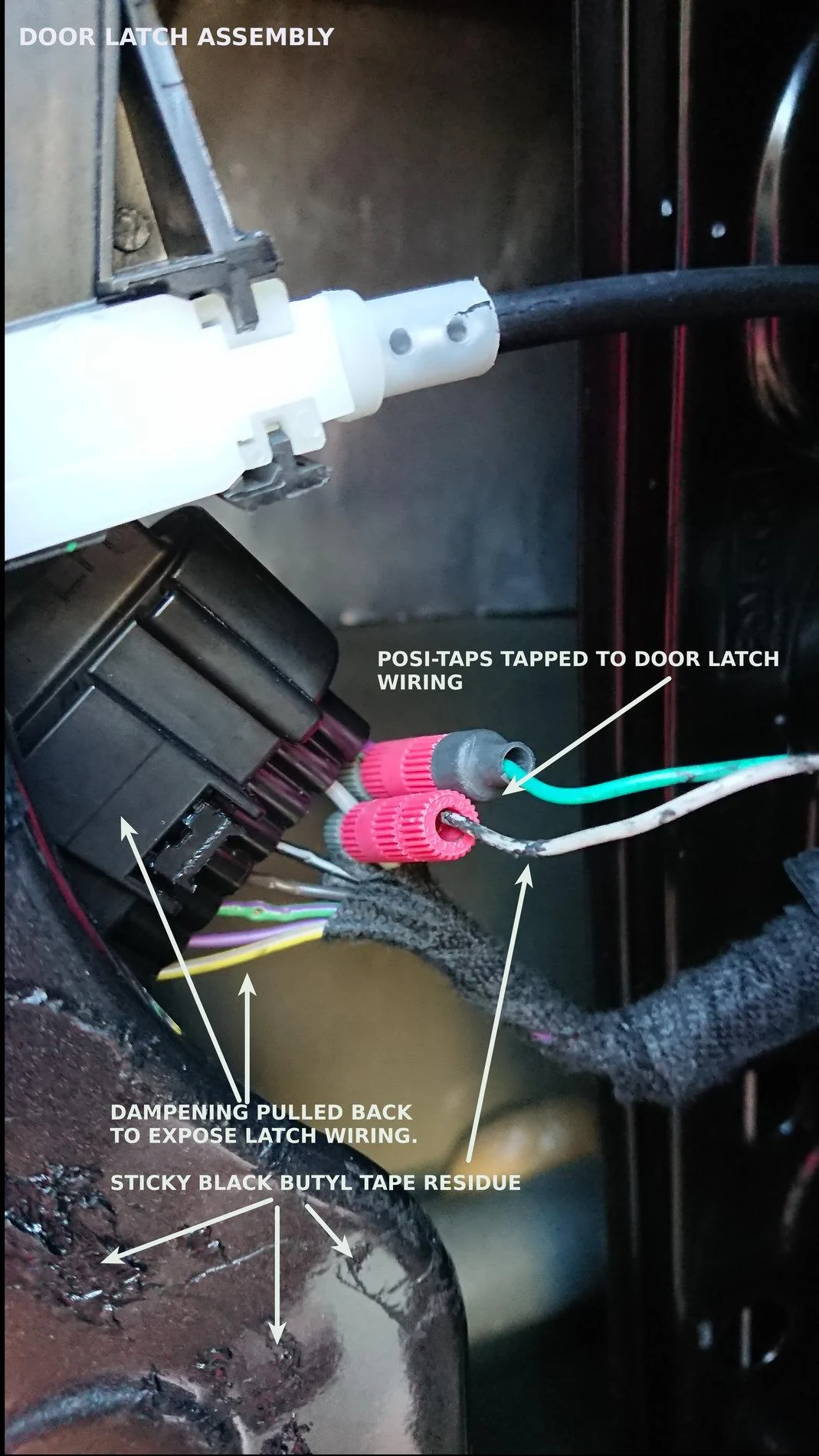

LATCH ASSEMBLY:

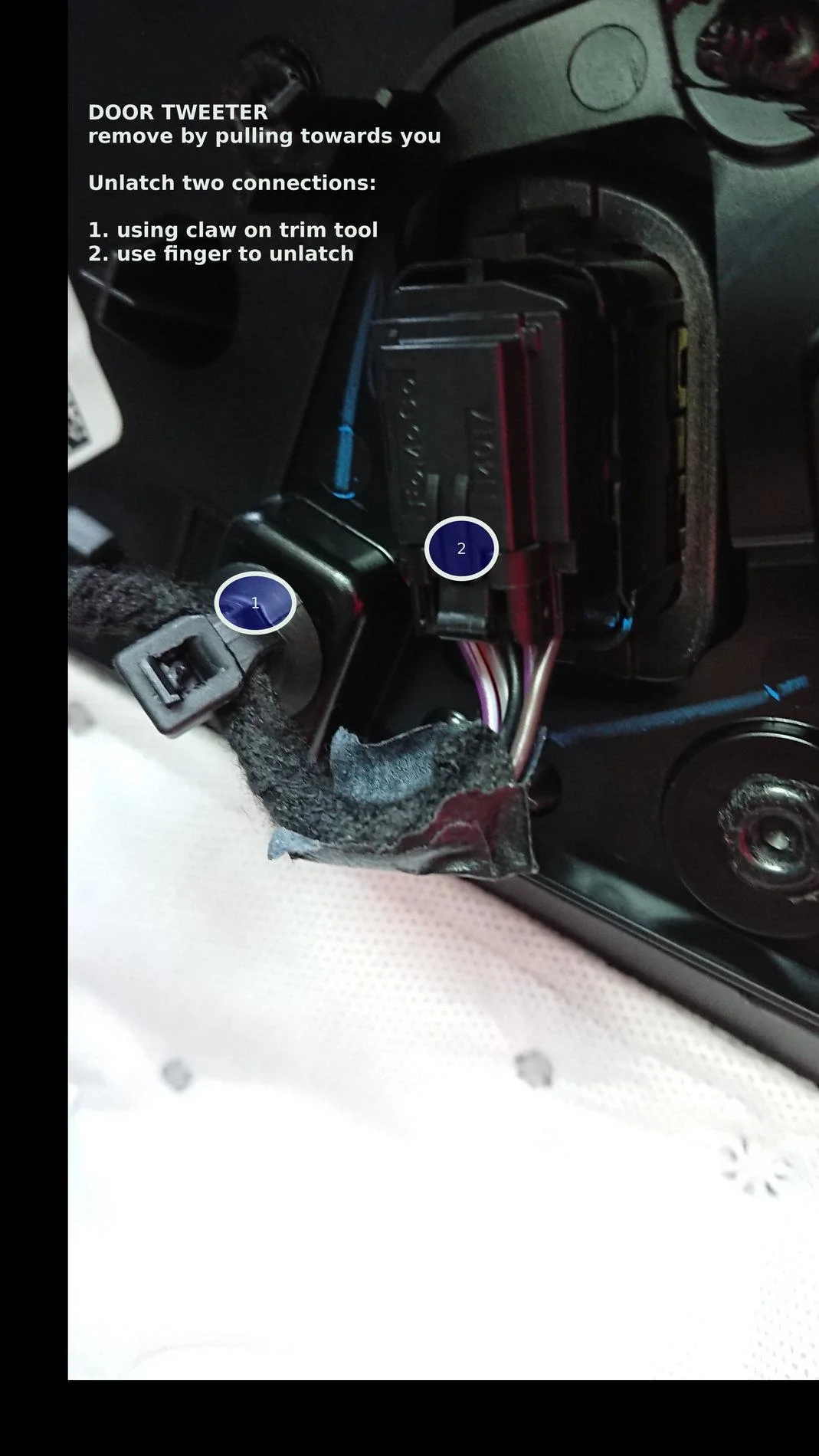

TWEETER:

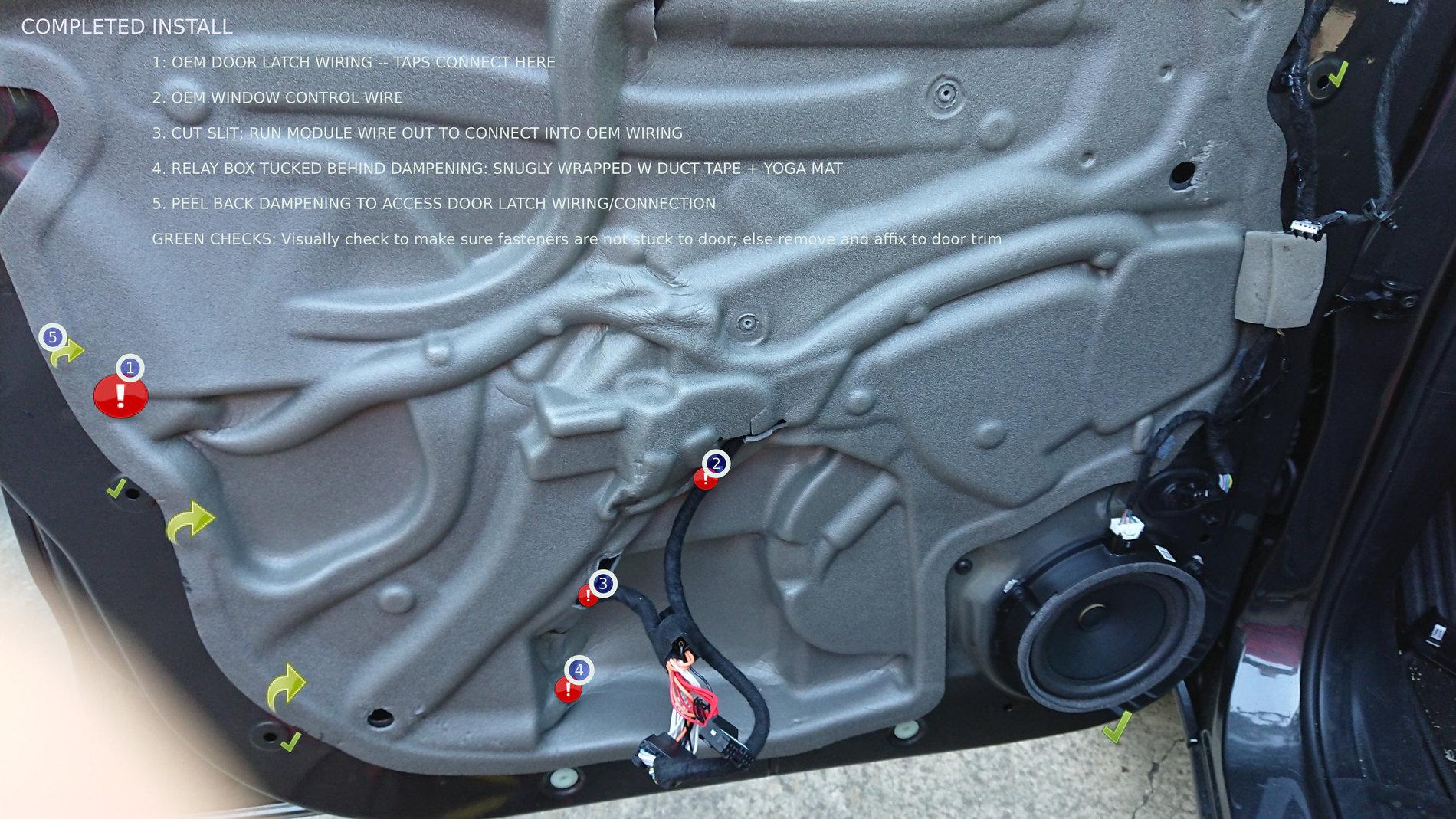

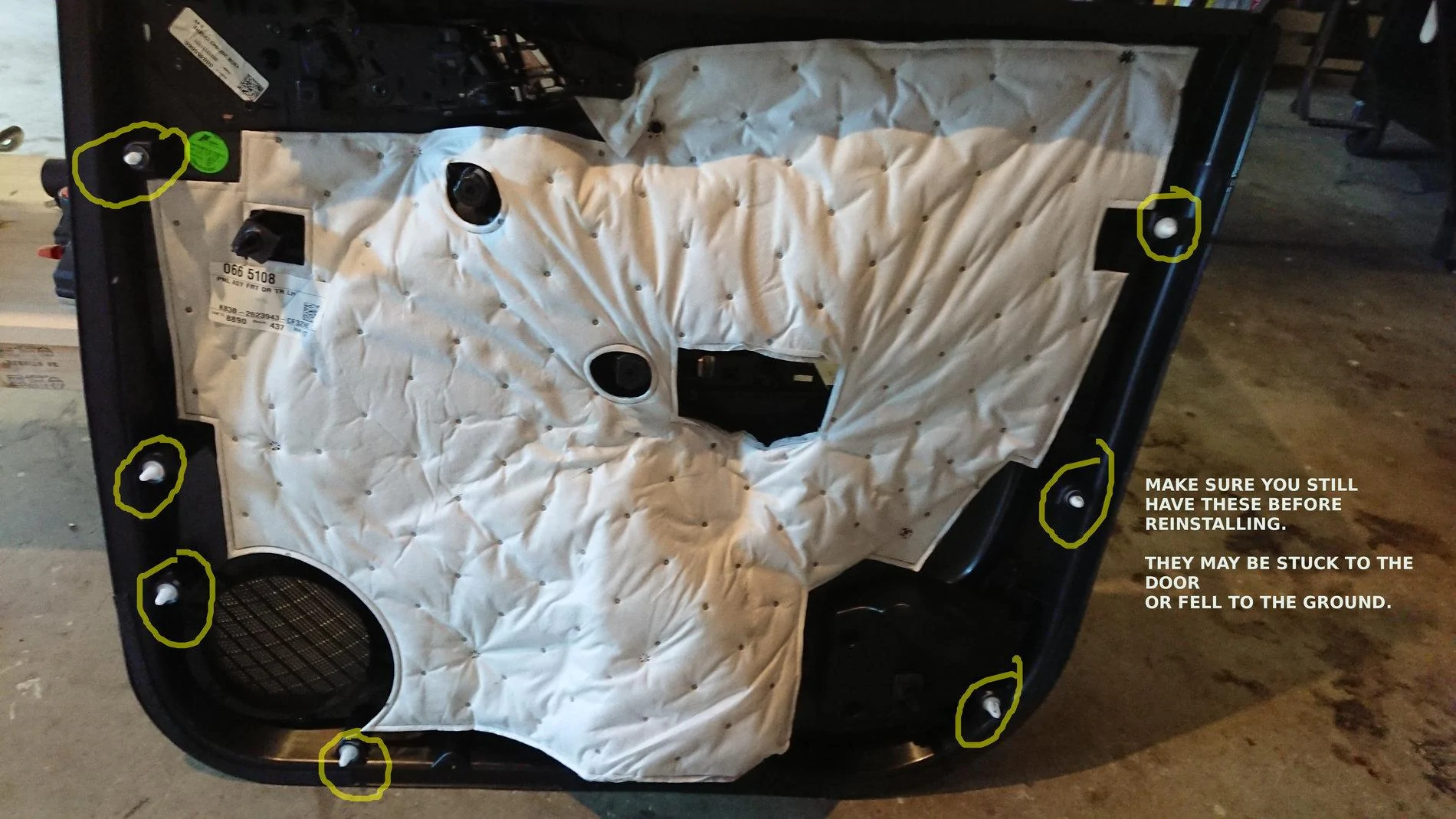

As you can see from the COMPLETED INSTALL picture; everything is tucked away nice and neatly. The posi-taps will endure the vibrations; the wrapped relay in yoga mat snugly tucked behind the door dampening will never rattle. I choose to put the relay behind the door dampening because i didn't think it would coexist peacefully inbetween the dampening and door trim. In doing so it would put pressure on the door panel and cause it to bow/warp over time. It may be able to coexist -- i don't know. I just think it's a cleaner install my chosen way.
