Where to put my switches in my '20 Ranger Lariet FX4?

WyoRanger

Active Member
First Name
Kymbrill
Joined
Nov 24, 2020
Threads
9
Messages
34
Reaction score
48
Location
Laramie, WY
Vehicle(s)
2020 Ranger Lariat FX-4
Occupation
Automotive Retail
I am wondering where to put aftermarket lighting switches on my Ranger? I have looked but not found a suitable place for them. Where have any of you put your switches? Ideas thoughts?

Kym
Sponsored



Big Blue

Well-Known Member
First Name
Lee
Joined
May 5, 2020
Threads
14
Messages
3,124
Reaction score
6,971
Location
Wisconsin
Vehicle(s)
2019 Ford Ranger XLT FX4 Supercrew lighting blue
Occupation
Retired mechanical designer
The Lightforce facia is a popular switch mounting panel. Do a search on "Lightforce", you'll find several threads. A general search on "switch panels" will probably give multiple other options.


DrewKD88

Well-Known Member
First Name
Drew
Joined
Jun 8, 2020
Threads
6
Messages
251
Reaction score
491
Location
Pasadena, Ca
Vehicle(s)
2019 Ford Ranger XLT FX4
Occupation
IT Guy

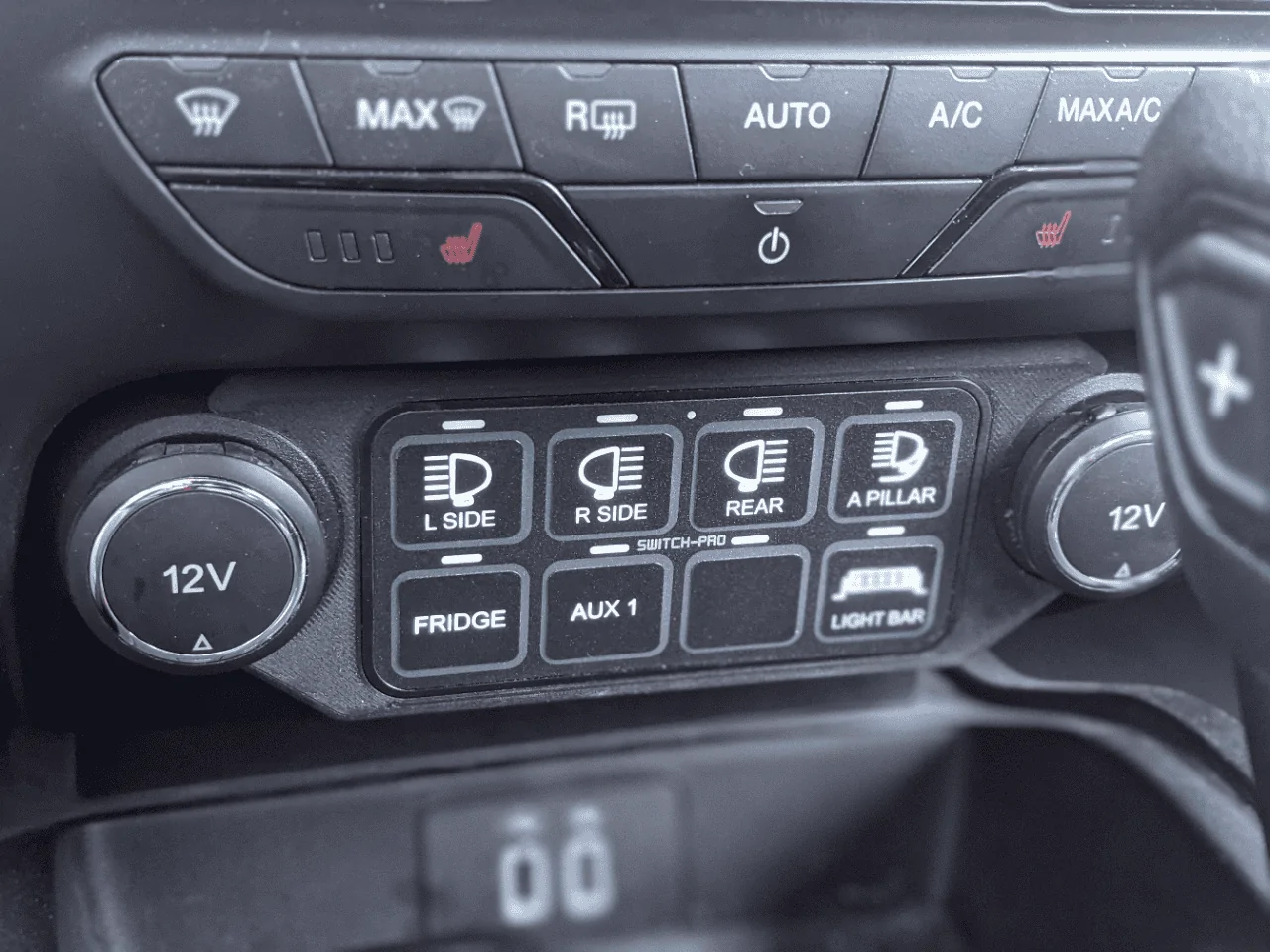

I use a Switch Pros 8 panel for my switching needs. The LED's are configurable so I color matched them to the OEM lighting. I bought a Switch Pros mount from from SDHQ. Everything looks factory.

I originally went with SPOD but could not find any good mounting options. I then switched to Switch Pros. I suggest using a quality switching solution to prevent drain on your battery and added protection of your devices.



OFC Ranger

Well-Known Member
First Name
Jack
Joined
Aug 3, 2020
Threads
290
Messages
4,795
Reaction score
13,244
Location
Georgia
Vehicle(s)
ZR2
Vehicle Showcase
1

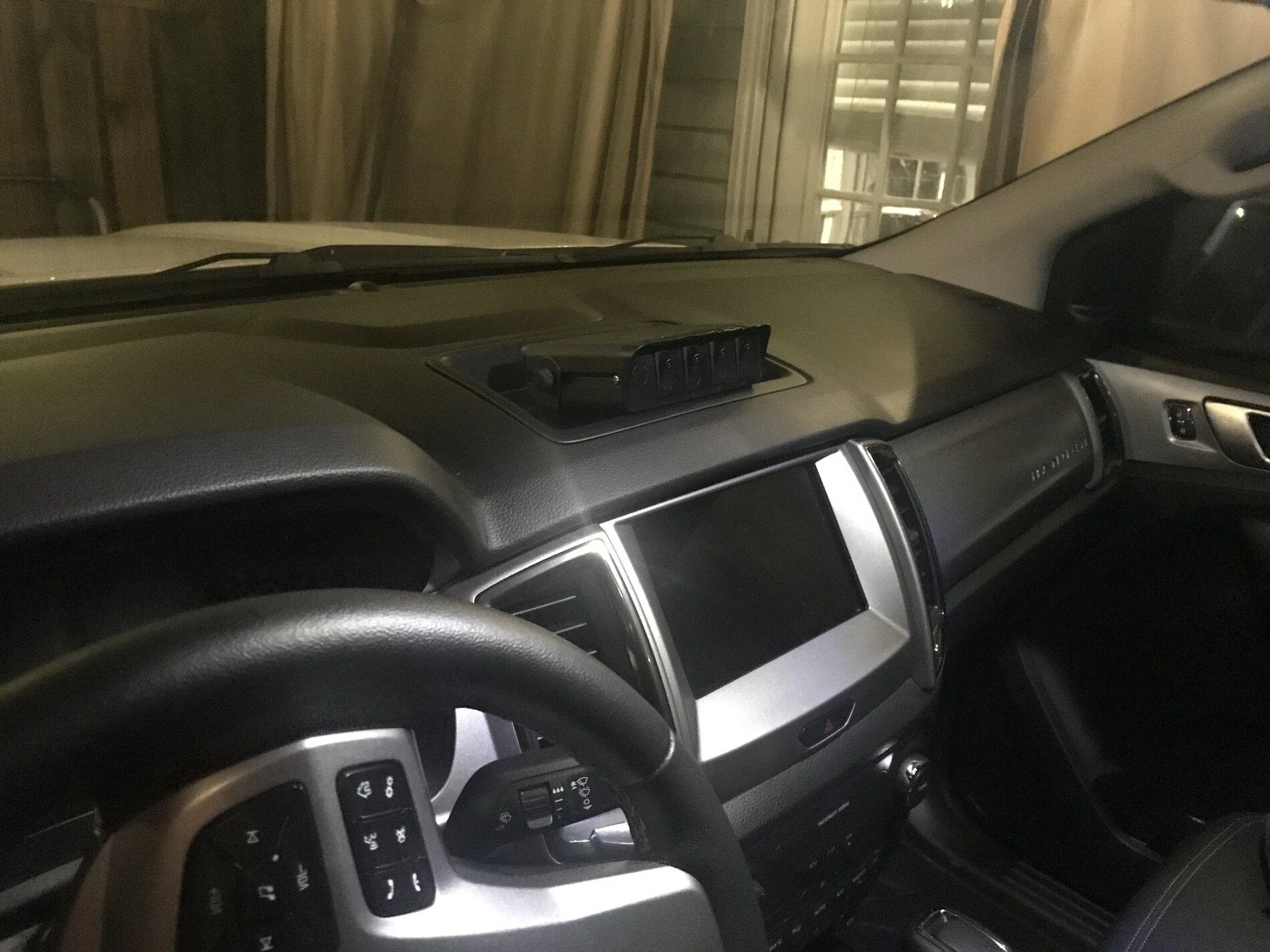

Dash tray. Any place not eye level is awkward to toggle. I use to have this by the hood release and it is a poor position to fumble for switches. While the climate control area fascia is popular it has the same problem to me. Looks pretty but not a natural place to reach.

$23 or $30 for 6 switches + $15 trim removal set is all it cost. Also it is self contained circuitry fuses as well.

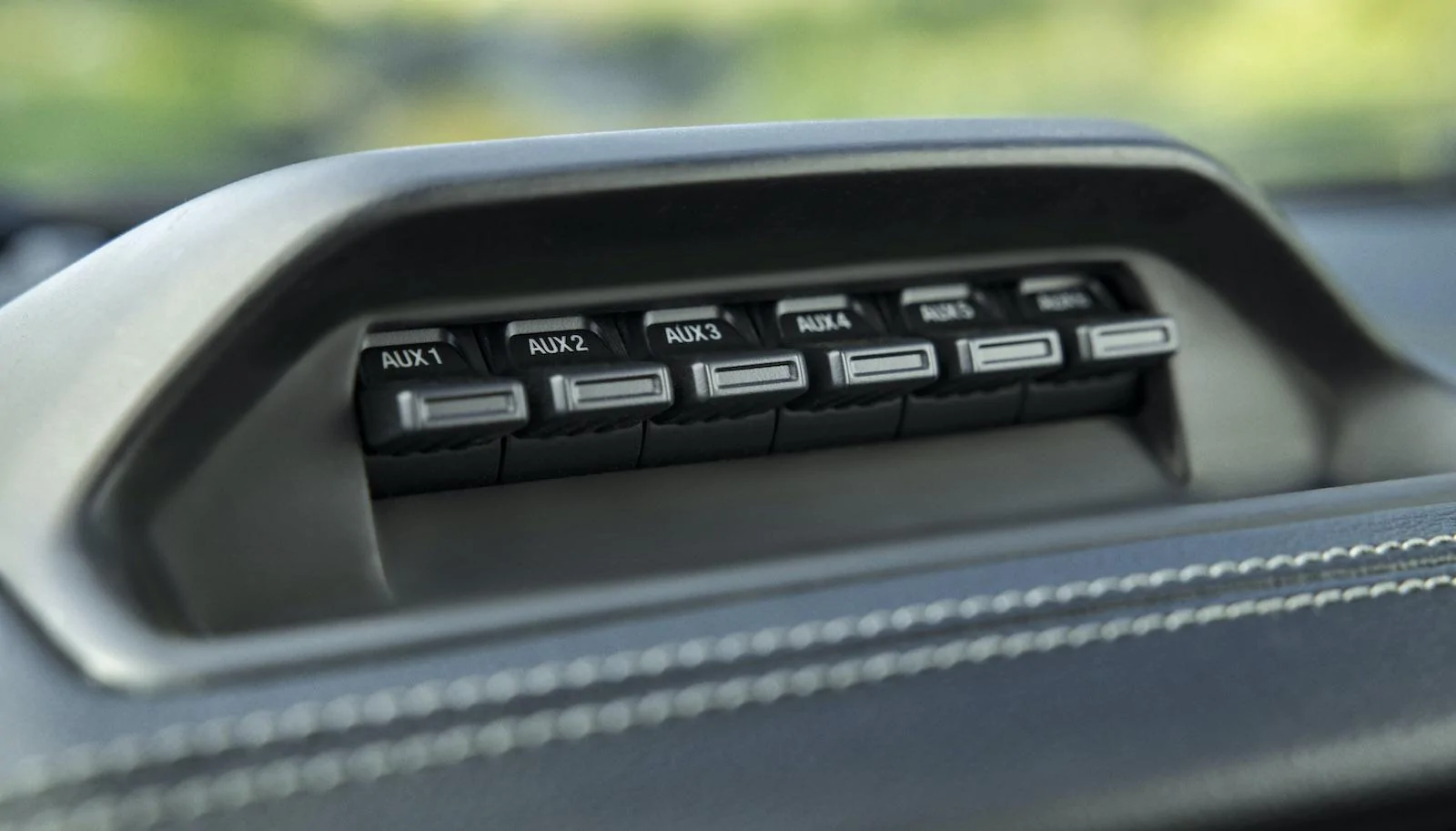

Even Ford is placing switches jn the dash tray with the Tremor.
