Whats a Ranger look like without the intrusion beams altogether? Is there a giant void or opened up body panel?

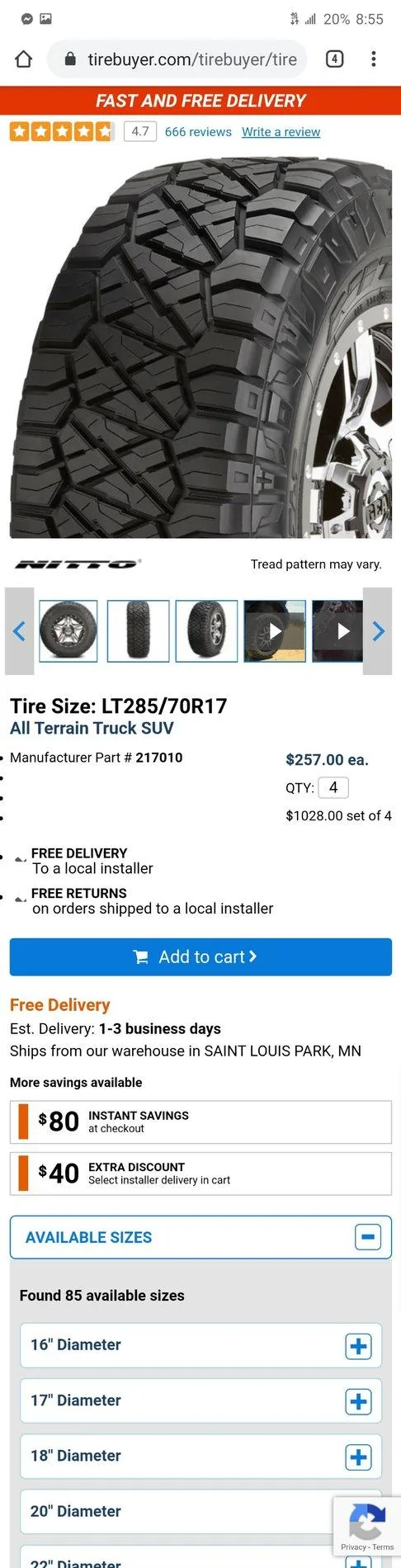

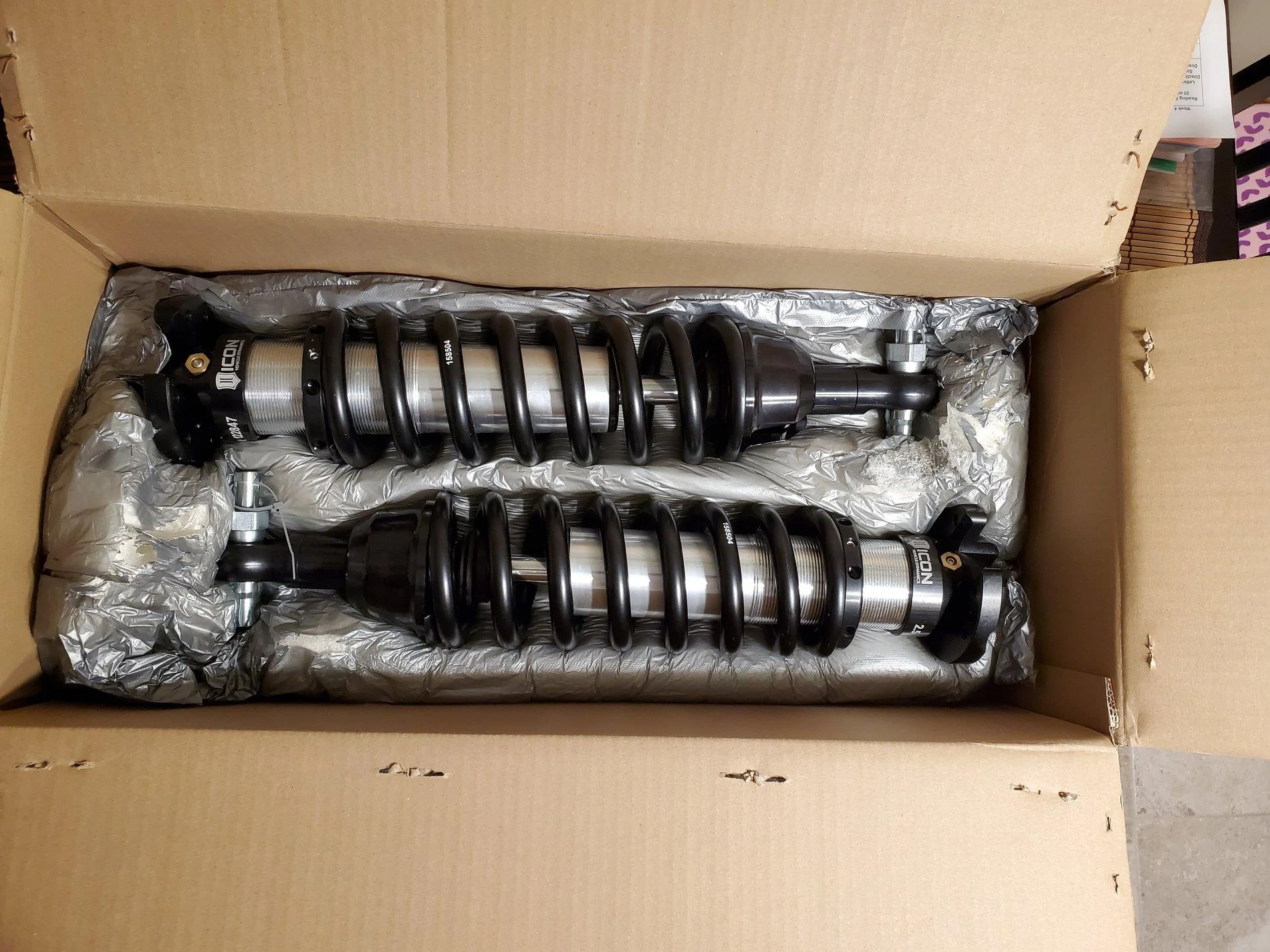

I am going with an Icon stage 1 leveling kit and 285-70-17 Nitto Ridge Grapplers and 1.25" spacers on factory 17" magnetic sport wheels, i have a feeling I will rub but I'm not sure. Posts all over the place with different results. I don't have time to order bds offset crash bars yet. Those can come after the install, but debating if I should cut or delete the crash bars now nefore the install, then do the bds once they come?

I loosened and adjusted the fronts as far forward as I could and retighrened them, do I wait and see if I rub?



Advertisement



OP
OxyGenIII

OxyGenIII

Well-Known Member
First Name
Corey
Joined
Jun 20, 2019
Messages
197
Reaction score
193
Location
Minnesota
Vehicle(s)
2016 Focus ST maybe Ranger in a couple days.
  • Thread starter
  • Thread Starter
  • #2


FL.ranger

Well-Known Member
Joined
Feb 29, 2020
Messages
65
Reaction score
79
Location
South Florida
Vehicle(s)
2019 Ford Ranger Lariat

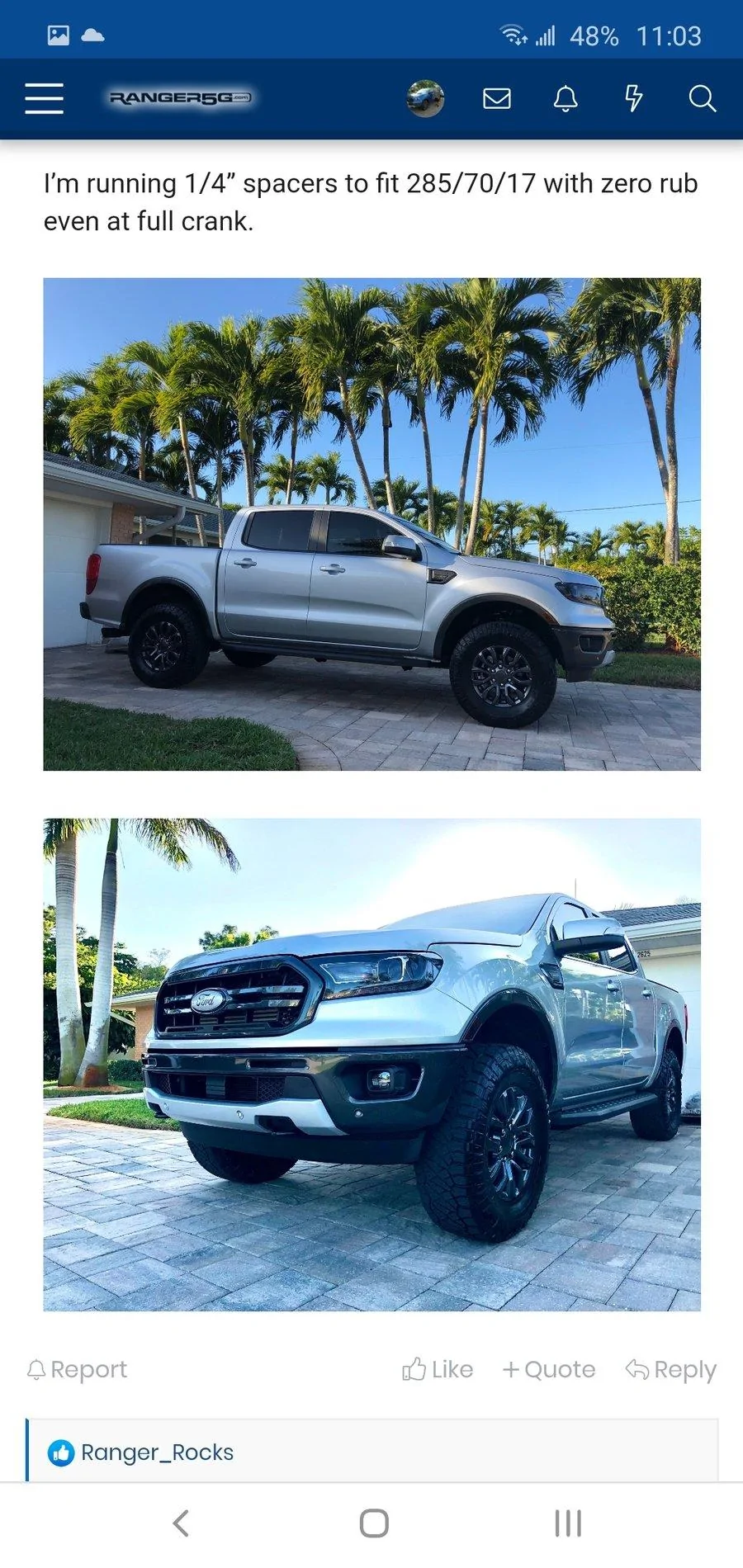

I think you might be fine. I have a 3” level and 1/4” front spacers with 285/70/17 Nitto Ridge Grapplers and I clear the crash bars. Stock wheels as well.
I did take the plastic cover off of them.
Getting the FOX 2.0s w/ BDS uppers . I still think I’ll be fine with the crash bars.
It’s when I run a lower offset rim, then you will have crash bar issues.

OP
OxyGenIII

OxyGenIII

Well-Known Member
First Name
Corey
Joined
Jun 20, 2019
Messages
197
Reaction score
193
Location
Minnesota
Vehicle(s)
2016 Focus ST maybe Ranger in a couple days.
  • Thread starter
  • Thread Starter
  • #4
I think you might be fine. I have a 3” level and 1/4” front spacers with 285/70/17 Nitto Ridge Grapplers and I clear the crash bars. Stock wheels as well.
I did take the plastic cover off of them.
Getting the FOX 2.0s w/ BDS uppers . I still think I’ll be fine with the crash bars.
It’s when I run a lower offset rim, then you will have crash bar issues.

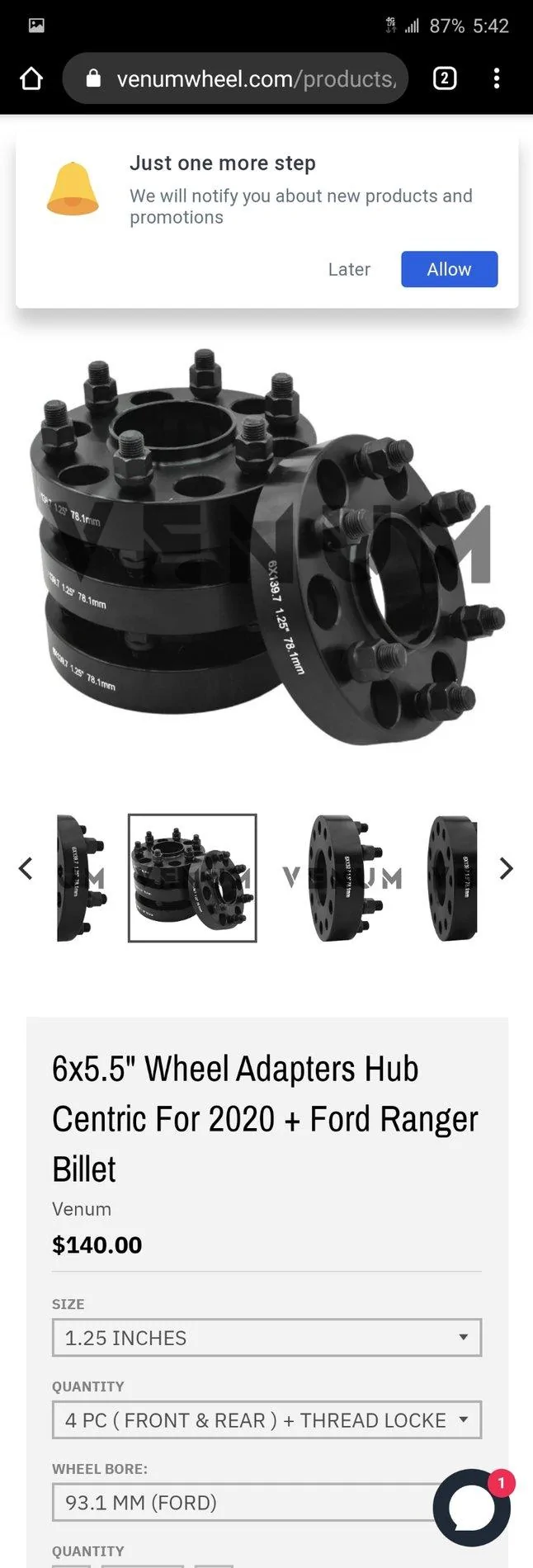

With the 1.25" spacers I'm essentially running a a 17x7" wheel with 23mm offset vs the 17x7" 55mm offset wheels if you break the spacer down into offset. Most ranger wheels are 18 or less so that's a good sign im not too far out, I hope. Haha. I couldn't find anyone with the 1" in stock.

I will remove the two Phillips plastic screws that hold that cap on tomorrow and see if that's enough. Pray 🙏


FL.ranger

Well-Known Member
Joined
Feb 29, 2020
Messages
65
Reaction score
79
Location
South Florida
Vehicle(s)
2019 Ford Ranger Lariat
With the 1.25" spacers I'm essentially running a a 17x7" wheel with 23mm offset vs the 17x7" 55mm offset wheels if you break the spacer down into offset. Most ranger wheels are 18 or less so that's a good sign im not too far out, I hope. Haha. I couldn't find anyone with the 1" in stock.

I will remove the two Phillips plastic screws that hold that cap on tomorrow and see if that's enough. Pray 🙏
I also heard that you can loose the crash bar bolts, and push it back to give you a quarter of an inch or so.

OP
OxyGenIII

OxyGenIII

Well-Known Member
First Name
Corey
Joined
Jun 20, 2019
Messages
197
Reaction score
193
Location
Minnesota
Vehicle(s)
2016 Focus ST maybe Ranger in a couple days.
  • Thread starter
  • Thread Starter
  • #6
I also heard that you can loose the crash bar bolts, and push it back to give you a quarter of an inch or so.
I did loosen them, one slid forward 1/4" forward, the other was already forward pretty much.

Tires come in to Discount Tire Wednesday. Not sure if they're going on Wednesday or the following day. Leveling kit and spacers tomorrow. So I was debating if when they have the front tires off tomorrow if we should just remove them. I prefer not to, if I won't need to.

So I guess my opinion is I'll leave them and check for rub first. If I rub them they're going bye bye and I will order the BDS ones. Remove plastic caps, reconfirm I've loosened them and slid them forward and wait and see.

Your truck and one other members were my inspiration for the look. Screen shots on my phone, haha.

OP
OxyGenIII

OxyGenIII

Well-Known Member
First Name
Corey
Joined
Jun 20, 2019
Messages
197
Reaction score
193
Location
Minnesota
Vehicle(s)
2016 Focus ST maybe Ranger in a couple days.
  • Thread starter
  • Thread Starter
  • #7

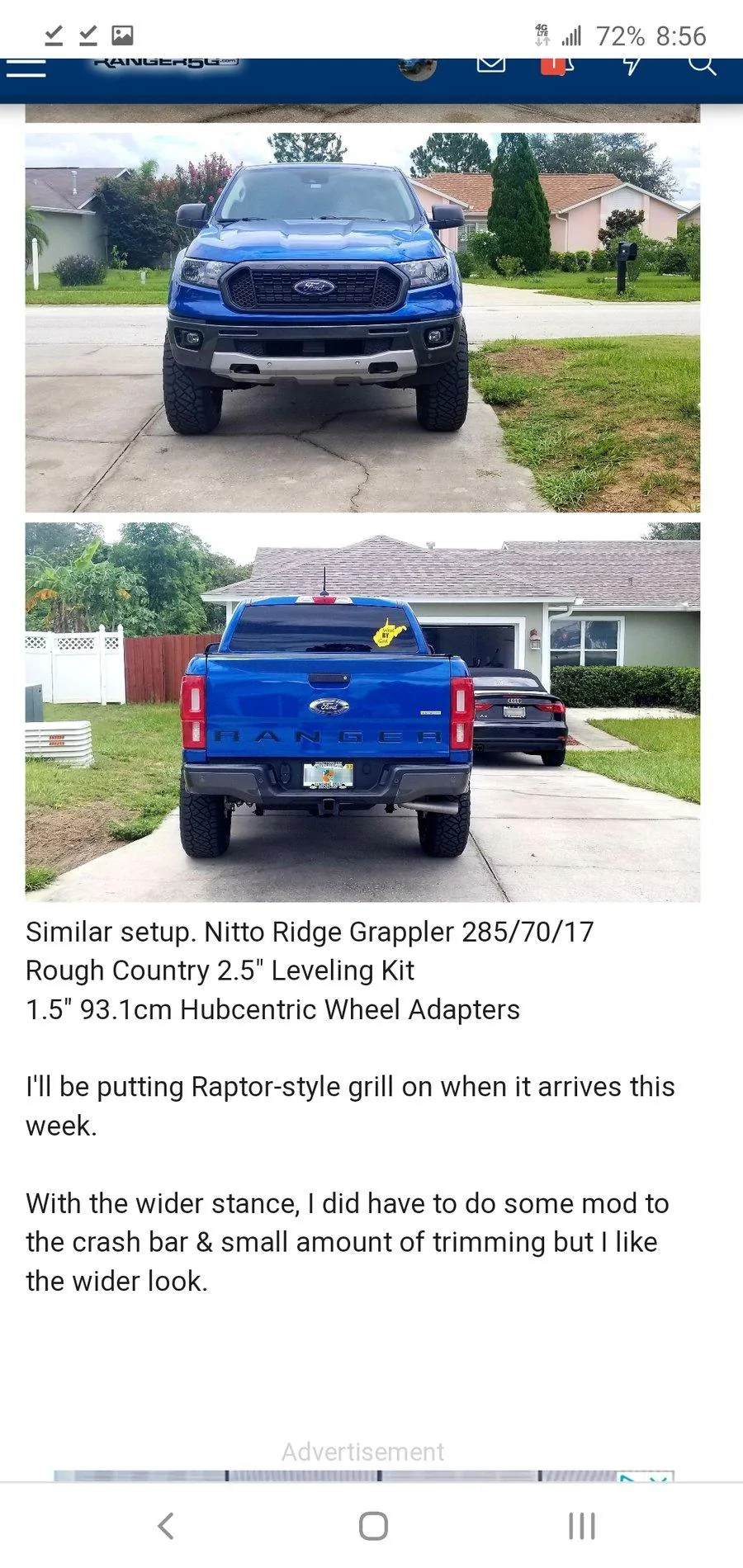

Between your 1/4" spacer and his 1.5" I'm a little less than him, so maybe no modification is needed.


Guinness

Well-Known Member
First Name
Nick
Joined
Apr 9, 2019
Messages
65
Reaction score
25
Location
San Diego
Vehicle(s)
Ranger FX4 Lariat
Occupation
Engineer

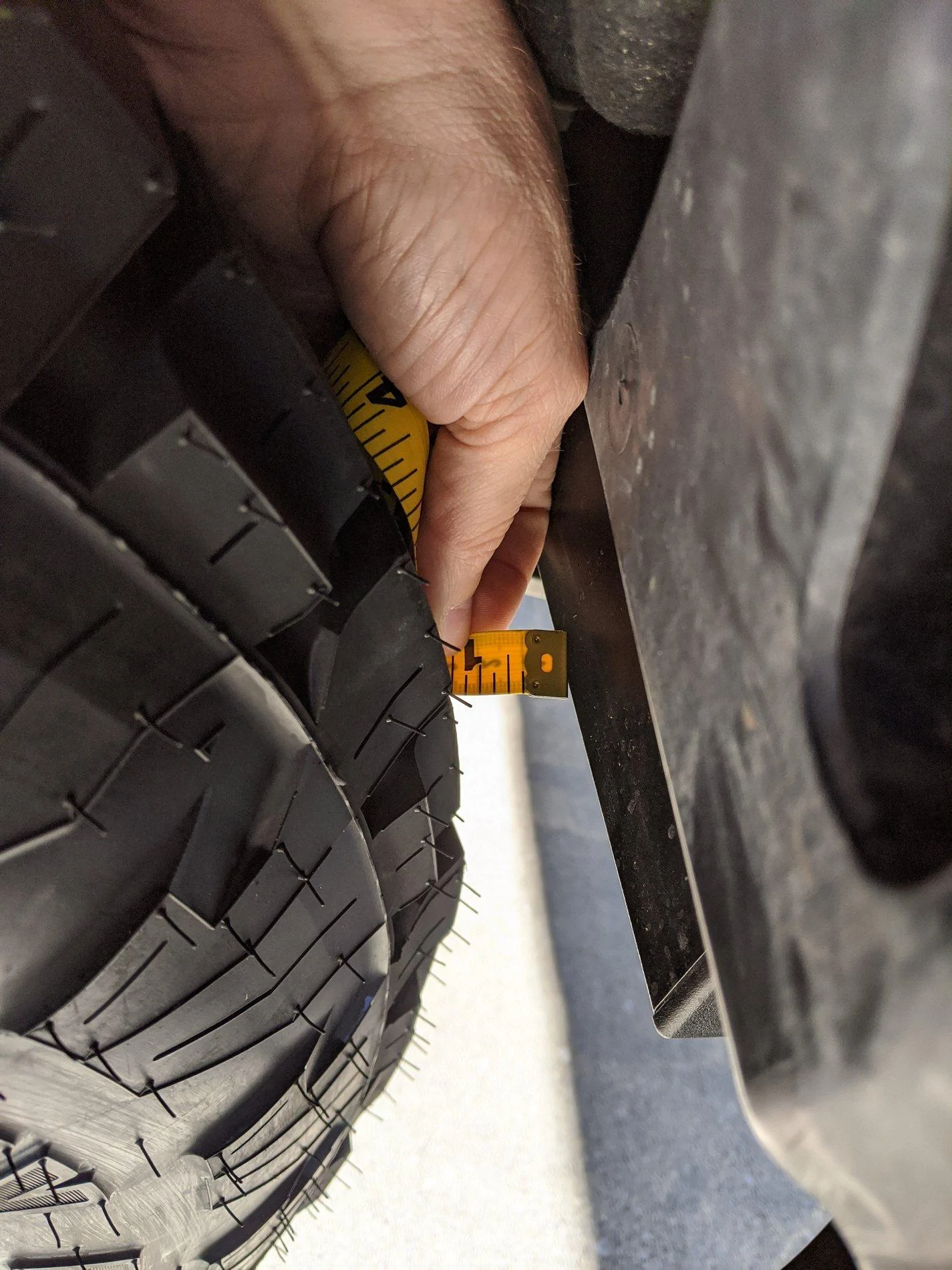

We have 285/70/17 Toyo AT3 on 17x8.5 +25 offset wheels which sounds close to what you'll have. This is the clearance in front of the wheel with BDS intrusion beams:


We actually left the behind-wheel OEM bars in place for now and those shouldn't be an issue although it's tight.

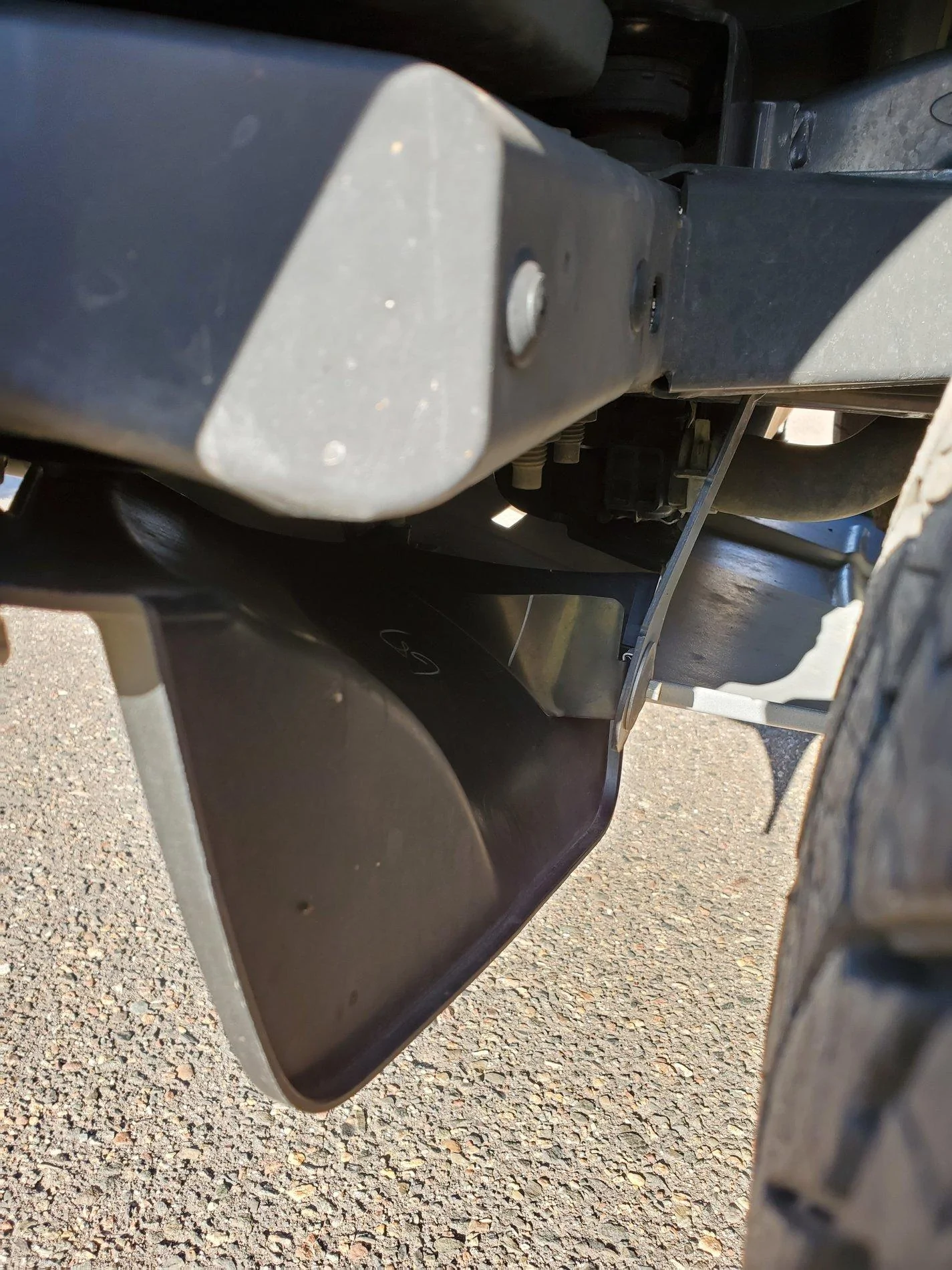

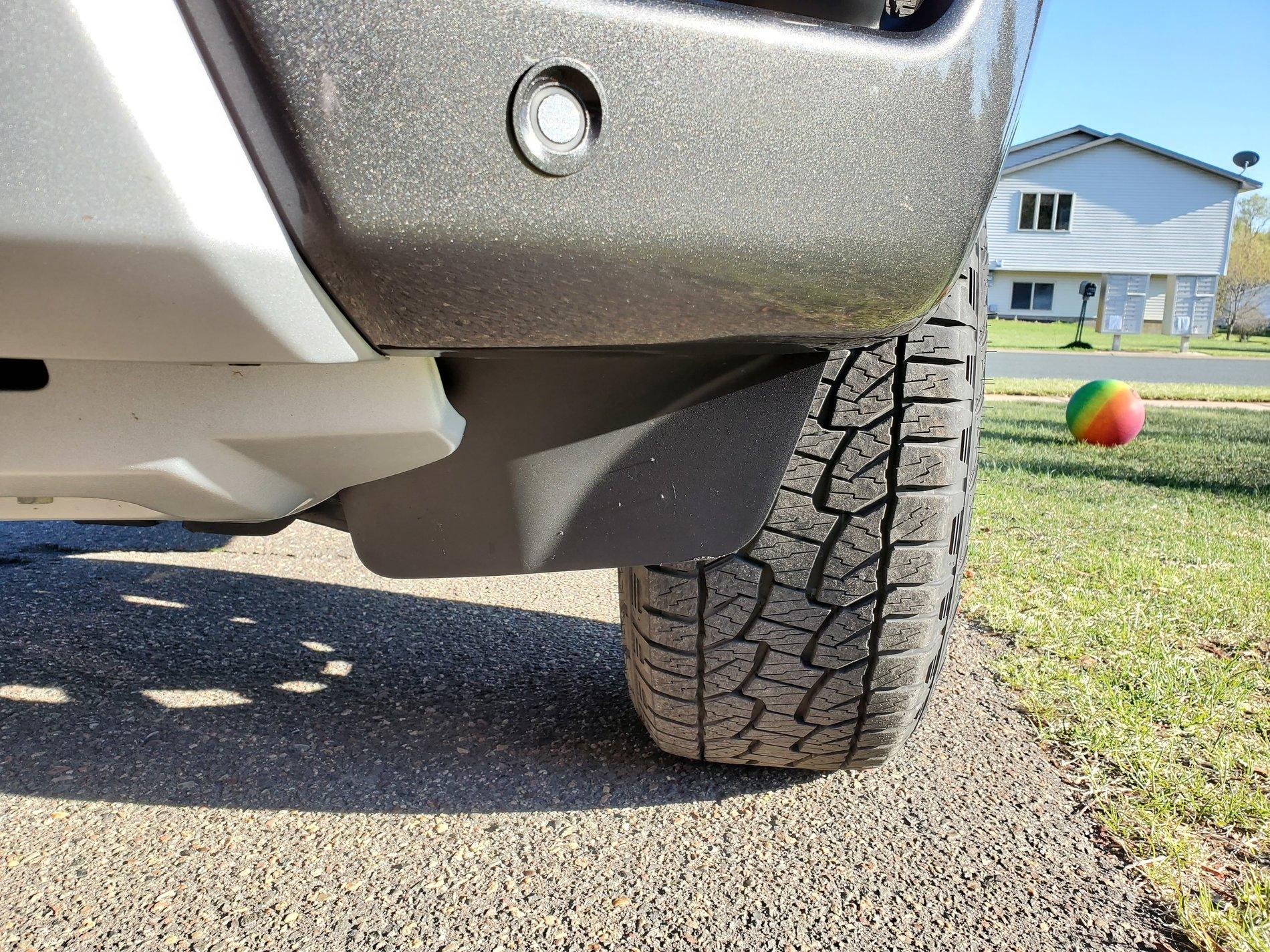

If you have the aero fairings in front of the tires you'll probably have to remove them. Ours would have been ripped off by the tires at lock. Pretty easy just 2-3 small bolts on each side.
