The HDX Winch Mount Grille Guard _ #57-93985 does not fit the Ford Ranger XLT Fx4 w/o some mods. 1st step was to remove bumper in order to mount Upper Support Strap. This works fine on Fx4. Instructions provided are good EXCEPT instructions should stipulate that the “support straps” mount to the back side of the bumper. This is NOT AT ALL clear and I found me looking for a very long time for the mount point on the de-bumpered truck. Instructions say use factory bolts, and on completion torque to 16 ft pounds. Use a torque wrench! I stripped one, so bought 2 grade 8 a little longer, then used a grade 8 nut on the far end to synch the bolt onto the flimsy lil fake nut (just a thin tubular threaded sleeve) on the bumper. This step was a GIANT PITA, as the nut is well tucked into the bumper. The instructions also say to “Measure the distance between the upper brackets. Make sure it is 33 1/4 inches.” Inside to inside? Outside to outside? On Center? The words provide zero clue. A close examination of the instruction picture seems to reveal the answer (see Pic 1)

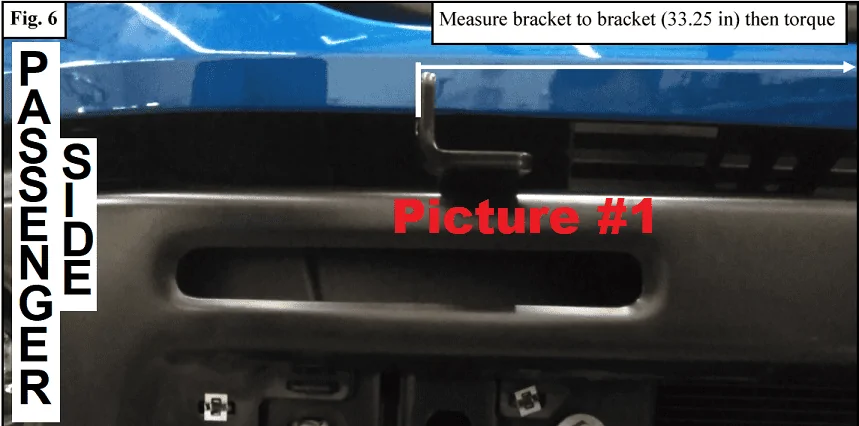

The white line goes to outside of bracket. I took that as gospel (Outside to Outside) and it worked fine!

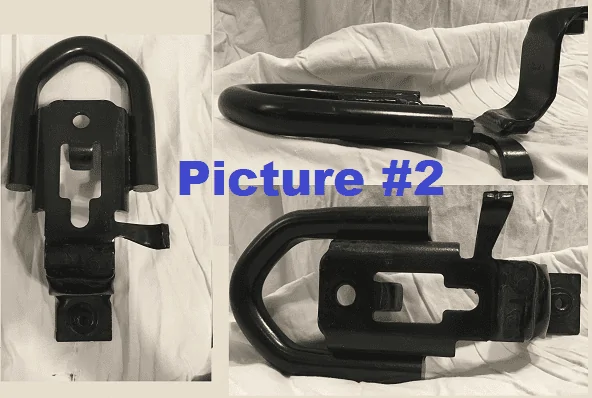

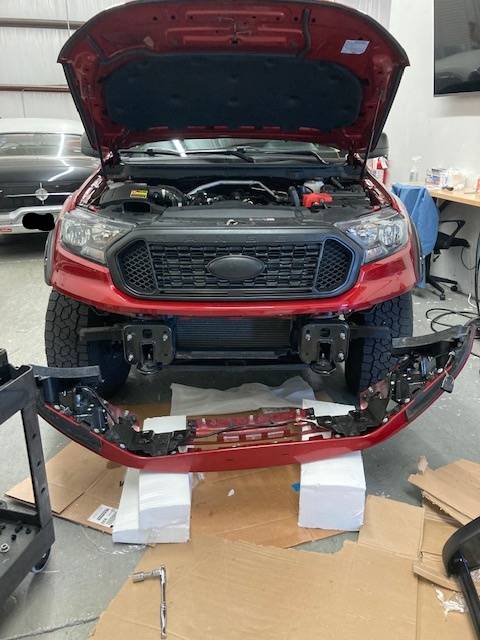

Instructions say “If tow hooks are equipped, remove the tow hooks.” Easy, but the Fx4 comes with tow hooks onto which mount the front end of the Fx4 bash plate (protects the front underside of the truck) . The Tow hooks have a 2" drop to a plate with a nut welded on it, onto which the bash plate mounts. (See Picture #2

Follow Westin Instructions means delete bash plate, or perhaps use glue or coat hanger wire to tie it on? I was not happy w/ this mod.

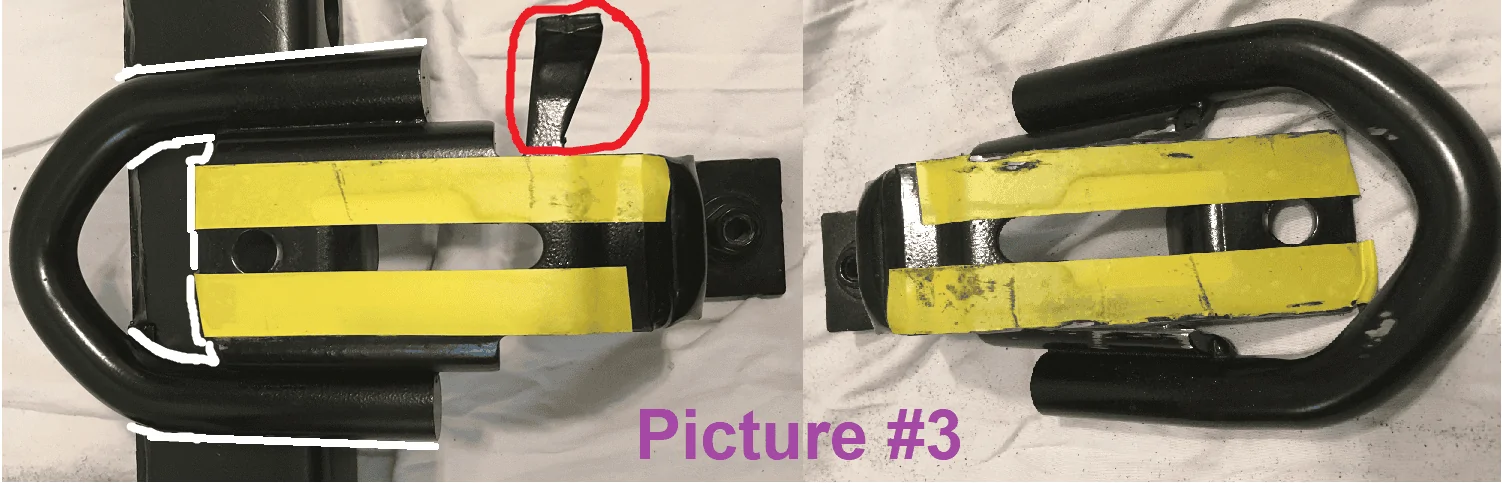

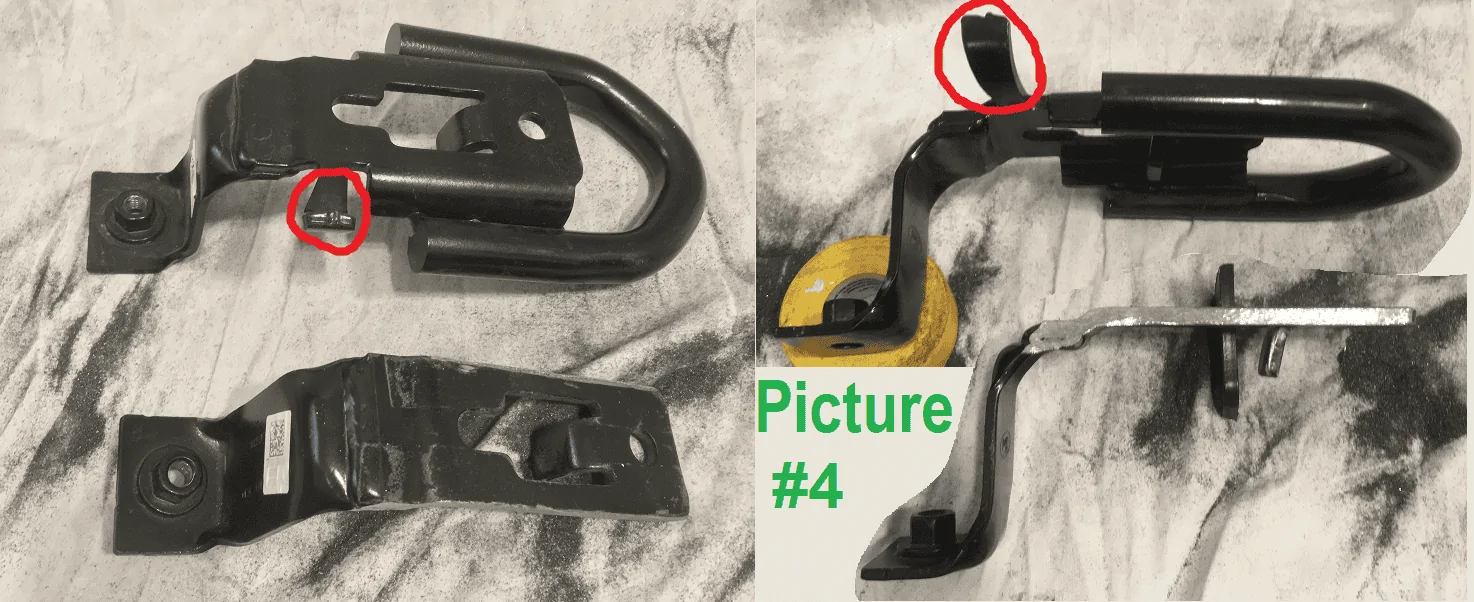

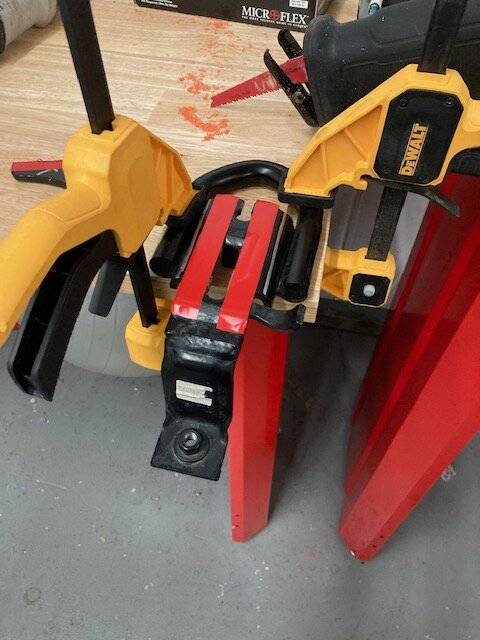

I figured out how to retain the bash plate mount points from the factory tow hooks. Using a cuttoff wheel / angle grinder, I cut the sides off of the existing tow hooks, using Yellow tape to mark the cut lines. The stock tow hooks had a little tab on them (see top left image, circled in red). I DK what for. I cut those off also to enable the next steps. See Picture #3

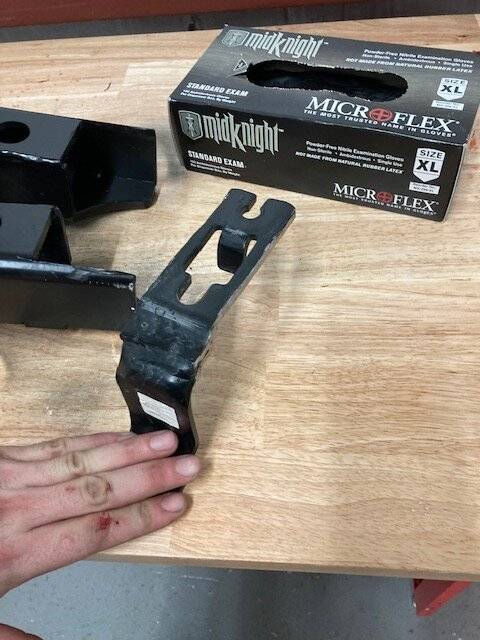

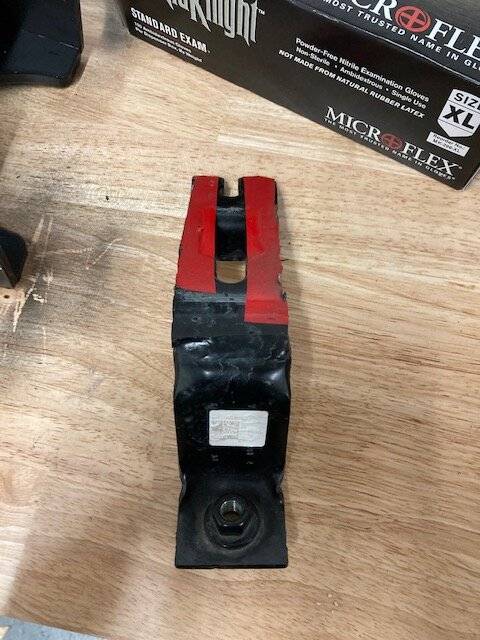

Picture #4 of the before after tow hook cut, leaving bash plate drop mount with bolt holes. Plan was to slide the drop mounts into the Lower Mounting Brackets then run the bolts used to mount the brackets to the truck frame to also bolt the plates into the top of the brackets.

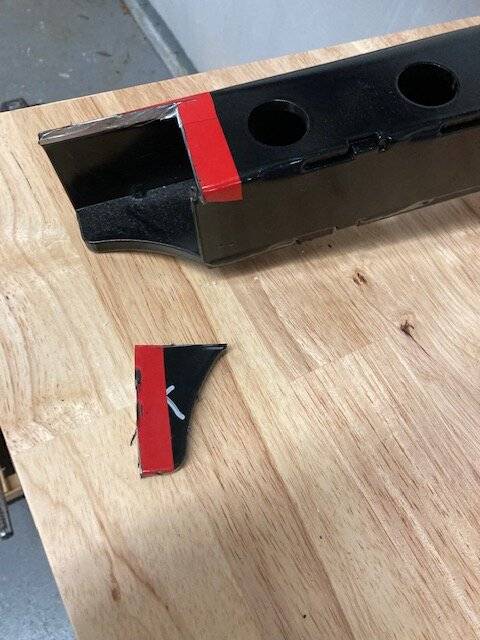

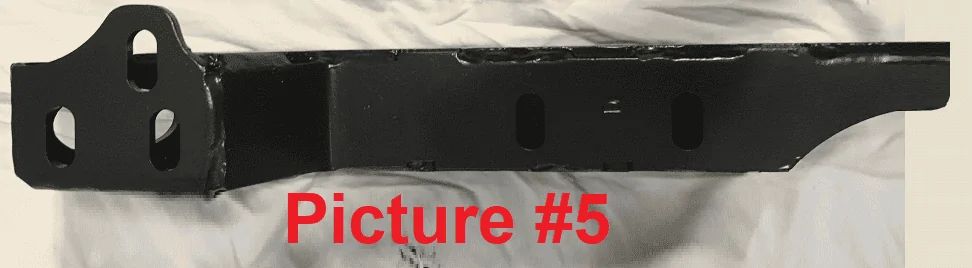

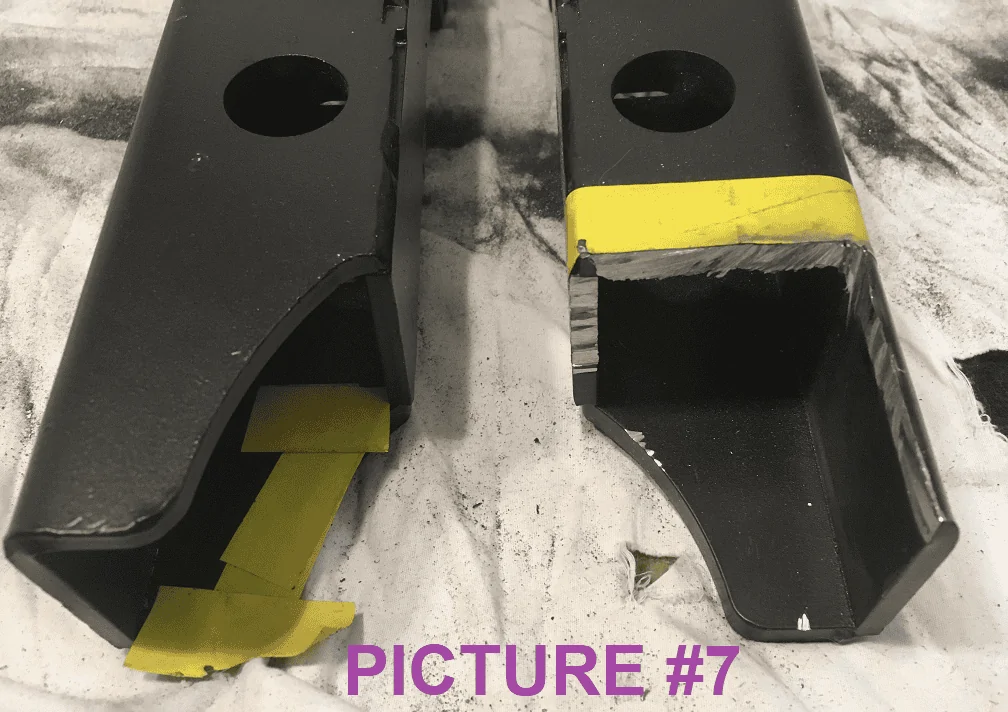

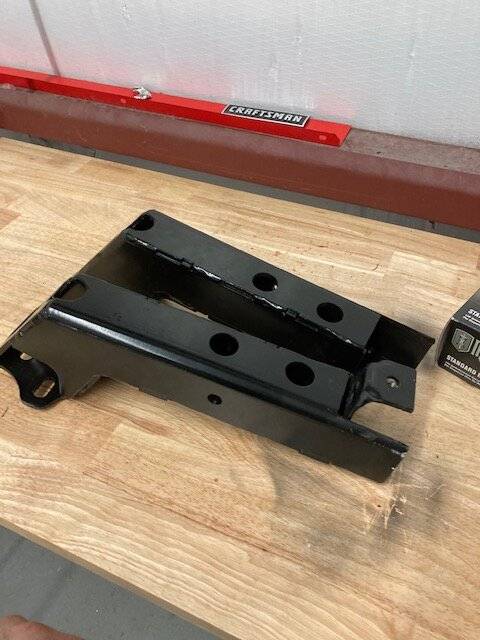

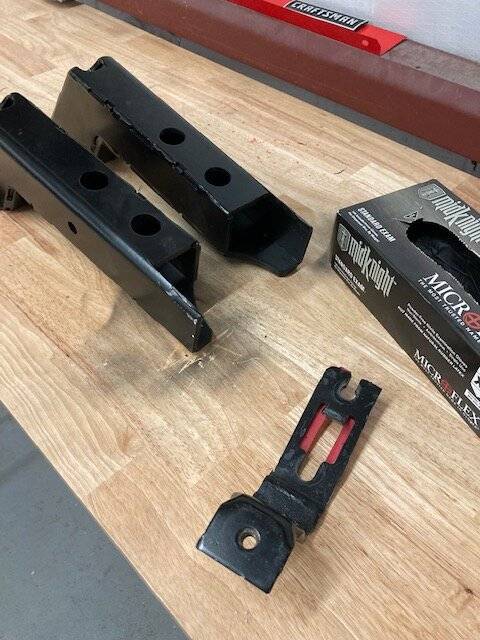

Picture #5 is top view of a Lower Mounting Bracket (there are 2, one for passenger side, one for driver side.) Next, I had to mod the Westin brackets so the drop mounts would fit into the brackets. For the Bash plate drop mount to fit into the brackets, I had to cut off the lower back corner of each, again using yellow tape to mark my cutlines.

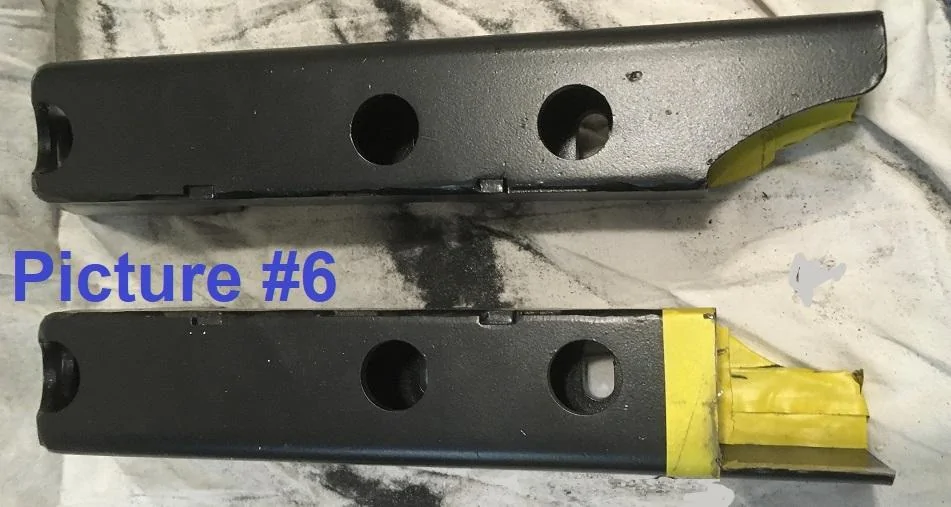

Above top is before cut, below is after cuts. you are looking at the bottom of the brackets, the L shape is facing down.

Picture #7, CLOSEUP Left is before cut, right, after cuts.

The cut pieces had sharp, naked edges so I ground, and filed them, then wiped them w/ acetone and spray painted them. BTW, I let them air dry for 1 hr, then baked then @ 185 degrees for an hour in the oven. I then took them outside to cool in the breeze. Zero blister, zero bubble. Once cool I was still gentle w/ the pieces as they will take a few days to full cure and harden (Picture #8)

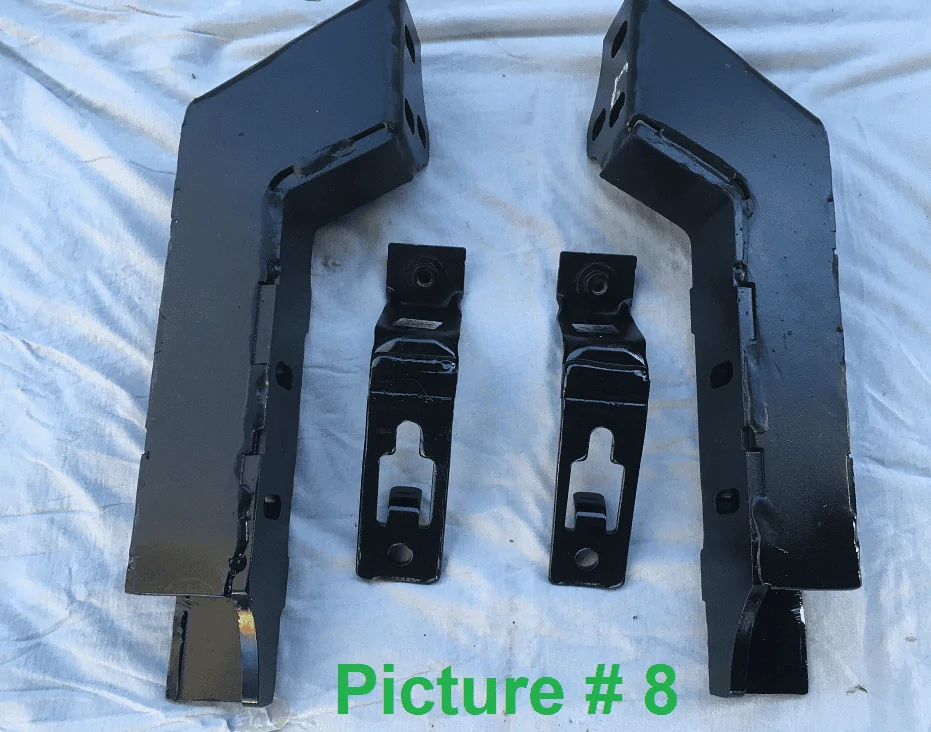

Finally, I slid drop mounts for bash plates into the Lower Mounting Brackets, then run the bolts up thru the modded drop bolt plates, then thru the bracket then into the frame.

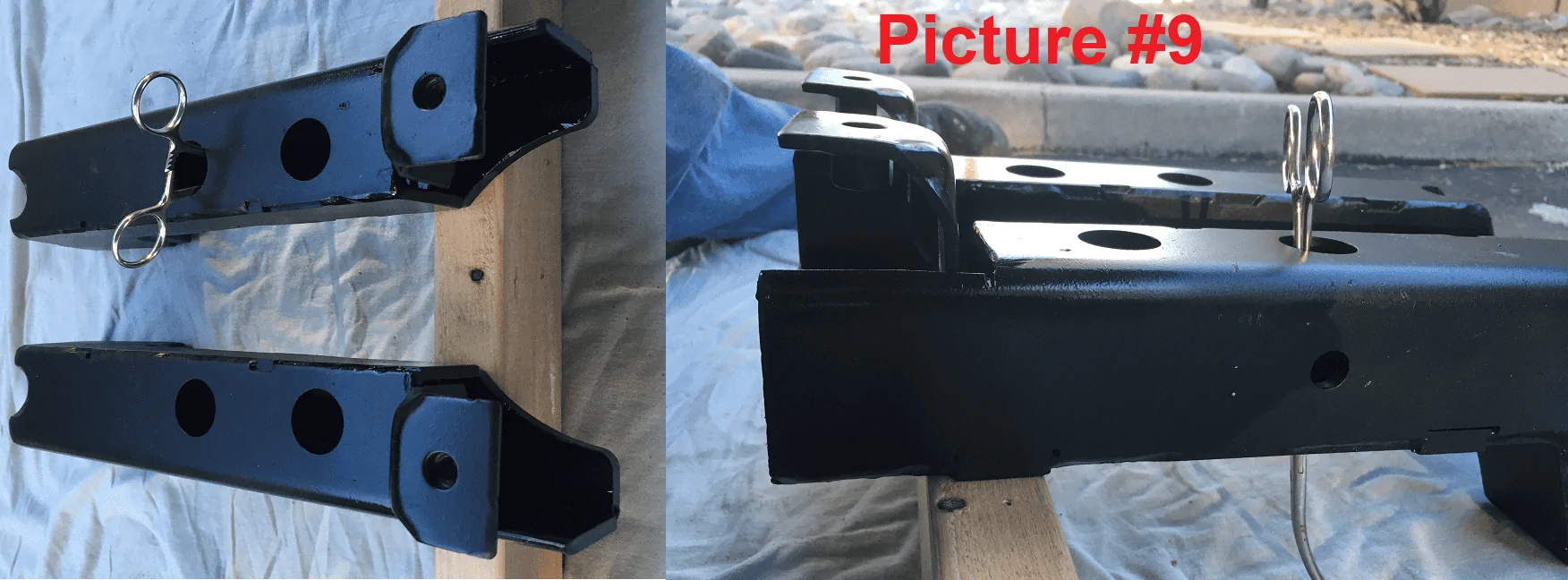

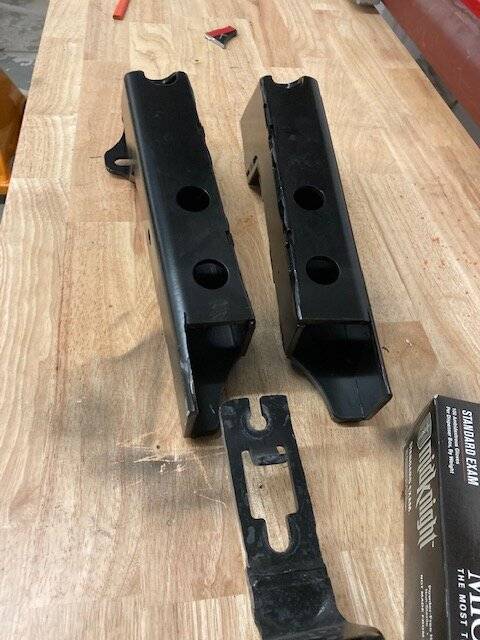

In Picture #9, the Lower Mounting Brackets are upside down, The Bash plate mounts are slid into the brackets, the silver clamps are just holding the drop mount in place for the picture

The Fx4 frame already has nuts welded into it for the tow hooks, as will any ranger with tow hooks. So the double nut bolt plate supplied is not needed.

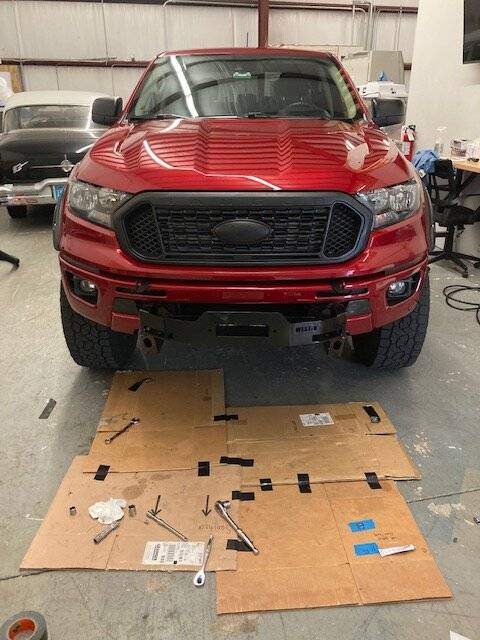

The Westin Instructions call for mounting the Lower Mounting Brackets to the truck, then using a fishwire to add bolt plates inside the truck frame and Lower Mounting Brackets onto which additional “Lower Support Brackets” connecting the Lower Mounting Brackets to the frame is mounted. Ignore this. Put the bolt plates inside both the frame and the lower mounting brackets before loosely mounting the Lower Mounting brackets to the frame. Use the supplied “clips” to hold the bolt plates in place. (The clips are square pieces of clear plastic, and work fine, just leave them in place when you put the nuts on.) I bought .25" longer than factory, grade 8 bolts to go up thru the drop plates, through the Lower Mounting Brackets, into the frame, as the factory bolts were barely long enough.

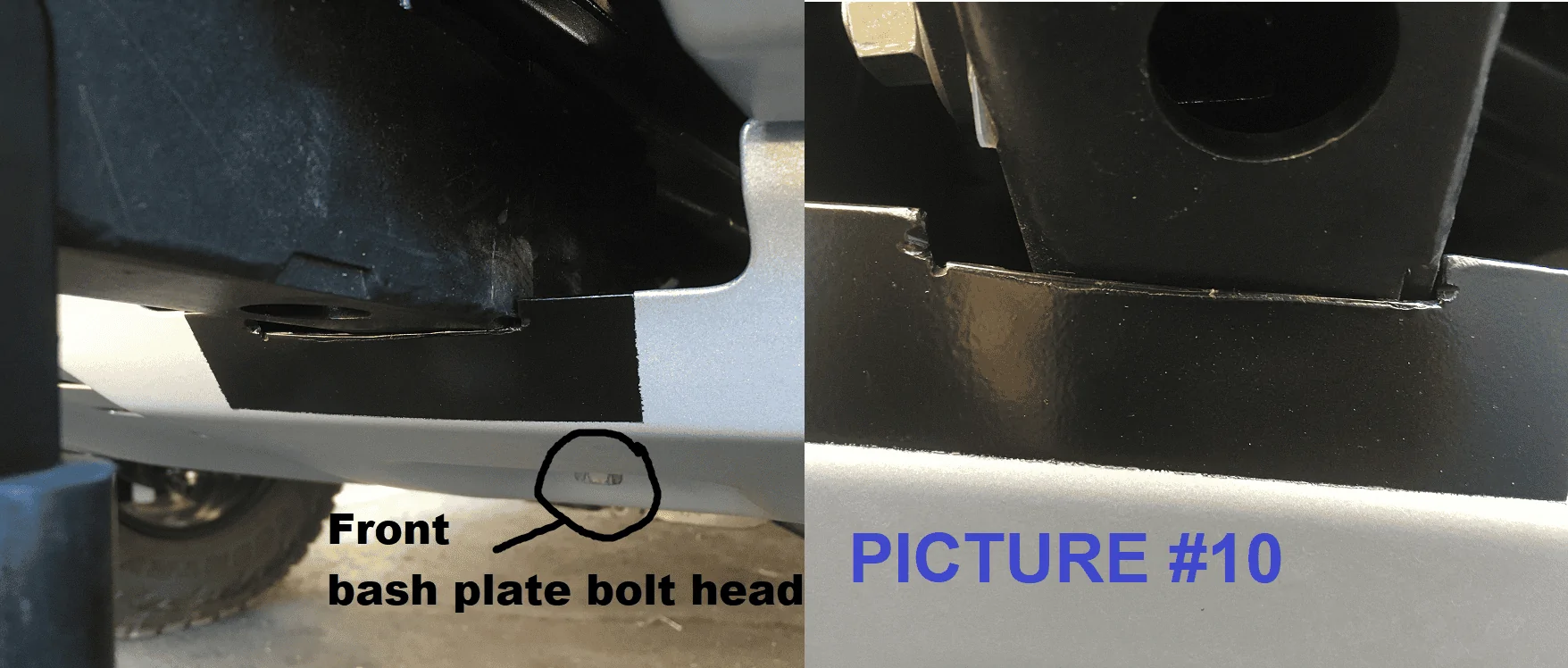

Finally, in order for the bash plate to fit over the lower mounting brackets, I cut a ¼ inch notch on each side of the front edge of the bash plate using a cuttoff wheel / angle grinder. This left raw snaggle edge which I filed smooth, then masked and painted. Picture #10 of the driver side painted notches below (yup, it is still ugly up close).

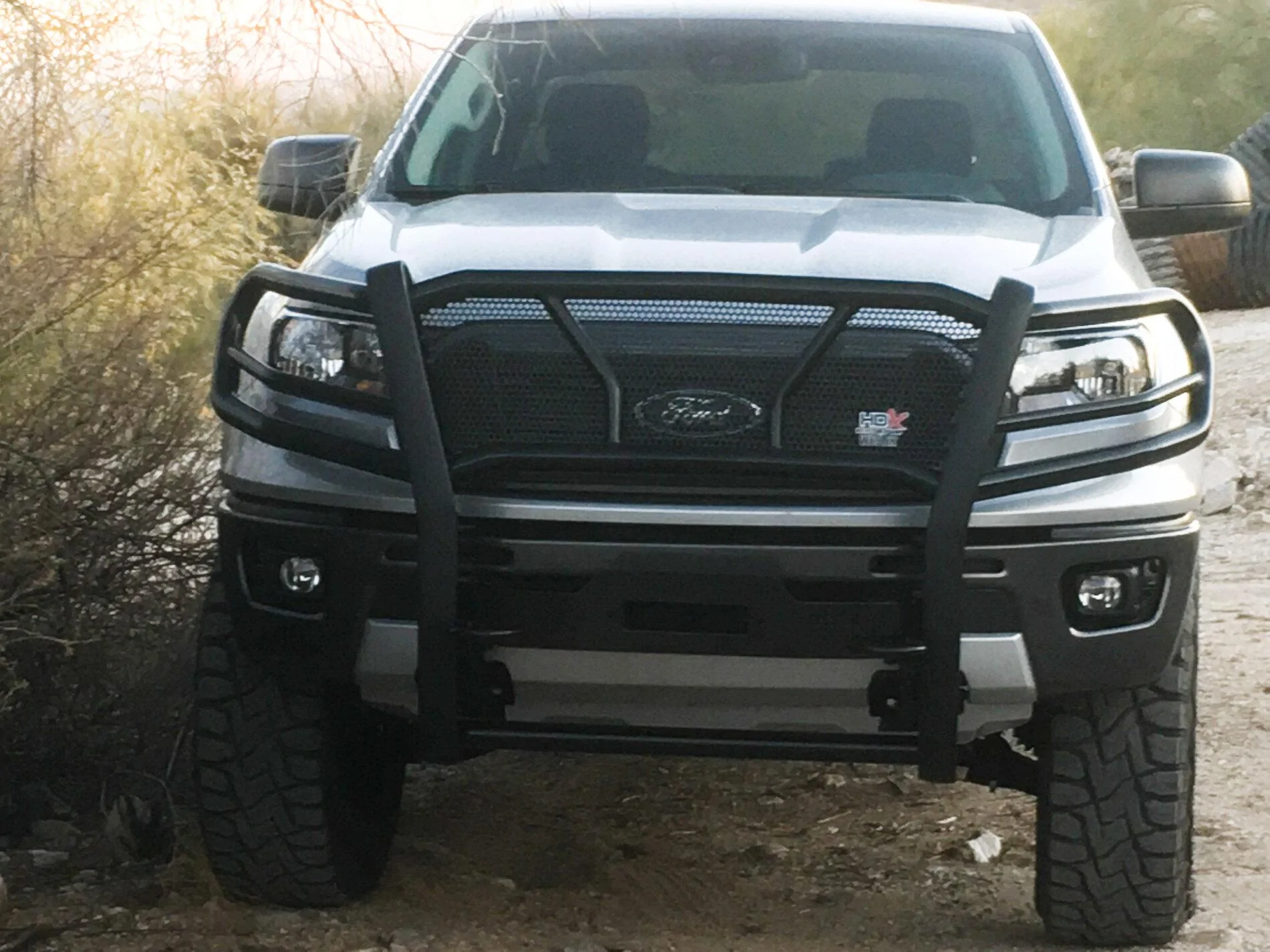

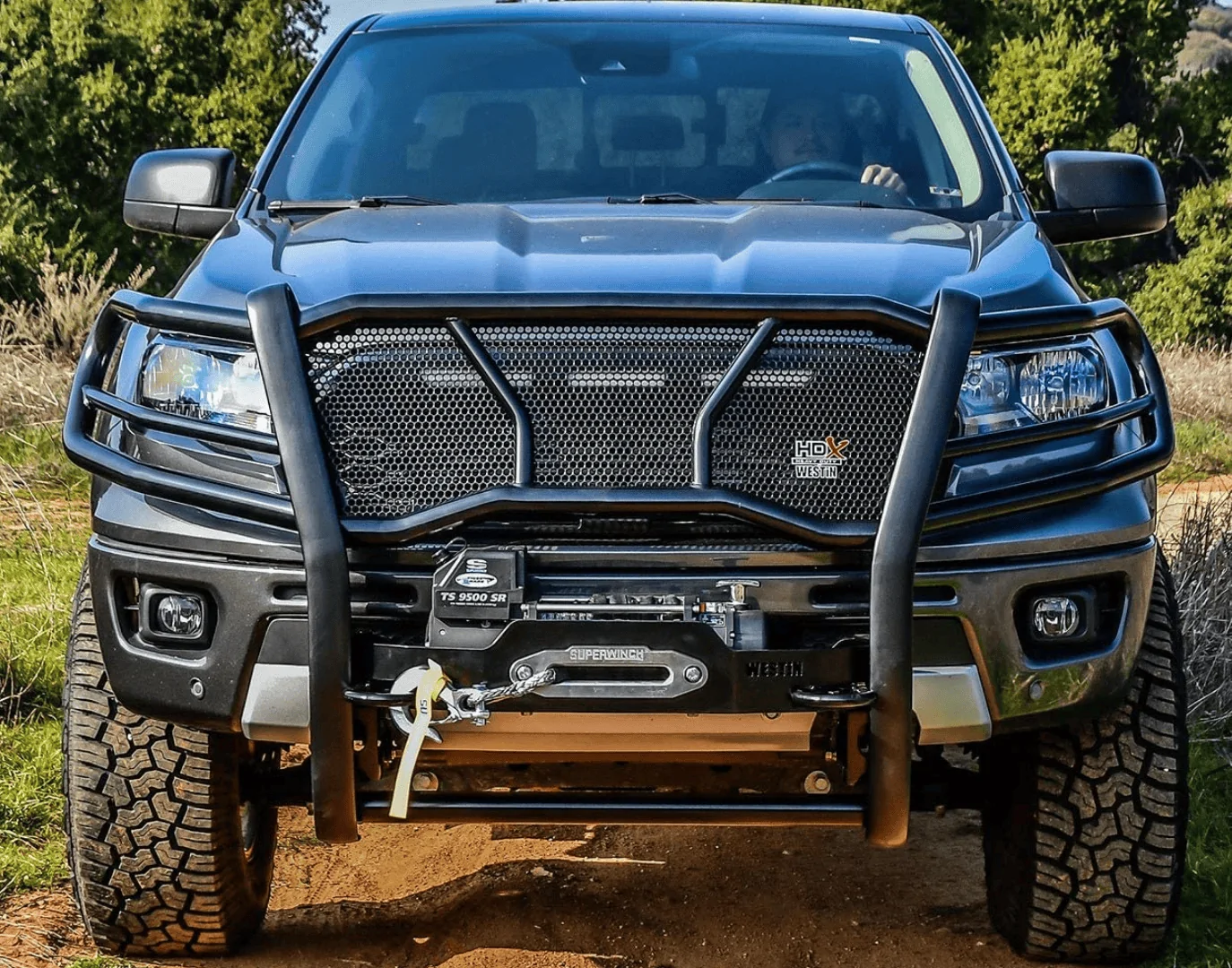

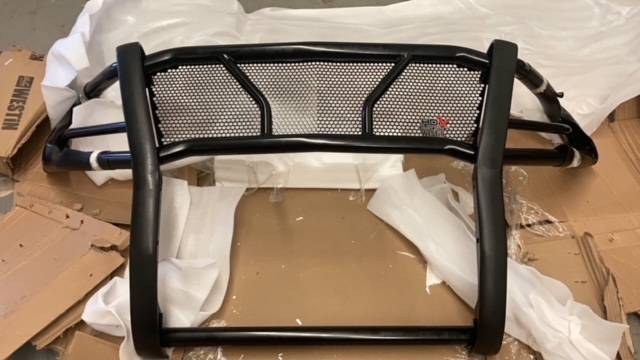

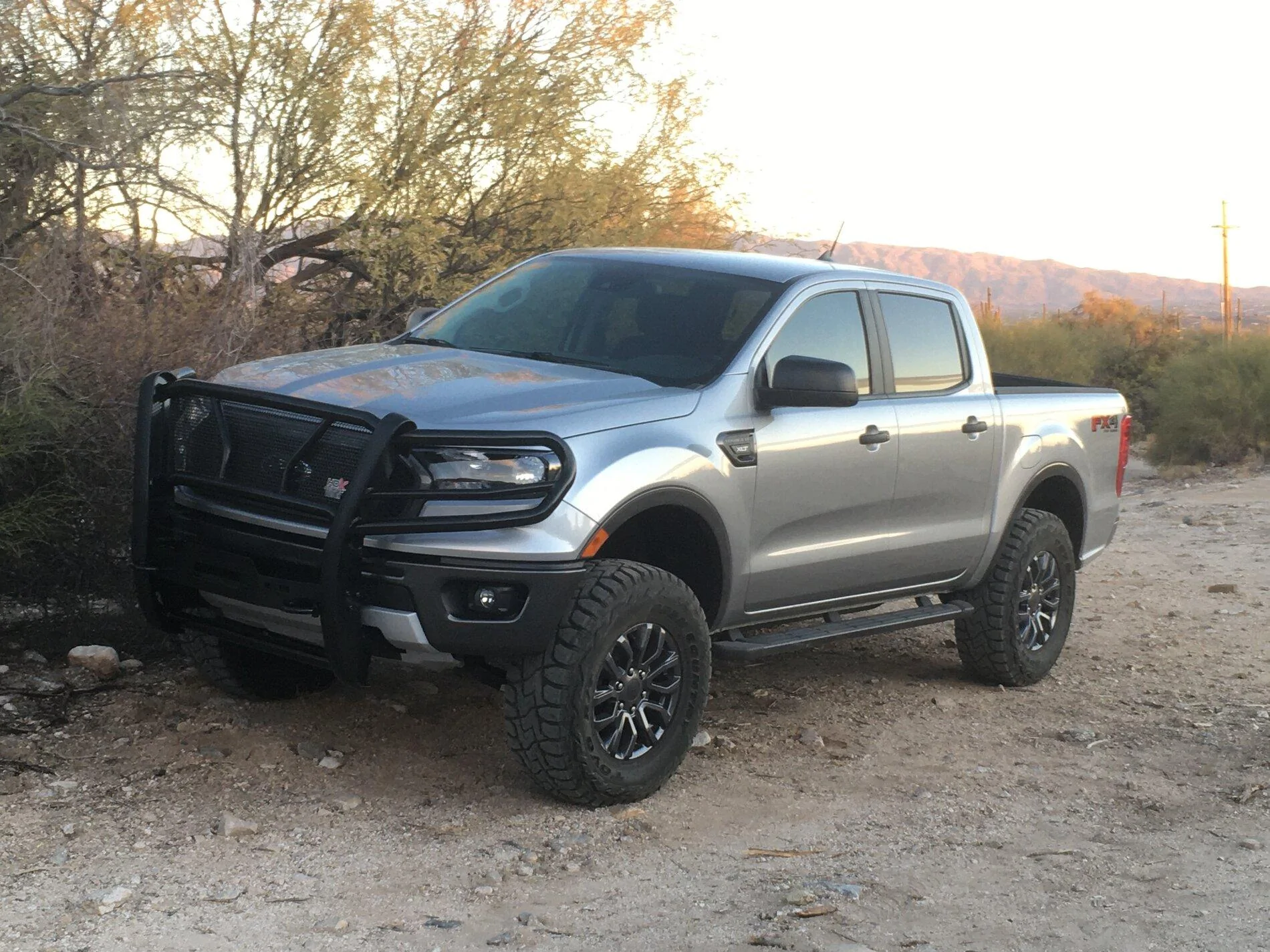

For comparison, here is pic from Westin showing the Grill guard Mounted on a non Fx4:

Note visible lower control arm bolt heads, just above the lowest bar on guard.

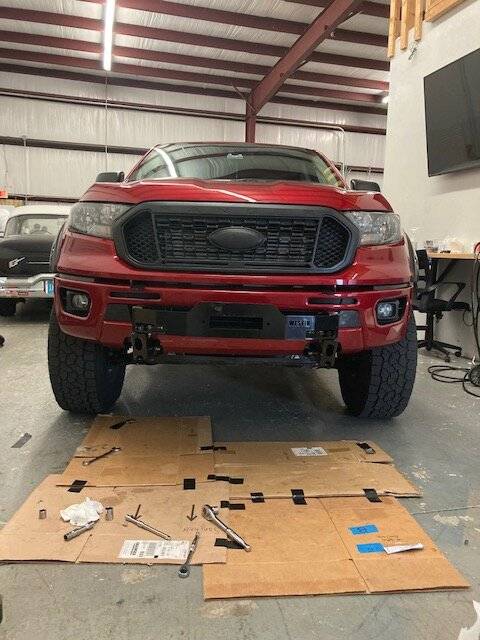

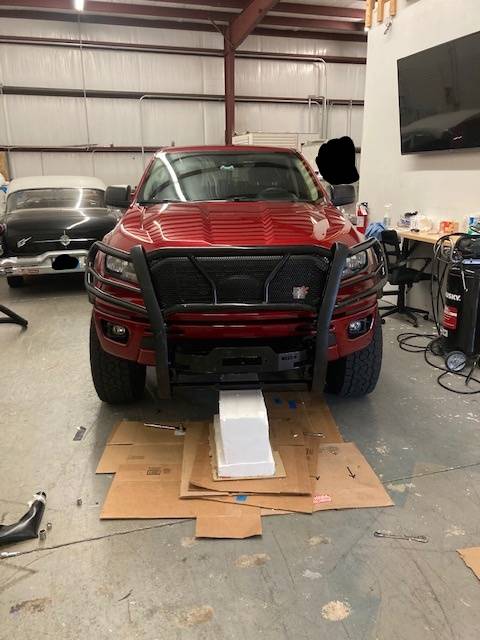

Here is a pic of the guard on my Fx4

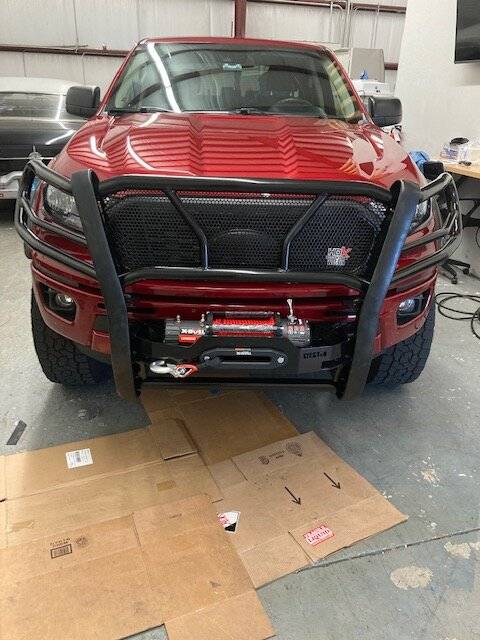

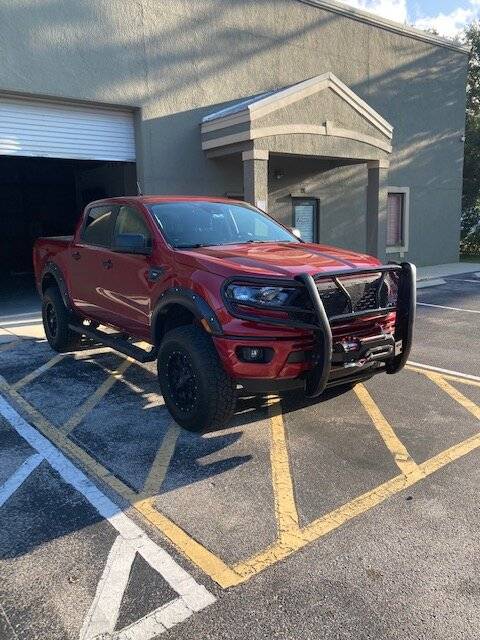

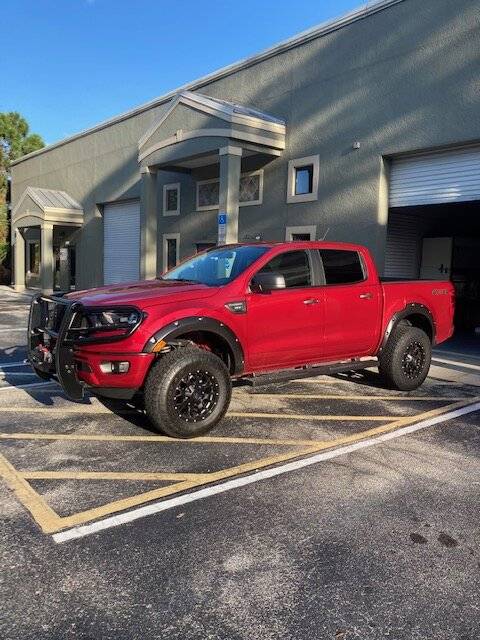

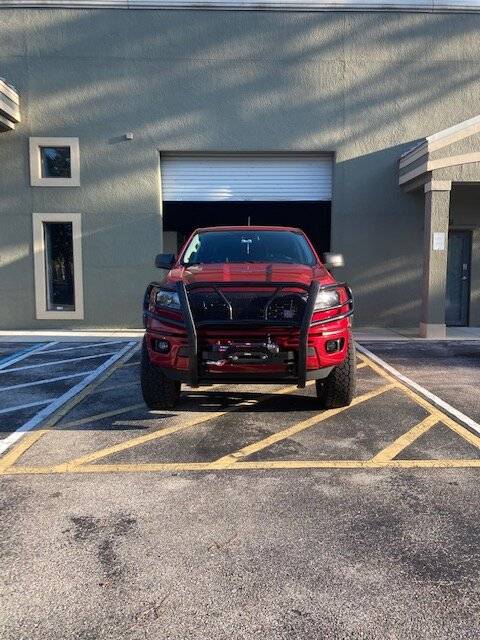

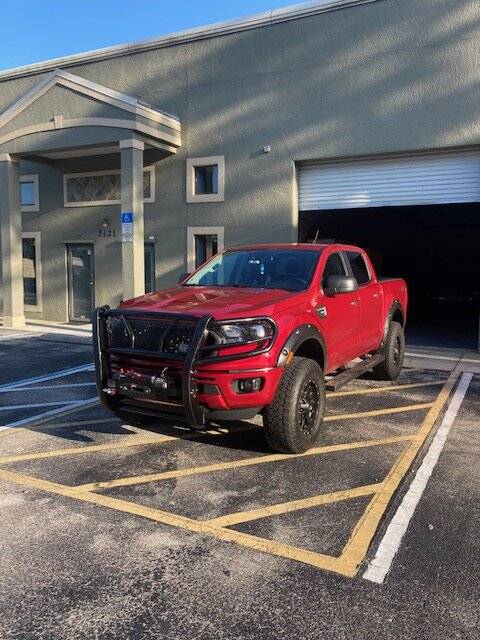

Bash plate covers the uglies! I obviously have no winch yet. (Ordered VR EVO 10 WINCH today) Here is the truck from another angle:
