A friend recommended a u bolt flip kit to lower the chances of damage/hangups on the u bolt bottom attachment to the rear axle. I don't see any flip kits for the Ranger (most being Taco or Jeep).

Doing some research, it looks like we have a Dana44 Advantek Rear with ~80mm overall outer diameter and ~2.25" wide springs (I need to confirm my measurements) so a set of bolts and plates like these should work. Our bumps are already mounted on the frame so that shouldn't be an issue.

https://www.ruffstuffspecialties.com/catalog/UB325.html
https://www.ruffstuffspecialties.com/catalog/R2033.html

Is anyone else considering this?
Sponsored


  • Like
Reactions: Doc

Doc

Well-Known Member
First Name
Doc
Joined
Dec 24, 2018
Threads
80
Messages
4,372
Reaction score
17,290
Location
Live oak fla
Vehicle(s)
2020 HPP Mustang, 2021 Ranger STX,2022 Subaru WRX
Occupation
Retired
A friend recommended a u bolt flip kit to lower the chances of damage/hangups on the u bolt bottom attachment to the rear axle. I don't see any flip kits for the Ranger (most being Taco or Jeep).

Doing some research, it looks like we have a Dana44 Advantek Rear with ~80mm overall outer diameter and ~2.25" wide springs (I need to confirm my measurements) so a set of bolts and plates like these should work. Our bumps are already mounted on the frame so that shouldn't be an issue.

https://www.ruffstuffspecialties.com/catalog/UB325.html
https://www.ruffstuffspecialties.com/catalog/R2033.html

Is anyone else considering this?
Following !


VAMike

Well-Known Member
First Name
Mike
Joined
Feb 22, 2019
Threads
1
Messages
3,270
Reaction score
4,145
Location
Virginia
Vehicle(s)
2019 Ranger Lariat SuperCab
A friend recommended a u bolt flip kit to lower the chances of damage/hangups on the u bolt bottom attachment to the rear axle. I don't see any flip kits for the Ranger (most being Taco or Jeep).
...
Is anyone else considering this?
That seems so statistically unlikely (a clearance problem limited specifically to a couple of bolts in two spots on the truck) as to be a waste of time to try to mitigate.


t4thfavor

Well-Known Member
First Name
Chance
Joined
Feb 5, 2019
Threads
32
Messages
2,593
Reaction score
2,328
Location
Michigan
Vehicle(s)
2019 Ranger XLT FX4 Fox 2.0, 2011 Ford Edge Sport
A friend recommended a u bolt flip kit to lower the chances of damage/hangups on the u bolt bottom attachment to the rear axle. I don't see any flip kits for the Ranger (most being Taco or Jeep).

Doing some research, it looks like we have a Dana44 Advantek Rear with ~80mm overall outer diameter and ~2.25" wide springs (I need to confirm my measurements) so a set of bolts and plates like these should work. Our bumps are already mounted on the frame so that shouldn't be an issue.

https://www.ruffstuffspecialties.com/catalog/UB325.html
https://www.ruffstuffspecialties.com/catalog/R2033.html

Is anyone else considering this?

It's a Dana M220, I don't think they use the 30, 35, 44, 60, specification very much anymore. It's essentially the same rear axle that is in the JL Rubicon except for gearing.


Doc

Well-Known Member
First Name
Doc
Joined
Dec 24, 2018
Threads
80
Messages
4,372
Reaction score
17,290
Location
Live oak fla
Vehicle(s)
2020 HPP Mustang, 2021 Ranger STX,2022 Subaru WRX
Occupation
Retired
That seems so statistically unlikely (a clearance problem limited specifically to a couple of bolts in two spots on the truck) as to be a waste of time to try to mitigate.
Nothing is a waste of time, that’s how we learn, look at the stock euro models..they have a flipped rear axles to almost slam it..stock from Ford.
Regards

Check out @Hansgti

Last edited:


DHMag

Well-Known Member
First Name
Dale
Joined
Oct 25, 2018
Threads
24
Messages
652
Reaction score
656
Location
San Antonio, TX
Vehicle(s)
2019 Ranger XLT Crew cab, 22 Wrangler Willys
The shock mounts are lower on the axle than the u-bolts. I don't see the effort to do this as beneficial. Unless youd rather damage the shock mount than a u-bolt ?

  • Like
Reactions: Doc

Doc

Well-Known Member
First Name
Doc
Joined
Dec 24, 2018
Threads
80
Messages
4,372
Reaction score
17,290
Location
Live oak fla
Vehicle(s)
2020 HPP Mustang, 2021 Ranger STX,2022 Subaru WRX
Occupation
Retired
The shock mounts are lower on the axle than the u-bolts. I don't see the effort to do this as beneficial. Unless youd rather damage the shock mount than a u-bolt ?
Yes, some R&D is necessary. My truck will be available to various suspension companies just for this and/or coil overs. Awaiting email as we speak.
Regards

Last edited:
OP
OP

Guinness

Well-Known Member
First Name
Nick
Joined
Apr 9, 2019
Threads
8
Messages
86
Reaction score
86
Location
San Diego
Vehicle(s)
Ranger FX4 Lariat
Occupation
Engineer
The shock mounts are lower on the axle than the u-bolts. I don't see the effort to do this as beneficial. Unless youd rather damage the shock mount than a u-bolt ?
Agreed, it does seem like that'd be more of an issue and far more effort to change...

  • Like
Reactions: Doc
OP
OP

Guinness

Well-Known Member
First Name
Nick
Joined
Apr 9, 2019
Threads
8
Messages
86
Reaction score
86
Location
San Diego
Vehicle(s)
Ranger FX4 Lariat
Occupation
Engineer
Doing some more research the reasoning I found is that the shock mounts are stronger while the u bolt plates can be cracked much more easily and if a shock mount breaks you can still drive home whereas you're not going anywhere with an axle detached from the leaf spring.

  • Like
Reactions: Doc

Doc

Well-Known Member
First Name
Doc
Joined
Dec 24, 2018
Threads
80
Messages
4,372
Reaction score
17,290
Location
Live oak fla
Vehicle(s)
2020 HPP Mustang, 2021 Ranger STX,2022 Subaru WRX
Occupation
Retired
That's just silly. Sometimes something needs to be tried to see if it works, sometimes you can just look at it.
Thanks for your Input !
Regards


DHMag

Well-Known Member
First Name
Dale
Joined
Oct 25, 2018
Threads
24
Messages
652
Reaction score
656
Location
San Antonio, TX
Vehicle(s)
2019 Ranger XLT Crew cab, 22 Wrangler Willys

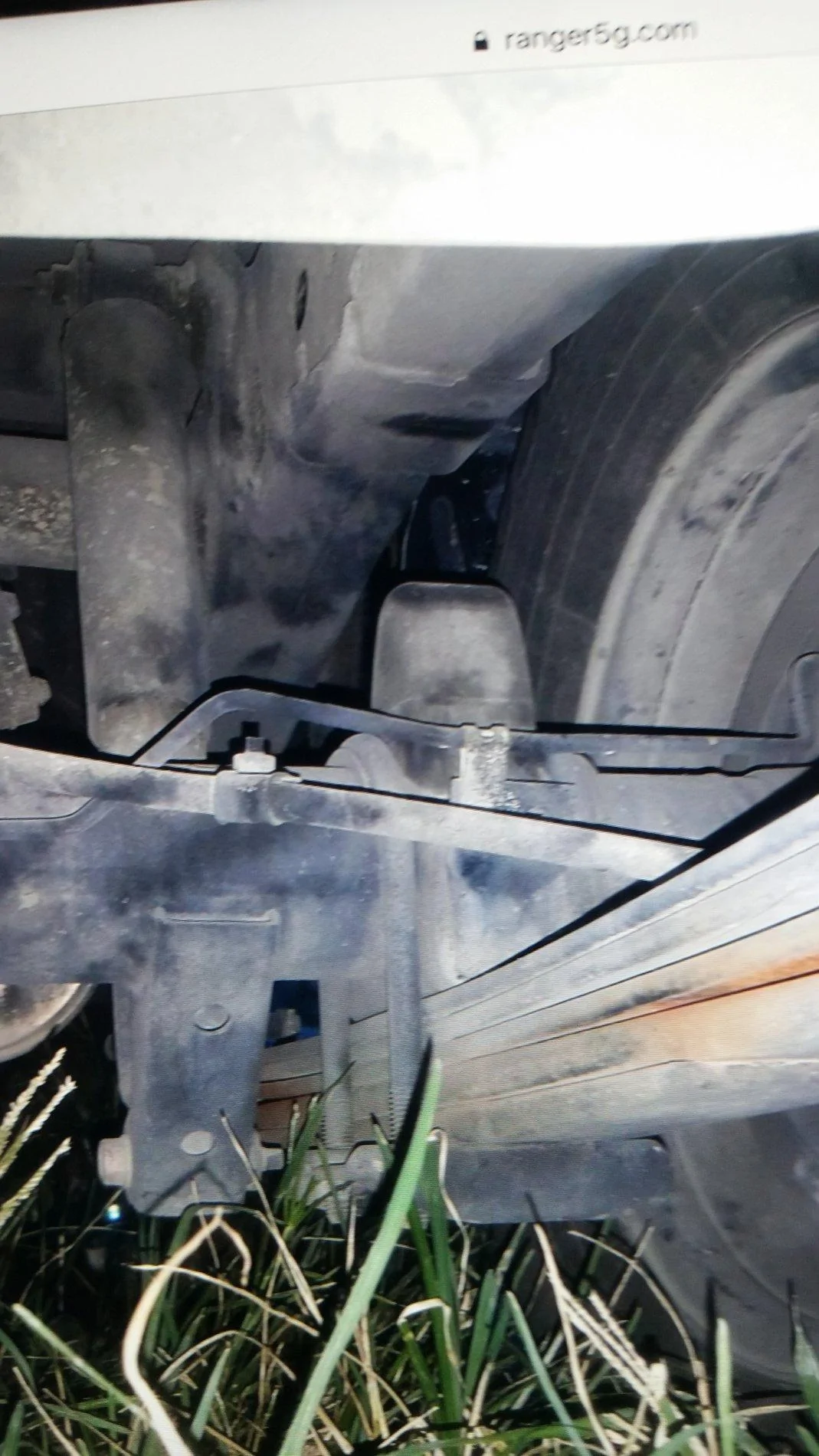

European Version from previous thread.
