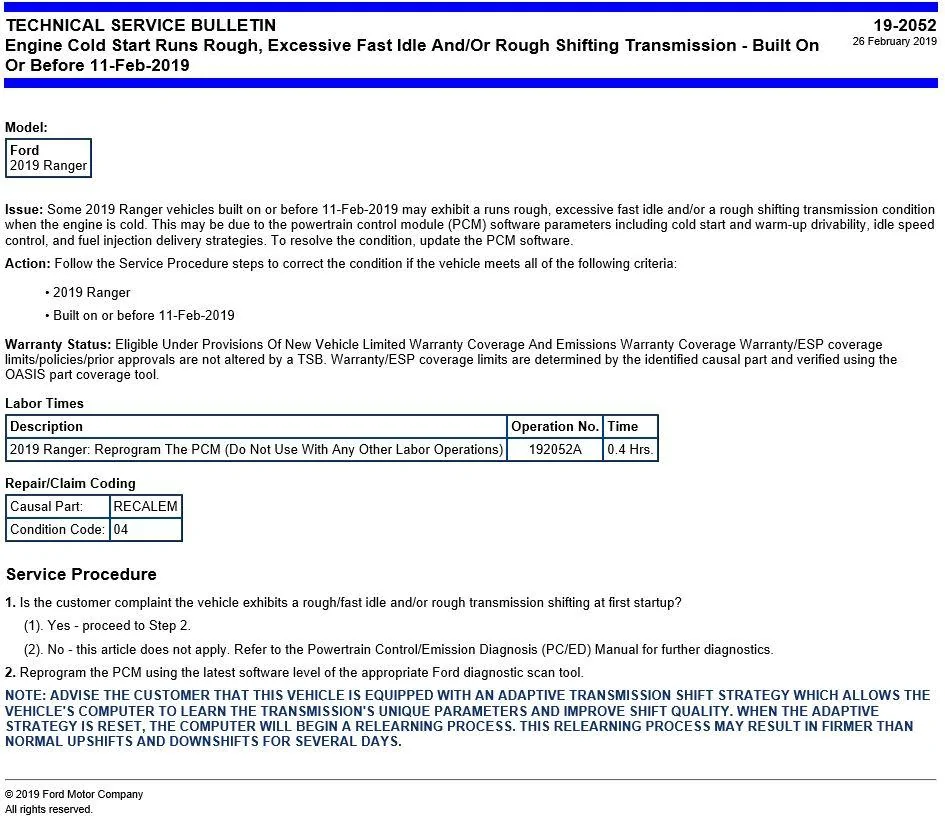

TSB: 19-2052 - 2019 Ranger - Engine Cold Start Runs Rough / Rough Shifting Transmission

Some 2019 Ranger vehicles built on or before 11-Feb-2019 may exhibit a rough, excessive fast idle and/or a rough shifting transmission condition when the engine is cold. This may be due to the powertrain control module (PCM) software parameters including cold start and warm-up drivability, idle speed control, and fuel injection delivery strategies. To resolve the condition, update the PCM software.

APPLICABLE VEHICLES
2019 TRUCK: FG P375N RANGER

Sponsored



Dan Kobler

Well-Known Member
First Name
Dan
Joined
Dec 17, 2018
Threads
5
Messages
65
Reaction score
64
Location
Minneapolis
Vehicle(s)
XLT SuperCrew 302A 4x4
So I'm not as automotive inclined as other people. But I was noticing that my truck seems to have an aggressive idle when I would remote start it. Once I'm inside the vehicle I don't notice it as much as the cabin is quiet. However standing outside, compared to my escape which sounded very mellow when starting up. I thought it was just because it is a truck. Sounds like this might be something to have the dealer take a look at?


Strokerduster

Well-Known Member
First Name
Paul
Joined
Oct 16, 2018
Threads
10
Messages
631
Reaction score
2,507
Location
Texas
Vehicle(s)
2019 ranger XLT, 2019 Edge ST, 1946 CJ2a street rod, shop full of motoorcycles
Vehicle Showcase
1
Hearing that B-29 fan starting up......



rangerdanger

Well-Known Member
Joined
Oct 9, 2018
Threads
194
Messages
3,489
Reaction score
2,635
Location
SF Bay Area
Vehicle(s)
2019 Ford Ranger SuperCrew XLT FX4
Vehicle Showcase
1
Just got my Ranger back from the shop. They had to call Ford Corporate to confirm that my truck was eligible for the TSB (It was made before Feb 11).

They ran a PCM update and then some datalogging to make sure the transmission shift points were within spec.

I’ll drive it for a few days to see if that did anything.


rangerdanger

Well-Known Member
Joined
Oct 9, 2018
Threads
194
Messages
3,489
Reaction score
2,635
Location
SF Bay Area
Vehicle(s)
2019 Ford Ranger SuperCrew XLT FX4
Vehicle Showcase
1
It’s been 4 days since the TSB was done and the difference is night and day. Before the transmission shifting would be rough and overly aggressive, now it’s much smoother and I’m noticing the transmission staying longer in gear.


t4thfavor

Well-Known Member
First Name
Chance
Joined
Feb 5, 2019
Threads
32
Messages
2,593
Reaction score
2,328
Location
Michigan
Vehicle(s)
2019 Ranger XLT FX4 Fox 2.0, 2011 Ford Edge Sport
Another reason I'm going to have to drive my dads truck to see if the transmission shifts like mine does. It does seem "confused" at times after which it will pick a gear with significant force behind it's decision.


Doc

Well-Known Member
First Name
Doc
Joined
Dec 24, 2018
Threads
81
Messages
4,397
Reaction score
17,369
Location
Live oak fla
Vehicle(s)
2020 HPP Mustang, 2021 Ranger STX,2022 Subaru WRX
Occupation
Retired
It’s been 4 days since the TSB was done and the difference is night and day. Before the transmission shifting would be rough and overly aggressive, now it’s much smoother and I’m noticing the transmission staying longer in gear.
Good Deal !


Beef_Stew

Well-Known Member
First Name
Aaron
Joined
Aug 16, 2018
Threads
10
Messages
238
Reaction score
224
Location
USA
Vehicle(s)
2019 Ranger Lariat
It’s been 4 days since the TSB was done and the difference is night and day. Before the transmission shifting would be rough and overly aggressive, now it’s much smoother and I’m noticing the transmission staying longer in gear.
Did your idle rpm's go down after the update? Mine idles around 700-800 Rpm's and I'm not sure if that's high or not


rangerdanger

Well-Known Member
Joined
Oct 9, 2018
Threads
194
Messages
3,489
Reaction score
2,635
Location
SF Bay Area
Vehicle(s)
2019 Ford Ranger SuperCrew XLT FX4
Vehicle Showcase
1
@rangerdanger did yours have a harsh shift or delay shift going to reverse in the mornings?
I noticed reverse was funky, like there was a delay. Not sure if this TSB address that issue or not.
Did your idle rpm's go down after the update? Mine idles around 700-800 Rpm's and I'm not sure if that's high or not
I don’t think that is considered high. My Ranger never experienced a rough idle, only weird transmission shifting.


Geoff

Well-Known Member
Joined
Oct 17, 2018
Threads
5
Messages
705
Reaction score
493
Location
NYS
Vehicle(s)
'19 Ranger 1943 Willys Jeep
Occupation
Retired Engineer
Did your idle rpm's go down after the update? Mine idles around 700-800 Rpm's and I'm not sure if that's high or not
Your idle is pretty normal.


MT19RANGER

Well-Known Member
First Name
JERRY
Joined
Nov 10, 2018
Threads
2
Messages
778
Reaction score
570
Location
SIDNEY, MT
Vehicle(s)
2019 Ranger Lariat
Occupation
Oilfield Service Company Area Supervisor
Vehicle Showcase
1
Scheduled mine for next week to get taken care of. Have rough running when starting in the mornings and hard shift of transmission on mine.
