Trigger Wireless Controller Install

Andy

Well-Known Member
First Name
Andy
Joined
Oct 23, 2018
Threads
33
Messages
735
Reaction score
1,254
Location
Colorado
Vehicle(s)
2019 Ford Ranger Lariat / 2019 Volvo XC60 T6 Inscription
I decided to forgo my current Lightforce switch setup in favor of the Trigger controller because I am soon to add a winch and bumper with more lights.

The controller itself is built very well with a robust shell and mounting holes. The power in and out of the device is supplied by heavy gauge wire leads which I found very well done.

The controller has onboard replaceable fuses with access by removing a clear cover on the top (face) of the unit. Also found on the face of the unit next to the fuses are indication LED’s along with manual operation buttons for each output.

The wireless switch bank is the only letdown of the setup and I’m hopeful they will release an upgraded version in the future. As of now it gets the job done but it’s crunchy in operation and feels low quality.

As for where to mount the controller on our trucks I spend a few minutes trying to decide how I wanted to address it. Needing to be close to the battery I planned out a few places but settled on utilizing the battery retention platform.

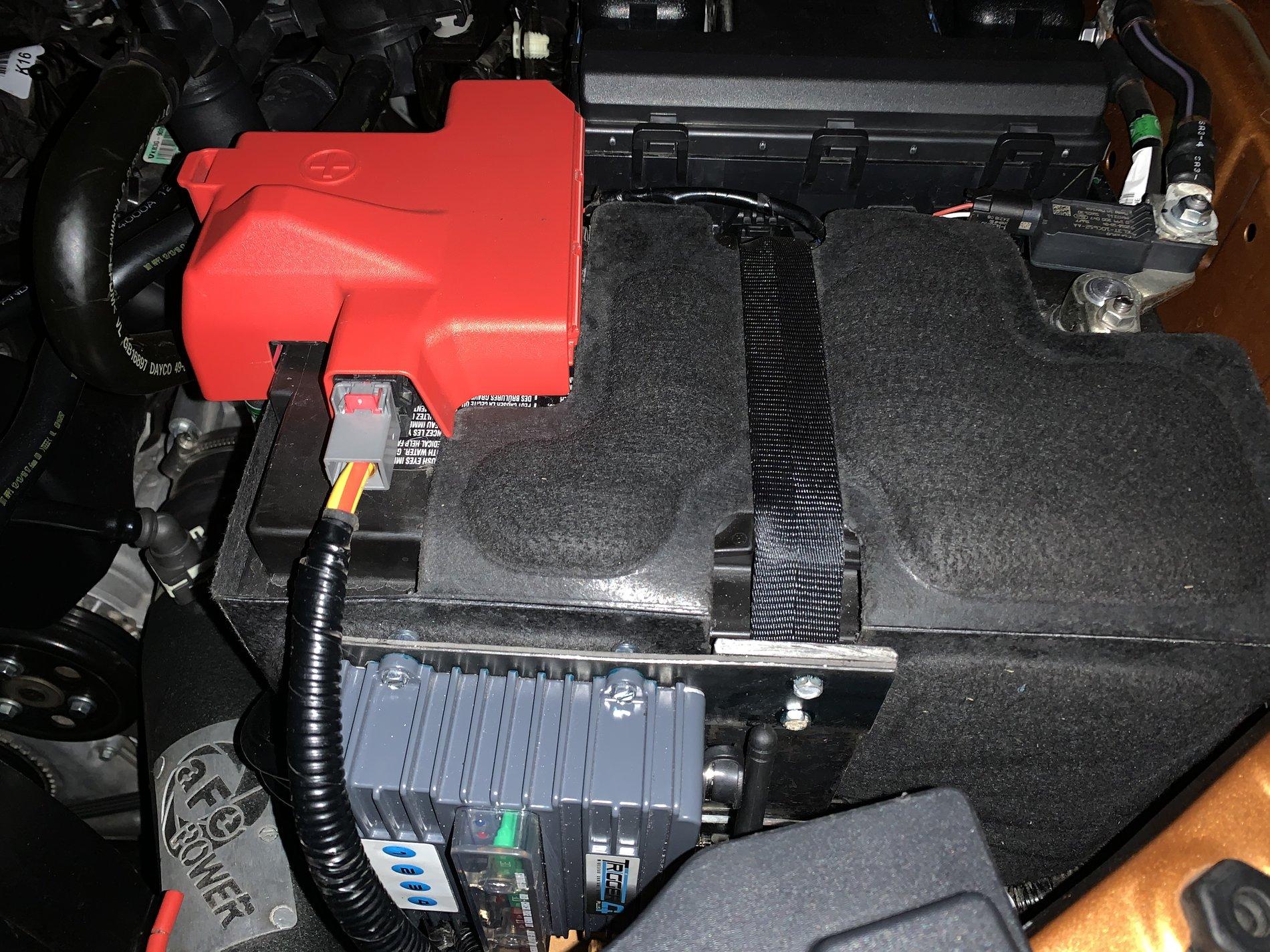

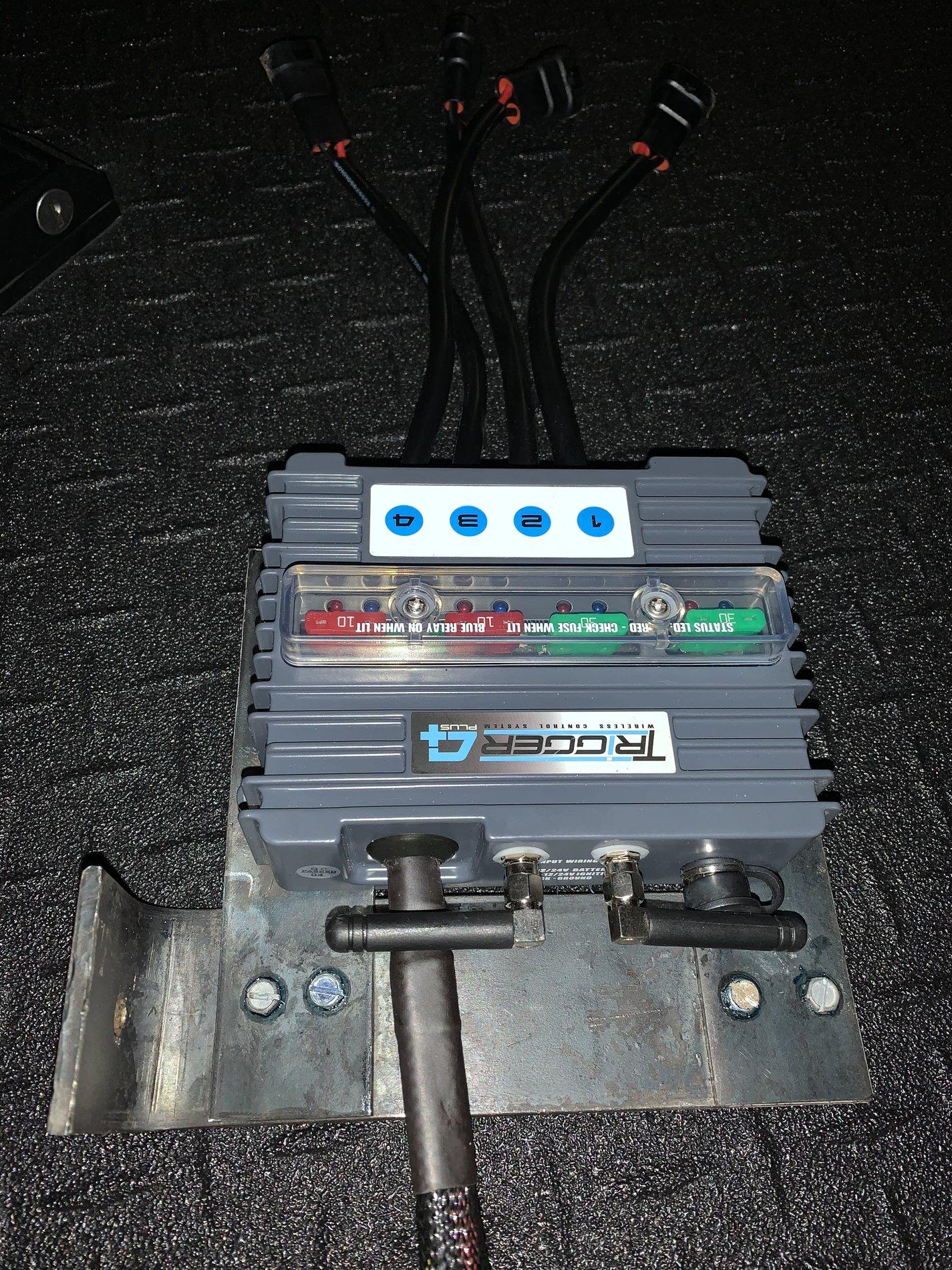

I made up a bracket to fit the platform and attach with the same nut and stud for the battery retention strap.

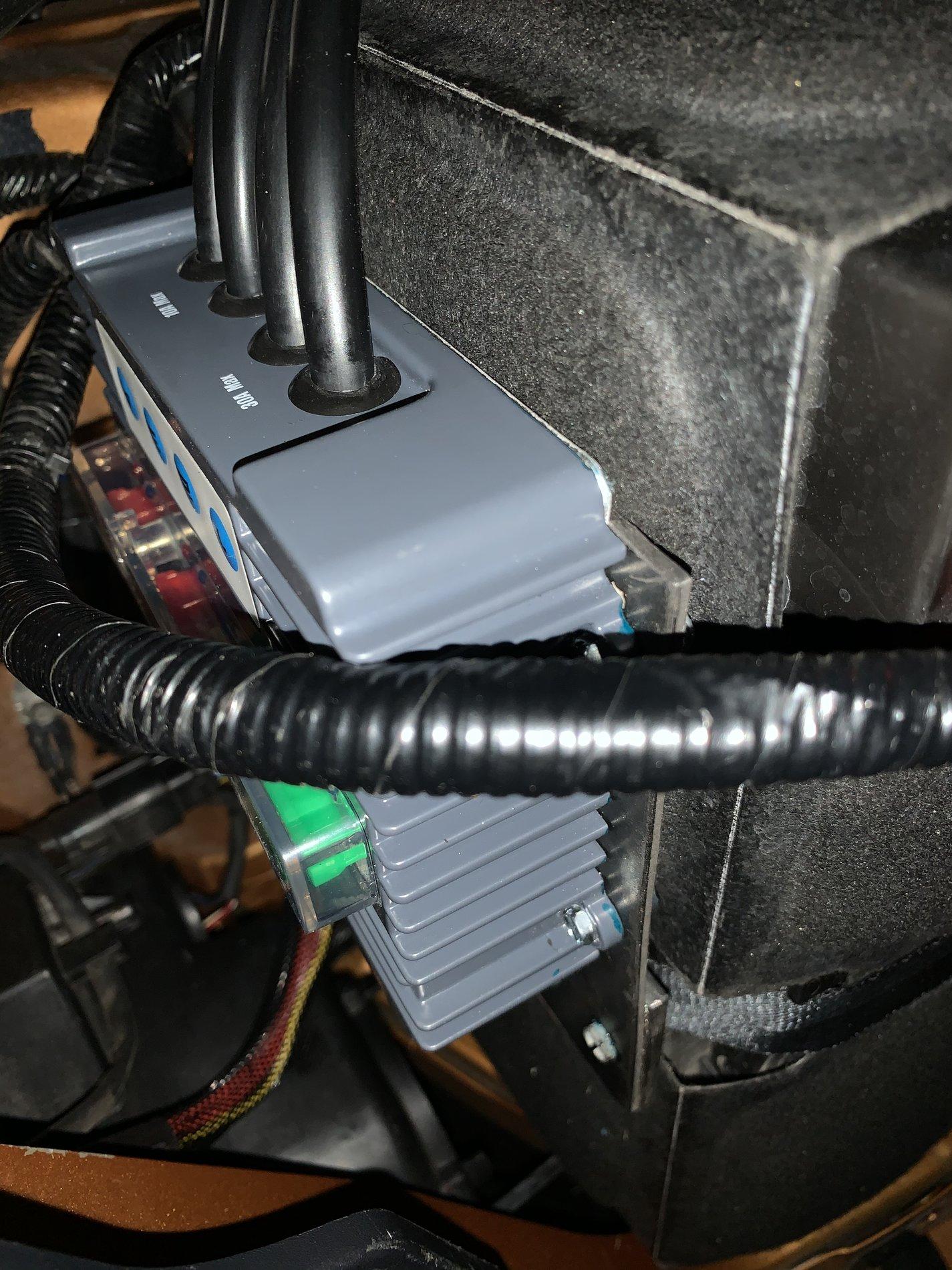

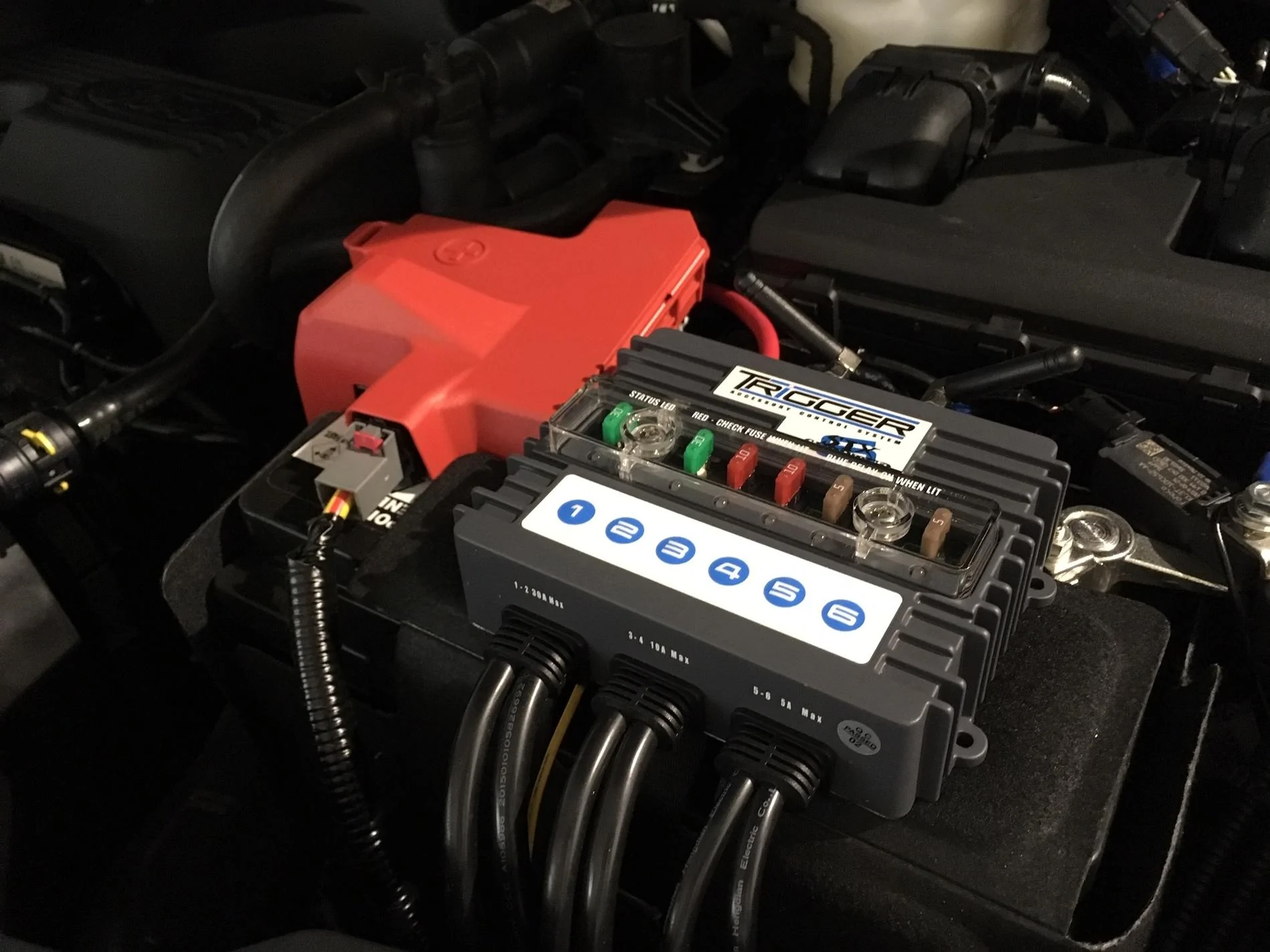

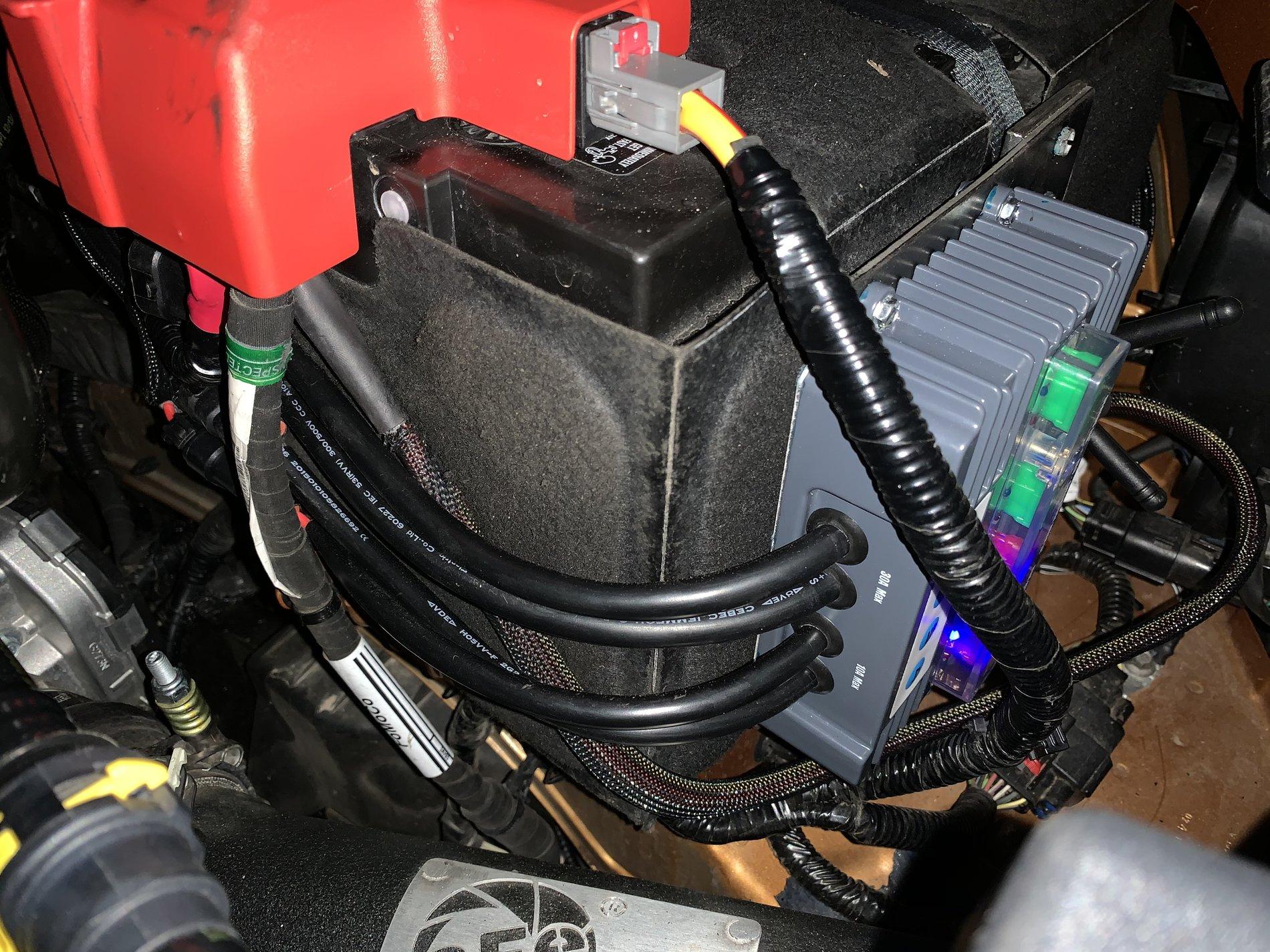

The controller is sitting in what I would consider the perfect spot to allow access and keep the wires positioned with the least strain.

Here are the pics!
