Stumbled across this video on how to make the Super Duty’s upfitter switches always on:



Anyone ever test this out on a Ranger Tremor?

It looks like the relay box is similarly located and configured. The section with the 5A fuse exists on the Ranger, but there isn’t a fuse in there. Figured I’d ask the community before I blow things up.
Sponsored



halligan1201

Well-Known Member
First Name
John
Joined
Jan 23, 2021
Threads
37
Messages
1,567
Reaction score
3,557
Location
Byron, IL
Vehicle(s)
2020 Ranger
Occupation
Emergency Management
Vehicle Showcase
1
Out of honest curiosity, why would you need this?

OP
OP
Nick J

Nick J

Member
First Name
Nick
Joined
Nov 25, 2021
Threads
1
Messages
7
Reaction score
16
Location
Las Vegas
Vehicle(s)
2021 Ford Ranger Tremor
Out of honest curiosity, why would you need this?
Camping, probably. Curiosity, definitely. Just got the truck and I’d like to know its limitations. It would be nice not to need the truck on to use aux lighting. I could see it coming in handy when setting up camp at night.

edit: grammar

Last edited:

myothercarizahearse

Well-Known Member
First Name
Dave
Joined
Apr 26, 2020
Threads
18
Messages
1,880
Reaction score
6,631
Location
Cleveland, Ohio
Vehicle(s)
2019 Ranger STX 4x4 w/ GFC V2, 1987 Caddy hearse
Occupation
Unretired
are the switches on a delay like the USB and cigarette ports? turn off the truck and they have power for X amount of time?



OP
OP
Nick J

Nick J

Member
First Name
Nick
Joined
Nov 25, 2021
Threads
1
Messages
7
Reaction score
16
Location
Las Vegas
Vehicle(s)
2021 Ford Ranger Tremor
are the switches on a delay like the USB and cigarette ports? turn off the truck and they have power for X amount of time?
Just tested. My ditch lights on aux 1 turned off when I turned the car off, but the front USB port was still charging my phone.

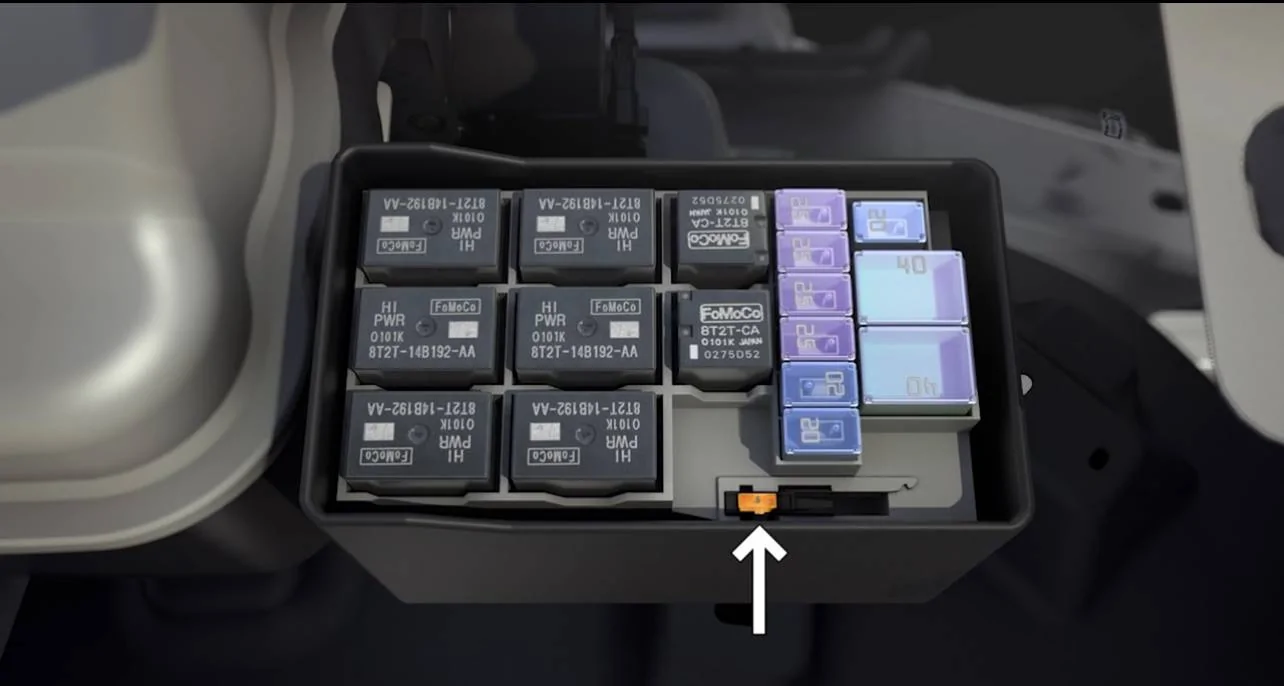

Here’s what I’m talking about. This is from the Super Duty video above.

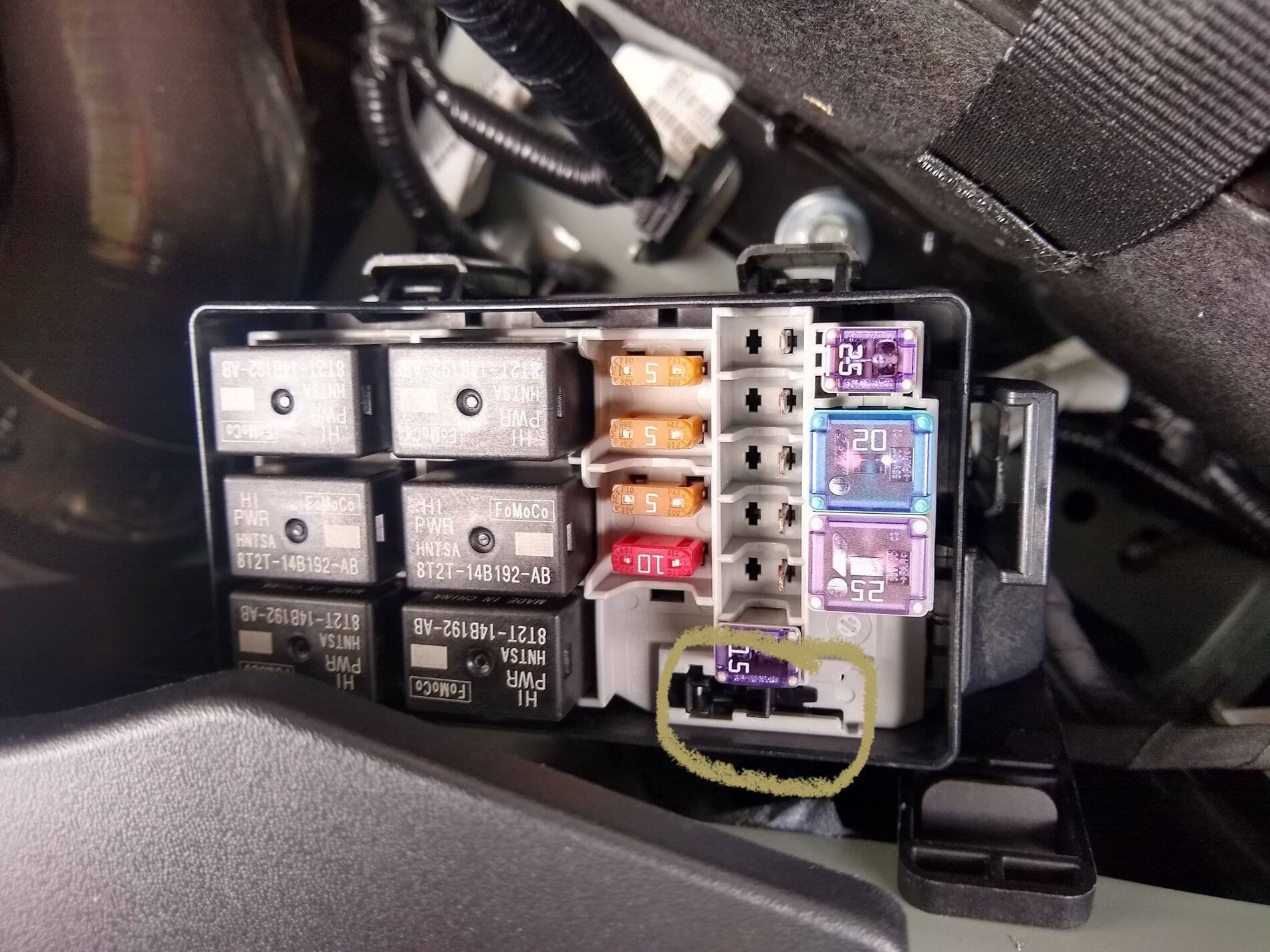

And this is what I’m interested in regarding the tremor (stole this photo from another thread)
