Back to snow wheeling.

I’m going to be moving into a house with a garage again so I’ll be starting to build a bed camper for the flatbed.


Msfitoy

Well-Known Member
First Name
Sid
Joined
Mar 5, 2019
Threads
63
Messages
7,902
Reaction score
23,054
Location
North Carolina
Vehicle(s)
2019 Ranger, 2003 MINI Cooper S, 2021 Honda CT125
Occupation
Automotive, Industrial Designer
Vehicle Showcase
1

Back to snow wheeling.

I’m going to be moving into a house with a garage again so I’ll be starting to build a bed camper for the flatbed.
I hope you meant moving into a "garage with a house"...



9zero1790

Well-Known Member
First Name
Mark
Joined
Nov 29, 2021
Threads
50
Messages
7,101
Reaction score
23,957
Location
DFW Texas
Vehicle(s)
21 super crew fx4 sport
Occupation
air breather
wow truck looks serious now! lots of transformation since i last looked in this thread. ;)

OP
OP
TopoRanger

TopoRanger

Well-Known Member
First Name
Brad
Joined
Nov 22, 2020
Threads
8
Messages
374
Reaction score
1,228
Location
Missoula, Montana
Vehicle(s)
2020 Ranger XLT FX4
Occupation
Mechanic
wow truck looks serious now! lots of transformation since i last looked in this thread. ;)
Thank you!! The build has stalled a bit since we moved to Montana but I’m hoping to get back to fabricating a custom snorkel and a bed camper for it.

OP
OP
TopoRanger

TopoRanger

Well-Known Member
First Name
Brad
Joined
Nov 22, 2020
Threads
8
Messages
374
Reaction score
1,228
Location
Missoula, Montana
Vehicle(s)
2020 Ranger XLT FX4
Occupation
Mechanic

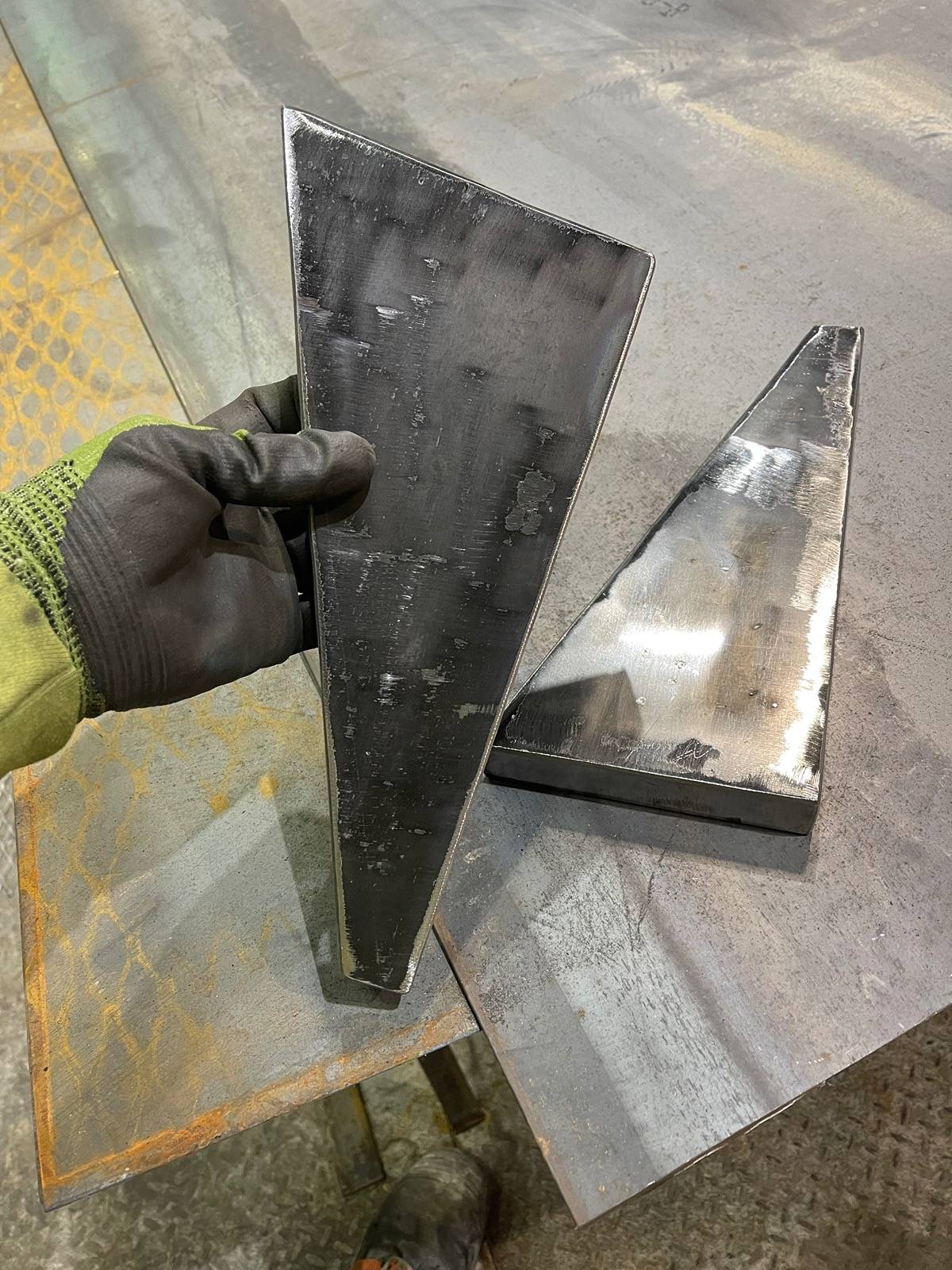

I moved a lot of furniture this weekend so I quickly started designing a relocation for the filler neck. I’ve been slacking on that for quite a while. So I started working on a hidden compartment for the fuel filler. It will be going in front of the fender under the tray. Currently there isn’t a door on it but I think the next version will definitely have one or I will relocate it to the rear corner in the storage compartment. .

all I had to work with was 1/8” material. So it’s definitely over built. I may transform that area into an OBA compartment for the quick disconnect fittings.

OP
OP
TopoRanger

TopoRanger

Well-Known Member
First Name
Brad
Joined
Nov 22, 2020
Threads
8
Messages
374
Reaction score
1,228
Location
Missoula, Montana
Vehicle(s)
2020 Ranger XLT FX4
Occupation
Mechanic


Version 2 already in the works haha! These are the door compartments. I decided to go ahead and build the two compartments how I actually want them in the end. I will remake the base and add a door seal.

I’m also ordering material to start working on a 4” diameter snorkel. This one will take a little bit since the airbox parts are in SC and I’m in Montana. When I travel back to visit family at the end of May I’ll be shipping those parts out so I can do the snorkel and airbox at once.

OP
OP
TopoRanger

TopoRanger

Well-Known Member
First Name
Brad
Joined
Nov 22, 2020
Threads
8
Messages
374
Reaction score
1,228
Location
Missoula, Montana
Vehicle(s)
2020 Ranger XLT FX4
Occupation
Mechanic
Something along these lines for the snorkel design but I’ll need to adjust it a bit to fit with the Advanced Fiberglass fenders. I will do more of a mid entry vs the rear entry. I think it would look pretty cool seeing about half of the snorkel going along the hood.





9zero1790

Well-Known Member
First Name
Mark
Joined
Nov 29, 2021
Threads
50
Messages
7,101
Reaction score
23,957
Location
DFW Texas
Vehicle(s)
21 super crew fx4 sport
Occupation
air breather
its gonna be sharp im ready to see it
