talk to me about leveling

Billho

Active Member
Joined
May 27, 2021
Messages
31
Reaction score
34
Location
Winston-Salem, NC
Vehicle(s)
2019 Ranger XL STX 2wd SuperCab, 2002 GMC Sierra
I am considering doing a leveling kit on my 2wd Ranger, as I agree that it looks a lot better. But, I intend to use my truck to haul lumber, a 600-lb motorcycle, and tow a trailer from time to time and don't want to screw with something that would alter my ability to tow or carry a load. Can you experts weigh in on whether or not I should or shouldn't?





Advertisement


OP
Billho

Billho

Active Member
Joined
May 27, 2021
Messages
31
Reaction score
34
Location
Winston-Salem, NC
Vehicle(s)
2019 Ranger XL STX 2wd SuperCab, 2002 GMC Sierra
  • Thread starter
  • Thread Starter
  • #3
From time to time? You're fine. Every day? I wouldn't
I'll pull a 5,000 lb trailer maybe once a year, a 3,000 lb trailer a few times a year, and maybe haul a truckload of lumber a few times a year (maybe 1,500 lbs). With my other truck (GMC Sierra that is going with my son to college in a few months), I also get a couple of scoops of topsoil 3-4 times a year. I might need to go down to a single scoop with the Ranger.


Iceman

New Member
First Name
Baylon
Joined
Jun 4, 2021
Messages
1
Reaction score
0
Location
Georgia
Vehicle(s)
2021 Ranger
Occupation
CNC Machinist
It’ll make a difference on fuel economy, the 2WD already loses a lot of extra grab as it is. But being as to it happening a few times a year it won’t make or break a Ranger’s ability to haul these payloads and such.

OP
Billho

Billho

Active Member
Joined
May 27, 2021
Messages
31
Reaction score
34
Location
Winston-Salem, NC
Vehicle(s)
2019 Ranger XL STX 2wd SuperCab, 2002 GMC Sierra
  • Thread starter
  • Thread Starter
  • #5
It’ll make a difference on fuel economy, the 2WD already loses a lot of extra grab as it is. But being as to it happening a few times a year it won’t make or break a Ranger’s ability to haul these payloads and such.
Forgive my ignorance, as this is new to me. What do you mean by difference in fuel economy- do you mean that a lift improves it, or makes it worse?

I'm thinking about upgrading from the HT tires on it to all-terrains sometime soon. That sounds like a good time to do a lift, if I choose to. No rush, but it is on the list for the near future.


AdamHarris

Well-Known Member
First Name
Adam
Joined
Feb 26, 2021
Messages
347
Reaction score
685
Location
Jackson TN
Vehicle(s)
2020 Ford F$%&@n Ranger XLT FX4 Black Supercrew
Occupation
Collision Repair Instructor
Vehicle Showcase
1
A level kit will negatively affect mpgs some on account of aerodynamics (cutting wind from beneath a vehicle improves aro).

a level kit will Not affect payload or towing capacity at All. Might make it look a little “squatty” a bit when towing but will Not slow it down.


Mcssls

Well-Known Member
Joined
May 5, 2021
Messages
89
Reaction score
198
Location
Idiotville
Vehicle(s)
Ranger
Bigger tires kill mpg because they’re heavier. Lift changes aerodynamics combined you will see a drop in mpg.


Sardog

Member
First Name
Jason
Joined
Oct 11, 2020
Messages
14
Reaction score
23
Location
Chula Vista, Ca
Vehicle(s)
2020 Ranger Lariat FX4
Occupation
USN Aircrew
I have the FX4 that I have added a Decked box and a Leitner ACS Rack over the bed. Total Weight in the bed driving around is about 300 lbs. With that weight the truck with stock suspension is pretty much level. With all that being said, if you add a leveling kit to the front when you are adding weight or towing I would expect to get a decent amount of squat in the back.


Glocker

Well-Known Member
First Name
John
Joined
Feb 11, 2020
Messages
1,130
Reaction score
2,597
Location
ATL area
Vehicle(s)
2019 Ford Ranger XLT FX4, 2014 Mustang GT P-1SC-1 Stage II, 2013 Ford Escape SEL
Vehicle Showcase
1
I leveled a bit too much and ended up with a barely perceptible rear rake. I had leveled the truck 3.75" up front and after a bumper and winch were added, I saw an actual lift of 3.5" up front. I was sitting about .25" to .5" lower in the rear, especially with the weight of my tent and recovery gear with the Eiback shocks I installed with the front Eibach kit.. I ended up installing an add-a-leaf kit from Auto Spring to work in conjunction with the Eibach rear shocks and my truck sits really nice right now and has just barely any sag with my boat hooked up.

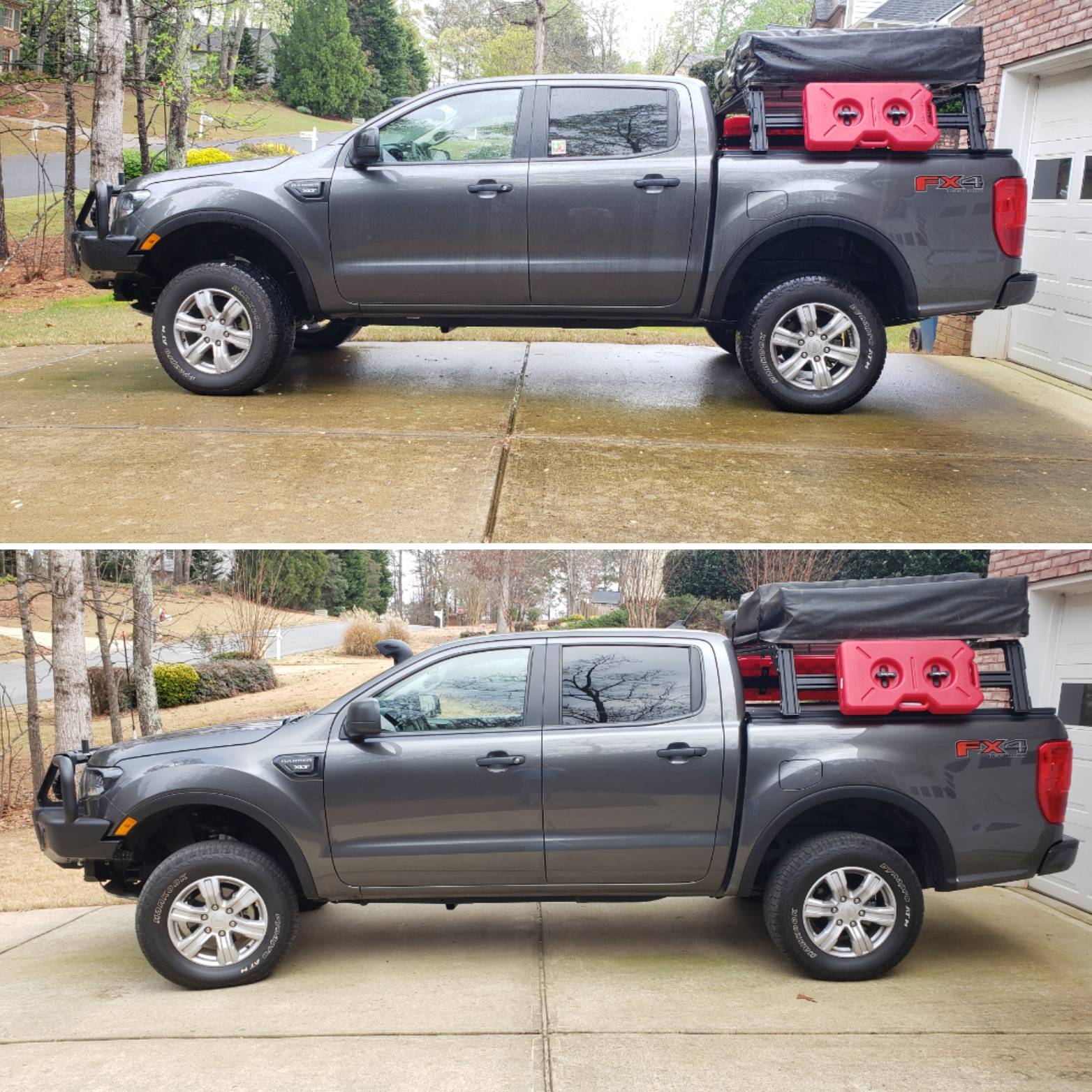

Top is with the add-a-leaf kit and the bottom is without.

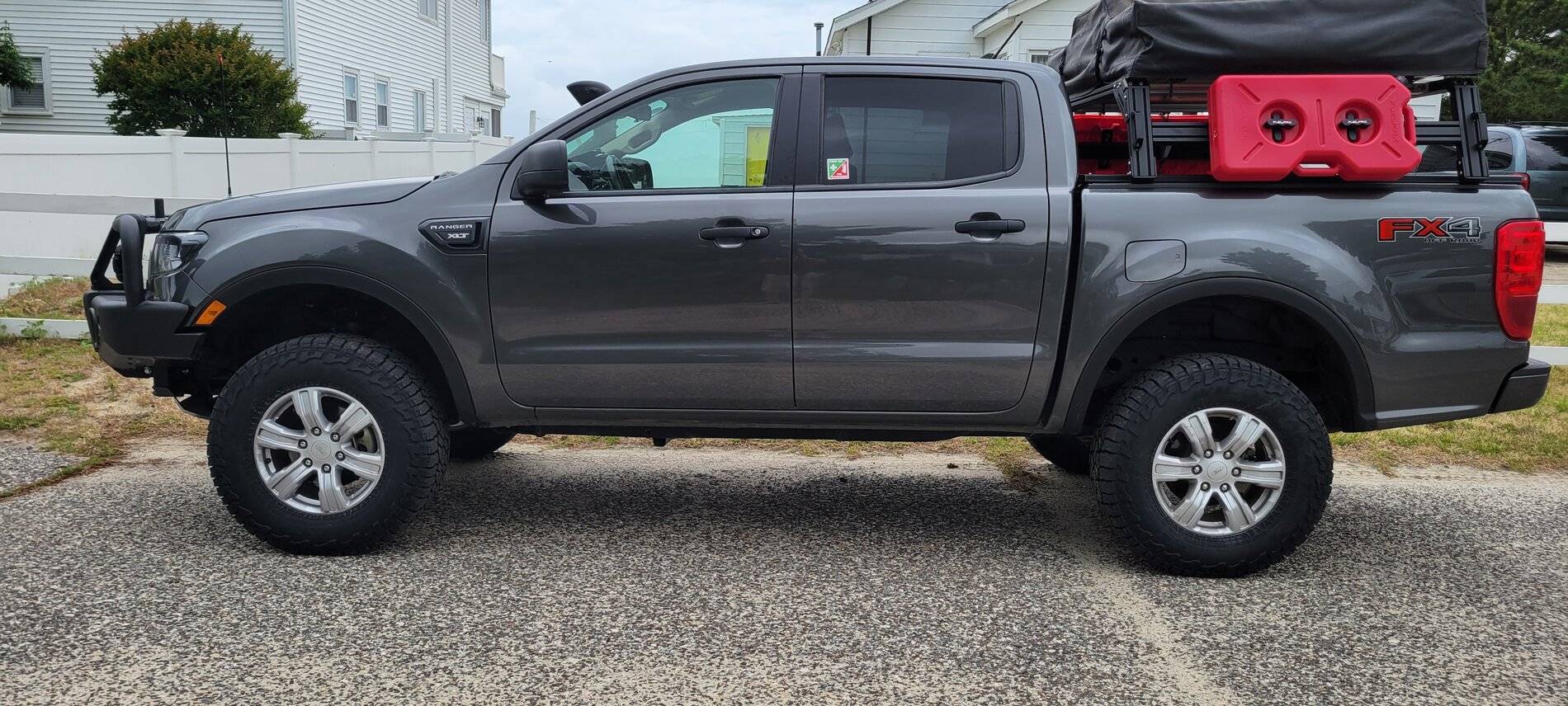

Now with bigger tires installed.
2021-06-04 10.45.08.jpg

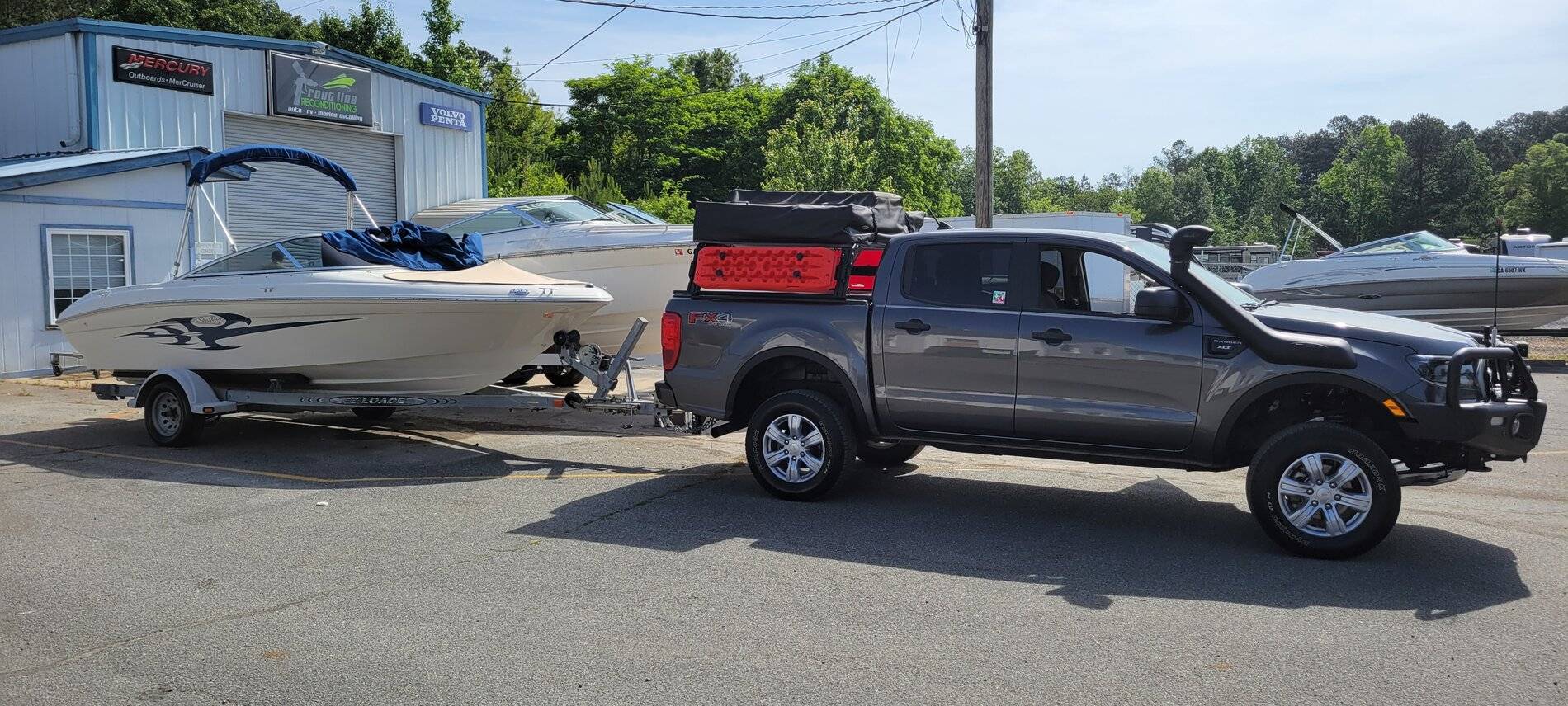

Small tires but with boat trailer on the truck...
2021-05-22 10.38.49.jpg


HenryMac

Well-Known Member
First Name
John
Joined
Sep 14, 2019
Messages
2,658
Reaction score
4,754
Location
Central Colorado
Vehicle(s)
2019 SuperCab XL - FX4 - Magnetic - Rocksliders
Occupation
Mech. Engineer - Retired
Vehicle Showcase
1
I have the FX4 that I have added a Decked box and a Leitner ACS Rack over the bed. Total Weight in the bed driving around is about 300 lbs. With that weight the truck with stock suspension is pretty much level. With all that being said, if you add a leveling kit to the front when you are adding weight or towing I would expect to get a decent amount of squat in the back.

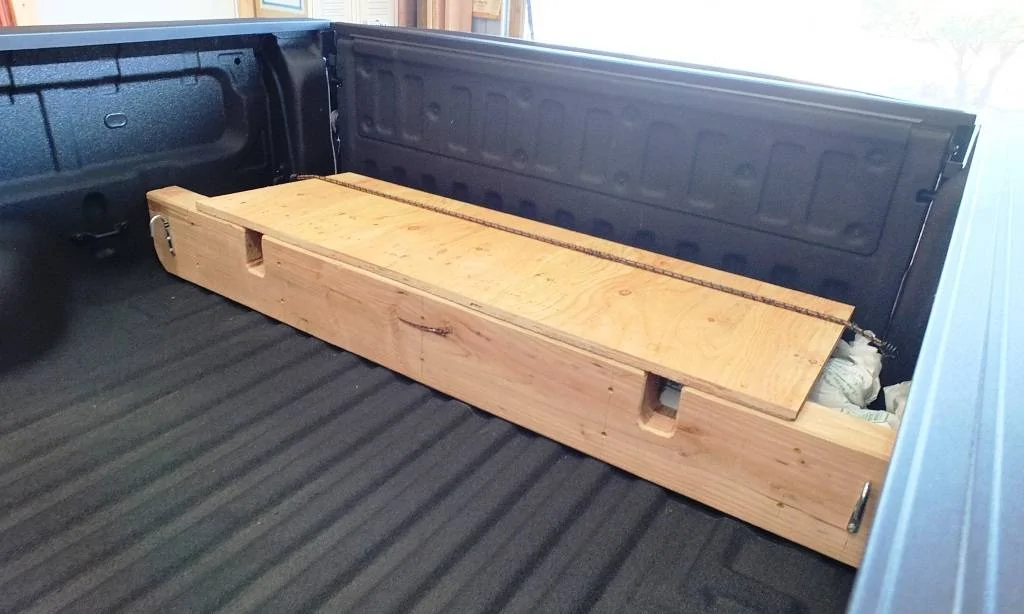

I put 300# of ballast right at the back of the bed, right against the tailgate, in the winter for extra traction in our FX4. It doesn't even come close to leveling the truck.

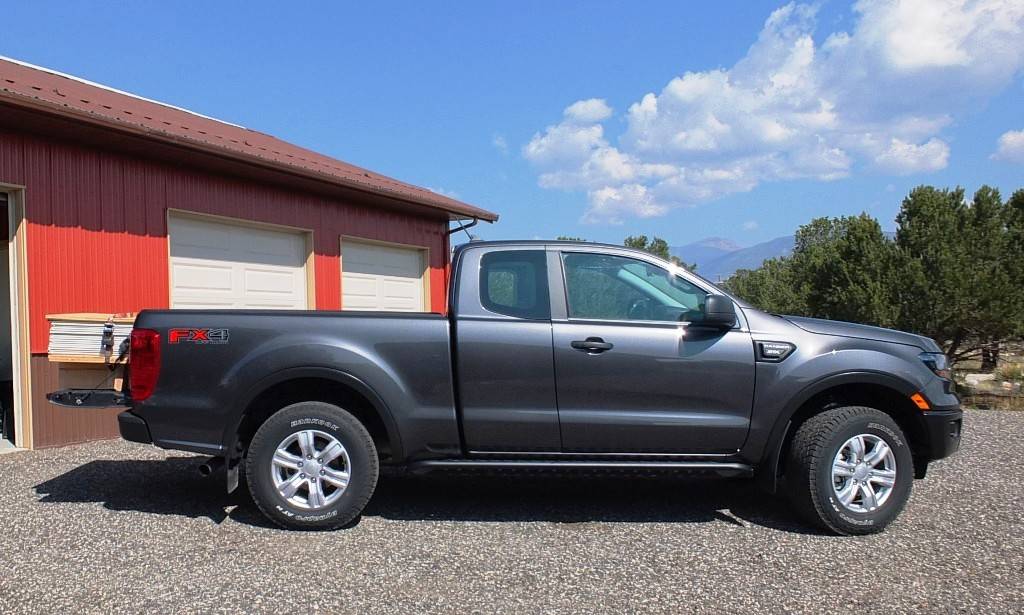

Only time ours has been level is when we hauled 1,200 lbs of drywall and plywood.

002 1105 lbs.JPG


Frenchy

Well-Known Member
First Name
Chris
Joined
Mar 15, 2020
Messages
2,199
Reaction score
1,895
Location
Colorado Springs
Vehicle(s)
2019 Ford Ranger,
Occupation
Crown Forklift Technician
I am considering doing a leveling kit on my 2wd Ranger, as I agree that it looks a lot better. But, I intend to use my truck to haul lumber, a 600-lb motorcycle, and tow a trailer from time to time and don't want to screw with something that would alter my ability to tow or carry a load. Can you experts weigh in on whether or not I should or shouldn't?
If you are planning to use your truck as a truck daily then I do not recommend doing a leveling kit what so ever!!! Does that mean you should suffer with ride quality from the oh so wonderful stock shocks? Not at all. You can still get either Eibach or Bilstein shocks and not "level" the truck and improve overall ride quality

OP
Billho

Billho

Active Member
Joined
May 27, 2021
Messages
31
Reaction score
34
Location
Winston-Salem, NC
Vehicle(s)
2019 Ranger XL STX 2wd SuperCab, 2002 GMC Sierra
  • Thread starter
  • Thread Starter
  • #13
If you are planning to use your truck as a truck daily then I do not recommend doing a leveling kit what so ever!!! Does that mean you should suffer with ride quality from the oh so wonderful stock shocks? Not at all. You can still get either Eibach or Bilstein shocks and not "level" the truck and improve overall ride quality
I am still considering it, but leaning towards holding off for now. I have so many other things I want to do to the truck. Plus, I will tow a trailer tomorrow with a 2000ish lb load and I'll see how it does before I mess with things


Frenchy

Well-Known Member
First Name
Chris
Joined
Mar 15, 2020
Messages
2,199
Reaction score
1,895
Location
Colorado Springs
Vehicle(s)
2019 Ford Ranger,
Occupation
Crown Forklift Technician
I am still considering it, but leaning towards holding off for now. I have so many other things I want to do to the truck. Plus, I will tow a trailer tomorrow with a 2000ish lb load and I'll see how it does before I mess with things
Seeing what a vehicle will do before making modifications is always a good idea.


TBR17

Well-Known Member
Joined
Jan 5, 2021
Messages
828
Reaction score
2,009
Location
Manatee River Florida
Vehicle(s)
'21 Ranger Tremor, '13 Vette Z16, '62 VW Beetle
Towing just under a 3k lbs single axle trailer with my SCAB FX4 and with my SCREW Tremor I see right at .75" of squat.
