SVC Offroad Leveling Spring Perch Collars

Discussion in 'SVC Offroad' started by SVC Offroad, Sep 5, 2019.

  1. SVC Offroad

    Diamond Sponsor


    First Name:
    SVC
    Vehicle(s):
    2019 4 door Lariat 4X4
    Joined:
    Aug 14, 2019
    Location:
    Lake Forest CA.
    Posts:
    65
    Likes Received:
    56
    SVC Offroad is excited to offer a unique leveling option for 5th Gen Ford Ranger that doesn't interfere with the factory suspension geometry and alter the factory CV angles. For years the Ford Raptor has proven that one of the best leveling options has been to move the factory perch collar up on the Gen 1 or offer a coil adjustment system on the Gen 2's. Ford was wise enough to transfer this technology to the 5th Gen ranger.

    The SVC Offroad billet aluminum leveling perch collar deletes the factory stamped steel spring perch and drops right onto the OEM Ranger shock body. By installing our leveling collar you increasing pre load on the spring in the same manner as you would with a threaded body coil over. This will offer two benefits. Benefit #1 will give you the leveled stance which also allows for use of a larger diameter tire. Benefit #2 is that additional pre-load on the spring will help with bottoming control when being used off road. This product has been on our personal truck for over 4 months has performed flawlessly on and off road. Installation is stright froward and rates about a 2/5 wrenches in install difficulty. SVC Off-road supplies step by step instructions and the only specialty tool requires is a portable spring compressor that can easily be rented at your local auto parts store.

    We look forward to growing our SVC family and to answering any further questions! Make sure to use Initial product launch discount code " PERCH5G " valid until 10/31/2019

    https://www.svcoffroad.com/product-page/2019-ford-ranger-leveling-collar

    [​IMG]

    [​IMG] [​IMG]

    PNW_Ranger87 and MTB-BRUH like this.
  2. MTB-BRUH

    MTB-BRUH Well-Known Member

    First Name:
    Tyler
    Vehicle(s):
    2019 Ranger Base
    Joined:
    May 16, 2019
    Location:
    Redding CA
    Posts:
    367
    Likes Received:
    501
    Occupation:
    Powersports Mechanic
    Ordered one up, thank you Jeff for the help and discount!

  3. Stic-o

    Stic-o Well-Known Member

    Vehicle(s):
    '99 Explorer ,'16 Explorer, '91 Navajo, '19 Ranger
    Joined:
    Sep 28, 2018
    Location:
    Lake View Terrace, CA
    Posts:
    445
    Likes Received:
    388
    Garage Profiles:
    1
    Will you guys be at the off road expo in a few weeks?

  4. OP
    OP
    SVC Offroad

    Diamond Sponsor


    First Name:
    SVC
    Vehicle(s):
    2019 4 door Lariat 4X4
    Joined:
    Aug 14, 2019
    Location:
    Lake Forest CA.
    Posts:
    65
    Likes Received:
    56
    Yes we will have a booth indoors, swing by and say whats up! Our white Ranger will also be in the Gladiator tire booth.

  5. mrsmith

    mrsmith Well-Known Member

    First Name:
    Matthew
    Vehicle(s):
    2019 Ford Ranger XLT - FX4
    Joined:
    Jul 16, 2019
    Location:
    North Carolina
    Posts:
    203
    Likes Received:
    283
    Occupation:
    Project Manager - Industrial Construction
    Garage Profiles:
    1
    I'll be ordering mine today.

    Question, do your ranger bumpers allow the factory sensors to be reinstalled?

  6. OP
    OP
    SVC Offroad

    Diamond Sponsor


    First Name:
    SVC
    Vehicle(s):
    2019 4 door Lariat 4X4
    Joined:
    Aug 14, 2019
    Location:
    Lake Forest CA.
    Posts:
    65
    Likes Received:
    56
    Just sent ya tracking! thanks again and looking forward to hearing your reviews.

    The bumper will retain factory sensors , we are working out all the final details currently before official launch !

  7. Stic-o

    Stic-o Well-Known Member

    Vehicle(s):
    '99 Explorer ,'16 Explorer, '91 Navajo, '19 Ranger
    Joined:
    Sep 28, 2018
    Location:
    Lake View Terrace, CA
    Posts:
    445
    Likes Received:
    388
    Garage Profiles:
    1
    Question, I really like the idea of these vs. the other kits, but you guys say "level" what height does that mean? 2.5"?, 3"?, 3.5"?

    I ask because I plan to do some towing.

    And finally will you have stock at the off road show? Or if I order one can I just pick up there?

  8. OP
    OP
    SVC Offroad

    Diamond Sponsor


    First Name:
    SVC
    Vehicle(s):
    2019 4 door Lariat 4X4
    Joined:
    Aug 14, 2019
    Location:
    Lake Forest CA.
    Posts:
    65
    Likes Received:
    56

    Thanks for the question. We choose to go this route vs. a top spring spacer based on the fact we saw many Raptors over the years have serious CV issues by dropping entire shock down. It puts way to much CV angle at full droop. We can bring a few to the expo for pickup if needed. Just give us a call or shoot us a PM and we can make that happen for ya. With regards to height. It's about a total 2.5 inch. Exact height changes based on which model ranger you have, mods done to the truck etc...

  9. Stic-o

    Stic-o Well-Known Member

    Vehicle(s):
    '99 Explorer ,'16 Explorer, '91 Navajo, '19 Ranger
    Joined:
    Sep 28, 2018
    Location:
    Lake View Terrace, CA
    Posts:
    445
    Likes Received:
    388
    Garage Profiles:
    1
    Thanks for the quick answer, I think it would really help a lot of people understanding the benefits of this set up with some diagrams or side by side comparison images. Just a marketing thought.

    I'll probably order next week, and message you about picking up at the show. If you had the booth space, I'd say you could do a live installation...lol

    stinger likes this.
  10. Mellow

    Mellow Well-Known Member

    First Name:
    Joe
    Vehicle(s):
    19 Sport Lariat 2WD Plat. White
    Joined:
    Mar 11, 2019
    Location:
    DFW
    Posts:
    246
    Likes Received:
    273
    ... Plus, and install video would be cool.. I like this idea much better that the Top spacers, even though I'm in a 2WD.

  11. OP
    OP
    SVC Offroad

    Diamond Sponsor


    First Name:
    SVC
    Vehicle(s):
    2019 4 door Lariat 4X4
    Joined:
    Aug 14, 2019
    Location:
    Lake Forest CA.
    Posts:
    65
    Likes Received:
    56

    I will take some pics of the stock shock with out collar and should have some before and after measurements laying around. Show pick up would be no problem at all. Wish we could do a live install, if/when any locals want to come down for install it may be something we can set up time to do video at the same time

  12. mrsmith

    mrsmith Well-Known Member

    First Name:
    Matthew
    Vehicle(s):
    2019 Ford Ranger XLT - FX4
    Joined:
    Jul 16, 2019
    Location:
    North Carolina
    Posts:
    203
    Likes Received:
    283
    Occupation:
    Project Manager - Industrial Construction
    Garage Profiles:
    1

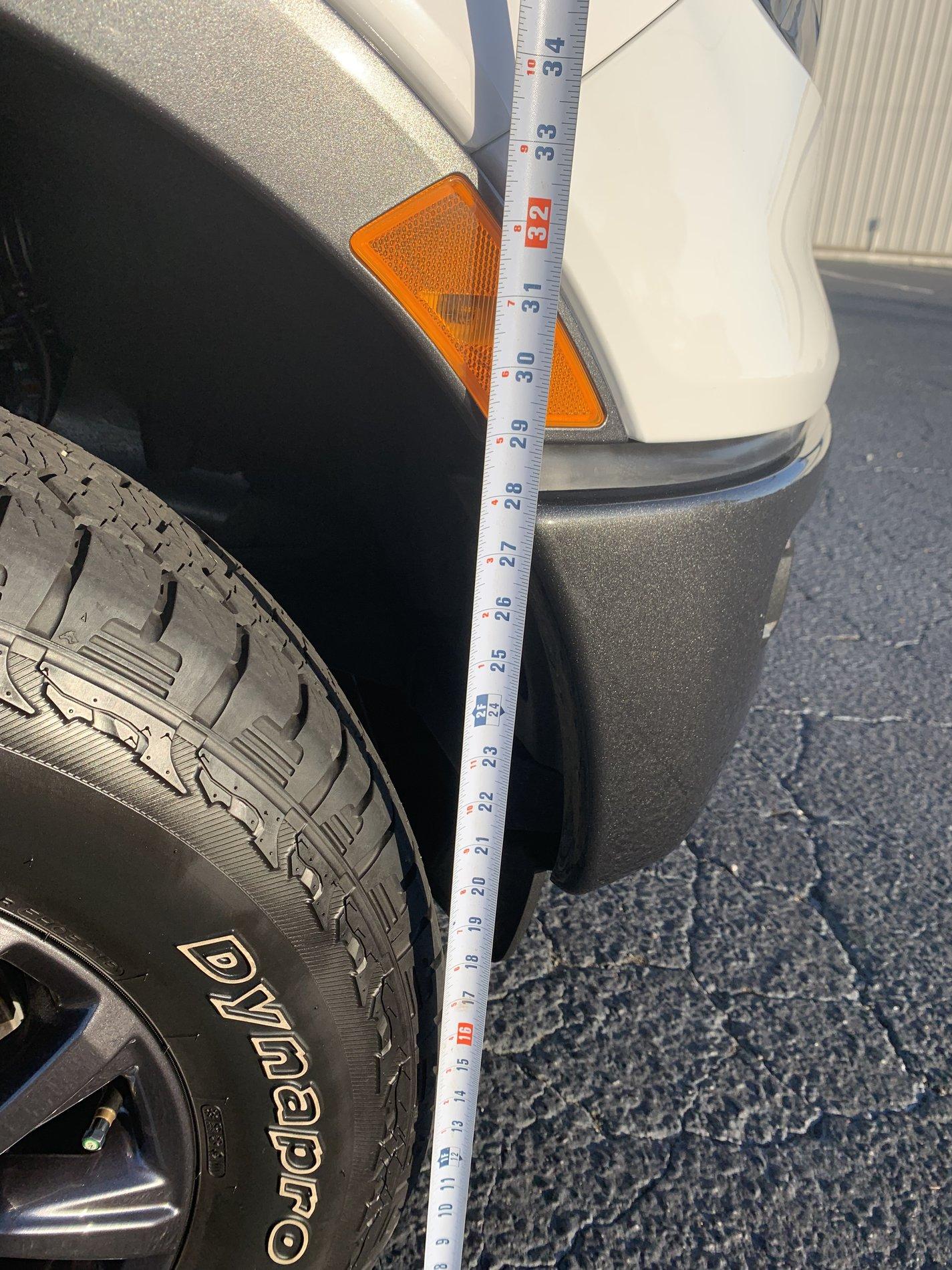

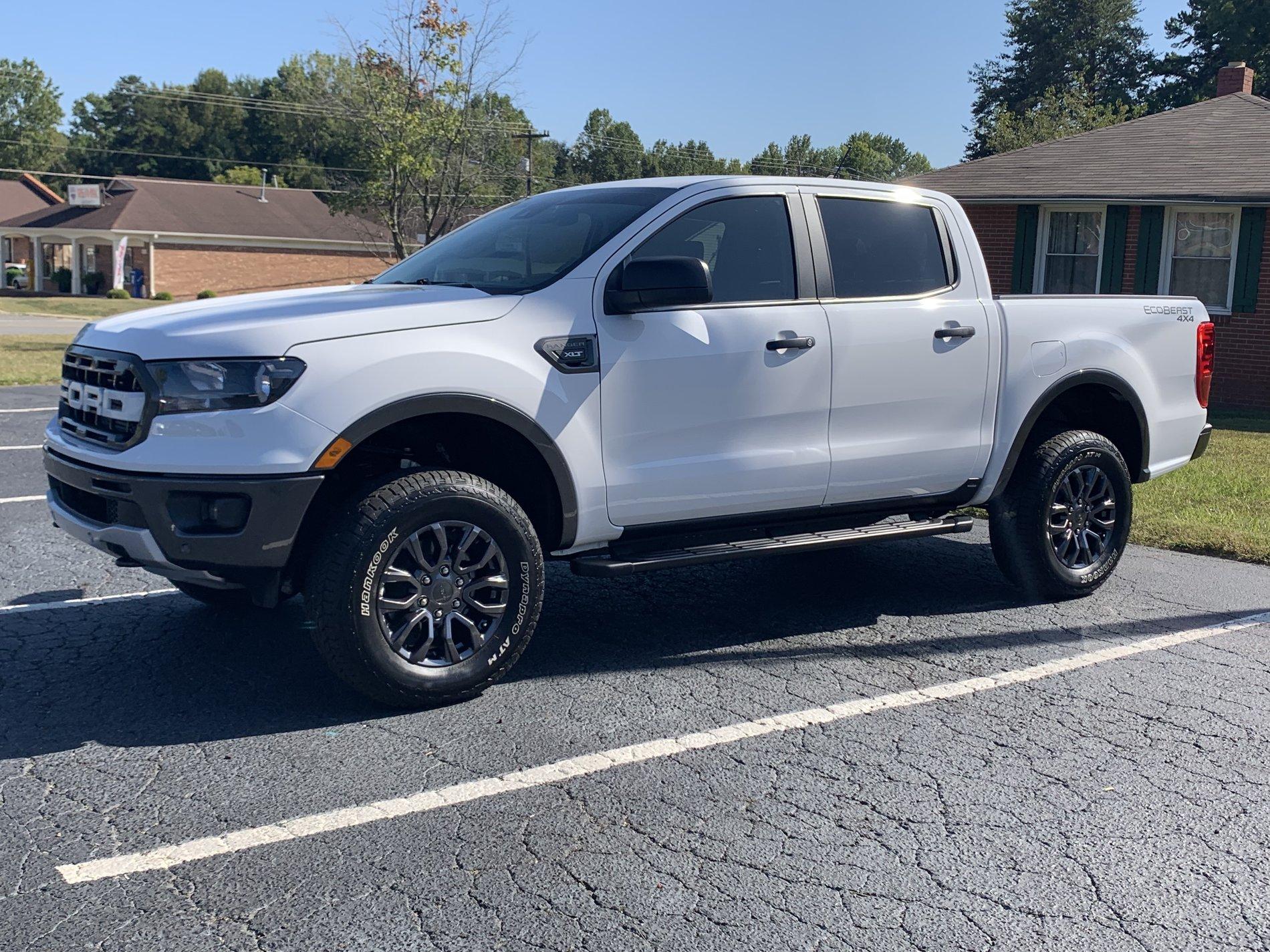

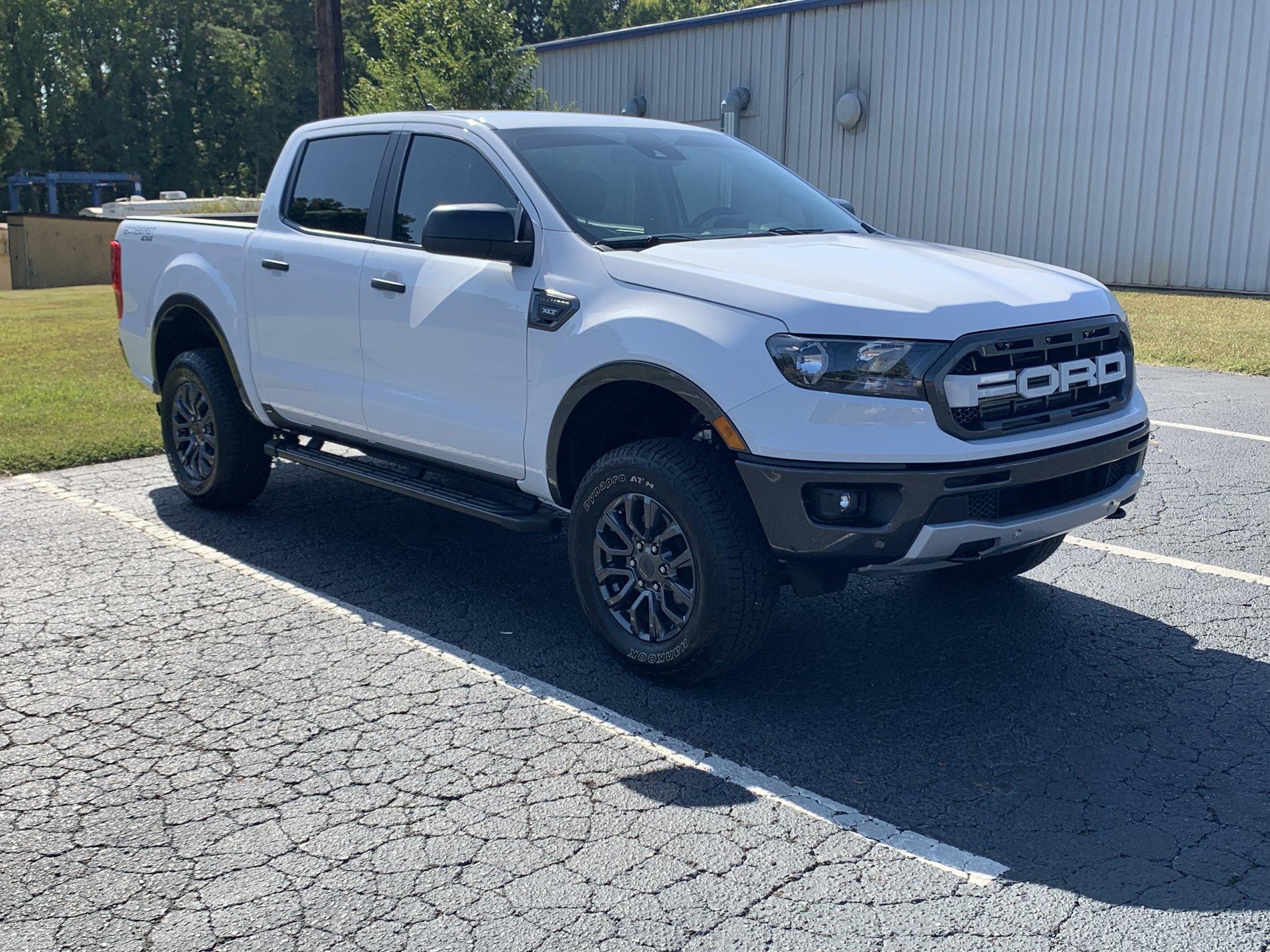

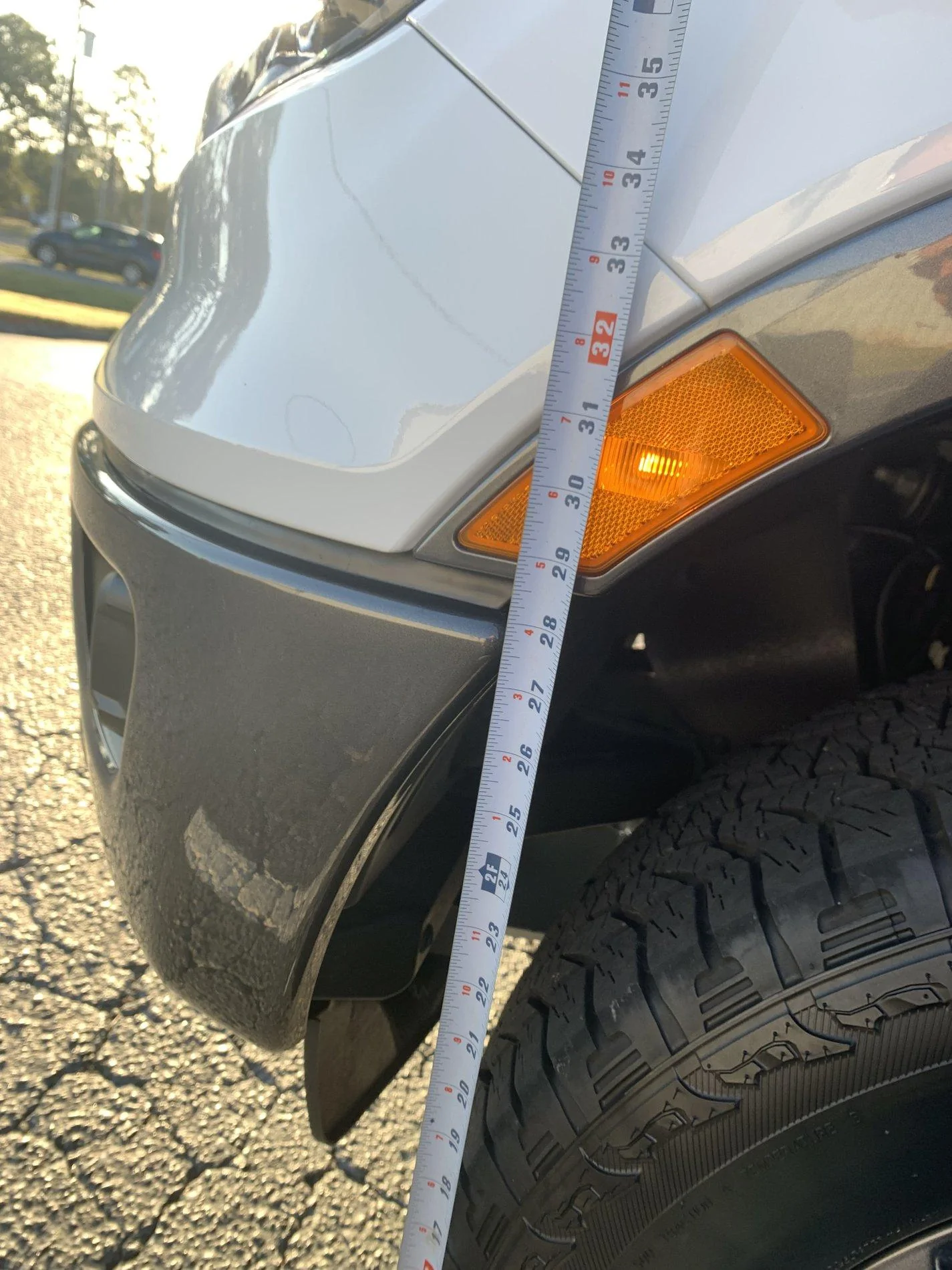

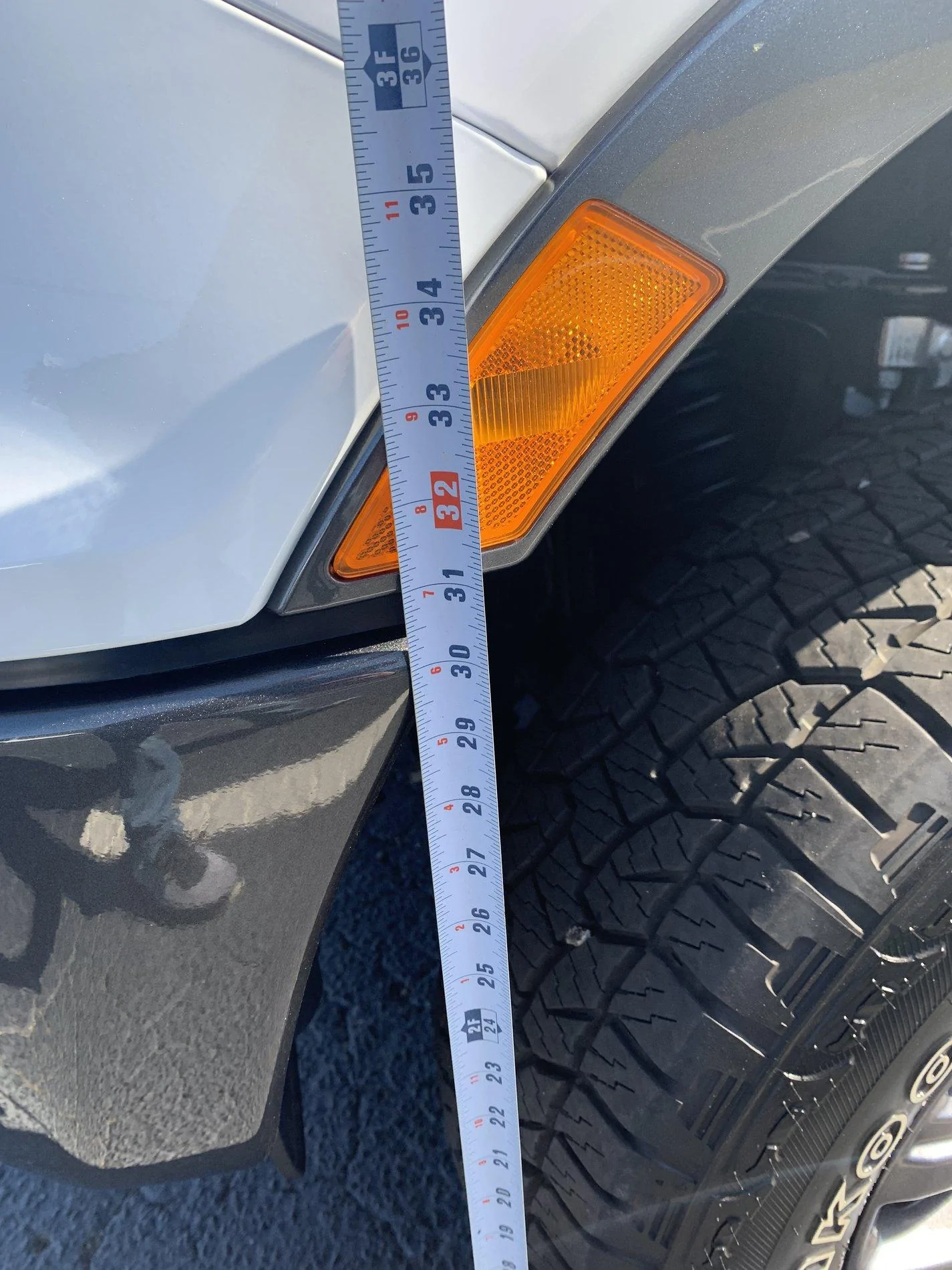

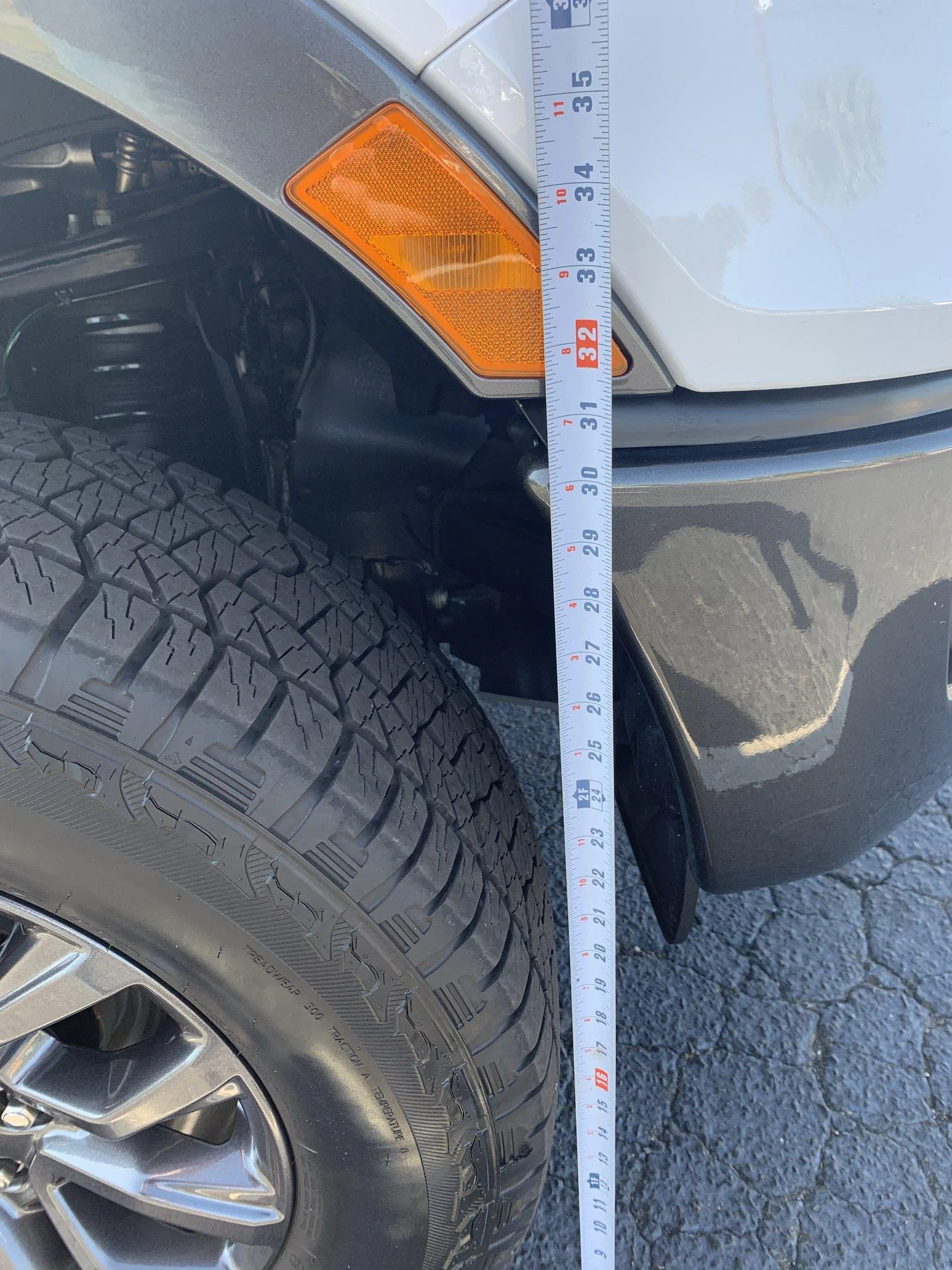

    Height stock vs installed.

    2” gain.



    SVC Offroad likes this.
  13. OP
    OP
    SVC Offroad

    Diamond Sponsor


    First Name:
    SVC
    Vehicle(s):
    2019 4 door Lariat 4X4
    Joined:
    Aug 14, 2019
    Location:
    Lake Forest CA.
    Posts:
    65
    Likes Received:
    56
    Looking forward to hearing your feedback! Thank you for the before and after pics

    mrsmith likes this.
  14. mrsmith

    mrsmith Well-Known Member

    First Name:
    Matthew
    Vehicle(s):
    2019 Ford Ranger XLT - FX4
    Joined:
    Jul 16, 2019
    Location:
    North Carolina
    Posts:
    203
    Likes Received:
    283
    Occupation:
    Project Manager - Industrial Construction
    Garage Profiles:
    1

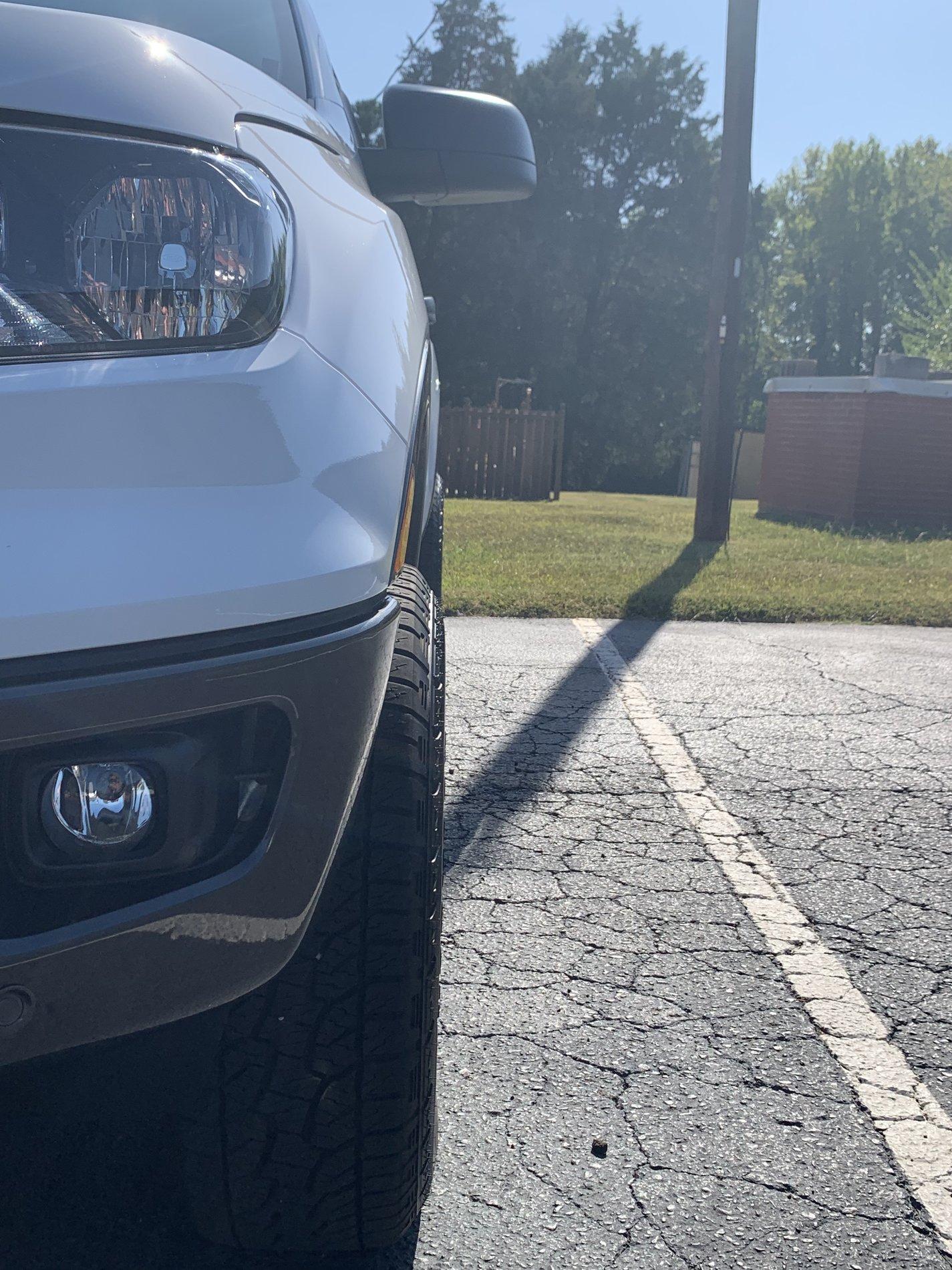

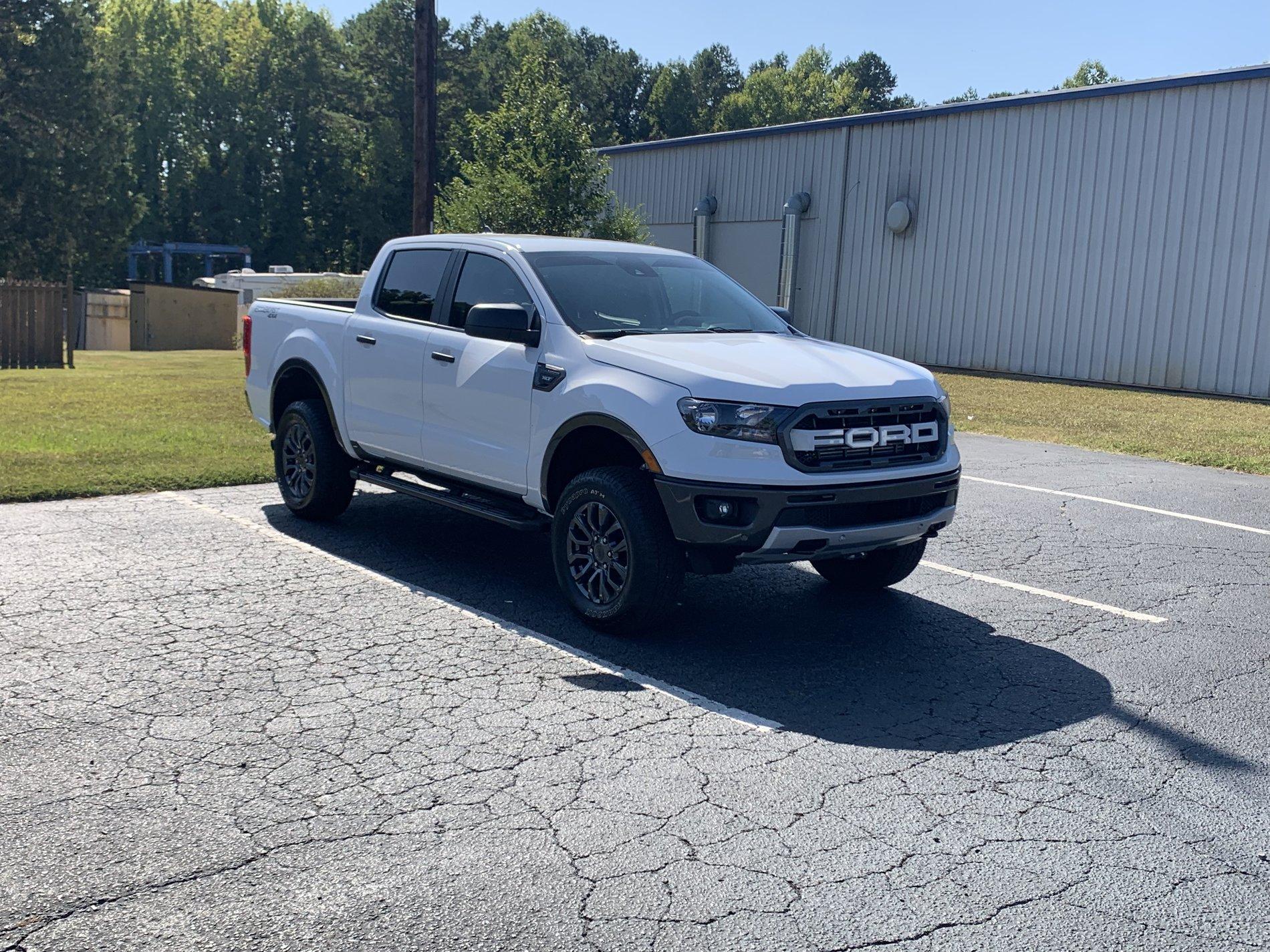

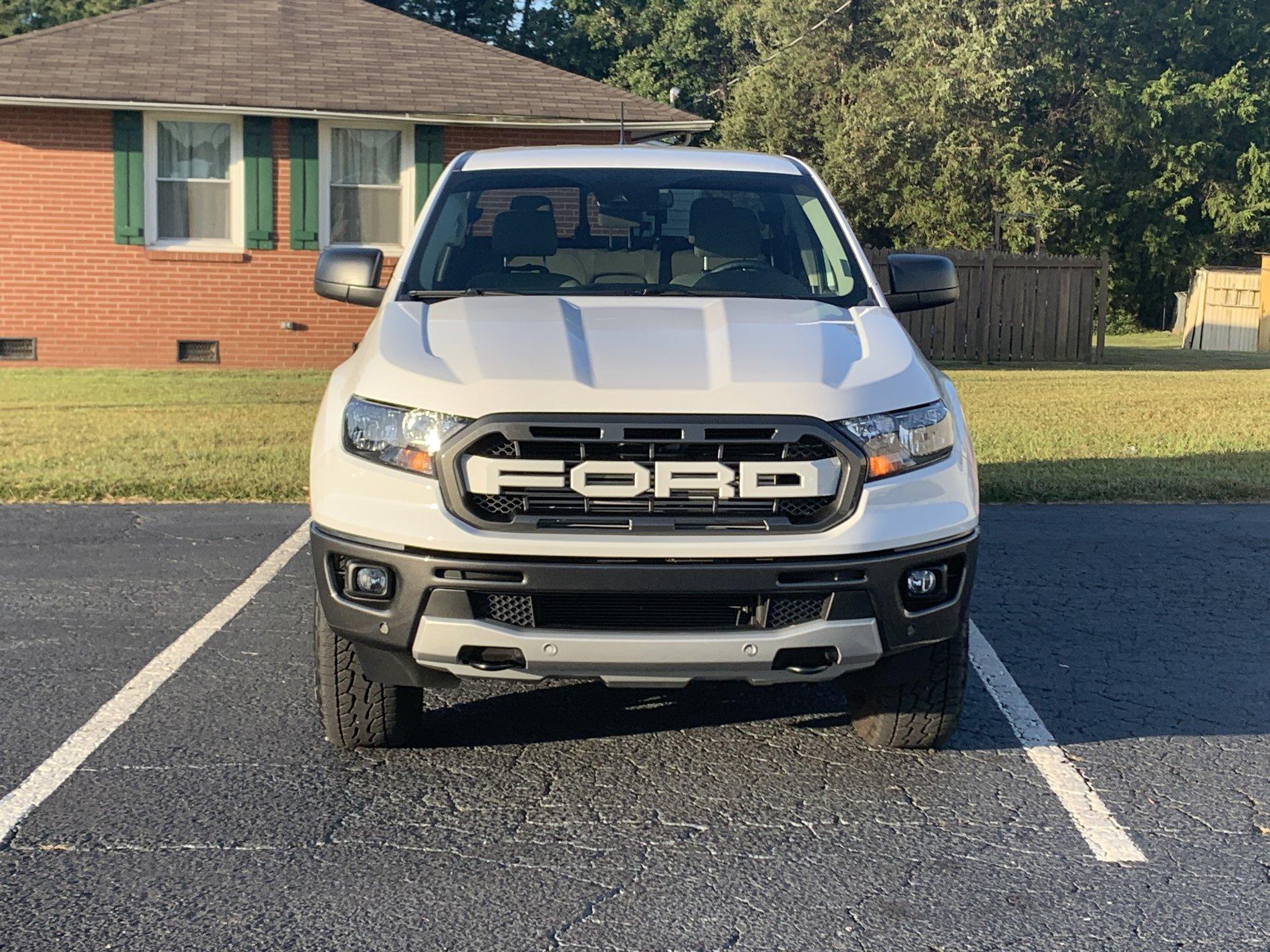

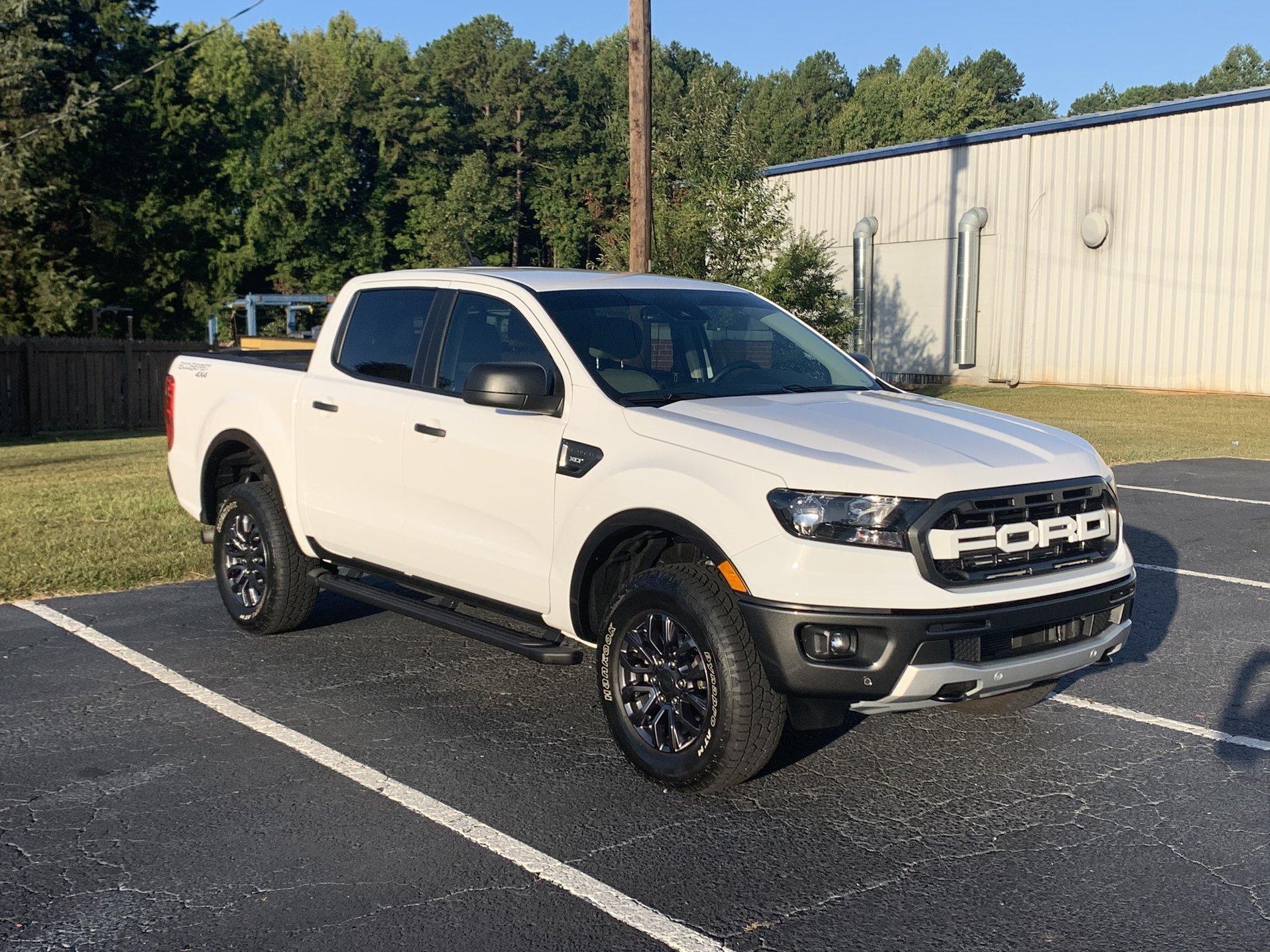

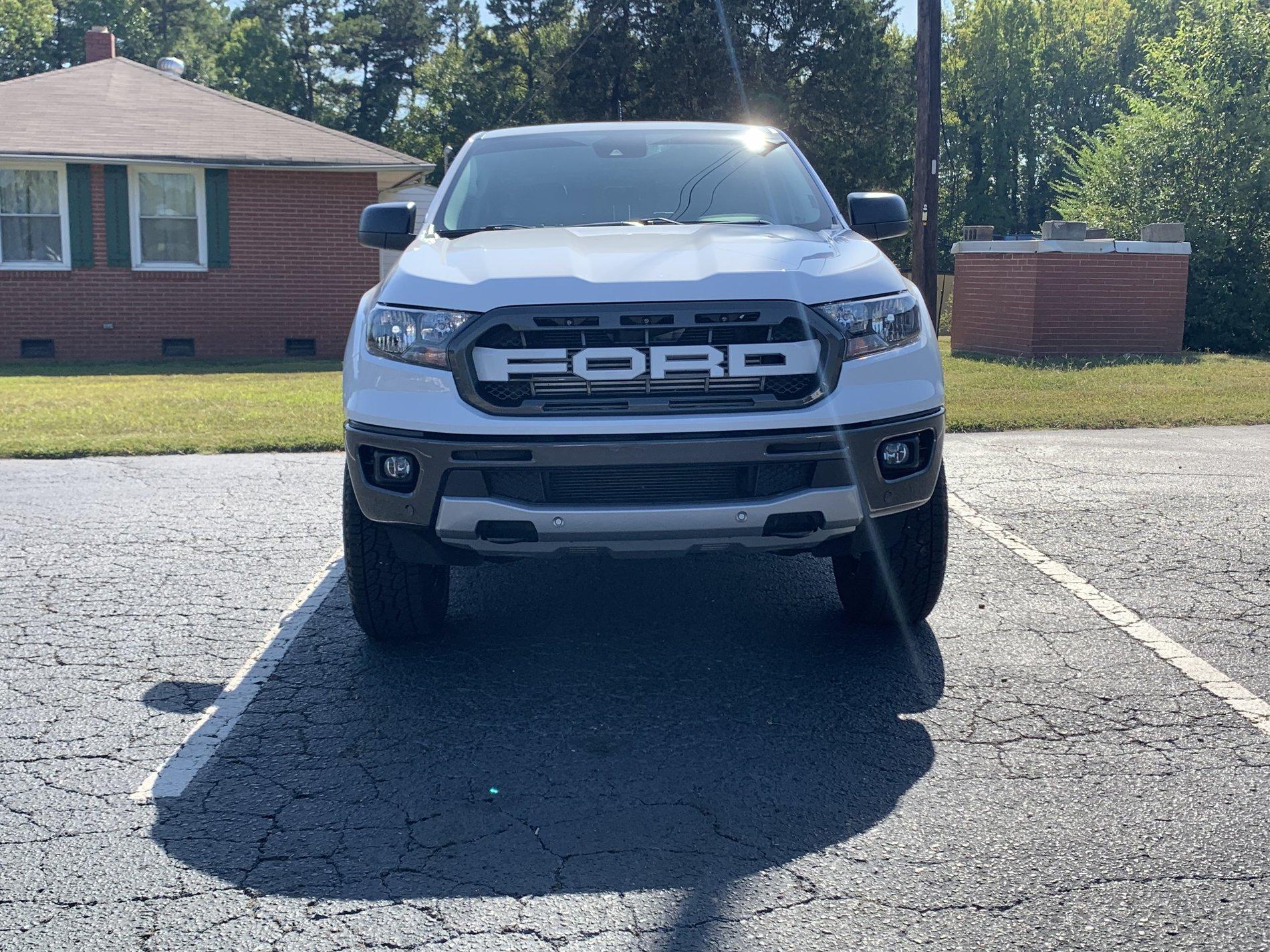

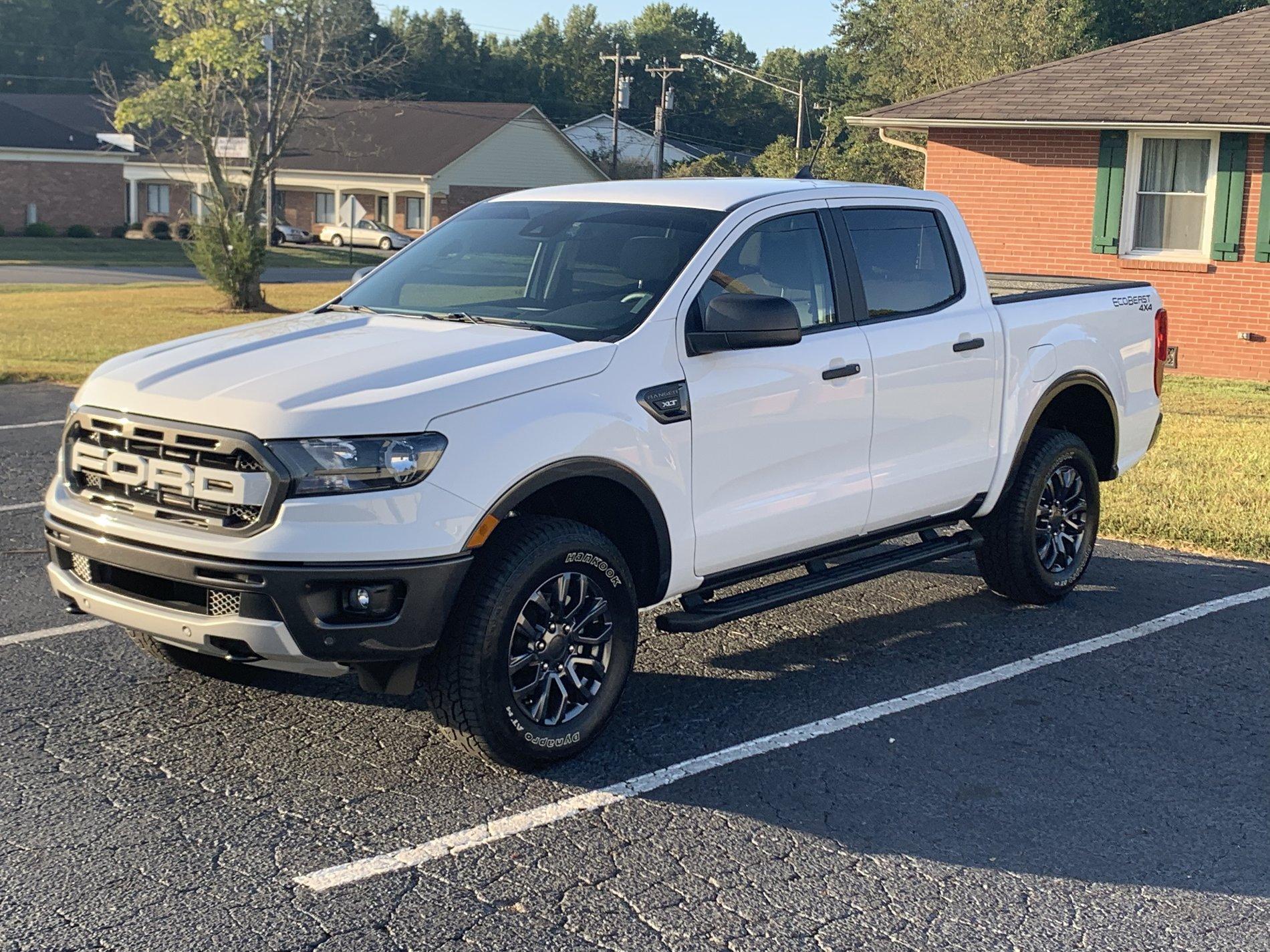

    Here’s some more for everyone. Posted them in a couple other threads. Also added 1.5” spacers in front and rear.













  15. OP
    OP
    SVC Offroad

    Diamond Sponsor


    First Name:
    SVC
    Vehicle(s):
    2019 4 door Lariat 4X4
    Joined:
    Aug 14, 2019
    Location:
    Lake Forest CA.
    Posts:
    65
    Likes Received:
    56
    Nice touch on the wheel spacers! what's next on the mod list?
